Work with Expressions

An expression is a combination of data items and operators that represents a single value.

Topics:

Create Expressions

You can create expressions while configuring properties for tasks and while mapping data for tasks and end events.

  • To create an expression while configuring a task's properties, click Open Expression Editor icon in the relevant field. This enables the expression mode and you can use the inline expression editor which gives auto-complete options for you to create and build your expression. You can use an expression to dynamically determine the task title and assignee.

  • To create an expression while mapping input data in tasks and end events, click Open Expression Editor icon in the Source field. This enables the expression mode and you can use the inline expression editor which gives auto-complete options for you to create and build your expression.

Use the Expression Editor

The expression editor provides a simple way of creating expressions by allowing you to select available data items and operators from a list and insert them into your expression.

  1. As soon as you put the cursor in the expression field, you get a list of suggested data items using which you can build the expression.

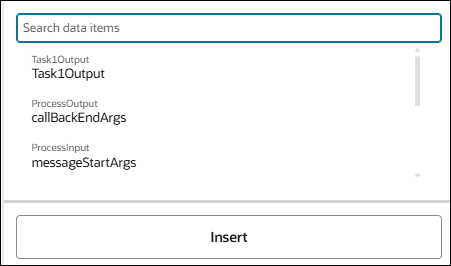

    The image shows a UI pane for selecting and inserting data items. The field at the top has a label "Search data items". A scrollable list of items are present below it. At the bottom, a wide button labeled “Insert” is present.

  2. As you choose the item, related suggestions for the next level are displayed below the field. Suggestions are context sensitive, so options for a Title field may differ from those for an Assignee field.

    When you select a data item, its available child properties are displayed for further selection.

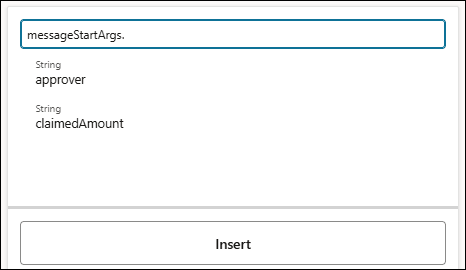

    The image shows an expression editor panel focused on selecting a nested field from a data item. At the top, an input field prefilled with “messageStartArgs.” indicating you’re selecting a property of messageStartArgs.Below, a list of available properties under messageStartArgs - approver (type: String) and claimedAmount (type: String). At the bottom, a large “Insert” button is present to insert the selected property into the expression.

  3. When the expression is complete, select Insert to insert the expression in the task field.

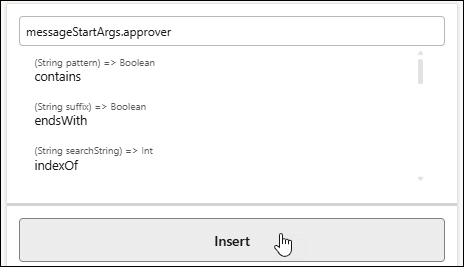

    The image shows an expression editor pane with a selected field and context-aware function suggestions. The input box at the top contains “messageStartArgs.approver,” indicating a selected string field. A scrollable list below suggests applicable string functions with brief signatures and return types.At the bottom is a large “Insert” button, with a cursor hovering over it, to add the chosen expression.

  4. If an expression is invalid, for example, if you type a number in a string field, an error message indicating the details of the error is displayed.


    The Assignee field is outlined in red, and an error message below reads “Cannot assign ‘int’ to ‘String’.” This indicates a type validation error: the field expects a string, but an integer was entered.

Simple Expressions

Simple expressions are defined using a basic expression language and support. Simple expressions perform their calculations based on the data items in your workflow.

Here are some examples of simple expressions using operators:

  • totalAmount - discount

  • activationCount > 3

  • unitsSold <= 1200

Operator Precedence

Operator precedence defines the order in which the compiler evaluates operators. You can change operator precedence in an expression by using parentheses.

  • Addition, Subtraction

  • Multiplication, Division, Remainder

  • Plus, Minus

  • Less than, Greater than, Less than or equal to, Greater than or equal to

  • Equals, Not equals

  • Not

  • Conditional And

  • Conditional Or

Operators and Functions

You can use the following operators and functions while building an expressions.

Unary

Operator Name Description
+ Plus Has no effect on the value of the numeric operand. Use it to explicitly indicate that a certain value is positive.
- Minus Negates an arithmetic expression.
! Not Logical complement operator. Negates the value of a Boolean expression.

Equality and Relational

Operator Name Description
= or == Equal to Returns true if the first operand is equal to the second operand
!= Not equal to Returns true if the first operand isn't equal to the second operand
> Greater than Returns true if the first operand is greater than the second operand
>= Greater than or equal to Returns true if the first operand is greater than or equal to the second operand
< Less than Returns true if the first operand is less than the second operand
<= Less than or equal to Returns true if the first operand is less than or equal to the second operand

Conditional

Operator Name Description
and Conditional And Returns true if both operands evaluate to true
or Conditional Or Returns true if either operand evaluates to true

String

Function/Operator Description Usage Expression Usage Result
+ String concatenation “pine” + “apple” “pineapple”
== Equals “apples” == “apples” true
!= Not equals “apples” != “oranges” true
> Greater than “word” > “work” false
>= Greater than or equals “work” >= “work” true
< Less than “word” < “work” true
<= Less than or equals “work” <= “work” true
contains Returns true if the first argument string contains the second argument string; otherwise returns false “caramel”.contains(“ram”) true
endsWith Returns true if the first argument string ends with the second argument string; otherwise returns false “immutable”.endsWith(“table”) true
length Returns the number of characters in a string “house”.length() 5
lowerCase Returns a string with all the characters in the argument converted to lower-case representation “Example”.lowerCase() “example”
startsWith Returns true if the first argument string starts with the second argument string, otherwise returns false “caramel”.startsWith(“car”) true
substring Returns the substring of the first argument starting at the position specified in the second argument and continuing to the end of the string “care”.substring(2) “are”
substring Returns the substring of the first argument starting at the position specified in the second argument with length specified in the third argument “care”.substring(1,3) “car”
upperCase Returns a string with all the characters in the argument converted to upper-case representation “Example”.upperCase() "EXAMPLE"
replaceAll Replaces each substring of this string that matches the given pattern with the given replacement. "care".replaceAll("e", "t") "cart"
indexOf Returns the index of the first occurrence of the specified substring, or -1 if there is no such occurrence. "care".indexOf("a") 2

Numeric

The following table includes operators for both Integer and Number.

Operator Description Usage Expression Usage Result
+ Addition 2 + 8 10
- Subtraction 7 – 4 3
* Multiplication 3 * 4 12
/ Division 3 / 2 1.5
% Remainder 3 % 2 1
== Equals 12 == 13 false
!= Not equals 12 != 13 true
> Greater than 15 > 16 false
>= Greater than or equals 15 >= 15 true
< Less than 12 < 10 false
<= Less than or equals 12 <= 12 true
abs Returns the absolute value of a number abs(- 6) 6

In addition to the above, the following specific operators are also available for Number.

Operator Description Usage Expression Usage Result
floor Returns the largest (closest to positive infinity) number that isn't greater than the argument and is an integer floor(5.60) 5
ceil Returns the smallest (closest to negative infinity) number that isn't less than the argument and is an integer ceil(5.60) 6
round Returns the number that is closest to the argument and is an integer round(5.60) 6

Date and Time

Date and Time types include Date, Time, and DateTime. All of them have the following operators.

Operator Description
+ Addition (valid only when the second argument is a duration)
- Subtraction (valid only when the second argument is a duration)
== Equals
!= Not equals
> Greater than
>= Greater than or equals
< Less than
<= Less than or equals
format Returns the formatted string of date-time using the provided format picture

In addition, Date, Time, and DateTime have specific operators as listed under each of them.

Date

Operator Description
year Returns a number representing the year component of the date-time argument.
month Returns a number representing the month component of the date-time argument.
day Returns a number representing the day component of the date-time argument.

Time

Operator Description
hours Returns a number between 0 and 23, both inclusive, representing the hours component of the date-time argument
minutes Returns a number between 0 and 59, both inclusive, representing the minutes component of the date-time argument.
seconds Returns a number between 0 and 59, both inclusive, representing the seconds component of the date-time argument.

DateTime

Operator Description
year Returns a number representing the year component of the date-time argument.
month Returns a number representing the month component of the date-time argument.
day Returns a number representing the day component of the date-time argument.
hours Returns a number between 0 and 23, both inclusive, representing the hours component of the date-time argument.
minutes Returns a number between 0 and 59, both inclusive, representing the minutes component of the date-time argument.
seconds Returns a number between 0 and 59, both inclusive, representing the seconds component of the date-time argument.
timezone Returns an interval value, representing the time offset from UTC.
toTimezone

Returns the date-time expressed in the time offset corresponding to the timezone ID provided.

You have the following options for specifying a timezone ID:

  • Provide a fixed offset from UTC/Greenwich, such as "-07:00".

    For example:

    • dateTimeDO.toTimezone("-07:00") returns 2002-11-30T17:20:00-07:00 when dateTimeDO is 2002-12-01T01:20:00+01:00

  • Specify a geographical region, which is an area where a specific set of rules for finding the offset from UTC/Greenwich apply. A geographical region is usually represented in the format "{area}/{city}", such as "Europe/Amsterdam" or "America/New_York".

    For example:

    • dateTimeDO.toTimezone("America/Los_Angeles") returns 2002-11-30T16:20:00-08:00 when dateTimeDO is 2002-12-01T01:20:00+01:00

Note:

You must include double quotation marks around the timezone ID value.

For more information about timezone IDs, see Class ZoneId in the Java Platform documentation.

Boolean

Operator Description Usage Expression Usage Result
== Equals true == true true
!= Not Equals true != false true
and Conditional — And true and false false
or Conditional — Or true or false true
not Logical complement operator, inverts the value of a Boolean expression. not true false

Duration

Operator Description
== Equals
!= Not equals
> Greater than
>= Greater than or equals
< Less than
<= Less than or equals

Create a Dynamic Task Title Using an Expression

The following example shows how to dynamically generate a task title by using an expression. The expression is built by combining a static string with a value coming from the message start payload when the workflow starts.

  1. Open a workflow.
  2. Select the Task element in the workflow.
  3. Open the Edit task pane using either of the following options:
    • Select the task and click Switch view icon on the side of the canvas.
    • Select the task, click Actions Actions icon and then select Configure.

    The Edit task pane appears.

  4. In the Define task section, select the Task title visible to assignee field.
  5. Enter a string within quotation marks. For example, "VISA Request: ".

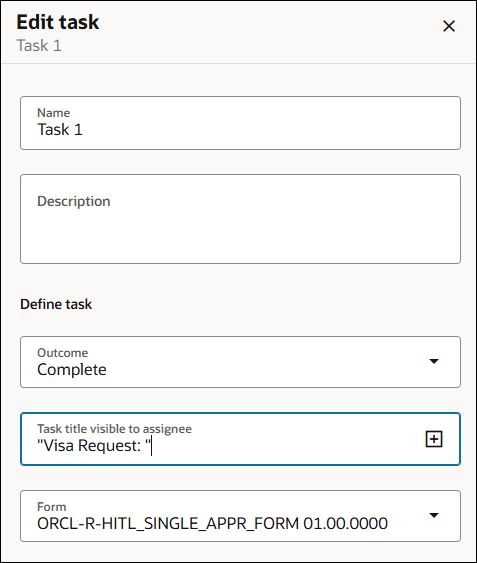

    A screenshot of an Edit task dialog. It shows fields for Name (“Task 1”), Description (empty), and a “Define task” section with Outcome set to “Complete.” Below, a field labeled “Task title visible to assignee” contains the text “Visa Request:”. At the bottom, a dropdown labeled “Form” displays “ORCL-R-HITL_SINGLE_APPR_FORM 01.00.0000.”

    The static string VISA Request: will appear as is in the task title in runtime.

  6. Position your cursor immediately after the closing quotation mark and enter a plus sign +.
    This is the concatenation operator that will join the static string with the dynamic expression that we'll create in the next steps.
  7. Position your cursor after + and then select Open Expression Editor icon to open the expression editor.

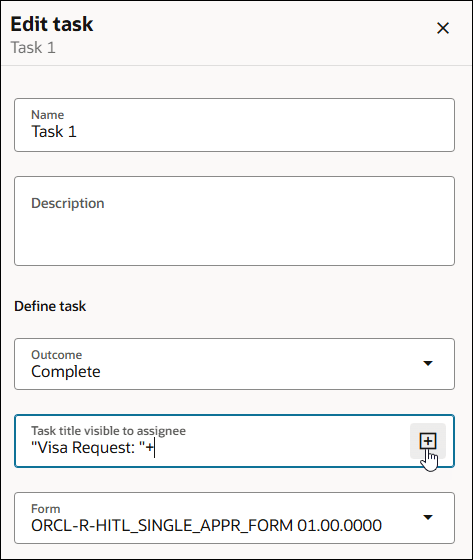

    A screenshot of an Edit task dialog labeled “Task 1.” It includes fields for Name (“Task 1”), Description (empty), and a “Define task” section with Outcome set to “Complete.” The “Task title visible to assignee” field contains the text “Visa Request:” with a cursor at the end, and a plus (+) icon button to the right being clicked. At the bottom, a dropdown labeled “Form” shows “ORCL-R-HITL_SINGLE_APPR_FORM 01.00.0000.”

  8. As soon as you put the cursor in the expression field of the expression editor, you get a list of suggested data items.

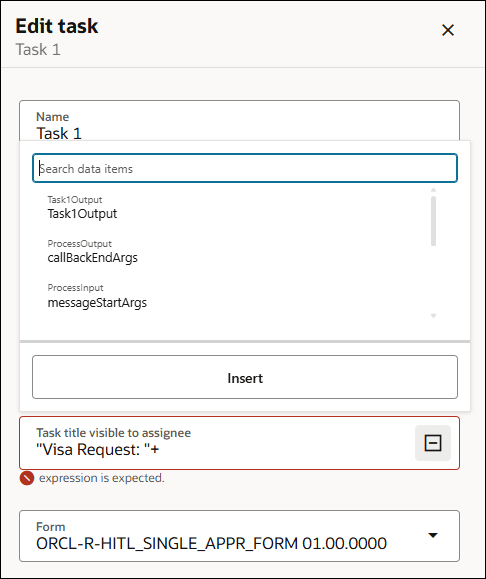

    A screenshot of an Edit task dialog labeled “Task 1.” A data item selection panel is open beneath the Name field, showing a search bar labeled “Search data items” and a list including “Task1Output,” “callBackEndArgs,” and “messageStartArgs,” with an “Insert” button below. The “Task title visible to assignee” field contains “Visa Request: +” and is highlighted with a red border, displaying an error message below that reads “expression is expected.” A Form dropdown at the bottom shows “ORCL-R-HITL_SINGLE_APPR_FORM 01.00.0000.”

  9. Select a data item. For example, messageStartArgs.

    Related suggestions for the next level are displayed below the expression field.

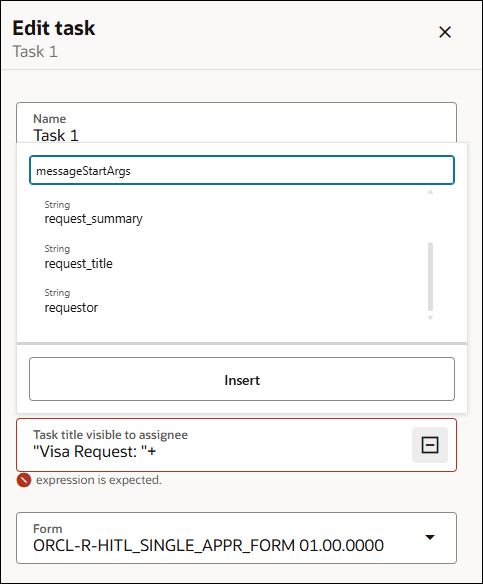

    A screenshot of an Edit task dialog labeled “Task 1.” A data item selection panel is open with “messageStartArgs” entered in the search field, showing results including “request_summary,” “request_title,” and “requestor,” all labeled as strings. Below is an “Insert” button. The “Task title visible to assignee” field contains “Visa Request: +” and is outlined in red with an error message stating “expression is expected.” A Form dropdown at the bottom displays “ORCL-R-HITL_SINGLE_APPR_FORM 01.00.0000.”

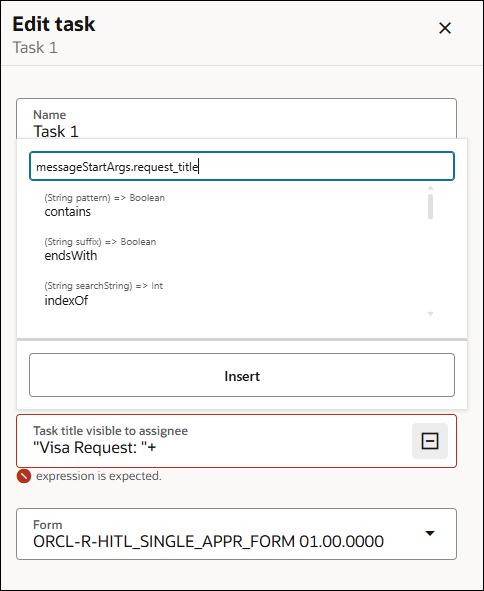

  10. Select a data item from the list of suggestions. For example, request_title.

    A screenshot of an Edit task dialog labeled “Task 1.” A data item selection panel is open with “messageStartArgs.request_title” entered in the search field, showing function suggestions like “contains,” “endsWith,” and “indexOf.” Below is an “Insert” button. The “Task title visible to assignee” field contains “Visa Request: +” and is highlighted in red with an error message reading “expression is expected.” A Form dropdown at the bottom shows “ORCL-R-HITL_SINGLE_APPR_FORM 01.00.0000.”

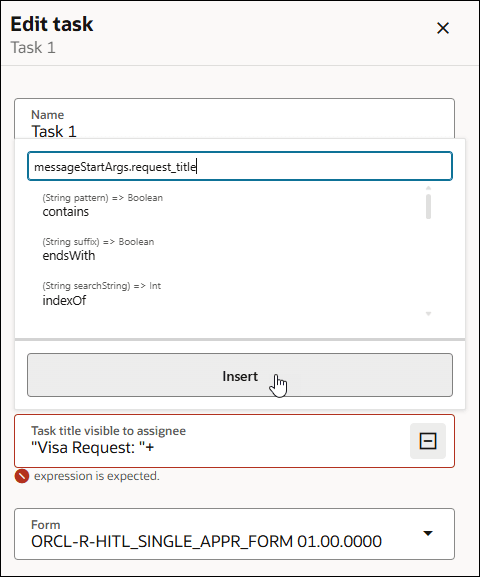

  11. Click Insert.

    This image

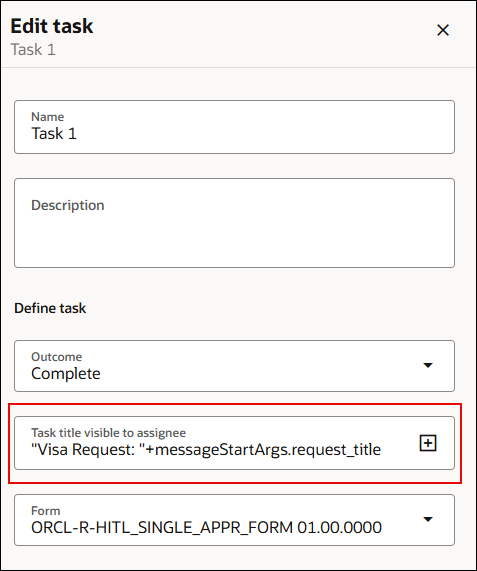

  12. The expression messageStartArgs.Request_Title is added after the operator + in the Task title visible to assignee field.


    A screenshot of an Edit task dialog labeled “Task 1.” It shows fields for Name (“Task 1”), Description (empty), and a “Define task” section with Outcome set to “Complete.” The “Task title visible to assignee” field contains the expression “Visa Request: " + messageStartArgs.request_title” and is highlighted with a red border. A plus (+) icon button appears to the right of the field. At the bottom, a Form dropdown displays “ORCL-R-HITL_SINGLE_APPR_FORM 01.00.0000.”

    In the expression "VISA Request: " + messageStartArgs.request_title:

    • "VISA Request: " is a literal text prefix that will always appear as is in the task title in runtime.
    • + is a string concatenation operator that joins two strings together.
    • messageStartArgs.request_title is a variable populated from the message start argument, that is, the data passed into the workflow when it was started via a message. request_title is a field in that incoming payload.
  13. Close the Edit task pane to save the changes.

In runtime, a dynamic task title will be generated by combining the static string with a value coming from the message start payload when the workflow starts. For example: if messageStartArgs.request_title = "Business travel to US", the task assignee will see VISA Request: Business travel to US as the task title in runtime.
