Visualization Configuration Analytics Subtask Type in Journeys

We have enhanced the Analytics task type by adding a new Visualization Configuration subtask type. This subtask allows users to view Oracle Transactional Business Intelligence (OTBI) analysis with supported parameters directly in a journey task using the Redwood theme.

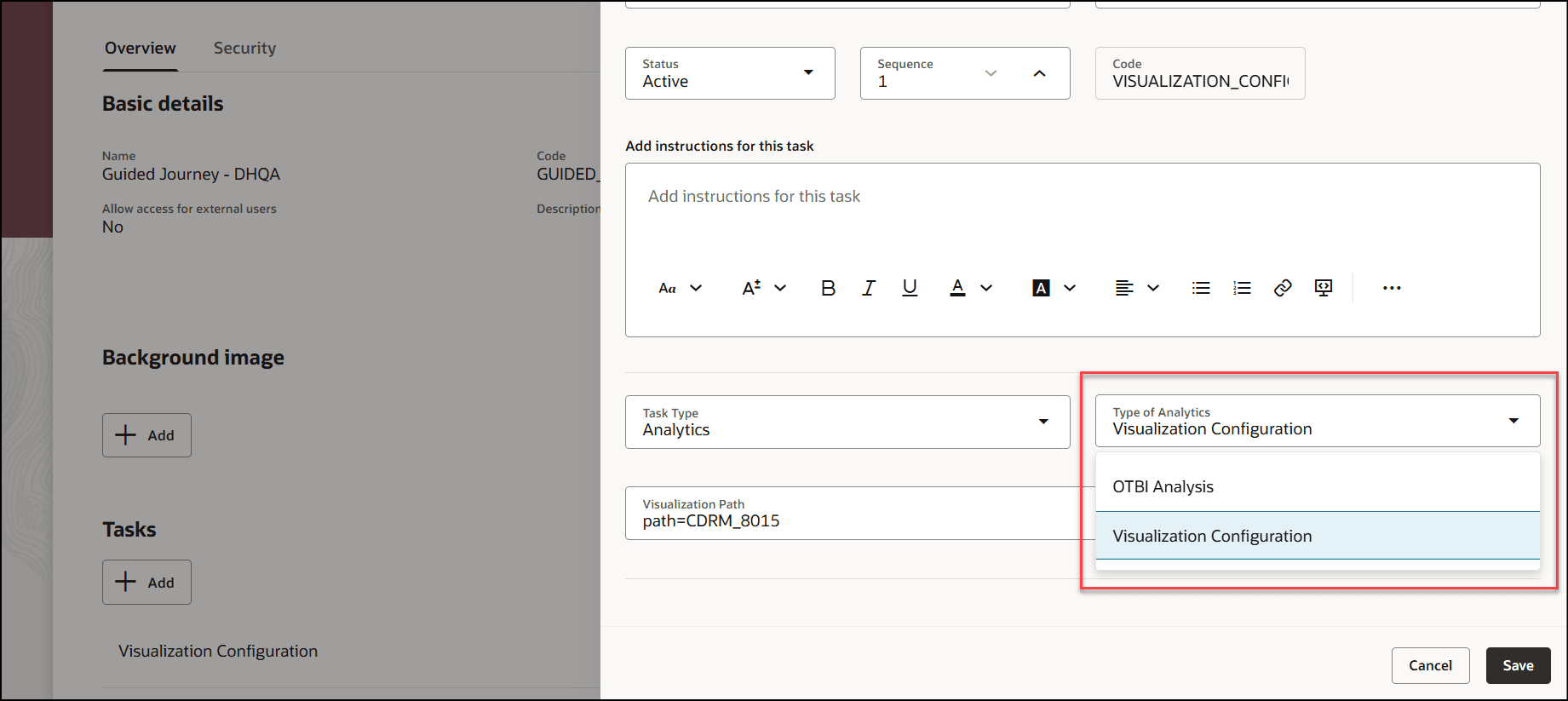

Visualization Configuration Analytics Type

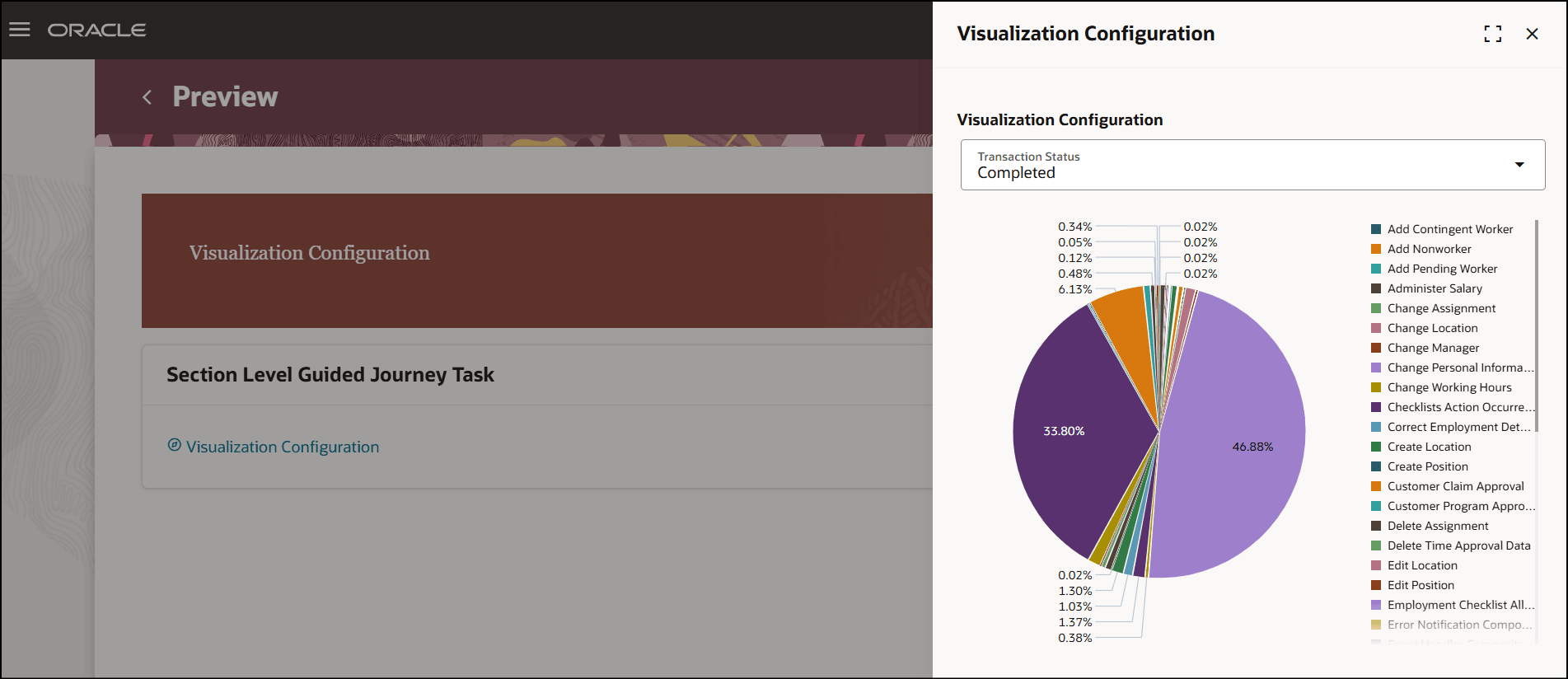

Preview of Visualization Configuration in Guided Journey

Preview of Visualization Configuration in a Guided Journey Task

Review and analyze analytics readily by viewing the OTBI analysis directly within a journey task in Redwood theme.

Steps to Enable

To create the visualization configuration and associate it with the Analytics task, refer to this topic: How do I set up the visualization configuration for an analytics task in journeys?

Key Resources

For more information, refer these resources:

Implementing and Using Journeys guide on Oracle Help Center.
Flexible Reporting in Redwood Dashboards feature in the 25C HCM Common What's New.

Access Requirements

You must be granted the Manage Journey (ORA_PER_MANAGE_JOURNEY_TEMPLATE) aggregate privilege to work on journey templates.
You must be granted these privileges for Visualization Configurator:
- To view the dashboard: ZCA_VIEW_DATA_VISUALIZATION_CONFIGURATION_PRIV
- To configure the dashboard: ZCA_MANAGE_DATA_VISUALIZATION_CONFIGURATION_PRIV
- To edit and save KPIs and visualizations: HRC_MANAGE_SYSTEM_SEARCHES_PRIV
