Overview of the Architecture

You can use these suggested architectures to guide you through the design and implementation of your healthcare integrations with Oracle Health.

Use Cases

This reference architecture supports these data flows:

• Item master setup – ERP Master Organization and ERP Inventory Organization sync with Oracle Health.
• Item replacement and substitute setup.
• Item location setup.
• Item cost setup.
• On-hand synchronization between Oracle Health usage and Oracle Fusion Cloud Inventory Management.
• Bill-only item requisition creation in Oracle Fusion Cloud Procurement.

Required Applications

Ensure you've got access to these applications.

• Oracle Fusion Cloud Supply Chain & Manufacturing (SCM), Release 24D or later.
• Oracle Integration for Healthcare, Release Version 25.10.0.0 or higher.
• Oracle Health EHR, Release 2025.3 or later.

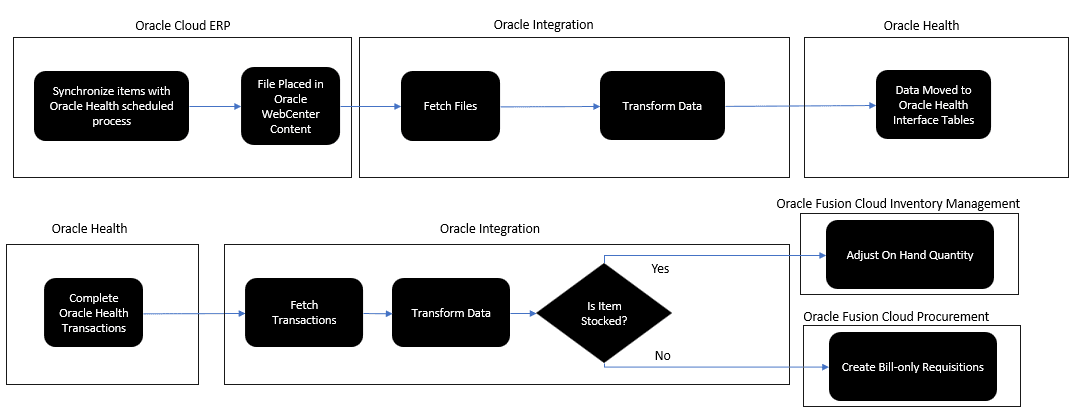

Process Overview

Details of these data flows are described in these topics:

• Generate a Full Publish Using an Existing Oracle Health Spoke System
• Synchronize Items with Oracle Health for Ongoing Requirements
• Schedule the Job for Integration
• Oracle Integration and Oracle Health EHR Resources

Before You Begin

Ensure that you've completed these tasks before doing an integration.

• Opt in to the Synchronize Items, Item Usage, and Bill-only Requisitions Between Oracle Cloud ERP and Oracle Health feature. For more information, see Oracle Fusion Cloud Product Lifecycle Management 26A What's New.
• Set up Transaction account builder rules. The integration uses these to create default distributions and default charge accounts for a requisition. For more information, see Implementing Procurement > Define Transaction Account Rules.
• Set up the integrator with the appropriate security to access and publish items, create requisitions, and update on-hand quantities. For more information, see Assign Required Roles to an Integration User.
• Install the Oracle Integration Cloud (OIC) accelerator Oracle Fusion Cloud SCM — Oracle Health EHR | Sync Items. For more information, see Sync Items From Oracle Fusion Cloud SCM to Oracle Health EHR.
• Ensure that you've completed the REST API setup in Oracle Health. You do this in the Oracle Health Wiki.

  All Oracle Health customers should have access to this Wiki. If you don't, you can use the Register Now link.
