4 Configuring CNC Console IAM

Note:

Not applicable for OCI deployment.

This section provides details on how to configure CNC Console IAM.

Restricted Actions on CNC Console IAM

You can only perform those actions that are listed in the Oracle Communications Cloud Native Configuration Console User Guide using CNC Console IAM. The following error message appears if you try to perform a restricted action:

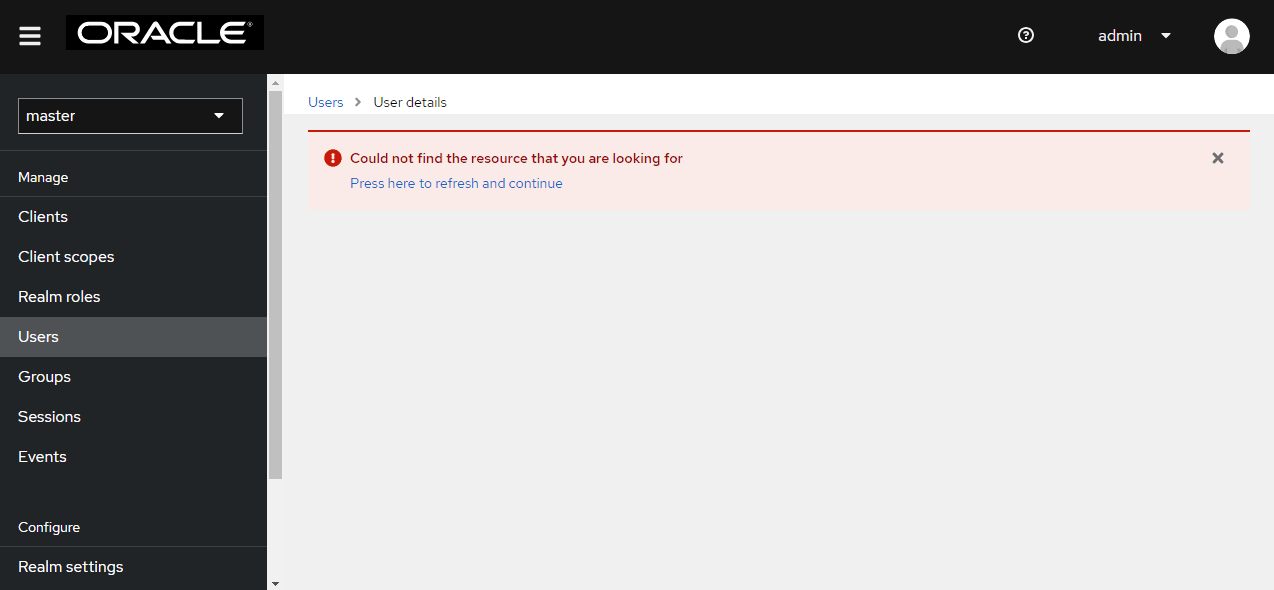

Figure 4-1 Restricted Actions Error Message

Click the Press here to refresh and continue link to reload CNC Console IAM.

4.1 Role Based Acess Control in CNC Console IAM

Role-Based Access Control (RBAC) is one of the main methods for advanced access control.

It enables you to restrict network access to authorized users based on their assigned roles.

Role

A Role is a collection of permissions that you can apply to users. Roles are defined according to the authority and responsibility of the users within the organization. Using roles makes it easier to add, remove, and update permissions to the users.

Composite Role

A Composite Role is a collection of one or more additional roles grouped together.

4.1.1 Types of Roles in CNC Console

Role Based Access Control (RBAC) is controlled by Identity and Access Management (IAM) functionality provided by CNC Console IAM.

The following roles are predefined in the CNC Console IAM:

• ADMIN Level

  Role: ADMIN

  The user assigned with this role can access all the NF and CS resources within the CNC Console. The admin user can perform create, read, update, and delete operations. For example, the admin user can read, add, update, or delete MOS configurations for any NF and CS supported CNC Console application. The admin user can also be assigned to the Composite roles which contain all NF and CS level roles.

  Note:

  CNC Console IAM is managed by an admin who is the single user. You can't have more than one admin user per IAM instance.
• NF Level
  The user assigned with this role can perform read and write operations for the assigned NFs. NF level roles are classified into:

  • <NF>_READ: With this permission, the assigned user can perform the read operation for NFs.

    For example, If user has POLICY_READ role, then the user can only read configurations of any MOs configurations within the Policy and cannot write or update or delete any record.

  • <NF>_WRITE: With this permission, the assigned user can perform create, read, update, and delete operations for NFs. For example, if user has POLICY_WRITE then the user can read or write or update or delete any MOs configurations within the NF.
• CS Level

  Role: CS_WRITE

  The user assigned with this role has access to all the common services and can perform create, read, update, and delete (CRUD) operations.

  The user can read, add, update, or delete MOS configurations for all common services such as Grafana, Kibana, Jaeger, Prometheus, Alertmanager, Promxy, OpenSearch, and Jaeger-ES supported by CNC Console application. For example, if user has CS_WRITE then, the user can read or write or update or delete any MOS configurations in common services.

4.1.2 Accessing Roles in CNC Console Applications

1. Log into CNC Console IAM using Admin credentials and select the CNCC Realm. The following screen appears:

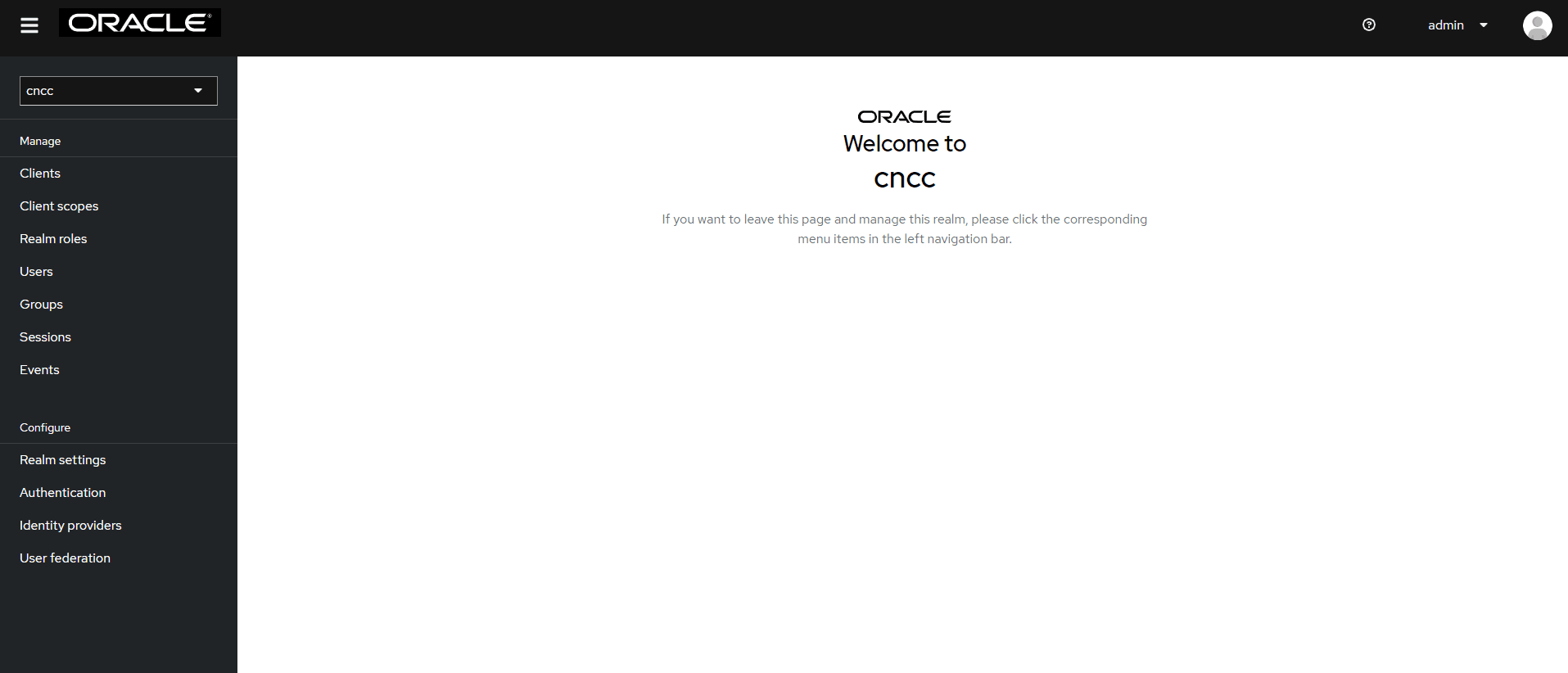

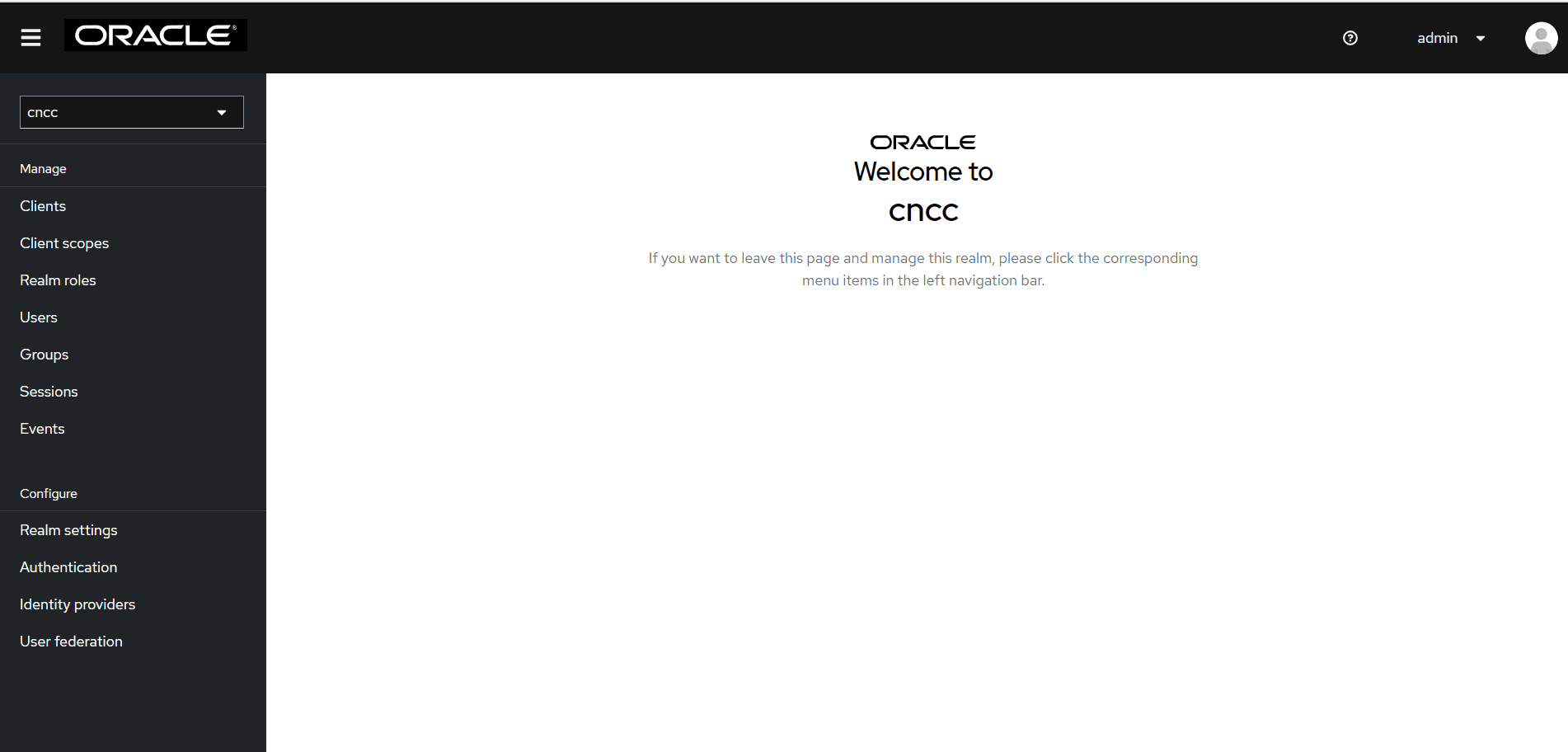

   Figure 4-2 Realm Settings








2. To access or view the available roles, click Realm Roles on the left pane. The defined roles are available on the right pane.

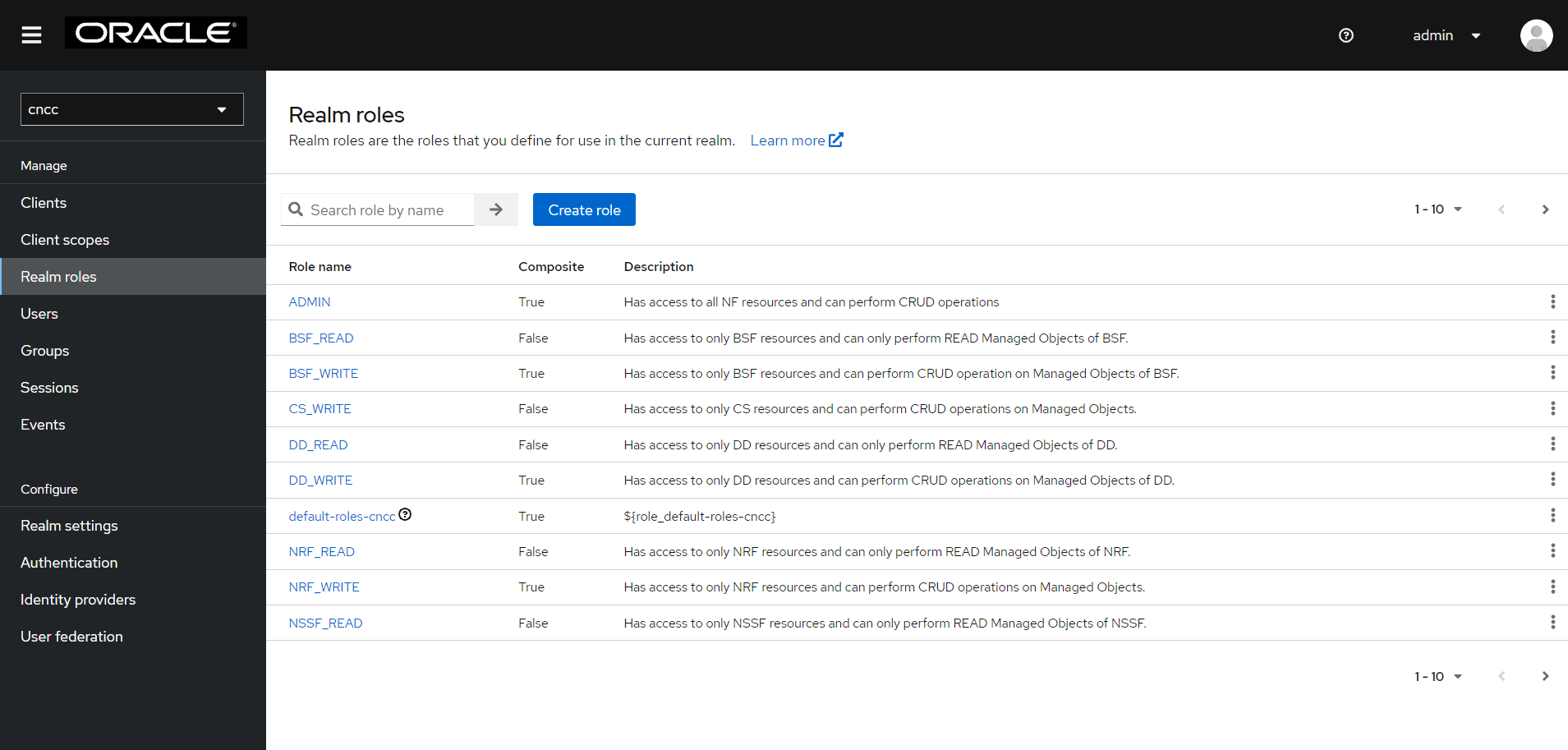

   Figure 4-3 Realm Roles









Note:

For information on multicluster roles, see CNC Console Multicluster Deployment Roles under CNC Console IAM Post Installation Steps section in Oracle Communication Cloud Native Configuration Console Installation and Upgrade Guide.

4.1.3 Updating Admin Password in CNC Console IAM

This section describes how to updae the admin password in CNC Console IAM.

CNC Console provides support to change the CNC Console IAM password. To update password:

1. Login to CNC Console IAM and click admin.

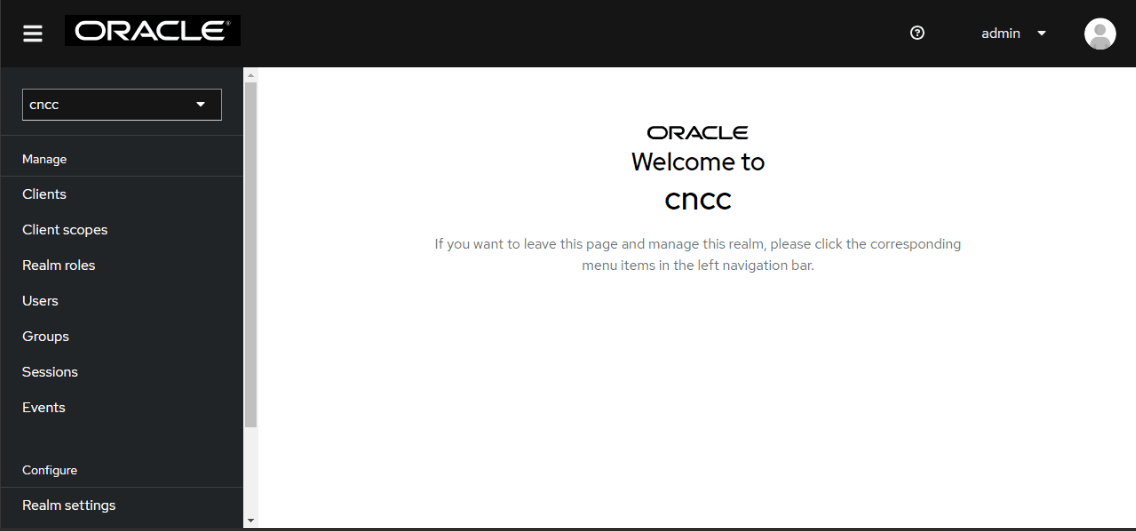

   Figure 4-4 Log in to CNC Console IAM








2. Click Manage account from the admin list.

   Figure 4-5 Manage Account








3. Click the Account security card.

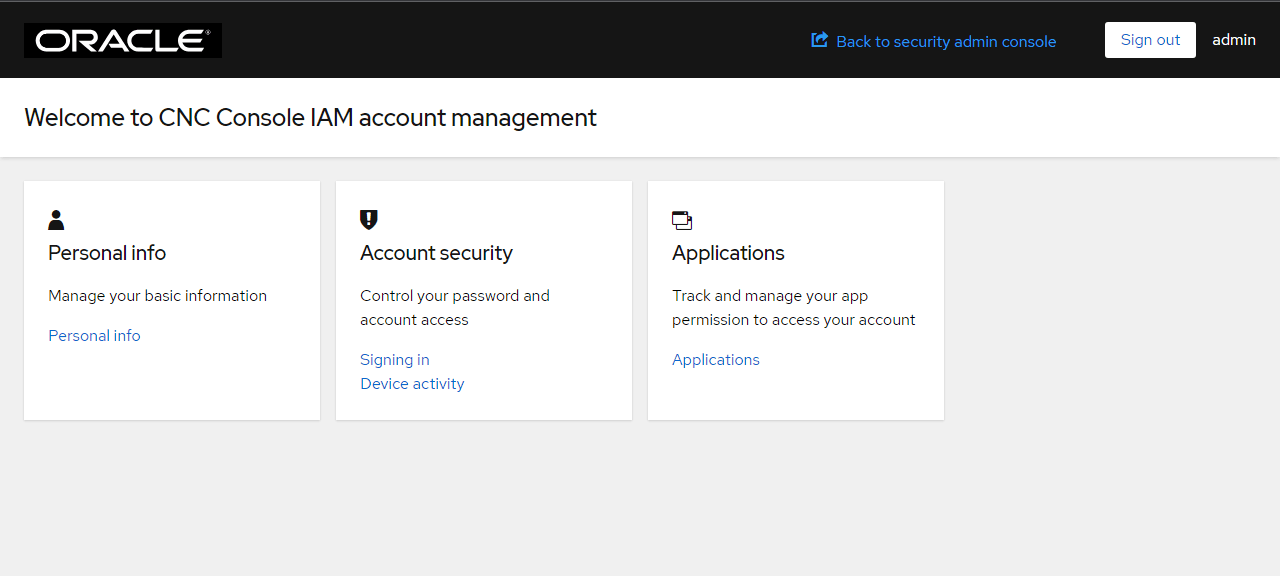

   Figure 4-6 Account Security








4. Click Update.

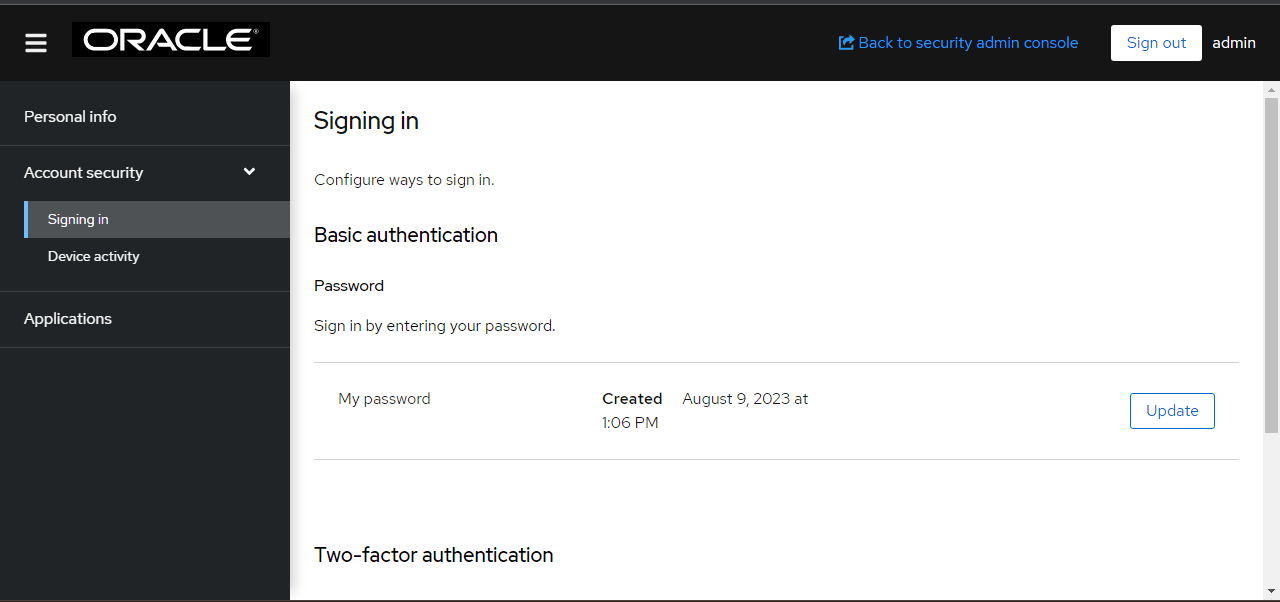

   Figure 4-7 Update Password








5. Update your password on the update password screen, and click Submit.

   Figure 4-8 Update Password Screen









4.1.4 Creating or Updating User Password in CNC Console IAM

This section describes how to create or update the user password in CNC Console IAM.

Perform the following steps to create or update the user password:

1. Select the cncc Realm

   Figure 4-9 Realm Settings








2. Click Users on the left pane to view all users.

   Figure 4-10 Users








3. Click the Username of the user to update the credentials.
4. Under the Credentials tab, click Set Password, set Temporary to OFF, and update the Password.

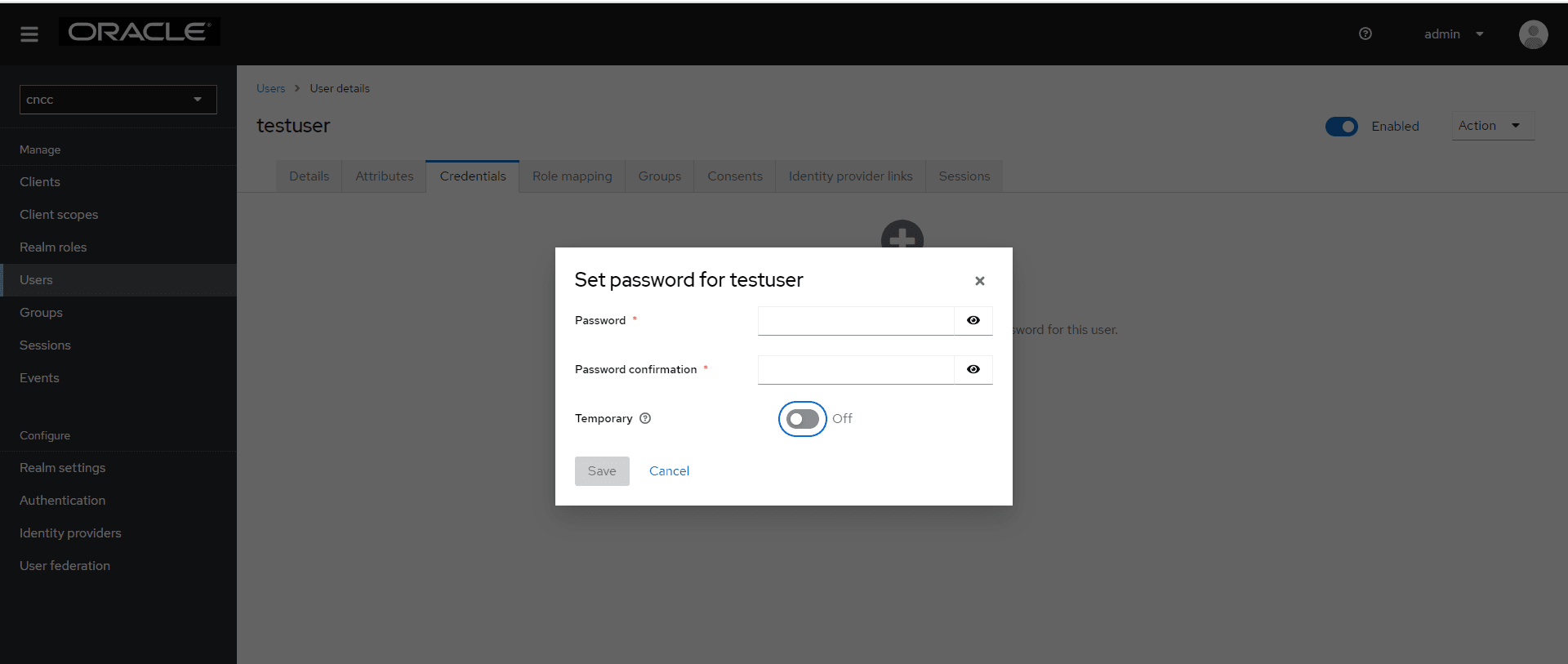

   Figure 4-11 Credentials









4.1.5 Password Policies for CNC Console Users

The following password policies have been enabled for all CNC Comsole users:

Policy	Description	Value
Expire Password	The number of days the password is valid before a new password is required.	30
Special Characters	The minimum number of special characters required in the password string.	1
Uppercase Characters	The minimum number of uppercase characters required in the password string.	1
Lowercase Characters	The minimum number of lowercase characters required in the password string.	1
Digits	The minimum number of numerical digits required in the password string.	1
Not Recently Used	Prevents a recently used password from being reused.	5
Not Username	The password cannot match the username.	ON

4.2 Configuring the CNC Console Redirection URL

After successfully deploying CNC Console IAM, the administrator must perform the following steps to configure the CNC Console redirection URL:

1. Log into CNC Console IAM using admin credentials provided during installation.
2. On the left pane, select Clients and on the right pane select the cncc Client ID.

   Figure 4-12 Clients Screen








3. Enter CNC Console Core Ingress URI in the Root URL field and Save.

   <scheme>://<cncc-mcore-ingress IP/FQDN>:<cncc-core-ingress Port>


   Note:

   Valid Redirect URIs is prepopulated, only root URL needs to be configured as part of the post installation procedure.

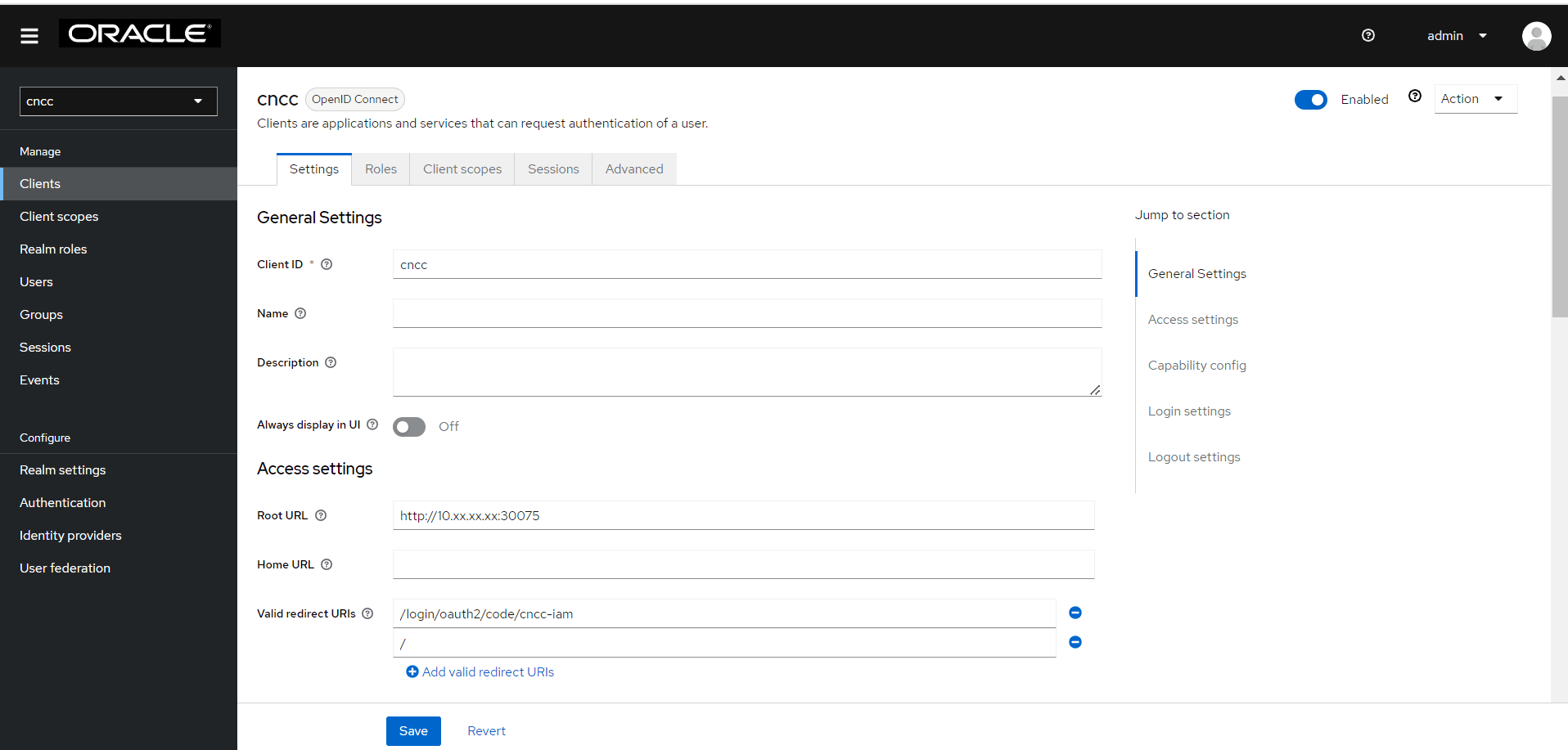

   Figure 4-13 Redirection URL









4.3 Users in CNC Console IAM

This section includes:

• Creating the users
• Viewing the Users
• Assigning the roles to the users

Note:

For the details on setting or updating the admin password, see Updating Admin Password in CNC Console IAM.

Note:

For the details about setting or updating the user password, see Creating or Updating User Password in CNC Console IAM.

4.3.1 Creating the Users

Perform the following procedure to create users:

1. Select the cncc Realm.

   Figure 4-14 CNCC Realm








2. Click Users under Manage on the left pane and click Add user on the right pane.

   Figure 4-15 Add User

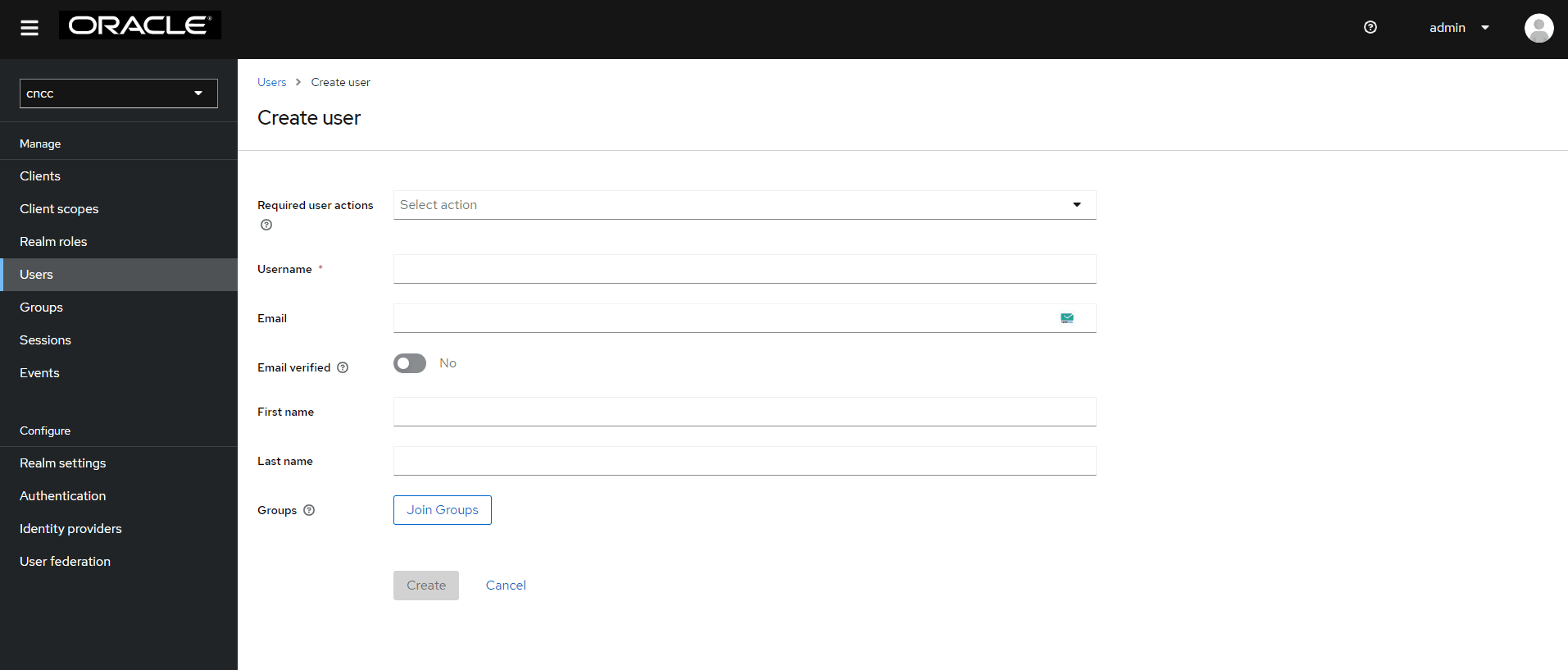

3. The Add user screen appears. Add the user details and click Create.

   Figure 4-16 User Details








4. The user has been created and the user details screen appears.

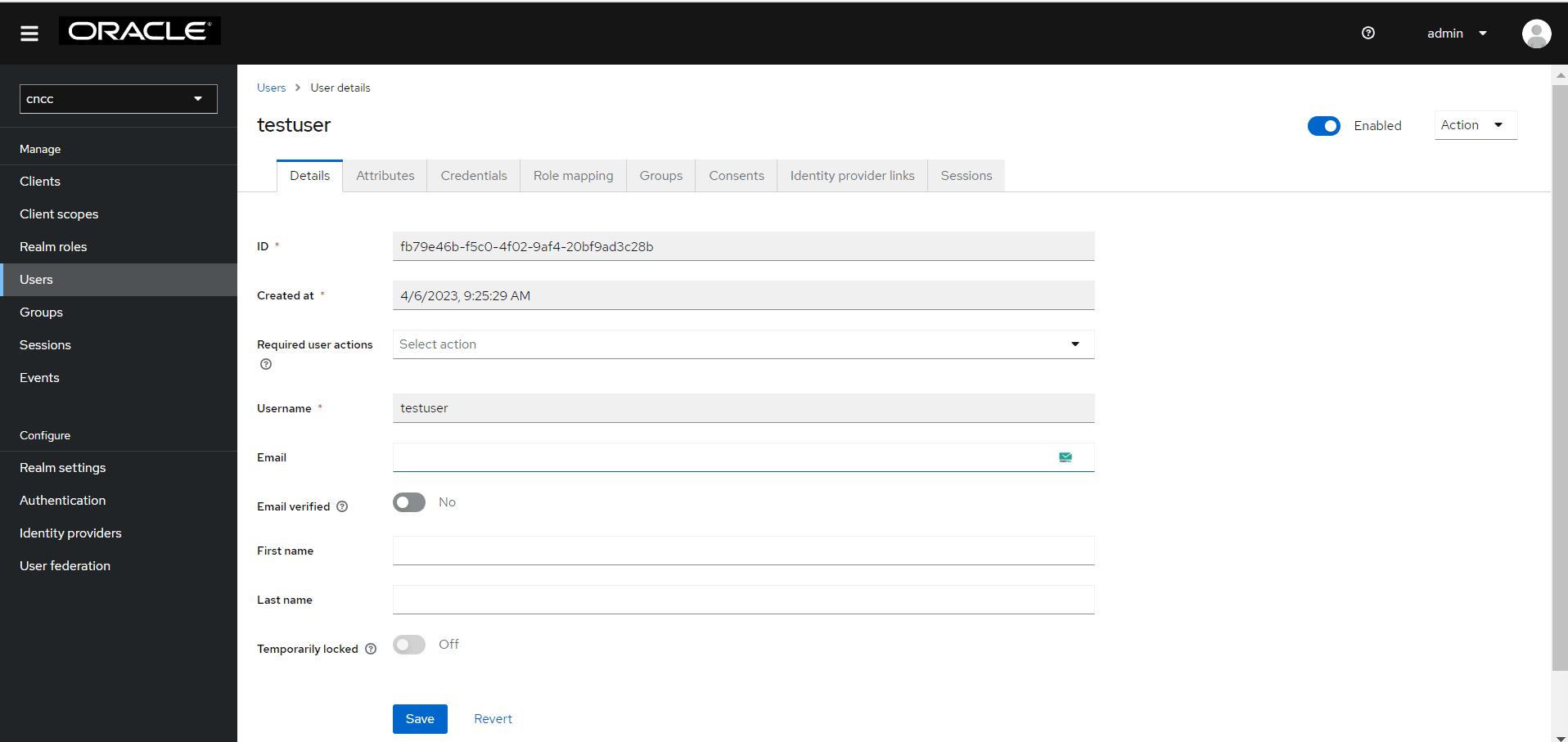

   Figure 4-17 New User Created









5. Go to the Credentials tab and click Set Password to set the password for that user. Enable the Temporary flag to prompt the user to change their password when they login for the first time to CNC Console GUI.

   Note:

   You are recommended to enable the Temporary flag for security.

   Figure 4-18 Set Password









Note:

Setting the Temporary flag ON prompts the user change the password when logging in to the CNC Console for the first time.

4.3.2 Viewing the Users

Perform the following procedure to view users:

1. Select the CNCC Realm.

   Figure 4-19 CNCC Realm








2. Select Users under Manage from the left pane to view all users.

   Figure 4-20 View All Users









The list of users and their details appears in the right pane.

4.3.3 Assigning Roles to the User

Perform the following procedure to assign roles to the user:

1. Select a user. Navigate to the Role Mappings tab and click Assign Role to assign the user role.

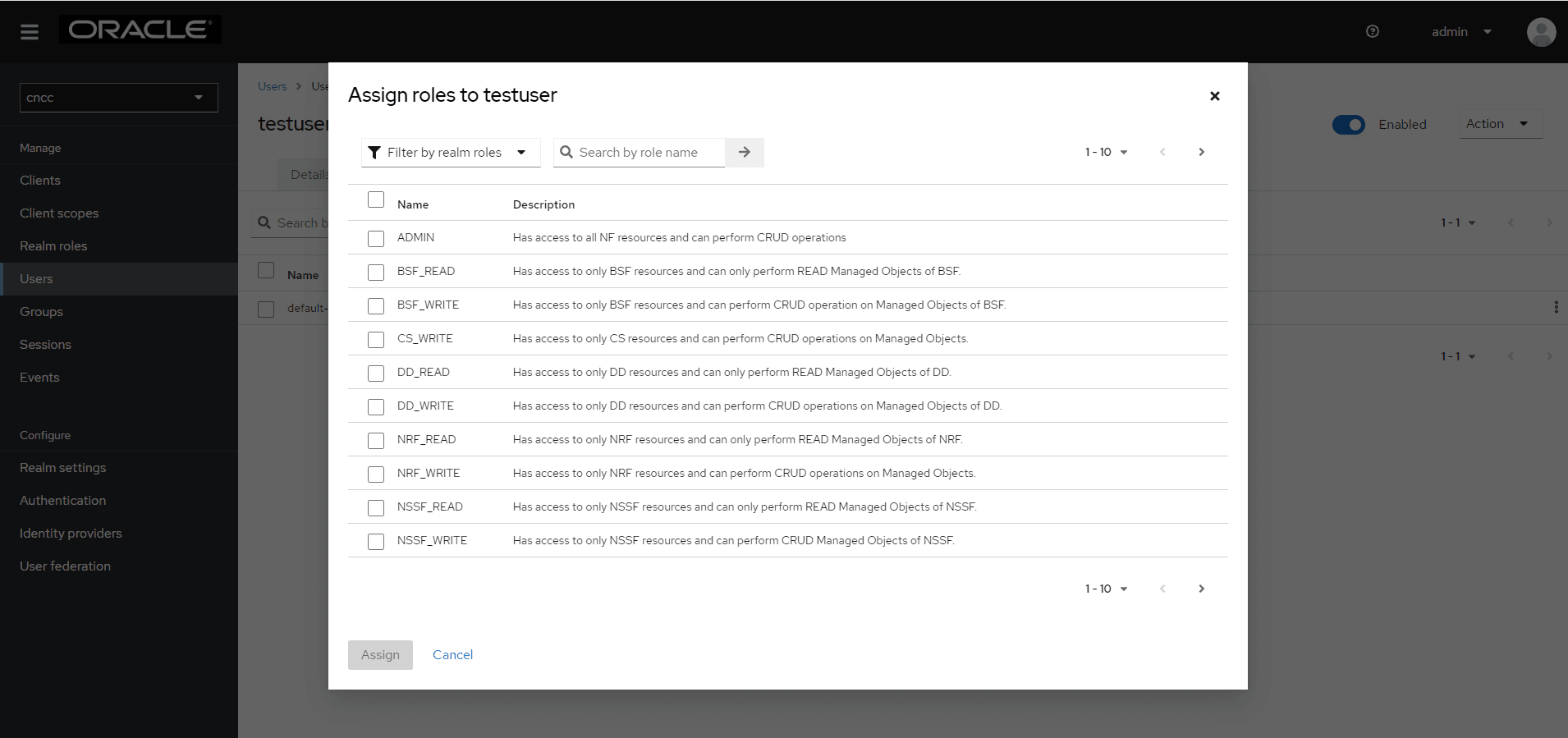

   Figure 4-21 Assign Roles









   Note:

   You must change number of entries displayed per page from the pagination drop-down to 100 per page to view all the entries.

   Figure 4-22 Display 100 Entries per Page








2. The selected roles will be assigned to the user.

4.4 CNC Console SAML SSO Integration

4.4.1 Integrating SAML SSO with CNC Console IAM

Overview

Security Assertion Markup Language (SAML) is an open standard that allows identity providers (IdP) to pass authorization credentials to service providers (SP). The identity provider authenticates the user and returns the assertion information about the authenticated user and the authentication event to the application. Using SSO, if the user tries to access any other application that uses the same identity provider for user authentication, the userdoes not need to login again. This is the principle of SSO (Single Sign On).

Note:

CNC Console supports SAML 2.0.

Configuring SAML Identity Provider in CNC Console IAM

Perform the following procedure to configure SAML identity provider

1. Log in to CNC Console IAM Console using admin credentials provided during CNC Console IAM installation.

   http://<cncc-iam-ingress-extrenal-ip>:<cncc-iam-ingress-service-port>
   Example: http://cncc-iam-ingress-gateway.cncc.svc.cluster.local:30085/

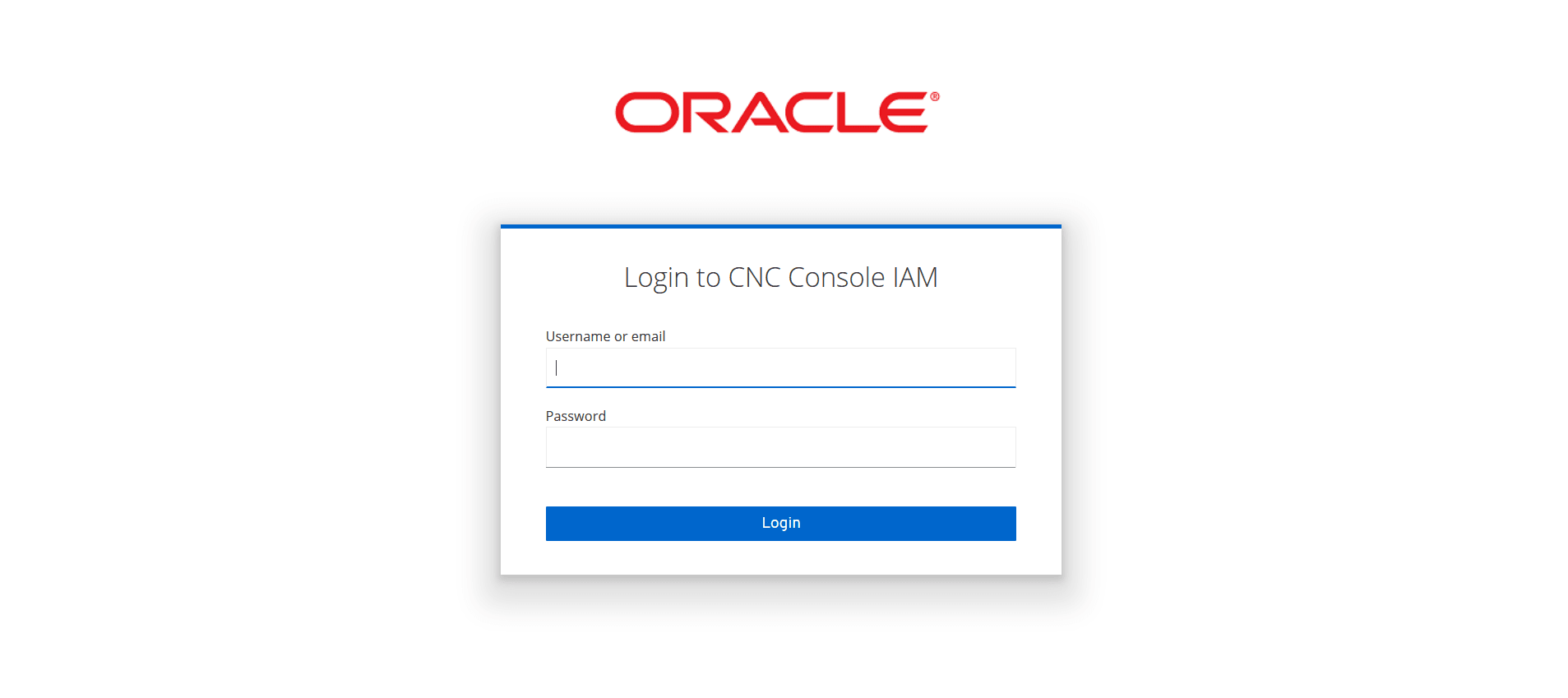

   Figure 4-23 Login screen



2. Click the cncc realm and click Identity providers tab on the left pane. Identity providers screen appears on the right pane.

   Figure 4-24 Identity Provider Screen








3. Click the SAML v2.0 button under User-defined. The Add SAML Provider screen appears.

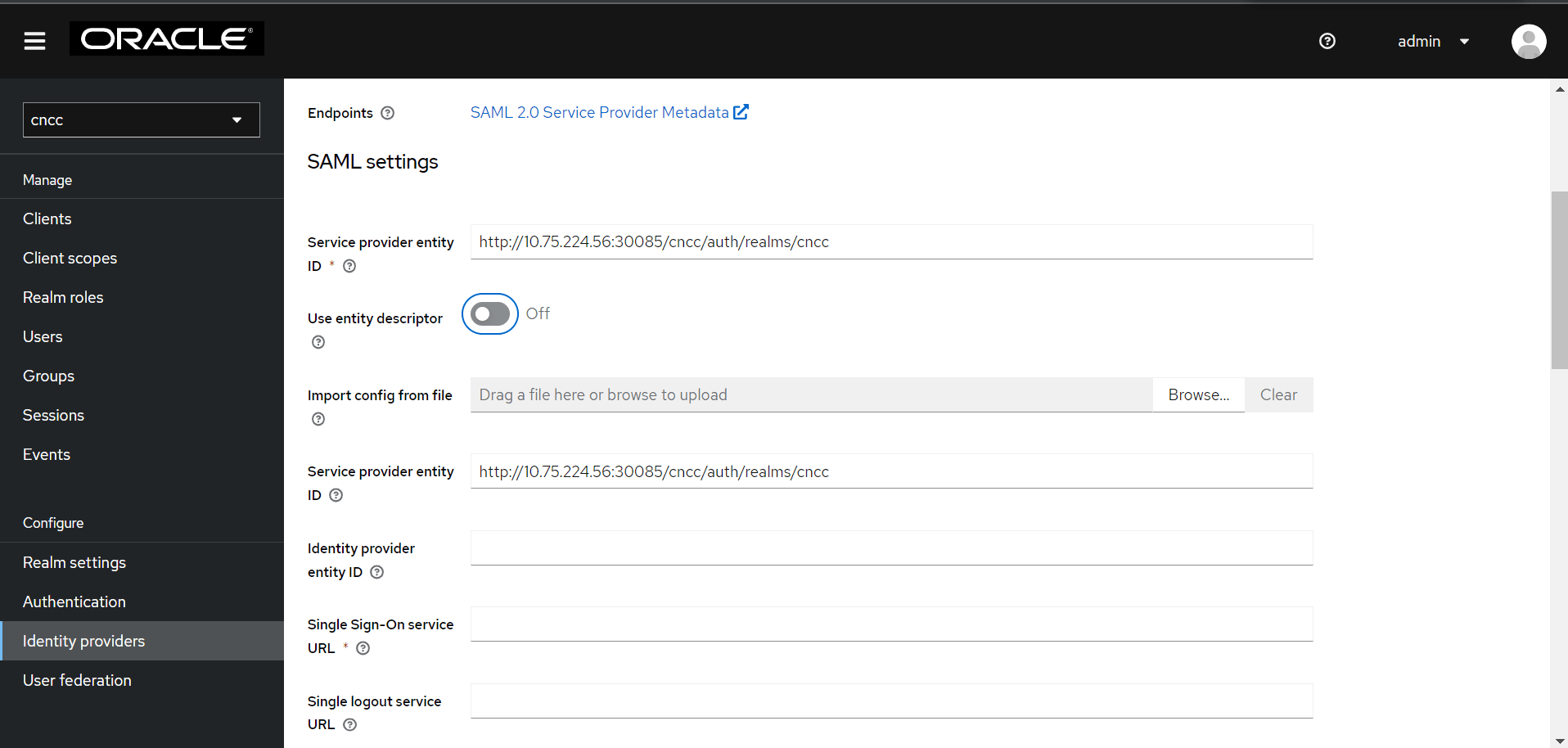

   Figure 4-25 SAML Settings









   Note:

   • Give an appropriate name for the Display Name field.
   • To import the metadata file exported from SAML client in the IdP, disable the Use Entity descriptor flag, and upload the file from the Browse button of "Import from config file".

   Click Import and Save. The other required fields populate automatically.

   Perform the following procedure to configure the IdP manually, if you are facing difficulty in importing the metadata file from the IdP Client:

   1. Navigate to the Identity providers screen and click SAML v2.0.
   2. Set the value of Single Sign-On Service URL to the URL of the preferred IdP.

      Example: <IP/FQDN>:<PORT>/auth/realms/master/protocol/saml (URI for their preferred IdP where SAML AuthnRequest will be sent).

   3. Set the value of Single Logout Service URL.

      Example: <IP/FQDN>:<PORT>/auth/realms/master/protocol/saml (URI for their preferred IdP where logout requests must be sent).

   4. If the IdP supports HTTP POSTbinding methods, enable HTTP-POST Binding Response, HTTP-POST Binding Logout and HTTP-POST Binding for AuthnRequest flags. By default, HTTP-Redirect will be used.
   5. If the IdP is sending signed Assertions, set Want Assertions Signed to ON.
   6. Set Validate Signature to ON.
   7. Provide value for Validating X509 Certificates (If you are using Keycloak as an IdP, use the certificate from master realm -> Realm Settings -> Keys).
   8. Click Add.

   IdP is now configured manually.

4. To create custom First Login Flow, click Authentication tab on the left pane. The Authentication screen appears.

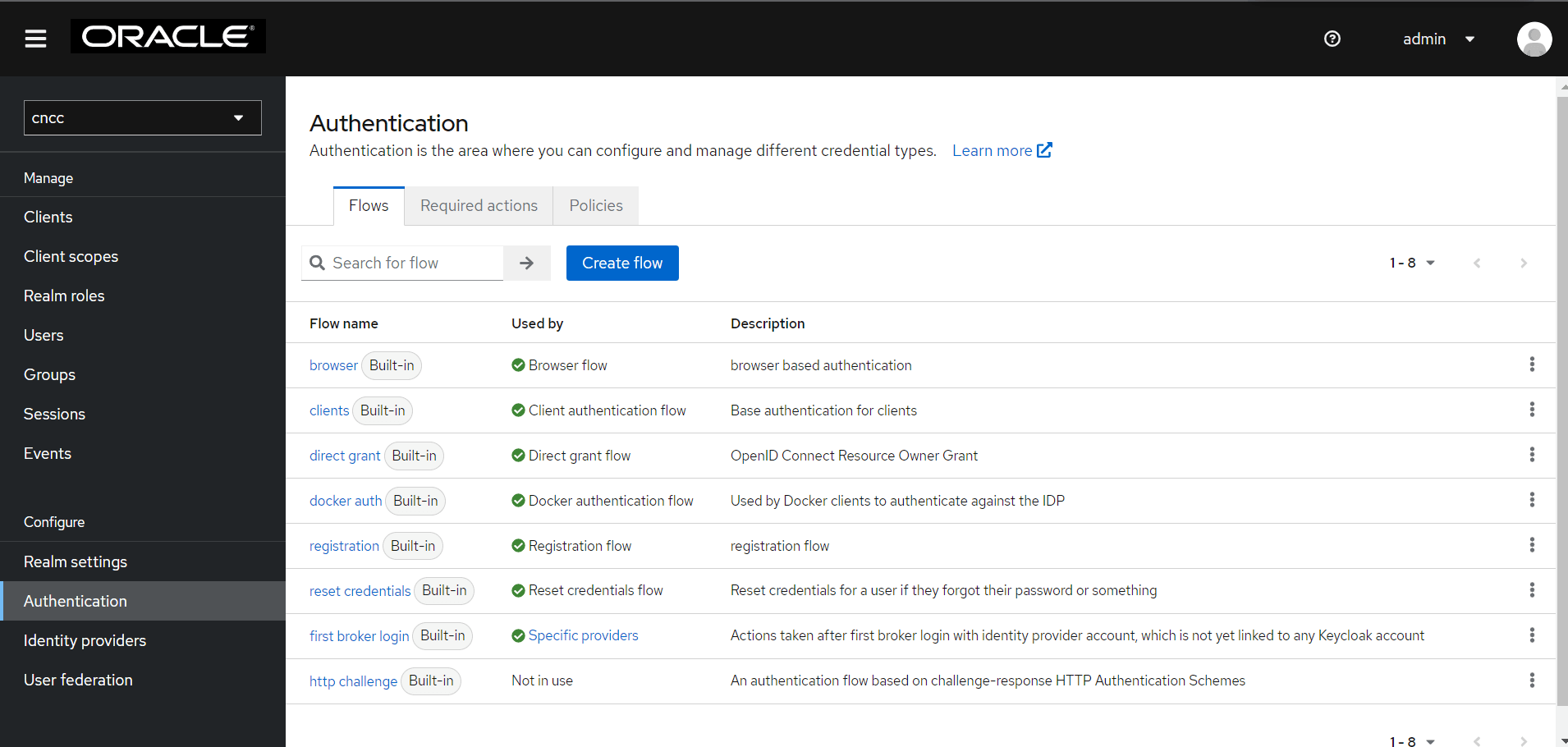

   Figure 4-26 Authentication








5. Click Create Flow on the right pane. The Create Flow screen appears.

   Figure 4-27 Create Flow









   Enter the appropriate name and click Create.

6. The Simple Login Flow screen appears. Click Add execution on the right pane.

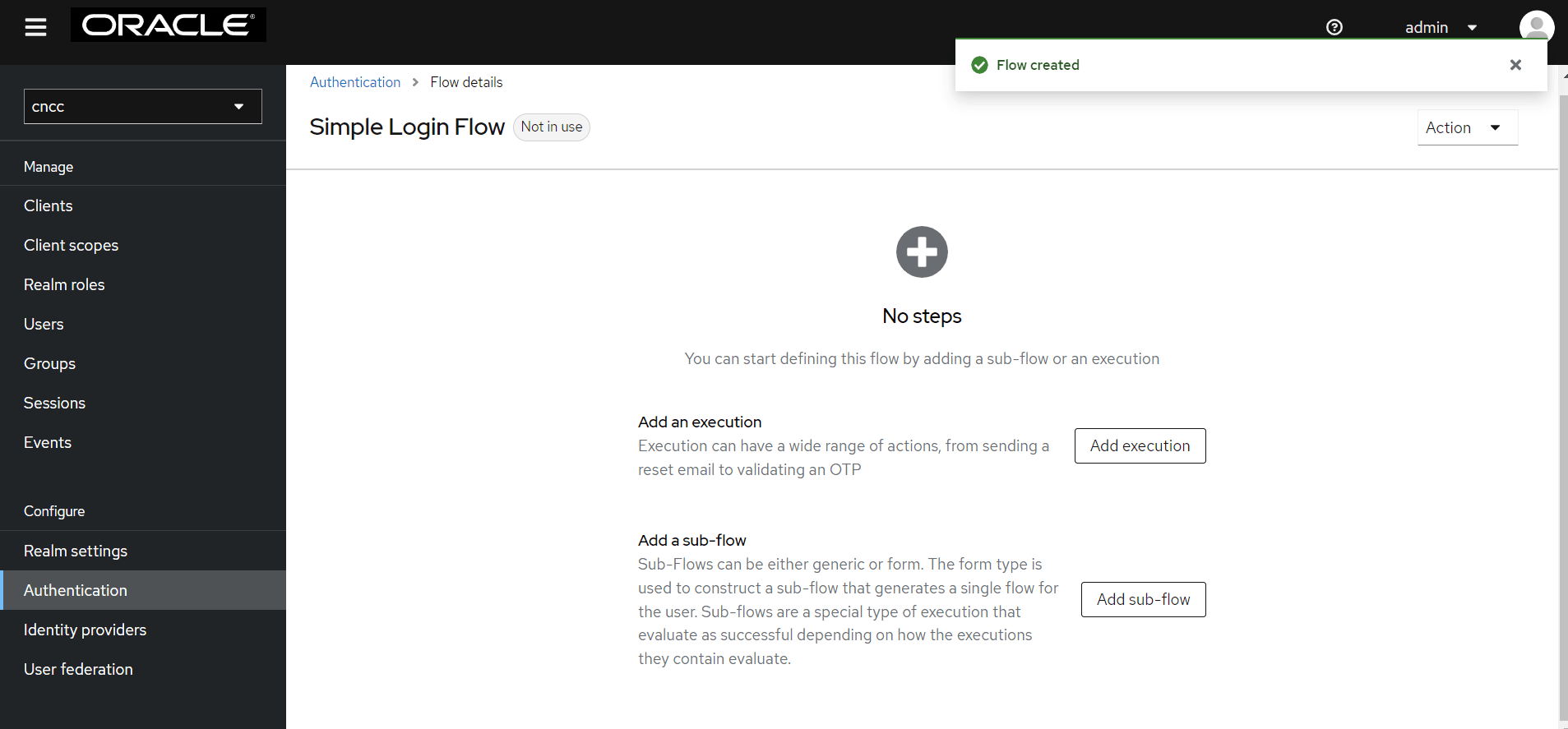

   Figure 4-28 Simple Login Flow








7. Select Create User If Unique, and click Add.

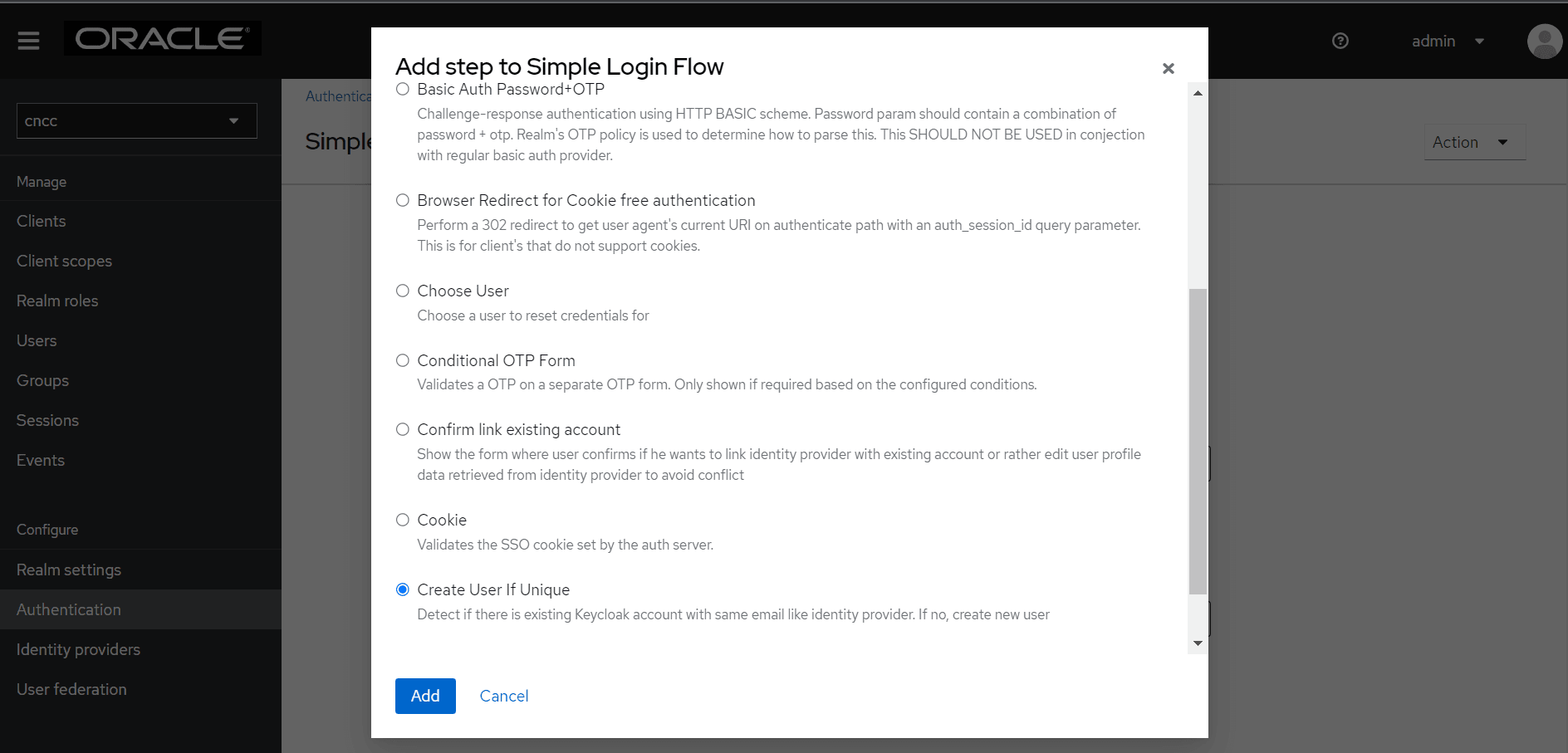

   Figure 4-29 Add Step to Simple Login Flow








8. You will be redirected to Authentication page. From Requirement section, select Alternative.

   Figure 4-30 Authentication








9. Click Identity providers in the left pane. Click the name of the Identity provide created in the previous steps, and scroll down to Advanced Settings. Select the custom flow from First Login Flow drop-down list.

   Figure 4-31 Advanced Settings








10. Click Save.

    The above screen appears. Now the SAML Idp roles must be mapped with CNC Console IAM API roles.

Note:

CNC Console IAM(SP) Configuration in IdP

In a SAML based SSO Implementation, the IdP needs to send SAML assertions towards a Service Provider (CNC Console IAM in this case) endpoint.

Use the following CNC Console endpoint in the IdP:

http://<IP/FQDN>:<PORT>/cncc/auth/realms/cncc/broker/saml/endpoint

Example:

http://cncc-iam-ingress-gateway.cncc.svc.cluster.local:30085/cncc/auth/realms/cncc/broker/saml/endpoint

Mapping SAML IdP roles with CNC Console IAM API roles

Perform the following procedure to map SAML IdP roles with CNC Console IAM API roles:

1. After saving SAML IdP configurations in CNC Console IAM, select Identity providers on the left pane and click the name of your identity provider. Click Mappers tab on the right pane. Click Add Mapper.

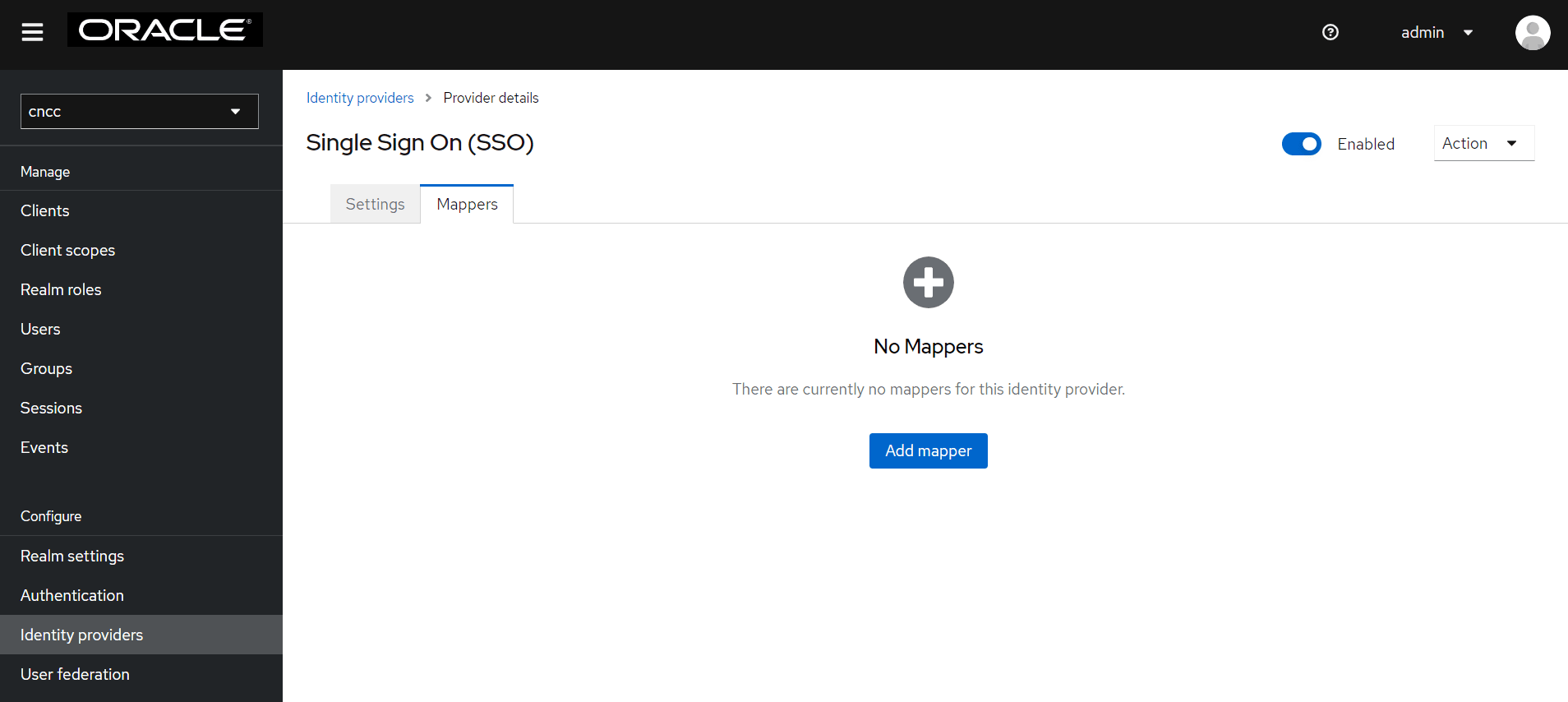

   Figure 4-32 Single Sign On








2. The Add Identity Provider Mapper screen appears.

   Figure 4-33 Add Identity Provider Mapper








   • Give an appropriate name for the Identity Provider Mapper in the Name field.
   • Select 'SAML Attribute to Role' from Mapper Type drop-down.
   • Enter the Attribute Value as the one of the roles added in SAML IdP. For example: 'NRF', 'SCP', etc.
   • Click Select Role to select the API roles to be enabled for this mapping.
   • Click Assign. Then click Save

   Figure 4-34 Single Sign On









You can create as many mapping as required.

Accessing CNC Console Core Application

Perform the following procedure to access the CNC Console application:

1. Log in to CNC Console Core, and browse to the application using hostname and port. The user is redirected to CNC Console IAM (broker).

   http://<cncc-core-ingress-extrenal-ip>:<cncc-iam-ingress-service-port>
   Example: http://cncc-core-ingress-gateway.cncc.svc.cluster.local:30075/



2. Click Single Sign On to authenticate using SAML SSO. The user is redirected to SAML IdP log in. Enter user details to access CNC Console Core application.

4.5 Integrating CNC Console LDAP Server with CNC Console IAM

Overview

CNC Console IAM can be used as an integration platform to connect to existing LDAP and Active Directory servers.

User Federation in CNC Console IAM lets the user sync users and groups from LDAP and Active Directory servers, and assign roles respectively.

CNC Console IAM provides an option to configure a secured connection URL to your LDAP store.

For example: `ldaps://myhost.com:636'

CNC Console IAM uses SSL for communication with the LDAP server. The truststore must be properly configured on the CNC Console IAM server side, otherwise CNC Console IAM cannot trust the SSL connection to LDAP.

Sample LDAP ldif File

dn: dc=oracle,dc=org
objectclass: top
objectclass: domain
objectclass: extensibleObject
dc: oracle

dn: ou=groups,dc=oracle,dc=org
objectclass: top
objectclass: organizationalUnit
ou: groups

dn: ou=people,dc=oracle,dc=org
objectclass: top
objectclass: organizationalUnit
ou: people

dn: uid=ben,ou=people,dc=oracle,dc=org
objectclass: top
objectclass: person
objectclass: organizationalPerson
objectclass: inetOrgPerson
cn: Ben Alex
sn: Alex
uid: ben
userPassword: benspass

dn: uid=bob,ou=people,dc=oracle,dc=org
objectclass: top
objectclass: person
objectclass: organizationalPerson
objectclass: inetOrgPerson
cn: Bob Hamilton
sn: Hamilton
uid: bob
userPassword: bobspass

dn: uid=joe,ou=people,dc=oracle,dc=org
objectclass: top
objectclass: person
objectclass: organizationalPerson
objectclass: inetOrgPerson
cn: Joe Smeth
sn: Smeth
uid: joe
userPassword: joespass

dn: cn=admin,ou=groups,dc=oracle,dc=org
objectclass: top
objectclass: groupOfUniqueNames
cn: admin
uniqueMember: uid=ben,ou=people,dc=oracle,dc=org
ou: admins

dn: cn=scp,ou=groups,dc=oracle,dc=org
objectclass: top
objectclass: groupOfUniqueNames
cn: scp
uniqueMember: uid=ben,ou=people,dc=oracle,dc=org
uniqueMember: uid=joe,ou=people,dc=oracle,dc=org
ou: scpusers

dn: cn=nrf,ou=groups,dc=oracle,dc=org
objectclass: top
objectclass: groupOfUniqueNames
cn: nrf
uniqueMember: uid=ben,ou=people,dc=oracle,dc=org
uniqueMember: uid=bob,ou=people,dc=oracle,dc=org
ou: nrfusers

4.5.1 Grouping the LDAP Mapper and Assigning the Roles

When an LDAP Federation provider is created, CNC Console IAM provides a set of built-in mappers for this provider. Users can change the set and create a new mapper, or update and delete existing ones.

Group Mapper

The Group Mapper allows you to configure group mappings from LDAP into CNC Console IAM group mappings. Group mapper can be used to map LDAP groups from a particular branch of an LDAP tree into groups in CNC Console IAM. It also propagates user-group mappings from LDAP into user-group mappings in CNC Console IAM.

Perform the following procedure to add the group mapper and assign the roles:

1. Under Configure in the left pane, click User Federation. Click ldap and select the Mappers tab, and then click Add Mapper.

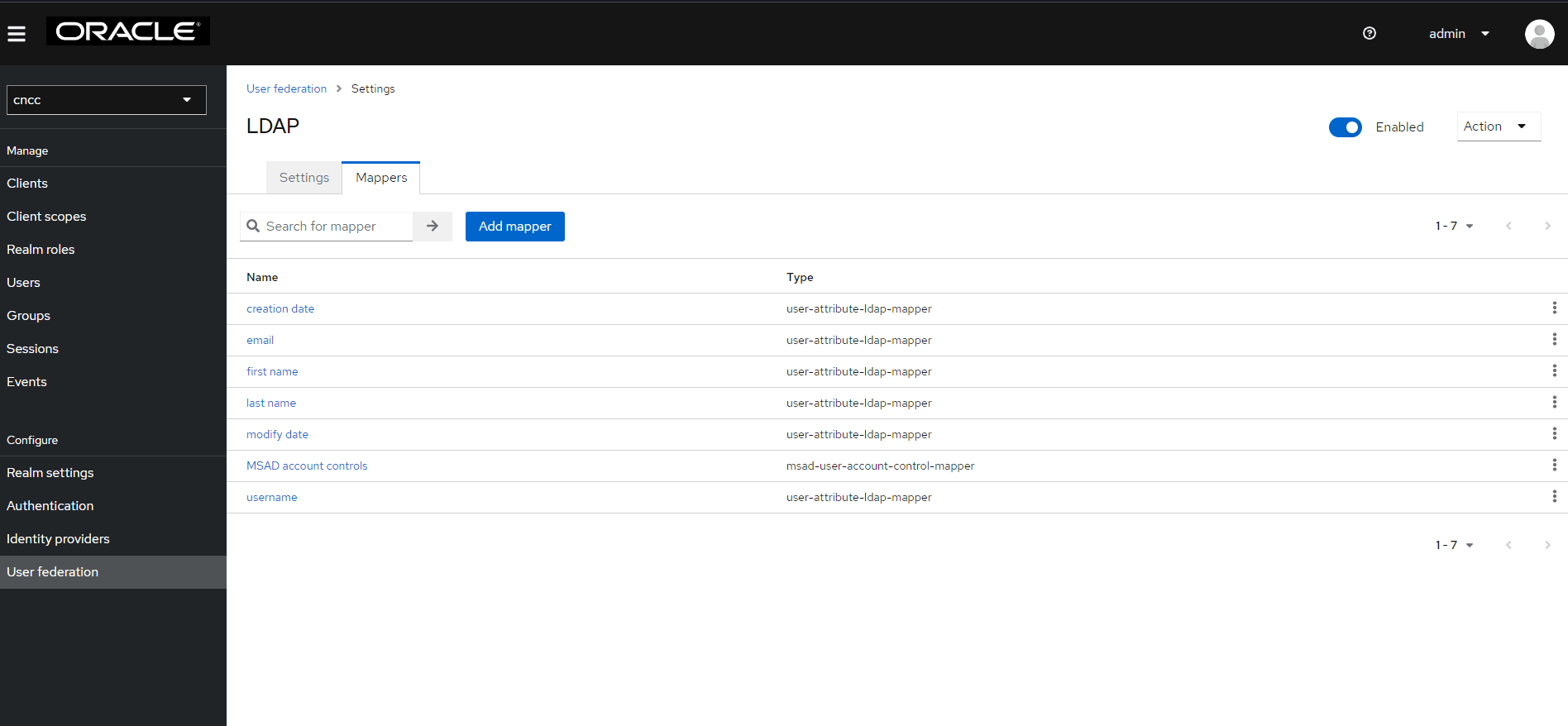

   Figure 4-35 LDAP Mapper Page








2. The Create New Mapper page appears. Give an appropriate name for the field Name. Select group-ldap-mapper as Mapper Type drop-down menu. Click Save.

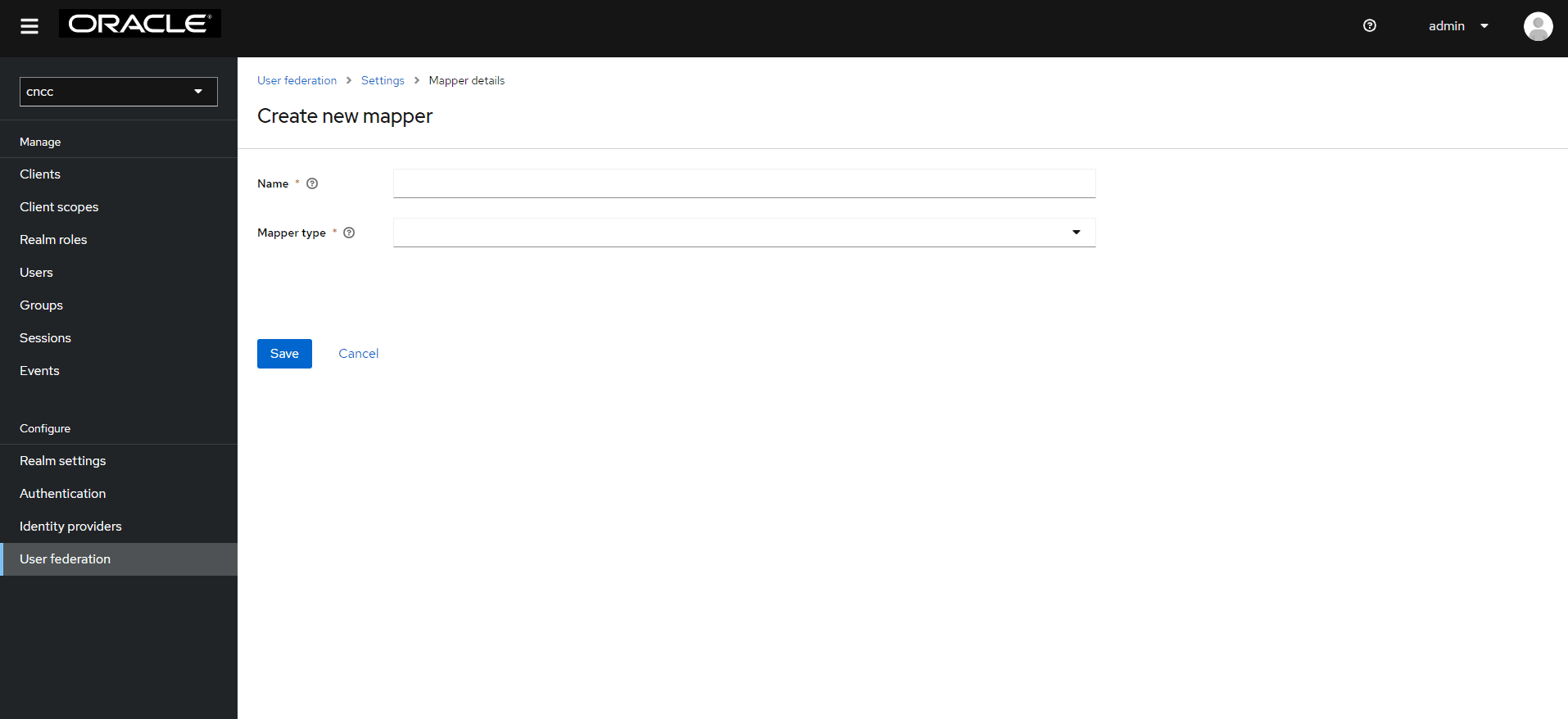

   Figure 4-36 User Federation Mapper Page








   The following screen appears:

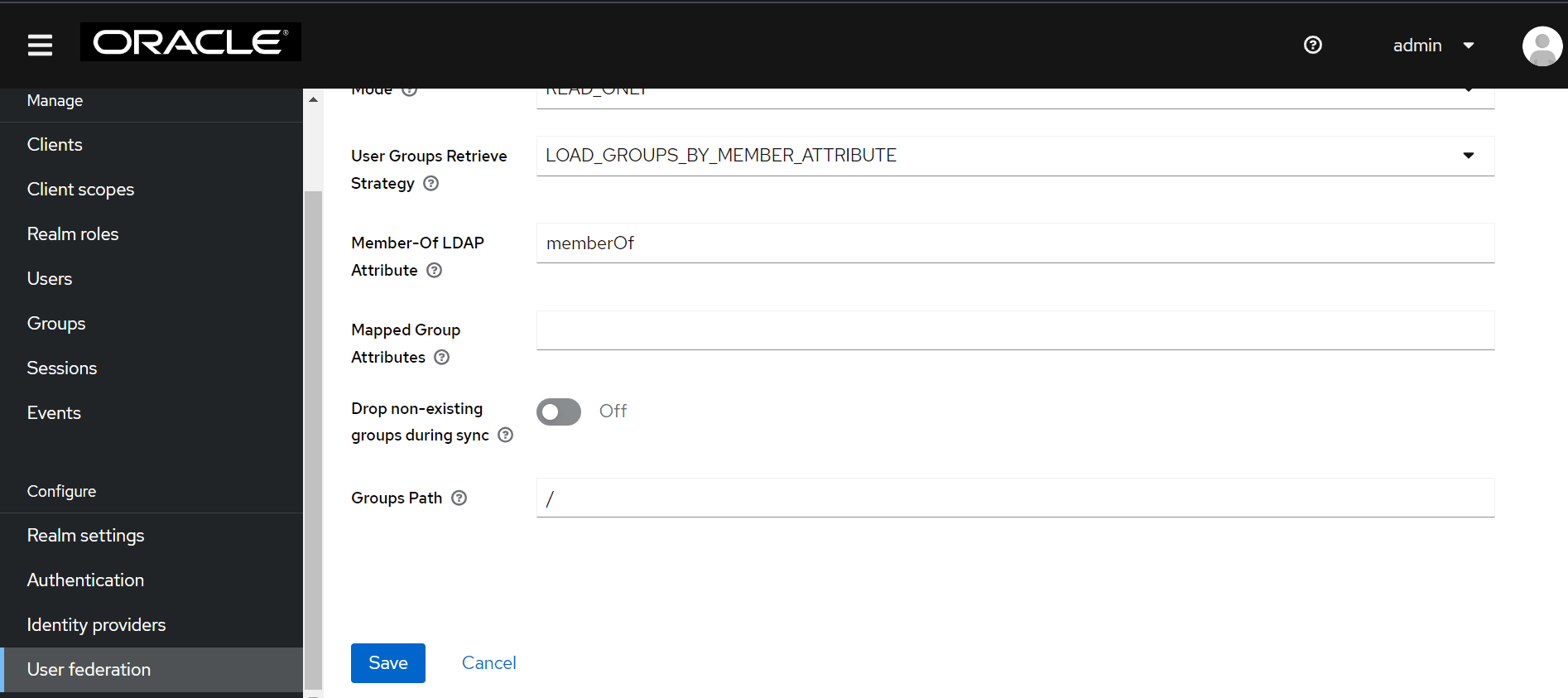

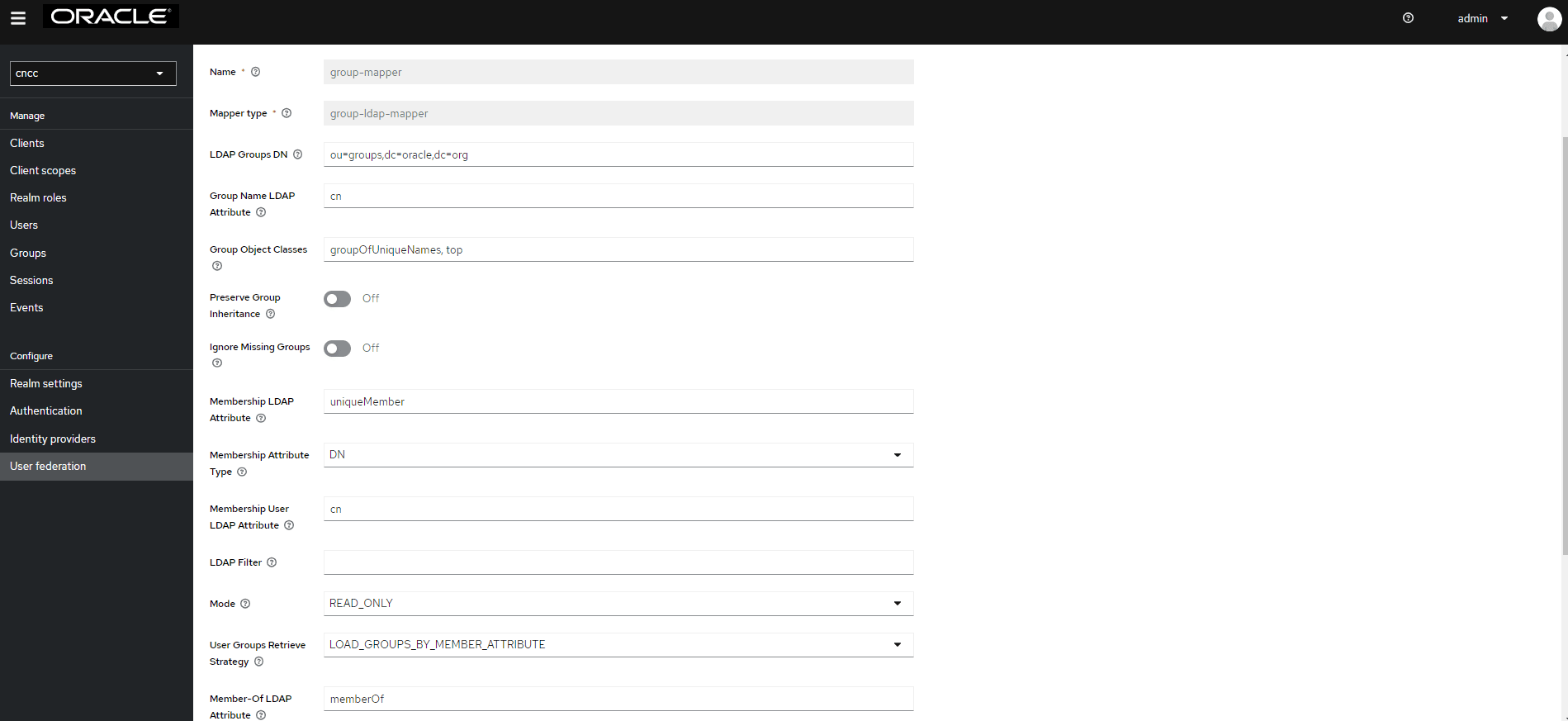

   Figure 4-37 LDAP Mapper Filled Form









   Note:

   When selected, default values will be set by CNC Console IAM. However, you must change some values based on your LDAP records.
3. Click Save.

   Figure 4-38 Save








4. Click the name of your mapper. Under the Action menu, click Sync LDAP Groups to Keyclaok. The success message appears with the number of groups imported and so on.

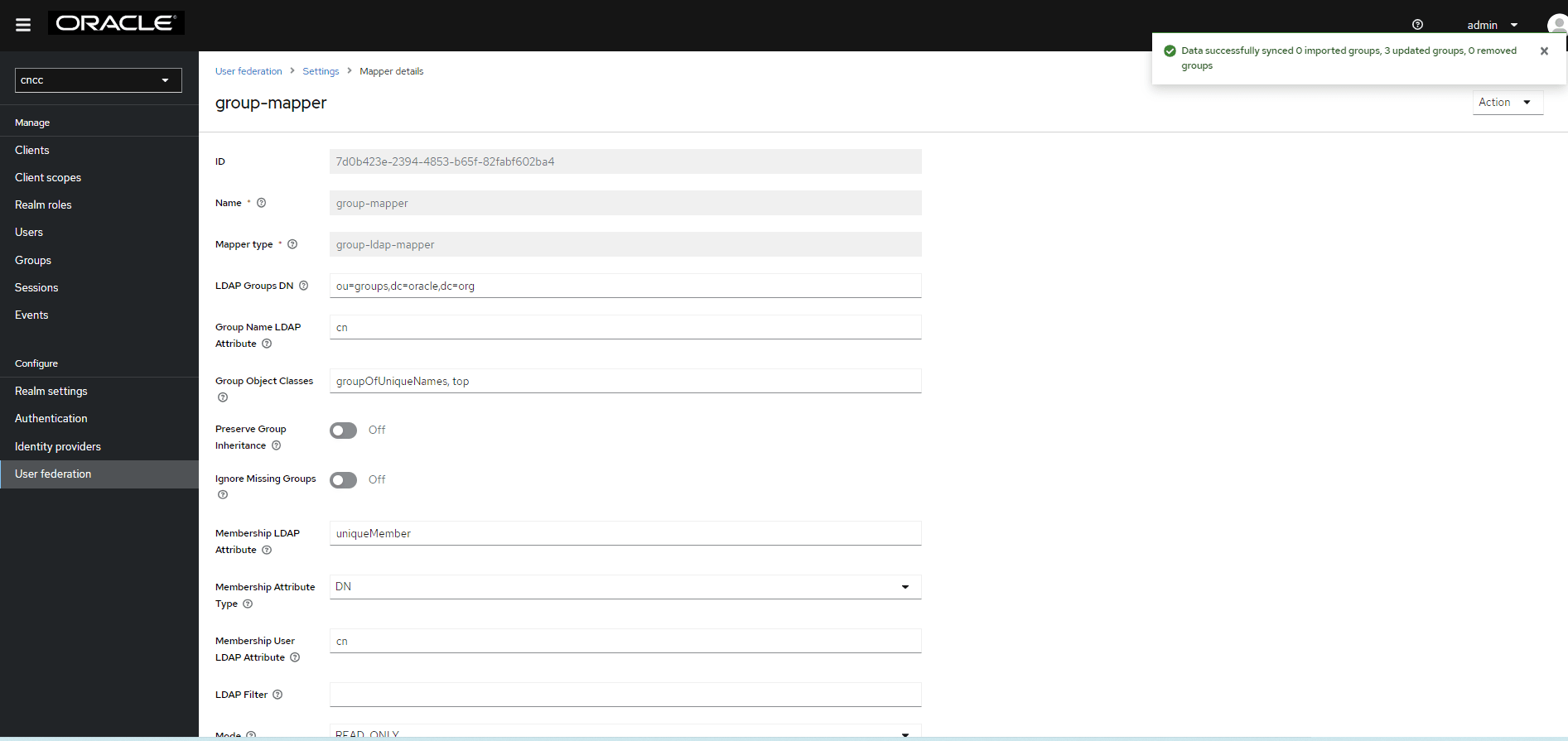

   Figure 4-39 Group Mapper









   Note:

   If this step fails, then you might need to look through the troubleshooting section and check the CNC Console IAM logs in debug mode. See the Oracle Communication Cloud Native Configuration Console Troubleshooting Guide and see CNC Console Logs for further details.
5. Select the Groups in the left pane to view all groups.

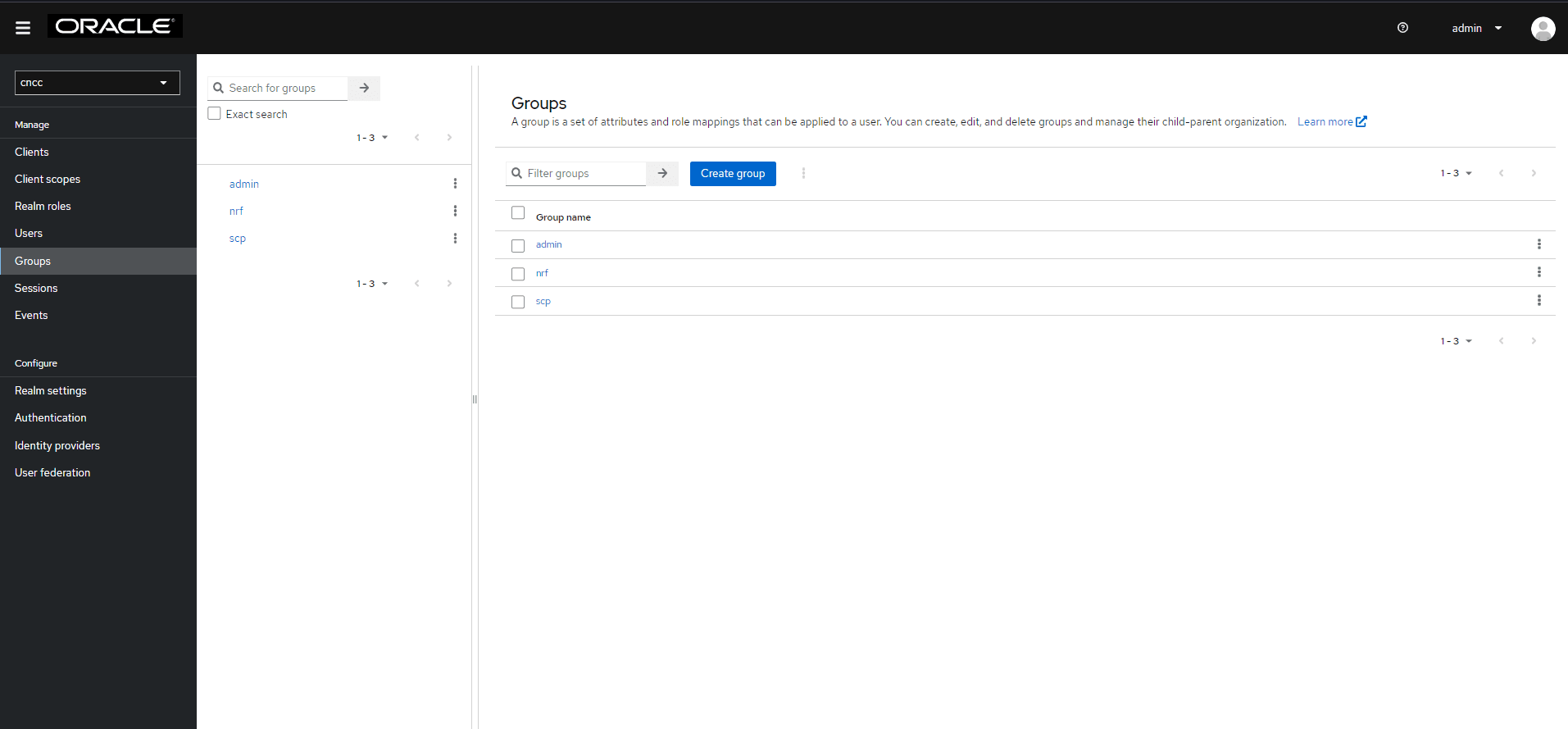

   Figure 4-40 Groups








6. Click any group and click Edit. The following tabs appear: Child groups, Attributes, Role Mappings, and Members.

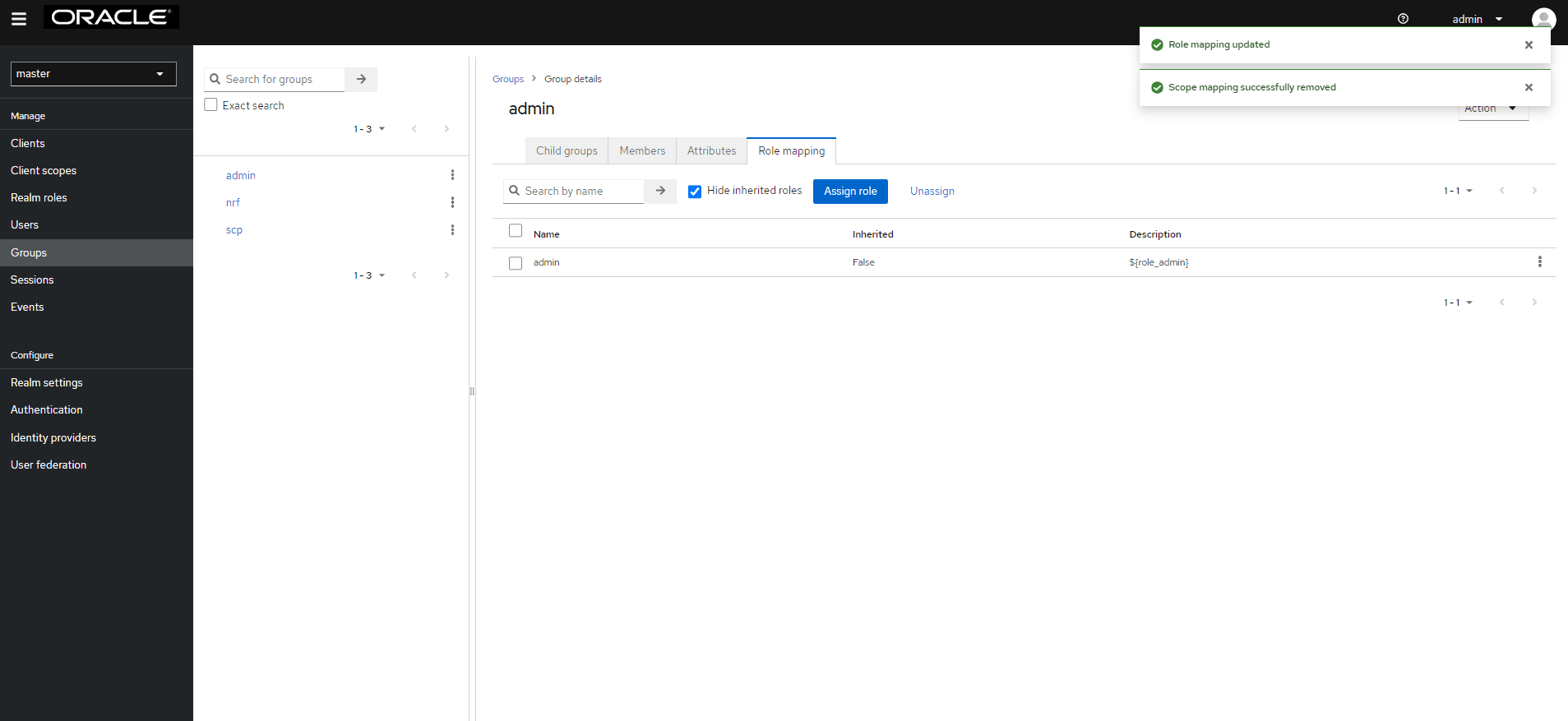

   Figure 4-41 Role mapping to LDAP Group








   • Select the Role Mapping tab to see a list of roles that are predefined in CNC Console IAM.
   • Select one or more roles from Available Roles and assign it to the group. For example, if group admin is assigned the role 'ADMIN' role, it means that any user who belongs to the admin group will be automatically be assigned the admin role. This allows them to access all the NF resources of CNC console that it supports.
   • When you're done, you can test authentication and authorization by logging into the CNC Console GUI.

   Note:

   • When the user password is updated from CNC Console IAM and sent to LDAP, it is always sent in plain-text. This is different from updating the password to the built-in CNC Console IAM database, where hashing and salting is applied to the password before it is sent to the DB. In the case of LDAP, CNC Console IAM relies on the LDAP server to provide hashing and salting to passwords.
   • Most LDAP servers (Microsoft Active Directory, RHDS, FreeIPA) provide this by default. Some servers (OpenLDAP, ApacheDS) may store the passwords in plain text by default, and the user must explicitly enable password hashing for them.

4.5.2 Configuring User Federation with CNC Console IAM

This section provides information about configuring user federation with CNC Console IAM (LDAP Server integration).

To configure user federation:

1. Login to CNC Console IAM console http://<cncc-iam-ingress-ip>:<cncc-iam-ingress-port> using admin credentials provided during CNC Console IAM installation.

   Figure 4-42 Login Screen


2. Click Realm Settings and click Add realm under Cncc. Click User Federationon the left pane. The User Federation screen appears in the right pane.

   Figure 4-43 User Federation








3. Click Add LDAP providers. The following page will automatically open a form to fill in your LDAP connection parameters. The form will be initially empty as shown below:

   Figure 4-44 Add LDAP providers








4. Enter the values for the following fields:
   • UI Display Name: Enter the display name.
   • Vendor: Enter the LDAP server provider name for the company.

   Note:

   This usually populates the defaults for many fields. However, in case the user has a different setup than the defaults, the correct values must be provided. Current setup is Spring embedded LDAP, so select the last option 'Other' from the drop-down list.
   • Provide your company LDAP server details in the Connection URL field, in the same way as you provided for ldap-ldif file alread. That is, the connection URL (hostname prefixed with ldap:// OR when LDAP Secure connection enabled (LDAPS) hostname prefix should be ldaps://), and the port.

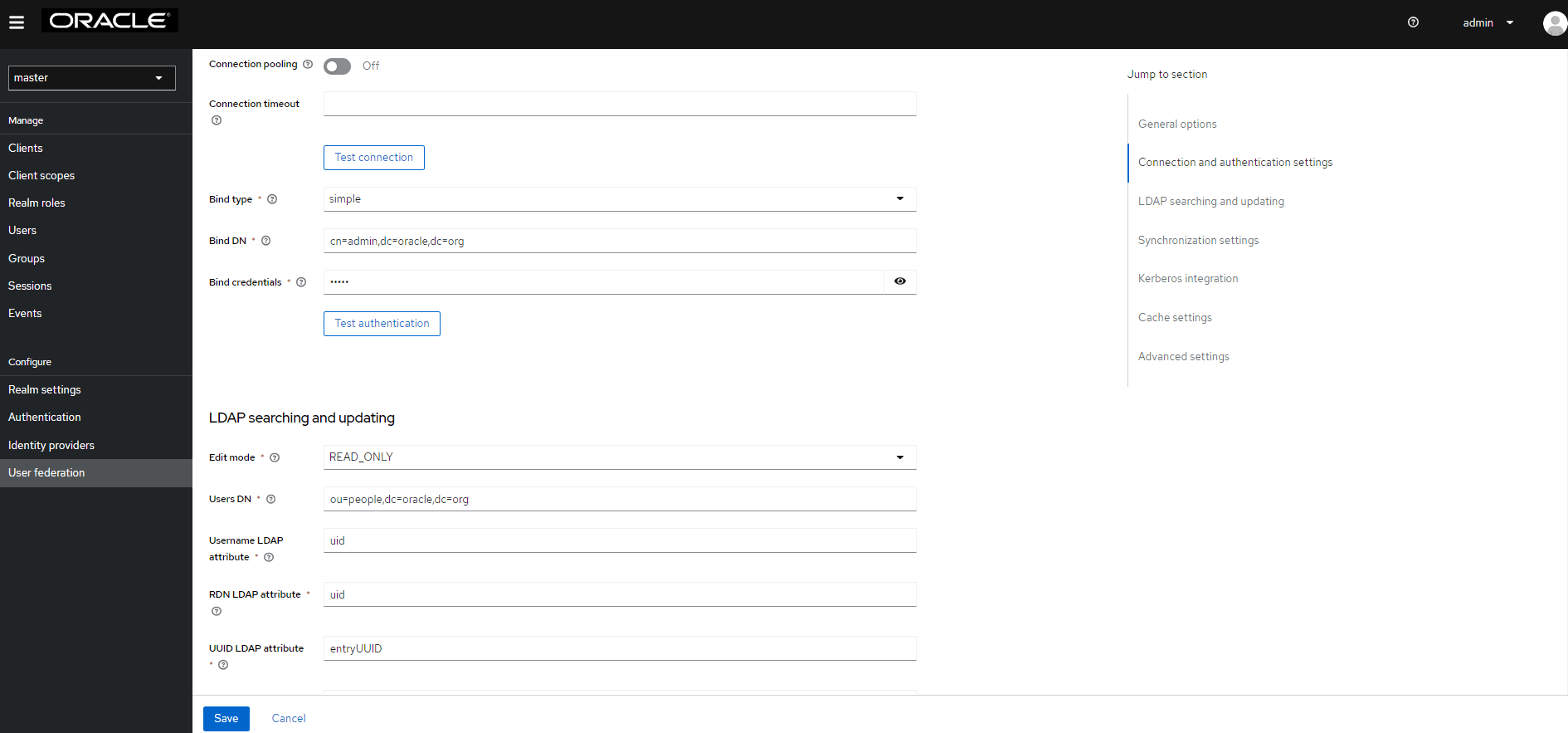

     Figure 4-45 General Options








   • If your LDAP is secured then select simple from the Bind Type drop-down, and add the admin bind username and password, or select Bind-type as none. Sample data for the field Bind DN: "cn=admin,dc=oracle,dc=org"
   • Click Test Connection and Test Authentication. Both these tests will be successful.
   • Proceed to the Edit Mode drop-down list. Select READ_ONLY.
   • In most cases, the UUID LDAP attribute value is set as entry UUID. If you do not have a suitable value, use an alternate unique identifier.
   • Click Test Connection and Test Authentication.

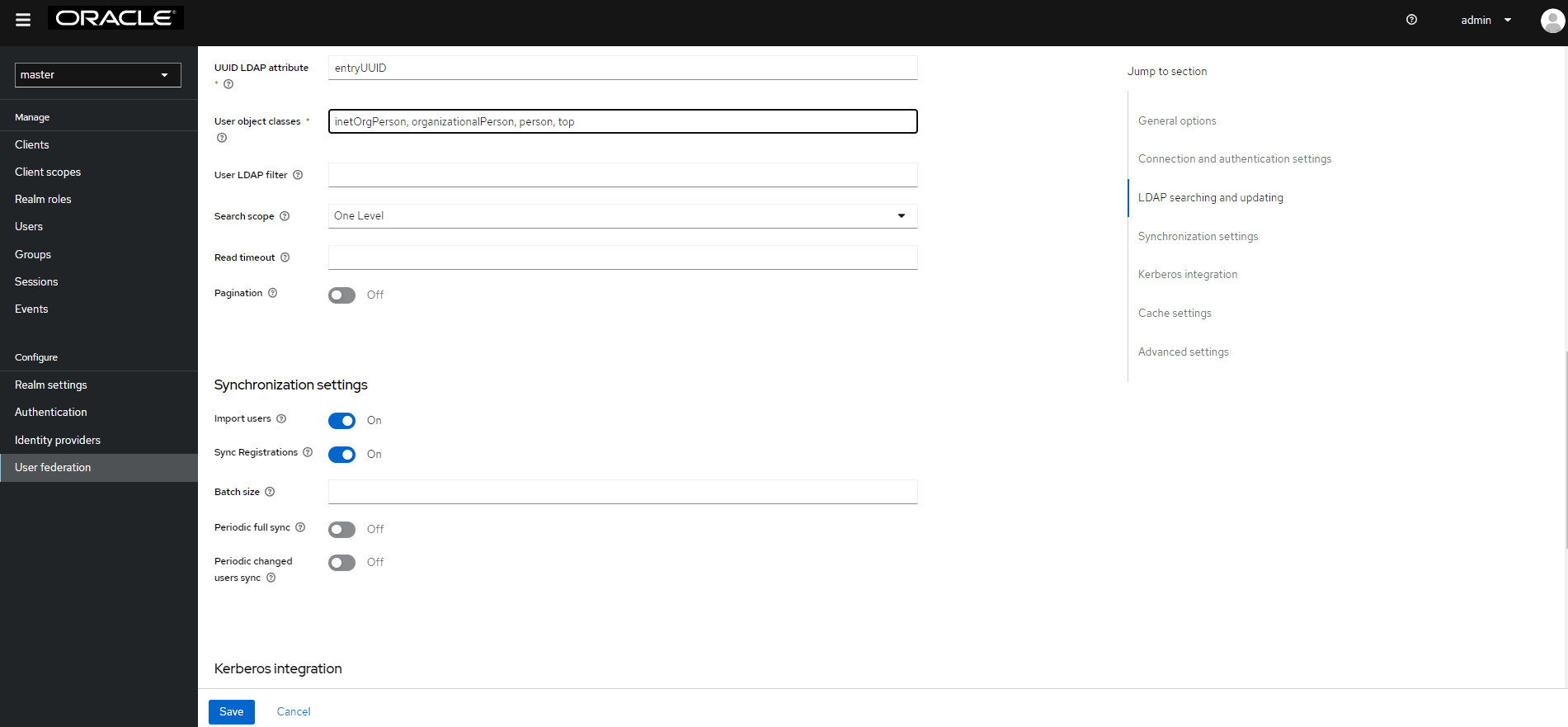

     Figure 4-46 User Federation








   • The default setting for Import Users is ON. Change it to OFF to disable user sync.
   • Set Cache policy as NO_CACHE.
5. After populating the required fields, the following screen appears:

   Figure 4-47 User Federation








6. Click Save.

   Figure 4-48 User Federation
