OCCM Supported Features

3.1 Integration with Certificate Authority

OCCM integrates with one or more Certificate Authorities (CAs) using the Certificate Management Protocol version 2 (CMPv2), as proposed by the 3GPP TS33.310. Operators have the flexibility to configure OCCM to integrate with a single CA or multiple CAs, depending on the layout of CA hierarchy deployed in the network. However, it is recommended that each intermediate CA manage multiple certificates of the same type.

The two CMPv2 procedures for different types of requests towards the CA used by OCCM are:

Initialization procedure: CMPv2 Initialization Request (IR) is used for certificate create request.
Key update procedure: CMPv2 Key Update Request (KUR) is used for certificate renewal request.

OCCM employs two modes to establish initial trust between the certificate management and CA:

Using a pre-shared key
Using a key and certificate

These options are available when the first request is made towards the CA. For all subsequent requests, OCCM uses the certificate based mechanism to sign the CMPv2 requests in compliance with 3GPP standards.

Note:

OCCM supports HTTP 1.0 and HTTP 1.1 versions. OCCM initiates the request using HTTP 1.0. If the CA supports HTTP 1.1 only, then OCCM shifts to using HTTP 1.1 version.

3.1.1 Establishing Initial Trust Between OCCM and CA

OCCM can be configured to establish trust between Oracle Communication Certificate (OCCM) and Certificate Authorities (CAs) by enabling PKI message protection in the following ways:

MAC based trust establishment
Certificate based trust establishment

3.1.1.1 MAC Based Trust Establishment

OCCM supports initial trust establishment with each of the configured CAs using the preconfigured pre-shared (MAC) key.

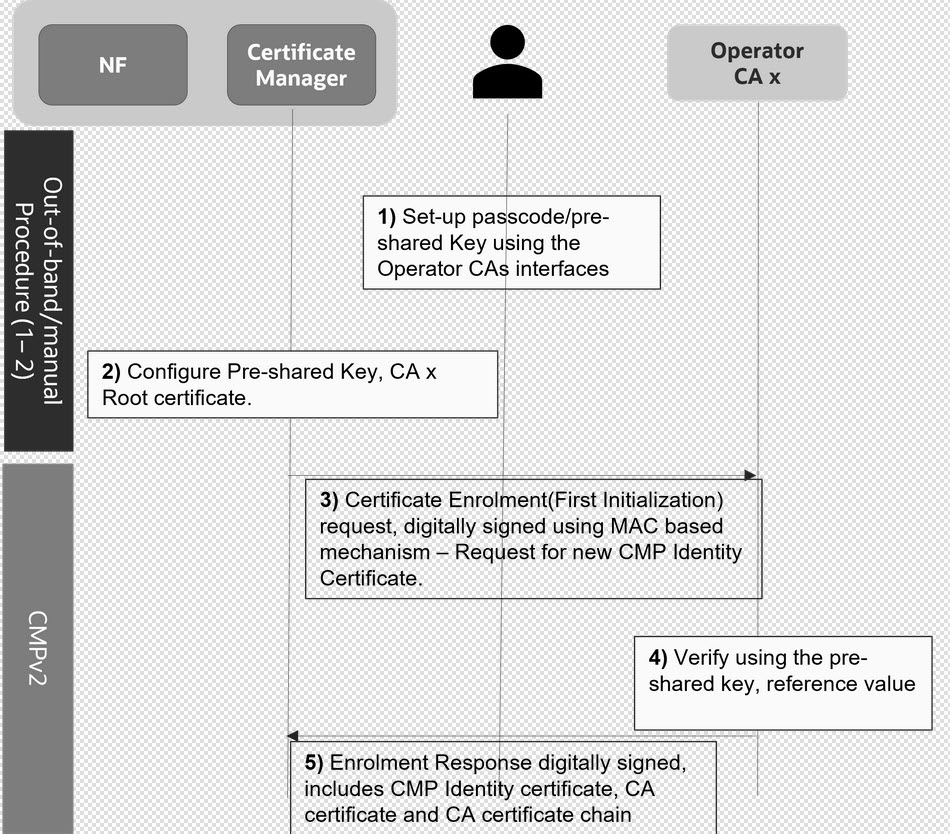

Figure 3-1 MAC Based Trust Establishment

OCCM generates the key pair and requests for the CMP identity certificate for each of the configured CAs using the first Initialization Request. The first Initialization Request towards each of the CAs is signed using the preshared key. The CA authenticates the initialization request and signs the CMP identity certificate. OCCM can be configured to authenticate the responses of the first initializing procedure using the preshared (MAC) key. All subsequent requests are always signed using the CMP identity key and certificate.

3.1.1.2 Certificate Based Trust Establishment

OCCM supports initial trust establishment with CA using the preconfigured private key and x.509 certificate.

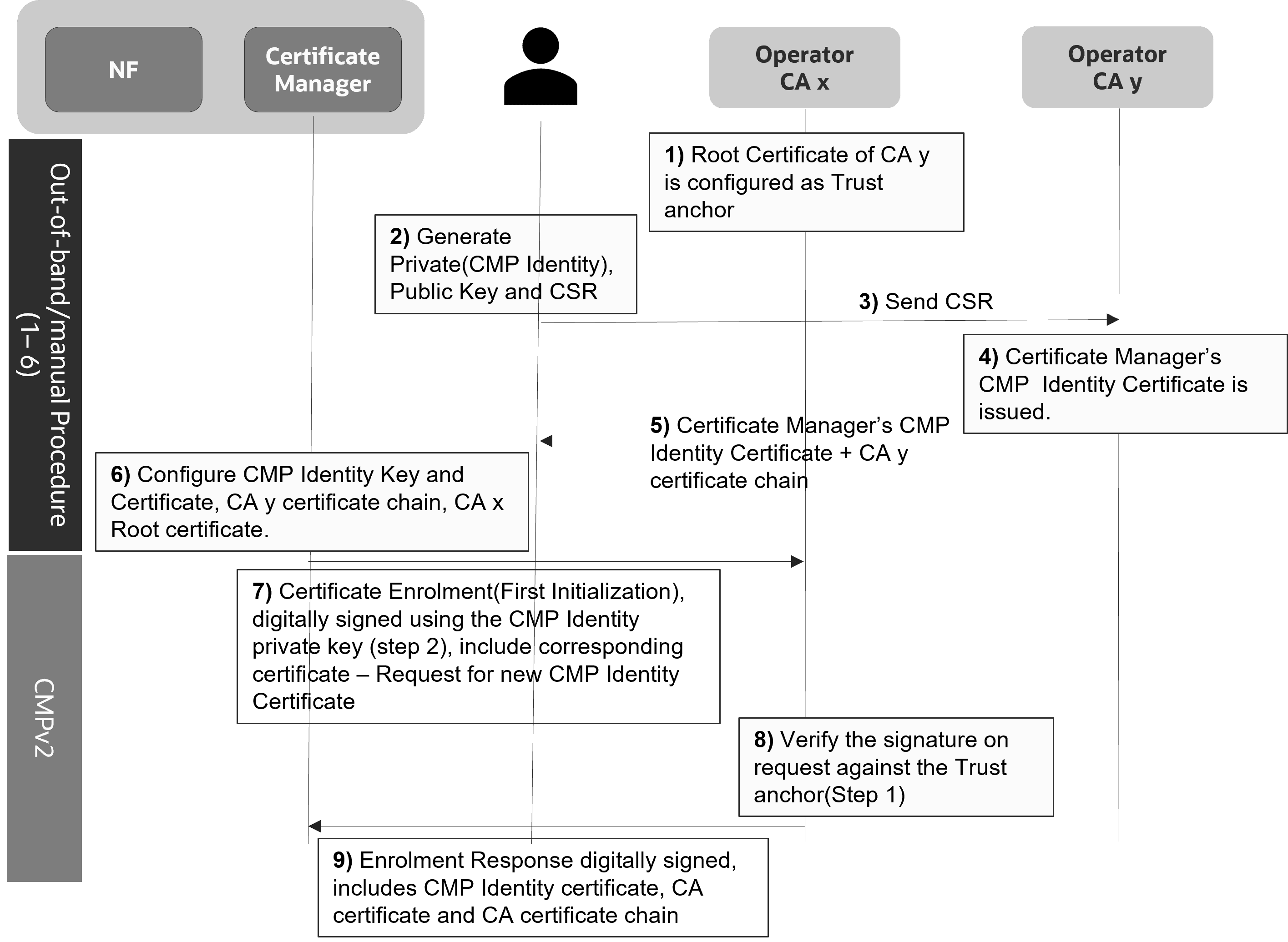

Figure 3-2 Certificate Based Trust Establishment

OCCM signs the first initialization request towards a CA using preconfigured key or certificate.

OCCM can be configured to:

continue using the same key and certificate to sign the subsequent CMPv2 requests OR
generate a new certificate using the first Initialization Request

In case OCCM uses the same key and certificate to sign the subsequent CMPv2 requests, OCCM requests for generation of the NF certificate in the first Initialization Request.

In case OCCM generates a new certificate using the first Initialization Request (IR), OCCM requests for generation of CMP identity certificate (OCCM certificate) in the first initialization request. End entity certificate (NF certificate) certificate generation is requested from next Initialization Request onwards.

The End Entity certificate initialization requests and the certificate confirms are digitally signed using the CMP Identity Key. OCCM supports Proof of Possession (PoP) in the initialization request. The PoP of the signing key contains the algorithm identifier and signature. This signature is based on the certificates template structure.

3.2 Support for HTTPs Encryption

Managing HTTPs Encryption

This feature enables you to encrypt the traffic between OCCM and CAs using HTTPs. HTTPs encryption at the transport layer adds an additional layer of security.

OCCM, as a HTTP Client, supports HTTPs connections with CAs using One-Way TLS when authenticating the identity if the CAs. OCCM manages a TrustStore (CA Bundle) to validate the certificates presented by the CAs in the certificate message of the TLS handshake procedure. You can either use the same CA Bundle configuration for all the configured CAs, or different CA Bundles as per your requirements.

OCCM validates the CA certificate as per the RFC 5280 standards, and the TLS handshake can get rejected if the certificate is invalid, or expired:

Certificate Path validation
Certificate expiry
Certificate Strict checking

OCCM supports the following TLS configurations:

Version TLSv1.2 and TLSv1.3 including support for version rollback to TLSv1.2 in case the CA does not support TLSv1.3
OCCM acts as the HTTP(s) client while communicating with CA and all the relevant requirements apply.

Configuring HTTPs Encryption

The HTTPs functionality can be manually configured by the operator. The operator can:

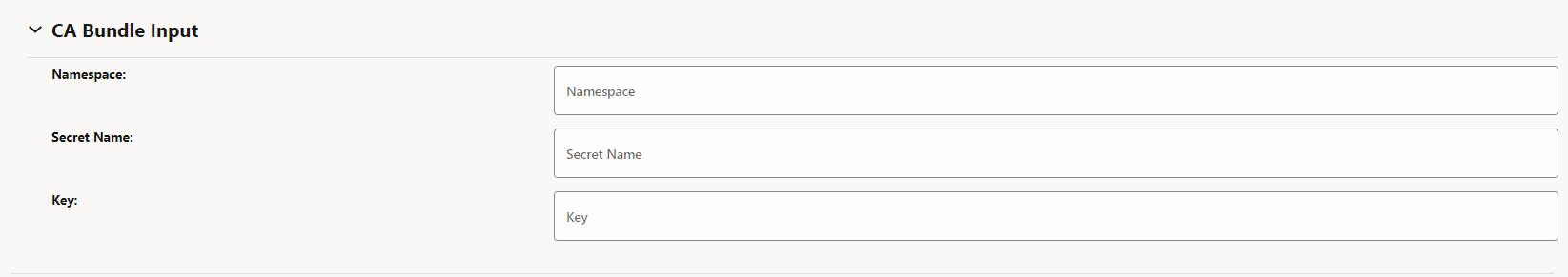

configure and manually update the CA Bundle used to validate the TLS handshake.
enable and disable the strict checking of the X.509 certificates presented for HTTPs. This verifies if the certificates are RFC 5280 compliant.
enable or disable the checking of X.509 certificate critical extensions.

3.3 Accessing OCCM from CNC Console

This section describes the procedure to access the OCCM cluster from the CNC Console GUI.

To access OCCM from CNC Console:

Log in to CNC Console using your login credentials.

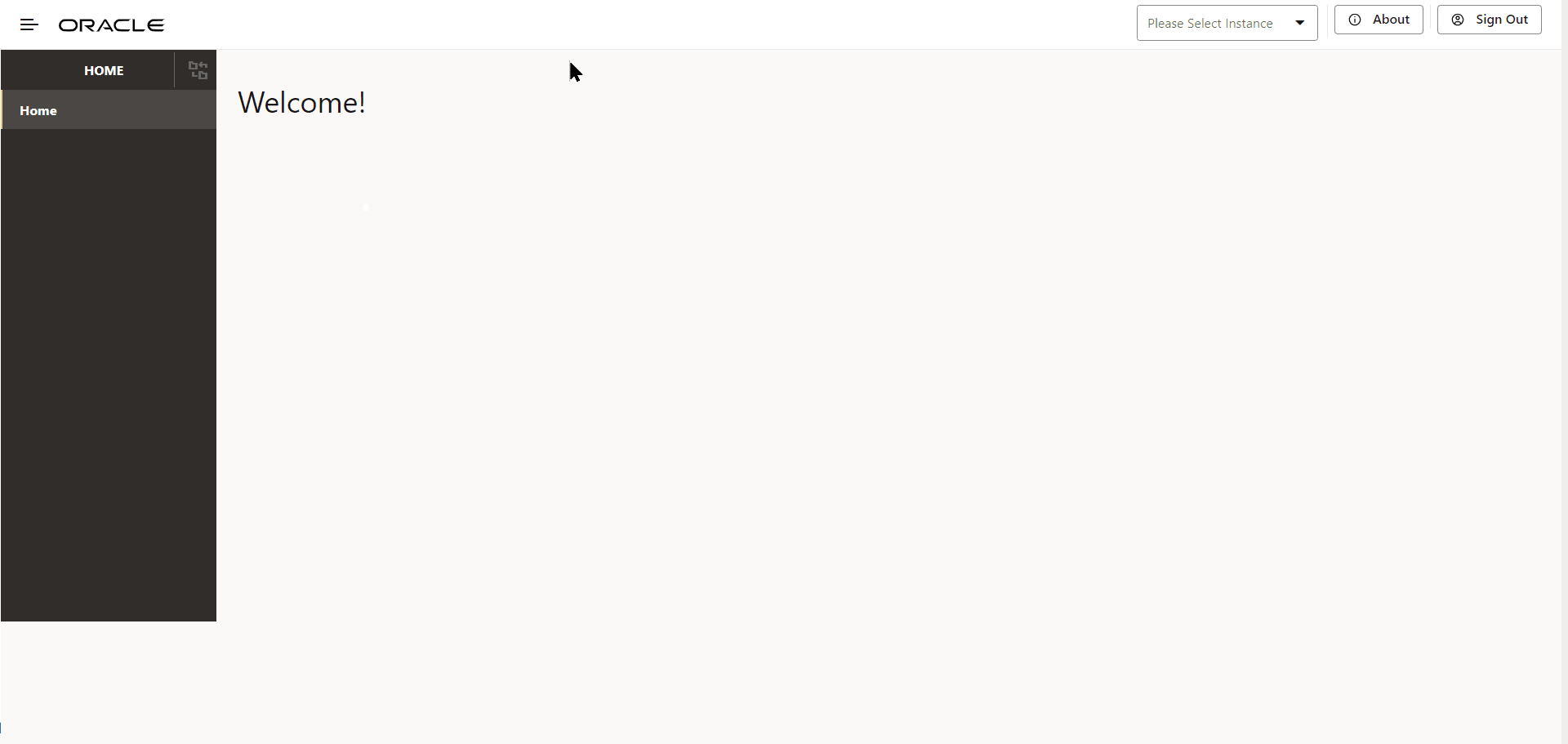

Figure 3-3 CNC Console Landing Page
From the Select Instance drop-down, select the OCCM Instance.

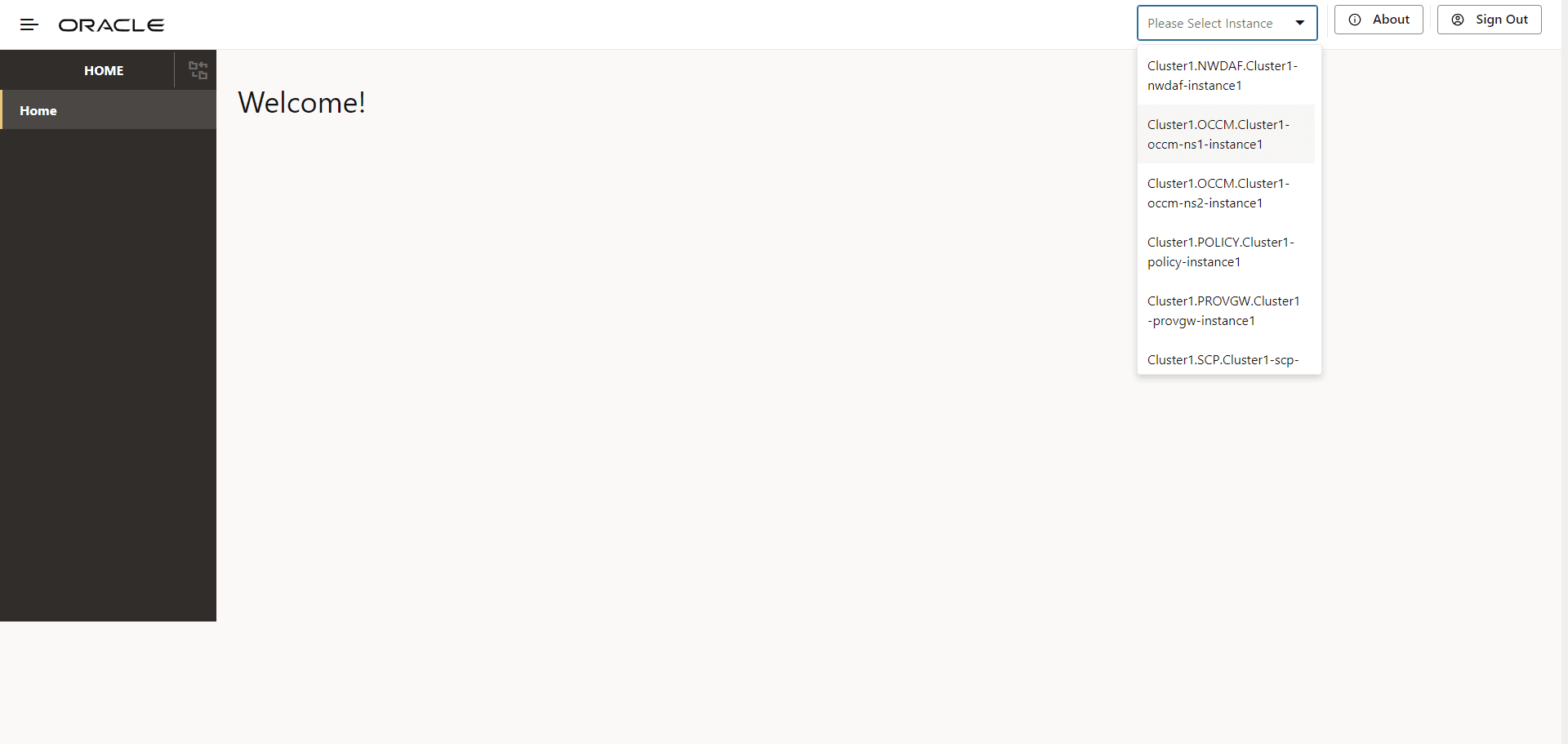

Figure 3-4 OCCM Instance

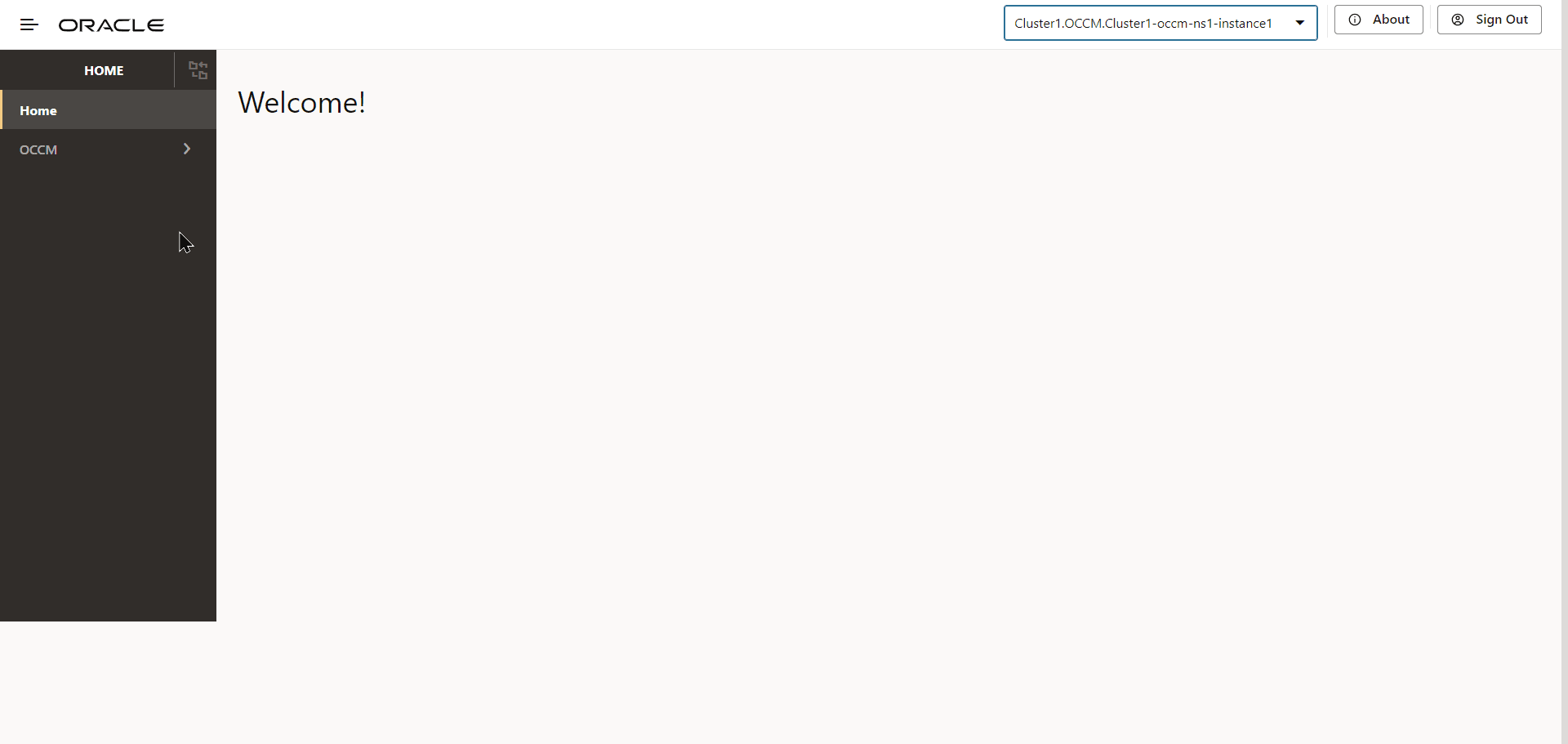

The OCCM menu appears on the left pane.

Figure 3-5 OCCM Configuration Options

3.4 Managing Issuers

Issuers, also called Certificate Authorities (CAs), are a trusted entity that issues X.509 certificates. OCCM supports the following aspects of issuer management:

Pre-configuration for OCCM Bootstrapping
Creating Issuers
Updating Issuers
Deleting Issuers

3.4.1 Pre-configuration for OCCM Bootstrapping

The following secrets can be pre-configured for OCCM bootstrapping:

MAC Secret: The MAC secret is a manually configured pre-shared key or password based MAC secret and reference. This is used by OCCM to sign the first initialization request. CA then validates the request and issues a signed OCCM certificate. For more information, see the 'Using the pre-shared key' section in CMP Identity (OCCM) Certificate Configuration Modes.
To create the MAC Secret, run the following command:
```
kubectl create secret generic <k8s secret name> --from-literal=<mac secret key>=<mac secret value> --from-literal=<reference key>=<reference value> -n <namespace>
```
For example:
```
kubectl create secret generic ca1-mac-secret --from-literal=pwd='pass:****' --from-literal=ref='abcd' -n ns1
```
CMP Identity Secret: The CMP Identity secret is a manually configured private key and certificate, using which OCCM certificate is requested from CA. This is used by OCCM to sign the first initialization request. CA then validates the request and issues a signed OCCM certificate. You can also use the same private key and certificate as OCCM certificate. For more information, see the 'Using the pre-configured private key and certificate' section in CMP Identity (OCCM) Certificate Configuration Modes.
To create the CMP Identity Key, run the following command:
```
kubectl create secret generic <k8s secret name> --from-file=<cmp key file location> --from-file=<cmp cert file location> -n <namespace>
```
For example:
```
kubectl create secret generic ca1-cmp-identity-secret --from-file=cmpkey.pem --from-file=cmpcert.pem -n ns1
```
OCCM Trust Store Secret: The OCCM Trust Store secret holds OCCM trust store information (CA certificates), and is used as a trust anchor when validating the digital signature included in the CMP responses.
To create the OCCM Trust Store secret, run the following command:
```
kubectl create secret generic <k8s secret name> --from-file=<CA root cert file location> --from-file=<Intermediate CA cert file location> --from-file=<CMP server cert file location> -n <namespace>
```
For example:
```
kubectl create secret generic ca1-occm-trust-store-secret --from-file=caroot.pem --from-file=intcacert.pem --from-file=servercert.pem -n ns1
```
TLS Trust Store Secret: If TLS is enabled for issuer, TLS Trust Store secret should be provided, else it should be skipped. It holds the CA certificates to be used as trust anchors when authenticating the TLS server certiifcate. To create the TLS Trust Store secret, run the following command:
```
kubectl create secret generic <k8s secret name> --from-file=<CA cert file location> -n <namespace>
```
For example:
```
kubectl create secret generic ca1-tls-trust-store-secret --from-file=caroot1.pem -n ns1
```

HTTPS communication between OCCM and CA

OCCM supports HTTPS connections with CA using one-way TLS. To enable the same, the operator has to set enableTLS option in the issuer configuration to true and configure the HTTPS schemed server URL. TLS trust store has to be configured with trust anchors in order to authenticate the TLS server.

In order to enable or disable strict checking of the X.509 certificates presented for HTTPs, the following deployment time (helm) parameters can be configured.

occmConfig.cmp.config.tls.enableX509StrictCheck: This field when set to true enables strict checking of the X.509 certificates presented for HTTPs. Errors are thrown for the certificates which are not compliant with RFC 5280.
occmConfig.cmp.config.tls.ignoreCriticalExtensionsCheck:
This field when set to true ignores checking of the critical extensions in X.509 certificates presented for HTTPs.

Normally, if an unhandled critical extension is present that is not supported by OpenSSL, the certificate is rejected in compliance with RFC 5280.

Note:
This configuration will be applied only when TLS is enabled for an issuer.

3.4.2 Creating Issuer

Issuers are resources that represent CAs and are able to generate signed certificates. You can configure issuers through REST API or using the CNC Console GUI. The maximum number of issuers that can be supported at a time is 30.

Configuring Issuer Using CNC Console GUI

To manually configure issuer using CNC Console GUI:

Log in to CNC Console using your login credentials and select the OCCM Instance.
Click OCCM from the left pane and then click Issuer.
Click Add. The Create Issuer page appears.

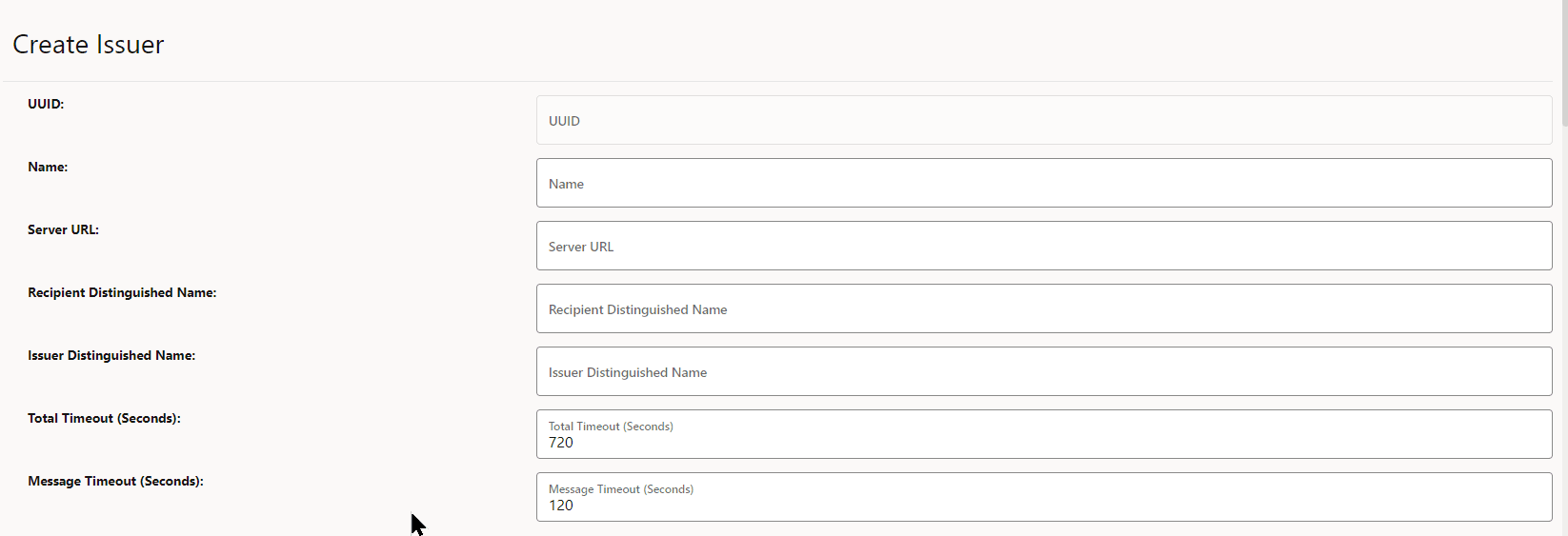

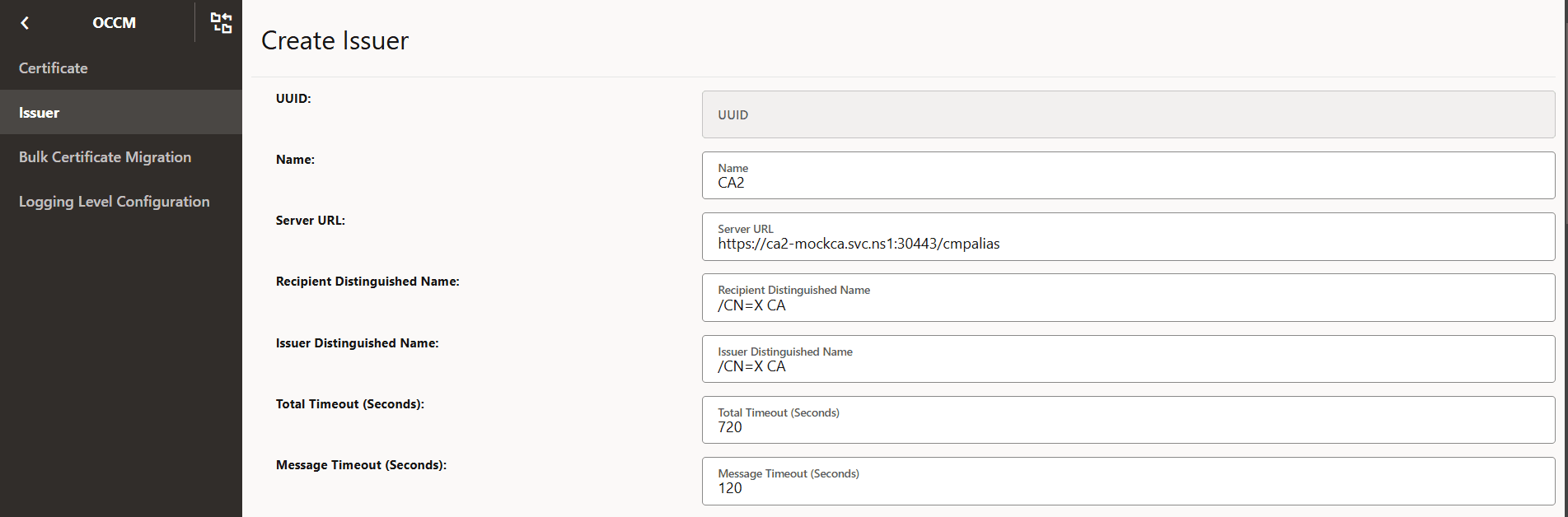

Figure 3-6 Create Issuer

Enter the following information on the Create Issuer page:

Table 3-1 Create Issuer

Field Name	Description
Name	Name of the Issuer
Recipient Distinguished Name	Distinguished name(DN) of the CMP server (usually the addressed CA) used in the recipient field of CMP request message headers. The argument must be formatted as /type0=value0/type1=value1/type2=.... Special characters may be escaped by \ (backslash); whitespace is retained. Empty values are permitted, but the corresponding type will not be included. Giving a single / will lead to an empty sequence of RDNs (a NULL-DN). Multi-valued RDNs can be formed by placing a + character instead of a / between the AttributeValueAssertions (AVAs) that specify the members of the set. For example: `/DC=org/DC=OpenSSL/DC=users/UID=123456+CN=John Doe`
Server URL	Domain URL of CA
Issuer Distinguished Name	X509 issuer Distinguished Name of the CA server to place in the requested certificate template in IR or KUR. The argument must be formatted as /type0=value0/type1=value1/type2=.... Special characters may be escaped by \ (backslash); whitespace is retained. Empty values are permitted, but the corresponding type will not be included. Giving a single / will lead to an empty sequence of RDNs (a NULL-DN). Multi-valued RDNs can be formed by placing a + character instead of a / between the AttributeValueAssertions (AVAs) that specify the members of the set. For example: `/DC=org/DC=OpenSSL/DC=users/UID=123456+CN=John Doe`
Total Timeout (Seconds)	The total time in seconds allowed for the CMP transaction to complete.
Message Timeout (Seconds)	The total time (in seconds) a CMP request-response message round trip is allowed to take.

Under Initial CMP Client(OCCM) Authentication Options, enter the following information:

Table 3-2 Initial Authentication Options

Field Name	Possible Values
Type	MAC, SIGNATURE For more information, see CMP Identity (OCCM) Certificate Configuration Modes.
Digest Algorithm	SHA256, SHA384, SHA512
MAC Algorithm	HMACSHA256, HMACSHA384, HMACSHA512

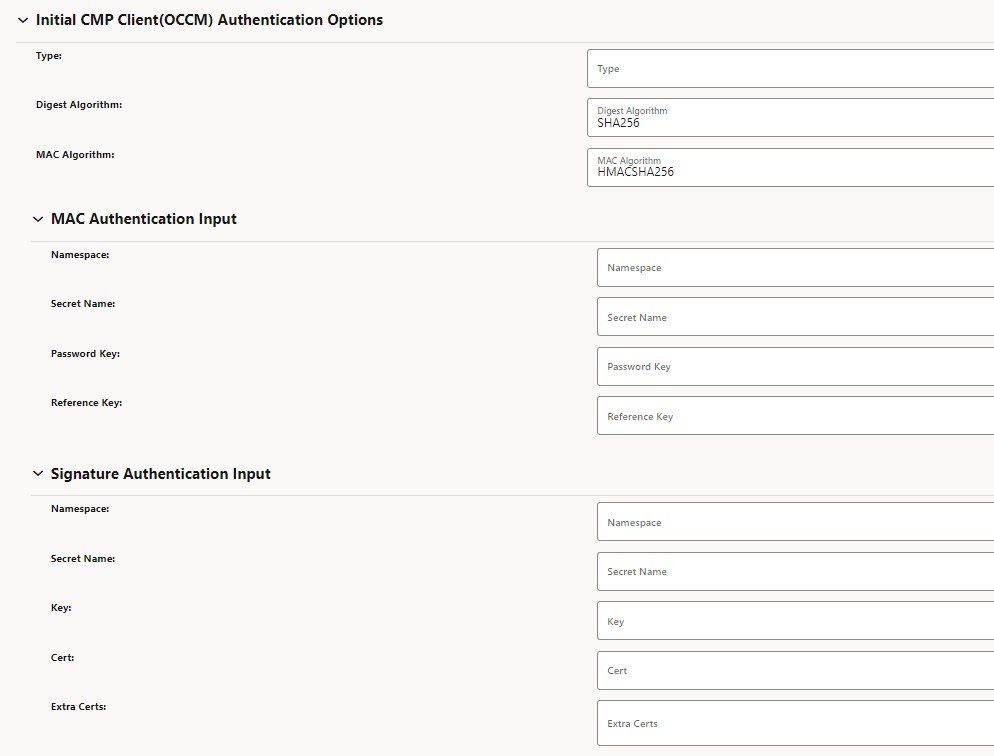

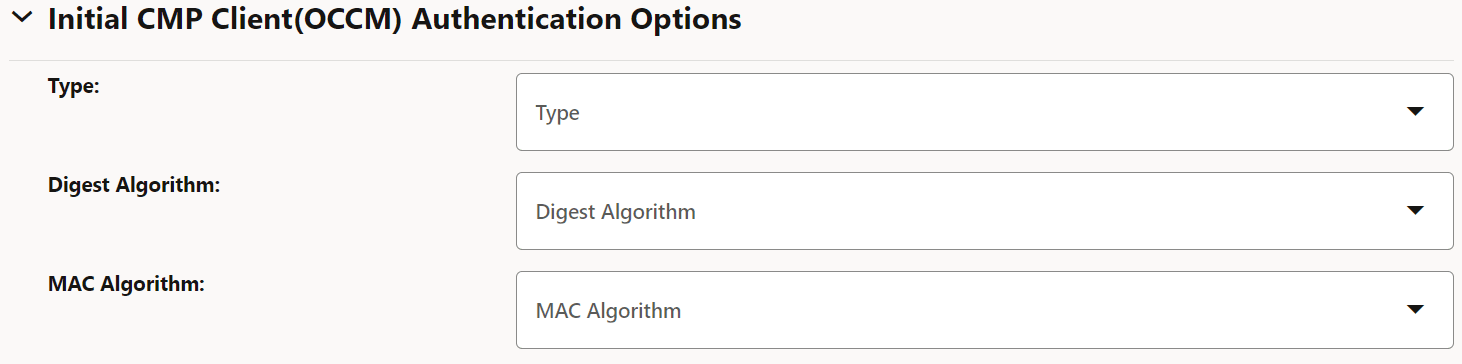

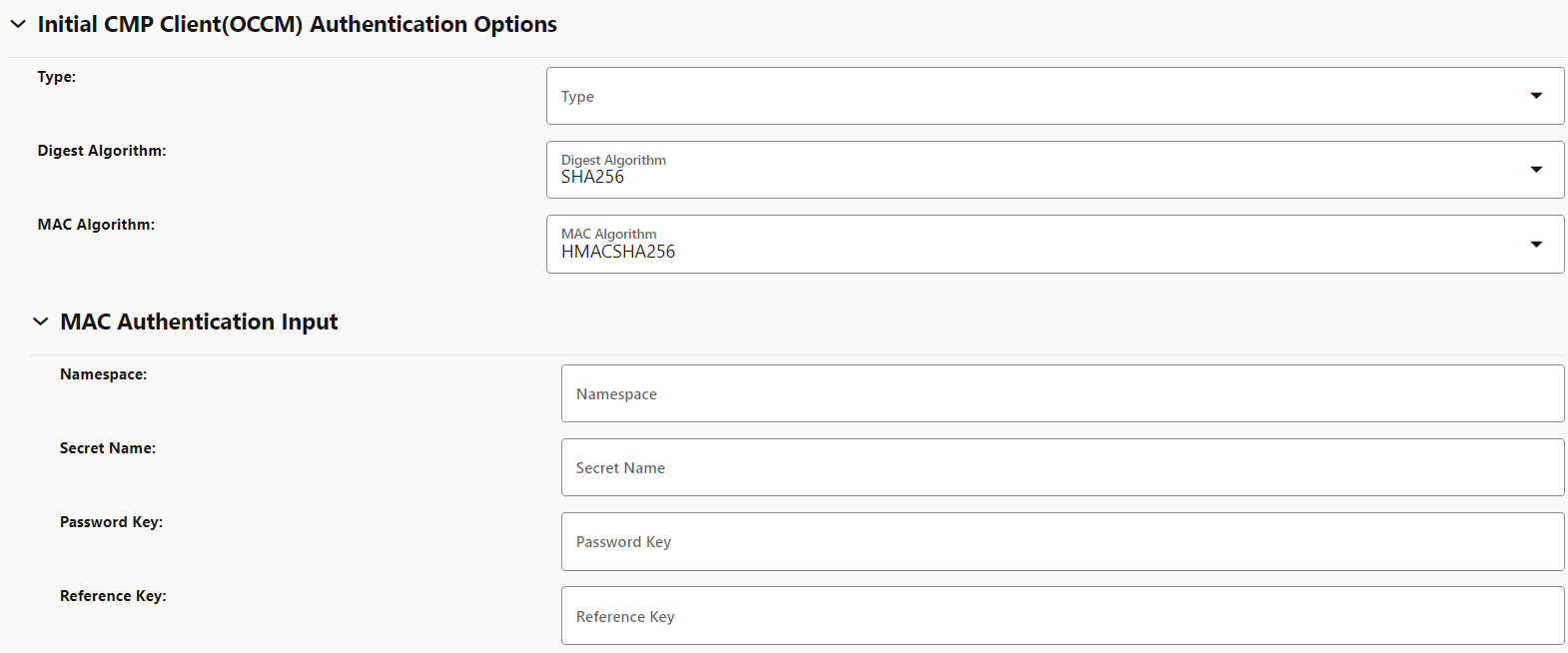

Figure 3-7 Initial CMP Client(OCCM) Authentication Options

If you are using the password based MAC authentication mechanism, then under MAC Authentication Input, enter the following information:

Table 3-3 MAC Authentication Input

Field Name	Description
Namespace	Name of the Kubernetes namespace.
Secret Name	Kubernetes secret name.
Password Key	Kubernetes secret data key against which MAC secret is provided.
Reference Key	Kubernetes secret data key against which reference string is provided.

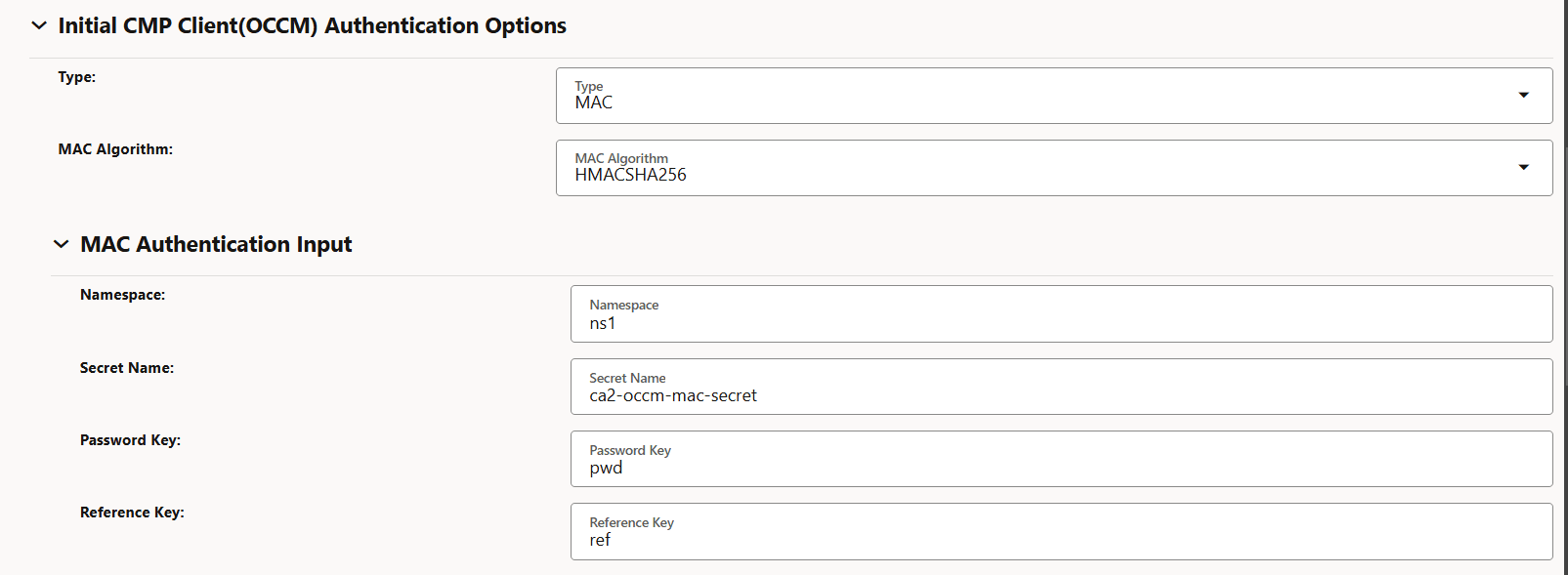

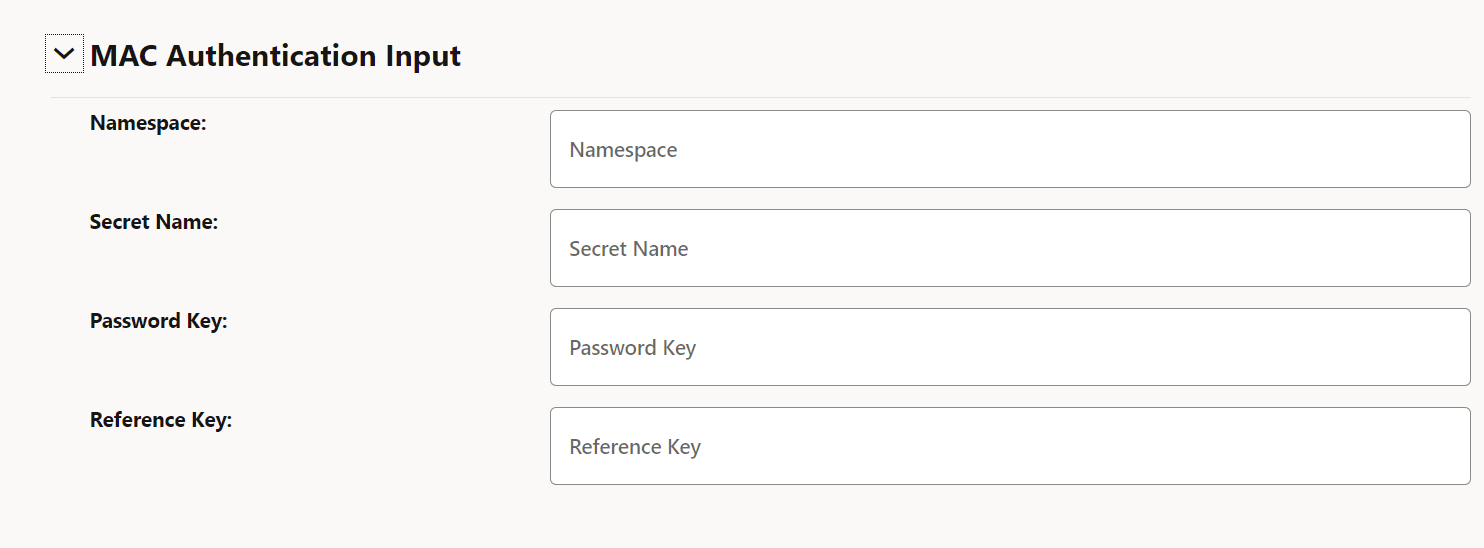

Figure 3-8 MAC Authentication Input

Under Signature Authentication Input, enter the following information:

Table 3-4 Signature Authentication Input

Field Name	Description
Namespace	Name of the Kubernetes namespace.
Secret Name	A unique secret name.
Key	Kubernetes secret data key against which the pre-configured private key file (private key file for the client's current CMP signer certificate) is provided.
Cert	Kubernetes secret data key against which the pre-configured certificate (client's current CMP signer certificate) is provided.
Extra Certs	Extra Certificates, if any, for client authentication.

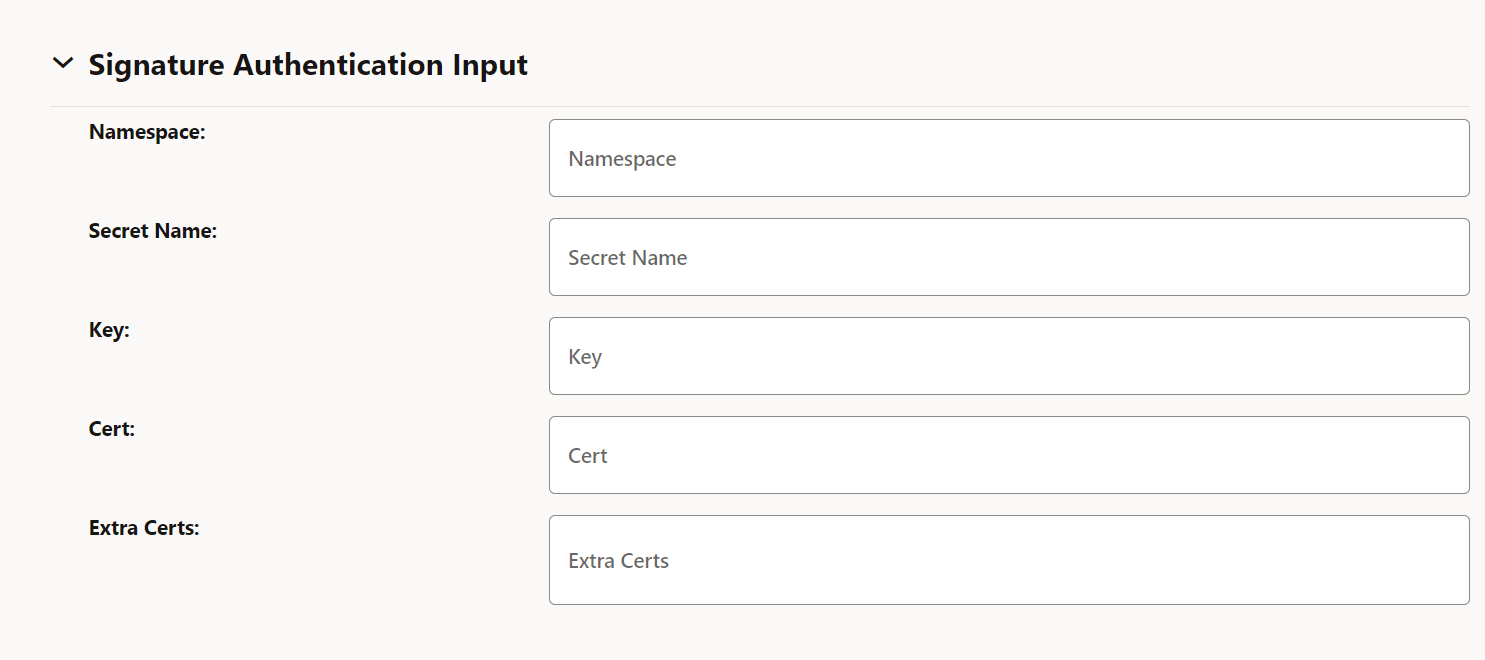

Figure 3-9 Signature Authentication Input

Under CMP Client Authentication Options For Other certificate, enter the following information:

Table 3-5 CMP Client Authentication Options For Other certificate

Field Name	Possible Values
Type	SIGNATURE
Digest Algorithm	SHA256, SHA384, SHA512

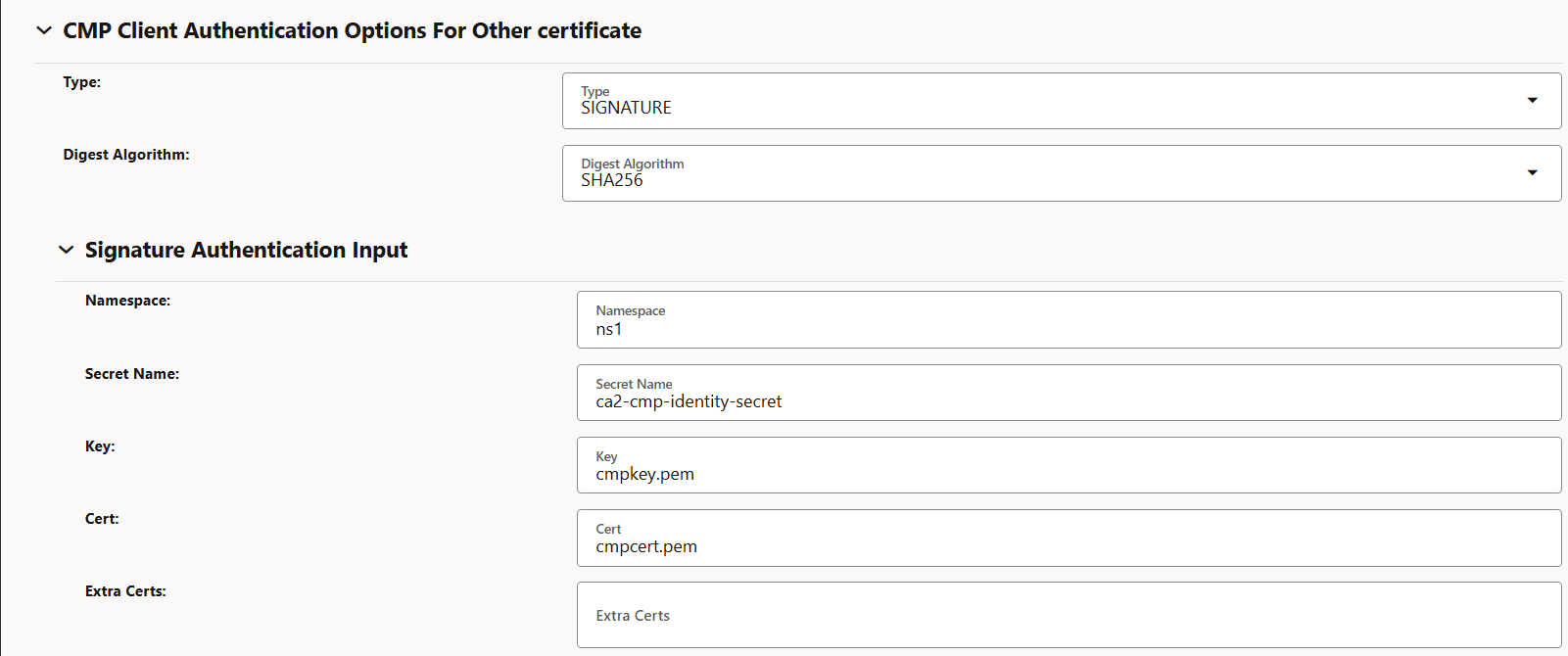

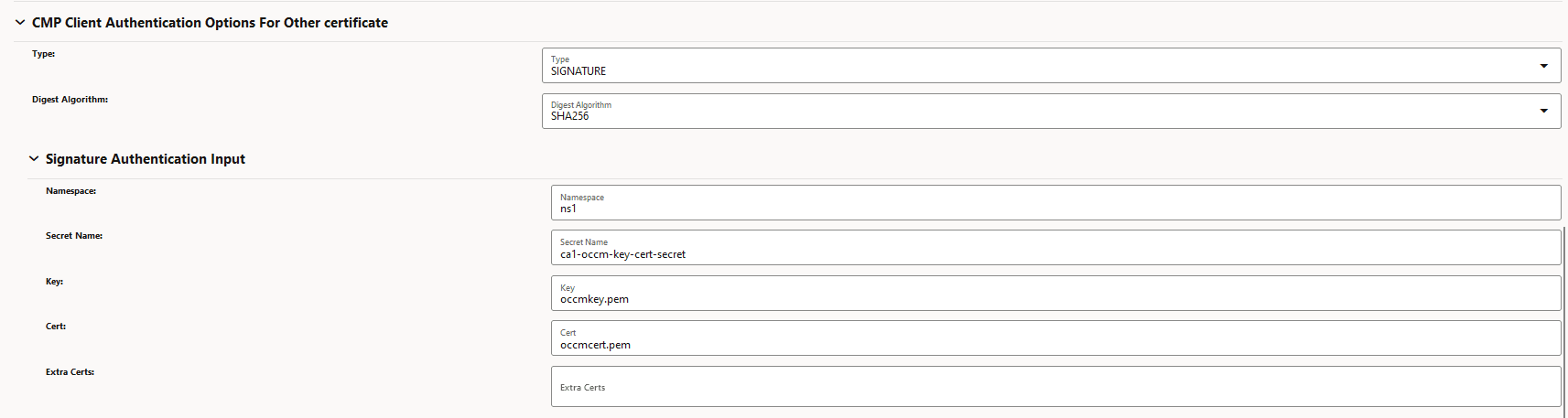

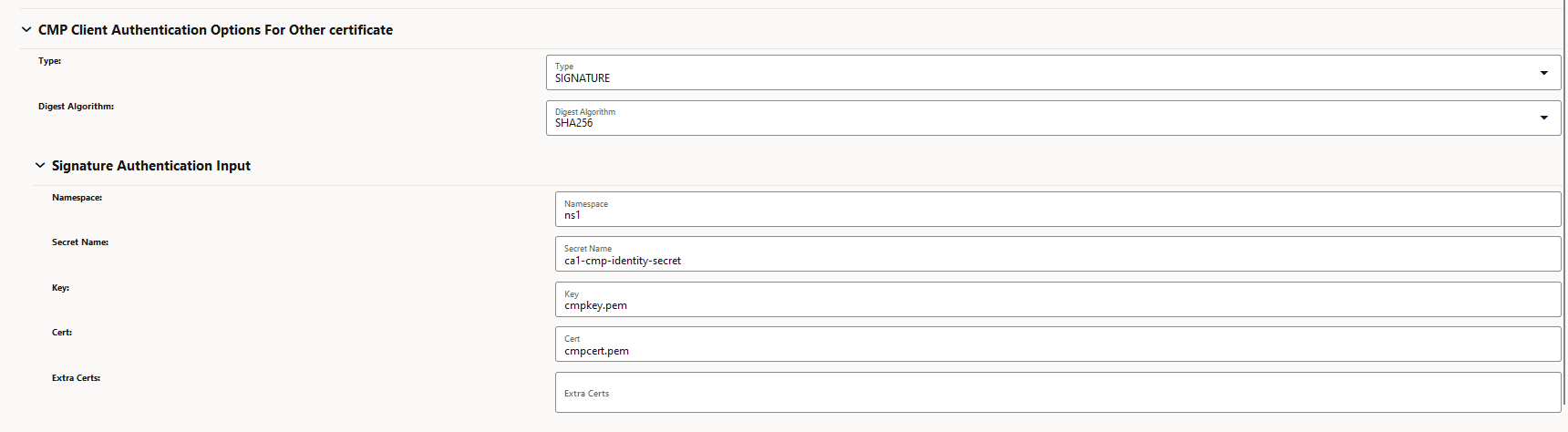

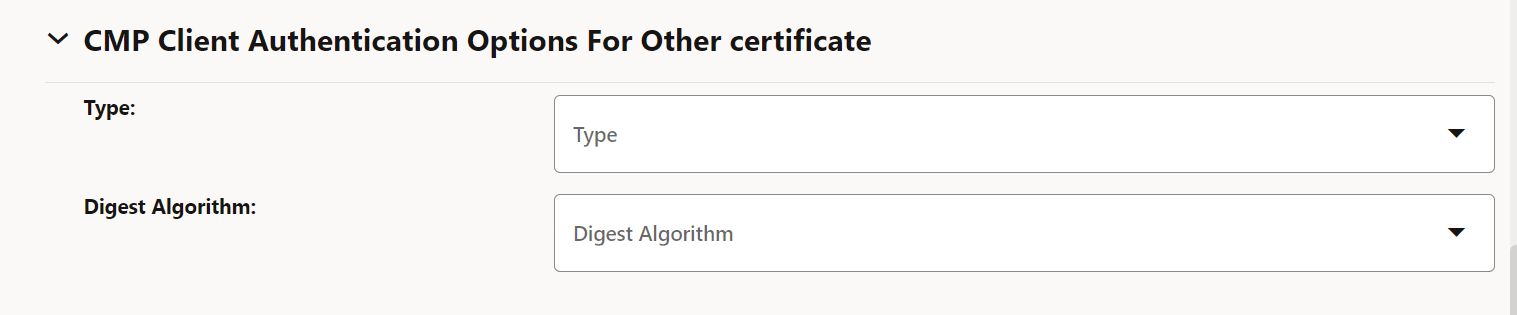

Figure 3-10 CMP Client Authentication Options For Other certificate

Under Signature Authentication Input, enter the following information:

Table 3-6 Signature Authentication Input

Field Name	Description
Namespace	Name of the Kubernetes namespace
Secret Name	A unique secret name
Key	Kubernetes secret data key against which OCCM key is provided or created based on whether OCCM certificate is created in manual or automatic mode.
Cert	Kubernetes secret data key against which OCCM certificate is provided or created based on whether OCCM cert is created in manual or automatic mode.
Extra Certs	List of Kubernetes secret data keys against which the certificates to append in the extraCerts field can be provided or will be created (if received from CA) along with the OCCM certificate, based on whether OCCM cert is created in manual or automatic mode.

Figure 3-11 Signature Authentication Input

Under Occm Trust-Store Secret Input, enter the following information:

Table 3-7 Occm Trust-Store Secret Input

Field	Description
Namespace	Name of the Kubernetes namepace.
Name	Kubernetes secret which holds OCCM trust store information (CA certificates).
Root CA Certs	The certificate(s), typically of root CAs, the client uses as trust anchors when validating the certificate issued by CA. Note: If server certtificate is present, this is ignored.
Intermediate CA Certs	Any untrusted intermediate CA certificate(s) to use when validating newly enrolled certificates.
Server Cert	CMP server or CA server's certificate to expect and directly trust when validating the certificate issued by CA. Note: If this is present, root CA certificates will be ignored.

Figure 3-12 Occm Trust-Store Secret Input

Enter either the root CA certificates and intermediate CA certificate, or the server certificate in the respective fields.

Under TLS Configuration, enter the following information:

Table 3-8 TLS Configuration

Field	Description
Enable TLS	When set to true, HTTPS connection to CA is made. Ensure that you select scheme as HTTPS in server URL if this is set to true.

Figure 3-13 TLS Configuration

Table 3-9 TLS Trust-Store secret Input

Field	Description
Namespace	Kubernetets namespace where TLS trust store secret is present.
Name	Kubernetes secret which holds TLS trust store information (CA certificates).
TLS trusted Certs	Trusted certificate(s) to use for validating the TLS server certificate.

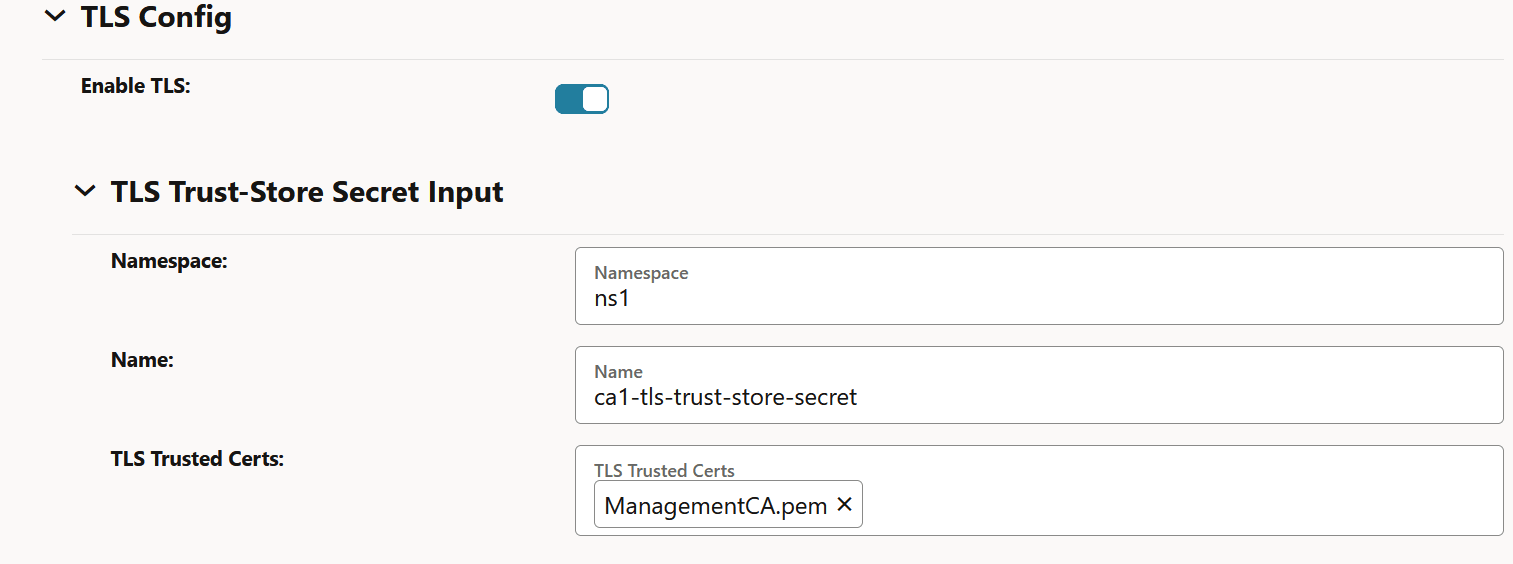

Figure 3-14 Enable TLS

Click Save.

3.4.3 Updating Issuer

The bulk certificate migration can be used to update the end point of the CA and Issuer by updating the field, such as server URL, recipient DN, and Issuer DN. As part of the bulk certificate migration, OCCM updates the link of all the certificate configurations previously linked to the Old CA to the new CA. The generated key pair and certificate overwrites the existing certificate. For more information, see Bulk Migration of Certificates.

You can update all the fields in Edit issuer if no certificate configuration is attached to it. However, if any certification configuration is mapped to the given issuer, only the HTTP scheme is updated (HTTP to HTTPS and vice versa). When the HTTP scheme is updated, the certificates that are created will not be impacted. The updated server endpoint is contacted for any further CMPv2 procedures performed after the update. The scheme (HTTP or HTTPS) will be effective.

To update the issuer:

Log in to CNC Console using your login credentials and select the OCCM Instance.
Click OCCM from the left pane and then click Issuer.

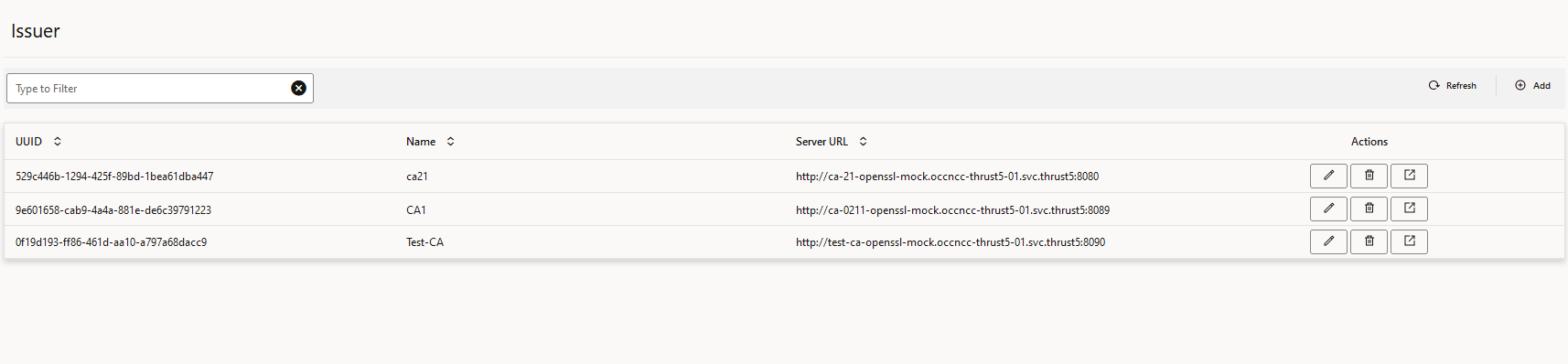

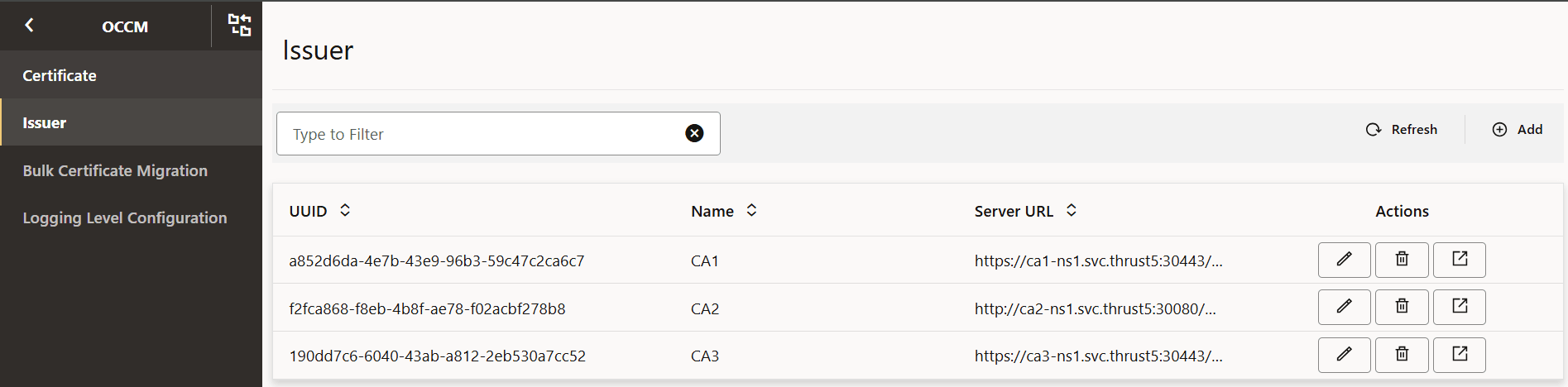

Figure 3-15 Issuer Page
Click the edit icon next to the issuer that you want to update. The Edit Issuer page appears.

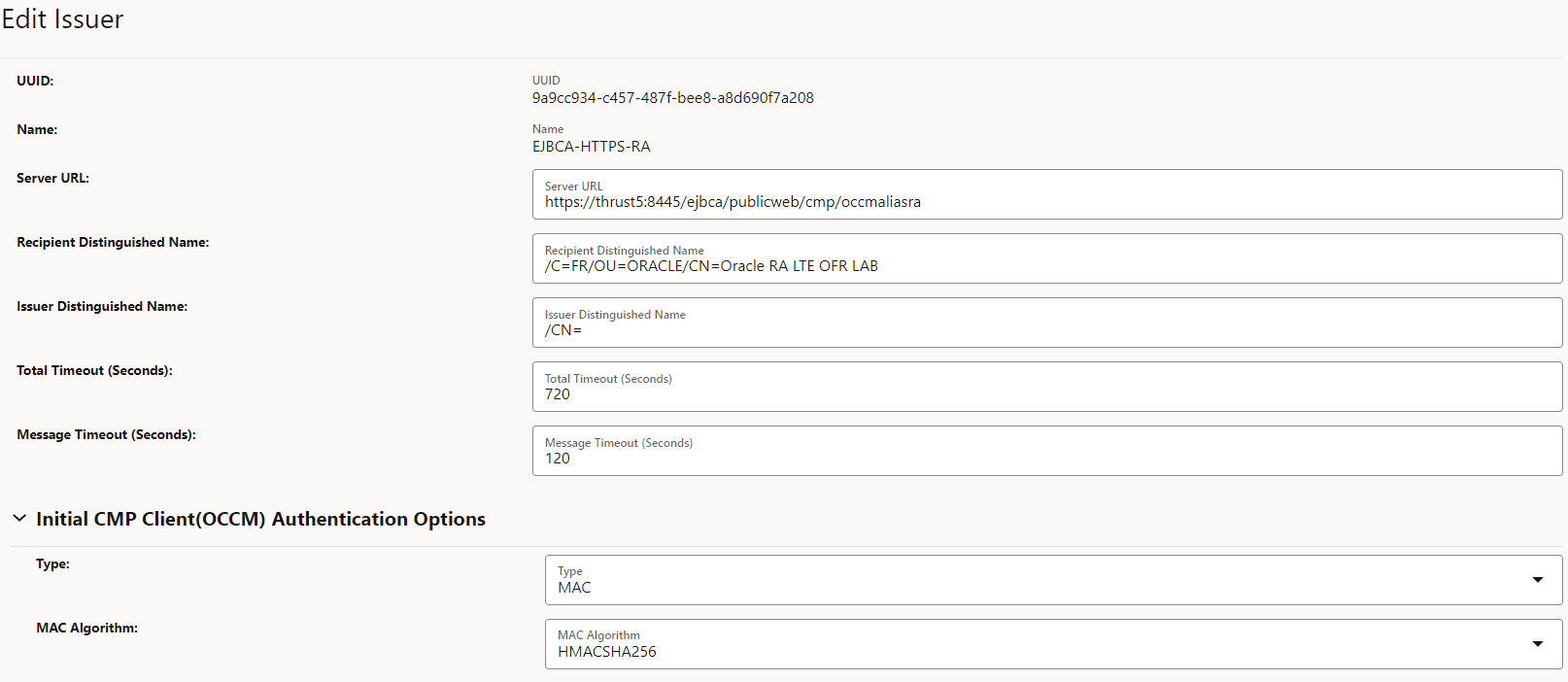

Figure 3-16 Edit Issuer
Edit the fields that you need to update and then click Save.

Note:

Issuer can't be edited if it is in use by any certificate.

3.4.4 Deleting Issuers

To delete issuers from CNC Console GUI:

Log in to CNC Console using the login credentials, and select the OCCM Instance.
Click OCCM from the left pane and then click Issuer. All the available issuers are listed.

Figure 3-17 Issuer
Select the issuer to be deleted and click Delete and then click OK on the confirmation prompt to delete the issuer.

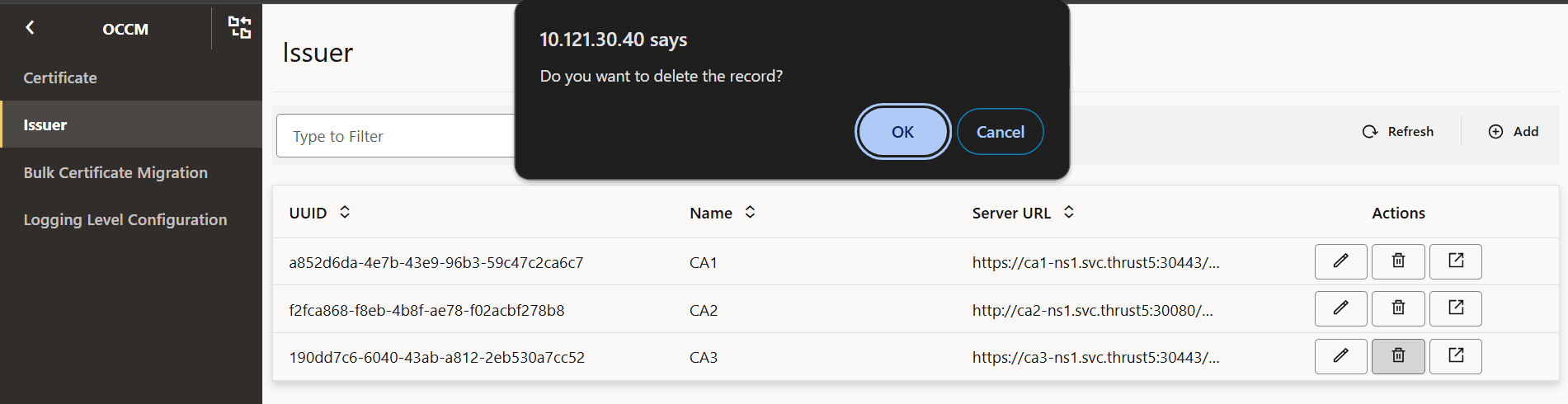

Figure 3-18 Delete Issuer

Note:

An issuer can only be deleted if there are no certificates referring to this issuer entry.

3.5 Managing Certificates

Once an issuer has been configured, an X.509 certificate can be requested. Each certificate configuration in OCCM is a certificate request. It specifies input fields that are used to generate a private key pair and a certificate signing request to obtain a signed certificate from the referenced issuer.

OCCM supports the following key aspects of certificate management:

Creating CMP identity certificates (OCCM certificate)
Creating end entity certificates (NF certificates)
Monitoring certificate expiry and renewing OCCM and NF certificates
Polling for certificates
Deleting the certificate configuration

3.5.1 Creating CMP (OCCM) Identity Certificate

CMP identity certificate (OCCM certificate) is used by OCCM to identify itself to the external CA in CMPv2 messages.

To create a CMP identity certificate using CNC console:

Log in to CNC Console using your login credentials and select the OCCM Instance.
Click OCCM from the left pane and then click Certificate.
Click Add. The Create Certificate page appears.

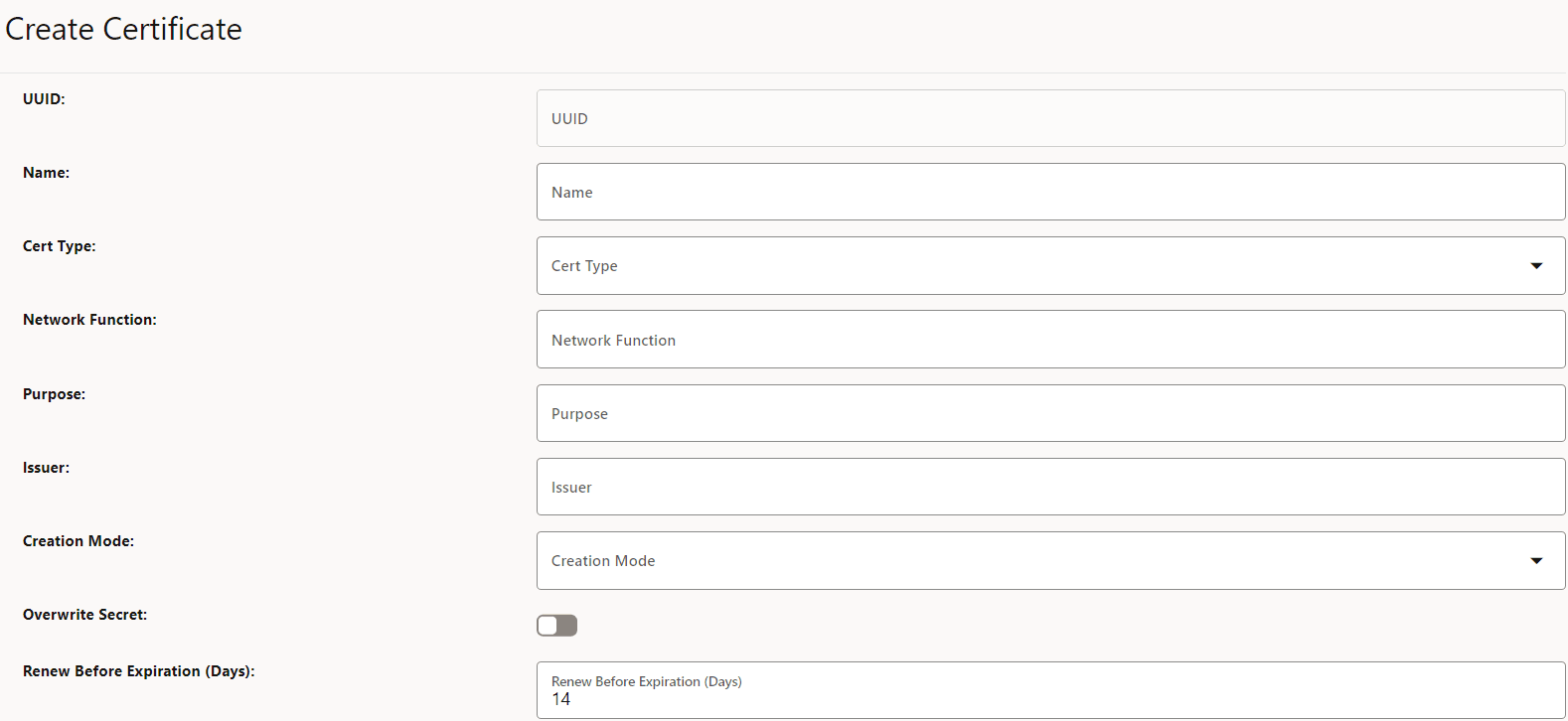

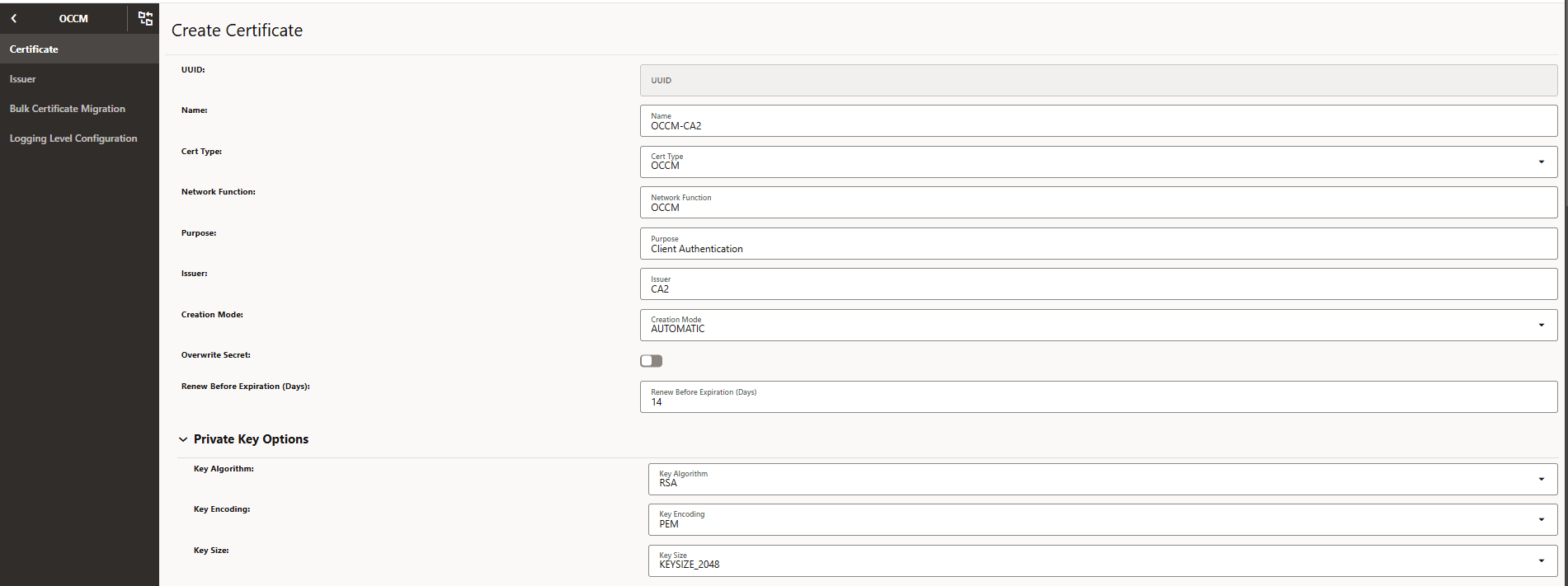

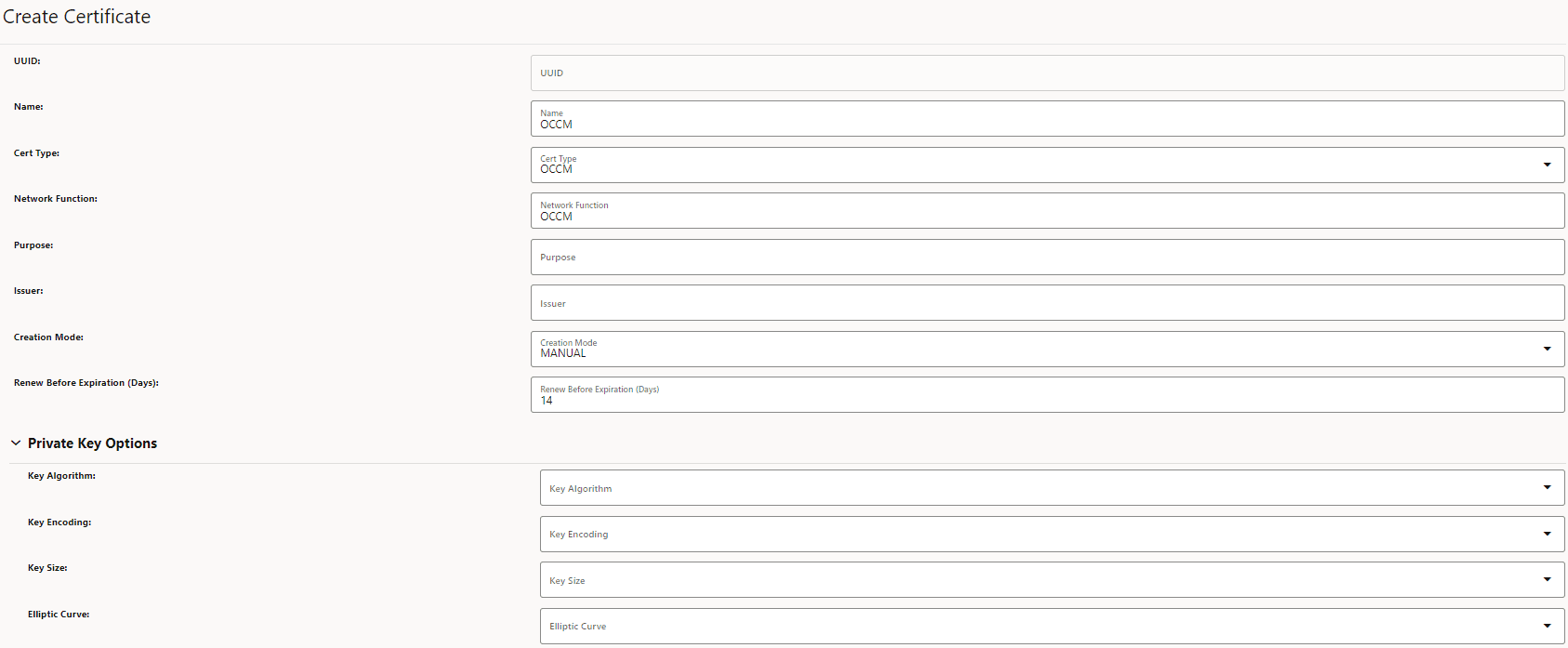

Figure 3-19 Create CMP identity Certificate

Enter the following information:

Table 3-10 Create CMP identity Certificate

Field Name	Description and Possible Values
Name	Name of the certificate.
Cert Type	CMP (OCCM) Identity certificate
Network Function	OCCM
Purpose	Purpose of the OCCM certificate.
Issuer	Name of the issuer for the certificate.
Creation Mode	Possible values are MANUAL and AUTOMATIC. For more information, see CMP Identity (OCCM) Certificate Configuration Modes.

Under Private Key Options, enter the following information:

Table 3-11 Private Key Options

Field Name	Possible Values
Key Algorithm	RSA, EC
Key Encoding	DER, PEM
Key Size	KEYSIZE_2048, KEYSIZE_4096
Elliptic Curve	SECP256r1, SECP384r1

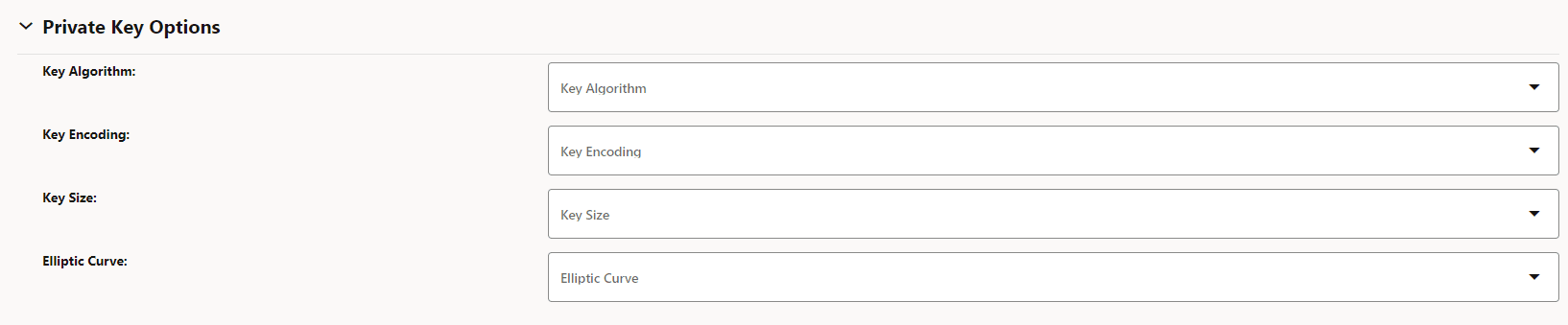

Figure 3-20 Private Key Options

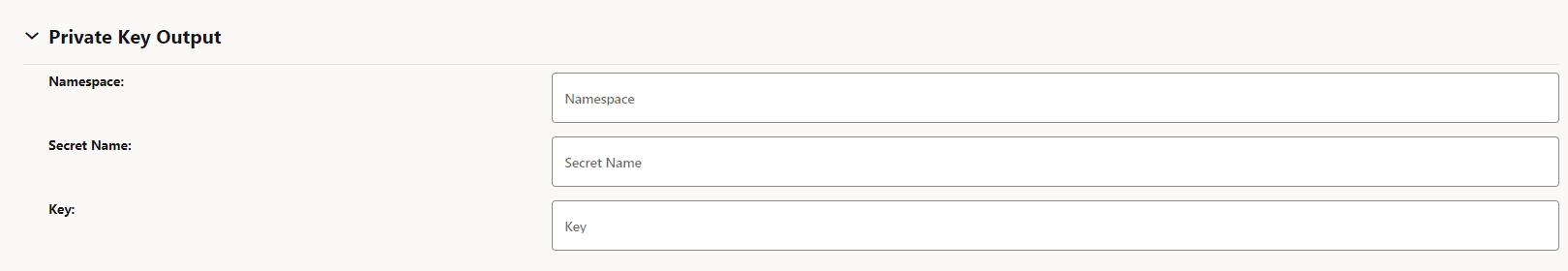

The Private Key Output section is auto populated from corresponding issuer after the certificate is saved. You can skip this section.

Table 3-12 Private Key Output

Field Name	Description
Namespace	Name of the namespace.
Secret Name	Kubernetes Secret Name.
Key	Kubernetes secret key against which the key-pair will be stored.

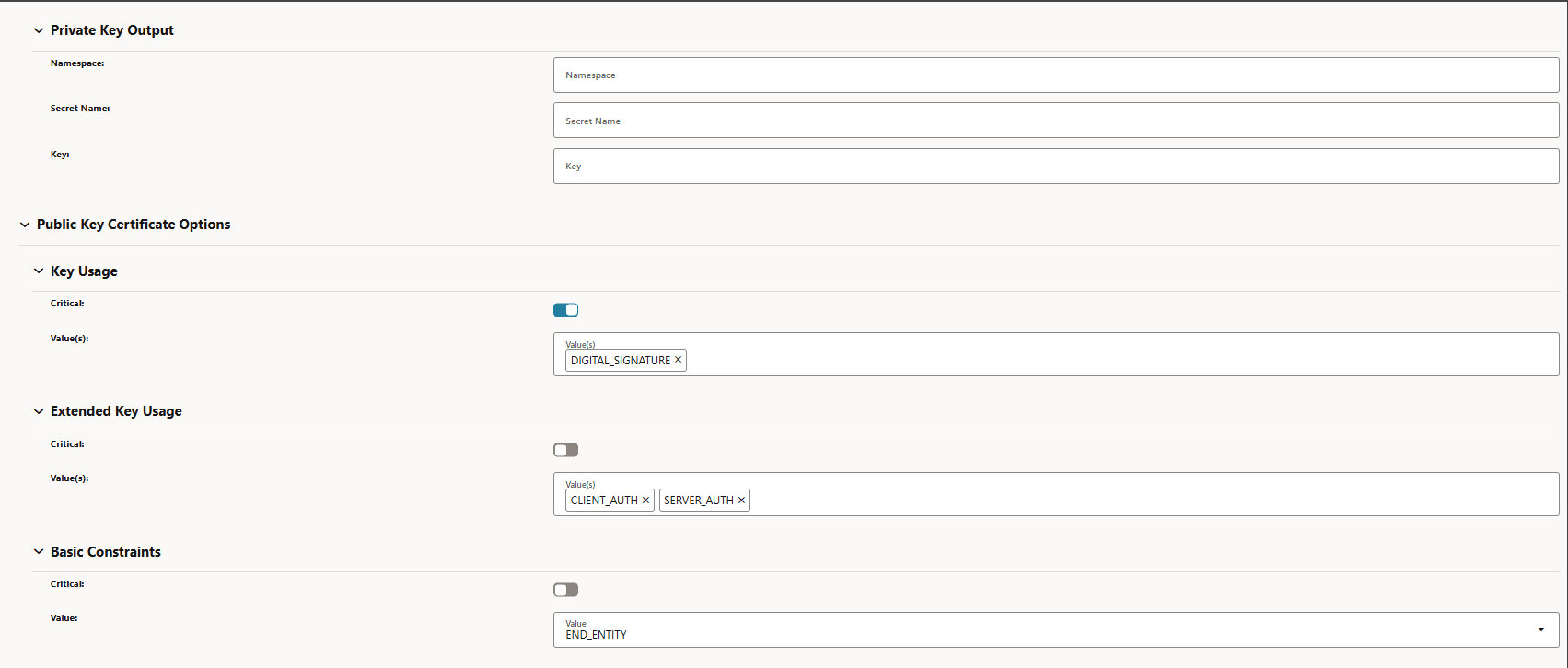

Figure 3-21 Private Key Output

Under Public Key Certificate Options, enter the following:

Table 3-13 Public Key Certificate Options

Field Name	Description
Key Usage	Value(s): DIGITAL_SIGNATURE
Extended Key Usage	Value(s): CLIENT_AUTH and SERVER_AUTH
Basic Constraints	Value(s): END_ENTITY
Subject	Country: Enter country code: State: Enter state code. Location: City or town where company is legally located. Organization: Name of your organization. Organisation Unit: Name of business unit. Common Name: The Common Name (CN) represents the server name to be protected by the certificate. Requested Validity (Days): Number of days requested for which the certificate will be valid.

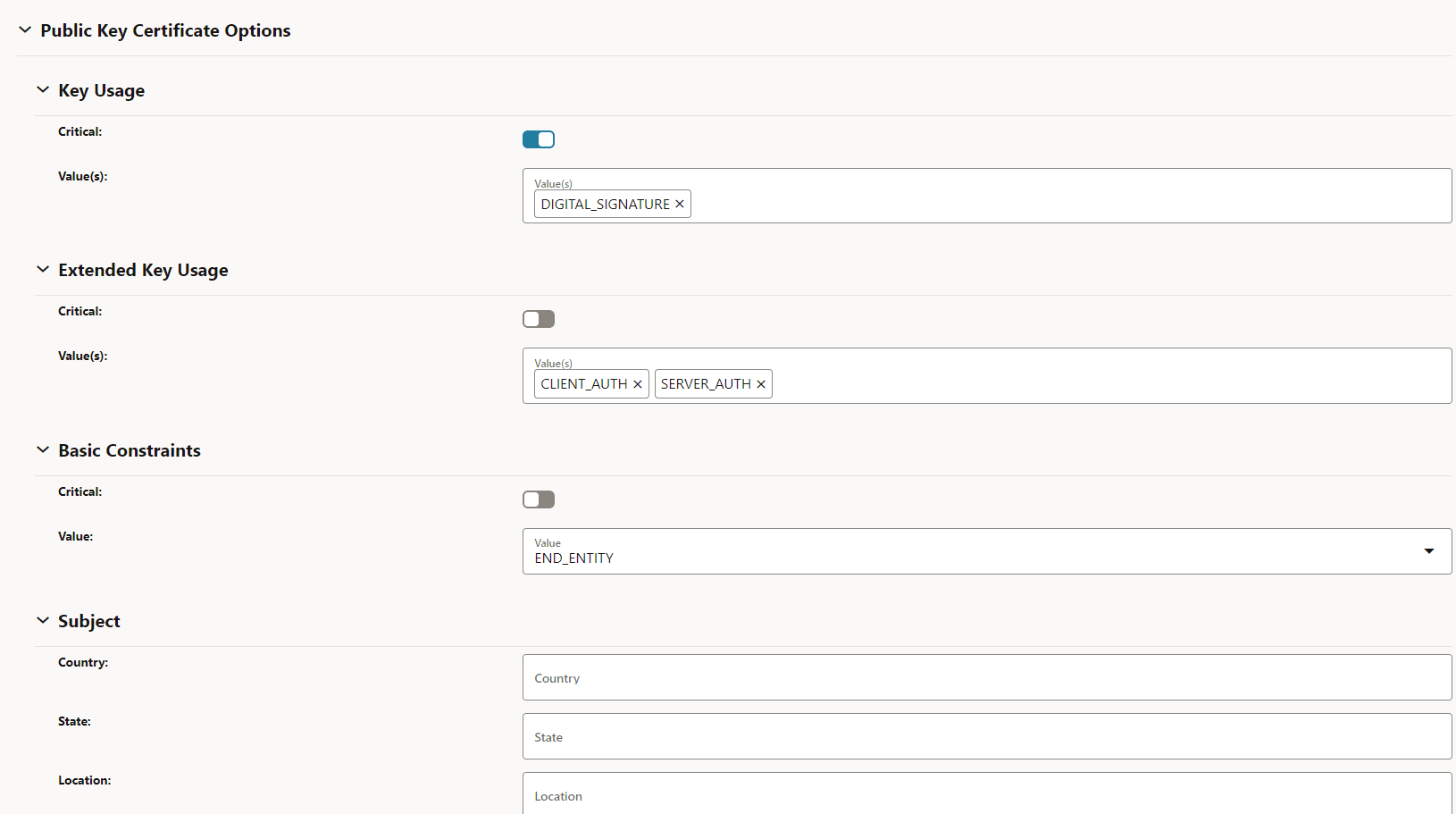

Figure 3-22 Public Key Certificate Options

Under Subject Alternate Names, enter the following:

Table 3-14 Subject Alternate Names

Field Name	Description
IP Address	The IPs you want to protect under this certificate.
DNS Names	List of DNS domain names.
URI ID API Roots	List of URI IDs.
URI ID URNs	List of URI IDs.

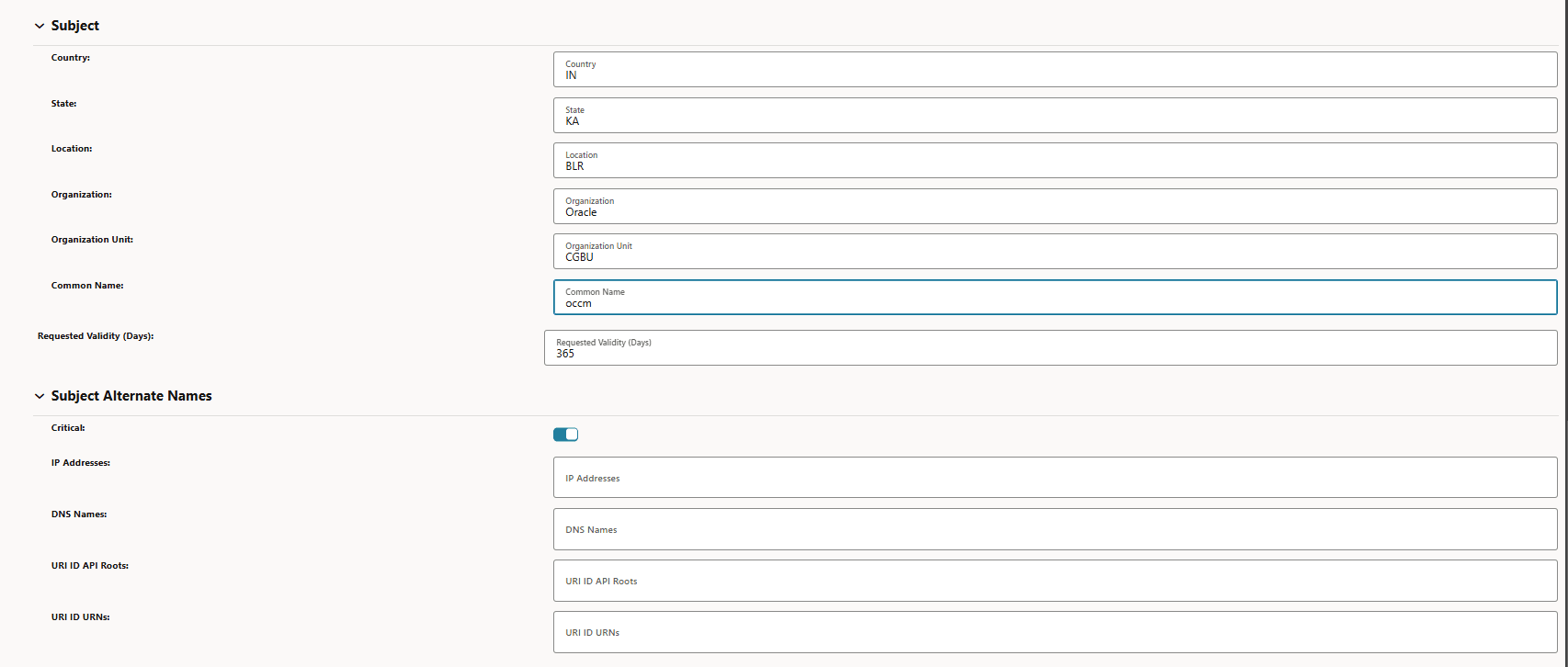

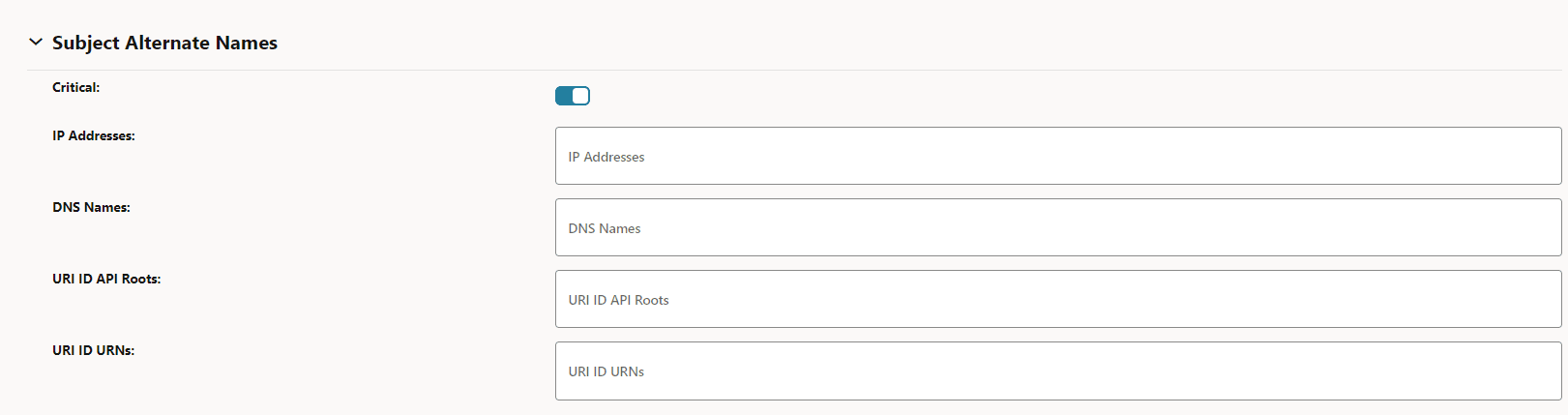

Figure 3-23 Subject Alternate Names

The Certificate Output section is auto populated from corresponding issuer after the certificate is saved. You can skip this section.

Table 3-15 Certificate Output

Field Name	Description
Namespace	Name of the namespace.
Secret Name	Name of the secret.
Key	The key against which the certificate will be populated.

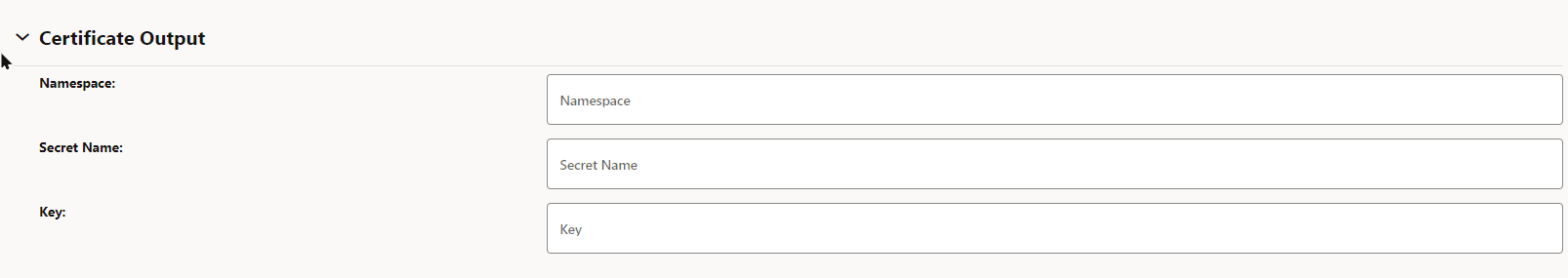

Figure 3-24 Certificate Output

(Optional) Under Certificate Chain Output, enter the following:

Table 3-16 Certificate Chain Output

Field Name	Description
Namespace	Name of the namespace.
Secret Name	Name of the secret.
Key	Kubernetes secret key against which the certificate chain will be stored.

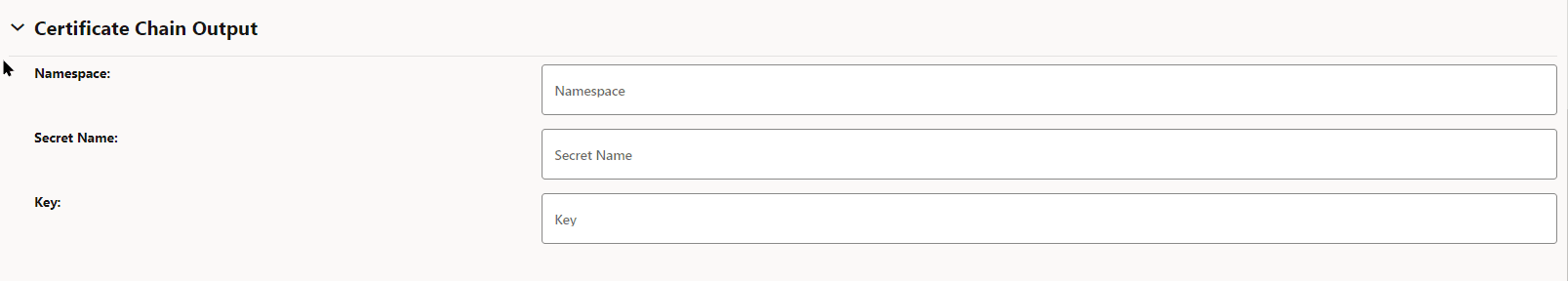

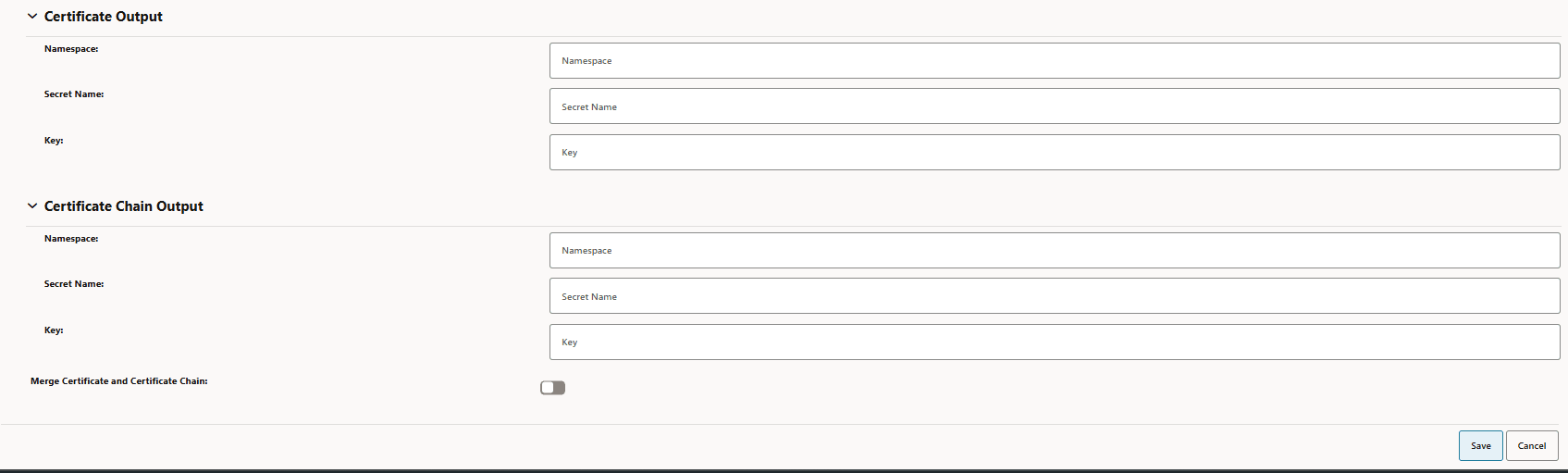

Figure 3-25 Certificate Chain Output

If the Certificate Chain Output section is filled, then the certificate chain can either be obtained from the CA or can be configured manually. This is based on the extractCertChainFromCmpResponse helm parameter. For more information, see Oracle Communications Cloud Native Core, Certificate Management Installation, Upgrade, and Fault Recovery Guide.

Note:

extractCertChainFromCmpResponse: This field, when set to true, specifies that certificate chain will be extracted from CA's CMP response message. When false, the operator can configure the chain manually. This certificate chain is used in the TLS handshake along with the certificate.

Merge Certificate and Certificate Chain:
To get the complete certificate chain including the leaf certificate and the intermediate CA certificate(s), enable the Merge Certificate and Certificate Chain option and provide the same output secret for both Certificate Output and Certificate chain output fields. The Certificate Output secret can be taken from the issuer's CMP client options for Other Certificate field.

Figure 3-26 Merge Certificate and Certificate Chain

Note:
This is an optional field and is set to false by default. In case the issuer CA doesn't respond with the chain (intermediate CA certificates), only the leaf certificate will be populated against the specified Kubernetes secret key.
Click Save.

3.5.1.1 CMP Identity (OCCM) Certificate Configuration Modes

The following section highlights the configuration applicable to these modes and control how the CMP identity certificates are generated. The purpose of the following issuer configuration and certificate configuration sections is to highlight the difference in the fields for different modes.

OCCM can be configured with one of the following modes available to establish the initial Trust with the CA(s):

Using the pre-shared key
Using the pre-configured private key and certificate

Using the pre-shared Key

With this mode of configuration, OCCM signs the first initialization request using the pre-shared key. CA validates the request and issues a signed OCCM certificate.

Issuer configuration
To configure the issuer using the pre-shared key,
1. The MAC authentication input must be provided under Initial CMP Client (OCCM) Authentication Options.

  Figure 3-27 Initial CMP Client(OCCM) Authentication Options
2. OCCM key and certificate output location must be specified under CMP Client Authentication Options for Other Certificate. OCCM certificate received from CA will be written here.

  Figure 3-28 CMP Client Authentication Options for Other Certificate
Certificate configuration

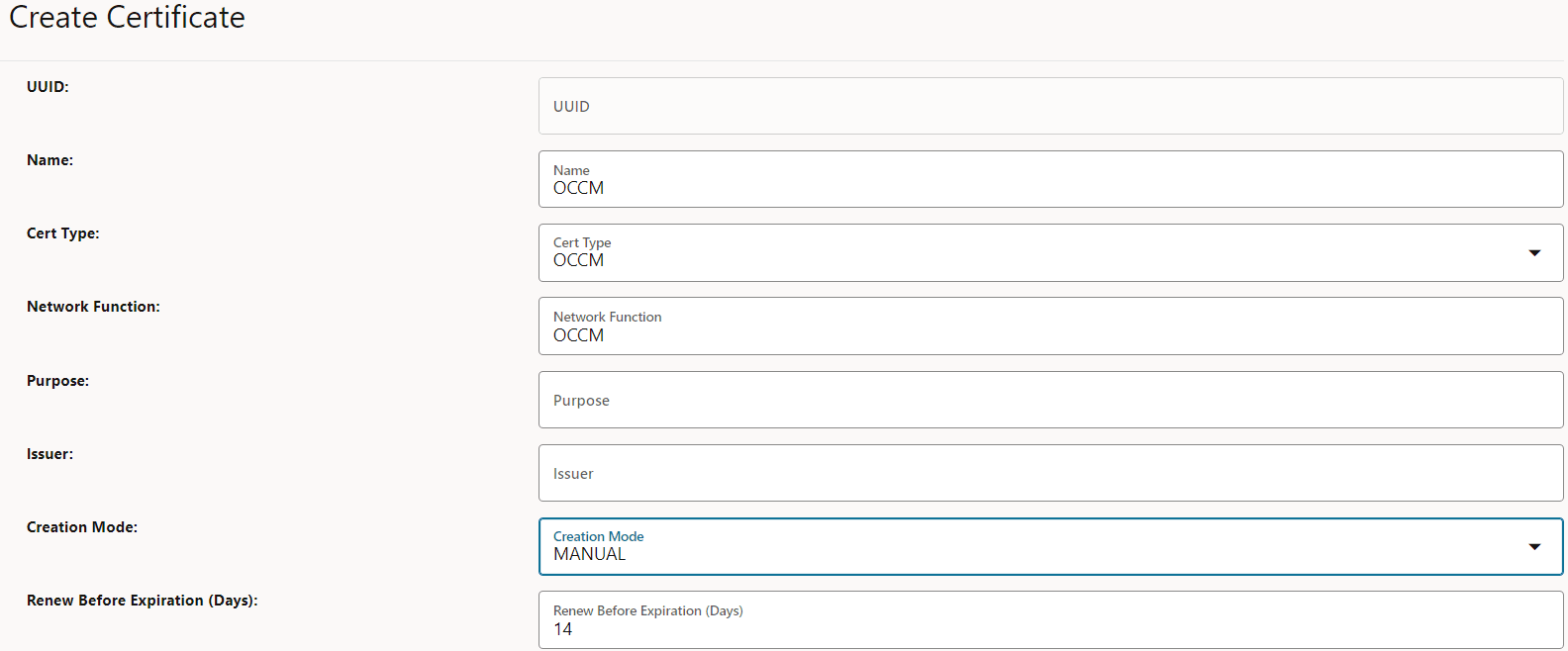

To configure the OCCM Certificate using the pre-shared key, select OCCM from the Cert Type drop-down and select AUTOMATIC from Creation Mode on the Create Certificate page.

Figure 3-29 OCCM Certificate Configuration using Pre-shared Key

Using the pre-configured private key and certificate

The pre-configured private key and certificate mode can be used in the following two ways:

OCCM signs the first initialization request using the pre-configured private key and certificate. CA validates the request and issues a signed OCCM certificate.
1. Issuer Configuration
  Here, to configure the issuer,
  1. Provide the Signature authentication input under Initial CMP Client(OCCM) Authentication Options.

    Figure 3-30 Initial CMP Client(OCCM) Authentication Options
  2. OCCM key and certificate output location need to be specified under CMP Client Authentication Options for Other Certificate. OCCM certificate received from CA will be written here.

    Figure 3-31 CMP Client Authentication Options for Other Certificate
2. OCCM Certificate Configuration

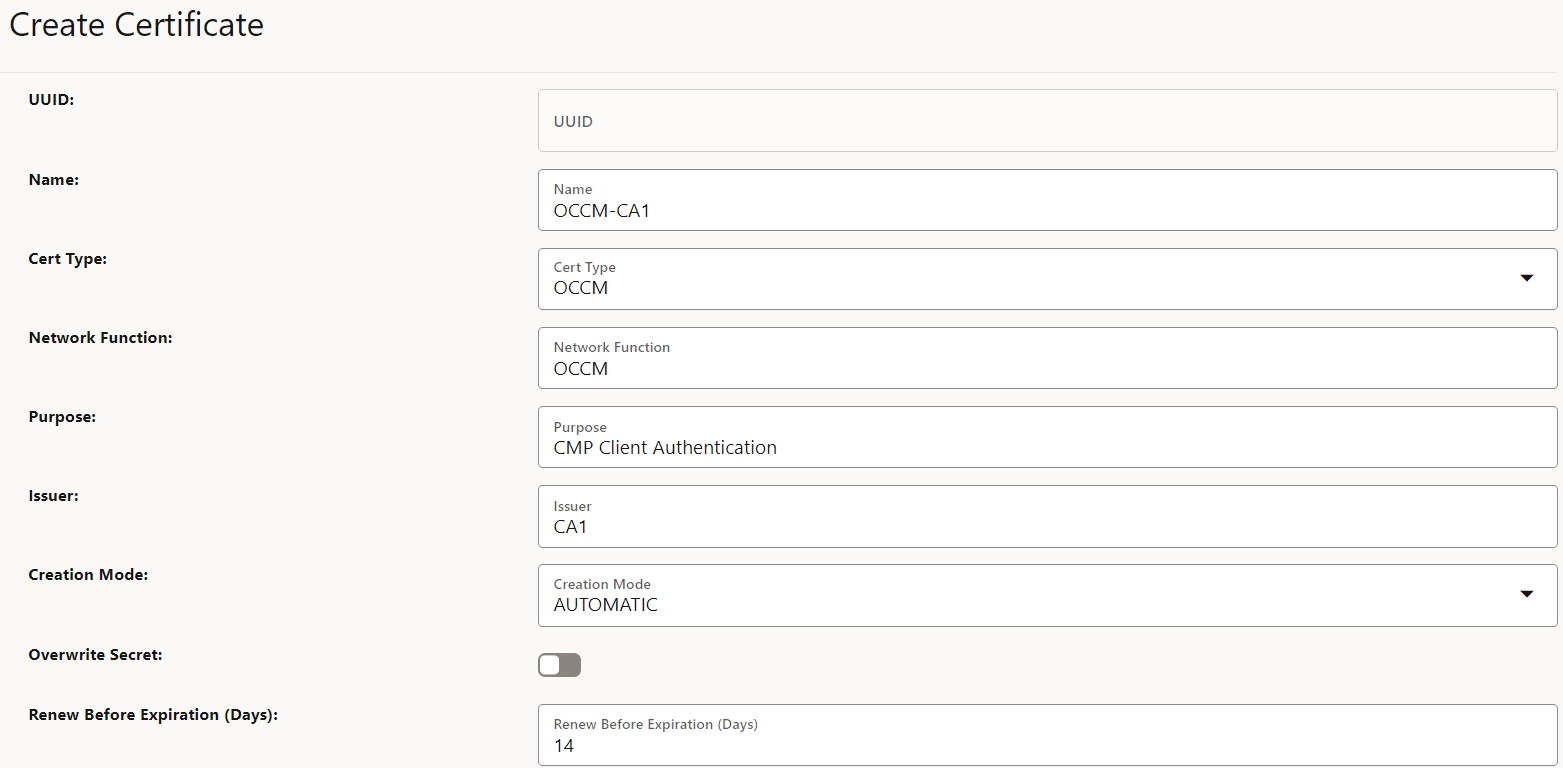

  To configure the OCCM Certificate, select OCCM from the Cert Type drop-down and select AUTOMATIC from the Creation Mode on the Create Certificate page.
The pre-configured private key and certificate (generated out of band) can be used as the OCCM certificate.
1. Issuer Configuration
  1. Here, you must skip the Initial CMP Client(OCCM) Authentication Options.

    Figure 3-32 Issuer Configuration
  2. OCCM key and certificate output location need to be specified under CMP Client Authentication Options for Other Certificate. Specify the manually created OCCM key and certificate location here.

    Figure 3-33 CMP Client Authentication Options for Other Certificate
2. OCCM Certificate Configuration
  To configure the OCCM Certificate, select OCCM from the Cert Type drop-down and select MANUAL from the Creation Mode on the Create Certificate page.

  Figure 3-34 OCCM Certificate Configuration

Note:

This configuration is available for each of the issuers, therefore the modes for the CAs can be controlled individually.

3.5.2 Creating End Entity (NF) Certificates

End entity certificate (NF Certificate) are used by NF and applications for various purposes, such as TLS.

To create End Entity certificate using CNC Console GUI:

Log in to CNC Console using your login credentials and select the OCCM Instance.
Click OCCM from the left pane and then click Certificate.
Click Add. The Create Certificate page appears.

Figure 3-35 Create NF Certificate

Enter the following information:

Table 3-17 Create NF Certificate

Field Name	Description and Possible Values
Name	Name of the certificate.
Cert Type	Select OTHER for End Entity (NF) certificates.
Network Function	Name of the End Entity (NF).
Purpose	Purpose of the End Entity (NF) certificate.
Issuer	Name of the issuer for the certificate.
Creation Mode	Possible values are MANUAL and AUTOMATIC.

Under Private Key Options, enter the following information:

Table 3-18 Private Key Options

Field Name	Possible Values
Key Algorithm	RSA, EC
Key Encoding	DER, PEM
Key Size	KEYSIZE_2048, KEYSIZE_4096
Elliptic Curve	SECP256r1, SECP384r1

Figure 3-36 Private Key Options

Under Private Key Output, enter the following information:

Table 3-19 Private Key Output

Field Name	Description
Namespace	Name of the namespace.
Secret Name	Kubernetes Secret Name.
Key	Kubernetes secret key against which the key-pair will be stored.

Figure 3-37 Private Key Output

Under Public Key Certificate Options, enter the following:

Table 3-20 Public Key Certificate Options

Field Name	Description
Key Usage	Value(s): DIGITAL_SIGNATURE
Extended Key Usage	Value(s): CLIENT_AUTH and SERVER_AUTH
Basic Constraints	Value(s): END_ENTITY
Subject	Country: Enter country code. State: Enter state code. Location: City or town where company is legally located. Organization: Name of your organization. Organisation Unit: Name of business unit. Common Name: The Common Name (CN) represents the server name to be protected by the certificate. Requested Validity (Days): Number of days requested for which the certificate will be valid.

Figure 3-38 Public Key Certificate Options

Under Subject Alternate Names, enter the following:

Table 3-21 Subject Alternate Names

Field Name	Description
IP Address	The IPs you want to protect under this certificate.
DNS Names	List of DNS domain names.
URI ID API Roots	List of URI ID (API root of the NF Instance).
URI ID URNs	List of URI ID (URN of the NFInstanceId).

Figure 3-39 Subject Alternate Names

Under Certificate Output, enter the following for the NF certificate:

Table 3-22 Certificate Output

Field Name	Description
Namespace	Name of the namespace.
Secret Name	Name of the secret.
Key	The key against which the certificate will be populated.

Figure 3-40 Certificate Output

(Optional) Under Certificate Chain Output, enter the following:

Table 3-23 Certificate Chain Output

Field Name	Description
Namespace	Name of the namespace.
Secret Name	Name of the secret.
Key	Kubernetes secret key against which the certificate chain will be stored.

Figure 3-41 Certificate Chain Output

If the Certificate Chain Output section is filled, then the certificate chain (intermediate CA certificates ) can either be obtained from the CA or can be configured manually. This is based on the extractCertChainFromCmpResponse helm parameter. For more information, see Oracle Communications Cloud Native Core, Certificate Management Installation, Upgrade, and Fault Recovery Guide.

Note:

extractCertChainFromCmpResponse: This field when set to true specifies that certificate chain will be extracted from CA's CMP response message. When false, the operator can configure the chain manually. This certificate chain can be used in the TLS handshake along with the certificate.

Merge Certificate and Certificate Chain.
To get the complete chain including the leaf certificate and the intermediate CA certificate(s), enable the Merge Certificate and Certificate Chain option and provide the same output secret for both Certificate Output and Certificate chain output fields. The Certificate Output secret can be taken from the Issuer's CMP client options for Other Certificate field.

Figure 3-42 Merge Certificate and Certificate Chain

Note:
This is an optional field and is set to false by default. In case the issuer CA doesn't respond with the chain (intermediate CA certificates), only the leaf certificate will be populated against the specified Kubernetes secret key.

For example, The certificate chain (leaf certificate and intermediate CA certificate(s)) will be populated against the key nrfcertchain.pem of the Kubernetes secret nrf-tls-secret present in namespace ns1.

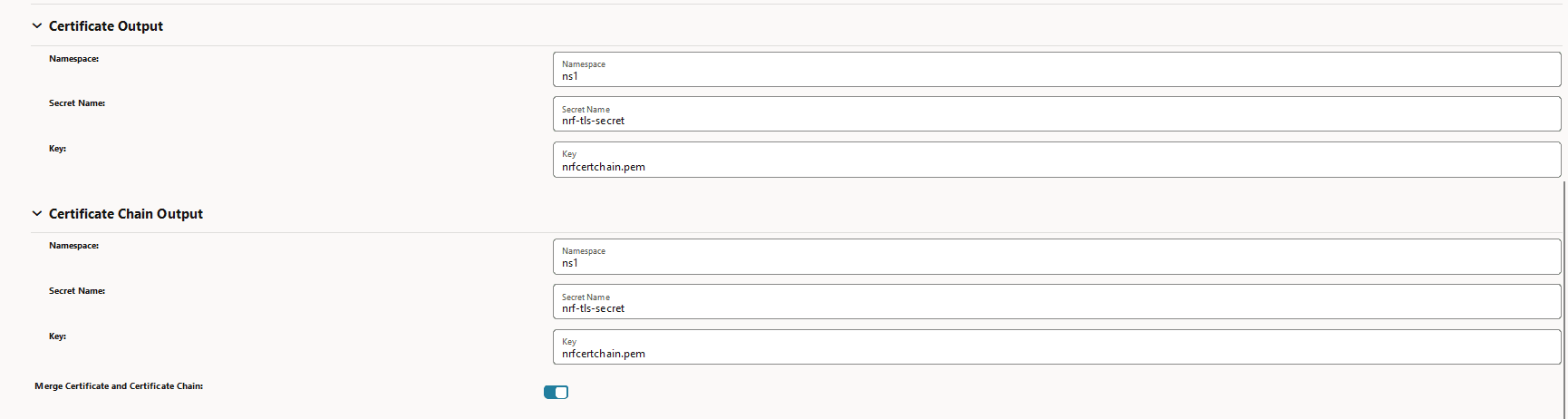

Figure 3-43 Sample Certificate Output and Certificare Chain Output

(Optional) under CA Bundle Input, enter the following information:

Table 3-24 CA Bundle Input

Field Name	Description
Namespace	Name of the namespace.
Secret Name	Name of the secret.
Key	Kubernetes secret key against which CA bundle certificate(s) will be stored.

Figure 3-44 CA Bundle Input

Click Save.

For sample NF configuration, see Creating End Entity (NF) Certificate Using OCCM - Sample Configuration.

3.5.3 Monitoring Certificate Expiry and Renewing Certificates

OCCM monitors the certificate validity and initiates automatic certificate renewal based on the renew before period configuration. You can update the Renew Before Expiration (Days) field on the Create Certificate page at the time of certificate creation. This field specifies the number of days before the certificate expiry date when the certificate must be renewed.

Figure 3-45 Renew Before Expiration (Days)

A CMPv2 Key Update Request (KUR) is sent to the issuing CA for certificate renewal. Once the renewal is successful, OCCM overwrites the configured kubernetes secret holding the old key and certificate with the new one and continues to monitor.

Note:

Grafana dashboards can be used to visualize certificate status, such as, expiry time the cert readiness status and the error reason in case the certificate creation fails etc.

3.5.3.1 Renewing CMP Identity (OCCM) Certificate

The Key Update Request (KUR) for CMP identity certificate is signed by the CMP identity key and certificate that is being renewed. The corresponding certificate is included in the extraCerts of the outgoing CMP message.

3.5.3.2 Renewing End Entity (NF) Certificate

The Key Update Request (KUR) for an end entity certificate is signed in the following two ways:

Using CMP Identity key and certificate.
Using the old end entity key and certificate that is being renewed.

The corresponding certificate is included in the extraCerts of the outgoing CMP message. To use the CMP Identity key and certificate as the signer, you must set the Key Update Request mode as follows:

Set the occmConfig.cmp.config.useOccmCertSignForKur parameter to true at the time of OCCM deployment, then CMP Identity key and certificate is used to sign the CMP KUR message.
If the occmConfig.cmp.config.useOccmCertSignForKur parameter is set to false, the certificate that is being renewed will be used as the signer.

Note:

Grafana dashboard can be used to visualize the status of the certificate, such as, the remaining expiry of the certificate, the cert readiness status, and the error reason in case the certificate creation fails etc.

3.5.4 Polling for Certificates

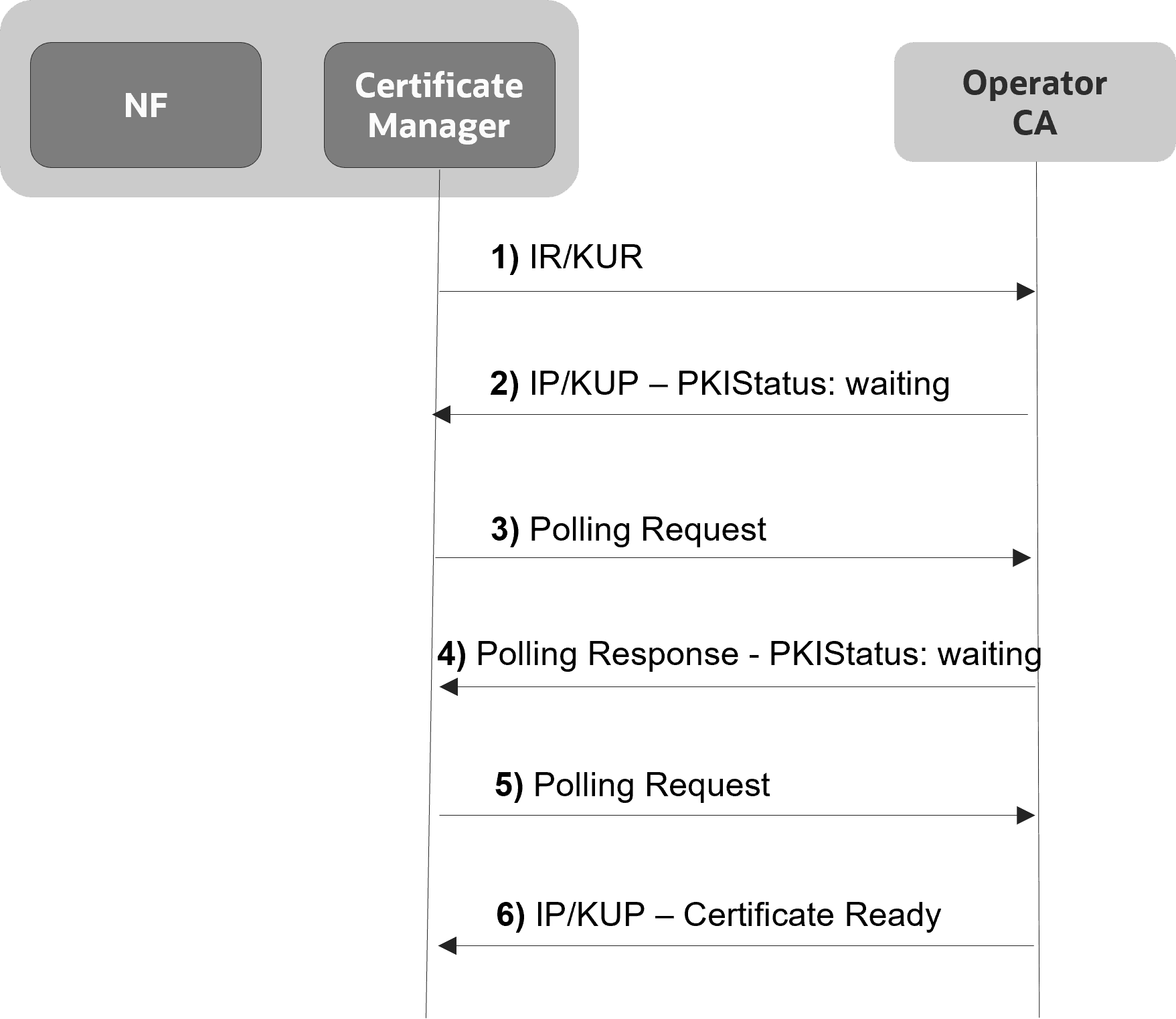

After the IR or KUR, if the certificate is not available yet, the CA responds with PKI status 'Waiting'. The application keeps polling until the CA is ready with the certificate. Openssl implicitly handles polling. No additional configuration is required at the application level in this regard. However, the Total Timeout field can be set in the issuer configuration, which can restrict this polling time. It is the maximum number of seconds a transaction may take, including polling etc. If the time specified by total timeout has elapsed, the polling will stop.

Figure 3-46 Polling for Certificates

3.5.5 Deleting the Certificate Configuration

To delete the certificate configuration:

Login to CNC Console using your login credentials and select the OCCM Instance.
Click OCCM from the left pane and then click Certificate. All the available certificates will be listed

Figure 3-47 Certificate
Click Delete and click OK on the confirmation prompt to delete the certificate.

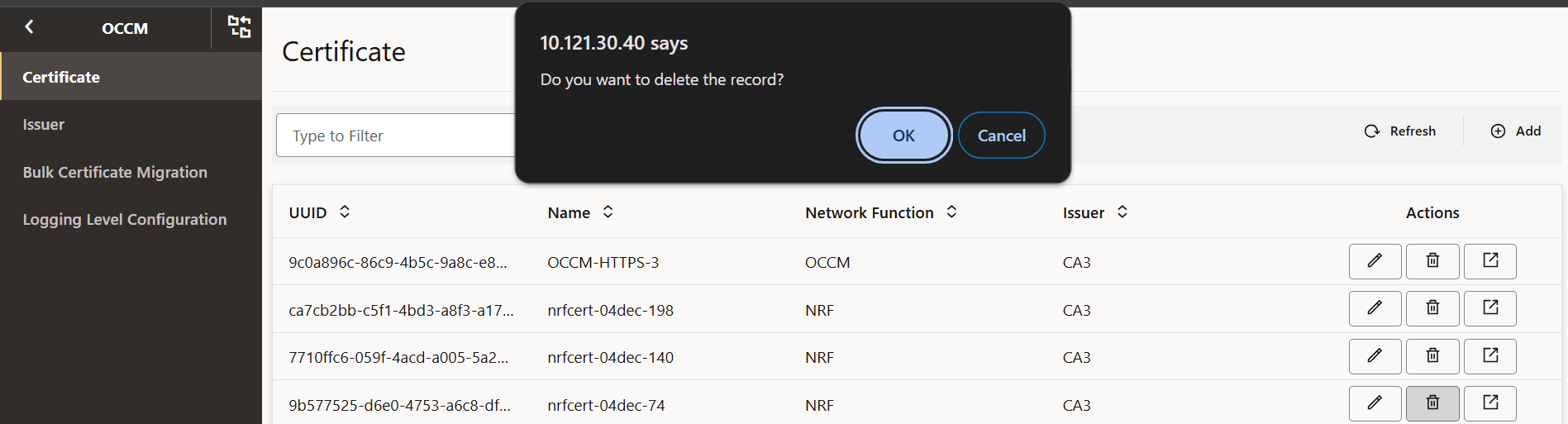

Figure 3-48 Certificate Delete

Note:

This procedure only deletes the certificate configuration from OCCM.

Run the following command to delete the Kubernetes secret holding the certificates:

kubectl delete secrets <secret name> -n <namespace>

For example:

kubectl delete secrets nrf-tls-secret -n ns1

3.5.6 Bulk Migration of Certificates

The bulk migration of certificates is utilized when the issuer configuration needs to be updated, specifically to modify the issuer endpoint by updating fields, such as, the server URL, recipient DN, and issuer DN. This update is carried out by migrating the certificates in bulk from the current issuer to a newly created issuer with the necessary configuration.

To start the bulk migration, the operator must specify both the source and destination issuers in the request. During the process, all the certificates linked to the source issuer are retrieved and an automatic recreate (CMPv2 Initialization Request) is triggered for each certificate to the destination issuer. Based on the CMPv2 response, the relevant keys and certificates are updated in the existing Kubernetes secrets.

3.5.6.1 Initiating Bulk Certificate Migration

Perform the following steps to initiate the bulk certificate migration:

Configure the destination issuer in the issuer configuration. For more information, see Managing Issuers.
Create CMP (OCCM) Identity certificate corresponding to the destination issuer. For more information, see Managing Certificates.

Initiate the bulk certificate migration as follows:

Log in to CNC Console using your login credentials and select the OCCM Instance.
Click OCCM from the left pane and then click Bulk Certificate Migration. The Bulk Certificate Migration page appears.

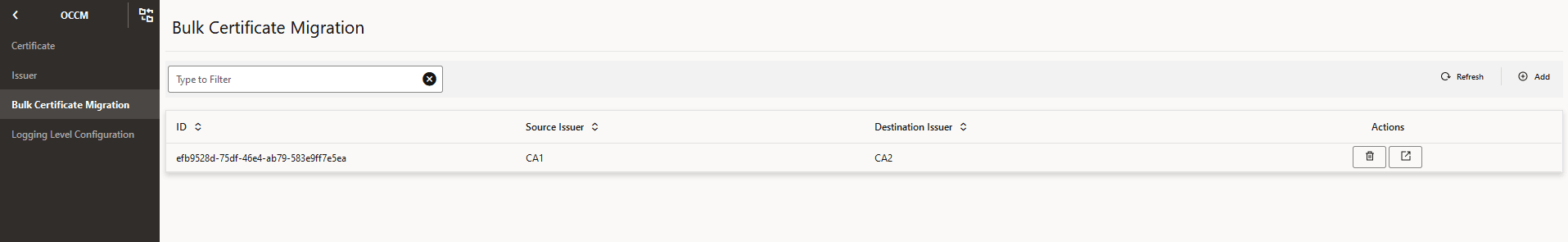

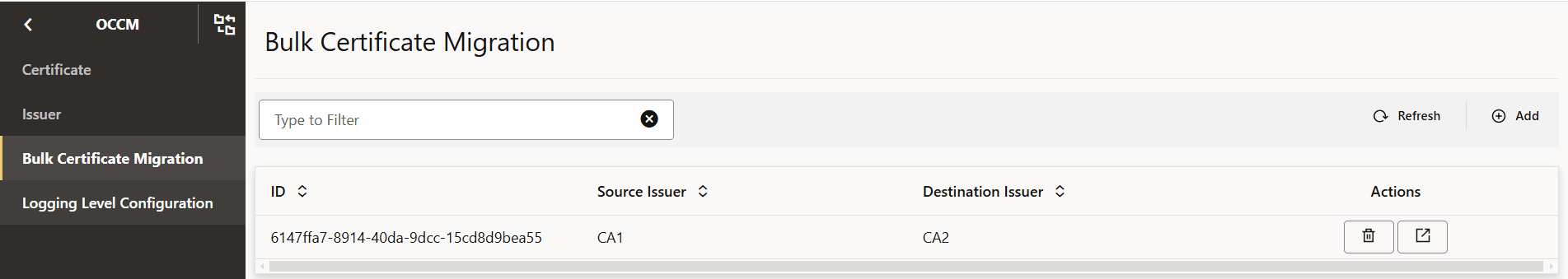

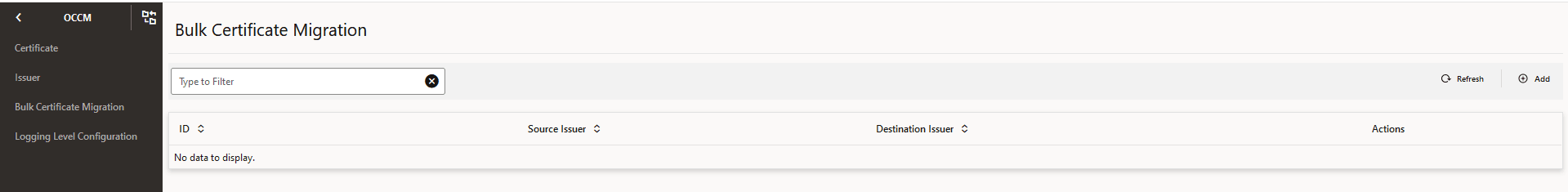

Figure 3-49 Bulk Certificate Migration
Click Add. The Initiate Bulk Certificate Migration page appears.

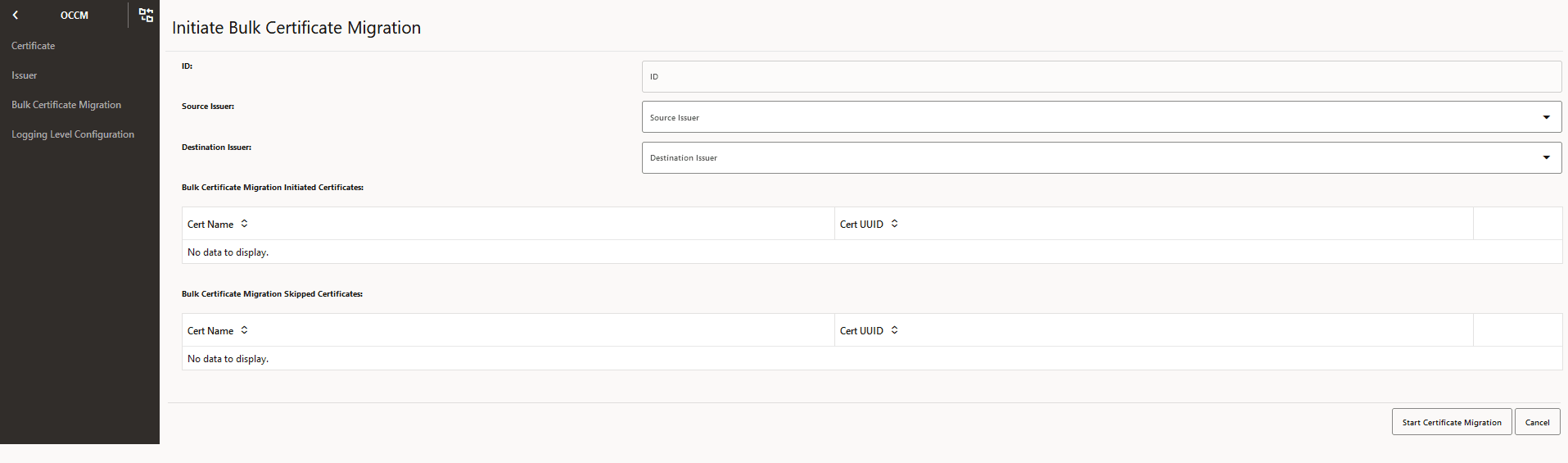

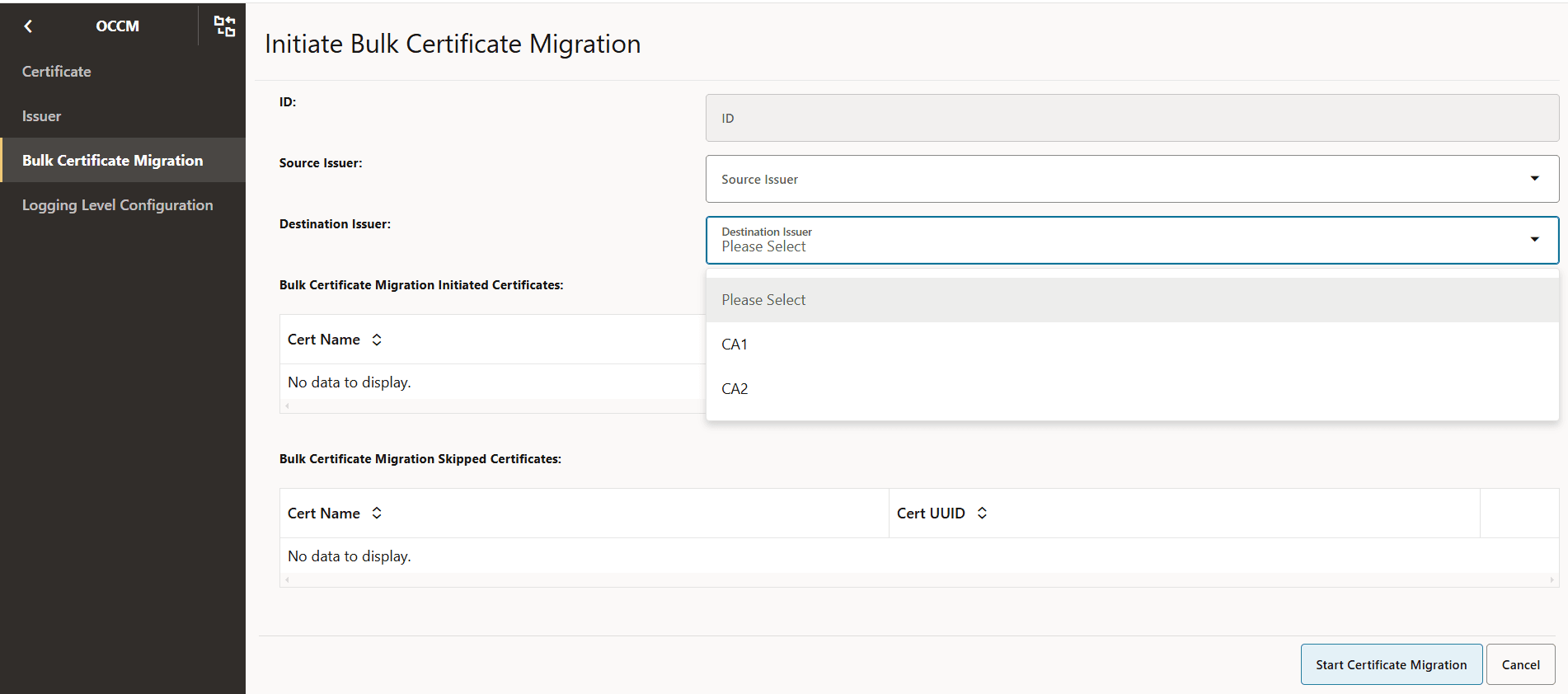

Figure 3-50 Initiate Bulk Certificate Migration

Choose the required information from the drop-down list on the Initiate Bulk Certificate Migration page:

Table 3-25 Initiate Bulk Certificate Migration

Field Name	Description
Source Issuer	The issuer whose linked certificates is migrated.
Destination Issuer	The issuer to which the certificates are migrated.

The following fields must be kept empty in the request.

Table 3-26 Initiate Bulk Certificate Migration

Field Name	Description
ID	Unique identifier for each bulk certificate migration.
Bulk Certificate Migration Initiated Certificates	List of certificates that will be migrated from source issuer to destination issuer.
Bulk Certificate Migration Skipped Certificates	List of certificates on which the migration is skipped because of the certificate status is other than ready, expired, or another recreate is already in process.

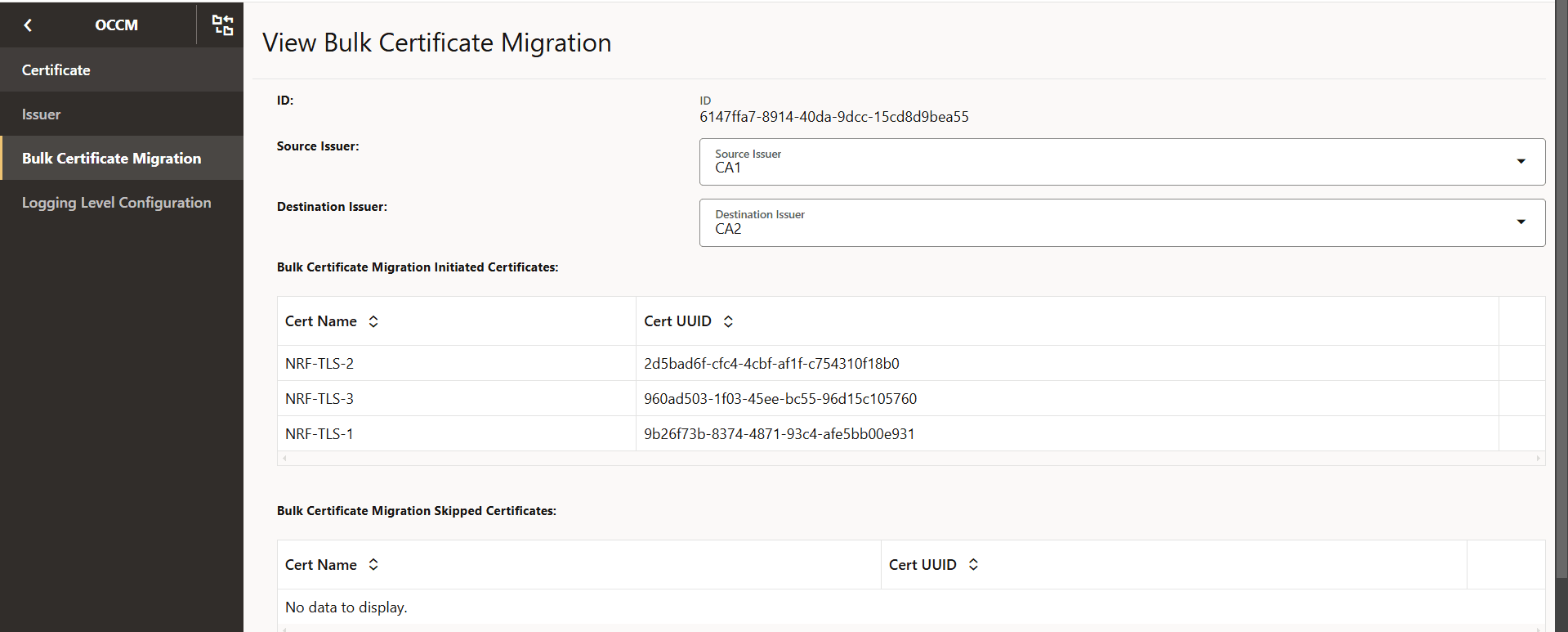

View the configuration to check the certificates on which migration is initiated.

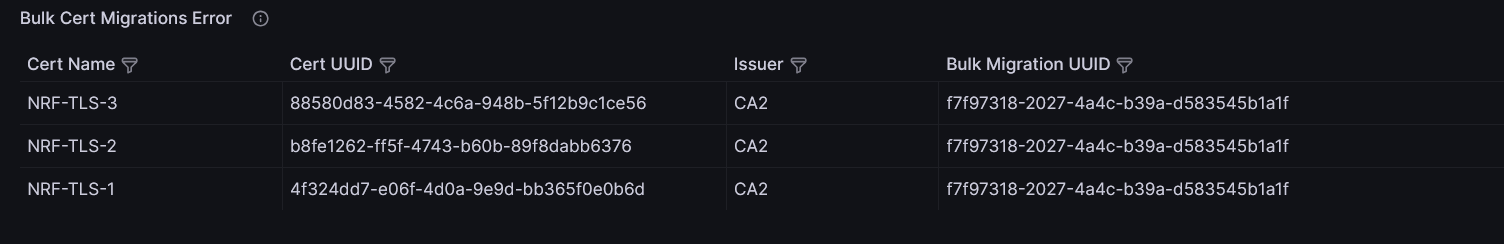

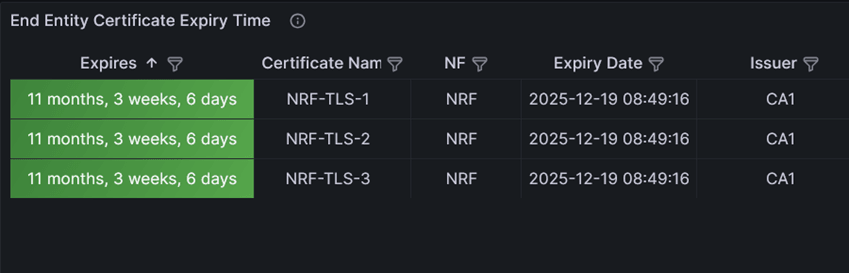

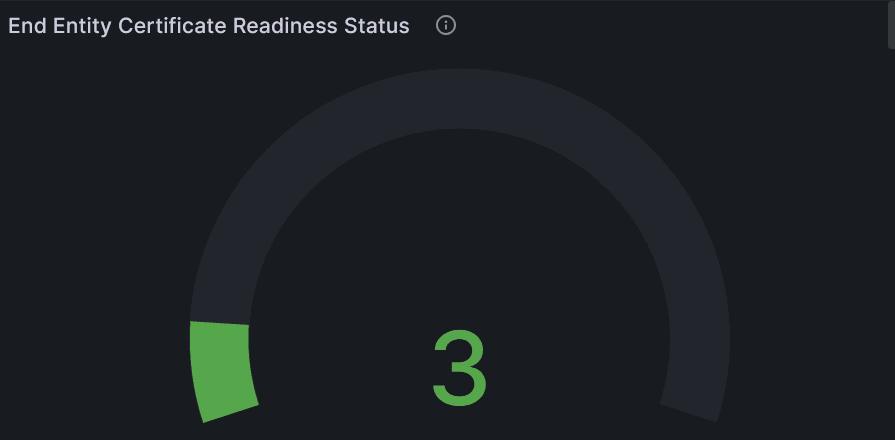

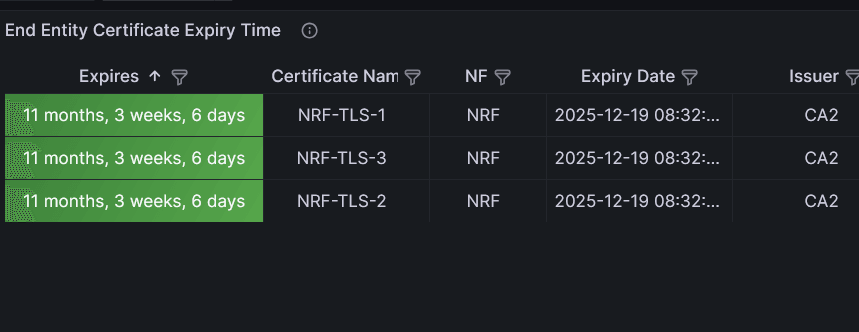

Check Grafana dashboard to verify the status of the migration of each certificate. For sample configuration, see Initiating Bulk Certificate Migration - Sample Configuration.

Note:

Bulk certificate migration is supported for only linked End Entity (NF) certificates. It does not apply to CMP (OCCM) identity certificates.
Bulk migration is triggered only on READY or EXPIRED certificates.
Only one bulk certificate migration can be triggered at a time.
Issuer edit remains the same and allows the edits of all the fields if there are no certificate configuration attached. If the certificate is attached, then you can edit only the HTTP scheme (HTTP to HTTPS and vice-versa). If the CA end point is changed (with the change in parameters, such as server URL, Issuer DN, and recipient DN) then bulk migration is used to recreate all the certificates by linking the certificates to the configured destination issuer.

3.5.6.1.1 Initiating Bulk Certificate Migration - Sample Configuration

The following steps provides an example on how to initiate bulk migration of certificates from source issuer CA1 to destination issuer CA2:

Create the destination issuer CA2 with the requisite configuration. For more information about the steps, see Managing Issuers.
1. Figure 3-51 Create Issuer
2. Figure 3-52 Initial CMP Client (OCCM) Authentication Options
3. Figure 3-53 MAC Authentication Input
4. Figure 3-54 CMP Client Authentication Options For Other certificate
5. Figure 3-55 Occm Trust-Store Secret Input
Create CMP (OCCM) Identity certificate OCCM-CA2 corresponding to the destination issuer CA2. For more information about the steps, see Managing Certificates.
1. Figure 3-56 Create Certificate
2. Figure 3-57 Private Key
3. Figure 3-58 Subject
4. Figure 3-59 Certificate Output
Initiate the bulk certificate migration by choosing the source issuer as CA1 and destination issuer as CA2 from the drop downs list. Other fields must be empty.
1. Log in to CNC Console using your login credentials and select the OCCM Instance.
2. Click OCCM from the left pane and then click Bulk Certificate Migration.
3. The Bulk Certificate Migration page appears. Click Add. The Initiate Bulk Certificate Migration page appears.
4. Choose the source and destination issuer from the drop-down list and click on Start Certificate Migration.

  Figure 3-60 Initiate Bulk Certificate Migration
5. A configuration is created and displayed as follows. This configuration can be viewed to know on which certificates migration was triggered and if it is skipped on any certificate.

  Figure 3-61 Bulk Certificate Migration
View the configuration to check the certificates on which migration is initiated.

Figure 3-62 View Bulk Certificate Migration
Check the Grafana dashboard to verify the migration status of each certificate displayed under the field Bulk Certificate Migration Initiated certificates:
1. When the migration is successful on a certificate.
  - To verify the migration status for each certificate refer to the End Entity Certificate Expiry Time and the End Entity Certificate Readiness Status panels .
  - On the End Entity Certificate Expiry Time the corresponding issuer of the certificate considered in bulk migration is updated to the destination issuer (CA2) and the expiry date will be extended based on the configuration.
  - On the End Entity Certificate Readiness Status the certificate will be in the READY state.
  In the following example, the bulk migration is triggered on three certificates. The updated issuer, expiry, and the readiness status are shown as follows:

  Figure 3-63 End Entity Certificate Expiry Time

  Figure 3-64 End Entity Certificate Readiness Status
2. When the migration fails on a certificate.
  - The corresponding issuer of the certificate will NOT be updated to the destination issuer on the End Entity Certificate Expiry Time panel and it will keep pointing to the source issuer (CA1). The expiry will not be updated since recreation has failed. Similarly, the end entity certificate readiness status will also preserve the previous status. The failed migration on all the three certificates are as follows:

    Figure 3-65 End Entity Certificate Expiry Time Failed
  - The Bulk Cert Migrations Error panel will have an entry of the certificate whose migration has failed. To check for a given migration, you must filter on the Bulk Migration UUID field. The issuer displayed is the configured destination issuer. The failed migration on all the three certificates for the given bulk migration are as follows.

    Figure 3-66 Bulk Cert Migrations Error
  - Logs must be checked to find out the reason of the failure and corrective action must be taken.
  - Another migration can be initiated to retry for all the failed certificates from the source to the destination issuer.

3.5.6.2 Deleting Bulk Certificate Migration

Perform the following steps to delete the bulk certificate migration:

Log in to CNC Console using your login credentials and select the OCCM Instance.
Click OCCM from the left pane and then click Bulk Certificate Migration.

Figure 3-67 Bulk Certificate Migration
Click Delete icon available under the Actions column for the specific certificate. Click OK on the confirmation prompt to delete the configuration.
Note:
- The bulk certificate migration configuration cannot be deleted if the migration is in progress.
- The Delete option only removes the corresponding configuration.
- A maximum of 15 bulk certificate migration configuration are supported.

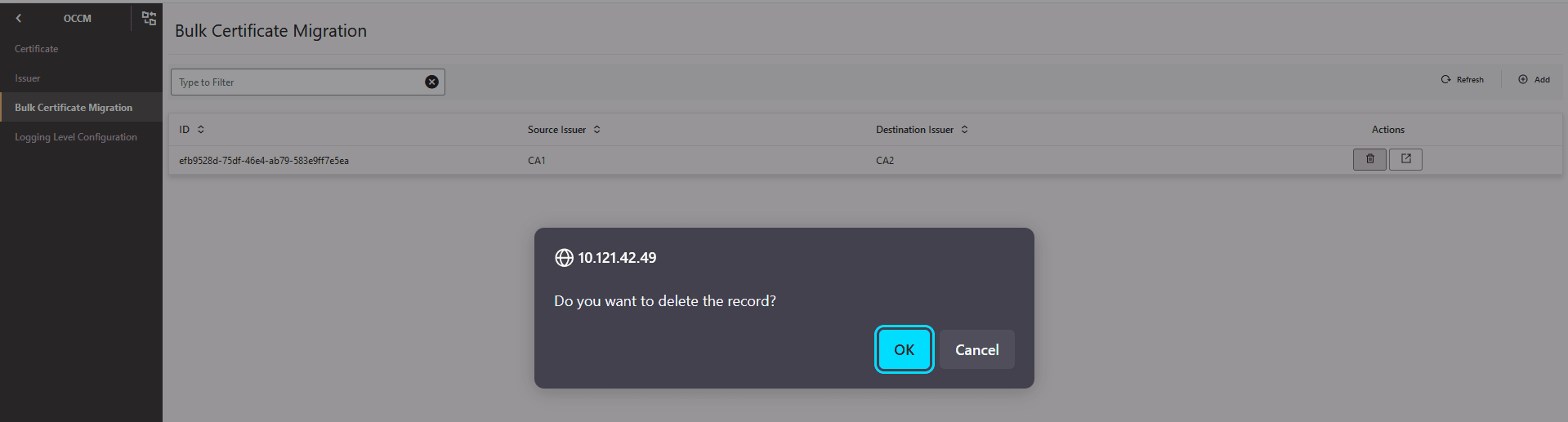

Figure 3-68 Delete Bulk Certificate Migration

3.6 OCCM Retry on Failure

OCCM supports retry on encountering failures during the certificate creation, certificate renewal and manipulation of Kubernetes secrets.

The procedure is retried until successful or interrupted by an action executed by the operator.
Retry is not controlled through any maximum limit.
The retry interval is an pre-defined value and set to 30s.

Some of the failure scenarios for which retries will be attempted:

CA is unavailable, not reachable, or busy
Any errors returned by CA

OCCM also provides a retry mechanism for errors encountered during Kubernetes secret update with the generated key and certificate. Based on the error encountered (insufficient permissions, Kubernetes internal errors etc), once the User fixes the issue, the Kubernetes secrets are automatically updated due to the ongoing retries.

Note:

In this case, there is no attempt to recreate the Key and Certificate. The retry is restricted to updating the Kubernetes secrets with the key and certificate that are already generated.

3.7 Network Policies

Network Policies are an application-centric construct that allows you to specify how a pod communicates with various network entities. It creates pod-level rules to control communication between the cluster pods and services, and to determine which pods and services can access one another inside a cluster.

Previously, the pods under deployment could be contacted by any other pods in the Kubernetes cluster without any restrictions. Now, Network Policy provides namespace-level isolation, which allows secured communications to and from OCCM with rules defined in the respective Network Policies. The network policies enforce access restrictions for all the applicable data flows except communication from Kubernetes node to pod for invoking container probe. For example, OCCM internal microservices can't be contacted directly by any other pods.

Managing Support for Network Policies

Enable

To use this feature, network policies need to be applied to the namespace wherein OCCM is applied.

Configure

You can configure this feature using Helm. For information about Configuring Network Policy for OCCM deployment, see Oracle Communications Certificate Management Installation, Upgrade, and Fault Recovery Guide.

Observe

There are no specific metrics and alerts required for the Support of Network Policy functionality.

3.8 Traffic Segregation

This feature provides end-to-end traffic segregation to OCCM based on traffic types. Within a Kubernetes cluster, traffic segregation can divide applications or workloads into distinct sections such as OAM, SBI, Kubernetes control traffic, etc. The Multus CNI container network interface (CNI) plugin for Kubernetes enables attaching multiple network interfaces to pods to help segregate traffic from OCCM microservice.

This feature addresses the challenge of logically separating IP traffic of different profiles, which are typically handled through a single network (Kubernetes overlay). The new functionality ensures that critical networks are not cross-connected or sharing the same routes, thereby preventing network congestion.

With traffic segregation, operators can segregate traffic to external feeds and applications more effectively. Previously, all external traffic was routed through the same external network, but now, egress traffic from the OCCM pods can be directed through non-default networks to third-party applications. This separation is achieved by leveraging cloud-native infrastructure and the load balancing algorithms in OCCNE.

The feature supports the configuration of separate networks, Network Attachment Definitions (NADs), and the Cloud Native Load Balancer (CNLB). These configurations are crucial for enabling cloud native load balancing, facilitating ingress-egress traffic separation, and optimizing load distribution within OCCM.

Prerequisites

The CNLB feature is only available in OCCM if OCCNE is installed with CNLB and Multus.

Cloud Native Load Balancer (CNLB)

CNE provides Cloud Native Load Balancer (CNLB) for managing the ingress and egress network as an alternate to the existing LBVM, lb-controller, and egress-controller solutions. You can enable or disable this feature only during a fresh CNE installation. When this feature is enabled, CNE automatically uses CNLB to control ingress traffic. To manage the egress traffic, you must preconfigure the egress network details in the cnlb.ini file before installing CNE.

For more information about enabling and configuring CNLB, see Oracle Communications Cloud Native Core, Cloud Native Environment User Guide, and Oracle Communications Cloud Native Core, Cloud Native Environment Installation, Upgrade, and Fault Recovery Guide.

Network Attachment Definitions for CNLB

A Network Attachment Definition (NAD) is a resource used to set up a network attachment, in this case, a secondary network interface to a pod. OCCM supports following types of CNLB NADs:

Egress Only Network Attachment Definitions

Egress Only NADs enable outbound traffic only. An NF pod can initiate traffic and route it through a CNLB application, translating the source IP address to an external egress IP address. An egress NAD contains network information to create interfaces for NF pods and routes to external subnets.

Requirements:
- Ingress NADs are already created for the desired internal networks.
- Destination (egress) subnet addresses are known beforehand and defined under the cnlb.ini file's egress_dest variable to generate NADs.
- The use of an Egress NAD on a deployment can be combined with Ingress NADs to route traffic through specific CNLB apps.
Naming Convention nf-<service_network_name>-egr

Traffic Segregation

The traffic segregation feature enables OCCM users to manage egress traffic, that is, all outgoing data and communication from OCCM to CAs. It ensures that the traffic directed towards CAs is segregated and managed to maintain security and improve efficiency.

Note: Incoming traffic like REST API requests are managed separately using CNC Console. CNC Console is responsible for managing and processing these incoming requests, ensuring that they are appropriately routed and secured.

Enable and Configure

This feature is disabled by default. To enable this feature, you must configure the network attachment annotations in the custom values file. For more information, see the "Installing OCCM Package" section in the Oracle Communications Certificate Management Installation, Upgrade, and Fault Recovery Guide.

Observe

There are no metrics, KPIs, or alerts required for this feature.

3 OCCM Supported Features

3.1 Integration with Certificate Authority

3.1.1 Establishing Initial Trust Between OCCM and CA

3.1.1.1 MAC Based Trust Establishment

3.1.1.2 Certificate Based Trust Establishment

3.2 Support for HTTPs Encryption

3.3 Accessing OCCM from CNC Console

3.4 Managing Issuers

3.4.1 Pre-configuration for OCCM Bootstrapping

3.4.2 Creating Issuer

3.4.3 Updating Issuer

3.4.4 Deleting Issuers

3.5 Managing Certificates

3.5.1 Creating CMP (OCCM) Identity Certificate

3.5.1.1 CMP Identity (OCCM) Certificate Configuration Modes

3.5.2 Creating End Entity (NF) Certificates

3.5.3 Monitoring Certificate Expiry and Renewing Certificates

3.5.3.1 Renewing CMP Identity (OCCM) Certificate

3.5.3.2 Renewing End Entity (NF) Certificate

3.5.4 Polling for Certificates

3.5.5 Deleting the Certificate Configuration

3.5.6 Bulk Migration of Certificates

3.5.6.1 Initiating Bulk Certificate Migration

3.5.6.1.1 Initiating Bulk Certificate Migration - Sample Configuration

3.5.6.2 Deleting Bulk Certificate Migration

3.6 OCCM Retry on Failure

3.7 Network Policies

3.8 Traffic Segregation
