E6-2L Front Panel Features
The following figure shows the status indicators (LEDs), connectors, and storage drives located on the front panel of Oracle Communications Server E6-2L with four 2.5-inch storage drives.
For information about how to interpret the status indicators (LEDs), refer to Oracle Communications Server E6-2L Service Manual.

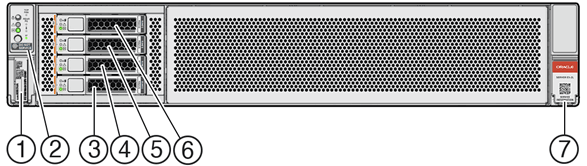

Figure 3-1 E6-2L Front Panel Features
| Call Out | Description |
|---|---|
| 1 | Product Serial Number (PSN) label and Radio Frequency Identification (RFID) tag |
| 2 | Front LED Indicator Module (FIM) |
| 3 | Storage drive 0 NVMe |
| 4 | Storage drive 1 NVMe |
| 5 | Storage drive 2 NVMe |
| 6 | Storage drive 3 NVMe |
| 7 | Service Information QR Code |
