1. EAGLE Application B Card Hardware and Installation Guide
  2. Introduction

1 Introduction

This chapter provides a brief overview of the Oracle Communications EAGLE Application B Card (E5-APP-B). This chapter also includes the scope, audience, and organization of this manual; how to find related publications; and how to contact the My Oracle Support (MOS).

1.1 Overview

The Oracle Communications EAGLE Application B Card (E5-APP-B) is a complete application server platform designed to operate within a heavy duty EAGLE shelf. An E5-APP-B card consists of the card, a microprocessor, 8 GB RAM, and two removable drive modules with an operating system and an application, such as EPAP, loaded.

Note:

This guide includes links to documents that are specific to a given product. For more information about linked documents, see guide.

Each time this guide is published, the revision level is changed. For example, the first time this guide is published, it uses Revision 1; the second time it is published, it uses Revision 2.

1.2 Scope and Audience

The scope of this manual includes Oracle Communications EAGLE Application B Card hardware installation and removal procedures. This manual also contains network integration information for ExAP, LSMS and IMF.

1.3 Documentation Admonishments

Admonishments are icons and text throughout this manual that alert the reader to assure personal safety, to minimize possible service interruptions, and to warn of the potential for equipment damage.

Table 1-1 Admonishments

Icon Description
img/danger.png

Danger:

(This icon and text indicate the possibility of personal injury.)

img/warning.png

Warning: 

(This icon and text indicate the possibility of equipment damage.)

img/caution.png

Caution: 

(This icon and text indicate the possibility of service interruption.)

img/topple.png

Topple:

(This icon and text indicate the possibility of personal injury and equipment damage.)

1.4 Manual Organization

This manual is organized into the following chapters:

Introduction contains general information about manual organization, scope and audience, related documentation, how to locate customer documentation on the Customer Support site, and how to get technical assistance.

Safety and Pre-Installation Requirements lists general safety instructions that readers should be familiar with and lists site requirements that should be verified before installing an E5-APP-B card.

E5-APP-B Card Overview presents an overview of hardware components that can be included in an E5-APP-B card.

Installing and Removing E5-APP-B Cards describes how to install an E5-APP-B card into a heavy duty EAGLE shelf.

ExAP or LSMS Network Integration provides network integration information for the application that the E5-APP-B card uses.

IMF Network Integration provides network integration information for the Integrated Message Feeder (IMF) system.

1.5 Applications Documents and Related Specifications

The E5-APP-B card supports a variety of applications. For information about additional publications that are related to this document, refer to the Oracle Help Center site. See Locate Product Documentation on the Oracle Help Center Site for more information on related product publications.

Note:

Application documentation may also contain information about additional hardware.

1.6 Locate Product Documentation on the Oracle Help Center Site

Oracle Communications customer documentation is available on the web at the Oracle Help Center (OHC) site, http://docs.oracle.com. You do not have to register to access these documents. Viewing these files requires Adobe Acrobat Reader, which can be downloaded at http://www.adobe.com.
  1. Access the Oracle Help Center site at http://docs.oracle.com.
  2. Click Industries.
  3. Under the Oracle Communications subheading, click the Oracle Communications documentation link.
    The Communications Documentation page appears. Most products covered by these documentation sets will appear under the headings "Network Session Delivery and Control Infrastructure" or "Platforms."
  4. Click on your Product and then the Release Number.
    A list of the entire documentation set for the selected product and release appears.
  5. To download a file to your location, right-click the PDF link, select Save target as (or similar command based on your browser), and save to a local folder.

1.7 Locating E5-APP-B Card Part Numbers

Each E5-APP-B card FRU has labels that contain the following information that may be needed for the RMA:

  • Part number (to identify the type of FRU)

  • Serial number (to provide more information about the specific FRU)

  • CLEI (Common Language Equipment Identifier, a label that identifies the manufacturer and the part)

In addition to part numbers on each FRU, the E5-APP-B card has several labels that contain part number information for drive module FRUs on the E5-APP-B card. These labels allow part number information to be gathered without removing the E5-APP-B card.

To locate the part number information, use the indicated procedure below:

1.7.1 Locating E5-APP-B Card Part Number Information

The part number information for the E5-APP-B card is located on the label on the faceplate of the E5-APP-B card. Use this label to verify the correct part number if you ever need to replace the E5-APP-B card.

  1. Request assistance from My Oracle Support (MOS) to determine which slot (1 through 17) contains the E5-APP-B card that needs to be replaced.
  2. See Locating Drive Module Assembly Part Number Information for the location information of each E5-APP-B card on the label.

    warning:

    Always wear an ESD wrist strap grounded to the bench or frame when working on electronic components.

1.7.2 Locating Drive Module Assembly Part Number Information

The part number information for drive module assemblies is located on the label on the drive module assembly. Use this label to verify the correct part number if you ever need to replace a drive module assembly. See Figure 1-1.

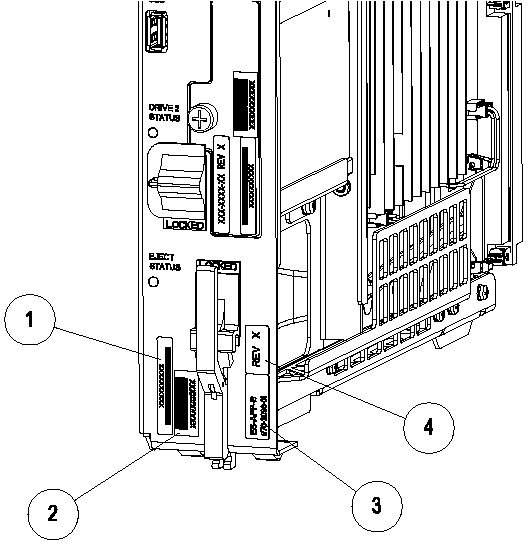

Figure 1-1 E5-APP-B Card Label Locations


img/card-overview-3.jpg

  • Serial Number Label (1)
  • CLEI Label (2)
  • Part Number Label (3)
  • Revision Label (4)
  1. Request that My Oracle Support (MOS) assist you in determining whether the drive module assembly that needs to be replaced is in drive A or drive B.
  2. Find the part number information on the drive module. See Figure 1-2 for illustration.

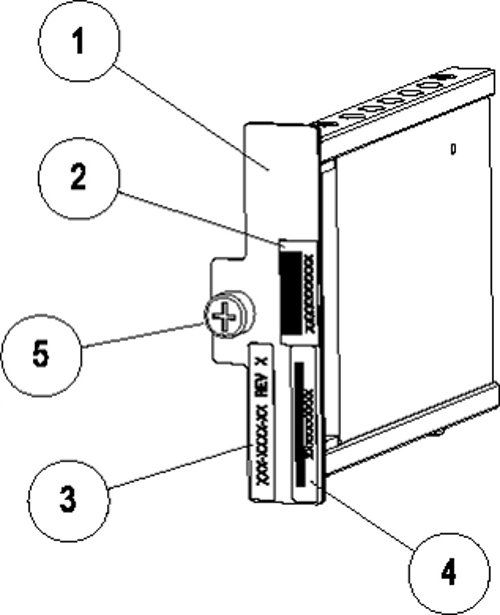

    Figure 1-2 Drive Module Label Locations

    img/ssd-assy-overview-1.jpg
    • Drive module Assembly (1)
    • CLEI Label (2)
    • Part Number and Revision Label (3)
    • Serial Number Label (4)
    • Locking Screw (5)

    warning:

    Always wear an ESD wrist strap grounded to the bench or frame when working on electronic components.
  3. Report the requested part number information on the drive module label.
