Understanding Table Components

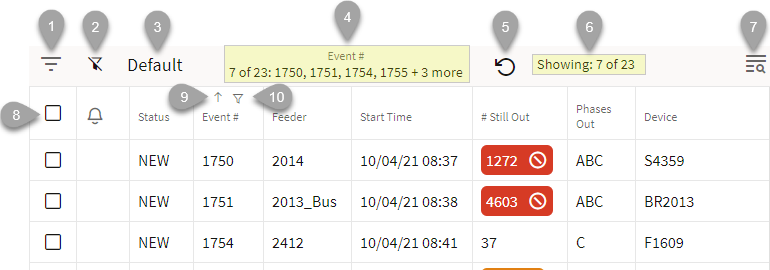

The following image shows an illustrated screen capture of a table showing call outs for the components.

Illustrated screen capture of a table showing the components and actions.

1. Filter pane button (

); see “Understanding Table Filtering” for details.

2. Disable filtering button ( Button that disables the current filter.

) temporarily disables (removes) currently applied filters; clicking the button again restores the filters.

3. The applied filter name (for example, Default).

4. Filter breadcrumbs show the number of rows being displayed (based on filter criteria) and the quick filtering selections; see “Understanding Quick Filters”.

5. Remove Quick Filter button (

) removes any quick filtering selections; see “Understanding Quick Filters” for more information.

6. Filter results; see “Understanding Table Filtering” for details.

7. The table Search button. See “Understanding Searching in Tables” for details on using the Search feature.

8. The header row check box allows you to select all of the table rows.

9. The column sort arrow icon shows the current sort direction for that column; clicking it will sort the table by that column. See “Understanding Table Sorting” for details.

10. The column filter button (

) opens the quick filtering options; see “Understanding Quick Filters”.

Note: See “Understanding Table Sorting” for details on using the Sort feature.
