Using the Data Mappings window to create an item definition and control mapping

To create the item definition and control mapping using the Data Mapping window:

In the Data Mappings window, right-click the name of the panel in which you want to create a new item.
From the right-click menu, select New Item.
The Build RefName dialog box appears.
For each component of the RefName path, select the component from the list in the dialog box. To specify that you want the control to be mapped from all visits in which it occurs, select Generic_Form as the visit RefName.
Click Next, or, to backtrack to a previous component, click Back.
The InForm Architect application builds the path from your selections and displays it in the Path field at the top of the dialog box.
When the RefName path is complete, click Done.
The InForm Architect application inserts the path into the component definition you are creating.
Repeat this procedure as often as necessary to create additional item mappings for the child controls of group controls such as radio buttons. To view control path properties for any path, click the path in the Data Mappings window.

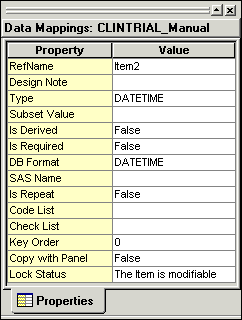

Specify the properties of the item by clicking the item icon and editing the values in the Properties window. For more information, see Item mapping properties.
