Dragging a control to add a verbatim control mapping

To add a verbatim control mapping by dragging a control:

In the Trial Objects window, double-click the name of the coding mapping object.
The Data Mappings window opens with the mapping object name selected.
In the Trial Objects window, double-click the name of the form containing the verbatim for which you want to create a mapping.

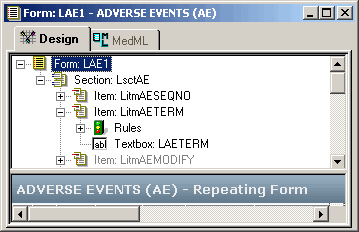

The Form window appears.
In the Form window tree, expose the verbatim control.
Drag the verbatim control from the Form window to the Data Mappings window and release it over the visit node where you want to create the mapping. The InForm Architect application enforces restrictions on verbatim control path definition. For more information, see Verbatim control path restrictions.
The Coding Dictionary dialog box appears.
From the Select Coding Dictionary drop-down list, select the dictionary to use for coding the verbatim.
Click OK. The InForm Architect software inserts the path into the component definition you are creating. A new verbatim node appears under the visit, along with empty nodes for the code targets and context items defined for the selected dictionary.
Edit the verbatim properties in the Properties window. For more information, see Verbatim control mapping properties.
