Concepts

Application Modularity

The Oracle Health Insurance suite (OHI) is composed of several applications. In order to ensure full compatibility between these applications, they share a common base. The applications you have licensed are installed and upgraded together; each application has the same version number.

Database Users and Roles

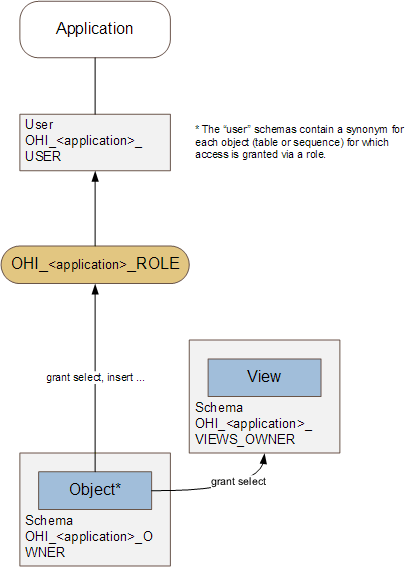

In order to support the modularity, each application has a separate database schema. The following diagram shows the schemas and their relationships:

Image: Database schemas

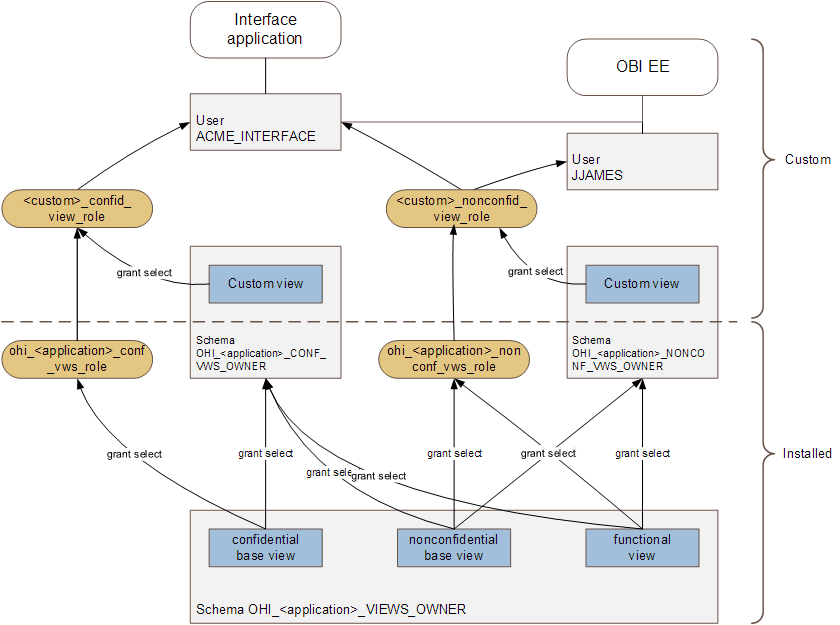

The diagram below shows how the operational reporting views and the corresponding roles are defined, and how the roles can be assigned for specific purposes:

views
