Experian Data Quality (EDQ) Address Validate API
Experian Data Quality (EDQ) Address Validate API, formerly known as the QAS Pro On Demand Service, allows you to retrieve address information from Experian’s Address Validate API to update an Order Administration address during interactive quote or order entry/maintenance, the order API, catalog requests, the customer API, and customer maintenance. The Address Validate API captures, cleans, maintains, and enhances address records and validates the address data against national postal authorities, such as the U.S. Postal Service. This is an on-demand, SaaS solution hosted by Experian Data Quality.
In this topic:
- EDQ Address Standardization Points
- EDQ Address Standardization Process
- EDQ Address Response Match Level
- Address Examples
- Match Level None Example
- Match Level Verified Example
- Match Level Interaction Required Example
- Match Level Premise Partial Example
- Match Level Street Partial Example
- Match Level Multiple Example
- Address Standardization: No Address Match Found Screen
- Address Standardization: Verify Recommendation Screen
- Address Standardization: Verify Apartment/Suite Number Screen
- Address Standardization: Verify Street Number Screen
- Address Standardization: Select from Multiple Addresses Screen
- Address Standardization: Verify Recommendation (from Pick List) Screen
- Communication Failures
- EDQ Setup
EDQ Address Standardization Points
The system sends address information to EDQ for standardization when you create or update an address.
Note:
The Order Administration integration with Experian Data Quality supports address standardization for United States and Canadian addresses; it does not support address standardization for European countries at this time.Logging: During processing, the system writes any messages to the Application Log if its Logging Level is set to INFO or lower.
Interactive Address Standardization
Order Entry/Maintenance: The system sends address information for standardization when you create or update the sold to address, bill to address, or any type of ship to address on the order including:
- quote entry.
- regular order entry.
- customer membership orders, including the customer membership recipient address and alternate shipping address.
Catalog Requests: The system sends address information for standardization when you create an address on a catalog request:
- created in the Work with Catalog Requests (WCAT) menu option.
- created during order entry/maintenance.
Sold To Customer Creation and Maintenance: The system sends address information for standardization when you create or update a sold to customer address in the Work with Customers (WCST) menu option.
Permanent Ship To Customer Creation and Maintenance: The system sends address information for standardization when you create or update a permanent ship to customer address in the Work with Customers (WCST) menu option.
Bill To Customer Creation and Maintenance: The system sends address information for standardization when you create or update a bill to customer address in the Work with Bill To Customers (WCBT) menu option or Work with Customers (WCST) menu option.
Remote Address Standardization
Order API: The system sends address information for standardization when you create or update the sold to address, bill to address, or ship to address on an order received through the Order API.
Note:
The system will still send address information for standardization if the order contains the customer number instead of the customer name and address information, even if the existing customer address has already been previously cleansed.Catalog Request Interface: The system sends address information for standardization when you create an address on a catalog request, including:
- catalog requests created using the E-Commerce Catalog Request Message (CWCatRequest); see E-Commerce Catalog Requests . See the Order Administration Web Services Guide on My Oracle Support (ID 2953017.1)
- catalog requests created through records that have been uploaded to the Catalog Request Interface table (IXCRIN); see Working with the Catalog Request Interface (WCRU).
Note:
The system does not send address information for standardization when you update an address on the Change Catalog Request Screen in the Work with Catalog Request Interface (WCRU) menu option; when you submit the catalog request for processing at the Work with Catalog Request Interface Screen, the system will send the address information for cleansing.Customer API: The system sends address information when you create or change a customer record through the Generic Customer API if the Perform Address Standardization in Customer API (I99) system control value is selected and you are using address standardization.
For more information see the Order Administration Web Services Guide on My Oracle Support (ID 2953017.1).
EDQ Address Standardization Process
- Interactive Address Standardization Process Illustration
- Remote Address Standardization Process Illustration
- EDQ Address Standardization Process Flow
Interactive Address Standardization Process Illustration
Remote Address Standardization Process Illustration

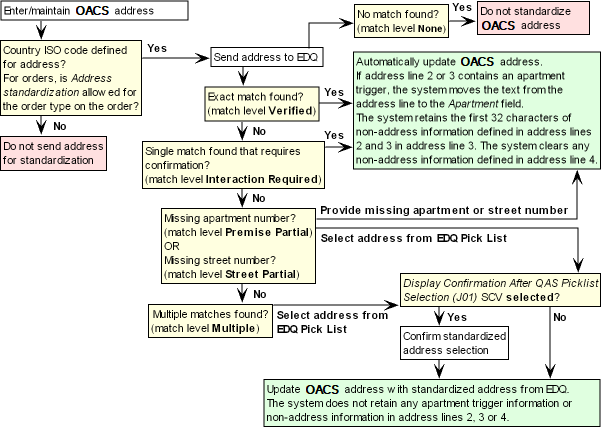

EDQ Address Standardization Process Flow
The system determines if a Order Administration address requires standardization each time you create a new address or update the following fields on an existing address:
- Street address
- Apartment/Suite
- Address lines 2-4
- City
- State/Province code
- Postal code
- Country code
Address Standardization Requirements
In order to send an address for standardization the following requirements must be met.
Requirement | Description |
---|---|
The EDQ Address interface must be enabled |
See EDQ Setup for additional information on the required setup for the EDQ integration. |
A country ISO code must be defined for the address |
Country ISO codes are codes representing the international standard code used to identify a country. When the system sends address information for validation and standardization, the system sends the Country ISO code defined for the country instead of the Country code as the country code defined for the address. For example, the country code for the United States may be US and the country ISO code may be USA. The country ISO codes supplied by EDQ for Canada and the United States are CAN and USA. You can define a country ISO code for a country in the Work with Countries (WCTY) menu option.
Note: The Order Administration integration with EDQ supports address standardization for United States and Canadian addresses; it does not support address standardization for European countries at this time. |
If the address is on an order, the order type must be eligible for standardization |
|
If the address meets the Address Standardization Requirements, the system sends the following address fields to EDQ:
- Street address
- Apartment/Suite
- Address lines 2-3 (The system does not send address line 4)
- City
- State/Province code
- Postal code
- Country ISO code
Once the address search completes, EDQ sends a response back to Order Administration. The EDQ Address Response Match Level returned determines the action Order Administration performs; see EDQ Address Response Match Level for more information.
Address map: The Serenade data map defines how the address information returned by EDQ is mapped to the Order Administration address. This map also defines whether the address data is returned in upper case letters and how non-address information is retained. See Serenade Map for more information.
Duplicate checking: The system sends an address for standardization prior to any duplicate customer checking. Once the address has been standardized, the system then determines if a duplicate address match already exists for the address.
Retaining Non-Address Information in Address Lines 1-4
If address lines 1, 2, or 3 contains non-address information, such
as LEAVE PACKAGES ON FRONT PORCH
, the EDQ Address Response Match Level determines whether EDQ retains
the non-address information.
Note:
When entering non-address information for an address on an order, use the Attention field to retain the non-address information for the order.Match Level | Non-Address Information Results |
---|---|
None |
The system retains any non-address information defined in address lines 1, 2, 3 and 4. |
Verified |
The system retains the first 32 characters of non-address information defined in address lines 1, 2, and 3 in address line 3. The system clears any non-address information defined in address line 4. |
Premise Partial |
|
Street Partial |
|
Multiple |
|
Interaction Required |
The system does not retain the non-address information defined in address lines 1, 2, 3, and 4. |
See Address Examples for examples of how EDQ standardizes an address and whether non-address information is retained.
Apartment Triggers
Note:
As a best practice, you should enter apartment information in the Apartment field, prefaced with apartment identifier text such asAPT
or STE
.
Certain text in address lines 2 and 3 and the EDQ Address
Response Match Level triggers EDQ to move the text to the Apartment field on an address. For example, if you enter APT 3
in Address line 2, the system moves this text
to the Apartment field.
The text that EDQ will move from address lines 2 and 3 to the Apartment field is listed below. Any number that follows this text is also moved to the Apartment field.
- APARTMENT (the system abbreviates APARTMENT to APT)
- APT
- BLDG
- BOX
- BUILDING (the system abbreviates BULIDING to BLDG)
- DEPARTMENT (the system abbreviates DEPARTMENT to DEPT)
- DEPT
- FL
- FLOOR (the system abbreviates FLOOR to FL)
- FMT
- HNGR
- LBBY
- LOBBY (the system abbreviates LOBBY to LBBY)
- LOT
- NO
- OFC
- OFFICE (the system abbreviates OFFICE to OFC)
- PH
- PMB
- REAR
- RM
- ROOM (the system abbreviates ROOM to RM)
- RR
- SPC
- STE
- STOP
- SUITE (the system abbreviates SUITE to STE)
- TRLR
- UNIT
Note:
Important: When you enter non-address information in address lines 1, 2 or 3, pay attention to the text you enter if you do NOT want EDQ to recognize this text as an apartment trigger. For example, if you enterNO SIGNATURE REQUIRED
, EDQ will move the text NO SIGNATU
to the Apartment field because it recognized the text NO
as an apartment
trigger.
Address Matches Containing a Company, Building or Firm Name
When you standardize an Order Administration address that contains a company, building or firm name, if EDQ does not consider this information required for delivery purposes, it will not retain this information when it standardizes the address.
Example: You enter an address similar to the following:
Order Administration Address: | Example: |
---|---|
street address: address line 2: address line 3: city/state/zip/country: |
308 SAMPLE STREET (replace with a valid street address) CITY HALL CARE OF JOHN SMITH STURBRIDGE MA 01566 US |
As part of addres standardization, CITY HALL is removed from the address:
Standardized Address: | Example: |
---|---|
street address: address line 3: city/state/zip/country: |
308 SAMPLE ST CARE OF JOHN SMITH STURBRIDGE MA 01566-2300 US |
EDQ Address Response Match Level
Purpose: The address response match level returned by EDQ determines the action Order Administration performs.
Match Level | Address Results |
---|---|
None |
EDQ does not update the Order Administration address because it could not find a match to the address. Remote address standardization: The system does not standardize the Order Administration address. If the address is on a remote order and a hold reason is defined in the Address Interface User Hold Code (I68) system control value, the system places the order on user hold. If a hold reason is not defined in the Address Interface User Hold Code (I68) system control value, the system does not assign a hold reason to a remote order at the user level.
Interactive address standardization: The system displays the Address Standardization: No Address Match Found Screen. At this screen you can select to return to the Order Administration screen and either:
Apartment Triggers: EDQ does not apply apartment triggers when the match level is None. See Apartment Triggers. Non-Address Information: The system retains any non-address information defined in address lines 1, 2, and 3 in address line 3. See Retaining Non-Address Information in Address Lines 1-4. |
Verified |
EDQ found one address match with a high level of confidence. The system automatically updates the Order Administration address with the address returned by EDQ. Apartment Triggers: If address lines 2 or 3 contains an apartment trigger, the system moves the text from the address line to the Apartment field. See Apartment Triggers. Non-Address Information: The system retains the first 32 characters of non-address information defined in address lines 1, 2, and 3 in address line 3. The system clears any non-address information defined in address line 4. See Retaining Non-Address Information in Address Lines 1-4. |
Interaction Required |
EDQ found a single match to the Order Administration address but requires you to confirm the address update. Remote address standardization: The system does not standardize the Order Administration address. If the address is on a remote order and a hold reason is defined in the Address Interface User Hold Code (I68) system control value, the system places the order on user hold. If a hold reason is not defined in the Address Interface User Hold Code (I68) system control value, the system does not assign a hold reason to a remote order at the user level.
Interactive address standardization: The system displays the Address Standardization: Verify Recommendation Screen. At this screen you can:
Apartment Triggers: If address line 2 or 3 contains an apartment trigger, the system moves the text from the address line to the Apartment field. See Apartment Triggers. Non-Address Information: The system does not retain the non-address information defined in address lines 1, 2, 3, and 4. |
Premise Partial |
EDQ found a match to the Order Administration address, but requires you to provide the apartment number for the address or select an address from a list of valid addresses returned by EDQ. Remote address standardization: The system does not standardize the Order Administration address. If the address is on a remote order and a hold reason is defined in the Address Interface User Hold Code (I68) system control value, the system places the order on user hold. If a hold reason is not defined in the Address Interface User Hold Code (I68) system control value, the system does not assign a hold reason to a remote order at the user level.
Interactive address standardization: The system displays the Address Standardization: Verify Apartment/Suite Number Screen. At this screen you can:
Note: If you provide an apartment number that EDQ does not recognize as a valid apartment number, the system does not update the address with the apartment number you provided. Instead, you remain on the Verify Apartment/Suite Number screen until you provide a valid apartment number; you can review the pick list returned by EDQ to determine the valid apartment numbers for the address.
Note: The address matches in the pick list returned by EDQ provide an idea of the acceptable range of apartment numbers you can define for the address.
Non-Address Information: The system retains the first 32 characters of non-address information defined in address lines 1, 2, and 3 in address line 3. Address line 4 will be cleared of any non-address information. Apartment Triggers:
|
Street Partial |
EDQ found a match to the Order Administration address, but requires you to provide the street number for the address or select an address from a list of valid addresses returned by EDQ. Remote address standardization: The system does not standardize the Order Administration address. If the address is on a remote order and a hold reason is defined in the Address Interface User Hold Code (I68) system control value, the system places the order on user hold. If a hold reason is not defined in the Address Interface User Hold Code (I68) system control value, the system does not assign a hold reason to a remote order at the user level.
Interactive address standardization: The system displays the Address Standardization: Verify Street Number Screen. At this screen you can:
Note: If you provide a street number that EDQ does not recognize as a valid street number, the system does not update the address with the street number you provided. Instead, you remain on the Verify Street Number screen until you provide a valid street number; you can review the pick list returned by EDQ to determine the valid street numbers for the address.
Note: The address matches in the pick list returned by EDQ provide an idea of the acceptable range of street numbers you can define for the address.
Non-Address Information: The system retains the first 32 characters of non-address information defined in address lines 1, 2, and 3 in address line 3. Address line 4 will be cleared of any non-address information. Apartment Triggers:
|
Multiple |
EDQ found multiple matches to the Order Administration address and requires you to select an address from the list of valid addresses. Remote address standardization: The system does not standardize the Order Administration address. If the address is on a remote order and a hold reason is defined in the Address Interface User Hold Code (I68) system control value, the system places the order on user hold. If a hold reason is not defined in the Address Interface User Hold Code (I68) system control value, the system does not assign a hold reason to a remote order at the user level.
Interactive address standardization: The system displays the Address Standardization: Select from Multiple Addresses Screen. At this screen you can:
Non-Address Information: The system retains the first 32 characters of non-address information defined in address lines 1, 2, and 3 in address line 3. Address line 4 will be cleared of any non-address information. Apartment Triggers: EDQ does not apply apartment triggers when the match level is Multiple. |
Address Examples
Purpose: The following examples demonstrate how EDQ standardizes the Order Administration address.
Note:
Important: The following examples are for illustrative purposes only. To follow best address standardization practices, you should enter any apartment information in the Apartment field. In addition, for addresses on an order, you should enter non-address information in the Attention field on the order.- Match Level None Example
- Match Level Verified Example
- Match Level Interaction Required Example
- Match Level Premise Partial Example
- Match Level Street Partial Example
- Match Level Multiple Example
Match Level None Example
You enter the following address on an Order Administration screen:
Order Administration Address: | Example: |
---|---|
street address: address line 2: address line 3: address line 4: city/state/zip/country: |
GARDEN APT D LEAVE PACKAGE AT FRONT DOOR SAMPLE GARDENS SANTA BARBARA CA 93101 US |
Order Administration sends the address to EDQ for standardization. EDQ returns a match level of None, indicating the Order Administration address will not be standardized because it could not find an address to match to the Order Administration address.
The system displays the Address Standardization: No Address Match Found Screen. At this screen you can select to return to the Order Administration screen without standardizing the address.
Retained Order Administration Address: | Example: |
---|---|
street address: address line 2: address line 3: address line 4: city/state/zip/country: |
GARDEN APT D LEAVE PACKAGE AT FRONT DOOR SAMPLE GARDENS SANTA BARBARA CA 93101 US |
You can update the address information to resend it to EDQ for standardization; otherwise, the system determines if the address requires standardization the next time you create the address or update the address; see EDQ Address Standardization Process Flow.
Match Level Verified Example
Verified Example: Retain Non-Address Information
The following address is entered on an Order Administration screen or received through the Order API, catalog request interface or Customer API:
Order Administration Address: | Example: |
---|---|
street address: address line 2: address line 3: address line 4: city/state/zip/country: |
1234 SAMPLE LANE (replace with a valid street address) SAMPLE FARM OPEN YEAR ROUND SAMPLE GARDENS TEMPLETON MA 01468 US |
Order Administration sends the address to EDQ for standardization. EDQ returns a match level of Verified, indicating it found one address match with a high level of confidence.
Because an exact match was found, the system automatically updates the Order Administration address to the standardized address, without requiring any user action.
In addition, the system retains the first 32 characters of non-address
information defined in address lines 2 and 3 in address line 3. In
this example, the system retains the non-address information: KAT’S FRUITS AND VEGETABLES LEAV
.
Standardized Address: | Example: |
---|---|
street address: address line 3: city/state/zip/country: |
1234 SAMPLE LN SAMPLE FARM OPEN YEAR ROUND TEMPLETON MA 01468-1566 US |
Verified Example: Apartment Trigger
The following address is entered on an Order Administration screen or received through the Order API, catalog request interface or Customer API:
Order Administration Address: | Example: |
---|---|
street address: address line 2: address line 3: city/state/zip/country: |
1234 GARDEN (replace with a valid street number) APARTMENT D SAMPLE GARDENS SANTA BARBARA CA 93101 US |
Order Administration sends the address to EDQ for standardization. EDQ returns a match level of Verified, indicating it found one address match with a high level of confidence.
Because an exact match was found, the system automatically updates the Order Administration address to the standardized address, without requiring any user action.
In addition:
- the system recognized the text
APARTMENT
as an apartment trigger and moves this text, plus the number following it, to the Apartment field. - the system retains the first 32 characters of non-address information defined in address lines 2 and 3 in address line 3.
Standardized Address: | Example: |
---|---|
street address/apt: address line 3: city/state/zip/country: |
1234 SAMPLE ST APT D SAMPLE GARDENS SANTA BARBARA CA 93101-1367 US |
Match Level Interaction Required Example
You enter the following address on an Order Administration screen:
Order Administration Address: | Example: |
---|---|
street address: address line 2: address line 3: city/state/zip/country: |
123 SAMPLE STREET (replace with a valid street address) HUNGRY HORSE CANYON CAFE WESTBORO MA 01581 US |
Order Administration sends the address to EDQ for standardization. EDQ returns a match level of Interaction Required, indicating it found a single match to the Order Administration address but requires you to confirm the address update.
The system displays the Address Standardization: Verify Recommendation Screen. At this screen, you confirm the address update:
Standardized Address: | |
---|---|
street address: city/state/zip/country: |
123 SAMPLE ST (replace with a valid street address) WESTBOROUGH MA 01581-1815 US |
Match Level Premise Partial Example
- Premise Partial Example: Provide Missing Apartment Number
- Premise Partial Example: Select Address from Pick List
Premise Partial Example: Provide Missing Apartment Number
You enter the following address on an Order Administration screen:
Order Administration Address: | Example: |
---|---|
street address: address line 2: address line 3: address line 4: city/state/zip/country: |
1234 SAMPLE (replace with a valid street number) LAST BUILDING LEAVE PACKAGES AT BACK DOOR SAMPLE GARDENS SANTA BARBARA CA 93101 US |
Order Administration sends the address to EDQ for standardization. EDQ returns a match level of Premise Partial, indicating it found a match to the Order Administration address, but requires you to provide the apartment number for the address or select an address from a list of valid addresses.
The system displays the Address Standardization: Verify Apartment/Suite Number Screen. At this screen, you provide the apartment number for the address.
The system standardizes the Order Administration address. In addition,
the system retains the first 32 characters of non-address information
defined in address lines 2 and 3 in address line 3. In this example,
the system retains the non-address information: LAST BUILDING
LEAVE PACKAGES AT
.
Standardized Address: | Example: |
---|---|
street address/apt: address line 3: city/state/zip/country: |
1234 SAMPLE ST APT D LAST BUILDING LEAVE PACKAGES AT SANTA BARBARA CA 93101-1367 US |
Premise Partial Example: Select Address from Pick List
You enter the following address on an Order Administration screen:
Order Administration Address: | Example: |
---|---|
street address: address line 2: address line 3: address line 4: city/state/zip/country: |
1234 SAMPLE (replace with a valid street number) LAST BUILDING LEAVE PACKAGES AT BACK DOOR SAMPLE GARDENS SANTA BARBARA CA 93101 US |
Order Administration sends the address to EDQ for standardization. EDQ returns a match level of Premise Partial, indicating it found a match to the Order Administration address, but requires you to provide the apartment number for the address or select an address from a list of valid addresses.
The system displays the Address Standardization: Verify Apartment/Suite Number Screen. At this screen, you review the addresses in the pick list returned by EDQ.
Because the addresses in the pick list returned by EDQ display as a hyperlink, you can select an address from the pick list.
EDQ Address Pick List: | Example: |
---|---|
street address: city/state/zip/country: |
1234 SAMPLE ST SANTA BARBARA CA 93101-1363 US |
street address/apt: city/state/zip/country: |
1234 SAMPLE ST APT A SANTA BARBARA CA 93101-1365 US |
street address/apt: city/state/zip/country: |
1234 SAMPLE ST APT B SANTA BARBARA CA 93101-1364 US |
street address/apt: city/state/zip/country: |
1234 SAMPLE ST APT C SANTA BARBARA CA 93101-1366 US |
street address/apt: city/state/zip/country: |
1234 SAMPLE ST APT D SANTA BARBARA CA 93101-1367 US |
The system standardizes the Order Administration address. In addition,
the system retains the first 32 characters of non-address information
defined in address lines 2 and 3 in address line 3. In this example,
the system retains the non-address information: LAST BUILDING
LEAVE PACKAGES AT
.
Standardized Address: | Example: |
---|---|
street address/apt: address line 3: city/state/zip/country: |
1234 SAMPLE ST APT D LAST BUILDING LEAVE PACKAGES AT SANTA BARBARA CA 93101-1367 US |
Match Level Street Partial Example
- Street Partial Example: Provide Missing Street Number
- Street Partial Example: Provide Missing Street Number from Pick List
- Street Partial Example: Select Address from Pick List
Street Partial Example: Provide Missing Street Number
You enter the following address on an Order Administration screen:
Order Administration Address: | Example: |
---|---|
street address: address line 2: address line 3: address line 4: city/state/zip/country: |
SAMPLE LANE (replace with a valid street name) SAMPLE PLACE LEAVE PACKAGES AT BACK DOOR SAMPLE FARM STAND TEMPLETON MA 01468 US |
Order Administration sends the address to EDQ for standardization. EDQ returns a match level of Street Partial, indicating it found a match to the Order Administration address, but requires you to provide the street number for the address or select an address from a list of valid addresses.
The system displays the Address Standardization: Verify Street Number Screen. At this screen, you provide the street number for the address.
The system standardizes the Order Administration address. In addition,
the system retains the first 32 characters of non-address information
defined in address lines 2 and 3 in address line 3. In this example,
the system retains the non-address information: SMITH PLACE
LEAVE PACKAGES AT
.
Standardized Address: | Example: |
---|---|
street address: address line 3: city/state/zip/country: |
99 SAMPLE LN SAMPLE PLACE LEAVE PACKAGES AT BA TEMPLETON MA 01468-1556 US |
Street Partial Example: Provide Missing Street Number from Pick List
You enter the following address on an Order Administration screen:
Order Administration Address: | Example: |
---|---|
street address: address line 2: address line 3: address line 4: city/state/zip/country: |
SAMPLE LANE (replace with a valid street name) SAMPLE PLACE LEAVE PACKAGES AT BACK DOOR SAMPLE FARM STAND TEMPLETON MA 01468 US |
Order Administration sends the address to EDQ for standardization. EDQ returns a match level of Street Partial, indicating it found a match to the Order Administration address, but requires you to provide the street number for the address or select an address from a list of valid addresses.
The system displays the Address Standardization: Verify Street Number Screen. At this screen, you review the addresses in the pick list.
EDQ Address Pick List: | Example: |
---|---|
street address: city/state: |
1 ... 99 SAMPLE LN TEMPLETON MA (ODD) |
street address/apt: city/state: |
2 ... 98 SAMPLE LN TEMPLETON MA (EVEN) |
Because the addresses in the pick list returned by EDQ do not display as a hyperlink, you must enter a valid street number in the Street number field. According to the pick list returned by EDQ, the valid street numbers are 1 - 99 (odd numbers) and 2 - 98 (even numbers).
You provide the street number for the address. The system standardizes
the Order Administration address. In addition, the system retains
the first 32 characters of non-address information defined in address
lines 2 and 3 in address line 3. In this example, the system retains
the non-address information: SMITH PLACE LEAVE PACKAGES AT
.
Standardized Address: | Example: |
---|---|
street address: address line 3: city/state/zip/country: |
99 SAMPLE LN SAMPLE PLACE LEAVE PACKAGES AT TEMPLETON MA 01468-1556 US |
Street Partial Example: Select Address from Pick List
You enter the following address on an Order Administration screen:
Order Administration Address: | Example: |
---|---|
street address: address line 3: city/state/zip/country: |
SAMPLE PARK WAY (replace with a valid street name) SAMPLE PLACE NATICK MA 01760 US |
Order Administration sends the address to EDQ for standardization. EDQ returns a match level of Street Partial, indicating it found a match to the Order Administration address, but requires you to provide the street number for the address or select an address from a list of valid addresses.
The system displays the Address Standardization: Verify Street Number Screen. At this screen, you review the addresses in the pick list.
One address in the pick list displays as a hyperlink; the rest of the addresses in the pick list do not display as a hyperlink. You can either:
- Use the addresses in the pick list to determine the valid street number to enter in the Street number field.
- Select the address that displays as a hyperlink to standardize the Order Administration address.
EDQ Address Pick List: | Examples: |
---|---|
street address: city/state: |
1 ... 11 SAMPLE PARK WAY NATICK MA (ODD) |
street address/apt: city/state: |
2 ... 10 SAMPLE PARK WAY NATICK MA (EVEN) |
street address/apt: city/state: |
12 ... 98 SAMPLE PARK WAY NATICK MA (EVEN) |
street address: city/state: |
13 ... 99 SAMPLE PARK WAY NATICK MA (ODD) |
street address: city/state: |
24 SAMPLE PARK WAY NATICK MA (ODD) |
street address/apt: city/state: |
24 SAMPLE PARK WAY STE 101 ... 103 NATICK MA |
street address/apt: city/state: |
24 SAMPLE PARK WAY STE 104 ... 503 NATICK MA |
street address/apt: city/state: |
24 SAMPLE PARK WAY STE B1 ... 2 NATICK MA |
You select the address in the pick list that displays as a hyperlink to standardize the Order Administration address.
Standardized Address: | Example: |
---|---|
street address/apt: address line 3: city/state/zip/country: |
24 SAMPLE WAY SAMPLE PLACE NATICK MA 01760-1528 US |
Match Level Multiple Example
You enter the following address on an Order Administration screen:
Order Administration Address: | Example: |
---|---|
street address: address line 2: address line 3: address line 4: city/state/zip/country: |
PO BOX 1234 (replace with a valid PO box number) FAN CLUB MAIL CABLE CHANNEL BOX 1234 NEW YORK NY 10001 US |
Order Administration sends the address to EDQ for standardization. EDQ returns a match level of Street Partial, indicating it found multiple matches to the Order Administration address and requires you to select an address from a list of valid addresses.
The system displays the Address Standardization: Select from Multiple Addresses Screen. At this screen, you select an address from the pick list.
The system standardizes the Order Administration address.
Standardized Address: | Example: |
---|---|
street address: address line 3: city/state/zip/country: |
PO BOX 1234 FAN CLUB MAIL CABLE CHANNEL NEW YORK NY 10002-0915 US |
Address Standardization: No Address Match Found Screen
Purpose: This screen indicates that EDQ could not find a match for the Order Administration address.
How to display this screen: This screen displays during Interactive Address Standardization when the EDQ Address Response Match Level returned by EDQ is None.
Screen Option | Procedure |
---|---|
Return to the Order Administration screen where you can either:
|
Select Select/Edit. The system returns you to the Order Administration screen and does not standardize the address. The system determines if the address requires standardization the next time you create the address or update the address; see EDQ Address Standardization Process Flow. |
Address Standardization: Verify Recommendation Screen
Purpose: Use this screen to confirm the address match returned by EDQ.
How to display this screen: This screen displays during Interactive Address Standardization when the EDQ Address Response Match Level returned by EDQ is Interaction Required, indicating EDQ found a single match to the Order Administration address but requires you to confirm the address update.
Screen Option | Procedure |
---|---|
Retain the Order Administration address without any updates from EDQ |
Select Select/Edit. The system returns you to the Order Administration screen and does not standardize the address. The system determines if the address requires standardization the next time you create the address or update the address; see EDQ Address Standardization Process Flow. |
Update the Order Administration address with the recommended address returned by EDQ |
Select Select. The system returns you to the Order Administration screen and standardizes the address. |
Address Standardization: Verify Apartment/Suite Number Screen
Purpose: Use this screen to provide the missing apartment number for the Order Administration address or select an address from the pick list returned by EDQ.
How to display this screen: This screen displays during Interactive Address Standardization when the EDQ Address Response Match Level returned by EDQ is Premise Partial, indicating EDQ found a match to the Order Administration address but the address is missing the apartment number.
Screen Option | Procedure |
---|---|
Retain the Order Administration address without any updates |
Select Select/Edit. The system returns you to the Order Administration screen and does not standardize the address. The system determines if the address requires standardization the next time you create the address or update the address; see EDQ Address Standardization Process Flow. |
Provide the missing apartment/suite number and update the Order Administration address with the recommendations returned by EDQ |
Enter the apartment/suite number in the Apartment number field and select OK. The system returns you to the Order Administration screen and standardizes the address. Apartment preface: When you enter the apartment/suite
number, make sure you preface the number with apartment text, such
as APT or STE; for example Note: If you provide an apartment number that EDQ does not recognize as a valid apartment number, the system does not update the address with the apartment number you provided. Instead, you remain on the Address Standardization: Verify Apartment/Suite Number Screen until you provide a valid apartment number; you can review the pick list returned by EDQ to determine the valid apartment numbers for the address. |
Display a list of possible address matches returned by EDQ |
Select Matches to display a list of valid address returned by EDQ. The address list indicates the valid apartment numbers available for the address. You can use this list to determine the apartment number to enter in the Apartment number field, or if an address displays as a hyperlink, you can select it. When you select one of these matches:
|
Address Standardization: Verify Street Number Screen
Purpose: Use this screen to provide the missing street number for the Order Administration address or to select an address from the pick list returned by EDQ.
How to display this screen: This screen displays during Interactive Address Standardization when the EDQ Address Response Match Level returned by EDQ is Street Partial, indicating EDQ found a match to the Order Administration address but the address is missing the street number.
Screen Option | Procedure |
---|---|
Retain the Order Administration address without any updates from EDQ |
Select Select/Edit. The system returns you to the Order Administration screen and does not standardize the address. |
Provide the missing street number and update the Order Administration address with the recommendations returned by EDQ |
Enter a valid street number in the Street number field and select OK. The system returns you to the Order Administration screen and standardizes the address. Note: If you provide a street number that EDQ does not recognize as a valid street number, the system does not update the address with the street number you provided. Instead, you remain on the Address Standardization: Verify Street Number Screen until you provide a valid street number; you can review the pick list returned by EDQ to determine the valid street numbers for the address. |
Display a list of possible address matches returned by EDQ |
Select Matches to review a list of possible address matches returned by EDQ. The address list indicates the valid street numbers available for the address. You can use this list to determine the street number to enter in the Street number field, or if an address displays as a hyperlink, you can select it. When you select one of these matches:
|
Address Standardization: Select from Multiple Addresses Screen
Purpose: Use this screen to select an address from the pick list returned by EDQ.
How to display this screen: This screen displays during Interactive Address Standardization when the EDQ Address Response Match Level returned by EDQ is Multiple, indicating EDQ found multiple matches to the Order Administration address and requires you to select an address from the list of valid addresses returned by EDQ.
Screen Option | Procedure |
---|---|
Retain the Order Administration address without any updates |
Select Select/Edit. The system returns you to the Order Administration screen and does not standardize the address. |
Select an address from a list of possible matches |
Select an address from the list of valid addresses returned from EDQ. When you select one of these matches:
|
Address Standardization: Verify Recommendation (from Pick List) Screen
Purpose: This screen allows you to review the address you selected from the pick list returned by EDQ before updating the Order Administration address.
How to display this screen: This screen displays during Interactive Address Standardization when you select an address from a list of valid addresses returned by EDQ on the following screens and the Display Confirmation After QAS Picklist Selection (J01) system control value is selected:
- Address Standardization: Verify Apartment/Suite Number Screen
- Address Standardization: Verify Street Number Screen
- Address Standardization: Select from Multiple Addresses Screen
Screen Option | Procedure |
---|---|
Retain the Order Administration address without any updates |
Select Select/Edit. The system returns you to the Order Administration screen and does not standardize the address. |
Select the address that you have selected from the pick list returned by EDQ |
Select Select. The system returns you to the Order Administration screen and standardizes the address. |
Display a list of possible address matches returned by EDQ and update the Order Administration address with the updates defined for one of these addresses |
Select Matches to display a list of valid address returned by EDQ. When you select one of these matches, the system displays the address under the Recommended Address section of the screen for you to review. |
Communication Failures
If an error occurs during processing, for example a connection could not be made with the EDQ, the system displays the Web Service Failure Screen.
To restore communication:
- Retry to make sure the connection is no longer working.
- Verify your account license information in the Experian self service portal.
- Contact your EDQ representative to make sure the Validate Address API is running correctly and that configuration settings on their end have not changed.
- Check your Order Administration configuration settings; see EDQ Setup.
Web Service Failure Screen
This screen indicates a connection could not be made with EDQ.
Screen Option | Procedure |
---|---|
Return to the Order Administration screen without updating the Order Administration address |
Select Select/Edit. The system returns you to the Order Administration screen without updating the address. You will need to resend the address to EDQ at a later time once the connection to EDQ has been reestablished. |
EDQ Setup
Purpose: Before you can use EDQ, you must perform the necessary setup in Order Administration.
Required setup includes:
- System Control Values
- Country ISO Codes
- Order Type
- SCF Codes
- Ship Via
- Property Settings
- Serenade Map
System Control Values
System Control Value | Description |
---|---|
Select this field if you wish to use EDQ to retrieve address information. |
|
Enter a valid hold reason code in this field that the system can assign to a remote order at the user level when the remote order fails address verification. A remote order fails address verification if EDQ could not find an exact match to the Order Administration address (the EDQ Address Response Match Level is not Verified). If you do not define a hold reason code in this system control value, the system does not assign a hold reason to a remote order at the user level when the remote order fails address verification.
|
|
Select this field if you use EDQ and you would like to use the interface to verify customer addresses that you add or change through the Generic Customer API. In the case of an Add request, the address standardization takes place before any duplicate checking. For more information see the Order Administration Web Services Guide on My Oracle Support (ID 2953017.1). Note: The address standardization only occurs if there is an exact match to the address (the EDQ Address Response Match Level is Verified); otherwise, the process does not update the customer’s address before proceeding with regular edits. |
|
Select field if you wish to display the Address Standardization: Verify Recommendation (from Pick List) Screen after you select an address from a list of possible address matches returned by EDQ. Leave this field blank if you wish to suppress the Address Standardization: Verify Recommendation (from Pick List) Screen after you select an address from a list of possible address matches returned by EDQ. |
|
If this system control value is selected, when you enter a postal code for an address, the system defaults the associated city and state (as defined in the Postal Code/City/State file) before sending the address to EDQ. |
|
If you do not define a country code for an address, the system defaults the country code defined in this system control value to the address. |
Country ISO Codes
Country ISO codes are codes representing the international standard code used to identify a country. When the system sends address information to EDQ for validation and standardization, the system sends the Country ISO code defined for the country instead of the Country code as the country code defined for the address. For example, the country code for the United States may be US and the country ISO code may be USA.
The country ISO codes supplied by EDQ for Canada and the United States are listed below.
Country Code | ISO Code | Country |
---|---|---|
CA |
CAN |
Canada |
US |
USA |
United States of America |
You can define a country ISO code for a country in the Setting Up the Country Table (WCTY) menu option. A country ISO code must be defined for the United States and Canada in order to send addresses for standardization to EDQ.
Note:
The Order Administration integration with EDQ supports address standardization for United States and Canadian addresses; it does not support address standardization for European countries at this time. You should not define a country ISO code for a country other than the United States or Canada.Order Type
The Address standardization field defined for an order type controls whether orders with this order type are eligible for address standardization using the Address Interface.
- If the Address standardization field for the order type on the order is selected, the order is eligible for address standardization using EDQ.
- If the Address standardization field for the order type on the order is unselected, the order is not eligible for address standardization using EDQ.
SCF Codes
The system uses the SCF file to validate that a customer’s postal code and state are consistent. Regardless if you use EDQ to validate addresses, you must still use the Working with SCF Codes (WSCF) menu option to create SCF codes and tax rates that apply to orders shipped to the SCF.
Ship Via
Regardless of whether you use EDQ to validate addresses, you must define the eligible shippers for a specific postal code. You can define eligible shippers for a postal code using either:
- the Working with Zip/Ship Via (WZSV) menu option to create a zip code/ship via cross reference for each postal code.
- the Working with SCF/Ship Via Values (WSHV) menu option to create an SCF/ship via cross reference for each SCF code.
Property Settings
The following properties are used with EDQ.
Property Name | Description |
---|---|
ADDRESS SERVICE ENDPOINT URL defined in Working with Customer Properties (PROP) |
Verify the URL used to connect to EDQ. This setting is delivered with the application and does not require any change unless the domain where Experian resides changes. |
ADDRESS SERVICE RETURN LAYOUT defined in Working with Customer Properties (PROP) |
The name of the custom layout used for data mapping. This layout resides with Experian and should be set to Serenade. Do not change this setting. |
QAS ADDRESS SERVICE TOKEN defined in Working with Customer Properties (PROP) |
Enter the address service token used by EDQ to identify a customer; this is a token you created in the EDQ self service portal. |
QAS SERVICES WSDL LOCATION defined in Working with Admin Properties (CPRP) |
The location of the ProOnDemandService.wsdl
file. The recommended location is |
Serenade Map
The address information and placement of the information returned from EDQ is based on a layout defined in the Serenade map. For example, the address mapping details specify:
- whether the data should be returned in upper case letters.
- if non-address data such as Leave at back door should be retained, and if retained, in which address field the information should be stored.
Note:
The Order Administration integration with EDQ supports address standardization for United States and Canadian addresses; it does not support address standardization for European countries at this time.EDQ maps the following information to each Order Administration address field.
OACS Field | Mapping Details |
---|---|
Street address |
EDQ updates this field with the primary number and street address. Example: |
Address line 2 |
Based on the EDQ Address Response Match Level, EDQ may clear address line 2 of any information. |
Address line 3 |
Based on the EDQ Address Response Match Level, EDQ may update this field with the first 32 characters of non-address information that was defined in address lines 1, 2, and 3 in Order Administration. Example: The following non-address information was defined in address lines 2 and 3 for the Order Administration address:
EDQ moves the first 32 characters of this information to address line 3:
See Retaining Non-Address Information in Address Lines 1-4 for more information. |
Address line 4 |
EDQ clears address line 4 of any information. |
Apartment |
EDQ updates this field with a valid apartment/suite/unit number and includes an abbreviation such as APT or STE. Example:
Apartment Triggers Certain text in address lines 2 and 3 and the EDQ Address Response Match Level triggers EDQ to move the
text to the Apartment field on an address. For example, if
you enter See Apartment Triggers for a list of the text that EDQ will move from address lines 2 and 3 to the Apartment field. Any number that follows this text is also moved to the Apartment field. |
City |
EDQ updates this field with the valid city name for the address. Example: WESTBORO updates to WESTBOROUGH |
State code |
EDQ updates this field with the valid state code for the address. Example: |
Postal code |
EDQ updates this field with the valid zip + 4 postal code for the address. Example: |
Country code |
EDQ translates the ISO country code for the address to the associated country code defined in Order Administration. Example: |
