Rear Cable Connections and Ports

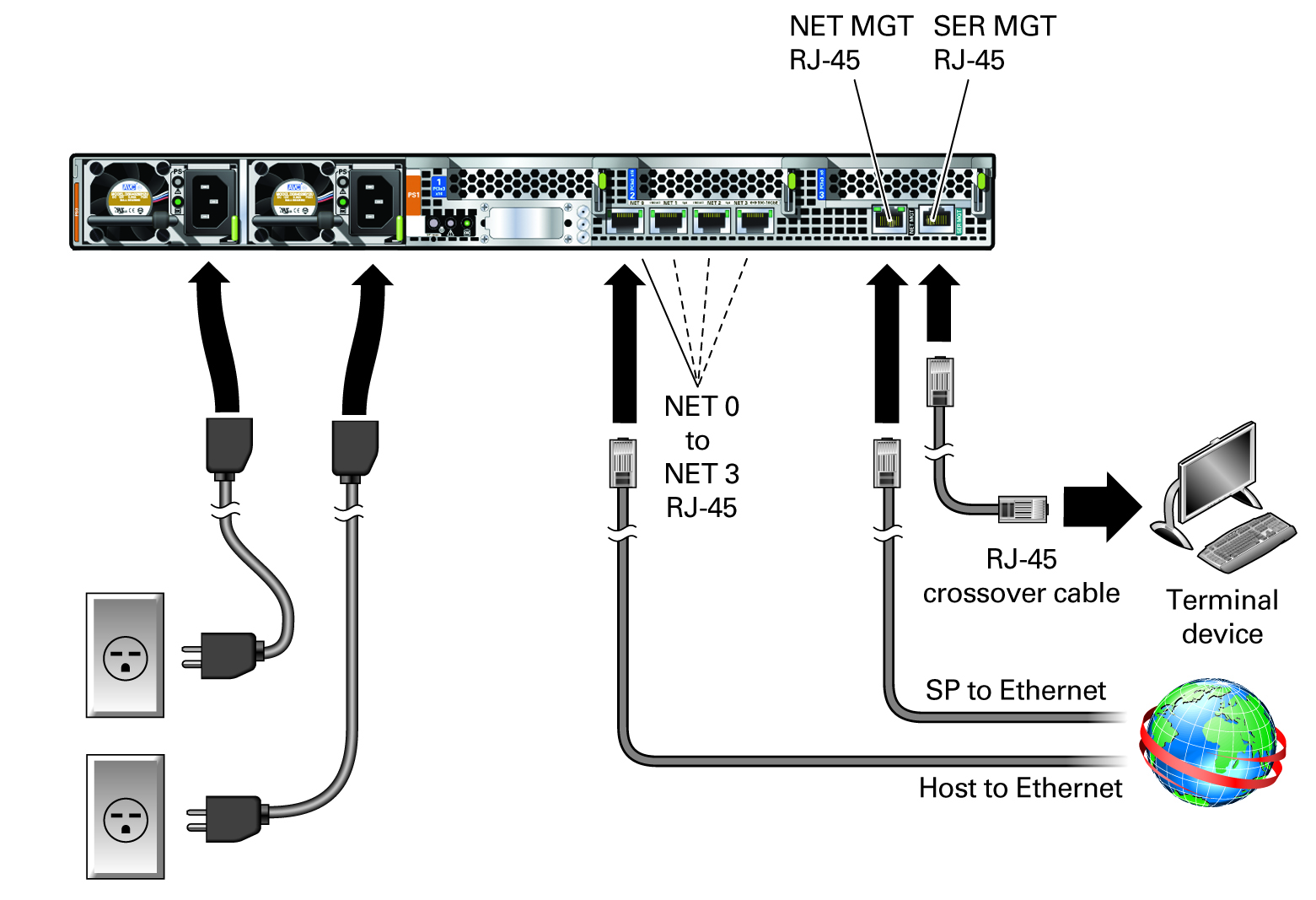

The following figure shows the locations of cable connectors and ports on the back of
the SPARC S7-2 and the cables and devices that you would typically connect to
them.
|
|
|
Power supply 0 input power
Power supply 1 input power
|
The server has two power supply connectors, one for each power
supply.
Do not attach power cables to any installed power supplies until
you have finished connecting the data cables to the server. The
server goes into standby power mode and the Oracle ILOM service
processor initializes when the AC power cables are connected to the
power source. Important system messages may be lost if AC power
cables are connected and the server has not yet been connected to a
terminal, PC, or workstation.
Note -
Oracle ILOM will signal a fault on any installed power supply
that is not connected to an AC power source, since it might
indicate a loss of redundancy.
|
|
Ethernet ports (0-3)
|
The four 10-Gigabit Ethernet ports enable you to connect the
system to the network. To achieve 10-GbE network speeds, use
Category 6A (or better) cables and network devices that support
10GBASE-T networks.
|
|
Network management port (NET MGT)
|
The service processor NET MGT port is the optional connection to
the Oracle ILOM service processor. The NET MGT port is configured by
default to use Dynamic Host Configuration Protocol (DHCP). The
service processor NET MGT port uses an RJ-45 cable for a
10/100/1000BASE-T connection.
|
|
Serial management port (SER MGT)
|
The service processor SER MGT port uses an RJ-45 cable and is the
default connection to the Oracle ILOM service processor. This port
supports local connections to the server and only recognizes Oracle
ILOM command-line interface (CLI) commands. Typically you connect a
terminal or a terminal emulator to this port. See SER MGT Port Pinout to use a
crossover cable or adapter for this connection. |
|
