Install the Server Into the Slide-Rail Assemblies

Language:

Use this procedure to install the server chassis, with mounting brackets, into the slide-rail assemblies that are mounted to the rack.

Caution - This procedure requires a minimum of two people because of the weight of the server. Attempting this procedure alone could result in equipment damage or personal injury.

Caution - Always load equipment into a rack from the bottom up so that the rack will not become top-heavy and tip over. Extend your rack's anti-tilt bar to prevent the rack from tipping during equipment installation.

Push the slide-rails as far as possible into the slide-rail assemblies in the rack.

Position the server so that the rear ends of the mounting brackets are aligned with the slide-rail assemblies that are mounted in the rack.

Insert the mounting brackets into the slide-rails, and then push the server into the rack until the mounting brackets encounter the slide-rail stops (approximately 30 cm, or 12 inches).

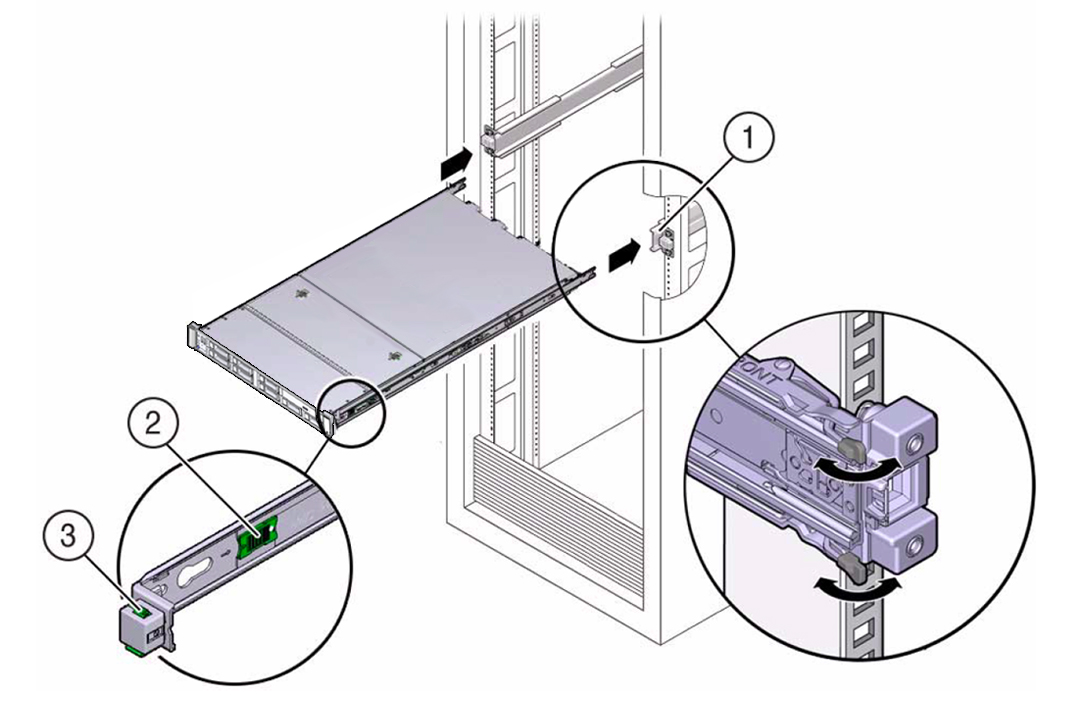

image:Figure showing the server with mounting brackets being inserted into the slide-rails.

image:Figure showing the server with mounting brackets being inserted into the slide-rails.

No.	Description
1	Inserting mounting bracket into slide-rail
2	Slide-rail release button
3	Slide-rail lock

Simultaneously push and hold the green slide-rail release buttons on each mounting bracket while you push the server into the rack. Continue pushing the server into the rack until the slide-rail locks (on the front of the mounting brackets) engage the slide-rail assemblies.

You will hear an audible click.

image:Figure showing the server being pushed back into the rack.

Caution - Verify that the server is securely mounted in the rack and that the slide-rail locks are engaged with the mounting brackets before you install the optional cable management arm.

Related Information

Install the Cable Management Arm
