Attach Tool-less Slide-Rail Assemblies

Language:

Use this procedure to attach tool-less slide-rail assemblies to the rack.

Orient the slide-rail assembly so that the ball-bearing track is forward and locked in place.

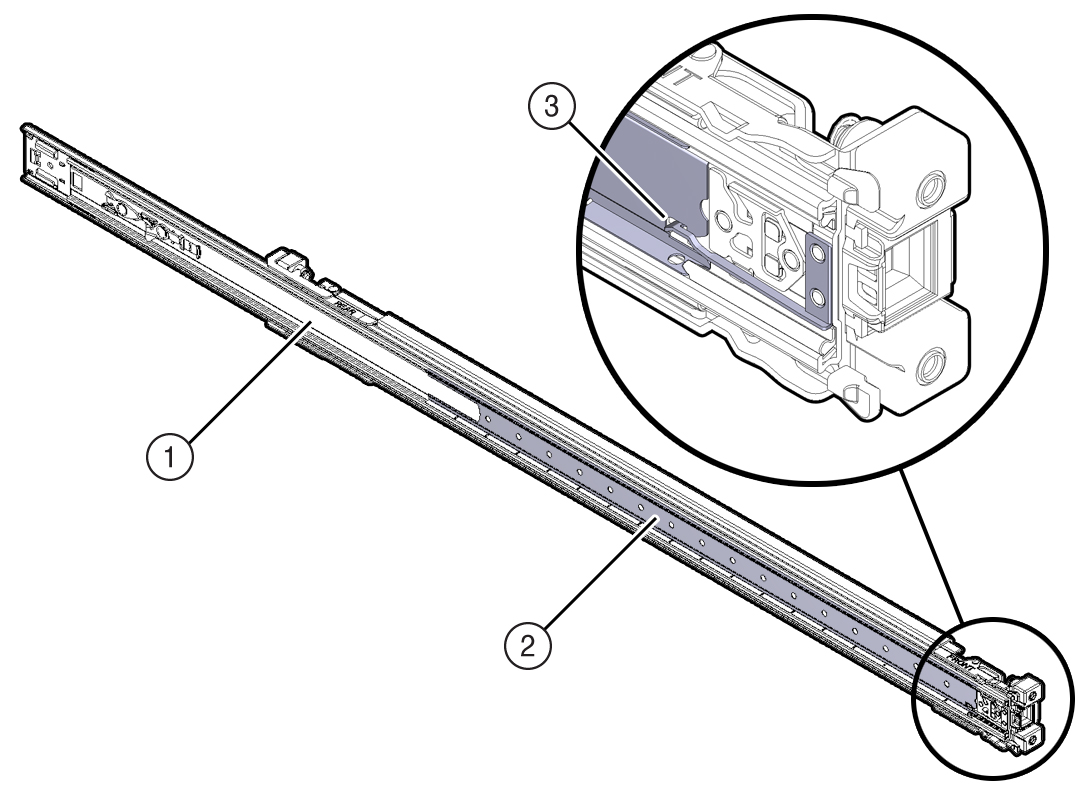

image:Figure showing the slide-rail being oriented with the ball-bearing track locked into place.

image:Figure showing the slide-rail being oriented with the ball-bearing track locked into place.

No.	Description
1	Slide-rail
2	Ball-bearing track
3	Locking mechanism

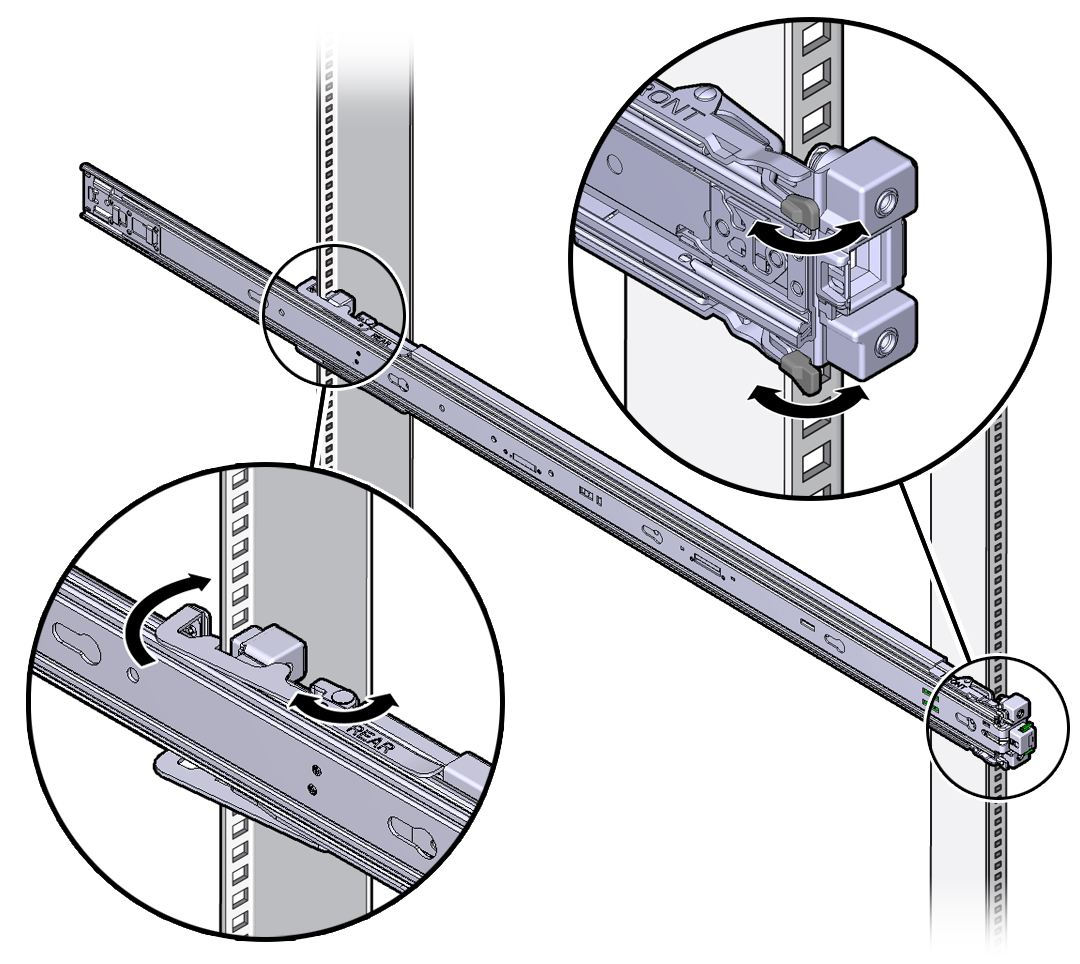

Starting with either the left or right side of the rack, align the rear of the slide-rail assembly against the inside of the rear rack rail, and push until the assembly locks into place with an audible click.

Align the front of the slide-rail assembly against the outside of the front rack rail, and push until the assembly locks into place with an audible click.

Repeat Step 1 through Step 3 to attach the slide-rail assembly to the other side of the rack.
