This chapter illustrates an example of a single-source heterogeneous replication environment that can be constructed using Streams, as well as the tasks required to add new objects and databases to such an environment.
This chapter contains these topics:
Overview of the Single-Source Heterogeneous Replication Example
Add a Database to an Existing Streams Replication Environment
This example illustrates using Streams to replicate data between four databases. The environment is heterogeneous because three of the databases are Oracle databases and one is a Sybase database. DML and DDL changes made to tables in the hr
schema at the dbs1.net
Oracle database are captured and propagated to the other two Oracle databases. Only DML changes are captured and propagated to the dbs4.net
database, because an apply process cannot apply DDL changes to a non-Oracle database. Changes to the hr
schema occur only at dbs1.net
. The hr
schema is read-only at the other databases in the environment.

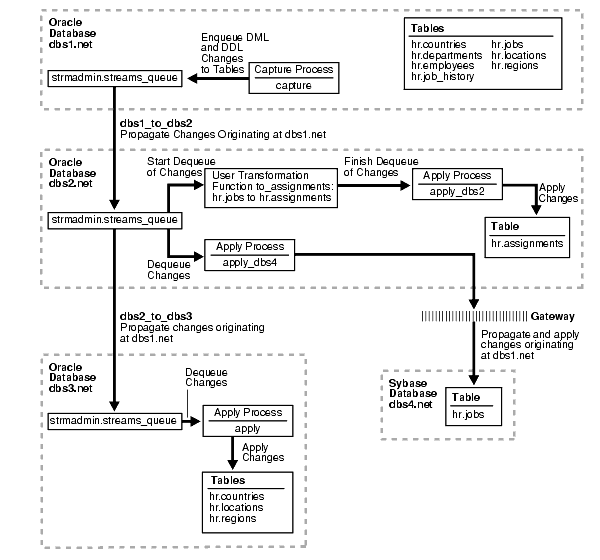

Figure 19-1 provides an overview of the environment.
Figure 19-1 Sample Environment that Shares Data from a Single Source Database
As illustrated in Figure 19-1, dbs1.net
contains the following tables in the hr
schema:
countries
departments
employees
job_history
jobs
locations
regions
This example uses directed networks, which means that captured changes at a source database are propagated to another database through one or more intermediate databases. Here, the dbs1.net
database propagates changes to the dbs3.net
database through the intermediate database dbs2.net
. This configuration is an example of queue forwarding in a directed network. Also, the dbs1.net
database propagates changes to the dbs2.net
database, which applies the changes directly to the dbs4.net
database through a gateway.
Some of the databases in the environment do not have certain tables. If the database is not an intermediate database for a table and the database does not contain the table, then changes to the table do not need to be propagated to that database. For example, the departments
, employees
, job_history
, and jobs
tables do not exist at dbs3.net
. Therefore, dbs2.net
does not propagate changes to these tables to dbs3.net
.
In this example, Streams is used to perform the following series of actions:
The capture process captures DML and DDL changes for all of the tables in the hr
schema and enqueues them into a queue at the dbs1.net
database. In this example, changes to only four of the seven tables are propagated to destination databases, but in the example that illustrates "Add Objects to an Existing Streams Replication Environment", the remaining tables in the hr
schema are added to a destination database.
The dbs1.net
database propagates these changes in the form of messages to a queue at dbs2.net
.
At dbs2.net
, DML changes to the jobs
table are transformed into DML changes for the assignments
table (which is a direct mapping of jobs
) and then applied. Changes to other tables in the hr
schema are not applied at dbs2.net
.
Because the queue at dbs3.net
receives changes from the queue at dbs2.net
that originated in countries
, locations
, and regions
tables at dbs1.net
, these changes are propagated from dbs2.net
to dbs3.net
. This configuration is an example of directed networks.
The apply process at dbs3.net
applies changes to the countries
, locations
, and regions
tables.
Because dbs4.net
, a Sybase database, receives changes from the queue at dbs2.net
to the jobs
table that originated at dbs1.net
, these changes are applied remotely from dbs2.net
using the dbs4.net
database link through a gateway. This configuration is an example of heterogeneous support.
The following prerequisites must be completed before you begin the example in this chapter.
Set the following initialization parameters to the values indicated for all databases in the environment:
GLOBAL_NAMES
: This parameter must be set to true
at each database that is participating in your Streams environment.
JOB_QUEUE_PROCESSES
: This parameter must be set to at least 2
at each database that is propagating messages in your Streams environment. It should be set to the same value as the maximum number of jobs that can run simultaneously plus one. In this example, dbs1.net
and dbs2.net
propagate messages. So, JOB_QUEUE_PROCESSES
must be set to at least 2
at these databases.
COMPATIBLE
: This parameter must be set to 10.2.0
or higher.
STREAMS_POOL_SIZE
: Optionally set this parameter to an appropriate value for each database in the environment. This parameter specifies the size of the Streams pool. The Streams pool stores messages in a buffered queue and is used for internal communications during parallel capture and apply. When the SGA_TARGET
initialization parameter is set to a nonzero value, the Streams pool size is managed by Automatic Shared Memory Management.
See Also:
Oracle Streams Concepts and Administration for information about other initialization parameters that are important in a Streams environmentAny database producing changes that will be captured must be running in ARCHIVELOG
mode. In this example, changes are produced at dbs1.net
, and so dbs1.net
must be running in ARCHIVELOG
mode.
See Also:
Oracle Database Administrator's Guide for information about running a database inARCHIVELOG
modeConfigure an Oracle gateway on dbs2.net
to communicate with the Sybase database dbs4.net
.
At the Sybase database dbs4.net
, set up the hr
user.
See Also:
Your Sybase documentation for information about creating users and tables in your Sybase databaseInstantiate the hr.jobs
table from the dbs1.net
Oracle database at the dbs4.net
Sybase database.
Configure your network and Oracle Net so that the following databases can communicate with each other:
dbs1.net
and dbs2.net
dbs2.net
and dbs3.net
dbs2.net
and dbs4.net
dbs3.net
and dbs1.net
(for optional Data Pump network instantiation)
This examples creates a new user to function as the Streams administrator (strmadmin
) at each database and prompts you for the tablespace you want to use for this user's data. Before you start this example, either create a new tablespace or identify an existing tablespace for the Streams administrator to use at each database. The Streams administrator should not use the SYSTEM
tablespace.
Complete the following steps to set up users and create queues and database links for a Streams replication environment that includes three Oracle databases and one Sybase database.
Note:
If you are viewing this document online, then you can copy the text from the "BEGINNING OF SCRIPT" line after this note to the next "END OF SCRIPT" line into a text editor and then edit the text to create a script for your environment. Run the script with SQL*Plus on a computer that can connect to all of the databases in the environment./************************* BEGINNING OF SCRIPT ******************************
Step 1 Show Output and Spool Results
Run SET
ECHO
ON
and specify the spool file for the script. Check the spool file for errors after you run this script.
*/ SET ECHO ON SPOOL streams_setup_single.out /*
Step 2 Set Up Users at dbs1.net
Connect to dbs1.net
as SYSTEM
user.
*/ CONNECT SYSTEM/MANAGER@dbs1.net /*
Create the Streams administrator named strmadmin
and grant this user the necessary privileges. These privileges enable the user to manage queues, execute subprograms in packages related to Streams, create rule sets, create rules, and monitor the Streams environment by querying data dictionary views and queue tables. You can choose a different name for this user.
Note:
For security purposes, use a password other than strmadminpw
for the Streams administrator.
The ACCEPT
command must appear on a single line in the script.
See Also:
Oracle Streams Concepts and Administration for more information about configuring a Streams administrator*/ GRANT DBA TO strmadmin IDENTIFIED BY strmadminpw; ACCEPT streams_tbs PROMPT 'Enter Streams administrator tablespace on dbs1.net: ' ALTER USER strmadmin DEFAULT TABLESPACE &streams_tbs QUOTA UNLIMITED ON &streams_tbs; /*
Step 3 Create the ANYDATA Queue at dbs1.net
Connect as the Streams administrator at the database where you want to capture changes. In this example, that database is dbs1.net
.
*/ CONNECT strmadmin/strmadminpw@dbs1.net /*
Run the SET_UP_QUEUE
procedure to create a queue named streams_queue
at dbs1.net
. This queue will function as the ANYDATA
queue by holding the captured changes that will be propagated to other databases.
Running the SET_UP_QUEUE
procedure performs the following actions:
Creates a queue table named streams_queue_table
. This queue table is owned by the Streams administrator (strmadmin
) and uses the default storage of this user.
Creates a queue named streams_queue
owned by the Streams administrator (strmadmin
).
Starts the queue.
*/ EXEC DBMS_STREAMS_ADM.SET_UP_QUEUE(); /*
Step 4 Create the Database Link at dbs1.net
Create the database link from the database where changes are captured to the database where changes are propagated. In this example, the database where changes are captured is dbs1.net
, and these changes are propagated to dbs2.net
.
*/ CREATE DATABASE LINK dbs2.net CONNECT TO strmadmin IDENTIFIED BY strmadminpw USING 'dbs2.net'; /*
Step 5 Set Up Users at dbs2.net
Connect to dbs2.net
as SYSTEM
user.
*/ CONNECT SYSTEM/MANAGER@dbs2.net /*
Create the Streams administrator named strmadmin
and grant this user the necessary privileges. These privileges enable the user to manage queues, execute subprograms in packages related to Streams, create rule sets, create rules, and monitor the Streams environment by querying data dictionary views and queue tables. You can choose a different name for this user.
Note:
For security purposes, use a password other than strmadminpw
for the Streams administrator.
The ACCEPT
command must appear on a single line in the script.
See Also:
Oracle Streams Concepts and Administration for more information about configuring a Streams administrator*/ GRANT DBA TO strmadmin IDENTIFIED BY strmadminpw; ACCEPT streams_tbs PROMPT 'Enter Streams administrator tablespace on dbs2.net: ' ALTER USER strmadmin DEFAULT TABLESPACE &streams_tbs QUOTA UNLIMITED ON &streams_tbs; /*
Step 6 Create the ANYDATA Queue at dbs2.net
Connect as the Streams administrator at dbs2.net
.
*/ CONNECT strmadmin/strmadminpw@dbs2.net /*
Run the SET_UP_QUEUE
procedure to create a queue named streams_queue
at dbs2.net
. This queue will function as the ANYDATA
queue by holding the changes that will be applied at this database and the changes that will be propagated to other databases.
Running the SET_UP_QUEUE
procedure performs the following actions:
Creates a queue table named streams_queue_table
. This queue table is owned by the Streams administrator (strmadmin
) and uses the default storage of this user.
Creates a queue named streams_queue
owned by the Streams administrator (strmadmin
).
Starts the queue.
*/ EXEC DBMS_STREAMS_ADM.SET_UP_QUEUE(); /*
Step 7 Create the Database Links at dbs2.net
Create the database links to the databases where changes are propagated. In this example, database dbs2.net
propagates changes to dbs3.net
, which is another Oracle database, and to dbs4.net
, which is a Sybase database. Notice that the database link to the Sybase database connects to the owner of the tables, not to the Streams administrator. This database link can connect to any user at dbs4.net
that has privileges to change the hr.jobs
table at that database.
Note:
On some non-Oracle databases, including Sybase, you must ensure that the characters in the username and password are in the correct case. Therefore, double quotation marks are specified for the username and password at the Sybase database.*/ CREATE DATABASE LINK dbs3.net CONNECT TO strmadmin IDENTIFIED BY strmadminpw USING 'dbs3.net'; CREATE DATABASE LINK dbs4.net CONNECT TO "hr" IDENTIFIED BY "hrpass" USING 'dbs4.net'; /*
Step 8 Create the hr.assignments Table at dbs2.net
This example illustrates a rule-based transformation in which changes to the hr.jobs
table at dbs1.net
are transformed into changes to the hr.assignments
table at dbs2.net
. You must create the hr.assignments
table on dbs2.net
for the transformation portion of this example to work properly.
Connect as hr at dbs2.net
.
*/ CONNECT hr/hr@dbs2.net /*
Create the hr.assignments
table in the dbs2.net
database.
*/ CREATE TABLE hr.assignments AS SELECT * FROM hr.jobs; ALTER TABLE hr.assignments ADD PRIMARY KEY (job_id); /*
Step 9 Set Up Users at dbs3.net
Connect to dbs3.net
as SYSTEM
user.
*/ CONNECT SYSTEM/MANAGER@dbs3.net /*
Create the Streams administrator named strmadmin
and grant this user the necessary privileges. These privileges enable the user to manage queues, execute subprograms in packages related to Streams, create rule sets, create rules, and monitor the Streams environment by querying data dictionary views and queue tables. You can choose a different name for this user.
Note:
For security purposes, use a password other than strmadminpw
for the Streams administrator.
The ACCEPT
command must appear on a single line in the script.
See Also:
Oracle Streams Concepts and Administration for more information about configuring a Streams administrator*/ GRANT DBA TO strmadmin IDENTIFIED BY strmadminpw; ACCEPT streams_tbs PROMPT 'Enter Streams administrator tablespace on dbs3.net: ' ALTER USER strmadmin DEFAULT TABLESPACE &streams_tbs QUOTA UNLIMITED ON &streams_tbs; /*
Step 10 Create the ANYDATA Queue at dbs3.net
Connect as the Streams administrator at dbs3.net
.
*/ CONNECT strmadmin/strmadminpw@dbs3.net /*
Run the SET_UP_QUEUE
procedure to create a queue named streams_queue
at dbs3.net
. This queue will function as the ANYDATA
queue by holding the changes that will be applied at this database.
Running the SET_UP_QUEUE
procedure performs the following actions:
Creates a queue table named streams_queue_table
. This queue table is owned by the Streams administrator (strmadmin
) and uses the default storage of this user.
Creates a queue named streams_queue
owned by the Streams administrator (strmadmin
).
Starts the queue.
*/ EXEC DBMS_STREAMS_ADM.SET_UP_QUEUE(); /*
Step 11 Create a Database Link at dbs3.net to dbs1.net
Create a database link from dbs3.net
to dbs1.net
. Later in this example, this database link is used for the instantiation of some of the database objects that were dropped in Step 12. This example uses the DBMS_DATAPUMP
package to perform a network import of these database objects directly from the dbs1.net
database. Because this example performs a network import, no dump file is required.
Alternatively, you can perform an export at the source database dbs1.net
, transfer the export dump file to the destination database dbs3.net
, and then import the export dump file at the destination database. In this case, the database link created in this step is not required.
*/ CREATE DATABASE LINK dbs1.net CONNECT TO strmadmin IDENTIFIED BY strmadminpw USING 'dbs1.net'; /*
Step 12 Drop All of the Tables in the hr Schema at dbs3.net
This example illustrates instantiating tables in the hr
schema by importing them from dbs1.net
into dbs3.net
with Data Pump. You must delete these tables at dbs3.net
for the instantiation portion of this example to work properly.
Connect as hr
at dbs3.net
.
*/ CONNECT hr/hr@dbs3.net /*
Drop all tables in the hr
schema in the dbs3.net
database.
Attention:
If you complete this step and drop all of the tables in thehr
schema, then you should complete the remaining sections of this example to reinstantiate the hr
schema at dbs3.net
. If the hr
schema does not exist in an Oracle database, then some examples in the Oracle documentation set can fail.*/ DROP TABLE hr.countries CASCADE CONSTRAINTS; DROP TABLE hr.departments CASCADE CONSTRAINTS; DROP TABLE hr.employees CASCADE CONSTRAINTS; DROP TABLE hr.job_history CASCADE CONSTRAINTS; DROP TABLE hr.jobs CASCADE CONSTRAINTS; DROP TABLE hr.locations CASCADE CONSTRAINTS; DROP TABLE hr.regions CASCADE CONSTRAINTS; /*
Step 13 Check the Spool Results
Check the streams_setup_single.out
spool file to ensure that all actions finished successfully after this script is completed.
*/ SET ECHO OFF SPOOL OFF /*************************** END OF SCRIPT ******************************/
This example illustrates two ways to accomplish the replication of the tables in the hr
schema using Streams.
"Simple Configuration for Sharing Data from a Single Database" demonstrates a simple way to configure the environment. This example uses the DBMS_STREAMS_ADM
package to create a capture process, propagations, and apply processes, as well as the rule sets associated with them. Using the DBMS_STREAMS_ADM
package is the simplest way to configure a Streams environment.
"Flexible Configuration for Sharing Data from a Single Database" demonstrates a more flexible way to configure this environment. This example uses the DBMS_CAPTURE_ADM
package to create a capture process, the DBMS_PROPAGATION_ADM
package to create propagations, and the DBMS_APPLY_ADM
package to create apply processes. Also, this example uses the DBMS_RULES_ADM
package to create and populate the rule sets associated with these capture processes, propagations, and apply processes. Using these packages, instead of the DBMS_STREAMS_ADM
package, provides more configuration options and flexibility.
Note:
These examples illustrate two different ways to configure the same Streams environment. Therefore, you should run only one of the examples for a particular distributed database system. Otherwise, errors stating that objects already exist will result.Complete the following steps to specify the capture, propagation, and apply definitions using primarily the DBMS_STEAMS_ADM
package.
Set the Instantiation SCN for the Existing Tables at Other Databases
Specify hr as the Apply User for the Apply Process at dbs3.net
Grant the hr User Execute Privilege on the Apply Process Rule Set
Create the Rule-Based Transformation for Row LCRs at dbs2.net
Specify hr as the Apply User for the Apply Process at dbs2.net
Grant the hr User Execute Privilege on the Apply Process Rule Set
Configure the Apply Process at dbs2.net for Apply at dbs4.net
Note:
If you are viewing this document online, then you can copy the text from the "BEGINNING OF SCRIPT" line after this note to the next "END OF SCRIPT" line into a text editor and then edit the text to create a script for your environment. Run the script with SQL*Plus on a computer that can connect to all of the databases in the environment./************************* BEGINNING OF SCRIPT ******************************
Step 1 Show Output and Spool Results
Run SET
ECHO
ON
and specify the spool file for the script. Check the spool file for errors after you run this script.
*/ SET ECHO ON SPOOL streams_share_schema1.out /*
Step 2 Configure Propagation at dbs1.net
Connect to dbs1.net
as the strmadmin
user.
*/ CONNECT strmadmin/strmadminpw@dbs1.net /*
Configure and schedule propagation of DML and DDL changes in the hr
schema from the queue at dbs1.net
to the queue at dbs2.net
.
*/ BEGIN DBMS_STREAMS_ADM.ADD_SCHEMA_PROPAGATION_RULES( schema_name => 'hr', streams_name => 'dbs1_to_dbs2', source_queue_name => 'strmadmin.streams_queue', destination_queue_name => 'strmadmin.streams_queue@dbs2.net', include_dml => true, include_ddl => true, source_database => 'dbs1.net', inclusion_rule => true, queue_to_queue => true); END; / /*
Step 3 Configure the Capture Process at dbs1.net
Configure the capture process to capture changes to the entire hr
schema at dbs1.net
. This step specifies that changes to the tables in the specified schema are captured by the capture process and enqueued into the specified queue.
This step also prepares the hr
schema for instantiation and enables supplemental logging for any primary key, unique key, bitmap index, and foreign key columns in the tables in this schema. Supplemental logging places additional information in the redo log for changes made to tables. The apply process needs this extra information to perform certain operations, such as unique row identification and conflict resolution. Because dbs1.net
is the only database where changes are captured in this environment, it is the only database where you must specify supplemental logging for the tables in the hr
schema.
See Also:
*/ BEGIN DBMS_STREAMS_ADM.ADD_SCHEMA_RULES( schema_name => 'hr', streams_type => 'capture', streams_name => 'capture', queue_name => 'strmadmin.streams_queue', include_dml => true, include_ddl => true, inclusion_rule => true); END; / /*
Step 4 Set the Instantiation SCN for the Existing Tables at Other Databases
In this example, the hr.jobs
table already exists at dbs2.net
and dbs4.net
. At dbs2.net
, this table is named assignments
, but it has the same shape and data as the jobs
table at dbs1.net
. Also, in this example, dbs4.net
is a Sybase database. All of the other tables in the Streams environment are instantiated at the other destination databases using Data Pump import.
Because the hr.jobs
table already exists at dbs2.net
and dbs4.net
, this example uses the GET_SYSTEM_CHANGE_NUMBER
function in the DBMS_FLASHBACK
package at dbs1.net
to obtain the current SCN for the database. This SCN is used at dbs2.net
to run the SET_TABLE_INSTANTIATION_SCN
procedure in the DBMS_APPLY_ADM
package. Running this procedure twice sets the instantiation SCN for the hr.jobs
table at dbs2.net
and dbs4.net
.
The SET_TABLE_INSTANTIATION_SCN
procedure controls which LCRs for a table are ignored by an apply process and which LCRs for a table are applied by an apply process. If the commit SCN of an LCR for a table from a source database is less than or equal to the instantiation SCN for that table at a destination database, then the apply process at the destination database discards the LCR. Otherwise, the apply process applies the LCR.
In this example, both of the apply processes at dbs2.net
will apply transactions to the hr.jobs
table with SCNs that were committed after SCN obtained in this step.
Note:
This example assumes that the contents of thehr.jobs
table at dbs1.net
, dbs2.net
(as hr.assignments
), and dbs4.net
are consistent when you complete this step. You might want to lock the table at each database while you complete this step to ensure consistency.*/ DECLARE iscn NUMBER; -- Variable to hold instantiation SCN value BEGIN iscn := DBMS_FLASHBACK.GET_SYSTEM_CHANGE_NUMBER(); DBMS_APPLY_ADM.SET_TABLE_INSTANTIATION_SCN@DBS2.NET( source_object_name => 'hr.jobs', source_database_name => 'dbs1.net', instantiation_scn => iscn); DBMS_APPLY_ADM.SET_TABLE_INSTANTIATION_SCN@DBS2.NET( source_object_name => 'hr.jobs', source_database_name => 'dbs1.net', instantiation_scn => iscn, apply_database_link => 'dbs4.net'); END; / /*
Step 5 Instantiate the dbs1.net Tables at dbs3.net
This example performs a network Data Pump import of the following tables:
hr.countries
hr.locations
hr.regions
A network import means that Data Pump imports these tables from dbs1.net
without using an export dump file.
See Also:
Oracle Database Utilities for information about performing an importConnect to dbs3.net
as the strmadmin
user.
*/ CONNECT strmadmin/strmadminpw@dbs3.net /*
This example will do a table import using the DBMS_DATAPUMP
package. For simplicity, exceptions from any of the API calls will not be trapped. However, Oracle recommends that you define exception handlers and call GET_STATUS
to retrieve more detailed error information if a failure occurs. If you want to monitor the import, then query the DBA_DATAPUMP_JOBS
data dictionary view at the import database.
*/ SET SERVEROUTPUT ON DECLARE h1 NUMBER; -- Data Pump job handle sscn NUMBER; -- Variable to hold current source SCN job_state VARCHAR2(30); -- To keep track of job state js ku$_JobStatus; -- The job status from GET_STATUS sts ku$_Status; -- The status object returned by GET_STATUS job_not_exist exception; pragma exception_init(job_not_exist, -31626); BEGIN -- Create a (user-named) Data Pump job to do a table-level import. h1 := DBMS_DATAPUMP.OPEN( operation => 'IMPORT', job_mode => 'TABLE', remote_link => 'DBS1.NET', job_name => 'dp_sing1'); -- A metadata filter is used to specify the schema that owns the tables -- that will be imported. DBMS_DATAPUMP.METADATA_FILTER( handle => h1, name => 'SCHEMA_EXPR', value => '=''HR'''); -- A metadata filter is used to specify the tables that will be imported. DBMS_DATAPUMP.METADATA_FILTER( handle => h1, name => 'NAME_EXPR', value => 'IN(''COUNTRIES'', ''REGIONS'', ''LOCATIONS'')'); -- Get the current SCN of the source database, and set the FLASHBACK_SCN -- parameter to this value to ensure consistency between all of the -- objects included in the import. sscn := DBMS_FLASHBACK.GET_SYSTEM_CHANGE_NUMBER@dbs1.net(); DBMS_DATAPUMP.SET_PARAMETER( handle => h1, name => 'FLASHBACK_SCN', value => sscn); -- Start the job. DBMS_DATAPUMP.START_JOB(h1); -- The import job should be running. In the following loop, the job -- is monitored until it completes. job_state := 'UNDEFINED'; BEGIN WHILE (job_state != 'COMPLETED') AND (job_state != 'STOPPED') LOOP sts:=DBMS_DATAPUMP.GET_STATUS( handle => h1, mask => DBMS_DATAPUMP.KU$_STATUS_JOB_ERROR + DBMS_DATAPUMP.KU$_STATUS_JOB_STATUS + DBMS_DATAPUMP.KU$_STATUS_WIP, timeout => -1); js := sts.job_status; DBMS_LOCK.SLEEP(10); job_state := js.state; END LOOP; -- Gets an exception when job no longer exists EXCEPTION WHEN job_not_exist THEN DBMS_OUTPUT.PUT_LINE('Data Pump job has completed'); DBMS_OUTPUT.PUT_LINE('Instantiation SCN: ' ||sscn); END; END; / /*
Step 6 Configure the Apply Process at dbs3.net
Connect to dbs3.net
as the strmadmin
user.
*/ CONNECT strmadmin/strmadminpw@dbs3.net /*
Configure dbs3.net
to apply changes to the countries
table, locations
table, and regions
table.
*/ BEGIN DBMS_STREAMS_ADM.ADD_TABLE_RULES( table_name => 'hr.countries', streams_type => 'apply', streams_name => 'apply', queue_name => 'strmadmin.streams_queue', include_dml => true, include_ddl => true, source_database => 'dbs1.net', inclusion_rule => true); END; / BEGIN DBMS_STREAMS_ADM.ADD_TABLE_RULES( table_name => 'hr.locations', streams_type => 'apply', streams_name => 'apply', queue_name => 'strmadmin.streams_queue', include_dml => true, include_ddl => true, source_database => 'dbs1.net', inclusion_rule => true); END; / BEGIN DBMS_STREAMS_ADM.ADD_TABLE_RULES( table_name => 'hr.regions', streams_type => 'apply', streams_name => 'apply', queue_name => 'strmadmin.streams_queue', include_dml => true, include_ddl => true, source_database => 'dbs1.net', inclusion_rule => true); END; / /*
Step 7 Specify hr as the Apply User for the Apply Process at dbs3.net
In this example, the hr
user owns all of the database objects for which changes are applied by the apply process at this database. Therefore, hr
already has the necessary privileges to change these database objects, and it is convenient to make hr
the apply user.
When the apply process was created in the previous step, the Streams administrator strmadmin
was specified as the apply user by default, because strmadmin
ran the procedure that created the apply process. Instead of specifying hr as the apply user, you could retain strmadmin
as the apply user, but then you must grant strmadmin
privileges on all of the database objects for which changes are applied and privileges to execute all user procedures used by the apply process. In an environment where an apply process applies changes to database objects in multiple schemas, it might be more convenient to use the Streams administrator as the apply user.
See Also:
Oracle Streams Concepts and Administration for more information about configuring a Streams administrator*/ BEGIN DBMS_APPLY_ADM.ALTER_APPLY( apply_name => 'apply', apply_user => 'hr'); END; / /*
Step 8 Grant the hr User Execute Privilege on the Apply Process Rule Set
Because the hr
user was specified as the apply user in the previous step, the hr
user requires EXECUTE
privilege on the positive rule set used by the apply process
*/ DECLARE rs_name VARCHAR2(64); -- Variable to hold rule set name BEGIN SELECT RULE_SET_OWNER||'.'||RULE_SET_NAME INTO rs_name FROM DBA_APPLY WHERE APPLY_NAME='APPLY'; DBMS_RULE_ADM.GRANT_OBJECT_PRIVILEGE( privilege => SYS.DBMS_RULE_ADM.EXECUTE_ON_RULE_SET, object_name => rs_name, grantee => 'hr'); END; / /*
Step 9 Start the Apply Process at dbs3.net
Set the disable_on_error
parameter to n
so that the apply process will not be disabled if it encounters an error, and start the apply process at dbs3.net
.
*/ BEGIN DBMS_APPLY_ADM.SET_PARAMETER( apply_name => 'apply', parameter => 'disable_on_error', value => 'n'); END; / BEGIN DBMS_APPLY_ADM.START_APPLY( apply_name => 'apply'); END; / /*
Step 10 Configure Propagation at dbs2.net
Connect to dbs2.net
as the strmadmin
user.
*/ CONNECT strmadmin/strmadminpw@dbs2.net /*
Configure and schedule propagation from the queue at dbs2.net
to the queue at dbs3.net
. You must specify this propagation for each table that will apply changes at dbs3.net
. This configuration is an example of directed networks because the changes at dbs2.net
originated at dbs1.net
.
*/ BEGIN DBMS_STREAMS_ADM.ADD_TABLE_PROPAGATION_RULES( table_name => 'hr.countries', streams_name => 'dbs2_to_dbs3', source_queue_name => 'strmadmin.streams_queue', destination_queue_name => 'strmadmin.streams_queue@dbs3.net', include_dml => true, include_ddl => true, source_database => 'dbs1.net', inclusion_rule => true, queue_to_queue => true); END; / BEGIN DBMS_STREAMS_ADM.ADD_TABLE_PROPAGATION_RULES( table_name => 'hr.locations', streams_name => 'dbs2_to_dbs3', source_queue_name => 'strmadmin.streams_queue', destination_queue_name => 'strmadmin.streams_queue@dbs3.net', include_dml => true, include_ddl => true, source_database => 'dbs1.net', inclusion_rule => true); END; / BEGIN DBMS_STREAMS_ADM.ADD_TABLE_PROPAGATION_RULES( table_name => 'hr.regions', streams_name => 'dbs2_to_dbs3', source_queue_name => 'strmadmin.streams_queue', destination_queue_name => 'strmadmin.streams_queue@dbs3.net', include_dml => true, include_ddl => true, source_database => 'dbs1.net', inclusion_rule => true); END; / /*
Step 11 Create the Rule-Based Transformation for Row LCRs at dbs2.net
Connect to dbs2.net
as the hr
user.
*/ CONNECT hr/hr@dbs2.net /*
Create the rule-based transformation function that transforms row changes resulting from DML statements to the jobs
table from dbs1.net
into row changes to the assignments
table on dbs2.net
.
The following function transforms every row LCR for the jobs
table into a row LCR for the assignments
table.
Note:
If DDL changes were also applied to theassignments
table, then another transformation would be required for the DDL LCRs. This transformation would need to change the object name and the DDL text.*/ CREATE OR REPLACE FUNCTION hr.to_assignments_trans_dml( p_in_data in ANYDATA) RETURN ANYDATA IS out_data SYS.LCR$_ROW_RECORD; tc pls_integer; BEGIN -- Typecast AnyData to LCR$_ROW_RECORD tc := p_in_data.GetObject(out_data); IF out_data.GET_OBJECT_NAME() = 'JOBS' THEN -- Transform the in_data into the out_data out_data.SET_OBJECT_NAME('ASSIGNMENTS'); END IF; -- Convert to AnyData RETURN ANYDATA.ConvertObject(out_data); END; / /*
Step 12 Configure the Apply Process for Local Apply at dbs2.net
Connect to dbs2.net
as the strmadmin
user.
*/ CONNECT strmadmin/strmadminpw@dbs2.net /*
Configure dbs2.net
to apply changes to the assignments
table. Remember that the assignments
table receives changes from the jobs
table at dbs1.net
.
*/ DECLARE to_assignments_rulename_dml VARCHAR2(30); dummy_rule VARCHAR2(30); BEGIN -- DML changes to the jobs table from dbs1.net are applied to the assignments -- table. The to_assignments_rulename_dml variable is an out parameter -- in this call. DBMS_STREAMS_ADM.ADD_TABLE_RULES( table_name => 'hr.jobs', -- jobs, not assignments, specified streams_type => 'apply', streams_name => 'apply_dbs2', queue_name => 'strmadmin.streams_queue', include_dml => true, include_ddl => false, source_database => 'dbs1.net', dml_rule_name => to_assignments_rulename_dml, ddl_rule_name => dummy_rule, inclusion_rule => true); -- Modify the rule for the hr.jobs table to use the transformation function. DBMS_STREAMS_ADM.SET_RULE_TRANSFORM_FUNCTION( rule_name => to_assignments_rulename_dml, transform_function => 'hr.to_assignments_trans_dml'); END; / /*
Step 13 Specify hr as the Apply User for the Apply Process at dbs2.net
In this example, the hr
user owns all of the database objects for which changes are applied by the apply process at this database. Therefore, hr
already has the necessary privileges to change these database objects, and it is convenient to make hr
the apply user.
When the apply process was created in the previous step, the Streams administrator strmadmin
was specified as the apply user by default, because strmadmin
ran the procedure that created the apply process. Instead of specifying hr as the apply user, you could retain strmadmin
as the apply user, but then you must grant strmadmin
privileges on all of the database objects for which changes are applied and privileges to execute all user procedures used by the apply process. In an environment where an apply process applies changes to database objects in multiple schemas, it might be more convenient to use the Streams administrator as the apply user.
See Also:
Oracle Streams Concepts and Administration for more information about configuring a Streams administrator*/ BEGIN DBMS_APPLY_ADM.ALTER_APPLY( apply_name => 'apply_dbs2', apply_user => 'hr'); END; / /*
Step 14 Grant the hr User Execute Privilege on the Apply Process Rule Set
Because the hr
user was specified as the apply user in the previous step, the hr
user requires EXECUTE
privilege on the positive rule set used by the apply process
*/ DECLARE rs_name VARCHAR2(64); -- Variable to hold rule set name BEGIN SELECT RULE_SET_OWNER||'.'||RULE_SET_NAME INTO rs_name FROM DBA_APPLY WHERE APPLY_NAME='APPLY_DBS2'; DBMS_RULE_ADM.GRANT_OBJECT_PRIVILEGE( privilege => SYS.DBMS_RULE_ADM.EXECUTE_ON_RULE_SET, object_name => rs_name, grantee => 'hr'); END; / /*
Step 15 Start the Apply Process at dbs2.net for Local Apply
Set the disable_on_error
parameter to n
so that the apply process will not be disabled if it encounters an error, and start the apply process for local apply at dbs2.net
.
*/ BEGIN DBMS_APPLY_ADM.SET_PARAMETER( apply_name => 'apply_dbs2', parameter => 'disable_on_error', value => 'n'); END; / BEGIN DBMS_APPLY_ADM.START_APPLY( apply_name => 'apply_dbs2'); END; / /*
Step 16 Configure the Apply Process at dbs2.net for Apply at dbs4.net
Configure the apply process for dbs4.net
, which is a Sybase database. The dbs2.net
database is acting as a gateway to dbs4.net
. Therefore, the apply process for dbs4.net
must be configured at dbs2.net
. The apply process cannot apply DDL changes to non-Oracle databases. Therefore, the include_ddl
parameter is set to false
when the ADD_TABLE_RULES
procedure is run.
*/ BEGIN DBMS_APPLY_ADM.CREATE_APPLY( queue_name => 'strmadmin.streams_queue', apply_name => 'apply_dbs4', apply_database_link => 'dbs4.net', apply_captured => true); END; / BEGIN DBMS_STREAMS_ADM.ADD_TABLE_RULES( table_name => 'hr.jobs', streams_type => 'apply', streams_name => 'apply_dbs4', queue_name => 'strmadmin.streams_queue', include_dml => true, include_ddl => false, source_database => 'dbs1.net', inclusion_rule => true); END; / /*
Step 17 Start the Apply Process at dbs2.net for Apply at dbs4.net
Set the disable_on_error
parameter to n
so that the apply process will not be disabled if it encounters an error, and start the remote apply for Sybase using database link dbs4.net
.
*/ BEGIN DBMS_APPLY_ADM.SET_PARAMETER( apply_name => 'apply_dbs4', parameter => 'disable_on_error', value => 'n'); END; / BEGIN DBMS_APPLY_ADM.START_APPLY( apply_name => 'apply_dbs4'); END; / /*
Step 18 Start the Capture Process at dbs1.net
Connect to dbs1.net
as the strmadmin
user.
*/ CONNECT strmadmin/strmadminpw@dbs1.net /*
Start the capture process at dbs1.net
.
*/ BEGIN DBMS_CAPTURE_ADM.START_CAPTURE( capture_name => 'capture'); END; / /*
Step 19 Check the Spool Results
Check the streams_share_schema1.out
spool file to ensure that all actions finished successfully after this script is completed.
*/ SET ECHO OFF SPOOL OFF /*
You can now make DML and DDL changes to specific tables at dbs1.net
and see these changes replicated to the other databases in the environment based on the rules you configured for the Streams processes and propagations in this environment.
See Also:
"Make DML and DDL Changes to Tables in the hr Schema" for examples of changes that are replicated in this environment/*************************** END OF SCRIPT ******************************/
Complete the following steps to use a more flexible approach for specifying the capture, propagation, and apply definitions. This approach does not use the DBMS_STREAMS_ADM
package. Instead, it uses the following packages:
The DBMS_CAPTURE_ADM
package to configure capture processes
The DBMS_PROPAGATION_ADM
package to configure propagations
The DBMS_APPLY_ADM
package to configure apply processes
The DBMS_RULES_ADM
package to specify capture process, propagation, and apply process rules and rule sets
Note:
Neither theALL_STREAMS_TABLE_RULES
nor the DBA_STREAMS_TABLE_RULES
data dictionary view is populated by the rules created in this example. To view the rules created in this example, you can query the ALL_STREAMS_RULES
or DBA_STREAMS_RULES
data dictionary view.This example includes the following steps:
Set the Instantiation SCN for the Existing Tables at Other Databases
Grant the hr User Execute Privilege on the Apply Process Rule Set
Create the Rule-Based Transformation for Row LCRs at dbs2.net
Grant the hr User Execute Privilege on the Apply Process Rule Set
Configure the Apply Process at dbs2.net for Apply at dbs4.net
Note:
If you are viewing this document online, then you can copy the text from the "BEGINNING OF SCRIPT" line after this note to the next "END OF SCRIPT" line into a text editor and then edit the text to create a script for your environment. Run the script with SQL*Plus on a computer that can connect to all of the databases in the environment./************************* BEGINNING OF SCRIPT ******************************
Step 1 Show Output and Spool Results
Run SET
ECHO
ON
and specify the spool file for the script. Check the spool file for errors after you run this script.
*/ SET ECHO ON SPOOL streams_share_schema2.out /*
Step 2 Configure Propagation at dbs1.net
Connect to dbs1.net
as the strmadmin
user.
*/ CONNECT strmadmin/strmadminpw@dbs1.net /*
Configure and schedule propagation from the queue at dbs1.net
to the queue at dbs2.net
. This configuration specifies that the propagation propagates all changes to the hr
schema. You have the option of omitting the rule set specification, but then everything in the queue will be propagated, which might not be desired if, in the future, multiple capture processes will use the streams_queue
.
*/ BEGIN -- Create the rule set DBMS_RULE_ADM.CREATE_RULE_SET( rule_set_name => 'strmadmin.propagation_dbs1_rules', evaluation_context => 'SYS.STREAMS$_EVALUATION_CONTEXT'); -- Create rules for all modifications to the hr schema DBMS_RULE_ADM.CREATE_RULE( rule_name => 'strmadmin.all_hr_dml', condition => ' :dml.get_object_owner() = ''HR'' AND ' || ' :dml.is_null_tag() = ''Y'' AND ' || ' :dml.get_source_database_name() = ''DBS1.NET'' '); DBMS_RULE_ADM.CREATE_RULE( rule_name => 'strmadmin.all_hr_ddl', condition => ' (:ddl.get_object_owner() = ''HR'' OR ' || ' :ddl.get_base_table_owner() = ''HR'') AND ' || ' :ddl.is_null_tag() = ''Y'' AND ' || ' :ddl.get_source_database_name() = ''DBS1.NET'' '); -- Add rules to rule set DBMS_RULE_ADM.ADD_RULE( rule_name => 'strmadmin.all_hr_dml', rule_set_name => 'strmadmin.propagation_dbs1_rules'); DBMS_RULE_ADM.ADD_RULE( rule_name => 'strmadmin.all_hr_ddl', rule_set_name => 'strmadmin.propagation_dbs1_rules'); -- Create a propagation that uses the rule set as its positive rule set DBMS_PROPAGATION_ADM.CREATE_PROPAGATION( propagation_name => 'dbs1_to_dbs2', source_queue => 'strmadmin.streams_queue', destination_queue => 'strmadmin.streams_queue', destination_dblink => 'dbs2.net', rule_set_name => 'strmadmin.propagation_dbs1_rules'); END; / /*
Step 3 Configure the Capture Process at dbs1.net
Create a capture process and rules to capture the entire hr
schema at dbs1.net
.
*/ BEGIN -- Create the rule set DBMS_RULE_ADM.CREATE_RULE_SET( rule_set_name => 'strmadmin.demo_rules', evaluation_context => 'SYS.STREAMS$_EVALUATION_CONTEXT'); -- Create rules that specify the entire hr schema DBMS_RULE_ADM.CREATE_RULE( rule_name => 'strmadmin.schema_hr_dml', condition => ' :dml.get_object_owner() = ''HR'' AND ' || ' :dml.is_null_tag() = ''Y'' AND ' || ' :dml.get_source_database_name() = ''DBS1.NET'' '); DBMS_RULE_ADM.CREATE_RULE( rule_name => 'strmadmin.schema_hr_ddl', condition => ' (:ddl.get_object_owner() = ''HR'' OR ' || ' :ddl.get_base_table_owner() = ''HR'') AND ' || ' :ddl.is_null_tag() = ''Y'' AND ' || ' :ddl.get_source_database_name() = ''DBS1.NET'' '); -- Add the rules to the rule set DBMS_RULE_ADM.ADD_RULE( rule_name => 'strmadmin.schema_hr_dml', rule_set_name => 'strmadmin.demo_rules'); DBMS_RULE_ADM.ADD_RULE( rule_name => 'strmadmin.schema_hr_ddl', rule_set_name => 'strmadmin.demo_rules'); -- Create a capture process that uses the rule set as its positive rule set DBMS_CAPTURE_ADM.CREATE_CAPTURE( queue_name => 'strmadmin.streams_queue', capture_name => 'capture', rule_set_name => 'strmadmin.demo_rules'); END; / /*
Step 4 Prepare the hr Schema at dbs1.net for Instantiation
While still connected as the Streams administrator at dbs1.net
, prepare the hr
schema at dbs1.net
for instantiation at dbs3.net
. This step marks the lowest SCN of the tables in the schema for instantiation. SCNs subsequent to the lowest SCN can be used for instantiation.
This step also enables supplemental logging for any primary key, unique key, bitmap index, and foreign key columns in the tables in the hr
schema. Supplemental logging places additional information in the redo log for changes made to tables. The apply process needs this extra information to perform certain operations, such as unique row identification and conflict resolution. Because dbs1.net
is the only database where changes are captured in this environment, it is the only database where you must specify supplemental logging for the tables in the hr
schema.
Note:
This step is not required in the "Simple Configuration for Sharing Data from a Single Database". In that example, when theADD_SCHEMA_RULES
procedure in the DBMS_STREAMS_ADM
package is run in Step 3, the PREPARE_SCHEMA_INSTANTIATION
procedure in the DBMS_CAPTURE_ADM
package is run automatically for the hr
schema.See Also:
*/ BEGIN DBMS_CAPTURE_ADM.PREPARE_SCHEMA_INSTANTIATION( schema_name => 'hr', supplemental_logging => 'keys'); END; / /*
Step 5 Set the Instantiation SCN for the Existing Tables at Other Databases
In this example, the hr.jobs
table already exists at dbs2.net
and dbs4.net
. At dbs2.net
, this table is named assignments
, but it has the same shape and data as the jobs
table at dbs1.net
. Also, in this example, dbs4.net
is a Sybase database. All of the other tables in the Streams environment are instantiated at the other destination databases using Data Pump import.
Because the hr.jobs
table already exists at dbs2.net
and dbs4.net
, this example uses the GET_SYSTEM_CHANGE_NUMBER
function in the DBMS_FLASHBACK
package at dbs1.net
to obtain the current SCN for the database. This SCN is used at dbs2.net
to run the SET_TABLE_INSTANTIATION_SCN
procedure in the DBMS_APPLY_ADM
package. Running this procedure twice sets the instantiation SCN for the hr.jobs
table at dbs2.net
and dbs4.net
.
The SET_TABLE_INSTANTIATION_SCN
procedure controls which LCRs for a table are ignored by an apply process and which LCRs for a table are applied by an apply process. If the commit SCN of an LCR for a table from a source database is less than or equal to the instantiation SCN for that table at a destination database, then the apply process at the destination database discards the LCR. Otherwise, the apply process applies the LCR.
In this example, both of the apply processes at dbs2.net
will apply transactions to the hr.jobs
table with SCNs that were committed after SCN obtained in this step.
Note:
This example assumes that the contents of thehr.jobs
table at dbs1.net
, dbs2.net
(as hr.assignments
), and dbs4.net
are consistent when you complete this step. You might want to lock the table at each database while you complete this step to ensure consistency.*/ DECLARE iscn NUMBER; -- Variable to hold instantiation SCN value BEGIN iscn := DBMS_FLASHBACK.GET_SYSTEM_CHANGE_NUMBER(); DBMS_APPLY_ADM.SET_TABLE_INSTANTIATION_SCN@DBS2.NET( source_object_name => 'hr.jobs', source_database_name => 'dbs1.net', instantiation_scn => iscn); DBMS_APPLY_ADM.SET_TABLE_INSTANTIATION_SCN@DBS2.NET( source_object_name => 'hr.jobs', source_database_name => 'dbs1.net', instantiation_scn => iscn, apply_database_link => 'dbs4.net'); END; /
/*
Step 6 Instantiate the dbs1.net Tables at dbs3.net
This example performs a network Data Pump import of the following tables:
hr.countries
hr.locations
hr.regions
A network import means that Data Pump imports these tables from dbs1.net
without using an export dump file.
See Also:
Oracle Database Utilities for information about performing an importConnect to dbs3.net
as the strmadmin
user.
*/ CONNECT strmadmin/strmadminpw@dbs3.net /*
This example will do a table import using the DBMS_DATAPUMP
package. For simplicity, exceptions from any of the API calls will not be trapped. However, Oracle recommends that you define exception handlers and call GET_STATUS
to retrieve more detailed error information if a failure occurs. If you want to monitor the import, then query the DBA_DATAPUMP_JOBS
data dictionary view at the import database.
*/ SET SERVEROUTPUT ON DECLARE h1 NUMBER; -- Data Pump job handle sscn NUMBER; -- Variable to hold current source SCN job_state VARCHAR2(30); -- To keep track of job state js ku$_JobStatus; -- The job status from GET_STATUS sts ku$_Status; -- The status object returned by GET_STATUS job_not_exist exception; pragma exception_init(job_not_exist, -31626); BEGIN -- Create a (user-named) Data Pump job to do a table-level import. h1 := DBMS_DATAPUMP.OPEN( operation => 'IMPORT', job_mode => 'TABLE', remote_link => 'DBS1.NET', job_name => 'dp_sing2'); -- A metadata filter is used to specify the schema that owns the tables -- that will be imported. DBMS_DATAPUMP.METADATA_FILTER( handle => h1, name => 'SCHEMA_EXPR', value => '=''HR'''); -- A metadata filter is used to specify the tables that will be imported. DBMS_DATAPUMP.METADATA_FILTER( handle => h1, name => 'NAME_EXPR', value => 'IN(''COUNTRIES'', ''REGIONS'', ''LOCATIONS'')'); -- Get the current SCN of the source database, and set the FLASHBACK_SCN -- parameter to this value to ensure consistency between all of the -- objects included in the import. sscn := DBMS_FLASHBACK.GET_SYSTEM_CHANGE_NUMBER@dbs1.net(); DBMS_DATAPUMP.SET_PARAMETER( handle => h1, name => 'FLASHBACK_SCN', value => sscn); -- Start the job. DBMS_DATAPUMP.START_JOB(h1); -- The import job should be running. In the following loop, the job -- is monitored until it completes. job_state := 'UNDEFINED'; BEGIN WHILE (job_state != 'COMPLETED') AND (job_state != 'STOPPED') LOOP sts:=DBMS_DATAPUMP.GET_STATUS( handle => h1, mask => DBMS_DATAPUMP.KU$_STATUS_JOB_ERROR + DBMS_DATAPUMP.KU$_STATUS_JOB_STATUS + DBMS_DATAPUMP.KU$_STATUS_WIP, timeout => -1); js := sts.job_status; DBMS_LOCK.SLEEP(10); job_state := js.state; END LOOP; -- Gets an exception when job no longer exists EXCEPTION WHEN job_not_exist THEN DBMS_OUTPUT.PUT_LINE('Data Pump job has completed'); DBMS_OUTPUT.PUT_LINE('Instantiation SCN: ' ||sscn); END; END; / /*
Step 7 Configure the Apply Process at dbs3.net
Connect to dbs3.net
as the strmadmin
user.
*/ CONNECT strmadmin/strmadminpw@dbs3.net /*
Configure dbs3.net
to apply DML and DDL changes to the countries
table, locations
table, and regions
table.
*/ BEGIN -- Create the rule set DBMS_RULE_ADM.CREATE_RULE_SET( rule_set_name => 'strmadmin.apply_rules', evaluation_context => 'SYS.STREAMS$_EVALUATION_CONTEXT'); -- Rules for hr.countries DBMS_RULE_ADM.CREATE_RULE( rule_name => 'strmadmin.all_countries_dml', condition => ' :dml.get_object_owner() = ''HR'' AND ' || ' :dml.get_object_name() = ''COUNTRIES'' AND ' || ' :dml.is_null_tag() = ''Y'' AND ' || ' :dml.get_source_database_name() = ''DBS1.NET'' '); DBMS_RULE_ADM.CREATE_RULE( rule_name => 'strmadmin.all_countries_ddl', condition => ' (:ddl.get_object_owner() = ''HR'' OR ' || ' :ddl.get_base_table_owner() = ''HR'') AND ' || ' :ddl.get_object_name() = ''COUNTRIES'' AND ' || ' :ddl.is_null_tag() = ''Y'' AND ' || ' :ddl.get_source_database_name() = ''DBS1.NET'' '); -- Rules for hr.locations DBMS_RULE_ADM.CREATE_RULE( rule_name => 'strmadmin.all_locations_dml', condition => ' :dml.get_object_owner() = ''HR'' AND ' || ' :dml.get_object_name() = ''LOCATIONS'' AND ' || ' :dml.is_null_tag() = ''Y'' AND ' || ' :dml.get_source_database_name() = ''DBS1.NET'' '); DBMS_RULE_ADM.CREATE_RULE( rule_name => 'strmadmin.all_locations_ddl', condition => ' (:ddl.get_object_owner() = ''HR'' OR ' || ' :ddl.get_base_table_owner() = ''HR'') AND ' || ' :ddl.get_object_name() = ''LOCATIONS'' AND ' || ' :ddl.is_null_tag() = ''Y'' AND ' || ' :ddl.get_source_database_name() = ''DBS1.NET'' '); -- Rules for hr.regions DBMS_RULE_ADM.CREATE_RULE( rule_name => 'strmadmin.all_regions_dml', condition => ' :dml.get_object_owner() = ''HR'' AND ' || ' :dml.get_object_name() = ''REGIONS'' AND ' || ' :dml.is_null_tag() = ''Y'' AND ' || ' :dml.get_source_database_name() = ''DBS1.NET'' '); DBMS_RULE_ADM.CREATE_RULE( rule_name => 'strmadmin.all_regions_ddl', condition => ' (:ddl.get_object_owner() = ''HR'' OR ' || ' :ddl.get_base_table_owner() = ''HR'') AND ' || ' :ddl.get_object_name() = ''REGIONS'' AND ' || ' :ddl.is_null_tag() = ''Y'' AND ' || ' :ddl.get_source_database_name() = ''DBS1.NET'' '); -- Add rules to rule set DBMS_RULE_ADM.ADD_RULE( rule_name => 'strmadmin.all_countries_dml', rule_set_name => 'strmadmin.apply_rules'); DBMS_RULE_ADM.ADD_RULE( rule_name => 'strmadmin.all_countries_ddl', rule_set_name => 'strmadmin.apply_rules'); DBMS_RULE_ADM.ADD_RULE( rule_name => 'strmadmin.all_locations_dml', rule_set_name => 'strmadmin.apply_rules'); DBMS_RULE_ADM.ADD_RULE( rule_name => 'strmadmin.all_locations_ddl', rule_set_name => 'strmadmin.apply_rules'); DBMS_RULE_ADM.ADD_RULE( rule_name => 'strmadmin.all_regions_dml', rule_set_name => 'strmadmin.apply_rules'); DBMS_RULE_ADM.ADD_RULE( rule_name => 'strmadmin.all_regions_ddl', rule_set_name => 'strmadmin.apply_rules'); -- Create an apply process that uses the rule set as its positive rule set DBMS_APPLY_ADM.CREATE_APPLY( queue_name => 'strmadmin.streams_queue', apply_name => 'apply', rule_set_name => 'strmadmin.apply_rules', apply_user => 'hr', apply_captured => true, source_database => 'dbs1.net'); END; / /*
Step 8 Grant the hr User Execute Privilege on the Apply Process Rule Set
Because the hr
user was specified as the apply user in the previous step, the hr
user requires EXECUTE
privilege on the positive rule set used by the apply process
*/ BEGIN DBMS_RULE_ADM.GRANT_OBJECT_PRIVILEGE( privilege => SYS.DBMS_RULE_ADM.EXECUTE_ON_RULE_SET, object_name => 'strmadmin.apply_rules', grantee => 'hr'); END; / /*
Step 9 Start the Apply Process at dbs3.net
Set the disable_on_error
parameter to n
so that the apply process will not be disabled if it encounters an error, and start the apply process at dbs3.net
.
*/ BEGIN DBMS_APPLY_ADM.SET_PARAMETER( apply_name => 'apply', parameter => 'disable_on_error', value => 'n'); END; / BEGIN DBMS_APPLY_ADM.START_APPLY( apply_name => 'apply'); END; / /*
Step 10 Configure Propagation at dbs2.net
Connect to dbs2.net
as the strmadmin
user.
*/ CONNECT strmadmin/strmadminpw@dbs2.net /*
Configure and schedule propagation from the queue at dbs2.net
to the queue at dbs3.net
. This configuration is an example of directed networks because the changes at dbs2.net
originated at dbs1.net
.
*/ BEGIN -- Create the rule set DBMS_RULE_ADM.CREATE_RULE_SET( rule_set_name => 'strmadmin.propagation_dbs3_rules', evaluation_context => 'SYS.STREAMS$_EVALUATION_CONTEXT'); -- Create rules for all modifications to the countries table DBMS_RULE_ADM.CREATE_RULE( rule_name => 'strmadmin.all_countries_dml', condition => ' :dml.get_object_owner() = ''HR'' AND ' || ' :dml.get_object_name() = ''COUNTRIES'' AND ' || ' :dml.is_null_tag() = ''Y'' AND ' || ' :dml.get_source_database_name() = ''DBS1.NET'' '); DBMS_RULE_ADM.CREATE_RULE( rule_name => 'strmadmin.all_countries_ddl', condition => ' (:ddl.get_object_owner() = ''HR'' OR ' || ' :ddl.get_base_table_owner() = ''HR'') AND ' || ' :ddl.get_object_name() = ''COUNTRIES'' AND ' || ' :ddl.is_null_tag() = ''Y'' AND ' || ' :ddl.get_source_database_name() = ''DBS1.NET'' '); -- Create rules for all modifications to the locations table DBMS_RULE_ADM.CREATE_RULE( rule_name => 'strmadmin.all_locations_dml', condition => ' :dml.get_object_owner() = ''HR'' AND ' || ' :dml.get_object_name() = ''LOCATIONS'' AND ' || ' :dml.is_null_tag() = ''Y'' AND ' || ' :dml.get_source_database_name() = ''DBS1.NET'' '); DBMS_RULE_ADM.CREATE_RULE( rule_name => 'strmadmin.all_locations_ddl', condition => ' (:ddl.get_object_owner() = ''HR'' OR ' || ' :ddl.get_base_table_owner() = ''HR'') AND ' || ' :ddl.get_object_name() = ''LOCATIONS'' AND ' || ' :ddl.is_null_tag() = ''Y'' AND ' || ' :ddl.get_source_database_name() = ''DBS1.NET'' '); -- Create rules for all modifications to the regions table DBMS_RULE_ADM.CREATE_RULE( rule_name => 'strmadmin.all_regions_dml', condition => ' :dml.get_object_owner() = ''HR'' AND ' || ' :dml.get_object_name() = ''REGIONS'' AND ' || ' :dml.is_null_tag() = ''Y'' AND ' || ' :dml.get_source_database_name() = ''DBS1.NET'' '); DBMS_RULE_ADM.CREATE_RULE( rule_name => 'strmadmin.all_regions_ddl', condition => ' (:ddl.get_object_owner() = ''HR'' OR ' || ' :ddl.get_base_table_owner() = ''HR'') AND ' || ' :ddl.get_object_name() = ''REGIONS'' AND ' || ' :ddl.is_null_tag() = ''Y'' AND ' || ' :ddl.get_source_database_name() = ''DBS1.NET'' '); -- Add rules to rule set DBMS_RULE_ADM.ADD_RULE( rule_name => 'strmadmin.all_countries_dml', rule_set_name => 'strmadmin.propagation_dbs3_rules'); DBMS_RULE_ADM.ADD_RULE( rule_name => 'strmadmin.all_countries_ddl', rule_set_name => 'strmadmin.propagation_dbs3_rules'); DBMS_RULE_ADM.ADD_RULE( rule_name => 'strmadmin.all_locations_dml', rule_set_name => 'strmadmin.propagation_dbs3_rules'); DBMS_RULE_ADM.ADD_RULE( rule_name => 'strmadmin.all_locations_ddl', rule_set_name => 'strmadmin.propagation_dbs3_rules'); DBMS_RULE_ADM.ADD_RULE( rule_name => 'strmadmin.all_regions_dml', rule_set_name => 'strmadmin.propagation_dbs3_rules'); DBMS_RULE_ADM.ADD_RULE( rule_name => 'strmadmin.all_regions_ddl', rule_set_name => 'strmadmin.propagation_dbs3_rules'); -- Create a propagation that uses the rule set as its positive rule set DBMS_PROPAGATION_ADM.CREATE_PROPAGATION( propagation_name => 'dbs2_to_dbs3', source_queue => 'strmadmin.streams_queue', destination_queue => 'strmadmin.streams_queue', destination_dblink => 'dbs3.net', rule_set_name => 'strmadmin.propagation_dbs3_rules'); END; / /*
Step 11 Create the Rule-Based Transformation for Row LCRs at dbs2.net
Connect to dbs2.net
as the hr
user.
*/ CONNECT hr/hr@dbs2.net /*
Create the rule-based transformation function that transforms row changes resulting from DML statements to the jobs
table from dbs1.net
into row changes to the assignments
table on dbs2.net
.
The following function transforms every row LCR for the jobs
table into a row LCR for the assignments
table.
Note:
If DDL changes were also applied to theassignments
table, then another transformation would be required for the DDL LCRs. This transformation would need to change the object name and the DDL text.*/ CREATE OR REPLACE FUNCTION hr.to_assignments_trans_dml( p_in_data in ANYDATA) RETURN ANYDATA IS out_data SYS.LCR$_ROW_RECORD; tc pls_integer; BEGIN -- Typecast AnyData to LCR$_ROW_RECORD tc := p_in_data.GetObject(out_data); IF out_data.GET_OBJECT_NAME() = 'JOBS' THEN -- Transform the in_data into the out_data out_data.SET_OBJECT_NAME('ASSIGNMENTS'); END IF; -- Convert to AnyData RETURN ANYDATA.ConvertObject(out_data); END; / /*
Step 12 Configure the Apply Process for Local Apply at dbs2.net
Connect to dbs2.net
as the strmadmin
user.
*/ CONNECT strmadmin/strmadminpw@dbs2.net /*
Configure dbs2.net
to apply changes to the local assignments
table. Remember that the assignments
table receives changes from the jobs
table at dbs1.net
. This step specifies a rule-based transformation without using the SET_RULE_TRANSFORM_FUNCTION
procedure in the DBMS_STREAMS_ADM
package. Instead, a name-value pair is added manually to the action context of the rule. The name-value pair specifies STREAMS$_TRANSFORM_FUNCTION
for the name and hr.to_assignments_trans_dml
for the value.
*/ DECLARE action_ctx_dml SYS.RE$NV_LIST; action_ctx_ddl SYS.RE$NV_LIST; ac_name VARCHAR2(30) := 'STREAMS$_TRANSFORM_FUNCTION'; BEGIN -- Specify the name-value pair in the action context action_ctx_dml := SYS.RE$NV_LIST(SYS.RE$NV_ARRAY()); action_ctx_dml.ADD_PAIR( ac_name, ANYDATA.CONVERTVARCHAR2('hr.to_assignments_trans_dml')); -- Create the rule set strmadmin.apply_rules DBMS_RULE_ADM.CREATE_RULE_SET( rule_set_name => 'strmadmin.apply_rules', evaluation_context => 'SYS.STREAMS$_EVALUATION_CONTEXT'); -- Create a rule that transforms all DML changes to the jobs table into -- DML changes for assignments table DBMS_RULE_ADM.CREATE_RULE( rule_name => 'strmadmin.all_jobs_dml', condition => ' :dml.get_object_owner() = ''HR'' AND ' || ' :dml.get_object_name() = ''JOBS'' AND ' || ' :dml.is_null_tag() = ''Y'' AND ' || ' :dml.get_source_database_name() = ''DBS1.NET'' ', action_context => action_ctx_dml); -- Add the rule to the rule set DBMS_RULE_ADM.ADD_RULE( rule_name => 'strmadmin.all_jobs_dml', rule_set_name => 'strmadmin.apply_rules'); -- Create an apply process that uses the rule set as its positive rule set DBMS_APPLY_ADM.CREATE_APPLY( queue_name => 'strmadmin.streams_queue', apply_name => 'apply_dbs2', rule_set_name => 'strmadmin.apply_rules', apply_user => 'hr', apply_captured => true, source_database => 'dbs1.net'); END; / /*
Step 13 Grant the hr User Execute Privilege on the Apply Process Rule Set
Because the hr
user was specified as the apply user in the previous step, the hr
user requires EXECUTE
privilege on the positive rule set used by the apply process
*/ BEGIN DBMS_RULE_ADM.GRANT_OBJECT_PRIVILEGE( privilege => SYS.DBMS_RULE_ADM.EXECUTE_ON_RULE_SET, object_name => 'strmadmin.apply_rules', grantee => 'hr'); END; / /*
Step 14 Start the Apply Process at dbs2.net for Local Apply
Set the disable_on_error
parameter to n
so that the apply process will not be disabled if it encounters an error, and start the apply process for local apply at dbs2.net
.
*/ BEGIN DBMS_APPLY_ADM.SET_PARAMETER( apply_name => 'apply_dbs2', parameter => 'disable_on_error', value => 'n'); END; / BEGIN DBMS_APPLY_ADM.START_APPLY( apply_name => 'apply_dbs2'); END; / /*
Step 15 Configure the Apply Process at dbs2.net for Apply at dbs4.net
Configure dbs2.net
to apply DML changes to the jobs
table at dbs4.net
, which is a Sybase database. Remember that these changes originated at dbs1.net
.
*/ BEGIN -- Create the rule set DBMS_RULE_ADM.CREATE_RULE_SET( rule_set_name => 'strmadmin.apply_dbs4_rules', evaluation_context => 'SYS.STREAMS$_EVALUATION_CONTEXT'); -- Create rule strmadmin.all_jobs_remote for all modifications -- to the jobs table DBMS_RULE_ADM.CREATE_RULE( rule_name => 'strmadmin.all_jobs_remote', condition => ' :dml.get_object_owner() = ''HR'' AND ' || ' :dml.get_object_name() = ''JOBS'' AND ' || ' :dml.is_null_tag() = ''Y'' AND ' || ' :dml.get_source_database_name() = ''DBS1.NET'' '); -- Add the rule to the rule set DBMS_RULE_ADM.ADD_RULE( rule_name => 'strmadmin.all_jobs_remote', rule_set_name => 'strmadmin.apply_dbs4_rules'); -- Create an apply process that uses the rule set as its positive rule set DBMS_APPLY_ADM.CREATE_APPLY( queue_name => 'strmadmin.streams_queue', apply_name => 'apply_dbs4', rule_set_name => 'strmadmin.apply_dbs4_rules', apply_database_link => 'dbs4.net', apply_captured => true, source_database => 'dbs1.net'); END; / /*
Step 16 Start the Apply Process at dbs2.net for Apply at dbs4.net
Set the disable_on_error
parameter to n
so that the apply process will not be disabled if it encounters an error, and start the remote apply for Sybase using database link dbs4.net
.
*/ BEGIN DBMS_APPLY_ADM.SET_PARAMETER( apply_name => 'apply_dbs4', parameter => 'disable_on_error', value => 'n'); END; / BEGIN DBMS_APPLY_ADM.START_APPLY( apply_name => 'apply_dbs4'); END; / /*
Step 17 Start the Capture Process at dbs1.net
Connect to dbs1.net
as the strmadmin
user.
*/ CONNECT strmadmin/strmadminpw@dbs1.net /*
Start the capture process at dbs1.net
.
*/ BEGIN DBMS_CAPTURE_ADM.START_CAPTURE( capture_name => 'capture'); END; / /*
Step 18 Check the Spool Results
Check the streams_share_schema2.out
spool file to ensure that all actions finished successfully after this script is completed.
*/ SET ECHO OFF SPOOL OFF /*
You can now make DML and DDL changes to specific tables at dbs1.net
and see these changes replicated to the other databases in the environment based on the rules you configured for the Streams processes and propagations in this environment.
See Also:
"Make DML and DDL Changes to Tables in the hr Schema" for examples of changes that are replicated in this environment/*************************** END OF SCRIPT ******************************/
After completing either of the examples described in "Example Scripts for Sharing Data from One Database", you can make DML and DDL changes to the tables in the hr
schema at the dbs1.net
database. These changes will be replicated to the other databases in the environment based on the rules you configured for Streams processes and propagations. You can check the other databases to see that the changes have been replicated.
For example, complete the following steps to make DML changes to the hr.jobs
and hr.locations
tables at dbs1.net
. You can also make a DDL change to the hr.locations
table at dbs1.net
.
After you make these changes, you can query the hr.assignments
table at dbs2.net
to see that the DML change you made to this table at dbs1.net
has been replicated. Remember that a rule-based transformation configured for the apply process at dbs2.net
transforms DML changes to the hr.jobs
table into DML changes to the hr.assignments
table. You can also query the hr.locations
table at dbs3.net
to see that the DML and DDL changes you made to this table at dbs1.net
have been replicated.
Step 1 Make DML and DDL Changes to Tables in the hr Schema
Make the following changes:
CONNECT hr/hr@dbs1.net UPDATE hr.jobs SET max_salary=10000 WHERE job_id='MK_REP'; COMMIT; INSERT INTO hr.locations VALUES( 3300, '521 Ralston Avenue', '94002', 'Belmont', 'CA', 'US'); COMMIT; ALTER TABLE hr.locations RENAME COLUMN state_province TO state_or_province;
Step 2 Query the hr.assignments Table at dbs2.net
After some time passes to allow for capture, propagation, and apply of the changes performed the previous step, run the following query to confirm that the UPDATE
change made to the hr.jobs
table at dbs1.net
has been applied to the hr.assignments
table at dbs2.net
.
CONNECT hr/hr@dbs2.net SELECT max_salary FROM hr.assignments WHERE job_id='MK_REP';
You should see 10000
for the value of the max_salary
.
Step 3 Query and Describe the hr.locations Table at dbs3.net
Run the following query to confirm that the INSERT
change made to the hr.locations
table at dbs1.net
has been applied at dbs3.net
.
CONNECT hr/hr@dbs3.net SELECT * FROM hr.locations WHERE location_id=3300;
You should see the row inserted into the hr.locations
table at dbs1.net
in the previous step.
Next, describe the hr.locations
table at to confirm that the ALTER
TABLE
change was propagated and applied correctly.
DESC hr.locations
The fifth column in the table should be state_or_province
.
This example extends the Streams environment configured in the previous sections by adding replicated objects to an existing database. To complete this example, you must have completed the tasks in one of the previous examples in this chapter.
This example will add the following tables to the hr
schema in the dbs3.net
database:
departments
employees
job_history
jobs
When you complete this example, Streams processes changes to these tables with the following series of actions:
The capture process captures changes at dbs1.net
and enqueues them at dbs1.net
.
A propagation propagates changes from the queue at dbs1.net
to the queue at dbs2.net
.
A propagation propagates changes from the queue at dbs2.net
to the queue at dbs3.net
.
The apply process at dbs3.net
applies the changes at dbs3.net
.
When you complete this example, the hr
schema at the dbs3.net
database will have all of its original tables, because the countries
, locations
, and regions
tables were instantiated at dbs3.net
in the previous section.

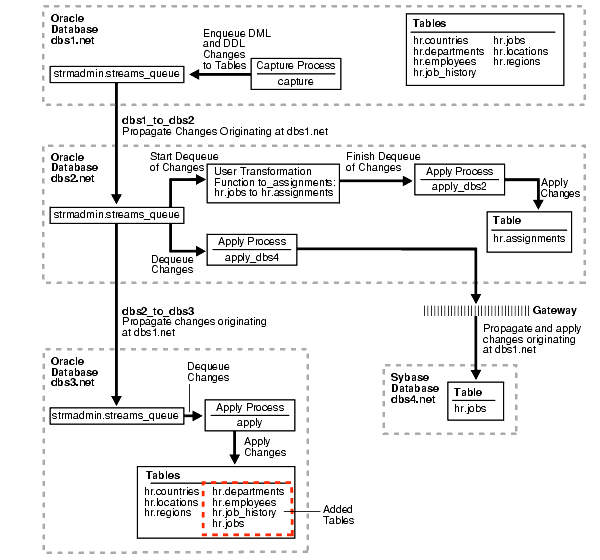

Figure 19-2 provides an overview of the environment with the added tables.
Figure 19-2 Adding Objects to dbs3.net in the Environment
Complete the following steps to replicate these tables to the dbs3.net
database.
Configure the Apply Process for the Added Tables at dbs3.net
Specify the Table Propagation Rules for the Added Tables at dbs2.net
Note:
If you are viewing this document online, then you can copy the text from the "BEGINNING OF SCRIPT" line after this note to the next "END OF SCRIPT" line into a text editor and then edit the text to create a script for your environment. Run the script with SQL*Plus on a computer that can connect to all of the databases in the environment./************************* BEGINNING OF SCRIPT ******************************
Step 1 Show Output and Spool Results
Run SET
ECHO
ON
and specify the spool file for the script. Check the spool file for errors after you run this script.
*/ SET ECHO ON SPOOL streams_addobjs.out /*
Step 2 Stop the Apply Process at dbs3.net
Until you finish adding objects to dbs3.net
, you must ensure that the apply process that will apply changes for the added objects does not try to apply changes for these objects. You can do this by stopping the capture process at the source database. Or, you can do this by stopping propagation of changes from dbs2.net
to dbs3.net
. Yet another alternative is to stop the apply process at dbs3.net
. This example stops the apply process at dbs3.net
.
Connect to dbs3.net
as the strmadmin
user.
*/ CONNECT strmadmin/strmadminpw@dbs3.net /*
Stop the apply process at dbs3.net
.
*/ BEGIN DBMS_APPLY_ADM.STOP_APPLY( apply_name => 'apply'); END; / /*
Step 3 Configure the Apply Process for the Added Tables at dbs3.net
Configure the apply process at dbs3.net
to apply changes to the tables you are adding.
*/ BEGIN DBMS_STREAMS_ADM.ADD_TABLE_RULES( table_name => 'hr.departments', streams_type => 'apply', streams_name => 'apply', queue_name => 'strmadmin.streams_queue', include_dml => true, include_ddl => true, source_database => 'dbs1.net', inclusion_rule => true); END; / BEGIN DBMS_STREAMS_ADM.ADD_TABLE_RULES( table_name => 'hr.employees', streams_type => 'apply', streams_name => 'apply', queue_name => 'strmadmin.streams_queue', include_dml => true, include_ddl => true, source_database => 'dbs1.net', inclusion_rule => true); END; / BEGIN DBMS_STREAMS_ADM.ADD_TABLE_RULES( table_name => 'hr.job_history', streams_type => 'apply', streams_name => 'apply', queue_name => 'strmadmin.streams_queue', include_dml => true, include_ddl => true, source_database => 'dbs1.net', inclusion_rule => true); END; / BEGIN DBMS_STREAMS_ADM.ADD_TABLE_RULES( table_name => 'hr.jobs', streams_type => 'apply', streams_name => 'apply', queue_name => 'strmadmin.streams_queue', include_dml => true, include_ddl => true, source_database => 'dbs1.net', inclusion_rule => true); END; / /*
Step 4 Specify the Table Propagation Rules for the Added Tables at dbs2.net
Connect to dbs2.net
as the strmadmin
user.
*/ CONNECT strmadmin/strmadminpw@dbs2.net /*
Add the tables to the rules for propagation from the queue at dbs2.net
to the queue at dbs3.net
.
*/ BEGIN DBMS_STREAMS_ADM.ADD_TABLE_PROPAGATION_RULES( table_name => 'hr.departments', streams_name => 'dbs2_to_dbs3', source_queue_name => 'strmadmin.streams_queue', destination_queue_name => 'strmadmin.streams_queue@dbs3.net', include_dml => true, include_ddl => true, source_database => 'dbs1.net', inclusion_rule => true); END; / BEGIN DBMS_STREAMS_ADM.ADD_TABLE_PROPAGATION_RULES( table_name => 'hr.employees', streams_name => 'dbs2_to_dbs3', source_queue_name => 'strmadmin.streams_queue', destination_queue_name => 'strmadmin.streams_queue@dbs3.net', include_dml => true, include_ddl => true, source_database => 'dbs1.net', inclusion_rule => true); END; / BEGIN DBMS_STREAMS_ADM.ADD_TABLE_PROPAGATION_RULES( table_name => 'hr.job_history', streams_name => 'dbs2_to_dbs3', source_queue_name => 'strmadmin.streams_queue', destination_queue_name => 'strmadmin.streams_queue@dbs3.net', include_dml => true, include_ddl => true, source_database => 'dbs1.net', inclusion_rule => true); END; / BEGIN DBMS_STREAMS_ADM.ADD_TABLE_PROPAGATION_RULES( table_name => 'hr.jobs', streams_name => 'dbs2_to_dbs3', source_queue_name => 'strmadmin.streams_queue', destination_queue_name => 'strmadmin.streams_queue@dbs3.net', include_dml => true, include_ddl => true, source_database => 'dbs1.net', inclusion_rule => true); END; / /*
Step 5 Prepare the Four Added Tables for Instantiation at dbs1.net
Connect to dbs1.net
as the strmadmin
user.
*/ CONNECT strmadmin/strmadminpw@dbs1.net /*
Prepare the tables for instantiation. These tables will be instantiated at dbs3.net
. This step marks the lowest SCN of the tables for instantiation. SCNs subsequent to the lowest SCN can be used for instantiation. Also, this preparation is necessary so that the Streams data dictionary for the relevant propagations and the apply process at dbs3.net
contain information about these tables.
Note:
When thePREPARE_TABLE_INSTANTIATION
procedure is run in this step, the supplemental_logging
parameter is not specified. Therefore, the default value (keys
) is used for this parameter. Supplemental logging already was enabled for any primary key, unique key, bitmap index, and foreign key columns in these tables in Step 3.See Also:
"Preparing Database Objects for Instantiation at a Source Database" and Oracle Streams Concepts and Administration*/ BEGIN DBMS_CAPTURE_ADM.PREPARE_TABLE_INSTANTIATION( table_name => 'hr.departments'); END; / BEGIN DBMS_CAPTURE_ADM.PREPARE_TABLE_INSTANTIATION( table_name => 'hr.employees'); END; / BEGIN DBMS_CAPTURE_ADM.PREPARE_TABLE_INSTANTIATION( table_name => 'hr.job_history'); END; / BEGIN DBMS_CAPTURE_ADM.PREPARE_TABLE_INSTANTIATION( table_name => 'hr.jobs'); END; / /*
Step 6 Instantiate the dbs1.net Tables at dbs3.net
This example performs a network Data Pump import of the following tables:
hr.departments
hr.employees
hr.job_history
hr.jobs
A network import means that Data Pump imports these tables from dbs1.net
without using an export dump file.
See Also:
Oracle Database Utilities for information about performing an importConnect to dbs3.net
as the strmadmin
user.
*/ CONNECT strmadmin/strmadminpw@dbs3.net /*
This example will do a table import using the DBMS_DATAPUMP
package. For simplicity, exceptions from any of the API calls will not be trapped. However, Oracle recommends that you define exception handlers and call GET_STATUS
to retrieve more detailed error information if a failure occurs. If you want to monitor the import, then query the DBA_DATAPUMP_JOBS
data dictionary view at the import database.
*/ SET SERVEROUTPUT ON DECLARE h1 NUMBER; -- Data Pump job handle sscn NUMBER; -- Variable to hold current source SCN job_state VARCHAR2(30); -- To keep track of job state js ku$_JobStatus; -- The job status from GET_STATUS sts ku$_Status; -- The status object returned by GET_STATUS job_not_exist exception; pragma exception_init(job_not_exist, -31626); BEGIN -- Create a (user-named) Data Pump job to do a table-level import. h1 := DBMS_DATAPUMP.OPEN( operation => 'IMPORT', job_mode => 'TABLE', remote_link => 'DBS1.NET', job_name => 'dp_sing3'); -- A metadata filter is used to specify the schema that owns the tables -- that will be imported. DBMS_DATAPUMP.METADATA_FILTER( handle => h1, name => 'SCHEMA_EXPR', value => '=''HR'''); -- A metadata filter is used to specify the tables that will be imported. DBMS_DATAPUMP.METADATA_FILTER( handle => h1, name => 'NAME_EXPR', value => 'IN(''DEPARTMENTS'', ''EMPLOYEES'', ''JOB_HISTORY'', ''JOBS'')'); -- Get the current SCN of the source database, and set the FLASHBACK_SCN -- parameter to this value to ensure consistency between all of the -- objects included in the import. sscn := DBMS_FLASHBACK.GET_SYSTEM_CHANGE_NUMBER@dbs1.net(); DBMS_DATAPUMP.SET_PARAMETER( handle => h1, name => 'FLASHBACK_SCN', value => sscn); -- Start the job. DBMS_DATAPUMP.START_JOB(h1); -- The import job should be running. In the following loop, the job -- is monitored until it completes. job_state := 'UNDEFINED'; BEGIN WHILE (job_state != 'COMPLETED') AND (job_state != 'STOPPED') LOOP sts:=DBMS_DATAPUMP.GET_STATUS( handle => h1, mask => DBMS_DATAPUMP.KU$_STATUS_JOB_ERROR + DBMS_DATAPUMP.KU$_STATUS_JOB_STATUS + DBMS_DATAPUMP.KU$_STATUS_WIP, timeout => -1); js := sts.job_status; DBMS_LOCK.SLEEP(10); job_state := js.state; END LOOP; -- Gets an exception when job no longer exists EXCEPTION WHEN job_not_exist THEN DBMS_OUTPUT.PUT_LINE('Data Pump job has completed'); DBMS_OUTPUT.PUT_LINE('Instantiation SCN: ' ||sscn); END; END; / /*
Step 7 Start the Apply Process at dbs3.net
Start the apply process at dbs3.net
. This apply process was stopped in Step 2.
Connect to dbs3.net
as the strmadmin
user.
*/ CONNECT strmadmin/strmadminpw@dbs3.net /*
Start the apply process at dbs3.net
.
*/ BEGIN DBMS_APPLY_ADM.START_APPLY( apply_name => 'apply'); END; / /*
Step 8 Check the Spool Results
Check the streams_addobjs.out
spool file to ensure that all actions finished successfully after this script is completed.
*/ SET ECHO OFF SPOOL OFF /*************************** END OF SCRIPT ******************************/
After completing the examples described in the "Add Objects to an Existing Streams Replication Environment" section, you can make DML and DDL changes to the tables in the hr
schema at the dbs1.net
database. These changes will be replicated to dbs3.net
. You can check these tables at dbs3.net
to see that the changes have been replicated.
For example, complete the following steps to make a DML change to the hr.employees
table at dbs1.net
. Next, query the hr.employees
table at dbs3.net
to see that the change has been replicated.
Step 1 Make a DML Change to the hr.employees Table
Make the following change:
CONNECT hr/hr@dbs1.net UPDATE hr.employees SET job_id='ST_MAN' WHERE employee_id=143; COMMIT;
Step 2 Query the hr.employees Table at dbs3.net
After some time passes to allow for capture, propagation, and apply of the change performed in the previous step, run the following query to confirm that the UPDATE
change made to the hr.employees
table at dbs1.net
has been applied to the hr.employees
table at dbs3.net
.
CONNECT hr/hr@dbs3.net SELECT job_id FROM hr.employees WHERE employee_id=143;
You should see ST_MAN
for the value of the job_id
.
This example extends the Streams environment configured in the previous sections by adding an additional database to the existing configuration. In this example, an existing Oracle database named dbs5.net
is added to receive changes to the entire hr
schema from the queue at dbs2.net
.

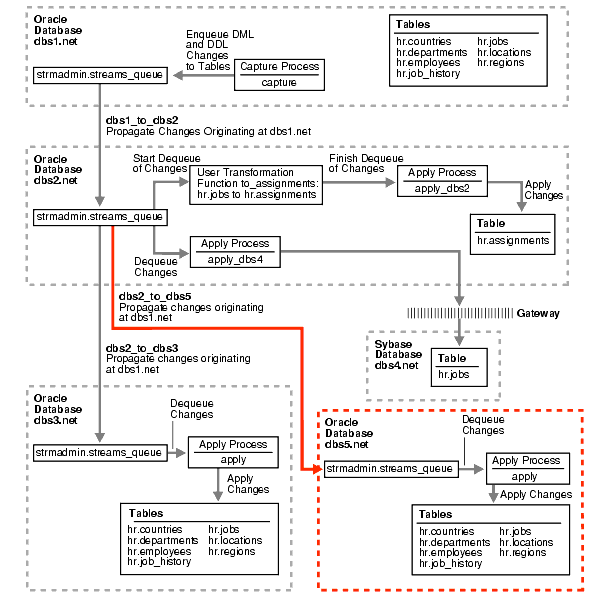

Figure 19-3 provides an overview of the environment with the added database.
Figure 19-3 Adding the dbs5.net Oracle Database to the Environment
To complete this example, you must meet the following prerequisites:
The dbs5.net
database must exist.
The dbs2.net
and dbs5.net
databases must be able to communicate with each other through Oracle Net.
The dbs5.net
and dbs1.net
databases must be able to communicate with each other through Oracle Net (for optional Data Pump network instantiation).
You must have completed the tasks in the previous examples in this chapter.
The "Prerequisites" must be met if you want the entire Streams environment to work properly.
This examples creates a new user to function as the Streams administrator (strmadmin
) at the dbs5.net
database and prompts you for the tablespace you want to use for this user's data. Before you start this example, either create a new tablespace or identify an existing tablespace for the Streams administrator to use at the dbs5.net
database. The Streams administrator should not use the SYSTEM
tablespace.
Complete the following steps to add dbs5.net
to the Streams environment.
Specify hr as the Apply User for the Apply Process at dbs5.net
Grant the hr User Execute Privilege on the Apply Process Rule Set
Note:
If you are viewing this document online, then you can copy the text from the "BEGINNING OF SCRIPT" line after this note to the next "END OF SCRIPT" line into a text editor and then edit the text to create a script for your environment. Run the script with SQL*Plus on a computer that can connect to all of the databases in the environment./************************* BEGINNING OF SCRIPT ******************************
Step 1 Show Output and Spool Results
Run SET
ECHO
ON
and specify the spool file for the script. Check the spool file for errors after you run this script.
*/ SET ECHO ON SPOOL streams_adddb.out /*
Step 2 Drop All of the Tables in the hr Schema at dbs5.net
This example illustrates instantiating the tables in the hr
schema by importing them from dbs1.net
into dbs5.net
using Data Pump. You must delete these tables at dbs5.net
for the instantiation portion of this example to work properly.
Connect as hr
at dbs5.net
.
*/ CONNECT hr/hr@dbs5.net /*
Drop all tables in the hr
schema in the dbs5.net
database.
Attention:
If you complete this step and drop all of the tables in thehr
schema, then you should complete the remaining sections of this example to reinstantiate the hr
schema at dbs5.net
. If the hr
schema does not exist in an Oracle database, then some examples in the Oracle documentation set can fail.*/ DROP TABLE hr.countries CASCADE CONSTRAINTS; DROP TABLE hr.departments CASCADE CONSTRAINTS; DROP TABLE hr.employees CASCADE CONSTRAINTS; DROP TABLE hr.job_history CASCADE CONSTRAINTS; DROP TABLE hr.jobs CASCADE CONSTRAINTS; DROP TABLE hr.locations CASCADE CONSTRAINTS; DROP TABLE hr.regions CASCADE CONSTRAINTS; /*
Step 3 Set Up Users at dbs5.net
Connect to dbs5.net
as SYSTEM
user.
*/ CONNECT SYSTEM/MANAGER@dbs5.net /*
Create the Streams administrator named strmadmin
and grant this user the necessary privileges. These privileges enable the user to manage queues, execute subprograms in packages related to Streams, create rule sets, create rules, and monitor the Streams environment by querying data dictionary views and queue tables. You can choose a different name for this user.
Note:
For security purposes, use a password other than strmadminpw
for the Streams administrator.
The ACCEPT
command must appear on a single line in the script.
See Also:
Oracle Streams Concepts and Administration for more information about configuring a Streams administrator*/ GRANT DBA TO strmadmin IDENTIFIED BY strmadminpw; ACCEPT streams_tbs PROMPT 'Enter Streams administrator tablespace on dbs5.net: ' ALTER USER strmadmin DEFAULT TABLESPACE &streams_tbs QUOTA UNLIMITED ON &streams_tbs; /*
Step 4 Create the ANYDATA Queue at dbs5.net
Connect as the Streams administrator at the database you are adding. In this example, that database is dbs5.net
.
*/ CONNECT strmadmin/strmadminpw@dbs5.net /*
Run the SET_UP_QUEUE
procedure to create a queue named streams_queue
at dbs5.net
. This queue will function as the ANYDATA
queue by holding the changes that will be applied at this database.
Running the SET_UP_QUEUE
procedure performs the following actions:
Creates a queue table named streams_queue_table
. This queue table is owned by the Streams administrator (strmadmin
) and uses the default storage of this user.
Creates a queue named streams_queue
owned by the Streams administrator (strmadmin
).
Starts the queue.
*/ EXEC DBMS_STREAMS_ADM.SET_UP_QUEUE(); /*
Step 5 Create a Database Link at dbs5.net to dbs1.net
Create a database link from dbs5.net
to dbs1.net
. Later in this example, this database link is used for the instantiation of the database objects that were dropped in Step 2. This example uses the DBMS_DATAPUMP
package to perform a network import of these database objects directly from the dbs1.net
database. Because this example performs a network import, no dump file is required.
Alternatively, you can perform an export at the source database dbs1.net
, transfer the export dump file to the destination database dbs5.net
, and then import the export dump file at the destination database. In this case, the database link created in this step is not required.
*/ CREATE DATABASE LINK dbs1.net CONNECT TO strmadmin IDENTIFIED BY strmadminpw USING 'dbs1.net'; /*
Step 6 Configure the Apply Process at dbs5.net
While still connected as the Streams administrator at dbs5.net
, configure the apply process to apply changes to the hr
schema.
*/ BEGIN DBMS_STREAMS_ADM.ADD_SCHEMA_RULES( schema_name => 'hr', streams_type => 'apply', streams_name => 'apply', queue_name => 'strmadmin.streams_queue', include_dml => true, include_ddl => true, source_database => 'dbs1.net', inclusion_rule => true); END; / /*
Step 7 Specify hr as the Apply User for the Apply Process at dbs5.net
In this example, the hr
user owns all of the database objects for which changes are applied by the apply process at this database. Therefore, hr
already has the necessary privileges to change these database objects, and it is convenient to make hr
the apply user.
When the apply process was created in the previous step, the Streams administrator strmadmin
was specified as the apply user by default, because strmadmin
ran the procedure that created the apply process. Instead of specifying hr as the apply user, you could retain strmadmin
as the apply user, but then you must grant strmadmin
privileges on all of the database objects for which changes are applied and privileges to execute all user procedures used by the apply process. In an environment where an apply process applies changes to database objects in multiple schemas, it might be more convenient to use the Streams administrator as the apply user.
See Also:
Oracle Streams Concepts and Administration for more information about configuring a Streams administrator*/ BEGIN DBMS_APPLY_ADM.ALTER_APPLY( apply_name => 'apply', apply_user => 'hr'); END; / /*
Step 8 Grant the hr User Execute Privilege on the Apply Process Rule Set
Because the hr
user was specified as the apply user in the previous step, the hr
user requires EXECUTE
privilege on the positive rule set used by the apply process
*/ DECLARE rs_name VARCHAR2(64); -- Variable to hold rule set name BEGIN SELECT RULE_SET_OWNER||'.'||RULE_SET_NAME INTO rs_name FROM DBA_APPLY WHERE APPLY_NAME='APPLY'; DBMS_RULE_ADM.GRANT_OBJECT_PRIVILEGE( privilege => SYS.DBMS_RULE_ADM.EXECUTE_ON_RULE_SET, object_name => rs_name, grantee => 'hr'); END; / /*
Step 9 Create the Database Link Between dbs2.net and dbs5.net
Connect to dbs2.net
as the strmadmin
user.
*/ CONNECT strmadmin/strmadminpw@dbs2.net /*
Create the database links to the databases where changes are propagated. In this example, database dbs2.net
propagates changes to dbs5.net
.
*/ CREATE DATABASE LINK dbs5.net CONNECT TO strmadmin IDENTIFIED BY strmadminpw USING 'dbs5.net'; /*
Step 10 Configure Propagation Between dbs2.net and dbs5.net
While still connected as the Streams administrator at dbs2.net
, configure and schedule propagation from the queue at dbs2.net
to the queue at dbs5.net
. Remember, changes to the hr
schema originated at dbs1.net
.
*/ BEGIN DBMS_STREAMS_ADM.ADD_SCHEMA_PROPAGATION_RULES( schema_name => 'hr', streams_name => 'dbs2_to_dbs5', source_queue_name => 'strmadmin.streams_queue', destination_queue_name => 'strmadmin.streams_queue@dbs5.net', include_dml => true, include_ddl => true, source_database => 'dbs1.net', inclusion_rule => true, queue_to_queue => true); END; / /*
Step 11 Prepare the hr Schema for Instantiation at dbs1.net
Connect to dbs1.net
as the strmadmin
user.
*/ CONNECT strmadmin/strmadminpw@dbs1.net /*
Prepare the hr
schema for instantiation. These tables in this schema will be instantiated at dbs5.net
. This preparation is necessary so that the Streams data dictionary for the relevant propagations and the apply process at dbs5.net
contain information about the hr
schema and the objects in the schema.
See Also:
"Preparing Database Objects for Instantiation at a Source Database" and Oracle Streams Concepts and Administration*/ BEGIN DBMS_CAPTURE_ADM.PREPARE_SCHEMA_INSTANTIATION( schema_name => 'hr', supplemental_logging => 'keys'); END; / /*
Step 12 Instantiate the dbs1.net Tables at dbs5.net
This example performs a network Data Pump import of the following tables:
hr.countries
hr.departments
hr.employees
hr.job_history
hr.jobs
hr.locations
hr.regions
A network import means that Data Pump imports these tables from dbs1.net
without using an export dump file.
See Also:
Oracle Database Utilities for information about performing an importConnect to dbs5.net
as the strmadmin
user.
*/ CONNECT strmadmin/strmadminpw@dbs5.net /*
This example will do a table import using the DBMS_DATAPUMP
package. For simplicity, exceptions from any of the API calls will not be trapped. However, Oracle recommends that you define exception handlers and call GET_STATUS
to retrieve more detailed error information if a failure occurs. If you want to monitor the import, then query the DBA_DATAPUMP_JOBS
data dictionary view at the import database.
*/ SET SERVEROUTPUT ON DECLARE h1 NUMBER; -- Data Pump job handle sscn NUMBER; -- Variable to hold current source SCN job_state VARCHAR2(30); -- To keep track of job state js ku$_JobStatus; -- The job status from GET_STATUS sts ku$_Status; -- The status object returned by GET_STATUS job_not_exist exception; pragma exception_init(job_not_exist, -31626); BEGIN -- Create a (user-named) Data Pump job to do a table-level import. h1 := DBMS_DATAPUMP.OPEN( operation => 'IMPORT', job_mode => 'TABLE', remote_link => 'DBS1.NET', job_name => 'dp_sing4'); -- A metadata filter is used to specify the schema that owns the tables -- that will be imported. DBMS_DATAPUMP.METADATA_FILTER( handle => h1, name => 'SCHEMA_EXPR', value => '=''HR'''); -- Get the current SCN of the source database, and set the FLASHBACK_SCN -- parameter to this value to ensure consistency between all of the -- objects included in the import. sscn := DBMS_FLASHBACK.GET_SYSTEM_CHANGE_NUMBER@dbs1.net(); DBMS_DATAPUMP.SET_PARAMETER( handle => h1, name => 'FLASHBACK_SCN', value => sscn); -- Start the job. DBMS_DATAPUMP.START_JOB(h1); -- The import job should be running. In the following loop, the job -- is monitored until it completes. job_state := 'UNDEFINED'; BEGIN WHILE (job_state != 'COMPLETED') AND (job_state != 'STOPPED') LOOP sts:=DBMS_DATAPUMP.GET_STATUS( handle => h1, mask => DBMS_DATAPUMP.KU$_STATUS_JOB_ERROR + DBMS_DATAPUMP.KU$_STATUS_JOB_STATUS + DBMS_DATAPUMP.KU$_STATUS_WIP, timeout => -1); js := sts.job_status; DBMS_LOCK.SLEEP(10); job_state := js.state; END LOOP; -- Gets an exception when job no longer exists EXCEPTION WHEN job_not_exist THEN DBMS_OUTPUT.PUT_LINE('Data Pump job has completed'); DBMS_OUTPUT.PUT_LINE('Instantiation SCN: ' ||sscn); END; END; / /*
Step 13 Start the Apply Process at dbs5.net
Connect as the Streams administrator at dbs5.net
.
*/ CONNECT strmadmin/strmadminpw@dbs5.net /*
Set the disable_on_error
parameter to n
so that the apply process will not be disabled if it encounters an error, and start apply process at dbs5.net
.
*/ BEGIN DBMS_APPLY_ADM.SET_PARAMETER( apply_name => 'apply', parameter => 'disable_on_error', value => 'n'); END; / BEGIN DBMS_APPLY_ADM.START_APPLY( apply_name => 'apply'); END; / /*
Step 14 Check the Spool Results
Check the streams_adddb.out
spool file to ensure that all actions finished successfully after this script is completed.
*/ SET ECHO OFF SPOOL OFF /*************************** END OF SCRIPT ******************************/
After completing the examples described in the "Add a Database to an Existing Streams Replication Environment" section, you can make DML and DDL changes to the tables in the hr
schema at the dbs1.net
database. These changes will be replicated to dbs5.net
. You can check these tables at dbs5.net
to see that the changes have been replicated.
For example, complete the following steps to make a DML change to the hr.departments
table at dbs1.net
. Next, query the hr.departments
table at dbs5.net
to see that the change has been replicated.
Step 1 Make a DML Change to the hr.departments Table
Make the following change:
CONNECT hr/hr@dbs1.net UPDATE hr.departments SET location_id=2400 WHERE department_id=270; COMMIT;
Step 2 Query the hr.departments Table at dbs5.net
After some time passes to allow for capture, propagation, and apply of the change performed in the previous step, run the following query to confirm that the UPDATE
change made to the hr.departments
table at dbs1.net
has been applied to the hr.departments
table at dbs5.net
.
CONNECT hr/hr@dbs5.net SELECT location_id FROM hr.departments WHERE department_id=270;
You should see 2400
for the value of the location_id
.
