The Security Sample Application

The chapter discusses the following topics:

How the Security sample application works
The development process for the Security sample application
Building the Security sample application
Compiling the Security sample application
Running the Security sample application
Using the client applications in the Security sample application

Refer to Readme.txt in the \security directory for troubleshooting information and the latest information about using the Security sample application.

How the Security Sample Application Works

The Security sample application enhances the Basic sample application by adding application-level security to the Weblogic Enterprise (WLE) application. Application-level security requires each student to have an ID and a password. Therefore, the concept of a Student is added to the Security sample application.

The following functionality is added to the Basic sample application:

The client applications add a logon operation. This operation uses a SecurityCurrent environmental object to invoke operations on the PrincipalAuthenticator object, which is part of the process of logging on to access the domain.
The University server application implements an additional operation, get_student_details(), on the Registrar object to return information about a student. After a proper CORBA logon is complete, the get_student_details() operation accesses the student information in the database to obtain the student information needed by the client logon operation.
The University database contains student information in addition to course information.

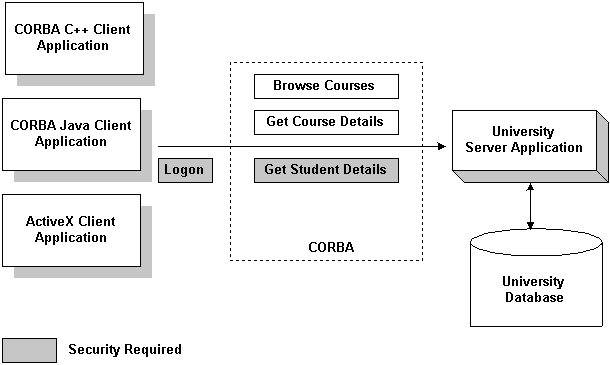

Figure 4-1 illustrates how the Security sample application works.

Figure 4-1 The Security Sample Application

The Development Process for the Security Sample Application

This section describes the development process required when adding security to WLE client and server applications. These steps are in addition to the development steps outlined in Chapter 3, "The Basic Sample Application."

Note: The steps in this section have been done for you and are included in the Security sample application.

Building the Security Sample Application

Perform the following steps to build the Security sample application:

Copy the files for the Security sample application.
Change the protection on the files for the Security sample application.
Set the environment variables.
Initialize the University database.
Load the UBBCONFIG file.
Build the client and server sample applications.

The following sections describe these steps.

Note: Before you can build or run the Security sample application, you need to perform the steps in Chapter 2, "Setting Up Your Environment."

Copying the Files for the Security Sample Application into a Work Directory

The files for the Security sample application are located in the following directories:

Windows NT

drive:\WLEdir\samples\corba\university\security

UNIX

/usr/WLEdir/samples/corba/university/security

In addition, you need to copy the utils directory into your work directory. The utils directory contains files that set up logging, tracing, and access to the University database.

You will use the files listed in Table 4-1 to create the Security sample application.

Table 4-1 **Files Included in the Security Sample Application**
File	Description
`univs.idl`	The OMG IDL that declares the `CourseSynopsisEnumerator`, `Registrar`, and `RegistrarFactory` interfaces
`univss.cpp`	The C++ source code for the University server application in the Security sample application
`univs_i.h univs_i.cpp`	The C++ source code for method implementations of the `CourseSynopsisEnumerator`, `Registrar`, and `RegistrarFactory` interfaces
`univsc.cpp`	The C++ source code for the CORBA C++ client application in the Security sample application
`frmBrowser.frm`	The Visual Basic source code for the ActiveX client application in the Security sample application
`frmOpen.frm`	The Visual Basic source code for the ActiveX client application in the Security sample application
`University.vbp`	The Visual Basic project file for the ActiveX client application in the Security sample application
`University.vbw`	The Visual Basic workspace file for the ActiveX client application in the Security sample application
`modPublicDeclarations.bas`	A Visual Basic file that contains the declarations for variables used in the sample applications
`frmTracing.frm frmTracing.frx`	The files that provide tracing capabilities to the ActiveX client application
`frmLogon.frm`	The Visual Basic file that performs the security logon for the ActiveX client application
`UnivSApplet.java`	The Java source code for the CORBA Java client application in the Security sample application
`univs_utils.h univs_utils.cpp`	The files that define database access functions for the CORBA C++ client application
`univs.icf`	The Implementation Configuration File (ICF) for the Security sample application
`setenvs.sh`	A UNIX script that sets the environment variables needed to build and run the Security sample application
`setenvs.cmd`	An MS-DOS command procedure that sets the environment variables needed to build and run the Security sample application
`ubb_s.mk`	The `UBBCONFIG` file for the UNIX operating system
`ubb_s.nt`	The `UBBCONFIG` file for the Windows NT operating system
`makefiles.mk`	The `makefile` for the Security sample application on the UNIX operating system
`makefiles.nt`	The `makefile` for the Security sample application on the Windows NT operating system
`log.cpp`, `log.h`, `log_client.cpp`, and `log_server.cpp`	The client and server applications that provide logging and tracing functions for the sample applications. These files are located in the `\utils` directory.
`oradbconn.cpp` and `oranoconn.cpp`	The files that provide access to an Oracle SQL database instance. These files are located in the `\utils` directory.
`samplesdb.cpp` and `samplesdb.h`	The files that provide print functions for the database exceptions in the sample applications.These files are located in the `\utils` directory.
`unique_id.cpp` and `unique_id.h`	C++ Unique ID class routines for the sample applications.These files are located in the `\utils` directory.
`samplesdbsql.h` and `samplesdbsql.pc`	C++ class methods that implement access to the SQL database. These files are located in the `\utils` directory.
`university.sql`	The SQL for the University database. This file is located in the `\utils` directory.

Changing the Protection on the Files for the Security Sample Application

During the installation of the WLE software, the sample application files are marked read-only. Before you can edit the files or build the files in the Security sample application, you need to change the protection of the files you copied into your work directory, as follows:

Windows NT

prompt>attrib -r drive:\workdirectory\*.*

UNIX

prompt>chmod u+rw /workdirectory/*.*

Setting the Environment Variables

Use the following command to set the environment variables used to build the client and server applications in the Security sample applications:

prompt>. ./setenvs.sh

Initializing the University Database

Use the following command to initialize the University database used with the Security sample application:

Windows NT

prompt>nmake -f makefiles.nt initdb

UNIX

prompt>make -f makefiles.mk initdb

Loading the UBBCONFIG File

Use the following command to load the UBBCONFIG file:

Windows NT

prompt>tmloadcf -y ubb_s.nt

UNIX

prompt>tmloadcf -y ubb_s.mk

The build process for the UBBCONFIG file prompts you for an application password. This password will be used to log on to the client applications. Enter the password and press Enter. You are then prompted to verify the password by entering it again.

Compiling the Security Sample Application

During the development process, you would use the buildobjclient and buildobjserver commands to build the client and server applications. However, for the Security sample application, this step has been done for you.

The directory for the Security sample application contains a makefile that builds the client and server sample applications.

Use the following commands to build the CORBA C++ client and server applications in the Security sample application:

Windows NT

prompt>nmake -f makefiles.nt

UNIX

prompt>make -f makefiles.mk

To build the CORBA Java client application:

Windows NT

prompt>nmake -f makefiles.nt javaclient

UNIX

prompt>make -f makefiles.mk javaclient

For information about starting the ActiveX client application, see "Starting the ActiveX Client Application."

For more information about the buildobjclient and buildobjserver commands, see the C++ Programming Reference.

Running the Security Sample Application

Perform the following steps to run the Security sample application:

Start the University server application.
Start one or more of the client applications.

These steps are explained in the following sections.

Starting the University Server Application

Start the system and sample application server applications in the Security sample application by entering the following command:

prompt>tmboot -y

This command starts the following server processes:

TMSYSEVT

The BEA TUXEDO system event broker.
TMFFNAME

The transaction management services, including the NameManager and the FactoryFinder services.
TMIFSRVR

The Interface Repository server process. This server process is used only by ActiveX client applications.
univs_server

The University server process.
ISL

The IIOP Listener/Handler process.

Before using another sample application, enter the following command to stop the system and sample application server processes:

prompt>tmshutdown

Starting the CORBA C++ Client Application

Start the CORBA C++ client application in the Security sample application by performing the following steps:

At the MS-DOS prompt, enter the following command:

prompt>univs_client
At the Enter student id: prompt, enter any number between 100001 and 100010.
Press Enter.
At the Enter domain password: prompt, enter the password you defined when you loaded the UBBCONFIG file.
Press Enter.

Starting the CORBA Java Client Application

Before you can start the CORBA Java client application, you need to change the values of the Port and Host parameters in UnivSApplet.html to match the host name and port number specified in the ISL parameter in the UBBCONFIG file. For example:

<param   name=port      value=2500>
<param   name=host      value=BEANIE>

Start the CORBA Java client application in the Security sample application by performing the following steps:

At the MS-DOS prompt, enter the following command:

prompt>appletviewer UnivSApplet.html
A logon window appears.
Enter a number between 100001 and 100010 in the student ID field.
Enter the password you defined when you loaded the UBBCONFIG file in the Domain Password field.
Click the Logon button.
Enter a search string to find a course.

Starting the ActiveX Client Application

Note: For the University sample applications, the task of loading the OMG IDL for the CORBA interfaces into the Interface Repository is automated by the makefile.

Before you can start the ActiveX client application, you must use the Application Builder to create ActiveX bindings for the CORBA interfaces.

To create an ActiveX binding for a CORBA interface:

Click the BEA Application Builder icon in the WLE program group.

The IIOP Listener window appears.
In the IIOP Listener window, enter the host name and port number that you specified in the ISL parameter in the UBBCONFIG file . You must match exactly the capitalization used in the UBBCONFIG file.

The Logon window appears.
In the Logon window, enter a student ID between 100001 and 100010 for the user name and the password you defined when you loaded the UBBCONFIG file.

The Application Builder window appears. All the CORBA interfaces loaded in the Interface Repository appear in the Services window of the Application Builder.
Highlight the UniversityS folder in the Services window and drag it to the Workstation Views window, or copy the UniversityS folder from the Services window and paste it into the Workstation Views window.

A confirmation window appears.
Click Create to create ActiveX bindings for the CORBA interfaces in the Security sample application.

The Application Builder creates the following:
- A binding for the CORBA interface. The binding is named DImodulename_interfacename. For example, the binding for the Registrar interface is named DIUniversityS_Registrar.
- A type library. By default, the type library is placed in \WLEdir\TypeLibraries.
The type library file is named DImodulename_interfacename.tlb.
- A Windows system registry entry, including unique Program IDs for each object type, for the CORBA interface.

Perform the following steps to run the ActiveX client application:

Open the University.vbw file in Visual Basic.
From the Run menu, click Start.

The IIOP Listener window appears.
In the IIOP Listener window, enter the host name and port number that you specified in the ISL parameter in the UBBCONFIG file. You must match exactly the capitalization used in the UBBCONFIG file.

The Logon window appears.
In the Logon window, enter a student ID between 100001 and 100010 for the user name and the password you defined when you loaded the UBBCONFIG file.

Using the Client Applications in the Security Sample Application

The following sections briefly explain how to use the client applications in the Security sample application.

The CORBA C++ Client Application

The CORBA C++ client application in the Security sample application has the following additional option:

<L>    List your registered courses

This option displays the list of courses registered under the student ID that was used to log on to the CORBA C++ client application.

The CORBA Java Client Application

No additional functionality is added to the CORBA Java client application in the Security sample application.

The ActiveX Client Application

No additional functionality is added to the ActiveX client application in the Security sample application.
