The Transactions Sample Application

This chapter discusses the following topics:

How the Transactions sample application works
The development process for the Transactions sample application
Building the Transactions sample application
Compiling the Transactions sample application
Running the Transactions sample application
Using the client applications in the Transactions sample application

Refer to Readme.txt in the \transactions directory for troubleshooting information and the latest information about using the Transactions sample application.

How the Transactions Sample Application Works

In the Transactions sample application, students can register for classes. The operation of registering for courses is executed within the scope of a transaction. The Transactions sample application works in the following way:

Students submit a list of courses for which they want to be registered.
For each course in the list, the University server application checks whether:
One of the following occurs:

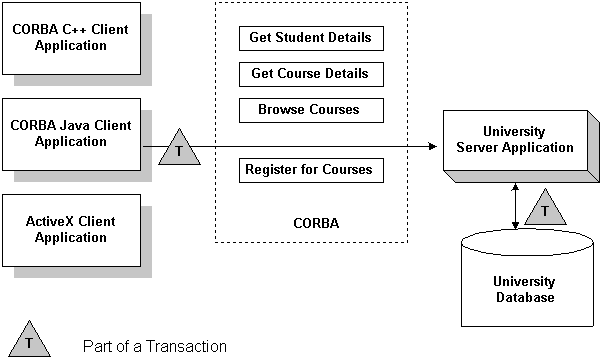

Figure 5-1 illustrates how the Transactions sample application works.

Figure 5-1 The Transactions Sample Application

The Development Process for the Transactions Sample Application

This section describes the steps used to add transactions to the Transactions sample application. These steps are in addition to the development process outlined in Chapter 3, "The Basic Sample Application."

Note: The steps in this section have been done for you and are included in the Transactions sample application.

Building the Transactions Sample Application

Perform the following steps to build the Transactions sample application:

Copy the files for the Transactions sample application.
Change the protection on the files for the Transactions sample application files.
Set the environment variables.
Initialize the University database.
Load the UBBCONFIG file.
Create a transaction log.
Build the client and server sample applications.

The following sections describe these steps.

Note: Before you can build or run the Transactions sample application, you need to perform the steps in Chapter 2, "Setting Up Your Environment."

Copying the Files for the Transactions Sample Application into a Work Directory

The files for the Transactions sample application are located in the following directories:

Windows NT

drive:\WLEdir\samples\corba\university\transaction

UNIX

/usr/WLEdir/samples/corba/university/transaction

In addition, you need to copy the utils directory into your work directory. The utils directory contains files that set up logging, tracing, and access to the University database.

You will use the files listed in Table 5-1 to create the Transactions sample application.

Table 5-1 **Files Included in the Transactions sample application**
File	Description
`univt.idl`	The OMG IDL that declares the `CourseSynopsisEnumerator`, `Registrar`, and `RegistrarFactory` interfaces
`univts.cpp`	The C++ source code for the University server application in the Transactions sample application
`univt_i.h univt_i.cpp`	The C++ source code for method implementations of the `CourseSynopsisEnumerator`, `Registrar`, and `RegistrarFactory` interfaces
`univtc.cpp`	The C++ source code for the CORBA C++ client application in the Transactions sample application
`frmBrowser.frm`	The Visual Basic source code for the ActiveX client application in the Transactions sample application
`frmOpen.frm`	The Visual Basic source code for the ActiveX client application in the Transactions sample application
`University.vbp`	The Visual Basic project file for the ActiveX client application in the Transactions sample application
`University.vbw`	The Visual Basic workspace file for the ActiveX client application in the Transactions sample application
`modPublicDeclarations.bas`	A Visual Basic file that contains the declarations for variables used in the sample applications
`frmTracing.frm frmTracing.frx`	The files that provide tracing capabilities to the ActiveX client application
`frmLogon.frm`	The Visual Basic file that performs the security logon for the ActiveX client application
`UnivTApplet.java`	The Java source code for the CORBA Java client application in the Transactions sample application
`univt_utils.h univt_utils.cpp`	The files that define database access functions for the CORBA C++ client application
`univt.icf`	The ICF file for the Transactions sample application
`setenvt.sh`	A UNIX script that sets the environment variables needed to build and run the Transactions sample application
`setenvt.cmd`	An MS-DOS command procedure that sets the environment variables needed to build and run the Transactions sample application
`ubb_t.mk`	The `UBBCONFIG` file for the UNIX operating system
`ubb_t.nt`	The `UBBCONFIG` file for the Windows NT operating system
`makefilet.mk`	The `makefile` for the Transactions sample application on the UNIX operating system
`makefilet.nt`	The `makefile` for the Transactions sample application on the Windows NT operating system
`log.cpp`, `log.h`, `log_client.cpp`, and `log_server.cpp`	The client and server applications that provide logging and tracing functions for the sample applications. These files are located in `\utils` directory.
`oradbconn.cpp` and `oranoconn.cpp`	The files that provide access to an Oracle SQL database instance. These files are located in `\utils` directory.
`samplesdb.cpp` and `samplesdb.h`	The files that provide print functions for the database exceptions in the sample applications. These files are located in `\utils` directory.
`unique_id.cpp` and `unique_id.h`	C++ Unique ID class routines for the sample applications. These files are located in `\utils` directory.
`samplesdbsql.h` and `samplesdbsql.pc`	C++ class methods that implement access to the SQL database. These files are located in `\utils` directory.
`university.sql`	The SQL for the University database. This file is located in `\utils` directory.

Changing the Protection on the Files for the Transactions Sample Application

During the installation of the WLE software, the sample application files are marked read-only. Before you can edit the files or build the files in the Transactions sample application, you need to change the protection of the files you copied into your work directory, as follows:

Windows NT

prompt>attrib -r drive:\workdirectory\*.*

UNIX

prompt>chmod u+rw /workdirectory/*.*

Setting the Environment Variables

Use the following command to set the environment variables used to build the client and server applications in the Transactions sample application:

prompt>. ./setenvt.sh

Initializing the University Database

Use the following command to initialize the University database used with the Transactions sample application:

Windows NT

prompt>nmake -f makefilet.nt initdb

UNIX

prompt>make -f makefilet.mk initdb

Loading the UBBCONFIG File

Use the following command to load the UBBCONFIG file:

Windows NT

prompt>tmloadcf -y ubb_t.nt

UNIX

prompt>tmloadcf -y ubb_t.mk

The build process for the UBBCONFIG file prompts you for an application password. This password will be used to log on to the client applications. Enter the password and press Enter. You are then prompted to verify the password by entering it again.

Creating a Transaction Log

The transaction log records the transaction activities in a WLE application. During the development process, you need to define the location of the transaction log (specified by the TLOGDEVICE parameter) in the UBBCONFIG file. For the Transactions sample application, the transaction log is placed in your work directory.

You need to perform the following steps to open the transaction log for the Transactions sample application:

Enter the following command to start the Interactive Administrative Interface:

tmadmin
Enter the following command to create a transaction log:

crdl -b blocks -z directorypathclog -m SITE1
where
blocks specifies the number of blocks to be allocated for the transaction log and directorypath indicates the location of the transaction log. The directorypath option needs to match the location specified in the TLOGDEVICE parameter in the UBBCONFIG file. The following is an example of the command on Windows NT:
crdl -b 500 -z c:\mysamples\university\Transaction\TLOG
Enter q to exit the Interactive Administrative Interface.

Compiling the Transactions Sample Application

During the development process, you would use the buildobjclient and buildobjserver commands to build the client and server applications. You would also build a database-specific transaction manager to coordinate the transactional events in the client/server application. However, for the Transactions sample application, this step has been done for you. The directory for the Transactions sample application contains a makefile that builds the client and server sample applications and creates a transaction manager called TMS_ORA.

Note: In the makefile, the following parameter is hard coded to build a transaction manager for the Oracle database: RM=Oracle_XA

If you use a database other than Oracle, you need to change this parameter.

Use the following commands to build the CORBA C++ client and server applications in the Transactions sample application:

Windows NT

prompt>nmake -f makefilet.nt

UNIX

prompt>make -f makefilet.mk

To build the CORBA Java client application:

Windows NT

prompt>nmake -f makefilet.nt javaclient

UNIX

prompt>make -f makefilet.mk javaclient

For information about starting the ActiveX client application, see "Starting the ActiveX Client Application."

For more information about the buildobjclient and buildobjserver commands, see the C++ Programming Reference.

Running the Transactions Sample Application

Perform the following steps to run the Transactions sample application:

Start the server application.
Start one or more of the client applications.

These steps are described in the following sections.

Starting the Server Application

Start the system and sample application server applications in the Transactions sample application by entering the following command:

prompt>tmboot -y

This command starts the following server processes:

TMSYSEVT

The BEA TUXEDO system event broker.
TMFFNAME

The transaction management services, including the NameManager and the FactoryFinder services.
TMIFSRVR

The Interface Repository server process. This server process is used only by ActiveX client applications.
univt_server

The University server process.
ISL

The IIOP Listener/Handler process.

Before using another sample application, enter the following command to stop the system and sample application server processes:

prompt>tmshutdown

Starting the CORBA C++ Client Application

Start the CORBA C++ client application in the Transactions sample application by performing the following steps:

At the MS-DOS prompt, enter the following command:

prompt>univt_client
At the Enter student id: prompt, enter any number between 100001 and 100010.
Press Enter.
At the Enter domain password: prompt, enter the password you defined when you loaded the UBBCONFIG file.
Press Enter.

Starting the CORBA Java Client Application

Before you can start the CORBA Java client application, you need to change the value of the Port and Host parameters in UnivSApplet.html to match the host name and port number specified in the ISL parameter in the UBBCONFIG file. For example:

<param   name=port      value=2500>
<param   name=host      value=BEANIE>

Start the CORBA Java client application in the Transactions sample application by performing the following steps:

At the MS-DOS prompt, enter the following command:

prompt>appletviewer UnivTApplet.html
A logon window appears.
Enter a number between 100001 and 100010 in the student ID field.
In the Domain Password field, enter the password you defined when you loaded the UBBCONFIG file.
Double click the Logon button.

Starting the ActiveX Client Application

Note: For the University sample applications, the task of loading the OMG IDL for the CORBA interfaces into the Interface Repository is automated by the makefile.

Before you can start the ActiveX client application, you must use the Application Builder to create ActiveX bindings for the CORBA interfaces.

To create an ActiveX binding for a CORBA interface:

Click the BEA Application Builder icon in the WLE program group.

The IIOP Listener window appears.
In the IIOP Listener window, enter the host name and port number that you specified in the ISL parameter in the UBBCONFIG file . You must match exactly the capitalization used in the UBBCONFIG file.

The Logon window appears.
In the Logon window, enter a student ID between 100001 and 100010 for the user name and the password you defined when you loaded the UBBCONFIG file.

The Application Builder window appears. All the CORBA interfaces loaded in the Interface Repository appear in the Services window of the Application Builder.
Highlight the UniversityT folder in the Services window and drag it to the Workstation Views window, or copy the UniversityT folder from the Services window and paste it into the Workstation Views window.

A confirmation window appears.
Click Create to create the ActiveX bindings for the CORBA interfaces in the Transactions sample application.

The Application Builder creates the following:
- A binding for the CORBA interface. The binding is named DImodulename_interfacename. For example, the binding for the Registrar interface is named DIUniversityT_Registrar.
- A type library. By default, the type library is placed in \WLEdir\TypeLibraries.
The type library file is named DImodulename_interfacename.tlb.
- A Windows system registry entry, including unique Program IDs for each object type, for the CORBA interface.

Perform the following steps to run the ActiveX client application:

Open the University.vbw file in Visual Basic.
From the Run menu, click Start.

The IIOP Listener window appears.
In the IIOP Listener window, enter the host name and port number that you specified in the ISL parameter in the UBBCONFIG file. You must match exactly the capitalization used in the UBBCONFIG file.

The Logon window appears.
In the Logon window, enter a student ID between 100001 and 100010 for the user name and the password you defined when you loaded the UBBCONFIG file.

Using the Client Applications in the Transactions sample application

The following sections briefly explain how to use the client applications in the Transactions sample application.

The CORBA C++ Client Application

The CORBA C++ client application in the Transactions sample application has the following additional option:

<R>    Register for Courses

Perform the following steps to register for a course:

At the Options prompt, enter R.
At the Course Number prompt, enter a course number followed by -1 . For example:

100011 100039 -1
Press Enter.
At the Options prompt, enter L to view a list of courses for which the student ID is registered.

To exit the C++ CORBA client application, enter E at the Options prompt.

The CORBA Java Client Application

When you log on to the CORBA Java client application, a Student Account Summary window appears. Use the Student Account Summary window to register for courses.

Perform the following steps to register for a class:

Obtain a list of available courses from the Student Account Summary window by entering a text string in the Search String text box. For example, computer.
Click the Search Catalog button.

A list of courses matching the search string appears in the window.
Select a course by clicking on its name in the lower portion of the Student Account Summary window.

If you are already registered for a course, Yes appears in the Registered field on the Student Account Summary window.
To register for the course, click the Register button on the Student Account Summary window.

To view a list of courses for which the student ID is registered, double click the Show Registration button.

To exit the CORBA Java client application, click the Logoff button in the Student Account Summary window, or choose Quit from the Applet menu.

The ActiveX Client Application

When you log on to the ActiveX client application, the Course Browser window appears. Use the Course Browser window to register for courses.

Perform the following steps to register for a class:

In the text box next to the Find Courses button, enter a text string or use the pulldown menu to choose a curriculum subject. For example, computer.
Click the Find Courses button.

A list of all the courses that match that search string appears.
Select a course from the list that appears in the window next to the Get Details button, or double-click the course name.

The details for the selected course appear.
Click the Register for Course button or double click the course to enter the course into the schedule.

The course appears in the student's schedule at the bottom of the window. If the student is already registered for the course, it appears in the color green. If the course conflicts with a previously registered course, it appears in the color red.

To remove a course from the schedule, double click the course in the schedule.

To view a list of courses for which the student ID is registered, click the Get Registered Courses button.

To complete information about a course, click the Get Details button.

To exit the ActiveX client application, choose Exit from the File menu.

Copyright � 1999 BEA Systems, Inc. All Rights Reserved.
Required browser version: Netscape Communicator version 4.0 or higher, or Microsoft Internet Explorer version 4.0 or higher.
Last update: July 01, 1999.
