Chapter 2 Configuring POP, IMAP, and HTTP Services

Netscape Messaging Server supports the Post Office Protocol 3 (POP3), the Internet Mail Access Protocol 4 (IMAP4), and the HyperText Transfer Protocol (HTTP) for client access to mailboxes. IMAP and POP are both Internet-standard mailbox protocols. Messenger Express, a web-enabled electronic mail program, lets end users access their mailboxes using a browser running on an Internet-connected computer system using HTTP.

This chapter describes how to use Netscape Console to configure your server to support one or more of these services. For information on configuring Simple Mail Transfer Protocol (SMTP) services, see Chapter 3, Configuring SMTP Services.

You can also perform many POP, IMAP, and HTTP configuration tasks through the command-line utility configutil. For instructions on how to use configutil, see Appendix A, Command-line Utilities.

This chapter has the following sections:

General Configuration

Performance Parameters

Client Access Controls

Configuring POP Services

Configuring IMAP Services

Configuring HTTP Services

Customizing HTTP Services

Interface Reference: POP, IMAP, and HTTP Configuration

General Configuration

Configuring the general features of the Messaging Server POP, IMAP, and HTTP services includes enabling or disabling the services, assigning port numbers, and optionally modifying service banners sent to connecting clients. This section provides background information; for the steps you follow to make these settings, see Configuring POP Services, Configuring IMAP Services, and Configuring HTTP Services.

Enabling and Disabling Services

You can control whether any particular instance of Messaging Server makes its POP, IMAP, or HTTP service available for use. This is not the same as starting and stopping services (see Starting and Stopping Services); to function, POP, IMAP, or HTTP must be both enabled and started.

Enabling a service is a more "global" process than starting or stopping a service. For example, the Enable setting persists across system reboots, whereas you must restart a previously "stopped" service after a reboot.

There is no need to enable services that you do not plan to use. For example, if a Messaging Server instance is used only as a message transfer agent (MTA), you should disable POP, IMAP, and HTTP. If it is used only for POP services, you should disable IMAP and HTTP. If it used only for web-based email, you should disable both POP and IMAP.

Specifying Port Numbers

For each service, you can specify the port number that the server is to use for service connections:

If you enable the POP service, you can specify the port number that the server is to use for POP connections. The default is 110.

If you enable the IMAP service, you can specify the port number that the server is to use for IMAP connections. The default is 143.

If you enable the HTTP service, you can specify the port number that the server is to use for HTTP connections. The default is 80.

You might need to specify a port number other than the default if you have, for example, two or more IMAP server instances on a single host machine, or if you are using the same host machine as both an IMAP server and a Messaging Multiplexor server. (For information about the Multiplexor, see Chapter 13, Messaging Multiplexor.)

Keep the following in mind when you specify a port:

Port numbers can be any number from 1 to 65535.

Make sure the port you choose isn't already in use or reserved for another service.

Ports for Encrypted Communications

Messaging Server supports encrypted communications with IMAP and HTTP clients by using the Secure Sockets Layer (SSL) protocol. For general information on support for SSL in Messaging Server, see Configuring SSL Encryption and Authentication.

IMAP Over SSL

You can accept the default IMAP over SSL port number (993) or you can specify a separate port for IMAP over SSL.

Messaging Server provides the option of using separate ports for IMAP and IMAP over SSL because most current IMAP clients require separate ports for them. Same-port communication with both IMAP and IMAP over SSL is an emerging standard; as long as your Messaging Server has an installed SSL certificate (see Obtaining Certificates), it can support same-port IMAP over SSL.

HTTP Over SSL

You can accept the default HTTP over SSL port number (443) or you can specify a separate port for HTTP.

Service Banner

When a client first connects to the Messaging Server POP or IMAP port, the server sends an identifying text string to the client. This service banner (not normally displayed to the client's user) identifies the server as Netscape Messaging Server, and gives the server's version number. The banner is most typically used for client debugging or problem-isolation purposes.

You can replace the default banner for the POP or IMAP service if you want a different message sent to connecting clients.

You can use Netscape Console or the configutil utility to set service banners. For information about configutil, see configutil.

Login Requirements

You can control how users are permitted to log in to the POP, IMAP, or HTTP service to retrieve mail. You can allow anonymous login (for IMAP or HTTP services), password-based login (for all services), and certificate-based login (for IMAP or HTTP services). This section provides background information; for the steps you follow to make these settings, see Configuring POP Services, Configuring IMAP Services, or Configuring HTTP Services.

Anonymous Login

Anonymous login refers to a user logging in under the special user name anonymous, which requires no password. (By convention analogous to that of FTP, users enter their email addresses as passwords, so that their accesses are logged.) One reason for permitting anonymous login might be to provide read-only access to, for example, archived messages of a mailing list or to shared IMAP or HTTP folders.

By default, anonymous login for IMAP and HTTP is disabled. Anonymous login is not available for the POP service.

Password-Based Login

In typical messaging installations, users access their POP, IMAP, or HTTP mailboxes by entering a password into their mail client. The client sends the password to the server, which uses it to authenticate the user. If the user is authenticated, the server decides, based on access-control rules, whether or not to grant the user access to certain mailboxes stored on that server.

If you allow password login, users can access POP, IMAP, or HTTP by entering a password. (Password-based login is the only authentication method for POP services.) Passwords are stored in an LDAP directory. Directory policies determine what password policies, such as minimum length, are in effect.

If you disallow password login for IMAP or HTTP services, password-based authentication is not permitted. Users are then required to use certificate-based login, as described in the next section.

To increase the security of password transmission for IMAP and HTTP services, you can require that passwords be encrypted before they are sent to your server. You do this by selecting a minimum cipher-length requirement for login.

If you choose 0, you do not require encryption. Passwords are sent in the clear or they are encrypted, depending on client policy.

If you choose a nonzero value, the client must establish an SSL session with the server--using a cipher whose key length is at least the value you specify--thus encrypting any IMAP or HTTP user passwords the client sends.

If the client is configured to require encryption with key lengths greater than the maximum your server supports, or if your server is configured to require encryption with key lengths greater than what the client supports, password-based login cannot occur. For information on setting up your server to support various ciphers and key lengths, see Enabling SSL.

Certificate-Based Login

In addition to password-based authentication, Netscape servers support the authentication of users through examination of their digital certificates. Instead of presenting a password, the client presents the user's certificate when it establishes an SSL session with the server. If the certificate is validated, the user is considered authenticated.

For instructions on setting up Messaging Server to accept certificate-based user login to the IMAP or HTTP service, see Setting Up Certificate-Based Login.

You don't need to uncheck the "Allow password login" box in the IMAP or HTTP System form to enable certificate-based login. If the box is checked (its default state), and if you have performed the tasks required to set up certificate-based login, both password-based and certificate-based login are supported. Then, if the client establishes an SSL session and supplies a certificate, certificate-based login is used. If the client does not use SSL or does not present a client certificate, it will send a password instead.

Performance Parameters

You can set some of the basic performance parameters for the POP, IMAP, and HTTP services of Messaging Server. Based on your hardware capacity and your user base, you can adjust these parameters for maximum efficiency of service. This section provides background information; for the steps you follow to make these settings, see Configuring POP Services, Configuring IMAP Services, or Configuring HTTP Services.

Number of Processes

Messaging Server can divide its work among several executing processes, which in some cases can increase efficiency. This capability is especially useful with multiprocessor server machines, in which adjusting the number of server processes can allow more efficient distribution of multiple tasks among the hardware processors.

There is a performance overhead, however, in allocating tasks among multiple processes and in switching from one process to another. The advantage of having multiple processes diminishes with each new one added. A simple rule of thumb for most configurations is to have one process per hardware processor on your server machine, up to a maximum of perhaps 4 processes. Your optimum configuration may be different; this rule of thumb is meant only as a starting point for your own analyses.

Note: On some platforms you might also want to increase the number of processes to get around certain per-process limits (such as the maximum number of file descriptors), specific to that platform, that may affect performance.

The default number of processes is 1 each for the POP, IMAP, or HTTP service.

Number of Connections per Process

The more simultaneous client connections your POP, IMAP, or HTTP service can maintain, the better it is for clients. If clients are denied service because no connections are available, they must then wait until another client disconnects.

On the other hand, each open connection consumes memory resources and makes demands on the I/O subsystem of your server machine, so there is a practical limit to the number of simultaneous sessions you can expect the server to support. (You might be able to increase that limit by increasing server memory or I/O capacity.)

IMAP, HTTP, and POP have different needs in this regard:

IMAP connections are generally long-lived compared to POP and HTTP connections. When a user connects to IMAP to download messages, the connection is usually maintained until the user quits or the connection times out. In contrast, a POP or HTTP connection is usually closed as soon as the POP or HTTP request has been serviced.

IMAP and HTTP connections are generally very efficient compared to POP connections. Each POP reconnection requires re-authentication of the user. In contrast, an IMAP connection requires only a single authentication because the connection remains open for the duration of the IMAP session (login to logout). An HTTP connection is short, but the user need not reauthenticate for each connection because multiple connections are allowed for each HTTP session (login to logout). POP connections, therefore, involve much greater performance overhead than IMAP or HTTP connections. Netscape Messaging Server, in particular, has been designed to require very low overhead by open but idle IMAP connections and by multiple HTTP connections.

Note: For more information about HTTP session security, see About HTTP Security.

Thus, at a given moment for a given user demand, Messaging Server may be able to support many more open IMAP or HTTP connections than POP connections.

The default value for IMAP is 4000; the default value for HTTP is 6000 connections per process; the default value for POP is 600. These values represent roughly equivalent demands that can be handled by a typically configured server machine. Your optimum configuration may be different; these defaults are meant only as general guidelines.

Number of Threads per Process

Besides supporting multiple processes, Messaging Server further improves performance by subdividing its work among multiple threads. The server's use of threads greatly increases execution efficiency, because commands in progress are not holding up the execution of other commands. Threads are created and destroyed, as needed during execution, up to the maximum number you have set.

Having more simultaneously executing threads means that more client requests can be handled without delay, so that a greater number of clients can be serviced quickly. However, there is a performance overhead to dispatching among threads, so there is a practical limit to the number of threads the server can make use of.

For POP, IMAP, and HTTP, the default maximum value is 250 threads per process. The numbers are equal despite the fact that the default number of connections for IMAP and HTTP is greater than for POP. It is assumed that the more numerous IMAP and HTTP connections can be handled efficiently with the same maximum number of threads as the fewer, but busier, POP connections. Your optimum configuration may be different, but these defaults are high enough that it is unlikely you would ever need to increase them; the defaults should provide reasonable performance for most installations.

Dropping Idle Connections

To reclaim system resources used by connections from unresponsive clients, the IMAP4, POP3, and HTTP protocols permit the server to unilaterally drop connections that have been idle for a certain amount of time.

The respective protocol specifications require the server to keep an idle connection open for a minimum amount of time. The default times are 10 minutes for POP, 30 minutes for IMAP, 3 minutes for HTTP. You can increase the idle times beyond the default values, but you cannot make them less.

If a POP or IMAP connection is dropped, the user must reauthenticate to establish a new connection. In contrast, if an HTTP connection is dropped, the user need not reauthenticate because the HTTP session remains open. For more information about HTTP session security, see About HTTP Security.

Idle POP connections are usually caused by some problem (such as a crash or hang) that makes the client unresponsive. Idle IMAP connections, on the other hand, are a normal occurrence. To keep IMAP users from being disconnected unilaterally, IMAP clients typically send a command to the IMAP server at some regular interval that is less than 30 minutes.

Logging Out HTTP Clients

An HTTP session can persist across multiple connections. HTTP clients are not logged out when a connection is dropped. However, if an HTTP session remains idle for a specified time period, the server will automatically drop the HTTP session and the client is logged out (the default time period is 2 hours). When the session is dropped, the client's session ID becomes invalid and the client must reauthenticate to establish another session. For more information about HTTP security and session ID's, see About HTTP Security.

Client Access Controls

Netscape Messaging Server includes access-control features that allow you to determine which clients can gain access to its POP, IMAP, or HTTP messaging services (and SMTP as well). You can create flexible access filters that allow or deny access to clients based on a variety of criteria.

Client access control is an important security feature of Netscape Messaging Server. For information on creating client access-control filters and examples of their use, see Configuring Client Access to TCP Services.

Configuring POP Services

You can perform basic configuration of the Messaging Server POP service through Netscape Console. To configure your POP service:

From Netscape Console, open the Messaging Server you want to configure.

Click the Configuration tab and open the Services folder in the left pane.

Select POP.

Click the System tab in the right pane.

To enable the service, check the box labeled "Enable POP service at port" and assign a port number.

For more information, see Enabling and Disabling Services and Specifying Port Numbers.

Specify connection settings as follows:

Set the maximum number of network connections per process. For more information, see Number of Connections per Process.

Set the maximum idle time for connections. For more information, see Dropping Idle Connections.

Specify process settings as follows:

Set the maximum number of threads per process. For more information, see Number of Threads per Process.

Set the maximum number of processes. For more information, see Number of Processes.

If desired, in the POP service banner field, specify a service banner.

Click Save.

Note: For the POP service, password-based login is automatically enabled.

Command Line

You can also set values for these attributes at the command line as follows:

To enable or disable the POP service:

configutil -o service.pop.enable -v [ yes | no ]

To specify the port number:

configutil -o service.pop.port -v number

To set the maximum number of network connections per process:

configutil -o service.pop.maxsessions -v number

To set the maximum idle time for connections:

configutil -o service.pop.idletimeout -v number

To set the maximum number of threads per process:

configutil -o service.pop.maxthreads -v number

To set the maximum number of processes:

configutil -o service.pop.numprocesses -v number

To specify a protocol welcome banner:

configutil -o service.pop.banner -v banner

Configuring IMAP Services

You can perform basic configuration of the Messaging Server IMAP service through Netscape Console. To configure your IMAP service:

From Netscape Console, open the Messaging Server you want to configure.

Click the Configuration tab and open the Services folder in the left pane.

Select IMAP.

Click the System tab in the right pane.

To enable the service, check the box labeled "Enable IMAP service at port" and assign a port number.

For more information, see Enabling and Disabling Services and Specifying Port Numbers.

If desired, enable anonymous login by checking the "Allow anonymous login" checkbox.

For more information, see Anonymous Login.

If desired, enable password-based login.

For more information, see Password-Based Login.

Specify connection settings as follows:

Set the maximum number of network connections per process. For more information, see Number of Connections per Process.

Set the maximum idle time for connections. For more information, see Dropping Idle Connections.

Specify process settings as follows:

Set the maximum number of threads per process. For more information, see Number of Threads per Process.

Set the maximum number of processes. For more information, see Number of Processes.

If desired, in the IMAP service banner field, specify a service banner.

Click Save.

Command Line

You can also set values for the IMAP attributes at the command line as follows:

To enable or disable the IMAP service:

configutil -o service.imap.enable -v [ yes | no ]

To specify the port number:

configutil -o service.imap.port -v number

To enable a separate port for IMAP over SSL:

configutil -o service.imap.enablesslport -v [ yes | no ]

To specify a port number for IMAP over SSL:

configutil -o service.imap.sslport -v number

To allow anonymous login to the IMAP service:

configutil -o service.imap.allowanonymouslogin -v [ yes | no ]

To enable or disable password login to the IMAP service:

configutil -o service.http.plaintextmincipher -v value

where value is one of the following:

-1 - Disables password login
0 - Enables password login without encryption
40 - Enables password login and specifies an encryption strength
128 - Enables password login and specifies an encryption strength

To set the maximum number of network connections per process:

configutil -o service.imap.maxsessions -v number

To set the maximum idle time for connections:

configutil -o service.imap.idletimeout -v number

To set the maximum number of threads per process:

configutil -o service.imap.maxthreads -v number

To set the maximum number of processes:

configutil -o service.imap.numprocesses -v number

To specify a protocol welcome banner:

configutil -o service.imap.banner -v banner

Configuring HTTP Services

POP and IMAP clients send mail directly to the Netscape Messaging Server MTA for routing or delivery. In contrast, HTTP clients send mail to a specialized web server that is part of Netscape Messaging Server. The HTTP service then sends the message to the local MTA or to a remote MTA for routing or delivery, as shown in Figure 2.1.

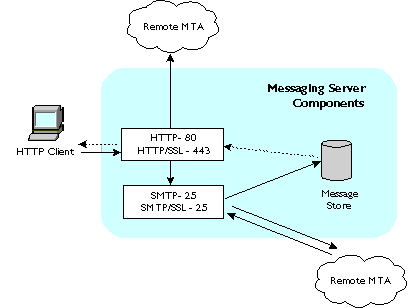

Figure 2.1 HTTP Service Components

Many of the HTTP configuration parameters are similar to the parameters available for the POP and IMAP services. These include parameters for anonymous login, connection settings, and process settings. Some parameters are specific to the HTTP service; these include parameters for message settings and MTA settings.

Message Settings. When an HTTP client constructs a message with attachments, the attachments are uploaded to the server and stored in a file. The HTTP service retrieves the attachments and constructs the message before sending the message to an MTA for routing or delivery. You can accept the default attachment spool directory or specify an alternate directory. You can also specify a maximum size allowed for attachments.

MTA Settings. By default, the HTTP service sends outgoing web mail to the local MTA for routing or delivery. You might want to configure the HTTP service to send mail to a remote MTA, for example, if your site is a hosting service and most recipients are not in the same domain as the local host machine. To send web mail to a remote MTA, you need to specify the remote host name and the SMTP port number for the remote host.

To configure your HTTP service:

From Netscape Console, open the Messaging Server you want to configure.

Click the Configuration tab and open the Services folder in the left pane.

Select HTTP.

Click the System tab in the right pane.

To enable the service, check the box labeled "Enable HTTP service at port" and assign a port number.

For more information, see Enabling and Disabling Services and Specifying Port Numbers.

If desired, enable anonymous login by checking the "Allow anonymous login" checkbox.

For more information, see Anonymous Login.

If desired, enable password-based login.

For more information, see Password-Based Login

Specify connection settings as follows:

Set the maximum number of network connections per process. For more information, see Number of Connections per Process.

Set the maximum idle time for connections. For more information, see Dropping Idle Connections.

Set the maximum idle time for client sessions. For more information, see Logging Out HTTP Clients.

Specify process settings as follows:

Set the maximum number of threads per process. For more information, see Number of Threads per Process.

Set the maximum number of processes. For more information, see Number of Processes.

Specify Message settings as follows:

If desired, specify the attachment spool directory.

If desired, specify the maximum attachment size.

For more information, see Message Settings.

Specify MTA settings as follows:

If desired, specify an alternate MTA host name.

If required, specify an alternate MTA port.

For more information, see MTA Settings.

Click Save.

Command Line

You can also set values for the HTTP attributes at the command line as follows:

To enable or disable the HTTP service:

configutil -o service.http.enable -v [ yes | no ]

To specify the port number:

configutil -o service.http.port -v number

To enable a separate port for HTTP over SSL:

configutil -o service.http.enablesslport -v [ yes | no ]

To specify a port number for HTTP over SSL:

configutil -o service.http.sslport -v number

To enable anonymous login:

configutil -o service.http.allowanonymouslogin -v [ yes | no ]

To enable or disable password login:

configutil -o service.http.plaintextmincipher -v value

where value is one of the following:

To set the maximum number of network connections per process:

configutil -o service.http.maxsessions -v number

To set the maximum idle time for connections:

configutil -o service.http.idletimeout -v number

To set the maximum idle time for client sessions:

configutil -o service.http.sessiontimeout -v number

To set the maximum number of threads per process:

configutil -o service.http.maxthreads -v number

To set the maximum number of processes:

configutil -o service.http.numprocesses -v number

To specify the attachment spool directory for client outgoing mail:

configutil -o service.http.spooldir -v dirpath

To specify the maximum attachment size:

configutil -o service.http.maxmessagesize -v size

where size is a number in bytes.

To specify an alternate MTA host name:

configutil -o service.http.smtphost -v hostname

To specify the port number for the alternate MTA host name:

configutil -o service.http.smtpport -v portnum

Customizing HTTP Services

You can customize HTTP services for Messenger Express. Customizing Messenger Express features requires knowledge of JavaScript and HTML.

To customize the look and feel of the features, modify the following HTML documents located in server-root/msg-instance/html/.

Table 2.1 How to customize the Messenger Express interface


Feature to Customize	HTML Document(s) to Modify
Attachments	attach_fs.html
Collect mail from another server	collect_fs.html
Message Composition	comp_fs.html
Folder Tab	fldr_fs.html
Address Lookup	ldap_fs.html
Mailbox Tab	mbox_fs.html
Message Tab	msg_fs.html
Options Tab	opts_fs.html
Return Receipt	receipt_fs.html
