Attaching the Antistatic Wrist Strap

1. Locate the antistatic wrist strap in the package that the drive, SBus card or DSIMM was shipped in.

2. Attach the antistatic wrist strap to the appropriate area on the Netra 150 server, depending on the component you are installing or replacing.

   • If you are installing or replacing a tape drive or bay disk drive, attach the antistatic wrist strap to the bare metal area between the LCD and the drives (Figure 2-8).

   • If you are installing or replacing an SBus card or DSIMM, attach the antistatic wrist strap to the bare metal area on the inside of the rear panel of the Netra 150 server (Figure 2-8).

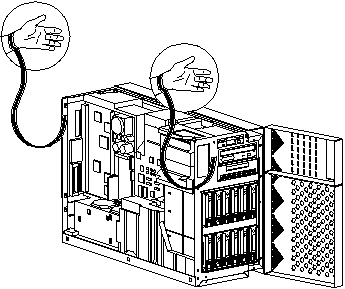

   Figure 2-8 Attaching the Antistatic Wrist Strap
