To redirect the boot media from a remote storage device, perform the following steps:
For DVD-ROM, insert the media into a DVD-ROM drive on a remote workstation.
For DVD-ROM ISO image, ensure that ISO image is readily available on a network shared location or is mounted on the server service processor (SP).
For instructions on mounting an installation image onto the server SP, refer to the Oracle ILOM Administrator's Guide for Configuration and Maintenance at http://www.oracle.com/goto/ILOM/docs. Alternatively, refer to the More Details link in the Oracle ILOM Remote Control → Remote Device web interface page.
For more details, see the setup requirements for web-based client connection in Selecting the Console Display Option.

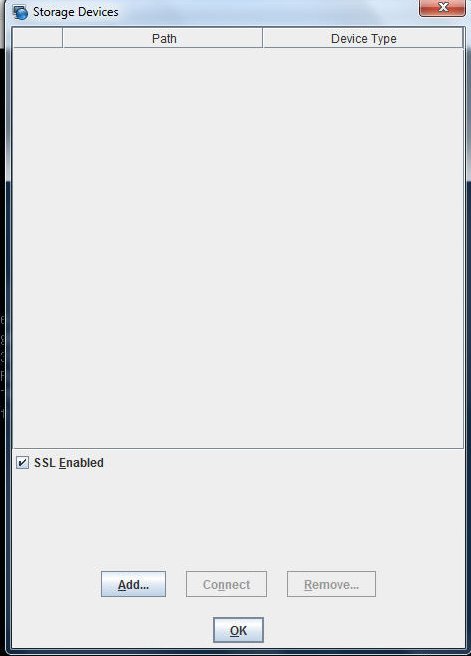

The Storage Devices dialog appears.

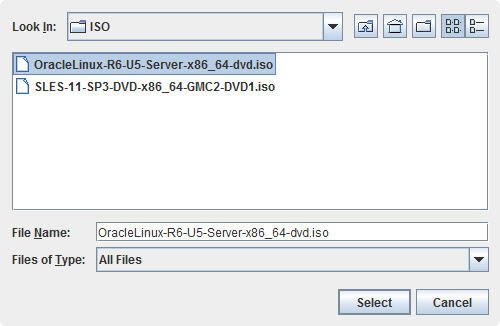

The Add Storage Device dialog appears.
The Storage Devices screen appears and lists the ISO image.
The ISO image is mounted to the remote console and can be used to perform the OS installation.
