Configuring SAN iSER Targets
In the BUI, iSER targets are managed as iSCSI targets on the Configuration > SAN
screen.
-

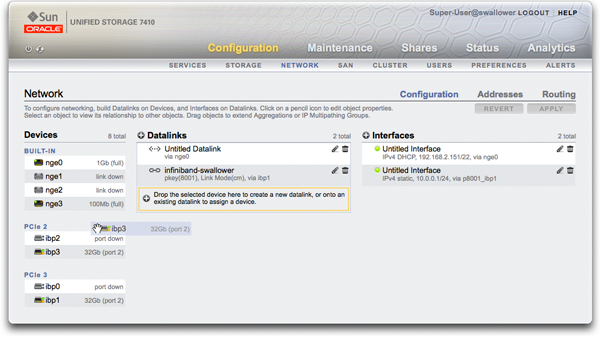

To configure ibp(x) interfaces, select the ibp(x) interface (or ipmp) you
want, and drag it to the Datalinks list to create the datalink on the
Configuration > Network screen.
-
Drag the Datalink to the Interfaces list to create a new interface.
-

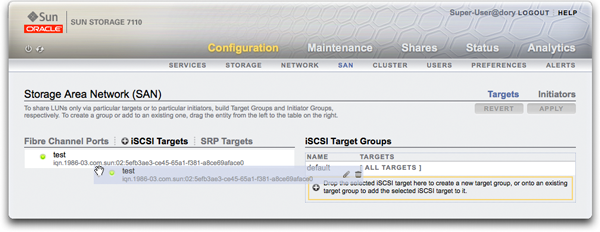

To create an iSER target, on the Configuration > SAN page, click the iSCSI
Targets link.
-
To add a new iSER target with an alias, click the
add icon.
-
To create a target group, drag the target you just created to the iSCSI Target
Group list.
-
To create an initiator, click the Initiator link and then click the iSCSI
initiators link.
-
To add a new initiator, click the
add icon.
-
Enter the Initiator IQN and an alias and click OK. Creating an initiator group
is optional but if you don't create a group, the LUN associated with the target
will be available to all initiators.
-
To create a group, drag the initiator to the iSCSI Initiator Groups
list.
-
To create a LUN, on the Shares page, click LUN.
-
Click the
add icon and associate the new LUN with target or initiator
groups you created already using the Target Group and Initiator Groups
menu.
