Removing MRN Entries

This procedure is used to remove an entry from an mated relay node (MRN) group or an entire MRN group from the database using the dlt-mrn command.

The dlt-mrn command uses these parameters.

:pc/pca/pci/pcn/pcn24 – The point code in the message after intermediate global title translation has been performed.

:pc1/pca1/pci1/pcn1/pcn241 – The first alternate point code value

:pc2/pca2/pci2/pcn2/pcn242 – The second alternate point code value

:pc3/pca3/pci3/pcn3/pcn243 – The third alternate point code value

:pc4/pca4/pci4/pcn4/pcn244 – The fourth alternate point code value

Note:

Refer to Chapter 2, "Configuring Destination Tables," in Database Administration - SS7 User's Guide for a definition of the point code types that are used on the EAGLE and for a definition of the different formats that can be used for ITU national point codes.

:all – Removes the entire MRN group or MRN set containing the point code specified by the pc/pca/pci/pcn/pcn24 parameter.

:mrnset – The MRN set ID that the MRN is assigned to, shown in the rtrv-mrn output. MRN set IDs are shown only if the Flexible GTT Load Sharing feature is enabled. If the Flexible GTT Load Sharing feature is enabled, the mrnset parameter must be specified with the dlt-mrn command.

:mapset - The MAP set ID assigned to the MRN set. This is the MAP set from which alternate routing indicator searches are performed. The mapset parameter is shown in the rtrv-mrn output only if the GTT Load Sharing with Alternate Routing Indicator feature is enabled. An MRN set or a point code in an MRN set cannot be removed if a MAP set is assigned to the MRN set.

If an entire MRN set is being removed in this procedure (with the all=yes parameter), or if a point code entry in an MRN set is being removed in this procedure, the reference to the MRN set specified in this procedure must be removed from any GTT or GTA entries before the point code can be removed from an MRN set, or before an entire MRN set can be removed.

Perform one of these procedures to remove the reference to the MRN set, depending on whether or not the EGTT feature is on. The status of the EGTT feature is shown in the rtrv-feat command output.

• If the EGTT feature is not on – Enter the rtrv-gtt command to verify the MRN set ID references. Perform the Changing a Global Title Translation procedure to remove the references to the MRN set.
• If the EGTT feature is on – Enter the rtrv-gta command to verify the MRN set ID references. Perform Changing Global Title Address Information to remove the references to the MRN set. The MRN set ID is not shown in the rtrv-ppsopt output.
• Any references to the MRN's point code and non-default MRN set ID in the rtrv-ppsopts output are removed in 9 of this procedure.
• Any references to the MRN's point code and non-default MRN set ID in the rtrv-gttact output are removed in 10 of this procedure.

Note:

If weight and in-service threshold values are assigned to a load shared or combined dominant/load shared MRN group or MRN set, and if by removing entries from this MRN group or MRN set, the MRN group or MRN set becomes a dominant MRN group or MRN set, all weight and threshold values are removed from the remaining entries in the MRN group or MRN set.

The mated relay node group being removed, or the point code value being removed from a MRN group must be in the database.

When removing point codes from an MRN group, the MRN group must contain the pc parameter value and at least one alternate point code value.

If the mrnset=dflt and all=yes parameters are specified with the dlt-mrn command, only the MRN group containing the point code value specified in the dlt-mrn command is removed from the default MRN set.

Canceling the RTRV-MRN Command

Because the rtrv-mrn command used in this procedure can output information for a long period of time, the rtrv-mrn command can be canceled and the output to the terminal stopped. There are three ways that the rtrv-mrn command can be canceled.

• Press the F9 function key on the keyboard at the terminal where the rtrv-mrn command was entered.
• Enter the canc-cmd without the trm parameter at the terminal where the rtrv-mrn command was entered.
• Enter the canc-cmd:trm=<xx>, where <xx> is the terminal where the rtrv-mrn command was entered, from another terminal other that the terminal where the rtrv-mrn command was entered. To enter the canc-cmd:trm=<xx> command, the terminal must allow Security Administration commands to be entered from it and the user must be allowed to enter Security Administration commands. The terminal’s permissions can be verified with the rtrv-secu-trm command. The user’s permissions can be verified with the rtrv-user or rtrv-secu-user commands.

For more information about the canc-cmd command, refer to Commands User's Guide.

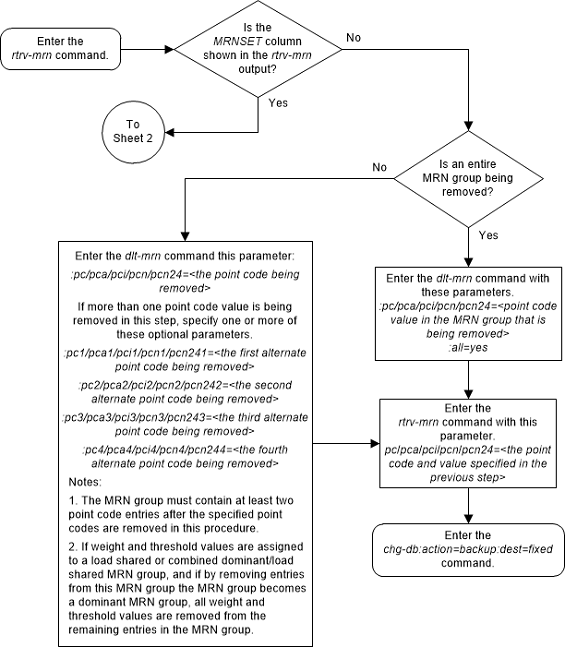

1. Display the mated relay nodes in the database using the rtrv-mrn command.

   This is an example of the possible output.

   rlghncxa03w 09-02-07 00:34:31 GMT EAGLE5 40.1.0

      MRNSET MAPSET  MAPPC          MAPSSN      PC             RC WT %WT THR
      DFLT   7       002-002-007        50      005-005-005    10 10  50  30
                                                006-001-001    10 10  50  30
                                                006-001-002    30 20 100  30
                                                006-001-003    40 20 100  30
                                                006-001-004    50 20 100  30

      MRNSET MAPSET  MAPPC          MAPSSN      PC             RC WT %WT THR
      1      5       255-001-002       252      005-005-005    10 10   4   1
                                                006-001-001    10 10   4   1
                                                006-001-002    10 30  12   1
                                                006-001-003    10 40  15   1
                                                006-001-005    10 40  15   1
                                                006-001-006    10 40  15   1
                                                006-001-007    10 40  15   1
                                                006-001-004    10 50  19   1
                                                006-001-008    20 20  25   1
                                                006-001-009    20 30  37   1
                                                006-001-010    20 30  37   1

   MRN table is (16 of 5990) 1% full

   Note:

   If the Weighted GTT Load Sharing feature is not enabled and turned on, the WT, %WT, THR columns and values are not shown in the rtrv-mrn output.

   Continue the procedure by performing one of these steps.

   • If the MRNSET column is not shown in the rtrv-mrn output, then the Flexible GTT Load Sharing feature is not enabled. Continue the procedure with 11.
   • If only the MRNSET column is shown in the rtrv-mrn output, continue the procedure with 4.

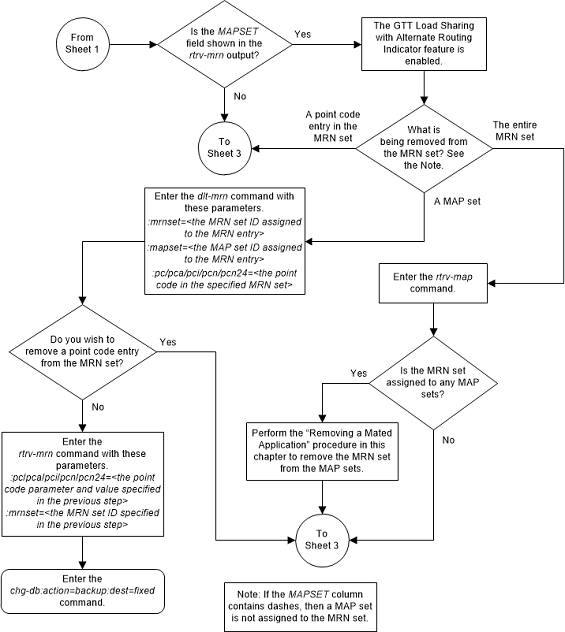

   • If the MRNSET and MAPSET columns are shown in the rtrv-mrn output, continue the procedure by performing one of these steps.
     • If an entire MRN set is being removed, continue the procedure with 3.
     • If a point code entry is being removed from the MRN set, continue the procedure with 4.
     • If the MAP set entry is being removed from the MRN set, continue the procedure with 2.

       Note:

       If the MAPSET column contains dashes, then a MAP set is not assigned to the MRN set.
2. Remove the MAP set from the MRN set using the dlt-mrn command with the mrnset, mapset, and pc/pca/pci/pcn/pcn24 parameters and values shown in 1. For this example, enter this command.

   dlt-mrn:mrnset=1:mapset=5:pca=005-005-005

   This message should appear.

   rlghncxa03w 09-02-07  11:48:16 GMT  EAGLE5 40.1.0
   DLT-MRN:  MASP A - COMPLTD

   If you wish to remove any point code entries from the MRN set, continue the procedure with 4.

   If you do not wish to remove any point code entries from the MRN set, continue the procedure with 12.

3. Display the mated applications by entering the rtrv-map command. This is an example of the possible output.

   rlghncxa03w 09-07-07 00:34:31 GMT EAGLE5 41.1.0

   MAPSET ID=DFLT   MRNSET ID=---- MRNPC   =   -----------
   PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
   255-001-000                 250 10  SOL *Y  *Y  grp01    ON

   MAPSET ID=1      MRNSET ID=1    MRNPC   =   005-005-005
   PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
   255-001-000                 251 10  SHR *Y  *Y  grp01    OFF
                  253-001-002  254 10  SHR *Y  *Y  grp01    OFF

   MAPSET ID=2      MRNSET ID=DFLT MRNPC   =   005-005-005
   PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
   255-001-000                 252 10  SOL *Y  *Y  grp01    ON

   MAPSET ID=DFLT   MRNSET ID=---- MRNPC   =   -----------
   PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
   255-001-000                 253 10  SHR *Y  *Y  grp01    OFF
                  253-001-004  254 10  SHR *Y  *Y  grp01    OFF

   MAPSET ID=3      MRNSET ID=---- MRNPC   =   -----------
   PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
   255-001-001                 255 10  DOM YES YES grp01    ON
                  253-001-005  254 20  DOM YES YES grp01    ON

   MAPSET ID=4      MRNSET ID=---- MRNPC   =   -----------
   PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
   255-001-001                 250 10  DOM YES YES grp01    OFF
                  253-001-001  254 20  DOM YES YES grp01    OFF

   MAPSET ID=DFLT   MRNSET ID=---- MRNPC   =   -----------
   PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
   255-001-002                 251 10  SHR *Y  *Y  grp01    OFF
                  255-001-002  254 10  SHR *Y  *Y  grp01    OFF

   MAPSET ID=5      MRNSET ID=---- MRNPC   =   -----------
   PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
   255-001-002                 252 10  DOM YES YES grp01    ON
                  255-001-003  254 20  DOM YES YES grp01    ON

   MAPSET ID=6      MRNSET ID=---- MRNPC   =   -----------
   PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
   255-001-002                 253 10  SHR *Y  *Y  grp01    ON
                  255-001-004  254 10  SHR *Y  *Y  grp01    ON

   MAPSET ID=7      MRNSET ID=---- MRNPC   =   -----------
   PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
   002-002-007                  50 10  COM YES *Y  grp01    OFF
                  002-002-008   30 10  COM YES *Y  grp01    OFF
                  002-002-009   30 10  COM YES *Y  grp01    OFF
                  002-002-010   30 20  COM YES *Y  grp01    OFF
                  002-002-011   30 20  COM YES *Y  grp01    OFF

   MAPSET ID=8      MRNSET ID=---- MRNPC   =   -----------
   PCI            Mate PCI     SSN RC MULT SRM MRC GRP NAME SSO
   2-001-2                     255 10  DOM NO  YES grp03    OFF
                  2-001-1      254 20  DOM NO  YES grp03    OFF

   MAPSET ID=9      MRNSET ID=---- MRNPC   =   -----------
   PCN            Mate PCN     SSN RC MULT SRM MRC GRP NAME SSO
   00347                       253 10  SHR *N  *N  grp05    OFF
                  01387        254 10  SHR *N  *N  grp05    OFF

   MAP TABLE IS  (25 of 36000)  1 % FULL

   If the MRN set is not assigned to any MAP sets, continue the procedure with 4.

   If the MRN set is assigned to any MAP sets, perform Removing a Mated Application to remove the MRN set from the MAP sets. After the MRN set has been removed from the MAP sets, continue the procedure with 4.

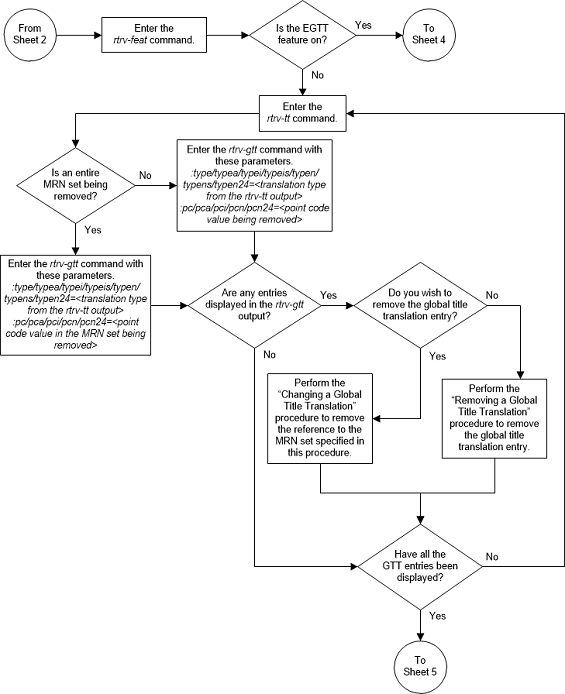

4. Verify whether or not the Enhanced GTT feature is on by entering the rtrv-feat command.

   If the EGTT feature is on, the EGTT field should be set to on.

   Note:

   The rtrv-feat command output contains other fields that are not used by this procedure. If you wish to see all the fields displayed by the rtrv-feat command, refer to the rtrv-feat command description in Commands User's Guide.

   If the EGTT feature is on, continue the procedure with 7.

   If the EGTT feature is off, continue the procedure with 5.

5. Display the translation types in the database by entering the rtrv-tt command.
   This is an example of the possible output.

   rlghncxa03w 07-05-25 09:42:31 GMT  EAGLE5 37.0.0
   TYPEA      TTN        NDGT
   1          lidb       5
   2          c800       10
   3          d700       6
   5          scp1       6
   10         scp2       6
   15         scp3       3

   ALIAS      TYPEA
   30         5
   40         10
   50         3
   65         3

   TYPEI      TTN        NDGT
   105        itudb      8

   ALIAS      TYPEI
   7          105

   TYPEN      TTN        NDGT
   120        dbitu      7

   ALIAS      TYPEN
   8          120

6. Before an MRN set can be removed from the database, or a point code entry can be removed from an MRN set, all references to the specific MRN set must be removed from the global title translations.

   Select a translation type from 5 . Display the global title translations assigned to the translation type from 5 that contain either the point code being removed from the MRN set, or a point code in the MRN set that is being removed in this procedure.

   For this example, enter this command.

   rtrv-gtt:typea=15:pca=006-001-002

   This is an example of the possible output.

   rlghncxa03w 08-10-25 09:48:31 GMT  EAGLE5 39.2.0
   TYPEA  TTN        NDGT
   15     scp3       3
   GTT TABLE IS  10 % FULL    (27000 of 269999)

   START GTA             END GTA               XLAT   RI     PC
   800                   900                   DPC    GT     006-001-002
        MRNSET=1     SSN=--- NGT=---

   Command Retrieved 1 Entries

   If entries are displayed, perform the Changing a Global Title Translation procedure and change the MRN reference to NONE, or remove the global title translation by performing the Removing a Global Title Translation procedure.

   If no entries are displayed, repeat this step with the other translation types displayed in 5 .

   When all the translation types have been displayed and all applicable global title translation entries have been changed or removed in this step, continue the procedure with 9.

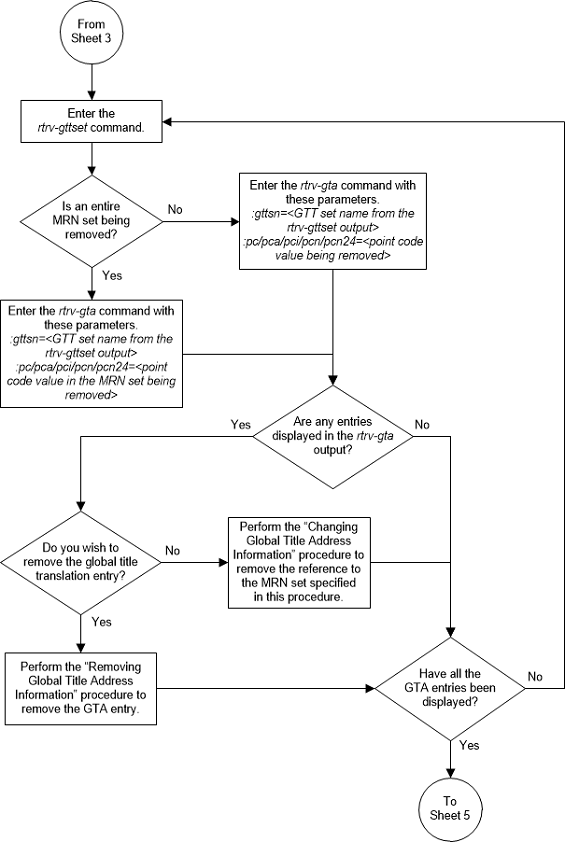

7. Display the existing GTT sets in the database using the rtrv-gttset command.

   This is an example of the possible output.

   rlghncxa03w 09-07-07 00:27:31 GMT EAGLE5 41.1.0
   GTTSN     NETDOM  NDGT
   lidb      ansi    10
   t800      ansi    10
   si000     itu     15
   imsi      itu     15
   abcd1234  itu     12

   GTT-SET table is (5 of 2000) 1% full.

8. Before an MRN set can be removed from the database, all references to the specific MRN set must be removed from the global title translations displayed in the rtrv-gta output. Before a point code entry can be removed from an MRN set, all references to the specific MRN set must be removed from the global title translations displayed in the rtrv-gta output.
   Select a GTT set name from 7 . Display the global title translations assigned to the GTT set name from 7 that contain either the point code being removed from the MRN set, or a point code in the MRN set that is being removed in this procedure.
   For this example, enter this command.

   rtrv-gta:gttsn=t800:pca=006-001-002

   This is an example of the possible output.

   rlghncxa03w 10-07-07 00:27:31 GMT EAGLE5 42.0.0

   GTTSN     NETDOM  SETTYPE  NDGT
   t800      ansi    CDGTA    10
   GTA TABLE IS   1 % FULL  (17 of 269999)

   START GTA  END GTA    XLAT   RI     PC
   8005550000 8005551999 dpcssn gt     006-001-002
        MRNSET=1     SSN=50   CCGT=no CGGTMOD=NO
        GTMODID=---------  TESTMODE=off
        OPTSN=--------- CGSELID=----- OPCSN=---------
        ACTSN=act10     PPMEASREQD= NO

   Command Retrieved 1 Entries

   If entries are displayed, perform Changing Global Title Address Information and change the MRN reference to NONE, or remove the entry by performing the Removing Global Title Address Information procedure.

   If no entries are displayed, repeat this step with the other GTT set names displayed in 7 .

   When all the GTT set names have been displayed and all applicable global title translation entries have been changed or removed in this step, continue the procedure with 9.

   Note:

   If the MRN being removed is in the default MRN set, continue the procedure with 11.

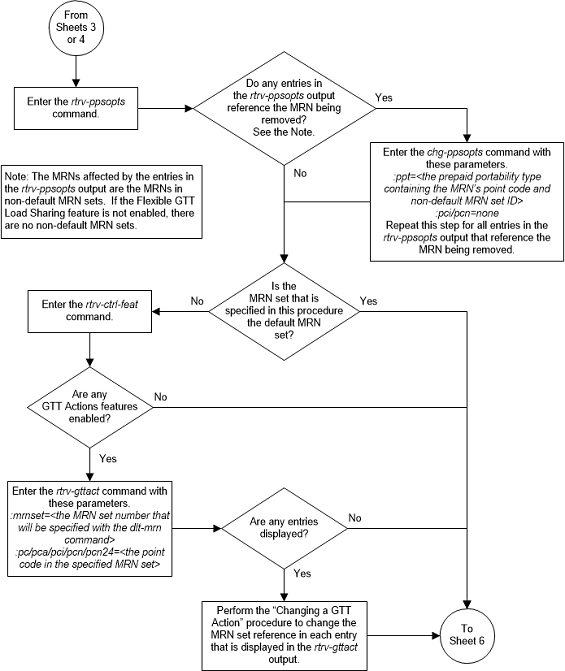

9. The MRN cannot be removed if the point code and non-default MRN set ID of the MRN is shown in the rtrv-ppsopts command output. Enter the rtrv-ppsopts command to verify that the MRN's point code and non-default MRN set ID is not shown in the rtrv-ppsopts output. This is an example of the possible output.

   rlghncxa03w 09-03-20 09:07:58 GMT  EAGLE5 40.1.0
   Prepaid SMS Options
   -------------------
   BPARTYCHK     = OFF
   PPT       PCA/PCI/PCN                   SSN       RI        Set ID
   ---       --------------------          ----      ---       ------
   1         PCI:    1-001-1               25        SSN       DFLT
   2         --------------------          NONE      GT        DFLT
   3         --------------------          NONE      GT        DFLT
   4         PCI:    1-001-1               30        GT        1
   5         --------------------          NONE      GT        DFLT
   6         --------------------          NONE      GT        DFLT
   7         --------------------          NONE      GT        DFLT
   8         PCI:    1-001-1               75        SSN       1
   9         --------------------          NONE      GT        DFLT
   10        --------------------          NONE      GT        DFLT
   11        --------------------          NONE      GT        DFLT
   12        --------------------          NONE      GT        DFLT
   13        --------------------          NONE      GT        DFLT
   14        --------------------          NONE      GT        DFLT
   15        --------------------          NONE      GT        DFLT
   16        --------------------          NONE      GT        DFLT
   17        --------------------          NONE      GT        DFLT
   18        --------------------          NONE      GT        DFLT
   19        --------------------          NONE      GT        DFLT
   20        --------------------          NONE      GT        DFLT
   21        --------------------          NONE      GT        DFLT
   22        --------------------          NONE      GT        DFLT
   23        --------------------          NONE      GT        DFLT
   24        --------------------          NONE      GT        DFLT
   25        --------------------          NONE      GT        DFLT
   26        --------------------          NONE      GT        DFLT
   27        --------------------          NONE      GT        DFLT
   28        --------------------          NONE      GT        DFLT
   29        --------------------          NONE      GT        DFLT
   30        --------------------          NONE      GT        DFLT
   31        --------------------          NONE      GT        DFLT
   32        --------------------          NONE      GT        DFLT

   GTA
   ---
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE
   NONE

   If the rtrv-ppsopts output shows any entries that reference the MRN's point code and non-default MRN set ID, remove the reference using the chg-ppsopts command with the prepaid portability type (the PPT value) that contains the reference and either the pci=none or pcn=none parameters (depending on the type of point code the prepaid portability type contains).

   chg-ppsopts:ppt=8:pci=none

   This is an example of the possible output.

   rlghncxa03w 07-05-20 09:07:58 GMT EAGLE5 37.0.0
   CHG-PPSOPTS: MASP A - COMPLTD

   Repeat this step for other entries shown in the rtrv-ppsopts output that contain the MRN's point code and non-default MRN set ID.

10. The MRN cannot be removed if the point code and non-default MRN set ID of the MRN is shown in the rtrv-gttact command output. Enter the rtrv-gttact command to verify that the MRN's point code and non-default MRN set ID is not shown in the rtrv-gttact output. For this example, enter this command.

    rtrv-gttact:pca=006-001-002:mrnset=1

    This is an example of the possible output.

    rlghncxa03w 10-07-20 09:07:58 GMT  EAGLE5 42.0.0

    ACTID      ACTION   PCA           RI  SSN  MRNSET  MAPSET
    -----------------------------------------------------------------------
    action3    dup      006-001-002   gt  ---  1       -----
         CDGTMODID = ---------  CGGTMODID = ---------
         USEICMSG = off     CGPCOGMSG = dflt       CGPCA = ---


    GTT-ACT  table is (3 of 2000) 1% full.

    If the rtrv-gttact output shows any entries that reference the MRN's point code and non-default MRN set ID, performing the Changing a GTT Action procedure to change the MRN set that is referenced in the GTT action to reference another MRN set or to reference no MRN set.

    Repeat this step for other entries shown in the rtrv-gttact output that contain the MRN's point code and non-default MRN set ID.

11. Remove the mated relay node from the MRN group or MRN set using the dlt-mrn command with a point code from the rtrv-mrn command output shown in 1 . For this example, enter this command.

    Note:

    If the MRNSET column is shown in the rtrv-mrn output in 1 , then the mrnset parameter must be specified with the dlt-mrn command. The mrnset parameter value must be the MRN set ID containing the point code specified in this step. If the MRNSET column is not shown in the rtrv-mrn output in 1 , the mrnset parameter cannot be specified with the dlt-mrn command.

    For this example, enter this command.

    dlt-mrn:pca=006-001-002:mrnset=1

    Note:

    If the entire MRN group or MRN set is not being removed in this step, the MRN group or MRN set must contain at least two entries after this step is performed.

    This message should appear.

    rlghncxa03w 07-05-07  11:48:16 GMT  EAGLE5 37.0.0
    DLT-MRN:  MASP A - COMPLTD

    Note:

    If the MRNSET column is not shown in 1 and an entire MRN group is being removed from the database, enter the dlt-mrn command with the point code and the all=yes parameter. For this example, enter the dlt-mrn:pca=006-001-002:all=yes command.

    Note:

    If the MRNSET column is shown in 1 and an entire MRN set is being removed from the database, enter the dlt-mrn command with the point code, the mrnset parameter value containing a point code in the MRN set, and the all=yes parameter. For this example, enter the dlt-mrn:pca=006-001-002:mrnset=1:all=yes command. If the mrnset=dflt and all=yes parameters are specified with the dlt-mrn command, only the MRN group containing the point code value specified in the dlt-mrn command is removed from the default MRN set.

    Note:

    If weight and in-service threshold values are assigned to a load shared or combined dominant/load shared MRN group or MRN set, and if by removing entries from this MRN group or MRN set, the MRN group or MRN set becomes a dominant MRN group or MRN set, all weight and threshold values are removed from the remaining entries in the MRN group or MRN set.
12. Verify the changes using the rtrv-mrn command with the point code specified in 2 or 11.
    If the mrnset parameter was specified in 11 , the mrnset parameter and the mrnset parameter value specified in 11 must be specified in this step. For this example, enter this command.

    rtrv-mrn:pca=006-001-002:mrnset=1

    This message should appear.

    E4483 Cmd Rej: PC does not exist in specified MRNSET

    Note:

    When an entire MRN group is removed from the default MRN set, this message, E4483, will appear when the rtrv-mrn command is specified with the mrnset=dflt and the point code value specified in 11.

    If an entire MRN set was removed in 11 , the following message appears when this step is performed.

    E4480 Cmd Rej: Specified MRNSET does not exist

    If the Flexible GTT Load Sharing feature is not enabled, the mrnset parameter cannot be specified with the rtrv-mrn command. When this step is performed (without the Flexible GTT Load Sharing feature enabled and without the mrnset parameter), the following message appears.

    E2849 Cmd Rej: PC must already exist in the MRN table

    If the MAP set was removed from the MRN set in 2, enter the rtrv-mrn command with the mrnset and point code parameters and values specified in 2. For this example, enter this command.

    rtrv-mrn:mrnset=1:pca=005-005-005

    This is an example of the possible output.

    rlghncxa03w 09-02-07 00:34:31 GMT EAGLE5 40.1.0

       MRNSET MAPSET  MAPPC          MAPSSN      PC             RC WT %WT THR
       1      -----   -----------       ---      005-005-005    10 10   4   1
                                                 006-001-001    10 10   4   1
                                                 006-001-002    10 30  12   1
                                                 006-001-003    10 40  15   1
                                                 006-001-005    10 40  15   1
                                                 006-001-006    10 40  15   1
                                                 006-001-007    10 40  15   1
                                                 006-001-004    10 50  19   1
                                                 006-001-008    20 20  25   1
                                                 006-001-009    20 30  37   1
                                                 006-001-010    20 30  37   1

    MRN table is (16 of 5990) 1% full

13. Backup the new changes using the chg-db:action=backup:dest=fixed command.

    These messages should appear, the active Maintenance and Administration Subsystem Processor (MASP) appears first.

    BACKUP (FIXED) : MASP A - Backup starts on active MASP.
    BACKUP (FIXED) : MASP A - Backup on active MASP to fixed disk complete.
    BACKUP (FIXED) : MASP A - Backup starts on standby MASP.
    BACKUP (FIXED) : MASP A - Backup on standby MASP to fixed disk complete.

Figure 2-134 Remove MRN Entries - Sheet 1 of 6

Figure 2-135 Remove MRN Entries - Sheet 2 of 6

Figure 2-136 Remove MRN Entries - Sheet 3 of 6

Figure 2-137 Remove MRN Entries - Sheet 4 of 6

Figure 2-138 Remove MRN Entries - Sheet 5 of 6

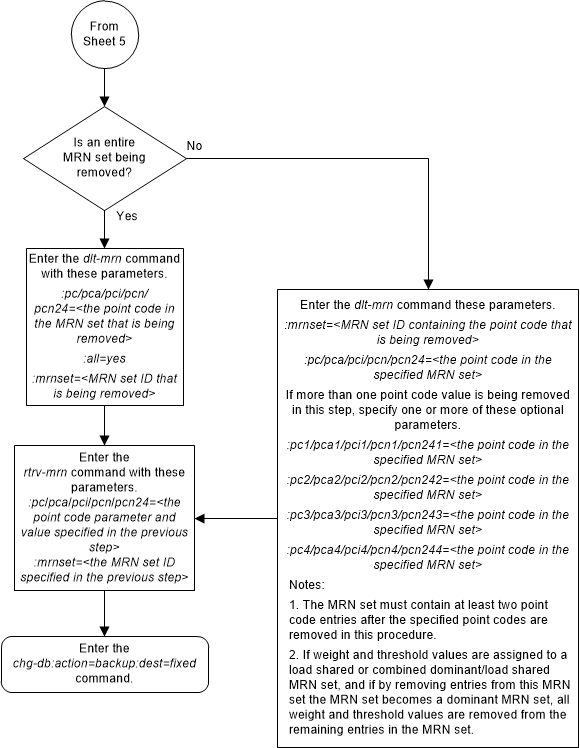

Figure 2-139 Remove MRN Entries - Sheet 6 of 6
