This procedure is used to change existing global title
address (GTA) information in the database using the
chg-gta command.
The
chg-gta command uses these parameters.
:gttsn – The GTT set
name.
:gta – The start of
global title address.
:egta – The end of
global title address.
:pc/pca/pci/pcn/pcn24 –
The translated point code.
:ssn – The translated
subsystem number.
:ri – The routing
indicator.
:xlat – The translate
indicator.
:ccgt – The cancel
called global title indicator.
:force – The check
mated application override.
:actsn – The name of
the GTT action set that will be assigned to the GTA entry as shown in the
rtrv-gttaset output.
:gtmodid – The name of
the GT modification identifier that will be assigned to the GTA entry as shown
in the
rtrv-gtmod output and provisioned in
the
Adding Global Title Modification Information
procedure. The GT modification identifier contains the information to modify
the numbering plan, nature of address indicator, and the prefix or suffix
digits in the called party address or calling party address portion of outbound
MSUs.
:ppmeasreqd – This
parameter specifies whether per-path measurements are required for the GTA
entry.
:mrnset – The MRN set
ID, shown in the
rtrv-mrn command. The
mrnset parameter can be specified only
if the Flexible GTT Load Sharing feature is enabled. If the Flexible GTT Load
Sharing feature is enabled and the
ri parameter value will be
ri=gt when this procedure is
completed, and the original global title translation being changed in this
procedure did not have an MRN set ID assigned to it, the
mrnset parameter must be specified
with the
chg-gta command. The MRN set ID
assigned to the global title translation in this step must contain the point
code value that will be assigned to the global title translation being changed
in this step.
:mapset – The MAP set
ID, shown in the
rtrv-mrn command. The
mapset parameter can be specified only
if the Flexible GTT Load Sharing feature is enabled. If the Flexible GTT Load
Sharing feature is enabled and the
ri parameter value will be
ri=ssn when this procedure is
completed, and the original global title translation being changed in this
procedure did not have a MAP set ID assigned to it, the
mapset parameter must be specified
with the
chg-gta command. The MAP set ID
assigned to the global title translation in this step must contain the point
code and SSN values that will be assigned to the global title translation being
changed in this step.
The status of the Flexible GTT Load Sharing feature is
shown in the
rtrv-ctrl-feat output. To enable the
Flexible GTT Load Sharing feature, perform
Activating the Flexible GTT Load Sharing Feature.
:optsn – The optional
GTT set name shown in the
rtrv-gttset output.
Table 4-38
shows the types of GTT sets that can be specified for the
optsn parameter based on the type of
GTT set that is specified for the
gttsn parameter and the features that
are enabled and turned on.
Table 4-38 GTTSN and OPTSN Combinations
| GTTSN Set Type | OPTSN Set Type |
|---|---|
| Origin-Based SCCP Routing Feature Enabled Only | |
| CDGTA |
CGGTA, CGPC The OPC GTT set type can be specified with a CDGTA GTT set,
but the OPC GTT set is specified with the
|
| CGGTA | CGSSN |
| CGPC | CGSSN |
| CGSSN | The
optsn parameter cannot be specified.
|
| OPC | CGSSN |
| Flexible Linkset Optional Based Routing Enabled and Turned On Only | |
| CDGTA | CDGTA, DPC, CDSSN |
| CDSSN | CDSSN, DPC, CDGTA |
| DPC | DPC, CDSSN, CDGTA |
| Origin-Based SCCP Routing Enabled and Flexible Linkset Optional Based Routing Enabled and Turned On Only | |
| CDGTA |
CDGTA, CGGTA, CGPC, CGSSN, CDSSN, DPC, OPC The OPC GTT set type can be specified with a CDGTA GTT set,
but the OPC GTT set is specified with the
|
| CGGTA | CDGTA, CGGTA, CGPC, CGSSN, OPC, CDSSN, DPC |
| CGPC | CDGTA, CGGTA, CGPC, CGSSN, OPC, CDSSN, DPC |
| CGSSN | CDGTA, CGGTA, CGPC, CGSSN, OPC, CDSSN, DPC |
| OPC | CDGTA, CGGTA, CGPC, CGSSN, CDSSN, DPC, OPC |
| CDSSN | CDGTA, CGGTA, CGPC, CGSSN, OPC, DPC, CDSSN |
| DPC | CDGTA, CGGTA, CGPC, CGSSN, OPC, CDSSN, DPC |
| Flexible Linkset Optional Based Routing and TCAP Opcode Based Routing Feature Enabled and Turned On Only | |
| CDGTA | CDGTA, OPCODE, DPC, CDSSN |
| CDSSN | CDSSN, OPCODE, DPC, CDGTA |
| OPCODE | OPCODE, CDSSN, DPC, CDGTA |
| DPC | DPC, OPCODE, CDSSN, CDGTA |
| Origin-Based SCCP Routing Enabled, Flexible Linkset Optional Based Routing and TCAP Opcode Based Routing Feature Enabled and Turned On | |
| CDGTA |
CDGTA, CGGTA, CGPC, CGSSN, CDSSN, OPCODE, DPC, OPC The OPC GTT set type can be specified with a CDGTA GTT set,
but the OPC GTT set is specified with the
|
| CGGTA |
CDGTA, CGGTA, CGPC, CGSSN, CDSSN, OPCODE, OPC, DPC The
|
| CGPC |
CDGTA, CGGTA, CGPC, CGSSN, CDSSN, OPCODE, OPC, DPC The
|
| CGSSN |
CDGTA, CGGTA, CGPC, CGSSN, CDSSN, OPCODE, OPC, DPC The
|
| OPC | CDGTA, CGGTA, CGPC, CGSSN, CDSSN, OPCODE, OPC, DPC |
| CDSSN |
CDGTA, CGGTA, CGPC, CGSSN, CDSSN, OPCODE, DPC, OPC The OPC GTT set type can be specified with a CDSSN GTT set,
but the OPC GTT set is specified with the
|
| OPCODE |
CDGTA, CGGTA, CGPC, CGSSN, CDSSN, OPCODE, DPC, OPC The OPC GTT set type can be specified with an OPCODE GTT set,
but the OPC GTT set is specified with the
|
| DPC |
CDGTA, CGGTA, CGPC, CGSSN, CDSSN, OPCODE, DPC, OPC The OPC GTT set type can be specified with a DPC GTT set, but
the OPC GTT set is specified with the
|
:opcsn – The OPC GTT
set name shown in the
rtrv-gttset output.
:cgssn – The CGPA
subsystem number or the beginning value of a range of CGPA subsystem numbers
:ecgssn – The end value
of a range of CGPA subsystem numbers
:cgpc/cgpca/cgpci/cgpcn/cgpcn24 – The CGPA point code
:opc/opca/opci/opcn/opcn24 – The originating point code
:dpc/dpca/dpci/dpcn/dpcn24 – The destination point code
:cdssn – The CdPA
subsystem number or the beginning value of a range of CdPA subsystem numbers
:ecdssn – The end value
of a range of CdPA subsystem numbers
:cgselid – The CgPA
selector ID
:cdselid – The CdPA
selector ID
:fallback – The action
to be taken when the final translation does not match while performing global
title translation using a FLOBR-specific GTT mode.
:testmode – This
parameter invokes a field-safe test tool to debug the rules used for the
Flexible Linkset Optional Based Routing or TCAP Opcode Based Routing features.
:cgcnvsn – The CgPA
conversion set name
:family – The ANSI TCAP
family field in the incoming message
:opcode – The TCAP
opcode field in the incoming message
:pkgtype – The TCAP
package type.
Table 4-46
shows the ANSI and ITU TCAP package types.
:acn – The application
context name (ACN) field in the ITU TCAP message
:loopset - The value of
this parameter is the name of the
loopset that is assigned to the GTA.
This parameter can be specified only if the SCCP Loop Detection feature is
enabled. Enter the
rtrv-loopset command to verify that
the SCCP Loop Detection feature is enabled. Perform the
Activating the SCCP Loop Detection Feature
procedure, if necessary.
:cggtmod - The calling
party GT modification indicator. This parameter specifies whether or not
calling party global title modification is required. The values for this
parameter are
yes (calling party global title
modification is required) or
no (calling party global title
modification is not required). This parameter can be specified only if the
AMGTT or AMGTT CgPA Upgrade feature is enabled. Enter the
rtrv-ctrl-feat command to verify that
either the AMGTT or AMGTT CgPA Upgrade feature is enabled. If the AMGTT or
AMGTT CgPA Upgrade feature is not enabled, perform the
Activating the Advanced GT Modification Feature
procedure to enable the required feature.
:split – Split or
change the range of global title addresses. If the
split=yes parameter is specified, the
existing range of global title addresses is split based on the values of the
gta and
egta parameters. New entries are
created in the global title translation table for each new range created by the
split parameter. The attributes of
each new entry, other than the range of global title addresses, are the same as
the original global title translation entry, if these values are not changed
when the
chg-gta command is executed. If other
attributes are changed when the
chg-gta command is executed, the
changed values are in each new entry created by the
split parameter.
If the
split=no parameter is specified, the
range of global title addresses is replaced with the new range of global title
addresses specified by the
gta and
egta parameters.
The default value for the
split parameter is
yes.
Caution:
Changes to the range of global title addresses occur only if the both thegta and
egta parameters are specified and the
values for either of these parameters, or both parameters are different from
the original values in the global title translation. If the
gta and
egta parameters are specified for the
global title translation being changed, and you do not wish to change either of
these values, make sure the
gta and
egta values shown in the
rtrv-gta output for the global title
translation being changed are specified in the
chg-gta command.
The following examples illustrate how the
split parameter works and ranges of
global title addresses can be changed.
A global title translation entry in the database contains this range of global title addresses, 5556000 - 5558000.
rlghncxa03w 10-07-07 00:28:31 GMT EAGLE5 42.0.0
GTTSN NETDOM NDGT
tst1 ansi 7
GTA TABLE IS (17 of 269999) 1 % FULL
START GTA END GTA XLAT RI PC
5556000 5558000 dpcssn ssn 001-255-252
MAPSET=1 SSN=254 CCGT=no CGGTMOD=NO
GTMODID=modid2 TESTMODE=off
LOOPSET = rtp2 FALLBACK=sysdflt
OPTSN=--------- CGSELID=----- OPCSN=gttset12
ACTSN=--------- PPMEASREQD= NO
The global title translation is changed with a new range
of global title addresses, 5556800 - 5559000, and with the
split=no parameter.
chg-gta:ttn=tst1:gta=5556800:egta=5559000:split=no
The range of global title addresses is changed to 5556800 - 5559000.
rlghncxa03w 10-07-07 00:28:31 GMT EAGLE5 42.0.0
GTTSN NETDOM NDGT
tst1 ansi 7
GTA TABLE IS (17 of 269999) 1 % FULL
START GTA END GTA XLAT RI PC
5556800 5559000 dpcssn ssn 001-255-252
MAPSET=1 SSN=254 CCGT=no CGGTMOD=NO
GTMODID=modid2 TESTMODE=off
LOOPSET = rtp2 FALLBACK=sysdflt
OPTSN=--------- CGSELID=----- OPCSN=gttset12
ACTSN=--------- PPMEASREQD= NO
In this example, the range of global title addresses is
made smaller by specifying the range of global title addresses 5556500 -
5557500, and with the
split=no parameter.
chg-gta:ttn=tst1:gta=5556500:egta=5557500:split=no
rlghncxa03w 10-07-07 00:28:31 GMT EAGLE5 42.0.0
GTTSN NETDOM NDGT
tst1 ansi 7
GTA TABLE IS 1 % FULL (17 of 269999)
START GTA END GTA XLAT RI PC
5556500 5557500 dpcssn ssn 001-255-252
MAPSET=1 SSN=254 CCGT=no CGGTMOD=NO
GTMODID=modid2 TESTMODE=off
LOOPSET = rtp2 FALLBACK=sysdflt
OPTSN=--------- CGSELID=----- OPCSN=gttset12
ACTSN=--------- PPMEASREQD= NO
In this next example, the range of global title
addresses is split with the
gta=5556900 and
egta=5557000 defining where the splits
occur.
chg-gta:ttn=tst1:gta=5556900:egta=5557000
Since the default value for the
split parameter is
yes, the
split=yes parameter does not have to
be specified to split the range of global title addresses. When the
chg-gta command is entered, three new
global title translation entries with the new global title address ranges are
created, and the original global title translation entry is removed from the
database. Since the
gta and
egta parameter values specified in
this example are within the original range of global title addresses, the
original range of global title addresses is split into three new ranges. The
START GTA value of the first new range
is the original
START GTA value and the
END GTA value is the
gta parameter value minus one. The
START GTA value of the second new
range is the
gta parameter value and the
END GTA value is the
egta parameter value. The
START GTA value of the third new range
is the
egta parameter value plus 1 and the
END GTA value is the original
END GTA value.
rlghncxa03w 10-07-07 00:28:31 GMT EAGLE5 42.0.0
GTTSN NETDOM NDGT
tst1 ansi 7
GTA TABLE IS 1 % FULL (17 of 269999)
START GTA END GTA XLAT RI PC
5556000 5556899 dpcssn ssn 001-255-252
MAPSET=1 SSN=254 CCGT=no CGGTMOD=NO
GTMODID=modid2 TESTMODE=off
LOOPSET = rtp2 FALLBACK=sysdflt
OPTSN=--------- CGSELID=----- OPCSN=gttset12
ACTSN=--------- PPMEASREQD= NO
rlghncxa03w 10-07-07 00:28:31 GMT EAGLE5 42.0.0
GTTSN NETDOM NDGT
tst1 ansi 7
GTA TABLE IS 1 % FULL (17 of 269999)
START GTA END GTA XLAT RI PC
5556900 5557000 dpcssn ssn 001-255-252
MAPSET=1 SSN=254 CCGT=no CGGTMOD=NO
GTMODID=modid2 TESTMODE=off
LOOPSET = rtp2 FALLBACK=sysdflt
OPTSN=--------- CGSELID=----- OPCSN=gttset12
ACTSN=--------- PPMEASREQD= NO
rlghncxa03w 10-07-07 00:28:31 GMT EAGLE5 42.0.0
GTTSN NETDOM NDGT
tst1 ansi 7
GTA TABLE IS 1 % FULL (17 of 269999)
START GTA END GTA XLAT RI PC
5557001 5558000 dpcssn ssn 001-255-252
MAPSET=1 SSN=254 CCGT=no CGGTMOD=NO
GTMODID=modid2 TESTMODE=off
LOOPSET = rtp2 FALLBACK=sysdflt
OPTSN=--------- CGSELID=----- OPCSN=gttset12
ACTSN=--------- PPMEASREQD= NO
In this next example, the global title translation
containing the range of global title addresses 5557001 - 5558000 is split into
two new ranges with the
gta=5557501 and
egta=5558000 defining where the split
occurs.
chg-gta:ttn=tst1:gta=5557501:egta=5558000:split=yes
When the
chg-gta command is entered, two new
global title translation entries with the new global title address ranges are
created, and the original global title translation entry is removed from the
database. The
START GTA value of the first new range
is the original
START GTA value and the
END GTA value is the
gta parameter value minus one. The
START GTA value of the second new
range is the
gta parameter value and the
END GTA value is the
egta parameter value. In this example,
the
egta parameter is also the original
END GTA value.
rlghncxa03w 10-07-07 00:28:31 GMT EAGLE5 42.0.0
GTTSN NETDOM NDGT
tst1 ansi 7
GTA TABLE IS 1 % FULL (17 of 269999)
START GTA END GTA XLAT RI PC
5557001 5557500 dpcssn ssn 001-255-252
MAPSET=1 SSN=254 CCGT=no CGGTMOD=NO
GTMODID=modid2 TESTMODE=off
LOOPSET = rtp2 FALLBACK=sysdflt
OPTSN=--------- CGSELID=----- OPCSN=gttset12
ACTSN=--------- PPMEASREQD= NO
rlghncxa03w 10-07-07 00:28:31 GMT EAGLE5 42.0.0
GTTSN NETDOM NDGT
tst1 ansi 7
GTA TABLE IS 1 % FULL (17 of 269999)
START GTA END GTA XLAT RI PC
5557501 5558000 dpcssn ssn 001-255-252
MAPSET=1 SSN=254 CCGT=no CGGTMOD=NO
GTMODID=modid2 TESTMODE=off
LOOPSET = rtp2 FALLBACK=sysdflt
OPTSN=--------- CGSELID=----- OPCSN=gttset12
ACTSN=--------- PPMEASREQD= NO
The range of global title addresses can be changed so long as the new range of global title addresses does not overlap an existing range of global title addresses.
For example, using the range of global title addresses
from the previous examples, 5556000 - 5558000, you wish to extend the range of
global title addresses to 5556000 - 5559000. The range of global title
addresses can be extended to 5559000 by specifying the
egta=5559000 and
split=no parameters with the
chg-gta command. However, if another
range of global title addresses begins with the value 5558500, the
egta=5559000 parameter cannot be
specified with the
chg-gta command as the new range
created with the
egta=5559000 parameter would overlap
the range of global title addresses beginning with the value 5558500. In this
situation, the maximum value for the
egta parameter would be 5558499.
Note:
The command line on the terminal can contain up to 150 characters. If the parameters and values specified with thechg-gta command are too long to fit on
the
chg-gta command line, perform the
chg-gta command as many times as
necessary to complete the GTA entry.
The GTT set name (gttsn) must be specified and match that of an existing
GTT set name. Use the
rtrv-gttset command to view the GTT
set names. If the specified GTT set is an ANSI set, the
pc or
pca value must be a valid ANSI point
code. If the specified GTT set is an ITU set, the
pci,
pcn, or
pcn24 value must be a valid ITU point
code. The point code (PC) must be a full point code and cannot be out of range.
If the ANSI/ITU SCCP Conversion feature is enabled, the domain (ANSI or ITU) of
the GTT set name and point code do not have to be the same.
Note:
See Chapter 2, Configuring Destination Tables in Database Administration - SS7 User's Guide for a definition of the point code types that are used on the EAGLE and for a definition of the different formats that can be used for ITU national point codes.If the end of the global title address (EGTA) parameter is specified, GTA and EGTA must have
the same number of digits, but EGTA must be larger than GTA. The range, as
specified by the start and end global title addresses, must be in the database
for the specified translation type. Each range may be contained completely
within a previously defined range, in which case splitting is performed.
However, if the ranges overlap, splitting cannot occur, and the
chg-gta command is rejected with this
message.
E2401 Cmd Rej:GTA range overlaps a current
range
Along with error message 2401, a list of the overlapped global title addresses is displayed as shown in the following example.
rlghncxa03w 09-05-07 00:28:31 GMT EAGLE5 41.0.0 The following GTA ranges overlap the input GTA range START GTA END GTA 8005550000 8005551999 8005552000 8005553999 8005554000 8005555999 CHG-GTA: MASP A - Command Aborted
XLAT parameter must be set to
DPCSSN and the value of the
RI parameter must be set to
SSN. If the
SSN parameter is specified and a point
code is the STP’s True PC, then the subsystem number specified must exist in
the SS-APPL table. This can be verified with the
rtrv-ss-appl command. To execute the
rtrv-ss-appl command, these features
must be enabled, and turned on if necessary.
LNP TNs with a quantity greater than
zero in the
rtrv-ctrl-feat command output
ATINP in the
rtrv-ctrl-feat command output with
the status set to on
EIR in the
rtrv-ctrl-feat command output as
being permanently or temporarily enabled and with the status set to on.
INP in the
rtrv-ctrl-feat command output with
the status set to on.
VFLEX in the
rtrv-ctrl-feat command output with
the status set to on.
ANSI-41 INP Query in the
rtrv-ctrl-feat command output with
the status set to on.
ANSI41 AIQ in the
rtrv-ctrl-feat command output.
Note:
The Local Number Portability (LNP), Equipment Identity Register (EIR), INAP Number Portability (INP), V-Flex, ATINP, ANSI41 AIQ, or ANSI-41 INP Query features must be purchased before you can enable the LNP, ATINP, or ANSI41 AIQ features, or enable and turn on the EIR, INP, V-Flex, or ANSI-41 INP Query features. If you are not sure whether you have purchased the LNP, EIR, or INP, V-Flex, ATINP, or ANSI-41 INP Query feature, contact your Oracle Sales Representative or Account Representative.Once the LNP, ATINP, or ANSI41 AIQ feature is enabled
with the
enable-ctrl-feat command, or the
EIR, INP, V-Flex, and ANSI-41 INP Query features are turned on with the
chg-ctrl-feat command, they cannot
be turned off or disabled.
A point code must exist as a destination in the route table or reside in a cluster that exists as a destination in the route table (for global title routing) unless the point code is the STP’s True PC.
If a final GTT is specified (ri=ssn) with the
xlat=dpc parameter, and the value of
the
force parameter is
no, the point code must be in the
Remote Point Code/Mated Application table. Verify this by entering the
rtrv-map command. If this point code
and subsystem number is not defined as a mated application, perform one of
these procedures to add the point code and subsystem number to the database as
a mated application:
The point code and subsystem number do not have to be in
the mated application table when the
chg-gta command is executed when these
parameters are specified with the
chg-gta command.
ri=gt
xlat=dpcssn and
ri=ssn (provided the point code
value is not the STP’s true point code)
If the point code and subsystem are not in the mated
application table when either of these parameters are specified with the
chg-gta command, the EAGLE creates a
solitary mated application in the mated application table using the point code
and subsystem values specified in the
chg-gta command.
xlat=none parameter is specified for a
global title translation, the global title translation entry can contain any
data except for the routing data defined by these parameters.
pc/pca/pci/pcn/pcn24
ssn
ri
force=yes
The
GTA
Entries with the XLAT=NONE Parameter part of the
GTT Actions
section described the behavior of the
xlat=none parameter.
chg-gta command.
The GTT table may not be full.
The values specified for the
gta and
egta parameters can be decimal digits
(0-9) or hexadecimal digits (0-9, a-f, A-F). Hexadecimal digits can be
specified only if the Hex Digit Support for GTT feature is enabled. Verify the
status of the Hex Digit Support for GTT feature with the
rtrv-ctrl-feat
command. Refer to the
Hex Digit Support for GTT
section for more information on this feature. If the Hex Digit Support for GTT
feature is not enabled, perform the
Activating the Hex Digit Support for GTT Feature
procedure to enable the Hex Digit Support for GTT feature.
Canceling the
RTRV-GTA Command
Because the
rtrv-gta command used in this
procedure can output information for a long period of time, the
rtrv-gta command can be canceled and
the output to the terminal stopped. There are three ways that the
rtrv-gta command can be canceled.
F9 function key on the keyboard at
the terminal where the
rtrv-gta command was entered.
canc-cmd without the
trm parameter at the terminal where
the
rtrv-gta command was entered.
canc-cmd:trm=<xx>, where
<xx> is the terminal where the
rtrv-gta command was entered, from
another terminal other that the terminal where the
rtrv-gta command was entered. To
enter the
canc-cmd:trm=<xx> command, the
terminal must allow Security Administration commands to be entered from it and
the user must be allowed to enter Security Administration commands. The
terminal’s permissions can be verified with the
rtrv-secu-trm command. The user’s
permissions can be verified with the
rtrv-user or
rtrv-secu-user commands.
For more information about the
canc-cmd command, go to
Commands User's Guide.
Table 4-39 GTA Parameter Combinations - No SETTYPE Column in RTRV-GTTSET Output
| Mandatory Parameters |
GTTSN – The GTT set name from the
GTTSN column of the
rtrv-gttset output and from the GTTSN column
of the
rtrv-gta output.
|
GTA – The GTA value assigned to the
GTTSN value in the
rtrv-gta output.
|
If only the EGTT feature is on, the
SETTYPE column is not shown in the
rtrv-gttset output.
|
| Optional Parameters |
|
EGTA – 1 - 21 digits or 1 - 21 hexadecimal digits. Default = same as the GTA value. Hexadecimal digits (0-9, a-f, A-F) can be specified for the
The length of the EGTA value must be the same as the GTA value. |
There are other optional parameters that can be used with
this entry. Refer to
Table 4-48
for these parameters. At least one optional parameter must be specified with
the
chg-gta command. Unless a default value is
shown for a parameter in
Table 4-48,
the value of any optional parameter that is not specified with the
chg-gta command is not changed.
|
Table 4-40 GTTSN = CDGTA GTT Set Parameter Combinations
| XLAT=DPCNGT, DPCSSN, or DPC | XLAT=NONE |
|---|---|
| Mandatory Parameters | |
GTTSN – The GTT set name from the
GTTSN column of the
rtrv-gttset output containing the value
CDGTA in the
SETTYPE column and from the GTTSN column of
the
rtrv-gta output.
|
GTTSN – The GTT set name from the
GTTSN column of the
rtrv-gttset output containing the value
CDGTA in the
SETTYPE column and from the GTTSN column of
the
rtrv-gta output.
|
GTA – The
GTA value assigned to the
GTTSN value in the
rtrv-gta output.
|
GTA – The
GTA value assigned to the
GTTSN value in the
rtrv-gta output.
|
| Optional Parameters | |
|
EGTA – 1 - 21 digits or 1 - 21 hexadecimal digits. Default = same as the GTA value. Hexadecimal digits (0-9, a-f, A-F) can be specified for the
The length of the EGTA value must be the same as the GTA value. |
EGTA – 1 - 21 digits or 1 - 21 hexadecimal digits. Default = same as the GTA value. Hexadecimal digits (0-9, a-f, A-F) can be specified for the
The length of the EGTA value must be the same as the GTA
value. These parameters cannot be specified with the
xlat=none parameter.
|
|
OPTSN – The GTT set name from the
The current value of this parameter must be changed to the
value
|
|
|
OPCSN – The GTT set name from the
|
|
There are other optional parameters
that can be used with this entry. Refer to
Table 4-48
for these parameters. At least one optional parameter must be specified with
the
chg-gta command. Unless a default value is
shown for a parameter in
Table 4-48,
the value of any optional parameter that is not specified with the
chg-gta command is not changed.
|
|
Note: When the
xlat parameter value is changed from
dpcngt,
dpcssn, or
dpc, to
none, all the optional parameter values that
are not specified with the
chg-gta command are not changed. However,
these changes are made.
|
|
Table 4-41 GTTSN = CGGTA GTT Set Parameter Combinations
| XLAT=DPCNGT, DPCSSN, or DPC | XLAT=NONE |
|---|---|
| Mandatory Parameters | |
GTTSN – The GTT set name from the
GTTSN column of the
rtrv-gttset output containing the value
CGGTA in the
SETTYPE column and from the GTTSN column of
the
rtrv-gta output.
|
GTTSN – The GTT set name from the
GTTSN column of the
rtrv-gttset output containing the value
CGGTA in the
SETTYPE column and from the GTTSN column of
the
rtrv-gta output.
|
GTA – The
GTA value assigned to the
GTTSN value in the
rtrv-gta output.
|
GTA – The
GTA value assigned to the
GTTSN value in the
rtrv-gta output.
|
| Optional Parameters | |
|
EGTA – 1 - 21 digits or 1 - 21 hexadecimal digits. Default = same as the GTA value. Hexadecimal digits (0-9, a-f, A-F) can be specified for the
The length of the EGTA value must be the same as the GTA value. |
EGTA – 1 - 21 digits or 1 - 21 hexadecimal digits. Default = same as the GTA value. Hexadecimal digits (0-9, a-f, A-F) can be specified for the
The length of the EGTA value must be the same as the GTA
value. These parameters cannot be specified with the
xlat=none parameter.
|
|
OPTSN – The GTT set name from the
The current value of this parameter must be changed to the
value
|
|
There are other optional parameters
that can be used with this entry. Refer to
Table 4-48
for these parameters. At least one optional parameter must be specified with
the
chg-gta command. Unless a default value is
shown for a parameter in
Table 4-48,
the value of any optional parameter that is not specified with the
chg-gta command is not changed.
|
|
Note: When the
xlat parameter value is changed from
dpcngt,
dpcssn, or
dpc, to
none, all the optional parameter values that
are not specified with the
chg-gta command are not changed. However,
these changes are made.
|
|
Table 4-42 GTTSN = CGPC GTT Set Parameter Combinations
| XLAT=DPCNGT, DPCSSN, or DPC | XLAT=NONE |
|---|---|
| Mandatory Parameters | |
GTTSN – The GTT set name from the
GTTSN column of the
rtrv-gttset output containing the value
CGPC in the
SETTYPE column and from the GTTSN column of
the
rtrv-gta output.
|
GTTSN – The GTT set name from the
GTTSN column of the
rtrv-gttset output containing the value
CGPC in the
SETTYPE column and from the GTTSN column of
the
rtrv-gta output.
|
CGPC/CGPCA/CGPCI/CGPCN/CGPCN24 – The CGPC value assigned to
the
GTTSN value in the
rtrv-gta output. (See Note 1)
|
CGPC/CGPCA/CGPCI/CGPCN/CGPCN24 – The CGPC value assigned to
the
GTTSN value in the
rtrv-gta output. (See Note 1)
|
| Optional Parameters | |
|
OPTSN – The GTT set name from the
The current value of this parameter must be changed to the
value
|
These parameters cannot be specified with the
xlat=none parameter.
|
|
There are other optional parameters that can be used with this
entry. Refer to
Table 4-48
for these parameters. At least one optional parameter must be specified with
the
The
|
|
Note:
|
|
Table 4-43 GTTSN = CGSSN GTT Set Parameter Combinations
| XLAT=DPCNGT, DPCSSN, or DPC | XLAT=NONE |
|---|---|
| Mandatory Parameters | |
GTTSN – The GTT set name from the
GTTSN column of the
rtrv-gttset output containing the value
CGSSN in the
SETTYPE column and from the GTTSN column of
the
rtrv-gta output.
|
GTTSN – The GTT set name from the
GTTSN column of the
rtrv-gttset output containing the value
CGSSN in the
SETTYPE column and from the GTTSN column of
the
rtrv-gta output.
|
CGSSN – The CGSSN value assigned to the
GTTSN value in the
rtrv-gta output.
|
CGSSN – The CGSSN value assigned to the
GTTSN value in the
rtrv-gta output.
|
| Optional Parameters | |
| ECGSSN – 0 - 255. The ECGSSN value must be greater than the CGSSN value. |
ECGSSN – 0 - 255. Default value – no ECGSSN value is specified. The ECGSSN value must be greater than the CGSSN value. These parameters cannot be specified with the
xlat=none parameter.
|
|
OPTSN – The GTT set name from the
The current value of this parameter must be changed to the
value
|
|
|
There are other optional parameters that can be used with this
entry. Refer to
Table 4-48
for these parameters. At least one optional parameter must be specified with
the
The
|
|
Note: When the
xlat parameter value is changed from
dpcngt,
dpcssn, or
dpc, to
none, all the optional parameter values that
are not specified with the
chg-gta command are not changed. However,
these changes are made.
|
|
Table 4-44 GTTSN = OPC GTT Set Parameter Combinations
| XLAT=DPCNGT, DPCSSN, or DPC | XLAT=NONE |
|---|---|
| Mandatory Parameters | |
GTTSN – The GTT set name from the
GTTSN column of the
rtrv-gttset output containing the value
OPC in the
SETTYPE column and from the GTTSN column of
the
rtrv-gta output.
|
GTTSN – The GTT set name from the
GTTSN column of the
rtrv-gttset output containing the value
OPC in the
SETTYPE column and from the GTTSN column of
the
rtrv-gta output.
|
OPC/OPCA/OPCI/OPCN/OPCN24 – The OPC value assigned to the
GTTSN value in the
rtrv-gta output. (See Note 1)
|
OPC/OPCA/OPCI/OPCN/OPCN24 – The OPC value assigned to the
GTTSN value in the
rtrv-gta output. (See Note 1)
|
| Optional Parameters | |
|
OPTSN – The GTT set name from the
The current value of this parameter must be changed to the
value
|
These parameters cannot be specified with the
xlat=none parameter.
|
|
There are other optional parameters that can be used with this
entry. Refer to
Table 4-48
for these parameters. At least one optional parameter must be specified with
the
The
|
|
Note:
|
|
Table 4-45 GTTSN = CDSSN GTT Set Parameter Combinations
| XLAT=DPCNGT, DPCSSN, or DPC | XLAT=NONE |
|---|---|
| Mandatory Parameters | |
GTTSN – The GTT set name from the
GTTSN column of the
rtrv-gttset output containing the value
CDSSN in the
SETTYPE column and from the GTTSN column of
the
rtrv-gta output.
|
GTTSN – The GTT set name from the
GTTSN column of the
rtrv-gttset output containing the value
CDSSN in the
SETTYPE column and from the GTTSN column of
the
rtrv-gta output.
|
CDSSN – The CDSSN value assigned to the
GTTSN value in the
rtrv-gta output.
|
CDSSN – The CDSSN value assigned to the
GTTSN value in the
rtrv-gta output.
|
| Optional Parameters | |
| ECDSSN – 0 - 255. The ECDSSN value must be greater than the CDSSN value. |
ECDSSN – 0 - 255. Default value – no ECDSSN value is specified. The ECDSSN value must be greater than the CDSSN value. These parameters cannot be specified with the
xlat=none parameter.
|
|
OPTSN – The GTT set name from the
The current value of this parameter must be changed to the
value
|
|
OPCSN – The GTT set name from the
GTTSN column of the
rtrv-gttset output containing the value
OPC in the
SETTYPE column, or the value
none. The value
none removes the OPCSN value from the GTA
entry.
|
|
|
There are other optional parameters that can be used with this
entry. Refer to
Table 4-48
for these parameters. At least one optional parameter must be specified with
the
The
|
|
Note: When the
xlat parameter value is changed from
dpcngt,
dpcssn, or
dpc, to
none, all the optional parameter values that
are not specified with the
chg-gta command are not changed. However,
these changes are made.
|
|
Table 4-46 GTTSN = OPCODE GTT Set Parameter Combinations
| XLAT=DPCNGT, DPCSSN, or DPC | XLAT=NONE | ||
|---|---|---|---|
| Mandatory Parameters | |||
GTTSN – The GTT set name from the
GTTSN column of the
rtrv-gttset output containing the value
OPCODE in the
SETTYPE column and from the GTTSN column of
the
rtrv-gta output.
|
GTTSN – The GTT set name from the
GTTSN column of the
rtrv-gttset output containing the value
OPCODE in the
SETTYPE column and from the GTTSN column of
the
rtrv-gta output.
|
||
OPCODE – The OPCODE value assigned
to the
GTTSN value in the
rtrv-gta output. (See Note 4)
|
OPCODE – The OPCODE value assigned
to the
GTTSN value in the
rtrv-gta output.
|
||
| ANSI TCAP Translation | ITU TCAP Translation | ANSI TCAP Translation | ITU TCAP Translation |
FAMILY – The FAMILY value assigned to the GTTSN and OPCODE
values in the
rtrv-gta output.
|
ACN – The application context name assigned to the GTTSN and
OPCODE values in the
rtrv-gta output.
|
FAMILY – The FAMILY value assigned to the GTTSN and OPCODE
values in the
rtrv-gta output.
|
ACN – The application context name assigned to the GTTSN and
OPCODE values in the
rtrv-gta output.
|
PKGTYPE – The PKGTYPE context name assigned to the GTTSN,
FAMILY, and OPCODE values in the
rtrv-gta output.
|
PKGTYPE – PKGTYPE – The PKGTYPE context name assigned to the
GTTSN, ACN, and OPCODE values in the
rtrv-gta output.
|
PKGTYPE – The PKGTYPE context name assigned to the GTTSN,
FAMILY, and OPCODE values in the
rtrv-gta output.
|
PKGTYPE – PKGTYPE – The PKGTYPE context name assigned to the
GTTSN, ACN, and OPCODE values in the
rtrv-gta output.
|
| Optional Parameters | |||
|
OPTSN – The GTT set name from the
The current value of this parameter must be changed to the
value
|
These parameters cannot be
specified with the
xlat=none parameter.
|
||
OPCSN – The GTT set name from the
GTTSN column of the
rtrv-gttset output containing the value
OPC in the
SETTYPE column. Default value – no OPC GTT set
is specified.
|
|||
|
There are other optional parameters that can be used with this
entry. Refer to
Table 4-48
for these parameters. At least one optional parameter must be specified with
the
The
|
|||
Note: When the
xlat parameter value is changed from
dpcngt,
dpcssn, or
dpc, to
none, all the optional parameter values that
are not specified with the
chg-gta command are not changed. However,
these changes are made.
|
|||
Table 4-47 GTTSN = DPC GTT Set Parameter Combinations
| XLAT=DPCNGT, DPCSSN, or DPC | XLAT=NONE |
|---|---|
| Mandatory Parameters | |
GTTSN – The GTT set name from the
GTTSN column of the
rtrv-gttset output containing the value
DPC in the
SETTYPE column.
|
GTTSN – The GTT set name from the
GTTSN column of the
rtrv-gttset output containing the value
DPC in the
SETTYPE column.
|
| DPC/DPCA/DPCI/DPCN/DPCN24 (See Notes 1, 2, and 3) | DPC/DPCA/DPCI/DPCN/DPCN24 (See Notes 1, 2, and 3) |
| Optional Parameters | |
|
OPTSN – The GTT set name from the
The current value of this parameter must be changed to the
value
|
These parameters cannot be specified with the
xlat=none parameter.
|
OPCSN – The GTT set name from the
GTTSN column of the
rtrv-gttset output containing the value
OPC in the
SETTYPE column, or the value
none. The value
none removes the OPCSN value from the GTA
entry.
|
|
There are other optional parameters
that can be used with this entry. Refer to
Table 4-48
for these parameters. The
egta and
split parameters cannot be specified with this
entry.
|
|
Note: When the
xlat parameter value is changed from
dpcngt,
dpcssn, or
dpc, to
none, all the optional parameter values that
are not specified with the
chg-gta command are not changed. However,
these changes are made.
|
|
Table 4-48 Optional GTA Parameters
| XLAT=DPCNGT, DPCSSN, or DPC | XLAT=NONE |
|---|---|
| PC/PCA/PCI/PCN/PCN24 (See Notes 1, 2, and 3) | MRNSET – MRN set ID from the
rtrv-mrn output or
none (See Note 4)
|
| SSN – 0 - 255 (See Note 3) | LOOPSET – Loopset name from the
rtrv-loopset output (See Note 8)
|
| RI – GT, SSN (See Notes 3, 4, 7) | CGGTMOD – yes, no. Default = no (See Note 9) |
MRNSET – MRN set ID from the
rtrv-mrn output or
none (See Note 4)
|
MAPSET – MAP set ID from the
rtrv-map output or
none (See Note 7)
|
LOOPSET – Loopset name from the
rtrv-loopset output (See Note 8)
|
SPLIT – yes, no. Default = yes (See Note 10) |
| CGGTMOD – yes, no. Default = no (See Note 9) | TESTMODE – on, off. Default = off. |
| CCGT – yes, no. (See Note 5) | FALLBACK – sysdflt, yes, no. The Flexible Linkset Optional Based Routing feature must be enabled and turned on to use this parameter. |
MAPSET – MAP set ID from the
rtrv-map output or
none (See Note 8)
|
CGSELID – 0 - 65534 or none. The Origin-Based SCCP Routing feature must be enabled to use this parameter. (See Note 12) |
| FORCE – yes, no. Default = no (See Note 6) | CDSELID – 0 - 65534 or none. The Flexible Linkset Optional Based Routing feature must be enabled and turned on to use this parameter. (See Note 12) |
| SPLIT – yes, no. Default = yes (See Note 10) | CGCNVSN – GTT set name shown in the
rtrv-gttset output or
none. (See Note 13)
|
| TESTMODE – on, off. Default = off. | ACTSN – The name of the GTT action set name shown in the
rtrv-gttaset output or
none. (See Note 11)
|
| FALLBACK – sysdflt, yes, no. The Flexible Linkset Optional Based Routing feature must be enabled and turned on to use this parameter. | GTMODID – The name of the GT modification identifier shown
in the
rtrv-gtmod output or
none. The value
none removes the GT modification identifier
assignment from the GTA entry. If the NGTI value in the global title
modification entry is 4, the point code that is assigned to the GTA entry must
be an ITU point code.
|
| CGSELID – 0 - 65534 or none. The Origin-Based SCCP Routing feature must be enabled to use this parameter. (See Note 12) | PPMEASREQD – This parameter specifies whether per-path
measurements are required for the GTA entry. This parameter has two values.
|
| CDSELID – 0 - 65534 or none. The Flexible Linkset Optional Based Routing feature must be enabled and turned on to use this parameter. (See Note 12) | |
CGCNVSN – GTT set name shown in the
rtrv-gttset output or
none. (See Note 13)
|
|
ACTSN – The name of the GTT action set name shown in the
rtrv-gttaset output or
none. (See Note 11)
|
|
GTMODID – The name of the GT modification identifier shown
in the
rtrv-gtmod output or
none. The value
none removes the GT modification identifier
assignment from the GTA entry. If the NGTI value in the global title
modification entry is 4, the point code that is assigned to the GTA entry must
be an ITU point code.
|
|
PPMEASREQD – This parameter specifies whether per-path
measurements are required for the GTA entry. This parameter has two values.
|
|
Notes:
|
|

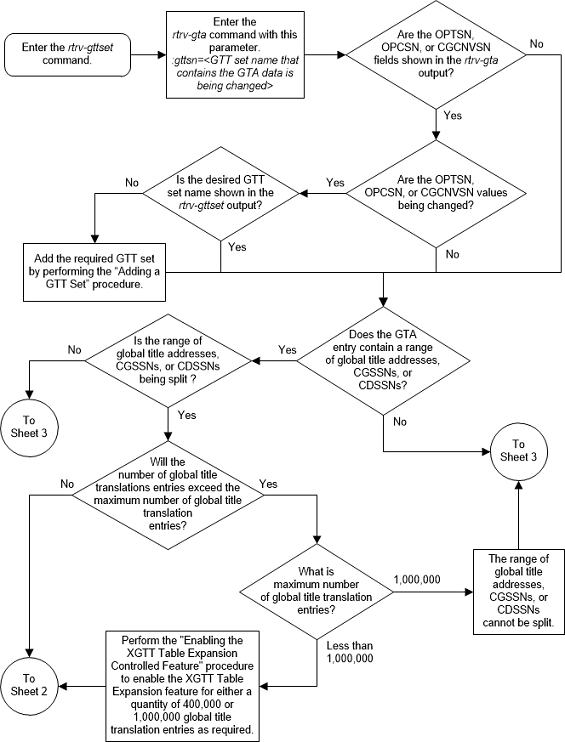

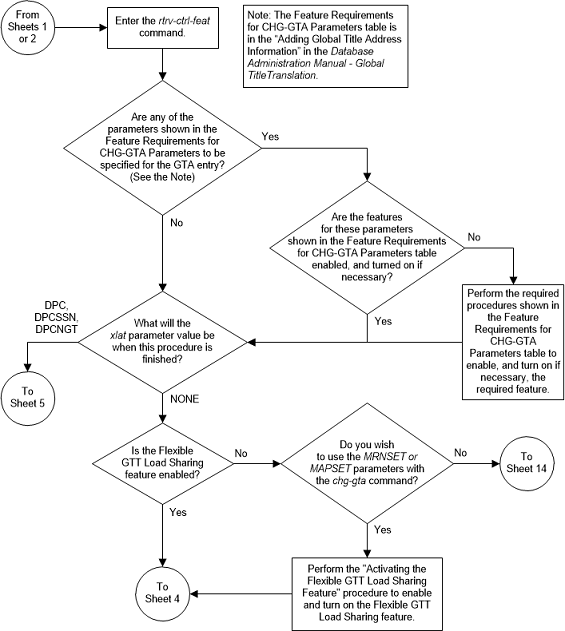

Figure 4-23 Change Global Title Address Information - Sheet 1 of 15

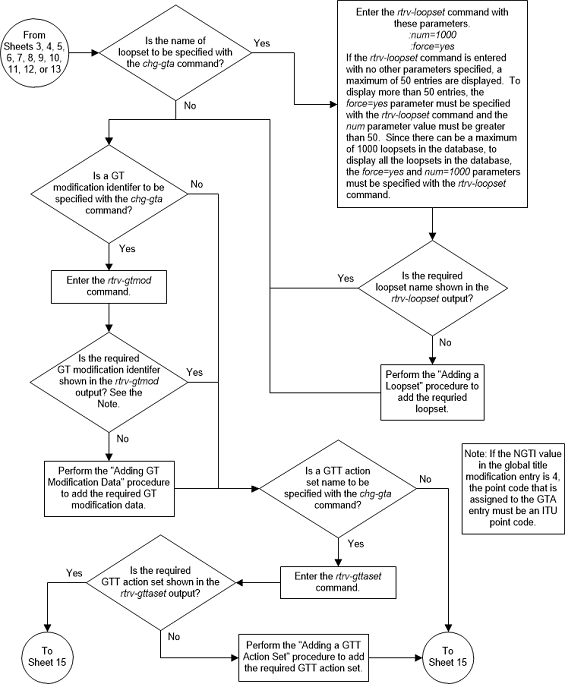

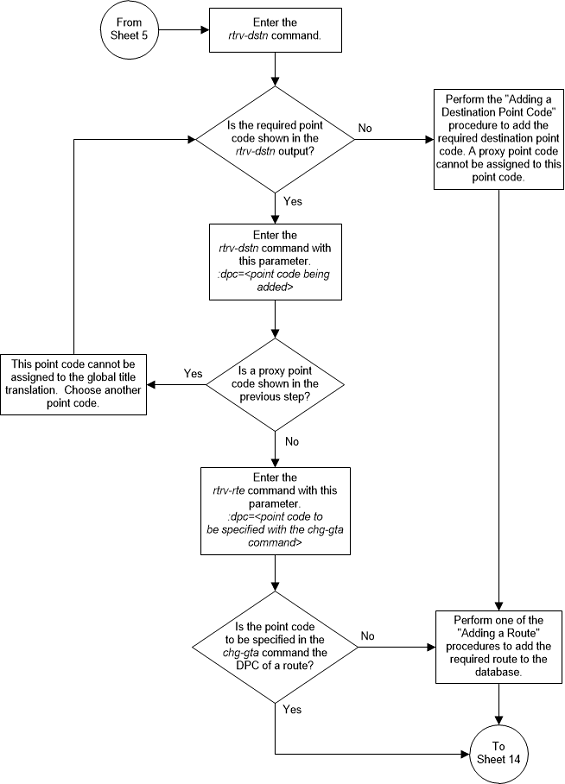

Figure 4-24 Change Global Title Address Information - Sheet 2 of 15

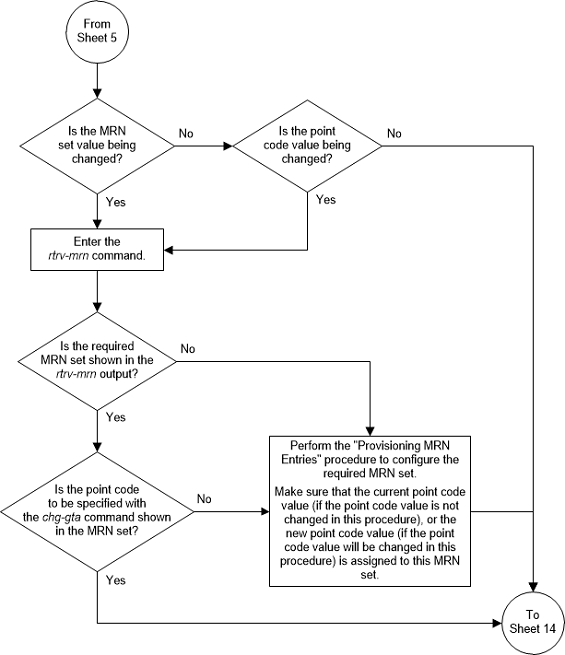

Figure 4-25 Change Global Title Address Information - Sheet 3 of 15

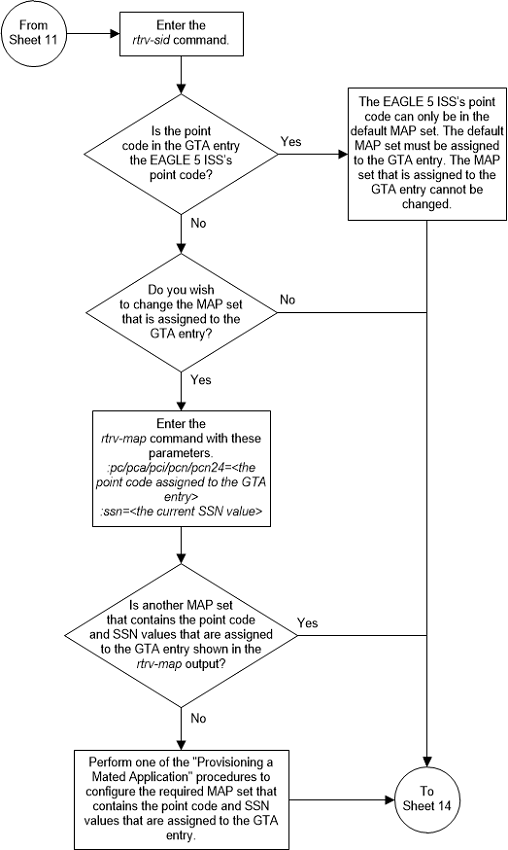

Figure 4-26 Change Global Title Address Information - Sheet 4 of 15

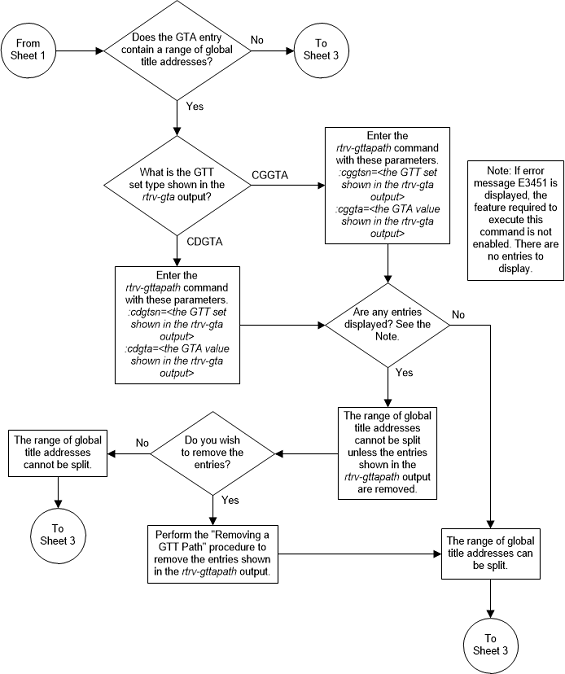

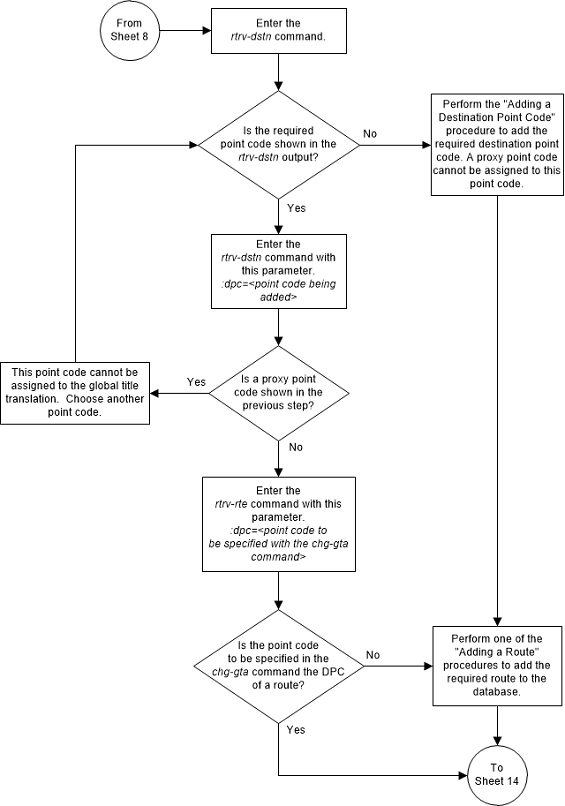

Figure 4-27 Change Global Title Address Information - Sheet 5 of 15

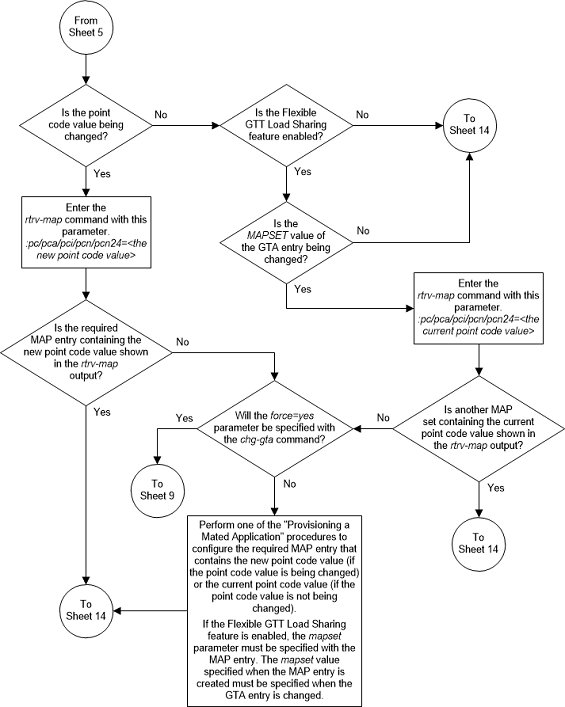

Figure 4-28 Change Global Title Address Information - Sheet 6 of 15

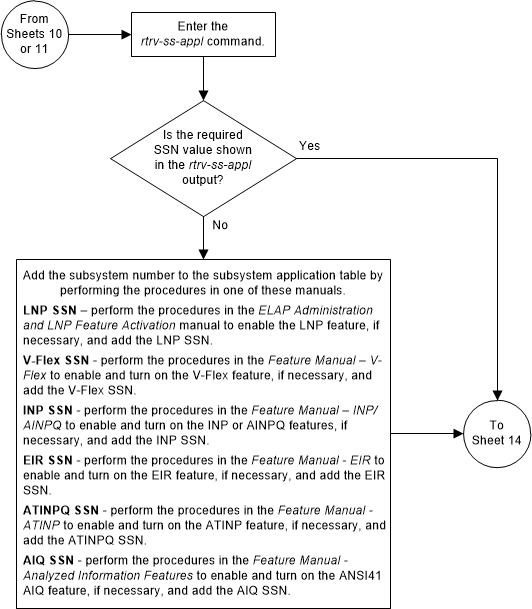

Figure 4-29 Change Global Title Address Information - Sheet 7 of 15

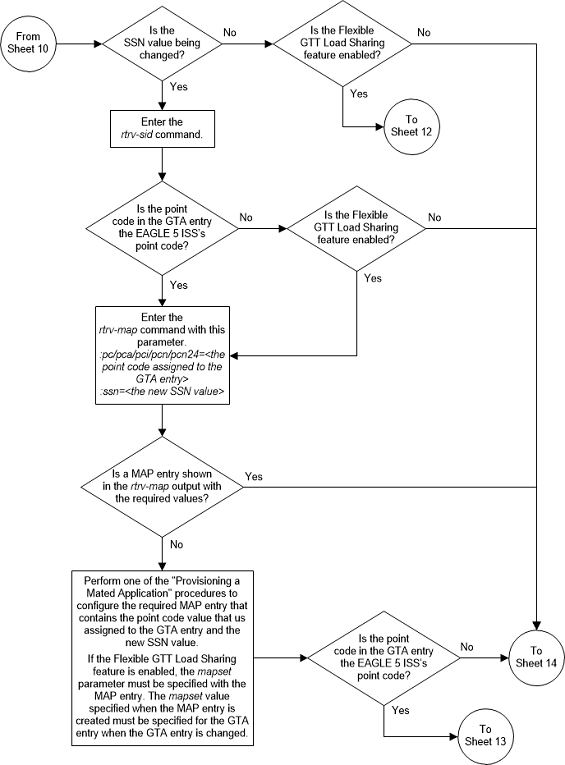

Figure 4-30 Change Global Title Address Information - Sheet 8 of 15
Figure 4-31 Change Global Title Address Information - Sheet 9 of 15
Figure 4-32 Change Global Title Address Information - Sheet 10 of 15
Figure 4-33 Change Global Title Address Information - Sheet 11 of 15
Figure 4-34 Change Global Title Address Information - Sheet 12 of 15
Figure 4-35 Change Global Title Address Information - Sheet 13 of 15

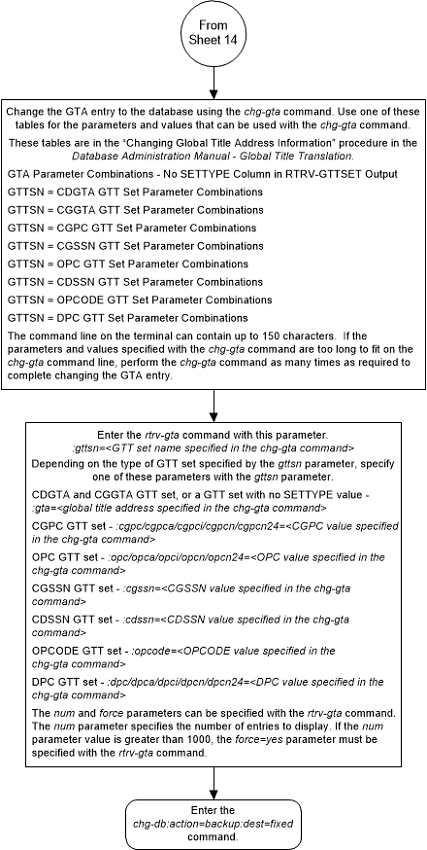

Figure 4-36 Change Global Title Address Information - Sheet 14 of 15
Figure 4-37 Change Global Title Address Information - Sheet 15 of 15
