Key Milestones Tracking Dashboard

Description: This project gives an Executive / PMO insights to track key milestones for projects/portfolios and identify variance over time. It can be used to track milestone activities based on the variance status that is ahead, on, or behind schedule. These activities can also be traced based on their activity status.

Number of Canvases: 2

Default Canvas: Key Milestones

Canvas/Dashboard Name: Key Milestones Tracking

Data Source(s): P6 EPPM

Subject Areas: P6 – Activity

Datasets: Not applicable

Canvases

Key Milestones Tracking Dashboard

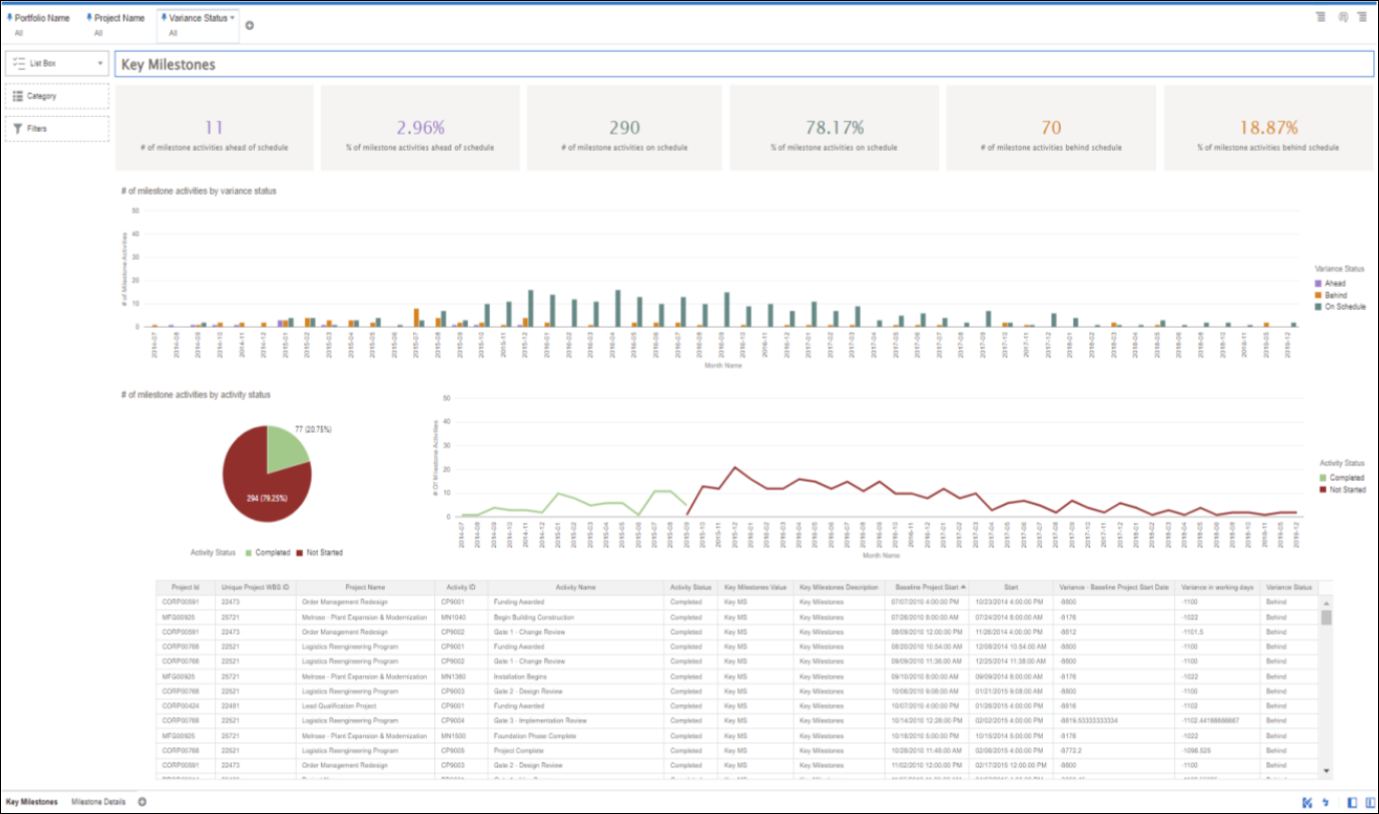

Figure 8: Key Milestones

Milestone Details of the Key Milestones Tracking Dashboard-

Figure 9: Milestone Details

Table 13: Key Milestones Tracking- Dimensions

Canvas	Dimension Name	Dimension / Attribute	Subject Area / Dataset
Key Milestones	Calendar	Month Name	P6 - Activity
Key Milestones	Activity	Activity Status	P6 - Activity
Key Milestones	Project	Project Id	P6 - Activity
Key Milestones	Project	Unique Project WBS ID	P6 - Activity
Key Milestones	Project	Project Name	P6 - Activity
Key Milestones	Activity	Activity ID	P6 - Activity
Key Milestones	Activity	Activity Name	P6 - Activity
Key Milestones	Activity	Key Milestones Value	P6 - Activity
Key Milestones	Activity	Key Milestones Description	P6 - Activity
Key Milestones	Activity	Baseline Project Start	P6 - Activity
Key Milestones	Activity	Start	P6 - Activity
Key Milestones	Activity	Variance Baseline Project Start Date	P6 - Activity

Table 14: Key Milestones Tracking- Custom Dimensions

Dimension	Expression	Source	Subject Area / Dataset
Variance in working days	"Primavera - Activity"."Durations - (Activity)"."Variance - Baseline Project Start Date"/8	Derived from Dimension	P6 - Activity
Variance Status	CASE WHEN ("Primavera - Activity"."Durations - (Activity)"."Variance - Baseline Project Start Date")/8 > 0 THEN 'Ahead' WHEN ("Primavera - Activity"."Durations - (Activity)"."Variance - Baseline Project Start Date")/8 < 0 THEN 'Behind' WHEN ("Primavera - Activity"."Durations - (Activity)"."Variance - Baseline Project Start Date")/8 = 0 THEN 'On Schedule' ELSE '' END	Derived from Dimension	P6 - Activity

Table 15: Key Milestones Tracking - Measures

Canvas	Fact / Measure	Measure Type	Subject Area / Dataset
Key Milestones	# of Activities	Fact	P6 - Activity

Table 16: Key Milestones Tracking - Calculated Members

Calculated Member	Expression	Source	Subject Area / Dataset
% of activities behind schedule	(FILTER("Primavera - Activity"."Metrics"."# of Activities" USING ("Primavera - Activity"."Durations - (Activity)"."Variance - Baseline Project Start Date")/8 < 0))/"Primavera - Activity"."Metrics"."# of Activities"	Derived From Fact	P6 - Activity
% of activities on schedule	(FILTER("Primavera - Activity"."Metrics"."# of Activities" USING ("Primavera - Activity"."Durations - (Activity)"."Variance - Baseline Project Start Date")/8 = 0))/"Primavera - Activity"."Metrics"."# of Activities"	Derived From Fact	P6 - Activity
% of activities ahead of schedule	(FILTER("Primavera - Activity"."Metrics"."# of Activities" USING ("Primavera - Activity"."Durations - (Activity)"."Variance - Baseline Project Start Date")/8 > 0))/"Primavera - Activity"."Metrics"."# of Activities"	Derived From Fact	P6 - Activity

Table 17: Key Milestones Tracking - Filters

Canvas	Filter Type	Is Expression Filter	Dimension / Attribute / Measure	Subject Area / Dataset
Key Milestones	Visualization	No	Activity Type	P6 - Activity
Key Milestones	Dashboard	No	Variance Status	P6 - Activity
Key Milestones	Dashboard	No	Project Name	P6 - Activity
Key Milestones	Dashboard	No	Portfolio Name	P6 - Activity

Table 18: Key Milestones Tracking - Data Actions

Data Action Name	Action Type	Anchor To	Target	Canvas Link	Pass Values	Multiselection
Navigate to Milestone details	Analytics Link	None	Key Milestones Tracking	Milestone Details	All	On
P6 Link to Activities	URL Navigation	Project Name	Opens P6 Links - Link to Activities	Milestone Details	All	On
