Project Risk - Cost Overview Dashboard
Description: .
Number of Canvases: 3
Default Canvas: Project Risk Overview
Canvas/Dashboard Name: Project Risk - Cost Overview
Data Source(s): P6 - EPPM
Subject Area: P6 – Activity, P6 - Project History
Datasets: Not applicable
Dashboards

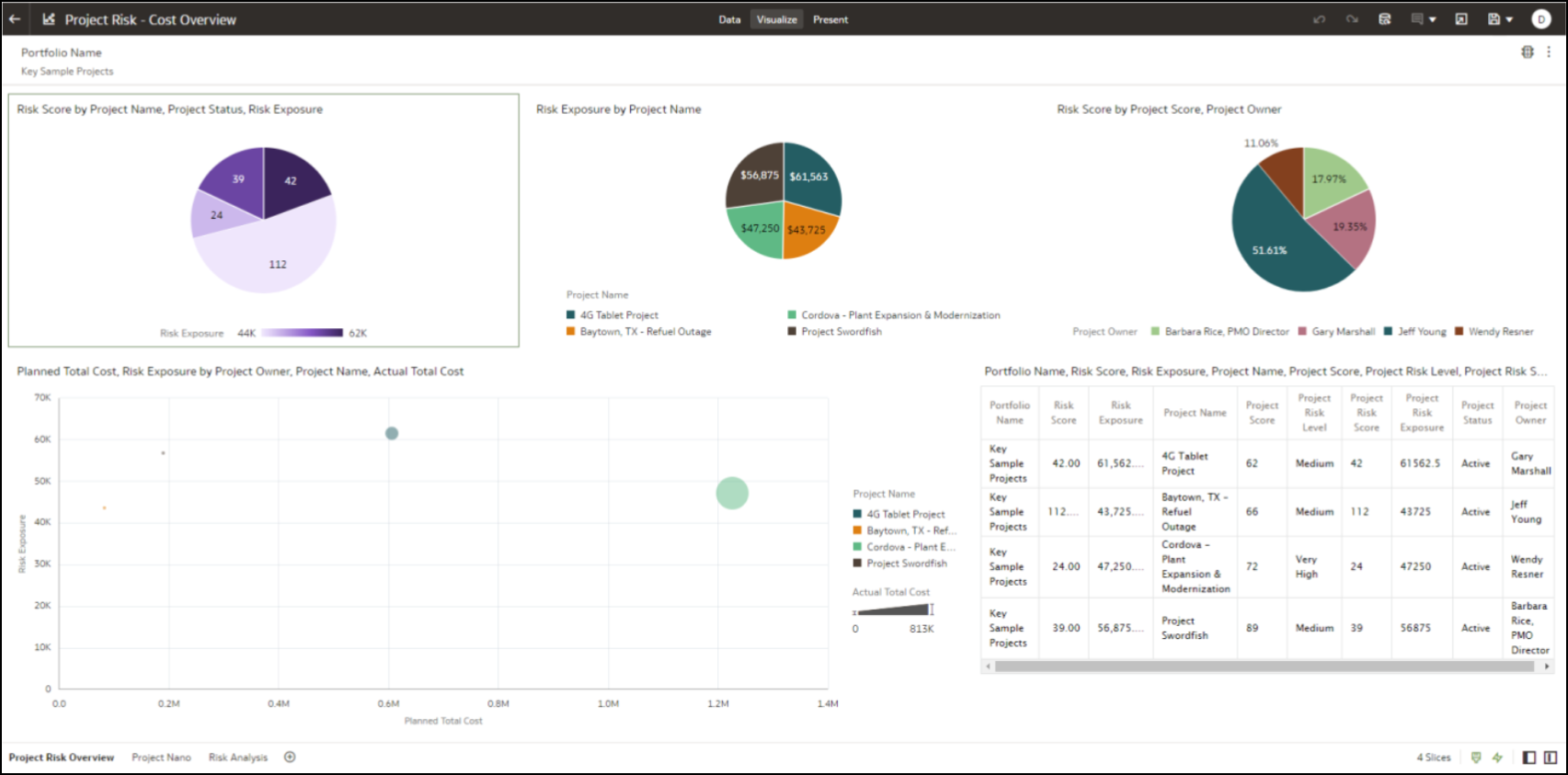

Figure 26: Project Risk Overview

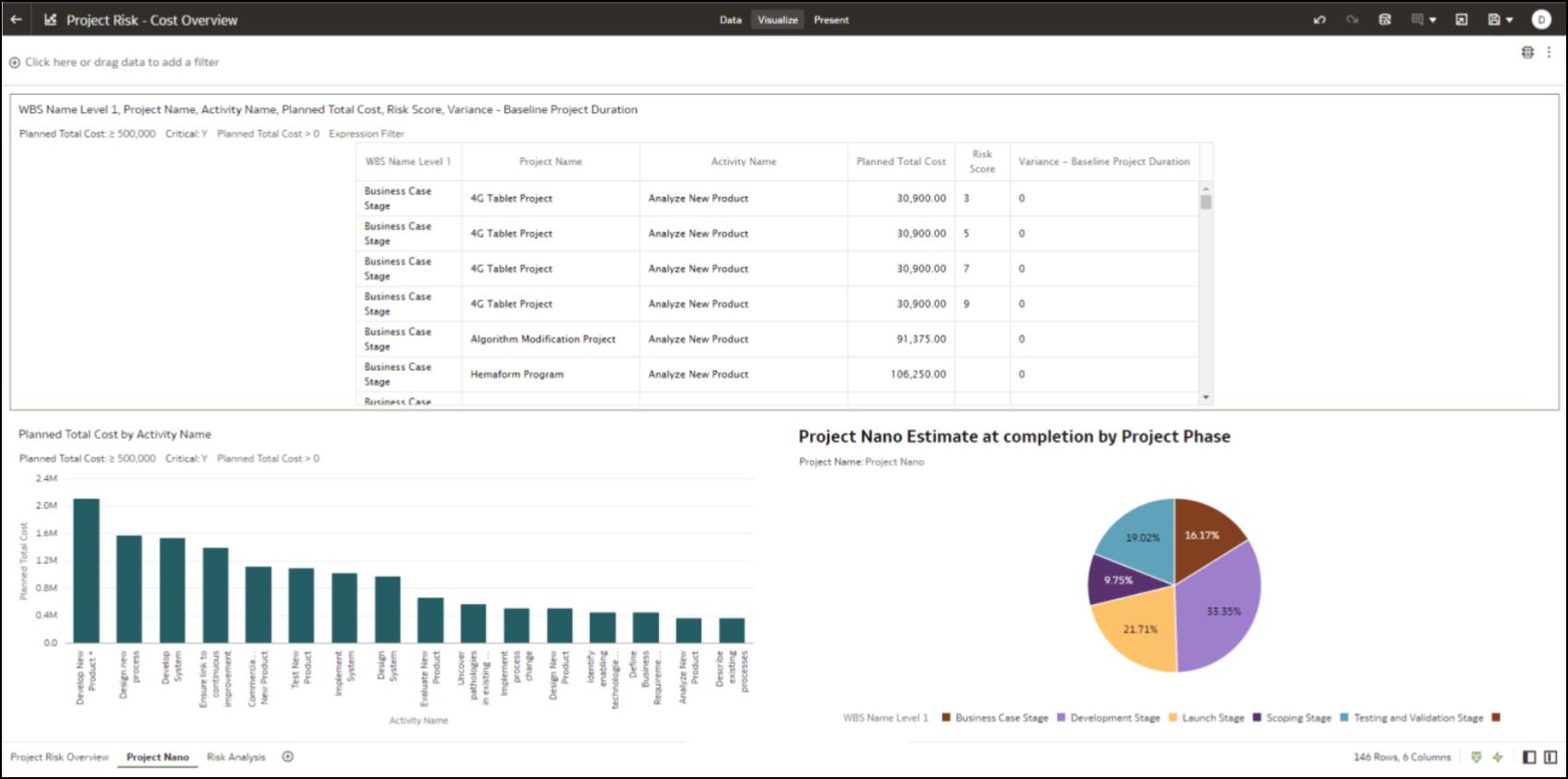

Figure 27: Project Nano

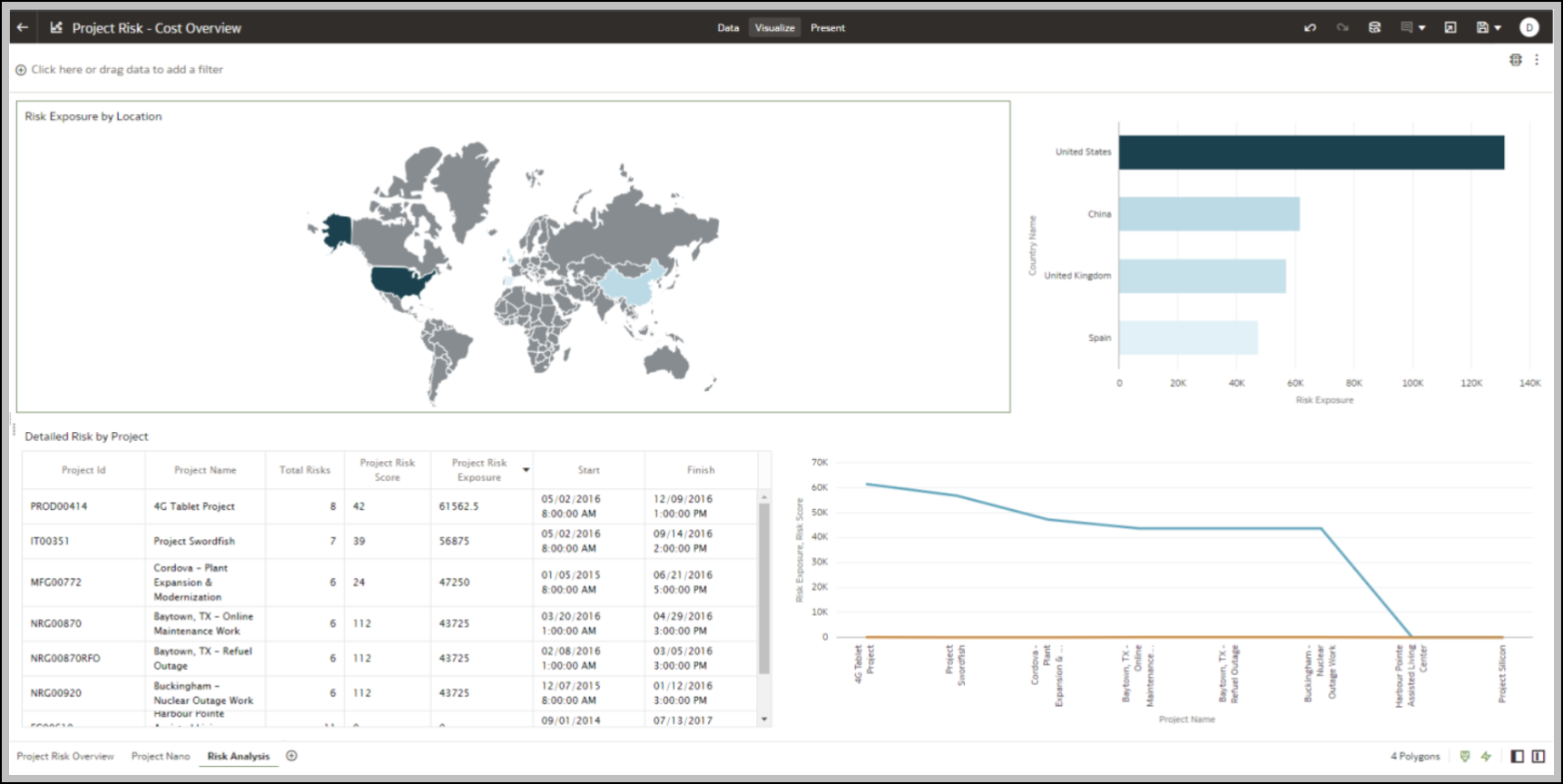

Figure 28: Risk Analysis
Table 37: Project Risk - Cost Overview - Dimensions
Canvas | Dimension / Attribute | Subject Area / Dataset |
|---|---|---|
Project Risk Overview Project Nano Risk Analysis | Project Name | P6 – Activity P6 - Project History |
Project Risk Overview | Project Status | P6 - Project History |
Project Risk Overview | Project Score | P6 - Project History |
Project Risk Overview | Project Owner | P6 - Project History |
Project Risk Overview | Portfolio Name | P6 - Project History |
Project Risk Overview | Project risk Level | P6 - Project History |
Project Risk Overview Risk Analysis | Project Risk Score | P6 – Activity P6 - Project History |
Project Risk Overview Risk Analysis | Project Risk Exposure | P6 – Activity P6 - Project History |
Project Nano | WBS Name Level 1 | P6 – Activity |
Project Nano | Activity Name | P6 – Activity |
Project Nano | Risk Score | P6 – Activity |
Project Nano | Variance-Baseline Project Duration | P6 – Activity |
Risk Analysis | Country Name | P6 – Activity |
Risk Analysis | Project ID | P6 – Activity |
Risk Analysis | Start | P6 – Activity |
Risk Analysis | Finish | P6 – Activity |
Table 38: Project Risk - Cost Overview - Measures
Canvas | Fact / Measure | Measure Type | Subject Area / Dataset |
|---|---|---|---|
Project Risk Overview | Risk Score | Fact | P6 - Project History |
Project Risk Overview | Risk Exposure | Fact | P6 - Project History |
Project Risk Overview | Planned Total Cost | Fact | P6 - Project History |
Project Risk Overview | Actual Total Cost | Fact | P6 - Project History |
Project Nano | Planned Total Cost | Fact | P6 – Activity |
Project Nano | Estimate At Completion (Cost) | Fact | P6 – Activity |
Risk Analysis | Risk Exposure | Calculated from Fact | P6 – Activity |
Risk Analysis | Total Risks | Calculated from Fact | P6 – Activity |
Risk Analysis | Risk Score | Calculated from Fact | P6 – Activity |
Table 39: Project Risk - Cost Overview - Filters
Canvas | Filter Type | Is Expression Filter | Dimension / Attribute / Measure | Subject Area / Dataset |
|---|---|---|---|---|
Project Risk Overview | Dashboard | No | Portfolio Name | P6 - Project History |
Project Nano | Visual | No | Planned Total Cost | P6 – Activity |
Project Nano | Visual | No | Critical | P6 – Activity |
Project Nano | Visual | Yes | Planned Total Cost | P6 – Activity |
Project Nano | Visual | No | Project Name | P6 – Activity |
Risk Analysis | Visual | No | Risk Exposure | P6 – Activity |
Risk Analysis | Visual | No | Total Risks | P6 – Activity |
Table 40: Project Risk - Cost Overview - Calculated Members
Calculated Member | Expression | Source | Subject Area / Dataset |
|---|---|---|---|
Risk Exposure | SUM("Primavera - Activity"."General - (Project)"."Project Risk Exposure") | Derived From Fact | P6 – Activity |
Total Risks | COUNT(DISTINCT "Primavera - Activity"."Risk"."Risk Id" by "Primavera - Activity"."General - (Project)"."Project ID") | Derived From Fact | P6 – Activity |
Risk Score | SUM("Primavera - Activity"."General - (Project)"."Project Risk Score") | Derived From Fact | P6 – Activity |
