Configuring Snapshot Content Displays

The Snapshot dashboards (Team Snapshot for managers, View Snapshot for administrators, and Career Snapshot for employees) shows a variety of human resources and talent-related information about a person. The PeopleSoft system enables administrators to determine what information and date ranges to display for these items.

These videos demonstrate configuration features for Fluid Snapshot:

Video: Image Highlights, PeopleSoft HCM Update Image 22: Fluid Employee Snapshot New Content and Enhancements

Video: Image Highlights, PeopleSoft HCM Update Image 24: Employee Snapshot Configuration Enhancements

Video: Image Highlights, PeopleSoft HCM Update Image 28: Employee Snapshot Related Actions and Nav Collection Updates

Video: Image Highlights, PeopleSoft HCM Update Image 30: Employee Snapshot Multiple Performance Document Type Configuration and Display

Video: Image Highlights, PeopleSoft HCM Update Image 31: Development Documents for Employee Snapshot

Video: Image Highlights, PeopleSoft HCM Update Image 32: Configurable Profile Content in Employee Snapshot

To set up Snapshot tile and page content, use the Configure Snapshot (HCTS_ESNAP_CFG_FL) component.

Note:

When you apply the new configuration pages and component, an AE conversion will run as part of the change package and copy the configuration setup you have defined on the Talent Summary Setup - Other Pagelets Page. After the initial run of the AE process, you can update the Configure Snapshot pages to override the values that came from the Talent Summary Setup component. These setup tables are now unique to their own business processes and updating one will not update the other.

These topics provide an overview of how to display configurable profile content on tiles or pages, discusses the Configure Snapshot page layout, and discusses Snapshot configuration options.

Related Topics

Understanding and Accessing the Snapshot Pages and Tiles

Pages Used to Configure Snapshot

Page Name	Definition Name	Usage
Configure Snapshot Tile	HC_HCTS_ESNAP_CFG_FL_GBL (cref of the tile) HC_CONFIGURE_EESNAP_NAVCOLL	Access the configuration pages for Snapshot pages and tiles.
Configure Snapshot Layout	N/A	The Configure Snapshot pages appear in a multi-panel layout. The left panel lists the page category items and the main panel displays the content related to that item. Select a page list item to access that page.
Configure Snapshot - Competencies Page	HCTS_CFG_COMP_FL	Identify the number of years to display competencies for the evaluation types you have defined on this page. This applies to all Snapshot content.
Configure Snapshot - Licenses and Certifications Page	HCTS_CFG_LICRT_FL	Determine if you want to compare the competencies held by a person to their job profile and when to alert a manager of expiring items. This applies to all Snapshot content.
Configure Snapshot - Projects Page	HCTS_CFG_PRJCT_FL	Enter the number of years to display special projects assigned to the employee. This applies to all Snapshot content.
Configure Snapshot - Document History Page	HCTS_CFG_PERF_FL	Identify performance and development document types and the number of reviews to display. Performance documents apply to all Snapshot content. Development documents apply to Team and View Snapshot content.
Configure Snapshot - Performance versus Potential Page	HCTS_CFG_PP_BOX_FL	Set up the Performance versus Potential ratings box for the Employee Impact tile. This applies to Team and View Snapshot content.
Rating Model Information Page	HCTS_CFG_RATE2_SCF	Map a performance rating axis value to each rating within a rating model. This applies to Team and View Snapshot content.
Configure Snapshot - Risk versus Loss Page	HCTS_CFG_RL_BOX_FL	Set up the Risk versus Loss ratings box for the Employee Impact tile. This applies to Team and View Snapshot content.
Configure Snapshot - Succession Options Page	HCTS_CFG_SUCC_FL	Select which of the employee’s succession plans should display on the Succession Plans tile and page based on the plan’s status. This applies to Team and View Snapshot content.
Configure Snapshot - Profile Content Page	HCTS_CFG_CAT_FL	View or add new profile-related tiles to the Snapshot dashboards.
Tile Attributes Page	HCTS_TILE_TBL_SCF HCTS_TILE_TBL2_SCF	Define the attributes and publish profile-related tiles to the Snapshot dashboards.
Dashboard Tiles Page	HCTS_DASHBOARD_SCF	View tile publish statuses.

Displaying Configurable Profile Content on Tiles and Pages

While PeopleSoft delivers multiple tiles that appear on the various Snapshot dashboards, the system also enables talent administrators to add configurable profile-related tiles. With this functionality, your organization can display profile data that is not already on a delivered tile, as well as show profile information that you have created yourself. Administrators can easily configure this additional profile content to:

Display on one or many dashboards.
Select the order the tiles should appear on a dashboard.
Indicate whether to display a ratings bar for profile items that may contain ratings data for the employee.

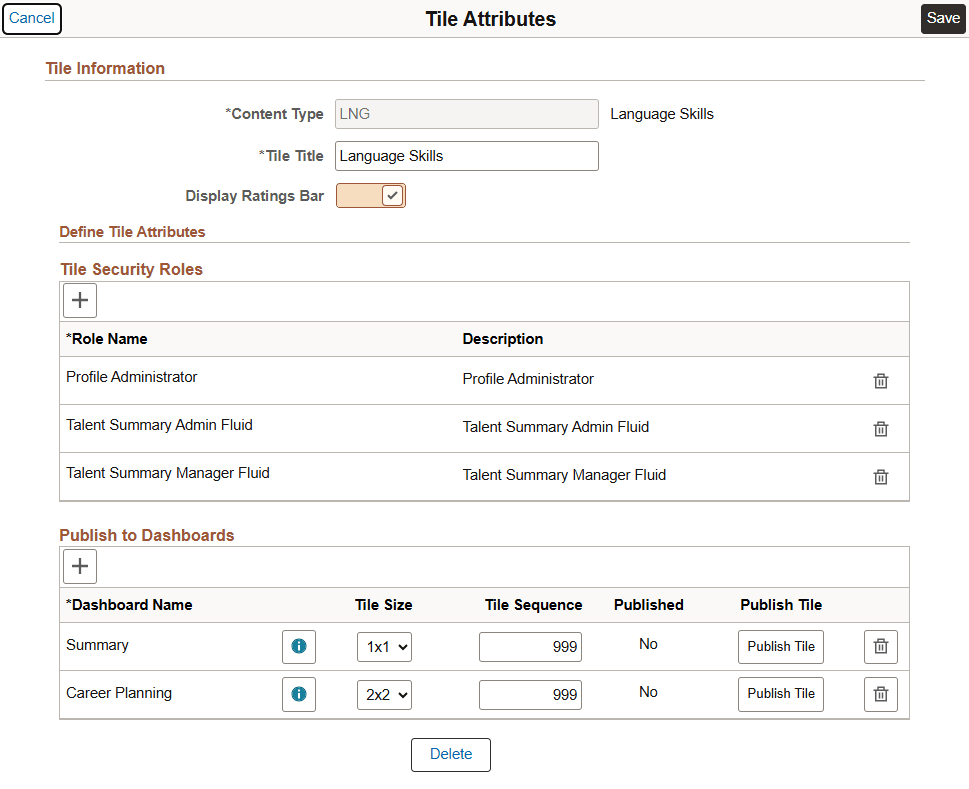

You will use the Tile Attributes Page to configure and publish this information to the designated dashboards.

Configure Snapshot Tile

Administrators use the Configure Snapshot tile to access the configuration pages for Snapshot pages and tiles.

Navigation:

The Configure Snapshot tile is delivered as part of the Talent Administrator home page, but the location can be personalized.

This example illustrates the Configure Snapshot tile.

Select the Configure Snapshot tile to access the various pages for defining Snapshot configuration options.

Configure Snapshot Layout

Like many fluid pages, the Configure Snapshot pages appear in a multi-panel layout. The left panel lists the page category items and the main panel displays the content related to that item. Select a page item from the left panel to change the page content view. Select the navigation tab to hide or display the left panel list.

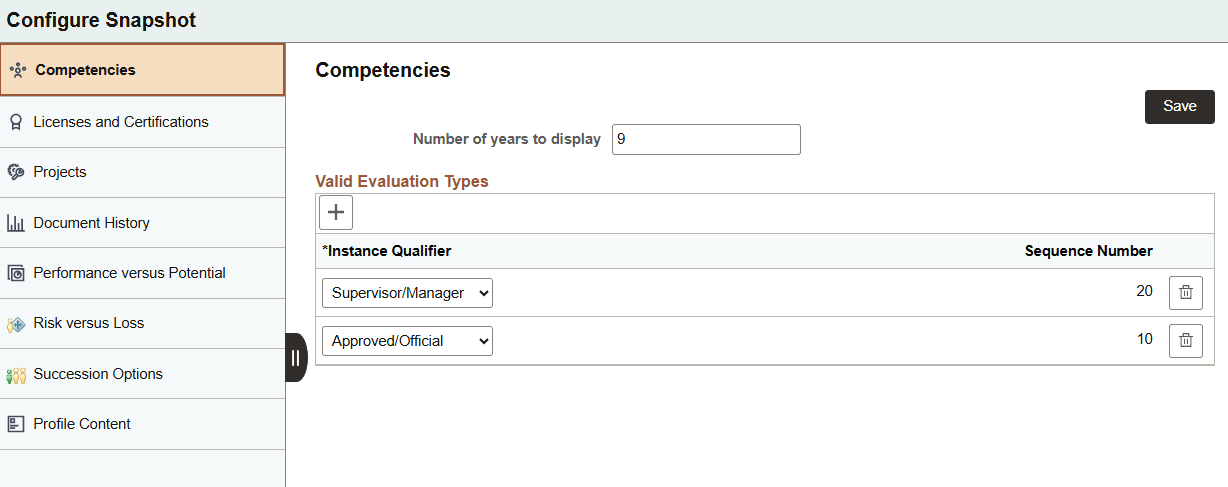

This example illustrates the Configure Snapshot page layout using a large form factor.

The PeopleSoft HCM enables you to configure the Snapshot business processes using these pages:

For Team, View, and Career Snapshot:

For Team and View Snapshot:

Configure Snapshot - Competencies Page

Use the Configure Snapshot - Competencies page (HCTS_CFG_COMP_FL) to identify the number of years to display competencies for the evaluation types you have defined on this page.

Note:

This setup applies to Team, View, and Career Snapshot content.

Navigation:

Select the Competencies navigation item from the left panel of the Configure Snapshot page.

This example illustrates the fields and controls on the Configure Snapshot - Competencies page.

Field or Control	Description
Number of years to display	Enter the number of years the system should show rated competencies. The competency-related tiles and pages for the Snapshot tiles and pages will display competencies within the years entered here. Note: Regardless of the number of years you enter, the tiles and pages display only the most current competency ratings. Limiting the number of years to display data eliminates old data that may no longer be relevant.

Field or Control

Description

Number of years to display

Enter the number of years the system should show rated competencies. The competency-related tiles and pages for the Snapshot tiles and pages will display competencies within the years entered here.

Note: Regardless of the number of years you enter, the tiles and pages display only the most current competency ratings. Limiting the number of years to display data eliminates old data that may no longer be relevant.

Valid Evaluation Types

Use this section to identify which evaluation types (instance qualifiers) should appear in the competency tiles and pages.

Field or Control	Description
Add icon button	Select to include additional evaluation types that can appear on the competency tiles and pages. Important: When you do not identify valid evaluation types, the competency tiles and pages will display a message that you need to contact the system administrator to configure this view.
Instance Qualifier and Description	Enter instance qualifiers to identify which evaluation types should appear on the competency-related tiles and pages. For example, although employees may add their own competencies, if the Self option is not selected here, the employee entered competency items will not appear on the Snapshot tiles or pages.
Sequence Number	Displays the sequence number for the evaluation type (instance qualifier). These are defined under the COMPETENCY content type on the Manage Profiles PeopleSoft Human Resources Manage Profiles: Instance Qualifiers Page. Note: When more than one evaluation type exists for an employee, the system will use the evaluation type with the lowest sequence number. For example, if an employee has both an Approved/Official evaluation, which has a sequence number of 10, and a Supervisor/Manager evaluation, which has a sequence number of 20, the system will display the Approved/Official evaluation on the Snapshot pages, since it has the lowest sequence number of 10.

Field or Control

Description

Add icon button

Select to include additional evaluation types that can appear on the competency tiles and pages.

Important: When you do not identify valid evaluation types, the competency tiles and pages will display a message that you need to contact the system administrator to configure this view.

Instance Qualifier and Description

Enter instance qualifiers to identify which evaluation types should appear on the competency-related tiles and pages. For example, although employees may add their own competencies, if the Self option is not selected here, the employee entered competency items will not appear on the Snapshot tiles or pages.

Sequence Number

Displays the sequence number for the evaluation type (instance qualifier). These are defined under the COMPETENCY content type on the Manage Profiles PeopleSoft Human Resources Manage Profiles: Instance Qualifiers Page.

Note: When more than one evaluation type exists for an employee, the system will use the evaluation type with the lowest sequence number. For example, if an employee has both an Approved/Official evaluation, which has a sequence number of 10, and a Supervisor/Manager evaluation, which has a sequence number of 20, the system will display the Approved/Official evaluation on the Snapshot pages, since it has the lowest sequence number of 10.

Related Topics

Configure Snapshot - Licenses and Certifications Page

Use the Configure Snapshot - Competencies page (HCTS_CFG_LICRT_FL) to determine if you want to compare the competencies held by a person to their job profile and when to alert a manager of expiring items.

Note:

This setup applies to Team, View, and Career Snapshot content.

Navigation:

Select the Licenses and Certifications category navigation item from the left panel of the Configure Snapshot pages.

This example illustrates the fields and controls on the Configure Snapshot - Licenses and Certifications page.

Field or Control	Description
Compare Person with Job Profile	Set this option to have the Licenses and Certifications tiles and pages identify which items held by the employee are required by the job versus those that are not required by the job. When enabled, the: The summary Snapshot - Licenses and Certifications (Summary) Tile will include missing job required items in the total count with expiring items. The non-summary Snapshot - Licenses and Certifications Tile will display a two box layout. The first box will show the number count of current, expired, and missing items of required items. The second box will show only the number count of additional items held by the employee. The Snapshot - Licenses and Certifications Page will display required and additional items on two different page tabs. The first tab of the page will show those items held by the employee that are required for the job, and the second tab of the page will display additional items held by the employee that are not required by the job. Deselect this option to have all licenses and certifications held by the employee grouped together and not separated by those required by the job. The tiles will show a current and expiring count as well as a count for expired items. The page will display all licenses and certifications held by the employee on one page. Missing items will not be identified on the tiles or pages.
Days for Warning Alert	Enter the number of days before a transaction is to expire to indicate that the system should display an expiration warning. For example, if you entered 60 in this field, and an employee’s CPR certification expires on October 30, then from September 1 until the expiration date the system will display an Expiring Soon warning alert icon next to this employee's certification. After this date, the icon will switch to an Expired alert icon instead. Expiration dates for licenses and certifications are defined on the Person Profile: Qualifications tab. Note: When the Compare Person with Job Profile option is enabled on this page, the Snapshot - Licenses and Certifications Tile will list the number count of required-for-job items that have expired or that are expiring soon. It will not list the number count of additional items that are expired or are expiring soon. Select the <number count> Additional Items box on the tile to view expiring soon or expired items that are not required by the job. However, the Snapshot - Licenses and Certifications (Summary) Tile does not separate out the required versus non-required items, even when the Compare Person with Job Profile option is set to Yes.

Field or Control

Description

Compare Person with Job Profile

Set this option to have the Licenses and Certifications tiles and pages identify which items held by the employee are required by the job versus those that are not required by the job. When enabled, the:

The summary Snapshot - Licenses and Certifications (Summary) Tile will include missing job required items in the total count with expiring items.
The non-summary Snapshot - Licenses and Certifications Tile will display a two box layout. The first box will show the number count of current, expired, and missing items of required items. The second box will show only the number count of additional items held by the employee.
The Snapshot - Licenses and Certifications Page will display required and additional items on two different page tabs. The first tab of the page will show those items held by the employee that are required for the job, and the second tab of the page will display additional items held by the employee that are not required by the job.

Deselect this option to have all licenses and certifications held by the employee grouped together and not separated by those required by the job. The tiles will show a current and expiring count as well as a count for expired items. The page will display all licenses and certifications held by the employee on one page. Missing items will not be identified on the tiles or pages.

Days for Warning Alert

Enter the number of days before a transaction is to expire to indicate that the system should display an expiration warning. For example, if you entered 60 in this field, and an employee’s CPR certification expires on October 30, then from September 1 until the expiration date the system will display an Expiring Soon warning alert icon next to this employee's certification. After this date, the icon will switch to an Expired alert icon instead. Expiration dates for licenses and certifications are defined on the Person Profile: Qualifications tab.

Note: When the Compare Person with Job Profile option is enabled on this page, the Snapshot - Licenses and Certifications Tile will list the number count of required-for-job items that have expired or that are expiring soon. It will not list the number count of additional items that are expired or are expiring soon. Select the <number count> Additional Items box on the tile to view expiring soon or expired items that are not required by the job. However, the Snapshot - Licenses and Certifications (Summary) Tile does not separate out the required versus non-required items, even when the Compare Person with Job Profile option is set to Yes.

Related Topics

Configure Snapshot - Projects Page

Use the Configure Snapshot - Projects page (HCTS_CFG_PRJCT_FL) to enter the number of years to display special projects assigned to the employee.

Note:

This setup applies to Team, View, and Career Snapshot content.

Navigation:

Select the Projects category item from the left panel of the Configure Snapshot pages.

This example illustrates the fields and controls on the Configure Snapshot - Projects page.

The information you enter here impacts which projects will appear on the Snapshot - Special Projects Tile and Snapshot - Special Projects Page. Only those that fall within the number of years specified here will appear on these tiles and pages.

Configure Snapshot - Document History Page

Use the Configure Snapshot - Document History page (HCTS_CFG_PERF_FL) to identify performance and development document types and the number of reviews to display.

Note:

The performance document setup applies to Team, View, and Career Snapshot content. However, development documents are for Team and View Snapshot only.

Navigation:

Select the Document History category item from the left panel of the Configure Snapshot pages.

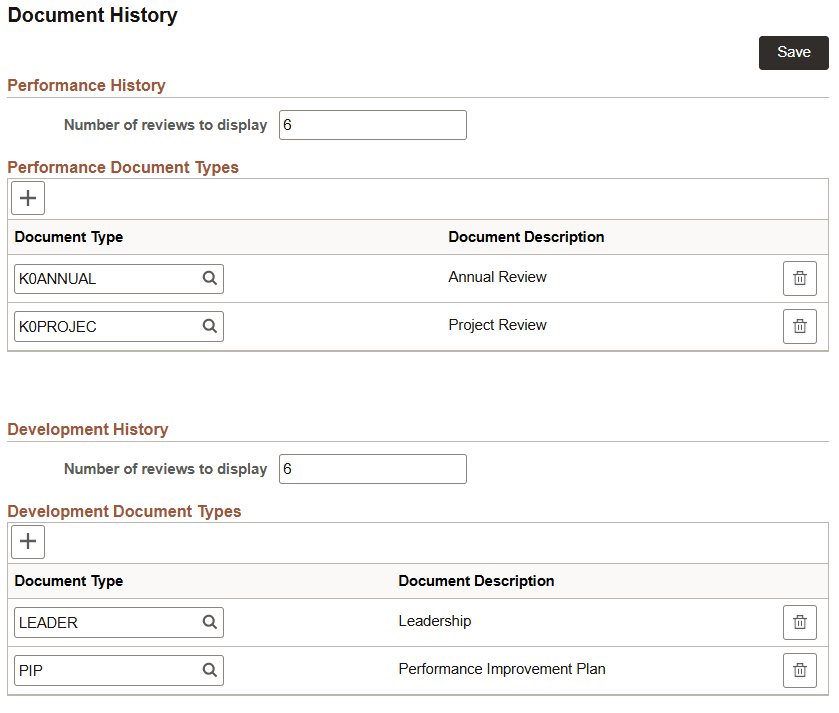

This example illustrates the fields and controls on the Configure Snapshot - Document History page.

Performance History

Field or Control	Description
Number of reviews to display	Enter the maximum number of completed performance reviews the Snapshot tiles and pages should display for an employee.

Performance Document Types

Use this section to identify which performance document types should appear on the performance tiles and pages. The performance tiles and pages will display all the document types that an employee holds that meet the criteria specified on this page. More than one document type can appear for an employee.

Field or Control	Description
Add icon button	Select to include additional performance document types that can appear on the Performance History tiles and pages.
Document Type	Select the performance document types that should be used for the overall performance rating for the performance tiles and pages. These values are defined on the PeopleSoft ePerformance: Document Types Page.

Important:

When you do not identify valid document types, the Performance History tiles and pages will display a message that you need to contact the system administrator to configure this view.

Development History

Note:

Development content is shown on the Team and View Snapshot only. It is not delivered to appear on the Career Snapshot dashboards.

Field or Control	Description
Number of reviews to display	Enter the maximum number of completed development reviews the Snapshot tiles and pages should display for an employee.

Development Document Types

Note:

Development content is shown on the Team and View Snapshot only. It is not delivered to appear on the Career Snapshot dashboards.

Use this section to identify which development document types should appear on the development tiles and pages. The development tiles and page will display the most recent development document type that an employee holds that meet the criteria specified on this page. More than one document type can appear for an employee on the (Manager and Administrator) Snapshot - Development History Page if he or she meets the criteria specified on this page and the page is accessed from the non-summary tile.

Field or Control	Description
Add icon button	Select to include development document types that can appear on the Development History tiles and pages.
Document Type	Select the development document types that should be used to display on the development tiles and pages. The tiles and pages will show the completed development documents for the employee. Document types are defined on the PeopleSoft ePerformance: Document Types Page.

Important:

When you do not identify valid document types, the Development tiles and pages will display a message that you need to contact the system administrator to configure this view.

Related Topics

Configure Snapshot - Performance versus Potential Page

Use the Configure Snapshot - Performance versus Potential page (HCTS_CFG_PP_BOX_FL) to set up the Performance versus Potential ratings box for the Employee Impact tile.

Note:

This setup applies to Team and View Snapshot content only.

Navigation:

Select the Performance versus Potential category item from the left panel if the Configure Snapshot pages.

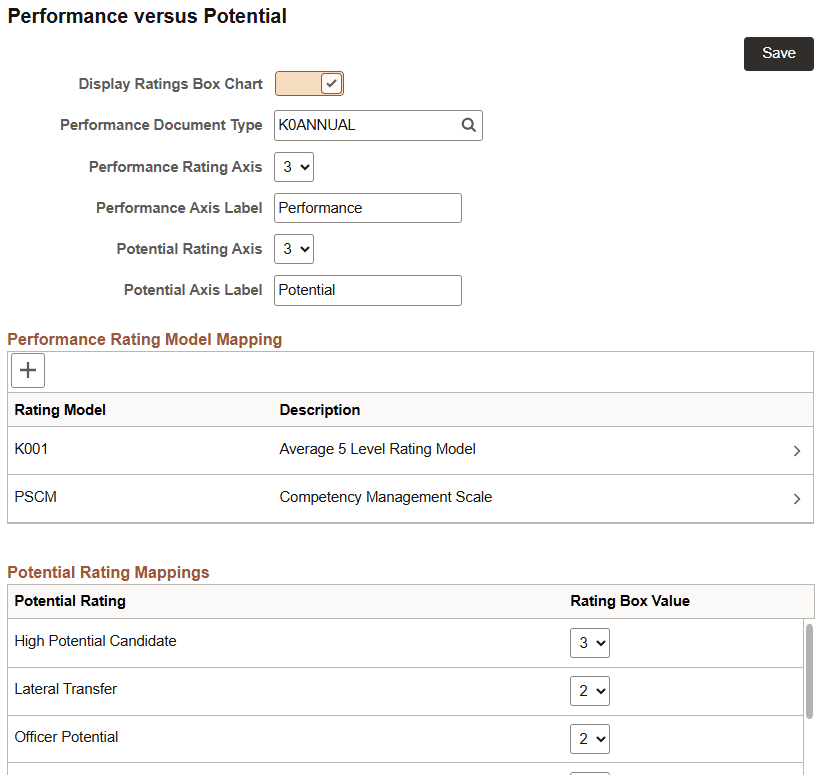

This example illustrates the fields and controls on the Configure Snapshot - Performance versus Potential page.

Use this page to configure the Performance versus Potential Ratings box for Team and View Snapshot. This ratings box is not delivered to appear on the Career Snapshot pages. The Performance versus Potential Ratings box displays the performance rating from the most recently completed performance document and the potential rating from career planning.

Field or Control	Description
Display Ratings Box Chart	Select to have the ratings box appear on the (Manager and Administrator) Snapshot - Employee Impact Tile. If you deselect this option, the ratings box will not appear on the tile and the employee’s evaluation for performance and potential will not be viewable on the (Manager and Administrator) Employee Impact Page as well. Note: If this option and the Display Ratings Box Chart option on the Configure Snapshot - Risk versus Loss Page are deselected, the tile will display a message to contact to administrator to configure the view. This also prevents the manager from viewing any of the employee’s ratings.
Performance Document Type	Select the performance document type that should be used for the Overall Performance Rating for the Performance versus Potential ratings box. These values are defined in the PeopleSoft ePerformance: Document Types Page.
Performance Rating Axis	Select an option in this field to configure the maximum value for the x-axis. The values in this drop-down are 1-5. This number defines the ratings box size, along with the y-axis.
Performance Axis Label	Specify the label for the performance x-axis.
Potential Rating Axis	Select an option in this field to configure the maximum value for the y-axis. The values in this drop down are 1-5.
Potential Axis Label	Specify the label for the performance y-axis.

Performance Rating Model Mapping

Use this group box to map one or more rating models to the performance ratings axis defined at the top of this page. To standardize performance ratings you use within your organization, which can potentially have different rating values, map each rating model to line up with the values for the performance rating axis.

Field or Control	Description
Rating Model	Identifies the rating models you wish to use in the performance rating axis. Rating models are managed on the PeopleSoft Human Resources Manage Profiles: Rating Model Page. Select the Add (+) button or select a row to access the Rating Model Information Page and add, view, or manage rating model mappings.

Field or Control

Description

Rating Model

Identifies the rating models you wish to use in the performance rating axis. Rating models are managed on the PeopleSoft Human Resources Manage Profiles: Rating Model Page.

Select the Add (+) button or select a row to access the Rating Model Information Page and add, view, or manage rating model mappings.

Potential Rating Mappings

Field or Control	Description
Potential Rating	Map a rating box value to each potential rating type. The system uses this information to determine where a person’s potential rating should display in the ratings box on the (Manager and Administrator) Snapshot - Employee Impact Tile. The values run from 1 to the value defined in the Potential Rating Axis field.

Rating Model Information Page

Use the Rating Model Information page (HCTS_CFG_RATE2_SCF) to map a performance rating axis value to each rating within a rating model.

Note:

This setup applies to Team and View Snapshot content only.

Navigation:

Select the Add (+) button or select a row from the Performance Rating Model Mapping grid on the Configure Snapshot - Performance versus Potential Page.

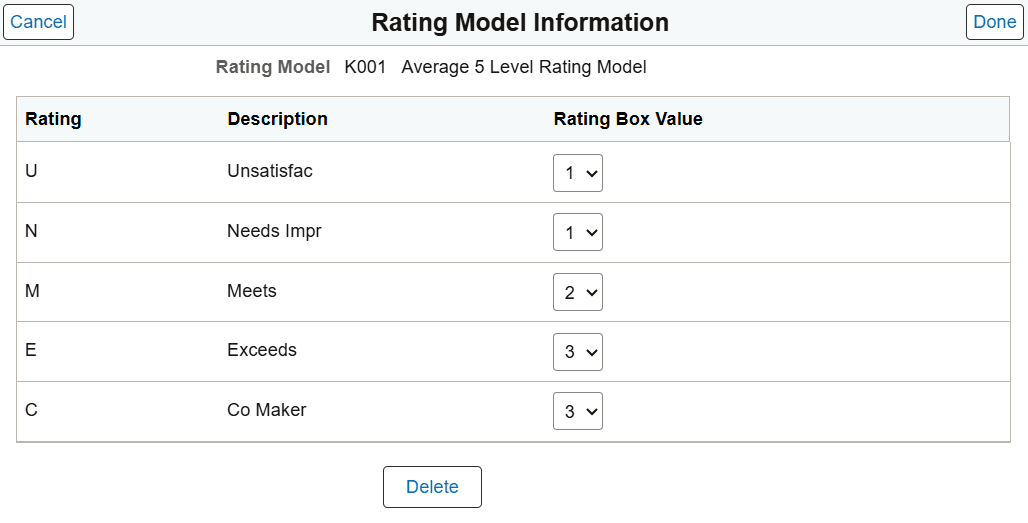

This example illustrates the fields and controls on the Rating Model Information page.

Map a rating box value to the performance rating for this ratings model. The system uses this information to determine where a person’s performance rating should display in the ratings box on the (Manager and Administrator) Snapshot - Employee Impact Tile when a rating model may not match the performance rating axis values defined on this page. The values run from 1 to the value defined in the Performance Rating Axis field on the Configure Snapshot - Performance versus Potential Page.

Configure Snapshot - Risk versus Loss Page

Use the Configure Snapshot - Risk versus Loss page (HCTS_CFG_RL_BOX_FL) to set up the Risk versus Loss ratings box for the Employee Impact tile.

Note:

This setup applies to Team and View Snapshot content only.

Navigation:

Select the Risk versus Loss category item from the left panel of the Configure Snapshot pages.

This example illustrates the fields and controls on the Configure Snapshot - Risk versus Loss page.

Field or Control	Description
Display Ratings Box Chart	Select to have this ratings box appear on the (Manager and Administrator) Snapshot - Employee Impact Tile. When no data is available for the ratings box, the box will not appear. If you deselect this option, the ratings box will not appear on the tile and the employee’s evaluation for risk of leaving and impact of loss will not be viewable on the (Manager and Administrator) Employee Impact Page as well. Note: If this option and the Display Ratings Box Chart option on the Configure Snapshot - Performance versus Potential Page are deselected, the tile will display a message to contact to administrator to configure the view. This also prevents the manager from viewing any of the employee’s ratings.
Risk Axis Label	Specify a label for the risk of leaving x-axis.
Impact Axis Label	Specify a label for the impact of leaving y-axis.

Field or Control

Description

Display Ratings Box Chart

Select to have this ratings box appear on the (Manager and Administrator) Snapshot - Employee Impact Tile. When no data is available for the ratings box, the box will not appear.

If you deselect this option, the ratings box will not appear on the tile and the employee’s evaluation for risk of leaving and impact of loss will not be viewable on the (Manager and Administrator) Employee Impact Page as well.

Note: If this option and the Display Ratings Box Chart option on the Configure Snapshot - Performance versus Potential Page are deselected, the tile will display a message to contact to administrator to configure the view. This also prevents the manager from viewing any of the employee’s ratings.

Risk Axis Label

Specify a label for the risk of leaving x-axis.

Impact Axis Label

Specify a label for the impact of leaving y-axis.

Configure Snapshot - Succession Options Page

Use the Configure Snapshot - Succession Options page (HCTS_CFG_SUCC_FL) to select which of the employee’s succession plans should display on the Succession Plans tile and page based on the plan’s status.

Note:

This setup applies to Team Snapshot content only.

Navigation:

Select the Succession Options category item from the left panel of the Configure Snapshot pages.

This example illustrates the fields and controls on the Configure Snapshot - Succession Options page.

The information you select here determines which succession plans the manager will see for the employee on the (Manager and Administrator) Snapshot - Succession Plans Tile and (Manager and Administrator) Snapshot - Succession Plans Page. If both options are deselected, then the tile will display a message to contact the administrator to configure the view.

Note:

These settings are for the manager only, they do not apply to the administrator view of the employee’s succession plan data. Administrators will continue to see succession data based on their security, not the settings defined here. Succession plan data is also not delivered to appear in Career Snapshot for the employee.

Configure Snapshot - Profile Content Page

Use the Configure Snapshot - Profile Content page (HCTS_CFG_CAT_FL) to view or add new profile-related tiles to the Snapshot dashboards.

Note:

This setup applies to Team and View Snapshot dashboards only.

Navigation:

Select the Profile Content category item from the left panel of the Configure Snapshot pages.

This example illustrates the fields and controls on the Configure Snapshot - Profile Content page.

Use this page to view a list of profile tiles that you have created for the Snapshot dashboards.

Field or Control	Description
Add Content Type button or Add icon button	Select to access the Tile Attributes Page and configure a new profile tile for any of the Snapshot dashboards.
Content Type and Description	Displays the type of content that will be available on the tile and pages. This information comes from Profile Management.
Tile Title	Displays the content name of the tile and page that will appear to the user within Snapshot. Note: This name is represented as <Content Type> or <Content Item> throughout this documentation.
6+3 Published	Indicates if a tile has been published to a Snapshot dashboard. Note: Although a content type may indicate that it is published, it may not be published to all dashboards you have configured for this content type. The tile only needs to be published to one dashboard to indicate that it has been published. To view the dashboard or dashboards to which this tile has been published, select the row to access the Tile Attributes Page. If this field is blank, the tile has not been published and therefore not accessible from any of the Snapshot dashboards.

Select a row to access the Tile Attributes Page to view details, update information, or delete a profile tile.

Related Topics

Tile Attributes Page

Use the Tile Attributes page (HCTS_TILE_TBL_SCF or HCTS_TILE_TBL2_SCF) to define the attributes and publish profile-related tiles to the Snapshot dashboards.

Note:

This setup applies to Team and View Snapshot dashboards only.

Navigation:

Select the Add Content Type button, Add (+) button, or select a row on the Configure Snapshot - Profile Content Page.

This example illustrates the fields and controls on the Tile Attributes page.

Use this page to add and publish profile-related tiles to the Snapshot dashboards. This page enables you to create and display profile data you have created for your organization as well as profile data that may not be part of the delivered tiles. For a list of delivered tiles, see those items marked with an asterisk (*) on the Snapshot Layout documentation.

Field or Control	Description
Content Type	Select a content type, which identifies the type of information that will appear on the tile and pages. Content types are defined in Profile Management on the PeopleSoft Human Resources Manage Profiles: Content Types Page. Only those content types that do not already have a tile on any of the Snapshot dashboards will be available for selection.
Tile Title	Indicate the name that should appear on the tile and pages. You can enter up to 30 characters. Note: This name is represented as <Content Type> or <Content Item> throughout this documentation.
Display Ratings Bar	This option is available when the content type you have selected is associated with ratings. It is selected by default when a content type is associated with a rating. Enabled, the tile and pages will display a ratings bar. For example, if this is selected and you are viewing language profile information, the tile will show the employee’s proficiency on a graphical bar. However, a content type like travel preferences is not associated with ratings and therefore this option would not be available for selection. Deselect to hide the ratings bar and show only text.

Field or Control

Description

Content Type

Select a content type, which identifies the type of information that will appear on the tile and pages. Content types are defined in Profile Management on the PeopleSoft Human Resources Manage Profiles: Content Types Page.

Only those content types that do not already have a tile on any of the Snapshot dashboards will be available for selection.

Tile Title

Indicate the name that should appear on the tile and pages. You can enter up to 30 characters.

Note: This name is represented as <Content Type> or <Content Item> throughout this documentation.

Display Ratings Bar

This option is available when the content type you have selected is associated with ratings.

It is selected by default when a content type is associated with a rating. Enabled, the tile and pages will display a ratings bar. For example, if this is selected and you are viewing language profile information, the tile will show the employee’s proficiency on a graphical bar. However, a content type like travel preferences is not associated with ratings and therefore this option would not be available for selection.

Deselect to hide the ratings bar and show only text.

Ratings bars appear differently based on the dashboard you select and the page you are viewing, as shown in this table:

Dashboard	Tile	<Content Type> Page
Summary dashboard	Does not show a ratings bar	Displays: (Tablet or desktop) Up to three (3) ratings bars (Smartphone) The first (1) ratings bar only
Non-Summary dashboards: Promotion Readiness Compensation Review Performance Review Career Planning	Displays the first (1) ratings bar only	Displays: (Tablet or desktop) Up to three (3) ratings bars (Smartphone) The first (1) ratings bar only

Dashboard

Tile

<Content Type> Page

Summary dashboard

Does not show a ratings bar

Displays:

(Tablet or desktop) Up to three (3) ratings bars
(Smartphone) The first (1) ratings bar only

Non-Summary dashboards:

Promotion Readiness
Compensation Review
Performance Review
Career Planning

Displays the first (1) ratings bar only

Displays:

(Tablet or desktop) Up to three (3) ratings bars
(Smartphone) The first (1) ratings bar only

Tile Security Roles

Use this section to identify which PeopleTools roles the user should have to access this tile and sub-pages. Insert additional roles by selecting the Add (+) button at the top of the grid or delete roles by selecting the delete (trash can) button.

Note:

When identifying roles, consider if you will be granting access to both the manager (Team Snapshot tile) and administrator (View Snapshot tile) pages. The PeopleSoft application delivers the Talent Summary Manager Fluid and Talent Summary Admin Fluid roles respectively, or you can use roles you have created.

Publish to Dashboards

Use this section to configure a tile for one or many dashboards. The fields in this section become available when you select a dashboard in the Dashboard Name field.

Field or Control	Description
Add icon button	Select this button to add this content to another dashboard and configure the tile.
Dashboard Name	Select the Snapshot dashboard on which this tile should appear. Valid dashboard values include: Career Planning Compensation Review Performance Review Promotion Readiness Summary You cannot publish a tile to the same dashboard more than once. After you have selected a dashboard for a content type, that dashboard option will no longer appear in the list.
Dashboard Tiles icon button	Select this icon button to access the Dashboard Tiles Page and view all the tiles that have been published to this dashboard. This is useful to help visualize the dashboard layout and order tiles by size.
Tile Size	Select the size of the tile as it should appear on the selected dashboard. The system will provide a default tile size, based on the dashboard and content items available for the content type. You can change this value for non-summary type tiles. Valid values for the following dashboards include: Summary: 1x1 Non-summary: 2x2 and 2x1 Although you can save this page without having a tile size selected, you must select a tile size in order to publish the tile. To view the order and sizing of other tiles on the dashboard, select the Dashboard Tiles icon button.
Tile Sequence	Enter the priority order in which the tile should appear on the dashboard, smallest to largest. The system provides 999 by default, making it appear at the end of the tile list, but you can change this. If you have more than one tile with the same sequence number, the dashboard will display those tiles alphabetically. To view the current order of the tiles on the dashboard, select the Dashboard Tiles icon button.
Published	Displays No by default, indicating that the tile has not yet been published to the indicated dashboard. You must select the Publish Tile button to publish this tile. Saving the page will not publish the tile. After you have published the tile, the column displays a Yes to indicate that this tile has been published to the dashboard.
	Select this button to publish the tile to the indicated dashboard. Review the Published field on this page or the Configure Snapshot - Profile Content Page to see if a tile is published. Note: By default the Talent Summary Admin Fluid role is given access to all new tiles. This gives the administrator user access to add, update, and delete the tiles as needed. Note: You can make changes to the tile without having to republish the tile.
Delete button	Select this button to remove the tile from the indicated dashboard.

Other Page Controls

The page may also contains these other standard buttons.

Field or Control	Description
Cancel	Select to cancel any changes you have made to this content type.
Delete	This button is available when you are updating an existing content type. Select to remove this content type from your configurable profile content list. Note: You cannot delete a content type if there are tiles that have been published to any dashboard. You must first delete the published tiles from the dashboards before you can delete a content type.
Save	Select to save your information and have it appear in the configurable profile content list. If you have published a tile, you will need to save your information before you can view the tile on the dashboard.

Field or Control

Description

Cancel

Select to cancel any changes you have made to this content type.

Delete

This button is available when you are updating an existing content type.

Select to remove this content type from your configurable profile content list.

Note: You cannot delete a content type if there are tiles that have been published to any dashboard. You must first delete the published tiles from the dashboards before you can delete a content type.

Save

Select to save your information and have it appear in the configurable profile content list. If you have published a tile, you will need to save your information before you can view the tile on the dashboard.

Related Topics

Dashboard Tiles Page

Use the Dashboard Tiles page (HCTS_DASHBOARD_SCF) to view tile publish statuses.

Navigation:

Select the Dashboard Tiles information button for a row on the Tile Attributes Page.

This example illustrates the fields and controls on the Dashboard Tiles page.

Use this page to view the sequence order of tiles and their sizes. By viewing the order and size, you are more easily able to align tiles on the dashboard with those of similar sizes.
