Activate a Robot

After you finish building a robot, activate it. Afterward, you can test and run the robot.

Requirements for Activation

If version 1.0.0 of a robot is active, you can't make version 1.0.1 or version 1.1.0 active. However, you can make version 2.0.0 active. Or, you can deactivate version 1.0.0 and then activate 1.0.1 or 1.1.0.

The same rule persists as you increase version numbers. If version 2.0.0 is active, you can't make version 2.0.1 or version 2.1.0 active. However, you can make version 3.0.0 active. Or, you can deactivate version 2.0.0 and then activate 2.0.1 or 2.1.0.

Prerequisites

Before you activate a robot, you must complete the following steps:

• Associate the robot with an environment pool. See Specify Where a Robot Runs.

• Fix all errors. See Fix a Robot's Errors.

Activate a Robot

1. Open a project.
   1. In the navigation pane, select Projects.
   2. Select the project name.
2. In the left toolbar, select Robot .
3. Consider updating the open browser action so that the robot runs in a headless browser.

   Be aware that a robot typically has improved performance when it runs in a headless browser.

4. In the Robots box, ensure that the robot's state is Configured.



   If the robot isn't in a Configured state, you haven't met all the prerequisites for activation. See Specify Where a Robot Runs and Fix a Robot's Errors.

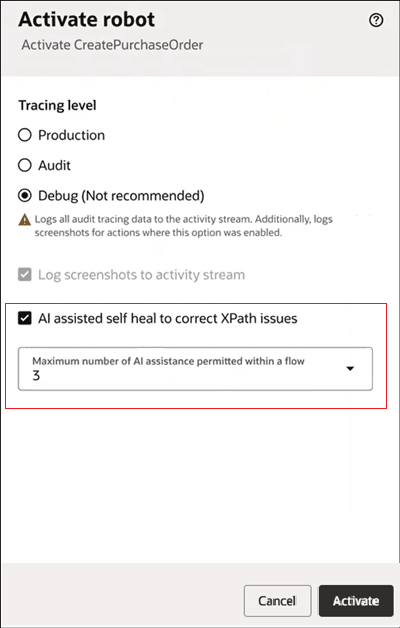

5. In the Robots box, point to the Configured robot, select ..., and select Activate.

   The Activate robot panel appears.

6. Choose the appropriate tracing level for the robot.

   See Tracing Levels for Robots and Log Screenshots to Activity Stream. To understand how the different options for tracing levels impact each other, see Options for Tracing Levels.

7. Select Activate.

   A Confirmation pop-up appears, and the state changes to Activation in progress.



8. Navigate to another area of the application, and then return to the project to check the robot's state.

   Within a minute or two, the robot's state changes to Active.





Next, you can test the robot on its environment. See Test a Robot on Its Environment.

Tracing Levels for Robots

Choose the right tracing level for your robot: either production, audit, or debug.

The following table identifies the type of information that is included in the activity stream for each tracing level.

Tracing level	Example	Includes a summary of the activity	Includes all activity messages with unmasked contents (XPaths)	Includes the input and output of activities	"Log screenshots to activity stream" is selected by default	Automatically changes to Production level after 24 hours
Production					¹	n/a
Audit					¹
Debug						²
Legend ¹ When you select Log screenshots to activity stream for the Production or Audit level, screenshots are retained in the activity stream for 8 days. ² Data is retained in the activity stream for 24 hours. After 24 hours, minimal details about the robot instances remain available for up to 32 days. The data that remains available is the robot instance's ID, status, and time duration.

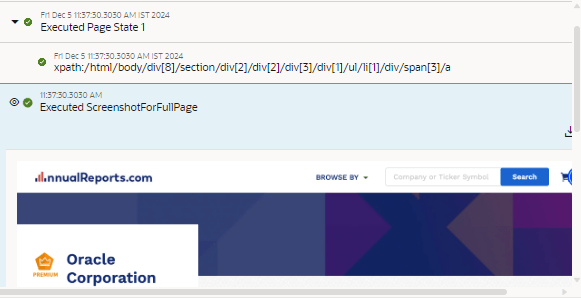

Log Screenshots to Activity Stream

When you choose a robot's tracing level, specify whether to include screenshots in the activity stream using the Log screenshots to activity stream checkbox.

Tip: A robot that captures screenshots sometimes runs a little slower and captures more data than a robot that doesn't capture screenshots. Therefore, many people select Log screenshots to activity stream for Debug tracing and deselect it for Production tracing.

Setting	Do screenshots appear in the activity stream for screenshot actions?	Do screenshots appear in the activity stream when "Before this action" or "After this action" is selected?
Log screenshots to activity stream is selected	See Add a Screenshot Action.	See Capture Screenshots in Robots.
Log screenshots to activity stream is not selected	See Add a Screenshot Action.	The Log screenshots to activity stream setting overrides the Before this action and After this action settings. See Capture Screenshots in Robots.

Options for Tracing Levels

You have many options for setting tracing levels. Understand how each option affects a robot.

Option for specifying a tracing level	Does this option affect a robot?	More information
Project deployment When activating a project deployment		This setting overwrites the robot-level setting. Therefore, if you activate a robot and then activate a project deployment that contains the robot, the robot uses the tracing level that you set for the project deployment. See Activate or Deactivate a Project in Using Integrations in Oracle Integration 3.
Integration activation When activating an integration		This setting affects only an integration and doesn't affect a robot's tracing level, even if the integration calls a robot. See Activate an Integration in Using Integrations in Oracle Integration 3.
Integration update After activating an integration		This setting affects only an integration and doesn't affect a robot's tracing level, even if the integration calls a robot. See Manage Tracing Levels on Integrations in Using Integrations in Oracle Integration 3.
Robot activation When activating a robot		This setting determines the tracing level for a robot, unless you override it when you activate a project deployment. See Activate a Robot.
Robot update After activating a robot		This setting determines the tracing level for a robot, unless you override it when you activate a project deployment. See Activate a Robot.
