4.2.4.5 Local Provisioning Menu
The RTDB / Local Provisioning menu allows the user provision LNP data directly to the RTDB.

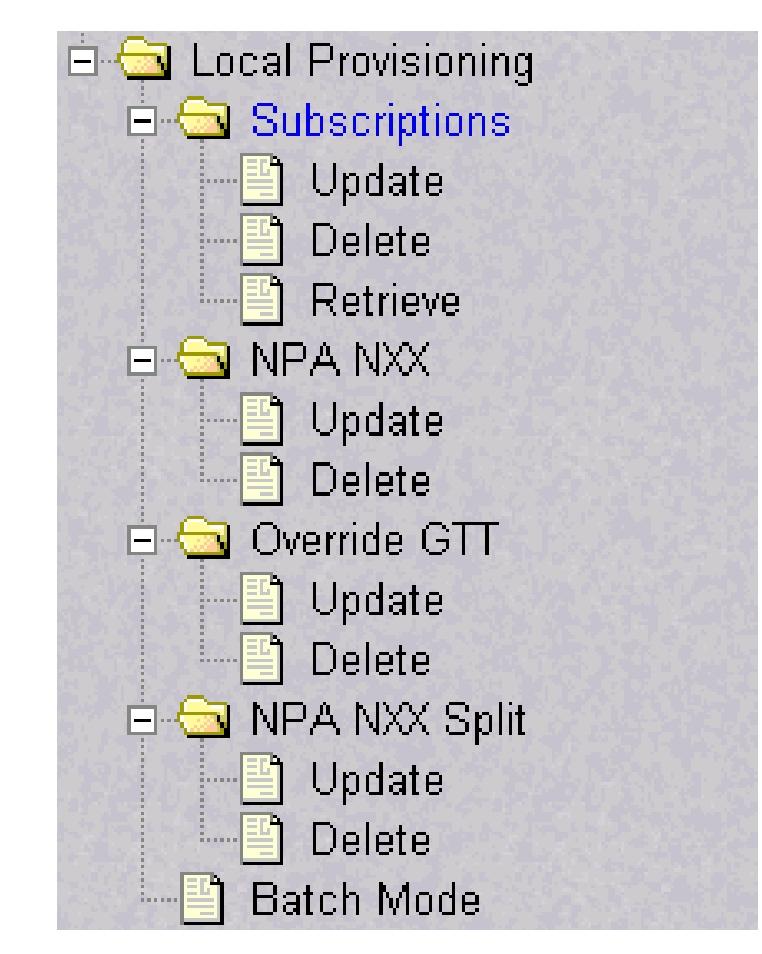

Figure 4-29 Local Provisioning Menu
Local Provisioning Utility
The Local Provisioning Utility (LPU) handles customer data received locally and processes Local Provisioning commands.
The LPU provides the ability to update the HA-Active ELAP RTDB or execute provisioning commands during an emergency situation. Otherwise, the LPU should not be used to update the ELAP database (this is the function of the LSMS).
In the event of a loss of the TCP/IP connection between the LSMS and the HA-Active ELAP, the LPU allows the customer to send manual updates to the RTDB of the HA-Active ELAP. The LPU also allows the user to process commands.
Caution:
Manually applying updates to the ELAP RTDB using the LPU can result in LSMS and ELAP databases that are not synchronized (contain different data).The RTDB / Local Provisioning menu provides these actions:
4.2.4.5.1 Subscriptions
The RTDB / Local Provisioning / Subscriptions menu options lets the user update, delete, and retrieve LNP data directly to the RTDB.
The RTDB / Local Provisioning /Subscriptions menu provides these actions:
Subscriptions / Update
The RTDB / Local Provisioning /Subscriptions / Update LNP Subscription Records screen lets the user update values for a specific subscription using a 10-digit subscription number as a key.
Enter the required information and click the Update button.
Note:
Do not check the ‘Process command even if connection to remote LSMS port not possible’ button unless you thoroughly understand the material in Introduction.Subscriptions / Delete
The RTDB / Local Provisioning /Subscriptions / Delete LNP Subscription Records screen lets the user delete a specific subscription record using a 10-digit subscription number as a key.
Enter the single ten-digit subscription number in the TN field, and click the Retrieve button.
Note:
Do not check the ‘Process command even if connection to remote LSMS port not possible’ button unless you thoroughly understand the material in Introduction.Subscriptions / Retrieve
The RTDB / Local Provisioning /Subscriptions / Retrieve LNP Subscription Records screen lets the user retrieve a specific subscription record using a 10-digit subscription number as a key.
Enter the single ten-digit subscription number in the TN field, and click the Retrieve button.
Note:
Do not check the ‘Process command even if connection to remote LSMS port not possible’ button unless you thoroughly understand the material in Introduction.4.2.4.5.2 NPA NXX Menu
The RTDB / Local Provisioning / NPA NXX menu lets the user update and delete a single NPA NXX record directly to the RTDB.
The RTDB / Local Provisioning / NPA NXX menu provides these actions:
NPA NXX / Update
The RTDB / Local Provisioning / NPA NXX / Update NPA NXX Records screen allows you to update values for a specific NPA NXX record using a 6-digit subscription number as a key.
Enter the required information and click the Update button.
NPA NXX / Delete
The RTDB / Local Provisioning / NPA NXX / Delete NPA NXX Records screen allows you to delete values for a specific NPA NXX record using a 6-digit subscription number as a key.
Enter the single NPA NXX number in the Default GTT NPANXX field, and click the Delete button.
NPA NXX / Retrieve
The RTDB / Local Provisioning / NPA NXX / Retrieve NPA NXX Records screen allows you to retrieve values for a specific NPA NXX record using a 6-digit subscription number as a key.
Enter the single NPA NXX number in the Default GTT NPANXX field, and click the Retrieve button.
Note:
The RTDB / Local Provisioning / NPA NXX / Retrieve NPA NXX Records screen displays NPANXX records if DGTT is not explicitly provisioned on the LSMS for the NPANXX.4.2.4.5.3 Override GTT Menu
The RTDB / Local Provisioning / Override GTT menu lets the user update and delete a single LRN (Location Routing Number) record directly on the RTDB.
The RTDB / Local Provisioning / Override GTT menu provides these actions:
Override GTT / Update
The RTDB / Local Provisioning / Override GTT / Update Override GTT Records screen lets the user update values for a specific LRN record using a 10-digit LRN number as a key.
Enter the required information and click the Update button.
4.2.4.5.4 NPA NXX Split Menu
The RTDB / Local Provisioning / NPA NXX Split menu lets the user update and delete a single Split NPA NXX record directly on the RTDB.
The RTDB / Local Provisioning / NPA NXX Split menu provides these actions:
NPA NXX Split / Update
The RTDB / Local Provisioning / NPA NXX Split / Update NPA NXX Split Records screen lets the user update values for a single Split NPA NXX record using a 6-digit NPA NXX number as a key.
Enter the required information and click the Update button.
NPA NXX Split / Delete
The RTDB / Local Provisioning / NPA NXX Split / Delete screen lets the user delete a single Split NPA NXX record using a 6-digit NPA NXX number as a key.
Enter the single Split NPA NXX record using a 6-digit NPA NXX number in the Old or New NPANXX: field, and click the Update button.
NPA NXX Split / Retrieve
The RTDB / Local Provisioning / NPA NXX Split / Retrieve screen lets the user retrieve a single Split NPA NXX record using a 6-digit NPA NXX number as a key.
Enter the single Split NPA NXX record using a 6-digit NPA NXX number in the NPANXX: field, and click the Retrieve button.
