Configure ETL Source for OUAW

This page describes the integration flow between source data and target data, detailing its preparation process and the configuration steps for the ETL process.

Prerequisites

  • Ensure that OCI GoldenGate Microservices is provisioned.
  • Ensure that installing the Oracle Data Integrator (ODI)-based ETL component is completed.
  • Ensure that the Oracle Data Integrator domain is created.
  • Ensure that OCI Object Storage is provisioned.
  • Ensure Source Application Database is provisioned with Oracle Base Database Service (DBaaS) with 2 Nodes.
  • Ensure the source database is accessible with other provisioned OCI resources and services. Accordingly, configure your OCI Networking.

Note:

To perform the C2M Source Configuration, first complete the CCB Source Configuration and then proceed with MDM Source Configuration.

See Perform Pre-Installation Steps for OUAW for more information.

Configure Buckets and Extract Parameters

Before attaching a specific source system to Oracle Utilities Analytics Warehouse, it is necessary to complete some source application configurations as detailed on Configure ETL Parameters and Buckets.

Set Up Source Database Server for OCI GoldenGate

To set up each source instance:

  1. Make sure that the source database is enabled in the ARCHIVELOG mode.
  2. Connect to the source database as a sys user to CDB and execute the following statements.
    alter database add supplemental log data (primary key) columns;
alter system set enable_goldengate_replication=TRUE scope=both;
  3. Create a new user. This will be the Oracle GoldenGate Owner. Make sure to assign to the new user a tablespace that is not assigned to any other.
    • For a standalone database: CCB01SRC
    • For a multi-tenant database: C##GGOWNER

      Note:

      Keep track of the GoldenGate Owner username. It will be used in the Oracle Utilities Analytics Warehouse installation.

    Example: CREATE USER < C##GGOWNER> IDENTIFIED BY <Password> TEMPORARY TABLESPACE TEMP PROFILE DEFAULT CONTAINER=ALL;

  4. Connect to the source database with the sys user to CDB and run the following commands.
    • For a standalone database:

      Note:

      Replace the GoldenGate Owner placeholder with the actual name for the database user that was created in the previous step.
      grant CREATE SESSION,CONNECT,RESOURCE,ALTER SYSTEM to <GoldenGate Owner>;
grant unlimited tablespace to <GoldenGate owner> with admin option;
grant OGG_CAPTURE to C##GGOWNER container=all;
grant OGG_APPLY to C##GGOWNER container=all;
grant unlimited tablespace to <GoldenGate Owner> with admin option;
Revoke dba from <GoldenGate Owner>;
grant create any view to <GoldenGate Owner>;
grant select any dictionary to <GoldenGate Owner>;
GRANT CREATE ANY DIRECTORY TO <GoldenGate Owner>;
GRANT DROP ANY DIRECTORY TO <GoldenGate Owner>;
GRANT EXP_FULL_DATABASE TO <GoldenGate Owner>;
GRANT IMP_FULL_DATABASE TO <GoldenGate Owner>;
    • For a multi-tenant database:

      Note:

      Modify the common user used for the GoldenGate owner placeholder <Common user for GG> with the actual name of the container common user created on your multi-tenant database.
      grant CONNECT to <Common user for GG> container=all;
grant IMP_FULL_DATABASE to <Common user for GG> container=all;
grant RESOURCE to <Common user for GG> container=all;
grant EXP_FULL_DATABASE to <Common user for GG> container=all;
grant DROP ANY DIRECTORY to <Common user for GG> container=all;
grant UNLIMITED TABLESPACE to <Common user for GG> container=all;
grant CREATE ANY DIRECTORY to <Common user for GG> container=all;
grant ALTER SYSTEM to <Common user for GG> container=all;
grant SELECT ANY DICTIONARY to <Common user for GG> container=all;
grant CREATE ANY VIEW to <Common user for GG> container=all;
grant OGG_CAPTURE to C##GGOWNER container=all;
grant OGG_APPLY to C##GGOWNER container=all;
  5. Connect to the <source application> ADM schema (for example, CISADM) and run the following commands from PDB.
    • For the Oracle Utilities Customer Care and Billing source database, run the following grants for the USER created in step 4:
      Grant select on <application ADM Schema>.F1_MST_CONFIG to <GoldenGate owner>;
Grant select on <application ADM Schema>.F1_EXT_LOOKUP_VAL to <GoldenGate owner>;
Grant select on <application ADM Schema>.F1_BKT_CONFIG to <GoldenGate owner>;
Grant select on <application ADM Schema>.F1_BKT_CONFIG_VAL to <GoldenGate owner>;
    • For the Oracle Utilities Operational Device Management source database, run the following grants:
      Grant select on <application ADM Schema>.F1_MST_CONFIG to <GoldenGate owner>
Grant select on <application ADM Schema>.F1_EXT_LOOKUP_VAL to <GoldenGate owner>

    • For the Oracle Utilities Meter Data Management source database, run the following grants:

      Grant select on <application ADM Schema>.F1_MST_CONFIG to <GoldenGate Owner>;
Grant select on <application ADM Schema>.F1_EXT_LOOKUP_VAL to <GoldenGate Owner>;
    • For the Oracle Utilities Work and Asset Management source database, run the following grants:
      Grant select on <application ADM Schema>.F1_EXT_LOOKUP_VAL to <GoldenGate Owner>;
Grant select on <application ADM Schema>.F1_MST_CONFIG to <GoldenGate Owner>;
Grant select on <application ADM Schema>.F1_BKT_CONFIG to <GoldenGate Owner>;
Grant select on <application ADM Schema>.F1_BKT_CONFIG_VAL to <GoldenGate Owner>;

Access Control Operations on Oracle Autonomous AI Database

  1. Connect to ADB as ADMIN user.
    sqlplus ADMIN/'< ADB ADMIN Password >'@<ADB Service Name>
  2. Run the below SQL query by providing the OCI GG Admin Console URL.
    begin
   dbms_network_acl_admin.append_host_ace(
   host => '<OCI GG Admin Console URL>,
   ace => xs$ace_type(
   privilege_list => xs$name_list('CONNECT','HTTP','RESOLVE'),
   principal_name => '<Metadata username>',
   principal_type => xs_acl.ptype_db)
   ,private_target => TRUE
   );
end;
/
    Example:
    begin
   dbms_network_acl_admin.append_host_ace(
   host => 'example.goldengate.us-phoenix-1.oci.oraclecloud.com',
   ace => xs$ace_type(
   privilege_list => xs$name_list('CONNECT','HTTP','RESOLVE'),
   principal_name => 'MDADM',
   principal_type => xs_acl.ptype_db)
   ,private_target => TRUE
   );
end;
/

Create Replication Schema on Oracle Autonomous AI Database

  1. Log in to ADB as ADMIN user.
    sqlplus ADMIN/'< ADB ADMIN Password >'@<ADB Service Name>
  2. Create replication users.
    CREATE USER <Source Product Context>REP IDENTIFIED BY <Password> DEFAULT TABLESPACE "DATA" TEMPORARY TABLESPACE "TEMP" PROFILE DEFAULT;
    Example:
    CREATE USER CCB1REP IDENTIFIED BY OUA1ccbrep1## DEFAULT TABLESPACE "DATA" TEMPORARY TABLESPACE "TEMP" PROFILE DEFAULT;

    In this example, the Source Product is CCB and Context CD is 1, add REP at end.

Grants to Replication Schema

  1. Log in to ADB as ADMIN user.
    sqlplus ADMIN/'< ADB ADMIN Password >'@<ADB Service Name>
  2. Run these grants to the created replication schemas.
    grant connect, resource, dw_replicate to <Replication Schema>;
ALTER USER <Replication Schema> QUOTA UNLIMITED ON DATA;
GRANT EXECUTE ON MDADM.B1_TEXT_ARRAY TO <Replication Schema>;
GRANT SELECT ON MDADM.B1_PROD_INSTANCE TO <Replication Schema>;
GRANT SELECT ON MDADM.B1_OBJECT_MAP TO <Replication Schema>;
GRANT SELECT ON MDADM.B1_RANGE_LOOKUP TO <Replication Schema>;
GRANT SELECT ON MDADM.B1_OBJECT TO <Replication Schema>;
GRANT SELECT ON MDADM.B1_OBJECT_SET TO <Replication Schema>;
GRANT EXECUTE ON MDADM.B1_GET_MODEL_CODE TO <Replication Schema>;
GRANT EXECUTE ON MDADM.B1_GET_XPATH_VALUE TO <Replication Schema>;
GRANT EXECUTE ON MDADM.B1_GET_VALID_XML TO <Replication Schema>;
GRANT SELECT ON MDADM.B1_JOB_PARAM_VW TO <Replication Schema>;
GRANT SELECT ON MDADM.B1_DSI_CONFIG_VW TO <Replication Schema>;
grant datapump_cloud_imp to MDADM;

    In this example, the Source Product is CCB and Context CD is 1, add REP at end.

Add the Schema Trandata in OCI GG

Prerequisites

  1. Create a connection to Source Database to use as source for OCI GoldenGate. Use Oracle GoldenGate Source Database Owner (example, C##GGOWNER) User while creating the connection. See Connect to Oracle AI Database for more details.

  2. Assign the created connection to OCI GG deployment. See Assign a connection to a deployment for more details.

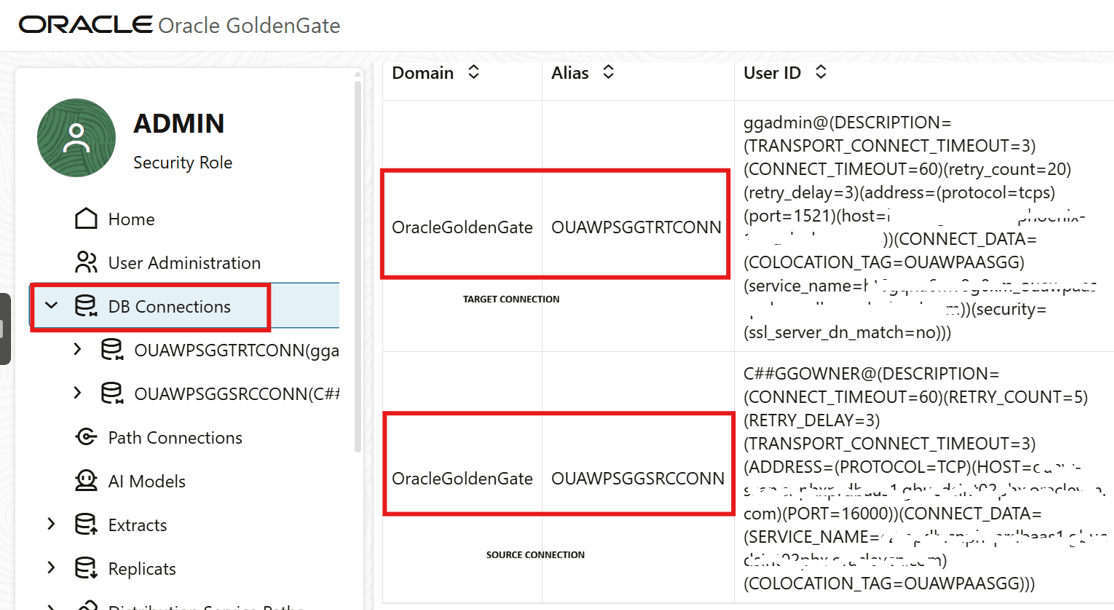

    You can see all connections in the OCI GG Admin console.


    Connections list in the OCI GoldenGate admin console.

Add the Schema Trandata

  1. Log in to the OCI GG Admin console.

  2. Click DB Connections and click
    Select Database Connection Icon
    of the source database.

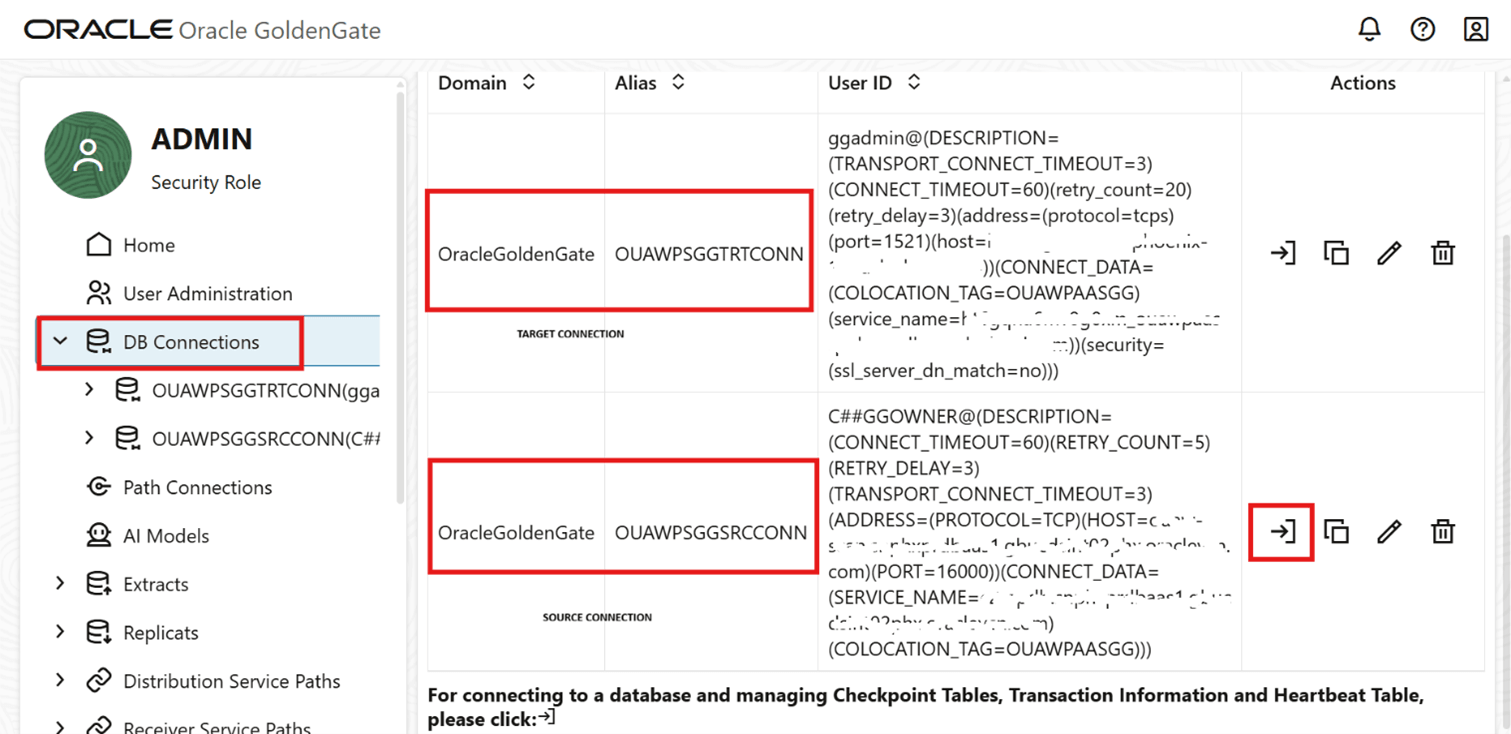

    Create a database connection.

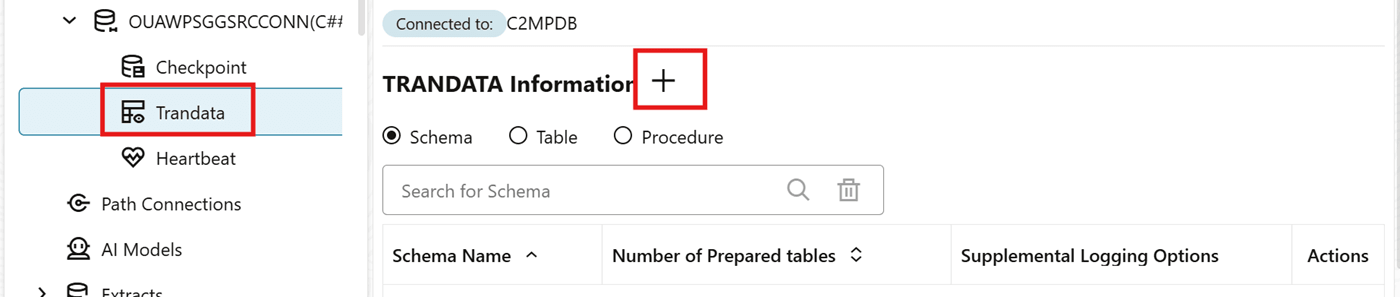

  3. In TRANDATA Information, click +.


    Add the schema trandata details.

  4. Enter the appropriate parameters and click Submit.
    • Schema Name: Source Schema Name. Example, <CISADM>
    • Scheduling Columns: Select this checkbox
    • All Columns: Select this checkbox

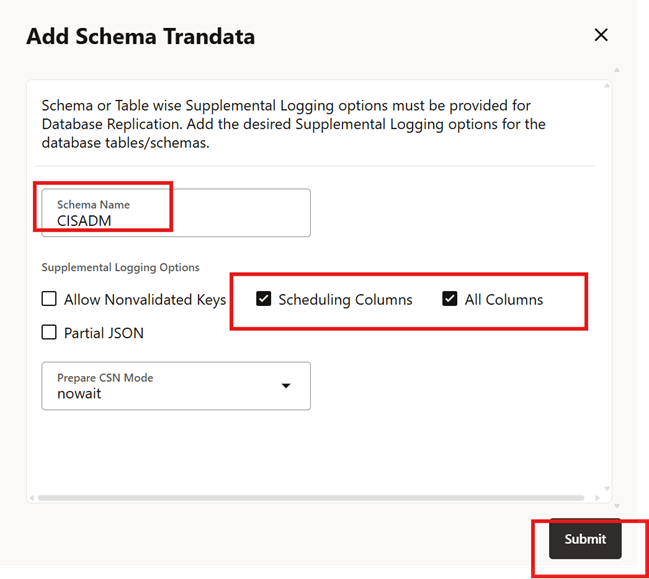

    Enter the schema trandata details.

  5. Verify the schema TRANDATA.

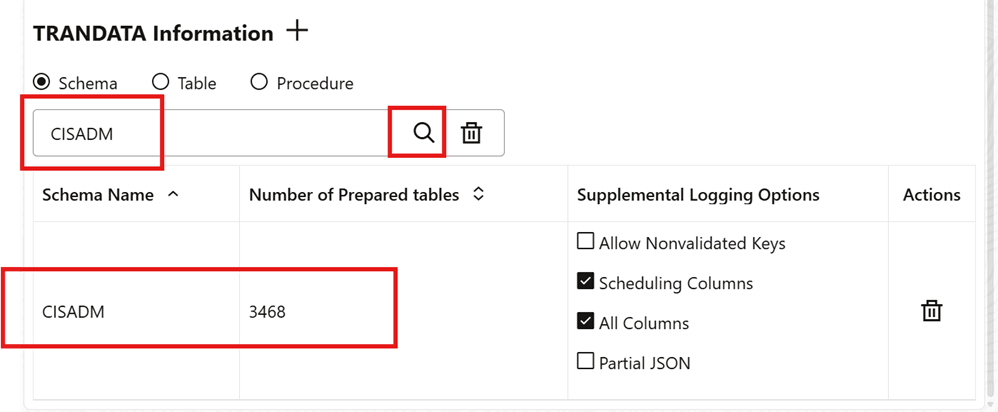

    Verify the schema trandata.

Configure Physical and Logical Architecture for Source in ODI

Note:

All Physical Data Server and Physical/Logical schemas and ODI Studio activity should be performed by logging in to Work Repository.

Physical Data Servers (Oracle)

  1. Log in to ODI Studio to Work Repository.

  2. Navigate to Topology > Physical Architecture > Technologies and right click Oracle then select New Data Server.

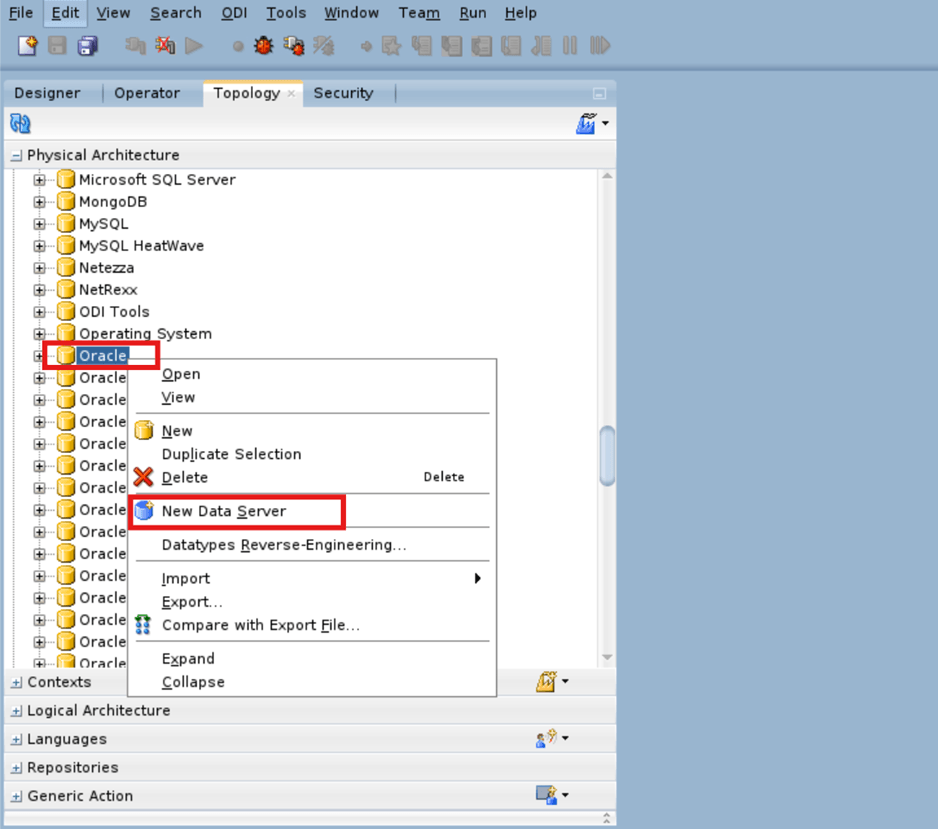

    Create an Oracle physical data server.

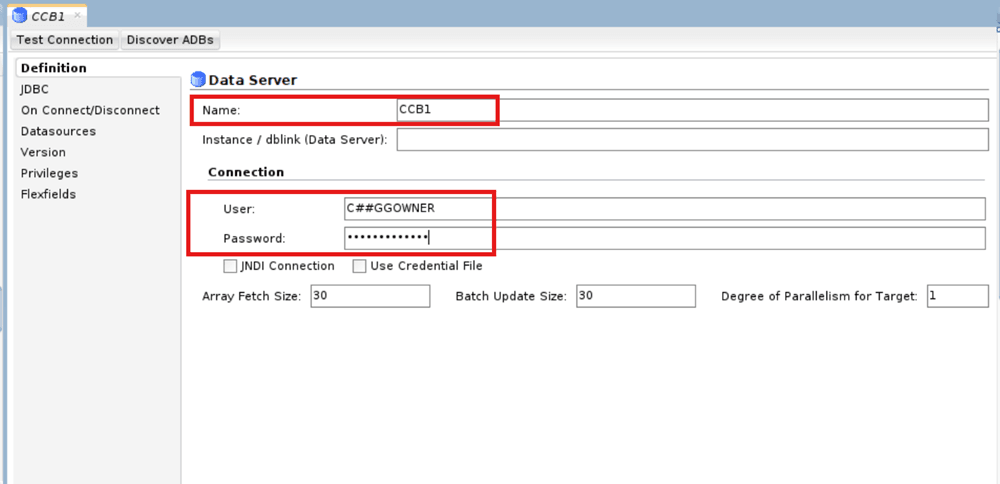

  3. Enter the Physical Data Server details and click Save.

    Field Name and Description Value

    Name

    Source Product Context for example, <CCB1>
    User

    Source GoldenGate User for example, <C##GGOWNER>
    Password Source GoldenGate User Password


    Enter the physical data server details.

  4. Navigate to JDBC and enter the Source Database details and click Save.

    Field Name and Description Value

    JDBC Driver

    Oracle.jdbc.OracleDriver
    JDBC URL

    jdbc:oracle:thin:@<Source DB Host>:port/ServiceName

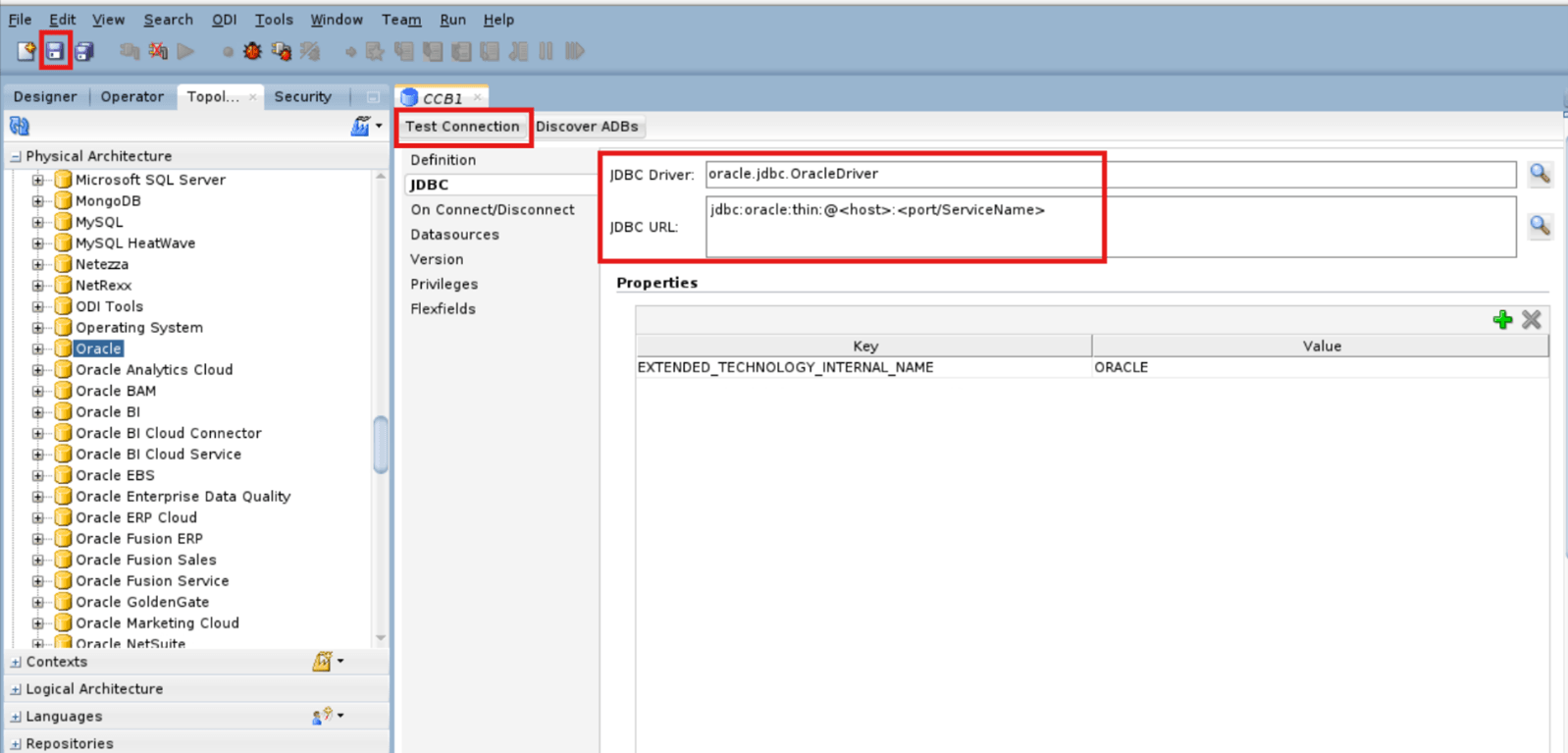

    Enter the source database details.

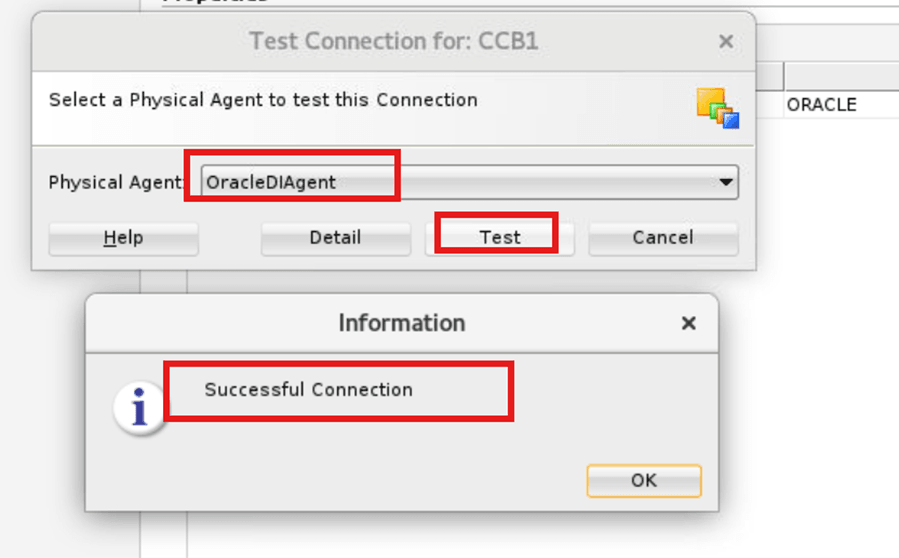

  5. Test the connection.


    Test the connection.

  6. Repeat steps 2 -5 to add more physical data server for other Source Product Contexts.
    • Physical Schema (Source ADM Schema) for example, CISADM
    • GoldenGate Source Database User for example, C##GGOWNER

Physical Schema (Oracle)

This section provides the steps to create Physical Schemas for each Source Data Server (Oracle) created.

  1. Navigate to Topology > Physical Architecture > Technologies > Oracle and right click the Source Product Context Data Server then select New Physical Schema.

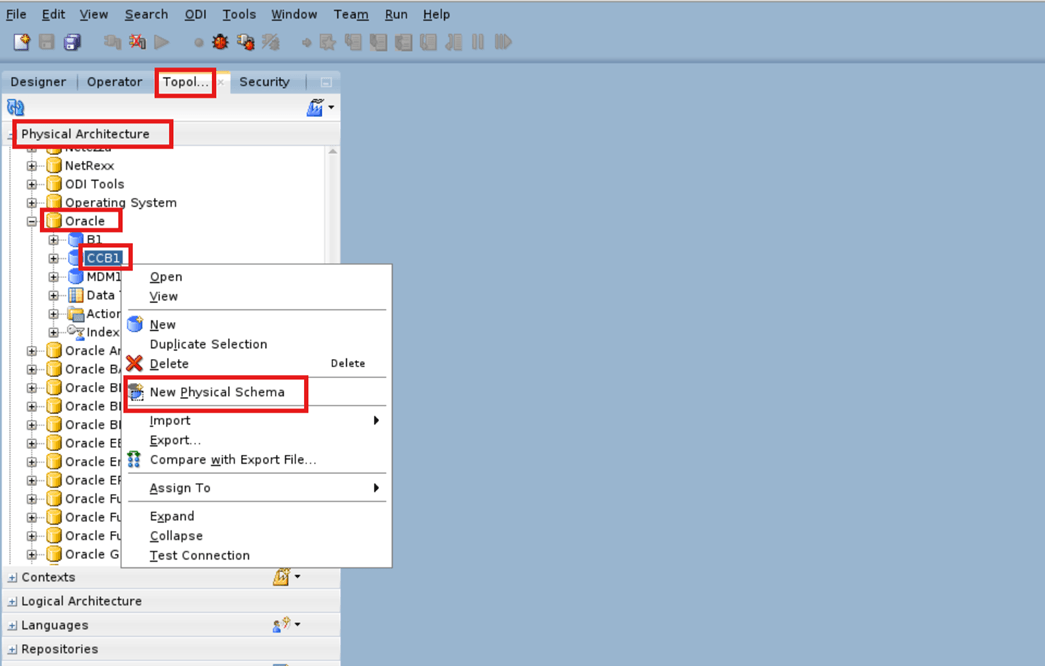

    Create a physical schema for the source product context data server.

  2. Enter the Physical Schema details and click OK.
    • Schema (Schema): Source ADM Schema for example, <CISADM>
    • Schema (Schema Work): Source GoldenGate User for example, <C##GGOWNER>
    Field Name and Description Value

    Schema (Schema)

    Source ADM Schema for example, <CISADM>
    Schema (Schema Work)

    Source GoldenGate User for example, <C##GGOWNER>

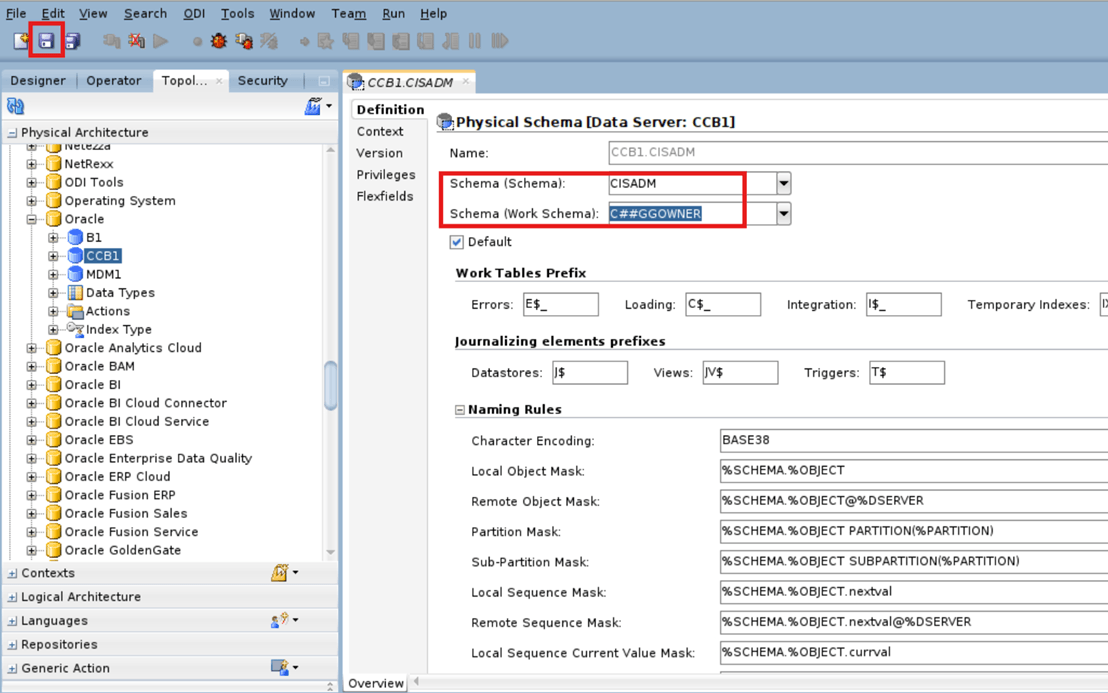

    Enter the physical schema details.

  3. Repeat steps 1 - 2 to enter the Physical Schema details for Source GoldenGate Database User.

    Field Name and Description Value

    Schema (Schema)

    Source GoldenGate User for example, <C##GGOWNER>
    Schema (Schema Work)

    Source GoldenGate User for example, <C##GGOWNER>

Physical Schema (Replication Schema

Note:

Make sure to create each Physical Replication schema under created Target Data Server (B1).

  1. Navigate to Topology > Physical Architecture > Technologies > Oracle and right click B1 then select New Physical Schema.

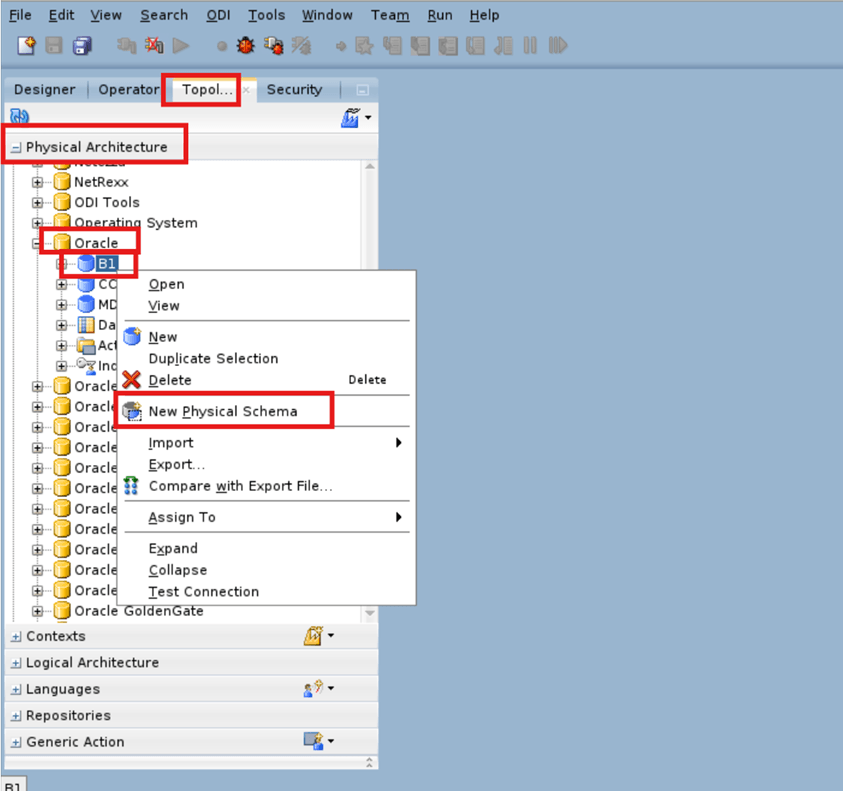

    Create a physical replication schema.

  2. Enter the Replica Schema details and click OK.

    Field Name and Description Value

    Schema (Schema)

    Replication Schema for example, <CCB1REP>
    Schema (Schema Work)

    Replication Schema for example, <CCB1REP>

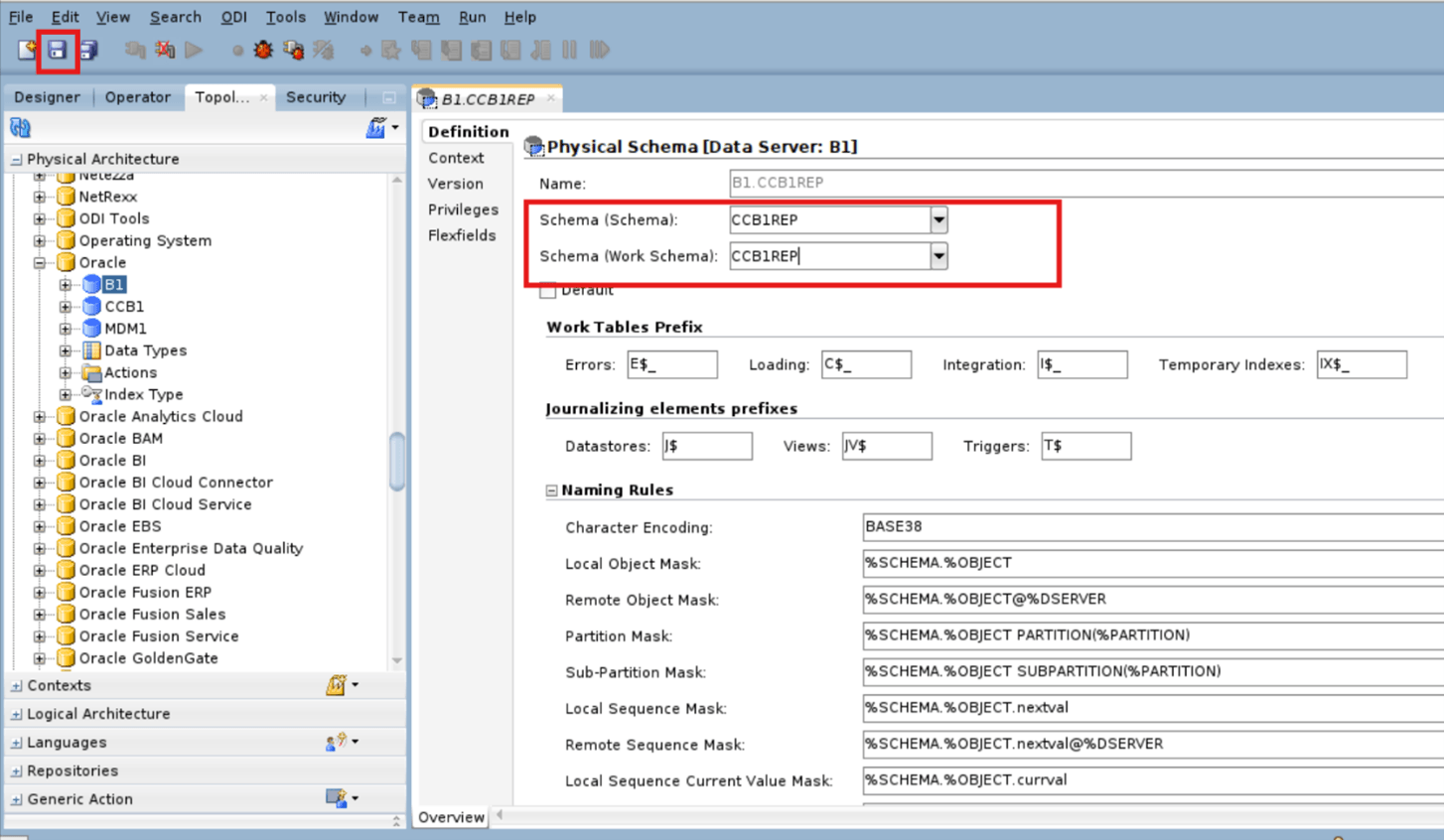

    Physical Replication Schema Details

  3. Repeat steps 1 - 2 to create more replication schemas.

Physical Data Servers (Oracle GoldenGate)

  1. Navigate to Topology > Physical Architecture > Technologies and right click Oracle GoldenGate then select New Data Server.

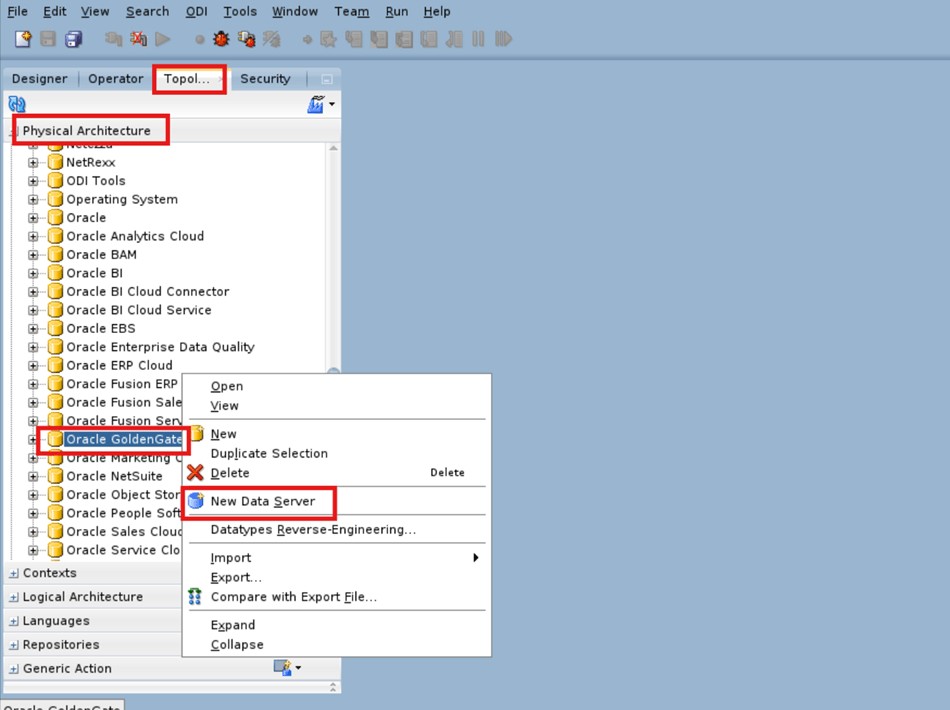

    Create a physical GoldenGate data server.

  2. Enter the GoldenGate JAgent Server details and click Save.

    Field Name and Description Value

    Name

    <Source Context CD>-GG for example, <CCB1-GG>
    Host

    **** (provide asterisk, this a dummy value)
    JMX Port -1
    Manager Port -1
    JMX User **** (provide a dummy value)
    Password **** (provide a dummy value)
    Installation Path **** (provide a dummy value)

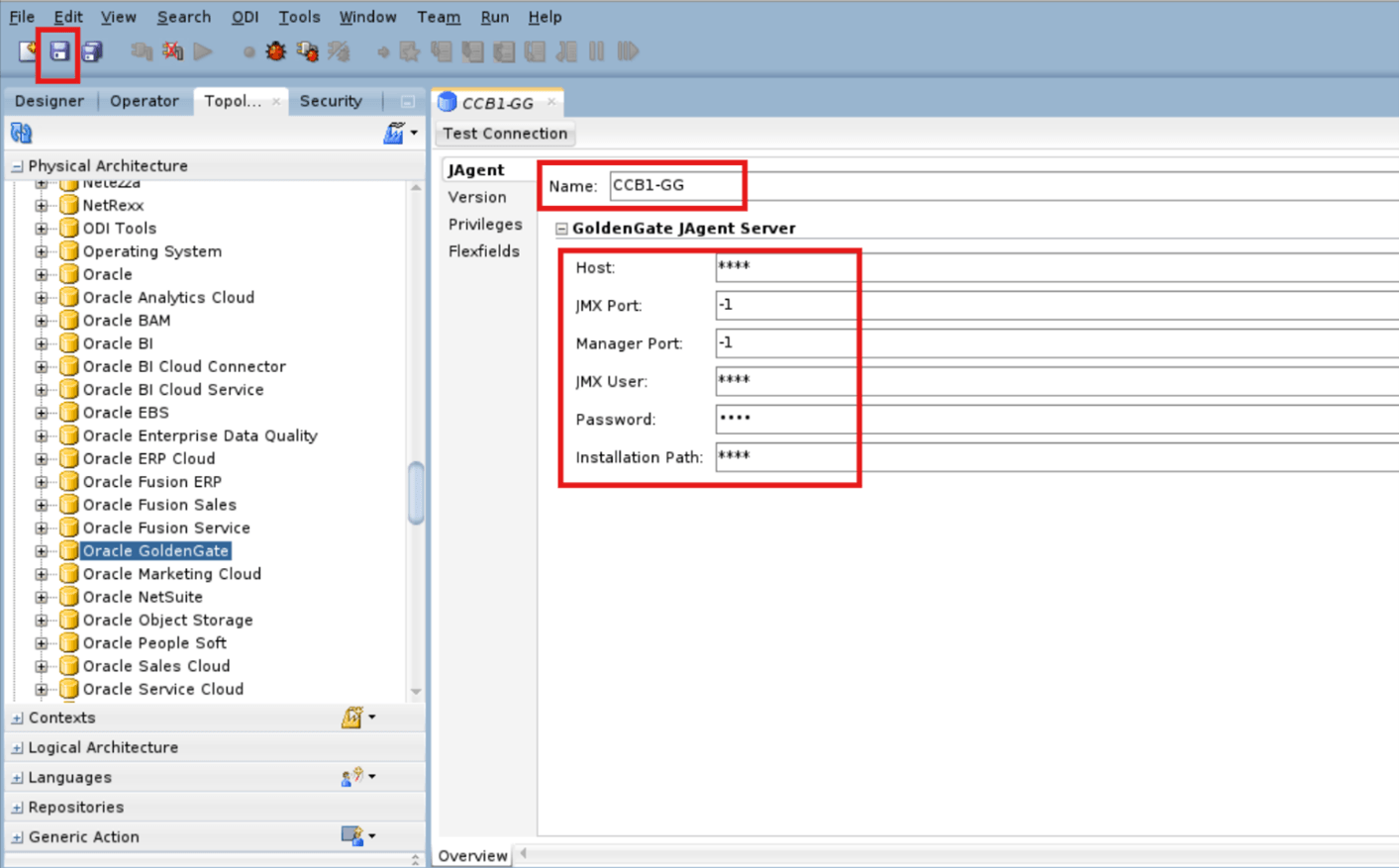

    Enter the GoldenGate JAgent server details.

  3. Repeat steps 1 - 2 for each Source Product Context, if any.

Physical Schema (Oracle GoldenGate) Source

  1. Navigate to Topology > Physical Architecture > Technologies > Oracle GoldenGate and right click Created Source Physical GoldenGate Data Server then select New Physical Schema.

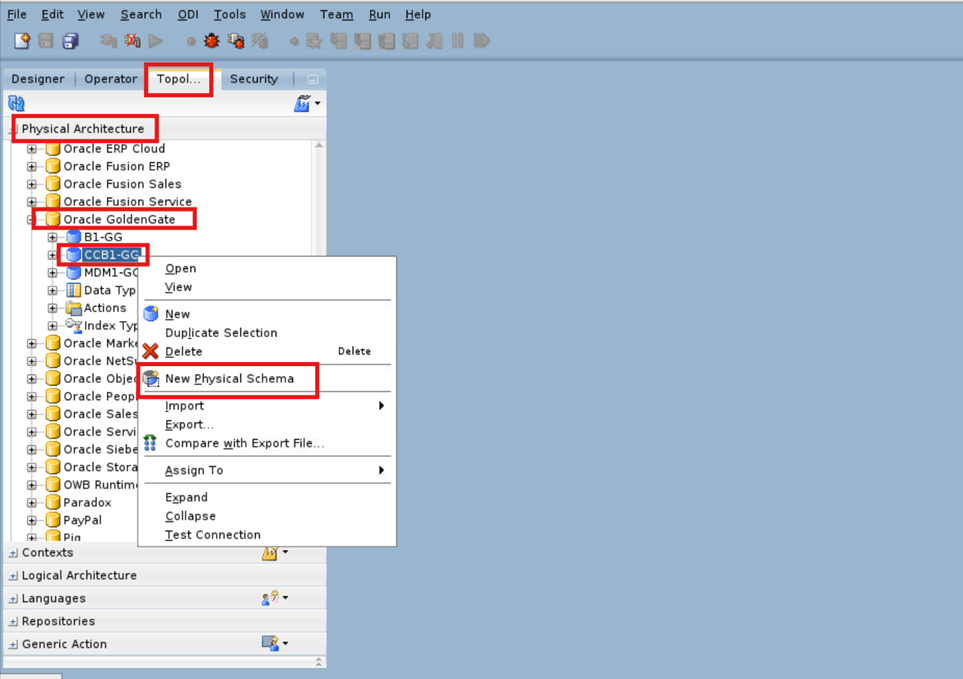

    Create a GoldenGate physical schema.

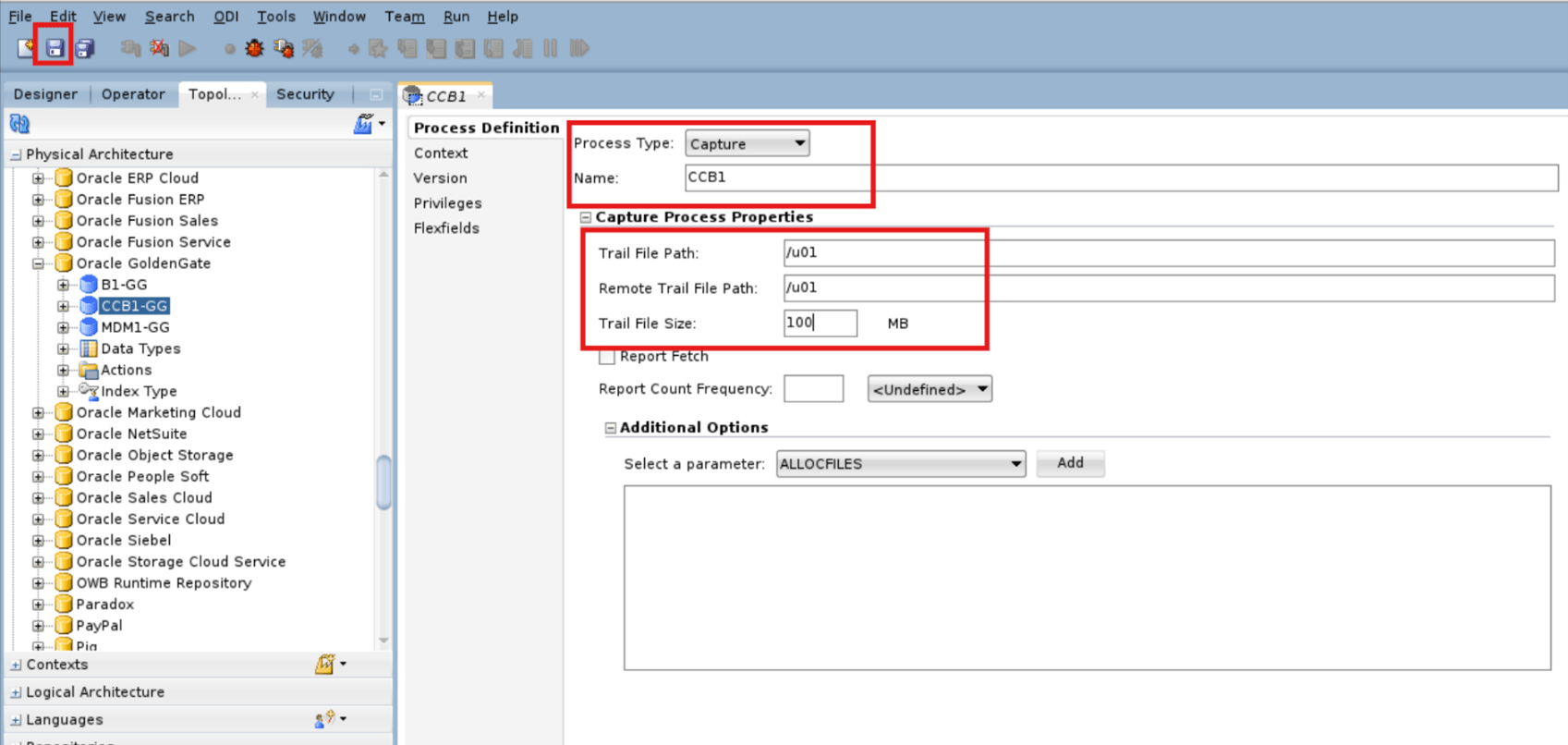

  2. Enter the Process Definition details and click Save.

    Field Name and Description Value

    Process Type

    Capture
    Name

    Source Product Context for example, <CCB1>
    Trail File Path Provide dummy path for example, </u01>
    Remote Trail File Path Provide dummy path for example, </u01>
    Trail File Size 100


    Enter the process definition for the GoldenGate physical schema.

  3. Repeat steps 1 - 2 to create the Source Physical GoldenGate Schema for each Source Physical GoldenGate Data Server.

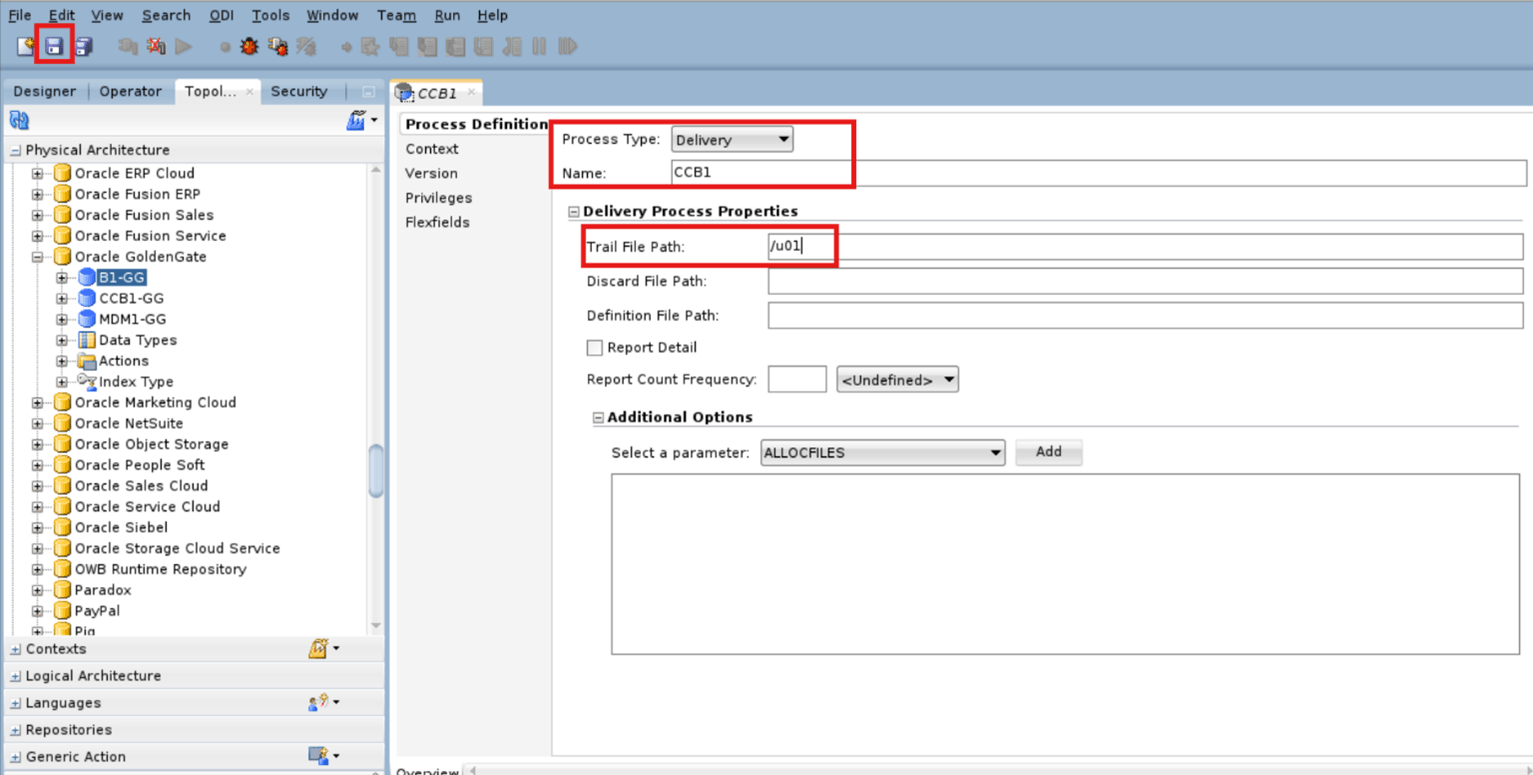

Physical Schema (Oracle GoldenGate) Target

  1. Navigate to Topology > Physical Architecture > Technologies > Oracle GoldenGate and right click Target GoldenGate Data Server (example, B1-GG) then select New Physical Schema.

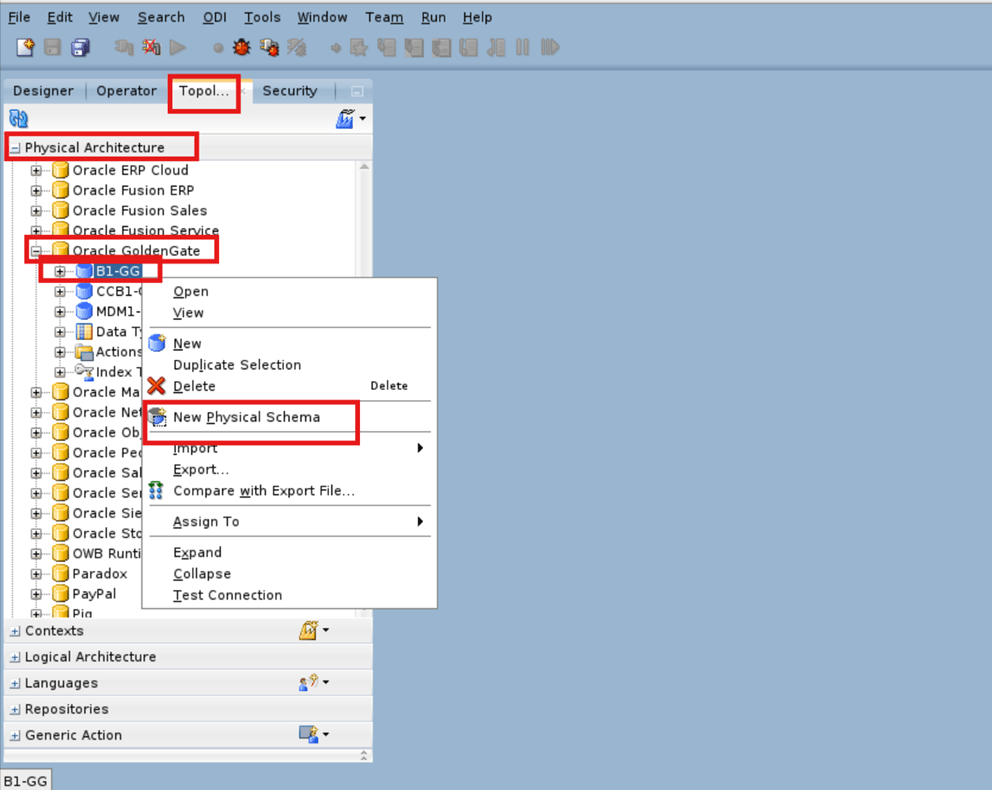

    Create a Target GoldenGate data server.

  2. Enter the Process Definition details and click Save.

    Field Name and Description Value

    Process Type

    Delivery
    Name

    Source Product Context for example, <CCB1>
    Trail File Path Provide dummy path for example, </u01>


    Physical Schema (Oracle GoldenGate) Target Process Definition Details

  3. Repeat steps 1 - 2 to create the Target Physical GoldenGate Schema for each Target Physical GoldenGate Data Server.

Create Context

  1. Navigate to Topology > Contexts and select New Context.

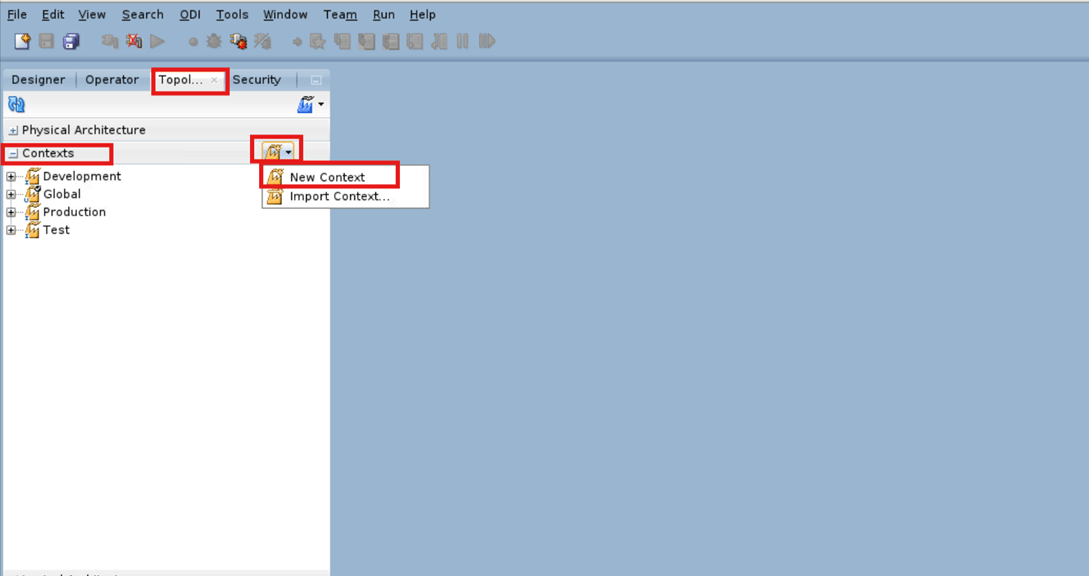

    Create a context.

  2. Enter the Context Definition details and click Save.

    Field Name and Description Value

    Name

    Source Product Context for example, <CCB1>
    Code

    Source Product Context for example, <CCB1>

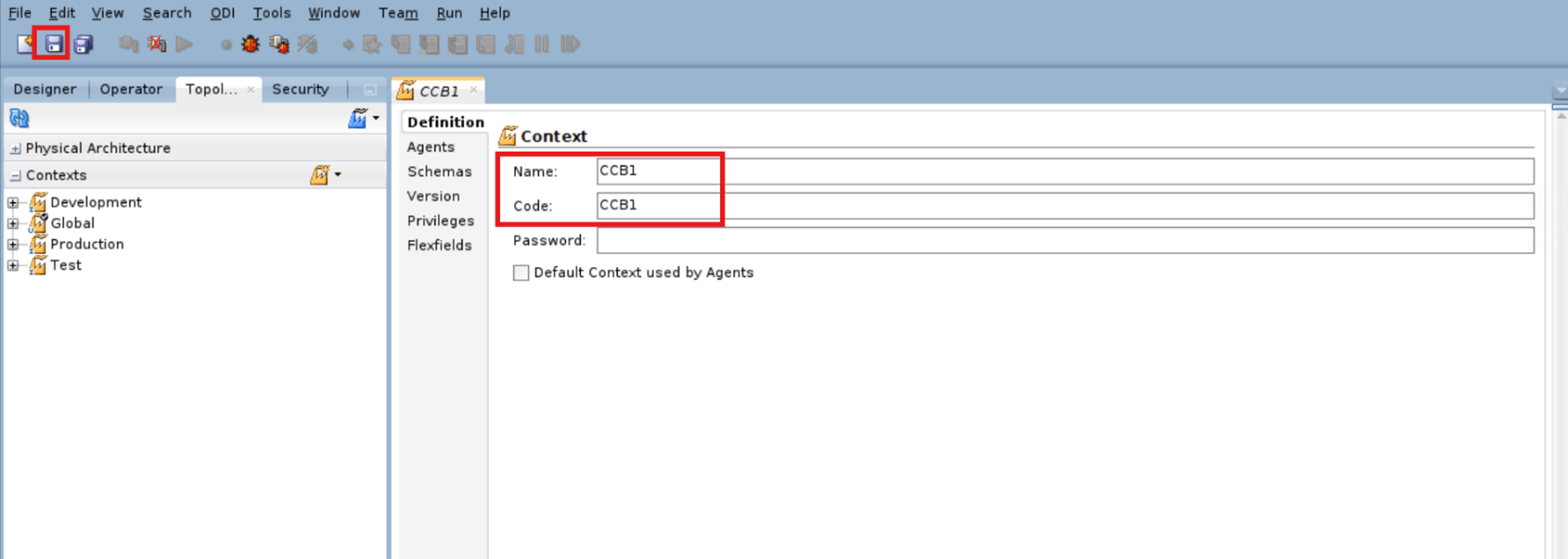

    Enter the context details.

  3. Repeat steps 1 - 2 to for each Source Product Context, if any.

Map Physical and Logical Schemas

This section will help you to map the Physical and Logical Schemas through the Contexts.

  1. Navigate to Topology > Contexts and double click the created Context.

  2. Navigate to Schemas and select the appropriate Physical Schemas then click Save.

    Note:

    Ensure to map Physical Schemas with its Logical Schemas as per Source Product Context name.

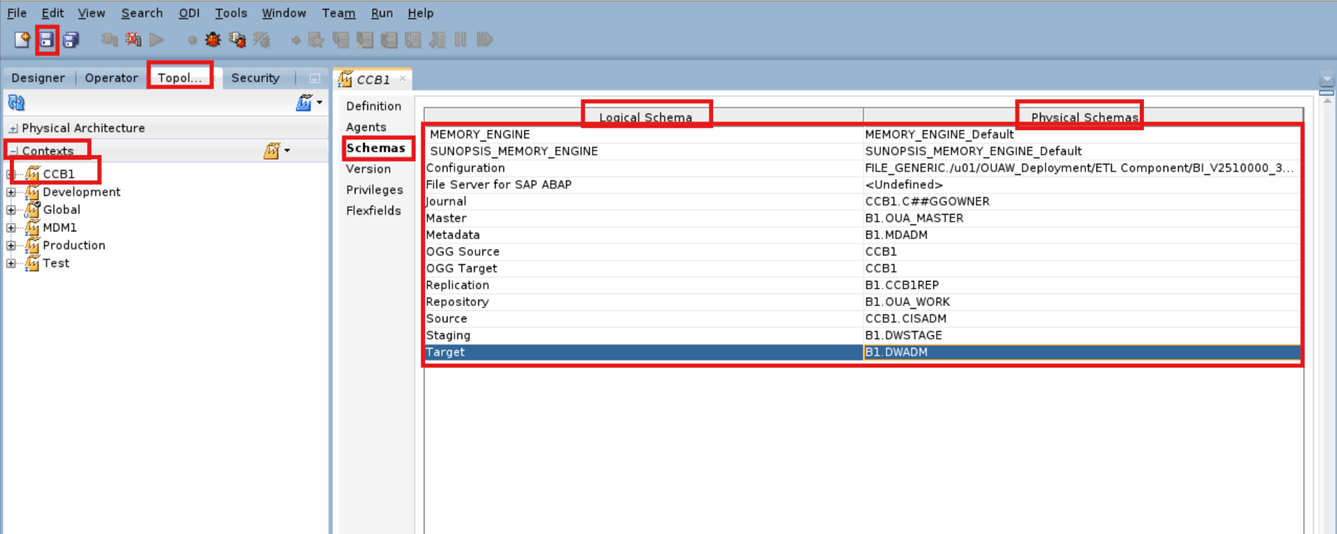

    Map the physical and logical schema to a source product context

  3. Repeat steps 1 - 2 to for each Source Product Context.

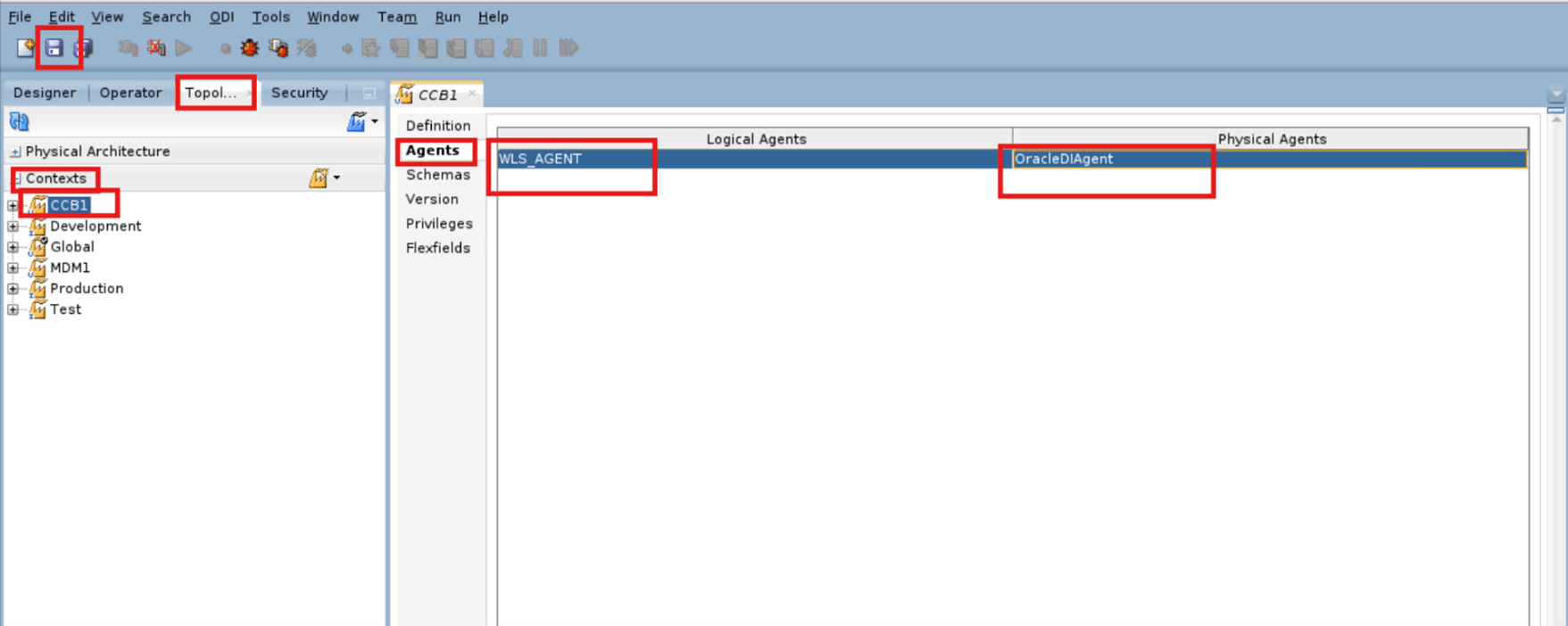

Map Physical and Logical Agent

  1. Navigate to Topology > Contexts and double click the created Context.

  2. Navigate to Agents and select the Physical Agent (OracleDIAgent) then click Save.


    Map the physical and logical agent to a source product context.

  3. Repeat steps 1 - 2 to for each Source Product Context.

Create Product Instance

Execute the scenario B1_OUAF_ADD_INSTANCE for each context and check the entries available in the B1_PROD_INSTANCE and B1_GLOBAL_CFG table.

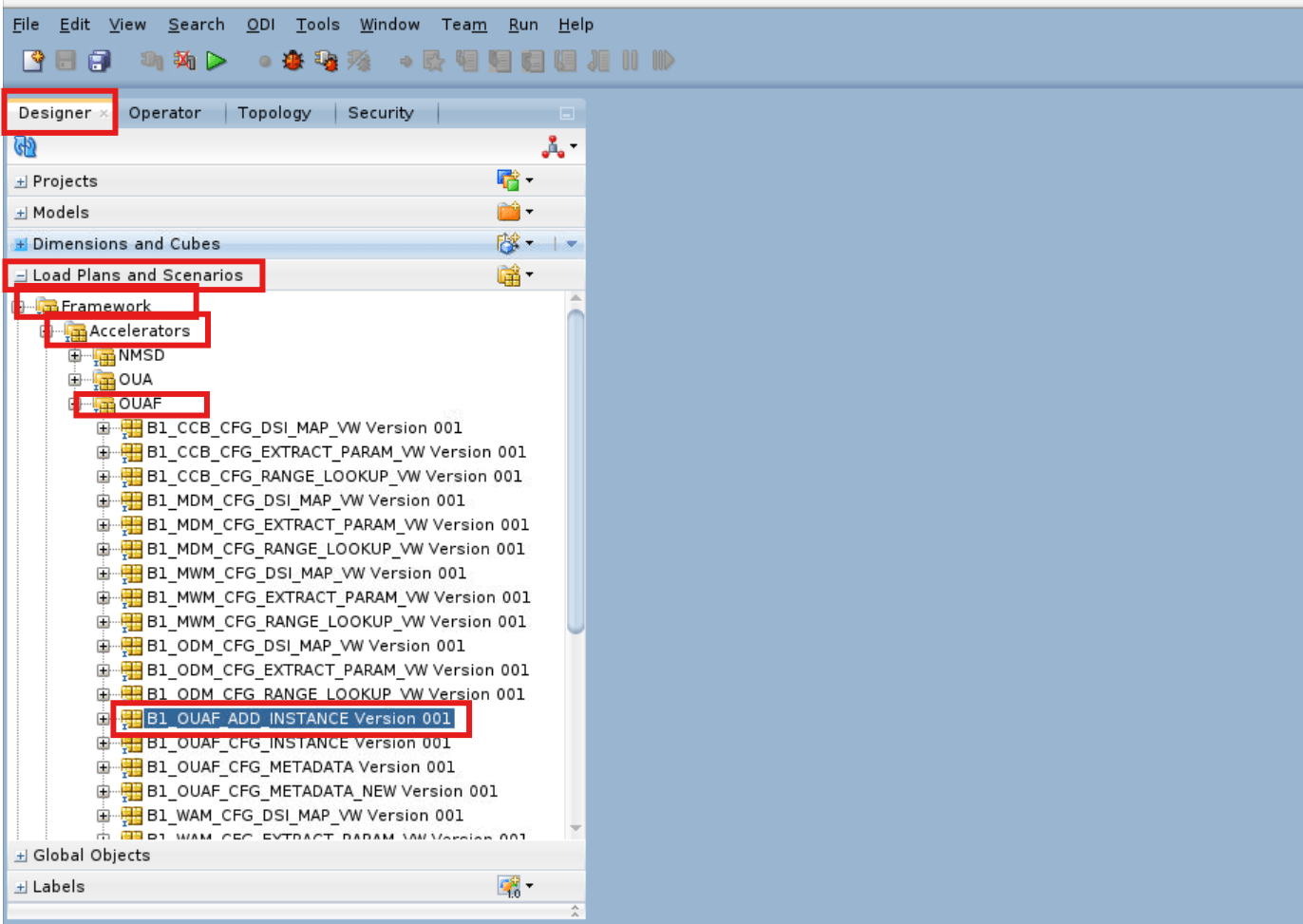

  1. Navigate to Designer > Load Plans and Scenarios > Framework > Accelerators > OUAF and right click B1_OUAF_ADD_INSTANCE Version 001 then select Run .


    Create a product instance.

  2. Enter the Run details and click OK.

    Field Name and Description Value

    Context

    Source Product Context for example, <MDM1>
    Logical Agent

    Local (No Agent)
    Log Level For example, 6

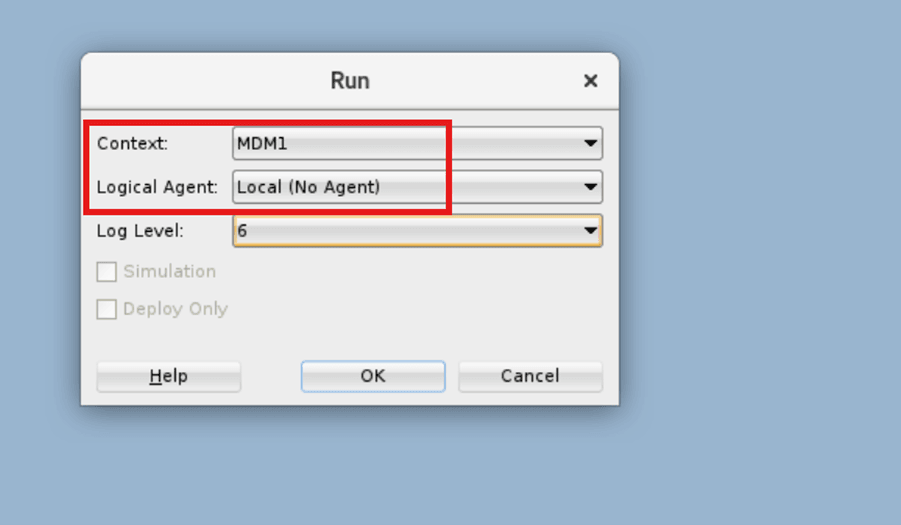

    B1_OUAF_ADD_INSTANCE Version 001 Run Configuration Details

  3. Navigate to Designer > Load Plans and Scenarios and right click B1_OUAF_ADD_INSTANCE Version 001 then select Variable Values.

  4. Enter the Variable Values details and click OK.

    Field Name and Description Value

    Name

    Drillback Variable
    Latest Value

    Select checkbox
    Value Source Application URL

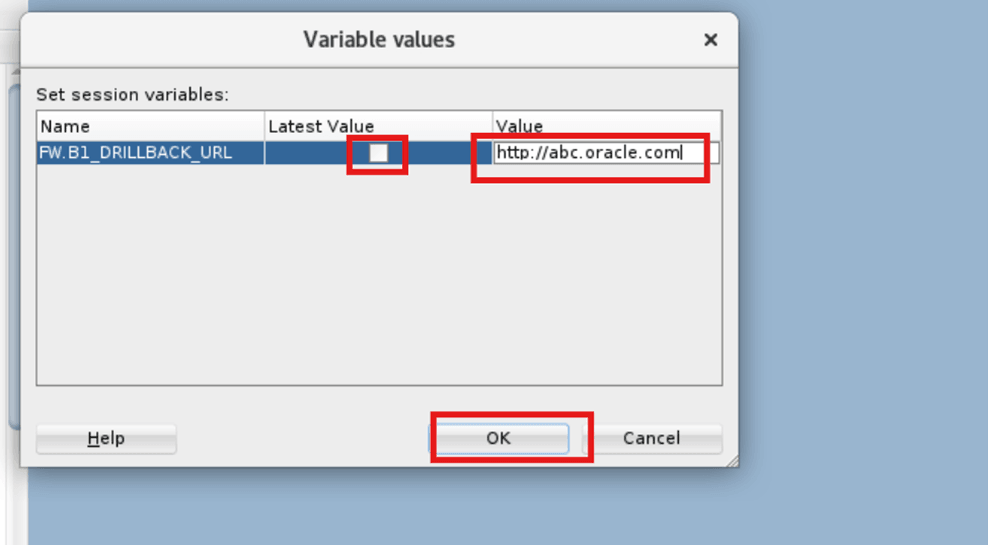

    Enter the variable values for the product instance.

  5. In the Operator tab, check the status of the job for its completion.

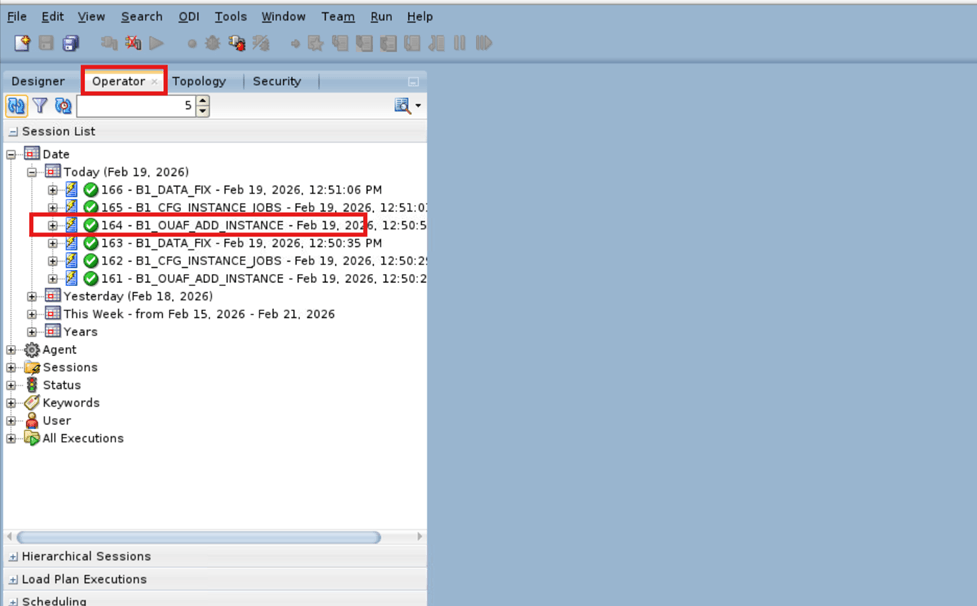

    B1_OUAF_ADD_INSTANCE Version 001 Job Completion

Encrypt OCI GoldenGate Password

  1. Log in to ODI Studio to Work Repository.

  2. Navigate to Designer > Load Plans and Scenarios > Scheduler and right click B1_PAAS_CFG Version 001 then select Run .

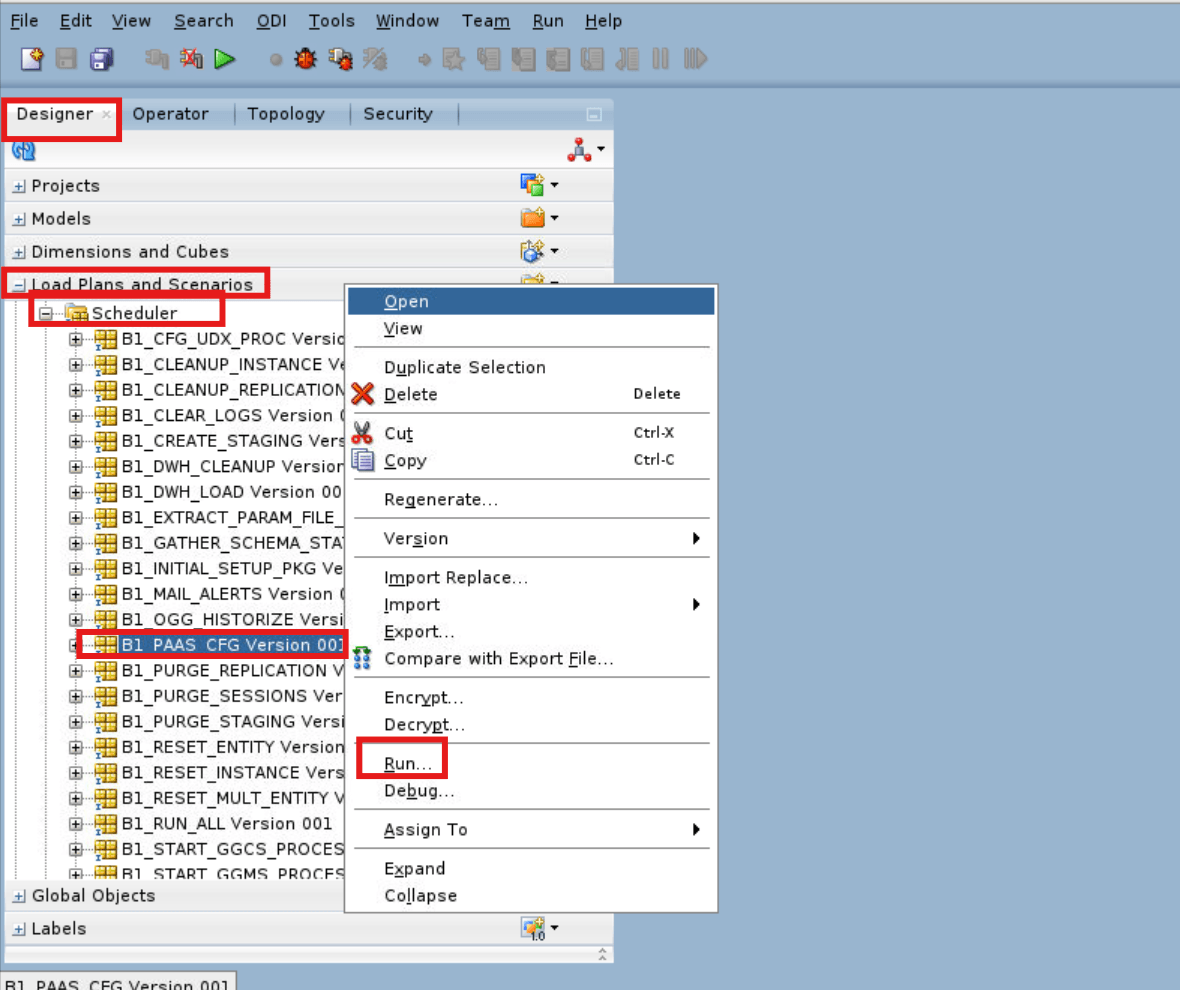

    Create an encrypted OCI GoldenGate password.

  3. Enter the Run details and click OK.

    Field Name and Description Value

    Context

    Source Product Context for example, <CCB1>
    Logical Agent

    Local (No Agent)
    Log Level For example, 6

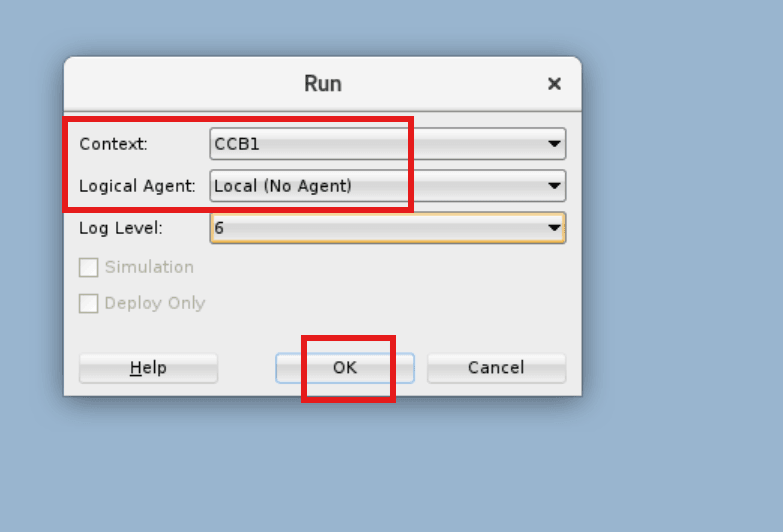

    B1_PAAS_CFG Version 001 Run Configuration Details

  4. In the Operator tab, check the status of the job for its completion.

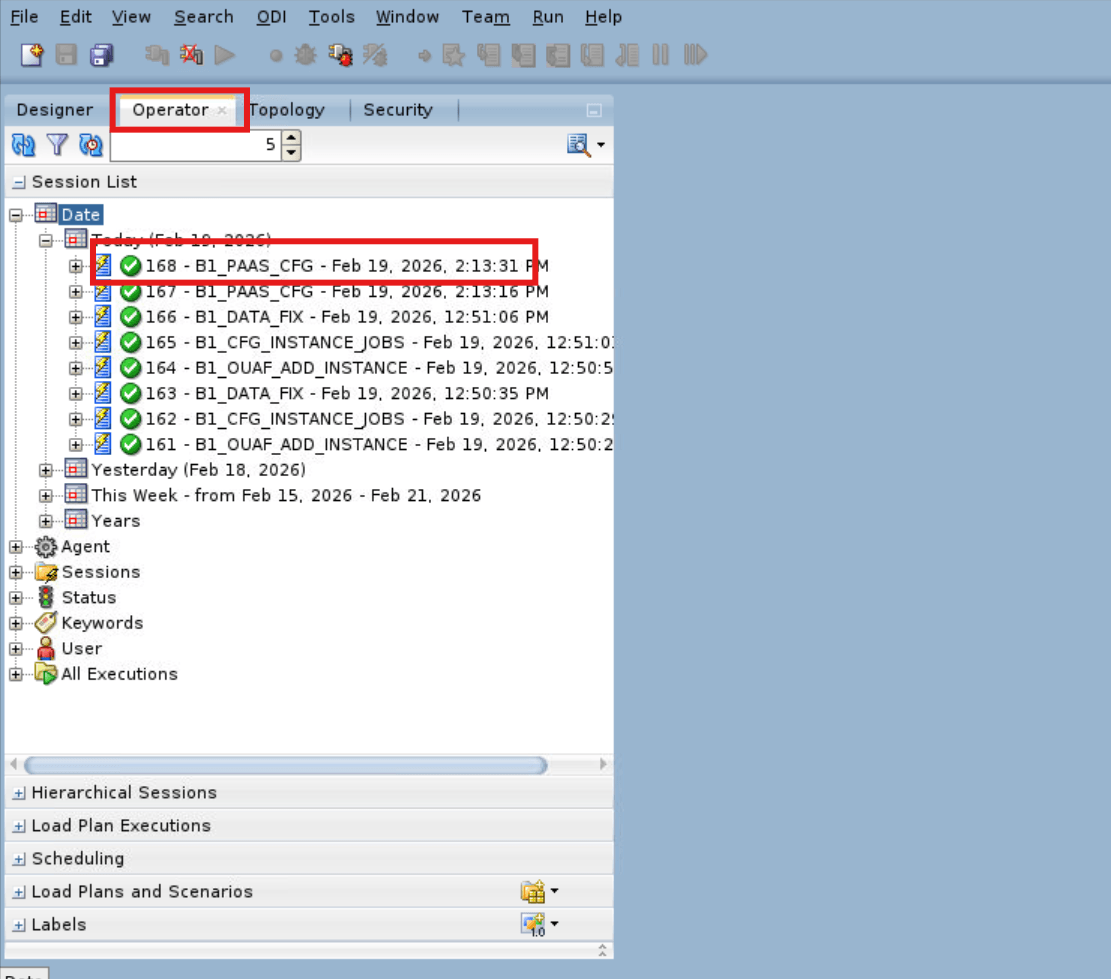

    B1_PAAS_CFG Version 001 Job Completion

  5. Log in to ADB with MDADM User and run this SQL for encryption.

    Note:

    Make sure to run the SQL for each Source Product Context.
    BEGIN
b1_encrypt_string_pass('<Source product Context Code>','<Source OCI GG Admin console password>','<Target OCI GG Admin console password>','<Source OCI GG User password>','<Target OCI GG User password>');
commit;
END;
/
    Field Name and Description Value

    Source product Context Code

    Source Product Context for example, <CCB1>
    Source OCI GG Admin console password

    Source OCI GG Admin Console is the same as the Single GG Deployment used for OUAW
    Target OCI GG Admin console password Target OCI GG Admin Console is the same as the Single GG Deployment used for OUAW
    Source OCI GG User password Source GoldenGate DB User Password for example, <C##GGOWNER Password>
    Target OCI GG User password Target GoldenGate DB User Password for example, <ggadmin Password>

Update PaaS Configuration Parameters in OUAW AdminTool

  1. Log in to the AdminTool from the following URL: https://<ADB URL>/ords/f?p=104

  2. Provide the following credentials to access the Admin Tool.

    Oracle Analytics Administration login screen.

  3. Navigate to ETL Configuration > PaaS Configuration and click Edit.

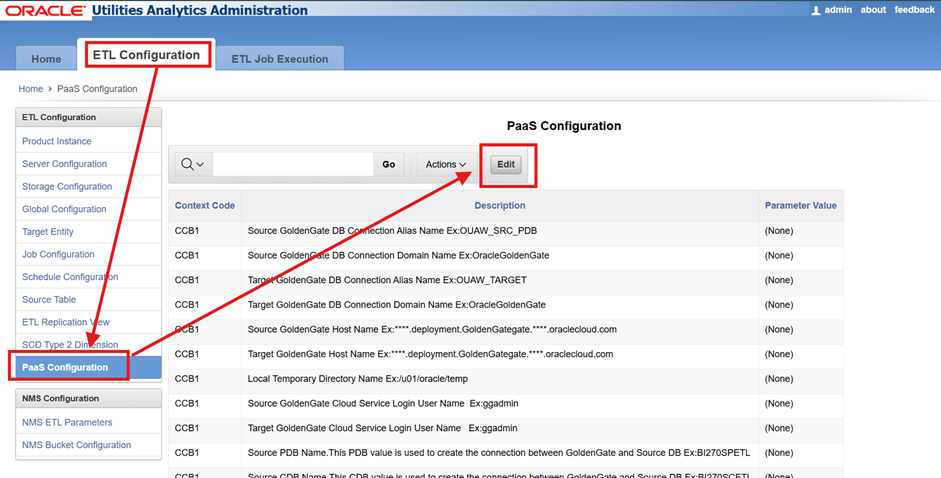

    Update PaaS configuration.

  4. Update all Context Code and B1 Parameter Values then click Save.

    Field Name and Description Value

    Source GoldenGate DB Connection Alias Name
    For example, <OUAWPSGGSRCCONN>

    Note:

    You will get Connect Alias from OCI GG Admin Console URL > DB Connections
    Source GoldenGate DB Connection Domain Name

    OracleGoldenGate
    Target GoldenGate DB Connection Alias Name For example, < OUAWPSGGTRTCONN >

    Note:

    You will get Connect Alias from OCI GG Admin Console URL > DB Connections
    Target GoldenGate DB Connection Domain Name OracleGoldenGate
    Source GoldenGate Host Name For example, < example.deployment. ouawpublicsubne.ouawvcn.oraclevcn.com >
    Target GoldenGate Host Name The Source and Target OCI GG is same for OUAW
    Local Temporary Directory Name Create a temp folder in ODI Instance for example, < /u01/oracle/local-temp>
    Source GoldenGate Cloud Service Login User Name OCI GG Admin Console Password for example, <ADMIN>
    Target GoldenGate Cloud Service Login User Name OCI GG Admin Console Password for example, <ADMIN>
    Source PDB Name Source PDB Name of Oracle Base Database (DBaaS) for example, <c2mpdb. ouawpublicsubne.ouawvcn.oraclevcn.com >

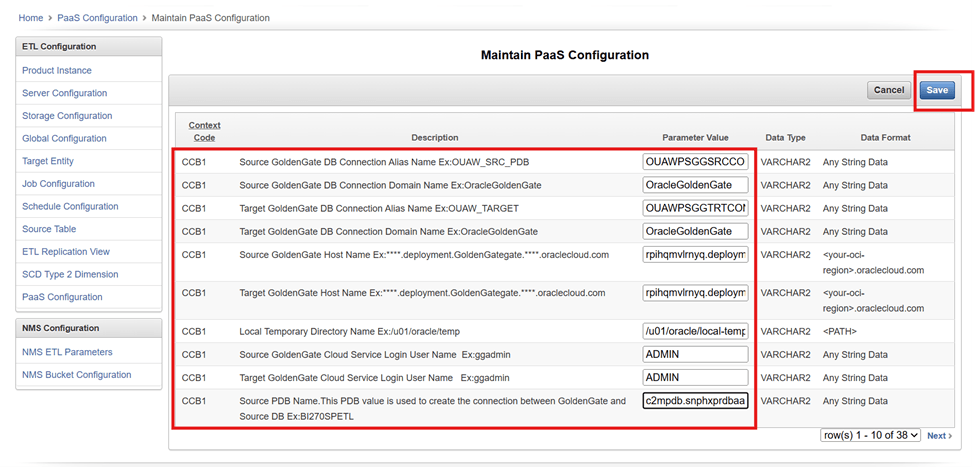

    Update the Context Code parameter values.

    Field Name and Description Value

    Source CDB Name

    Source CDB Name of Oracle Base Database (DBaaS) for example, < ouawpass_rpg_phx.snphxprdbaas1. ouawpublicsubne.ouawvcn.oraclevcn.com>
    Source DB Port Value

    1521
    Target PDB Name ADB TNS Service Name for example, <example_high.adb.oraclecloud.com>
    Target DB Port Value 1522
    Source DB Host Name Source Oracle Base Database (DBaaS) Host for example, < example-scan.ouawpublicsubne.ouawvcn.oraclevcn.com >
    Target DB Host Name Target ADB Host for example, <example.adb.oraclecloud.com>
    Source DB GoldenGate Owner Name Source OCI GG GoldenGate DB Owner Name for example, C##GGOWNER
    Target DB GoldenGategate Owner Name Target OCI GG GoldenGate DB Owner Name for example, GGADMIN

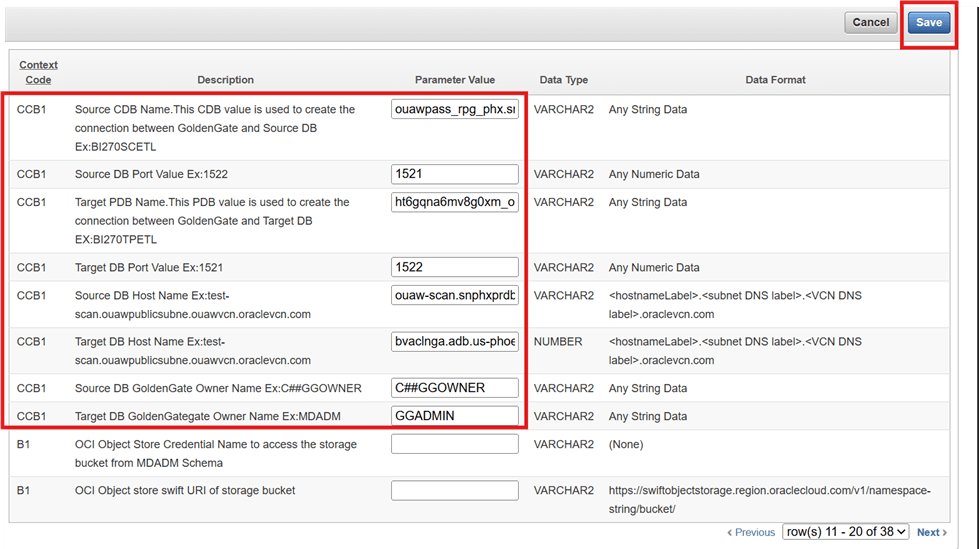

    Update the Context Code parameter values.

    • OCI Object Store Credential Name to access the storage bucket from MDADM Schema:

      1. Log in to ADB with MDADM User.

        sqlplus MDADM/<MDADM Password>@<ADB TNS Service Name>

      2. Create and store credentials using the procedure DBMS_CLOUD.CREATE_CREDENTIAL.

        exec DBMS_CLOUD.CREATE_CREDENTIAL(credential_name => 'OCI_NATIVE_CRED_MDADM', username => '<user@example.com>', password => '<password>');

      Note:

      See Manage Credentials for more details.
    • OCI Object store swift URI of storage bucket: OCI Object store swift URI for example, < https://swiftobjectstorage. ouawpublicsubne.ouawvcn.oraclevcn.com /v1/<namespace> /<bucket_name>/ >

      Note:

      See Create an Object Storage Bucket and Construct the Storage URL for more details.

Reverse Engineer Knowledge Module in ODI

  1. Log in to ODI Studio to Work Repository.

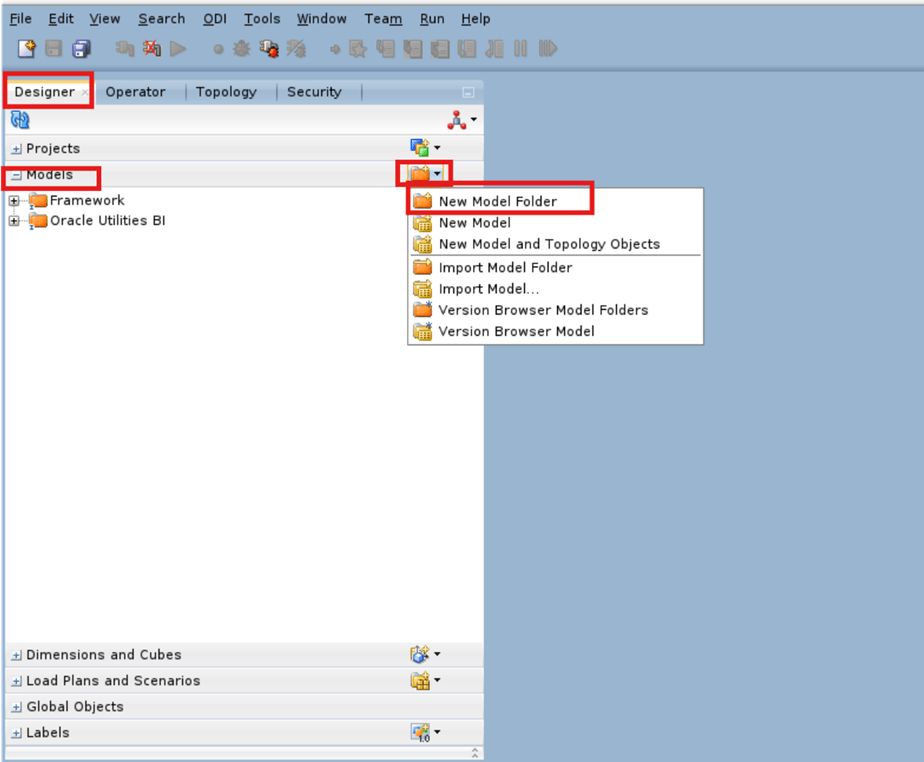

  2. Navigate to Designer > Models and click New Model Folder.


    Reverse engineer the knowledge module in ODI.

  3. Enter the Description details then click Save.
    • Name: 1.Source
    Field Name and Description Value

    Name

    1.Source

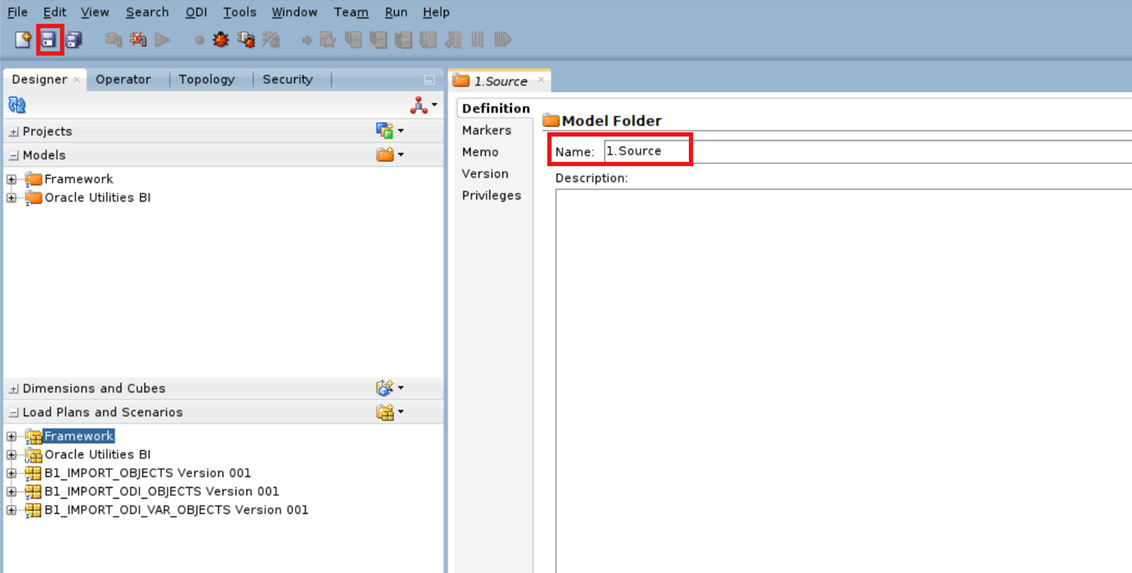

    Model Folder Definition Details

  4. Navigate to Designer > Models and right click 1.Source then select New Model.

  5. Enter the Definition details then click Save.

    Field Name and Description Value

    Name

    Source Product Context Model for example, <CCB1AA>

    Code Source Product Context Model for example, <CCB1AA>
    Technology Oracle
    Logical Schema Source

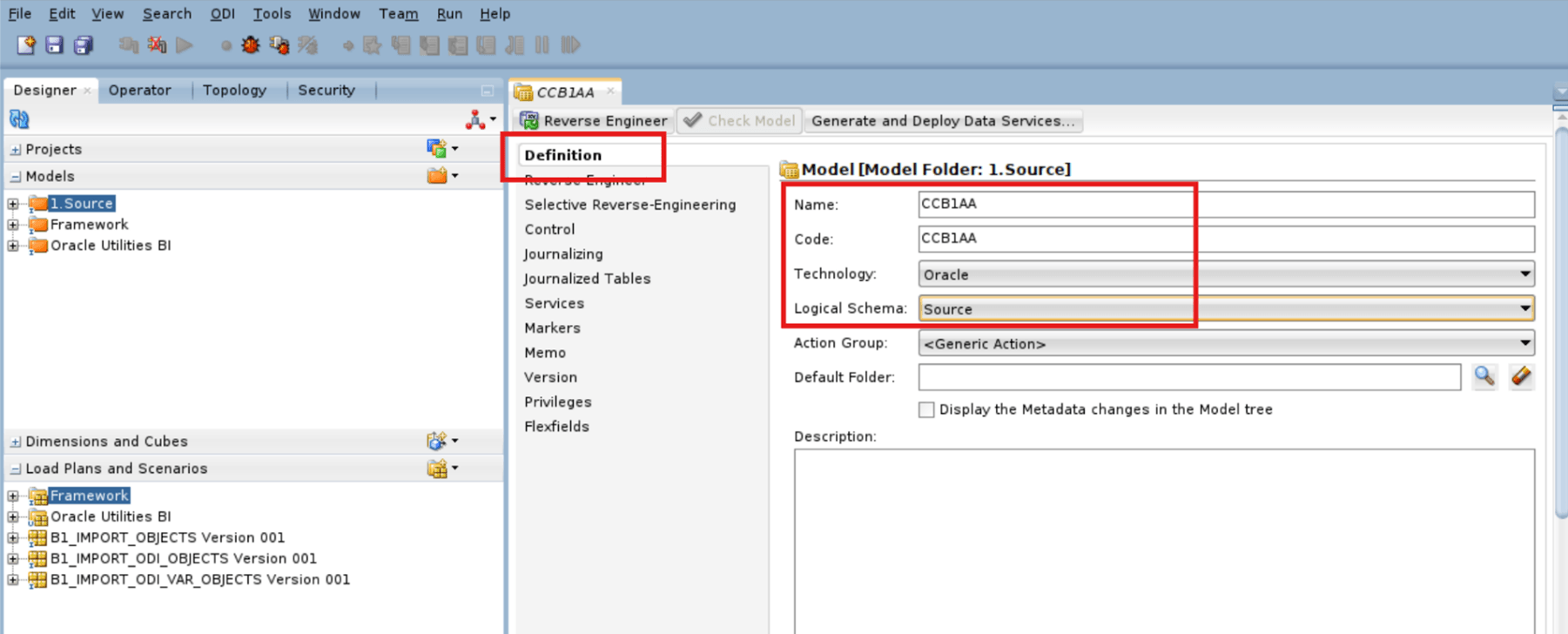

    Enter the details of the 1.Source model.

  6. Navigate to the Reverse Engineer tab and select the Customized option.

  7. Enter the Reverse Engineer details and click Save.

    Field Name and Description Value

    Context

    Source Context Code as per Model Name for example, <CCB1>
    Logical Agent WLS_AGENT
    Knowledge Module

    For NMS: RKM Oracle (NMSD).Global

    For Remaining Source: RKM Oracle (OUAF).Global

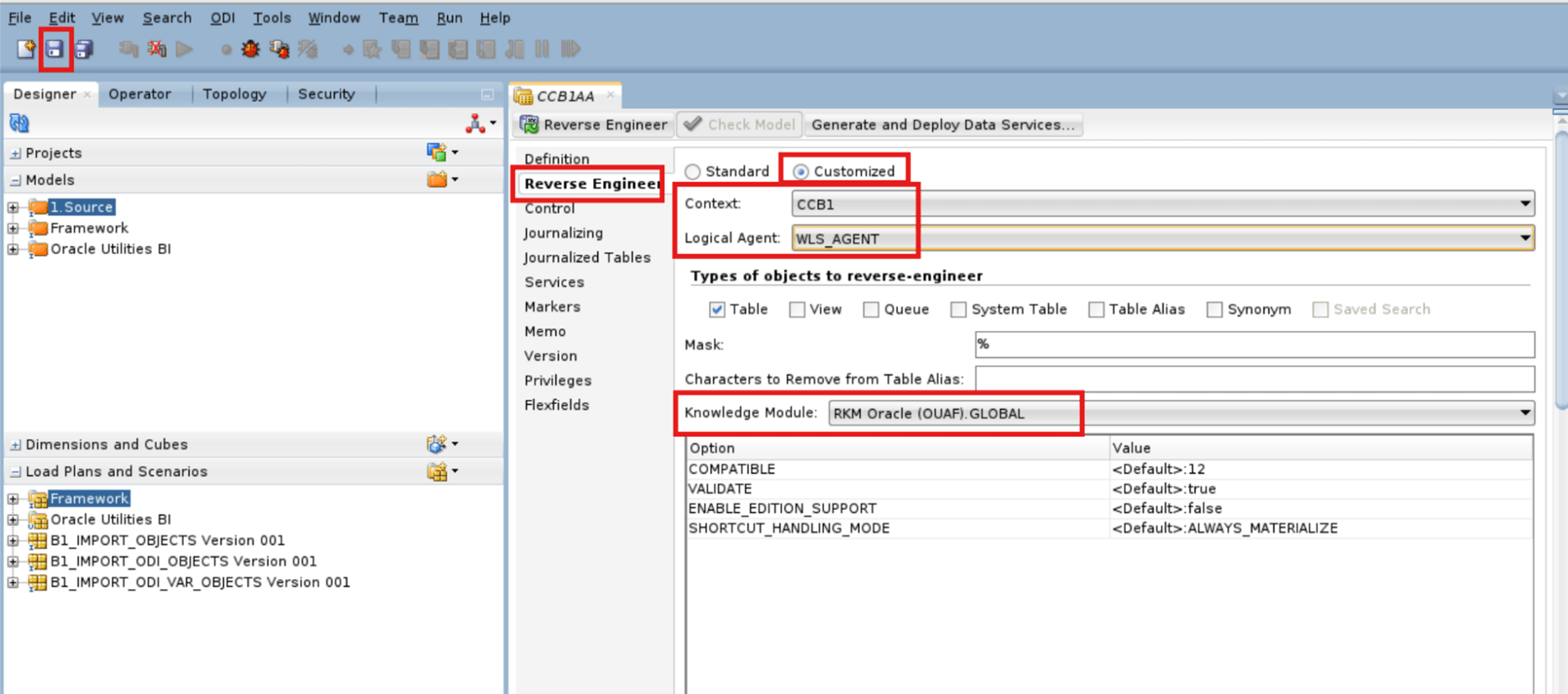

    Enter the reverse engineering details.

  8. If a Scratch folder is not created, navigate to Designer > Projects and right click Oracle Utilities BI then select New Folder.

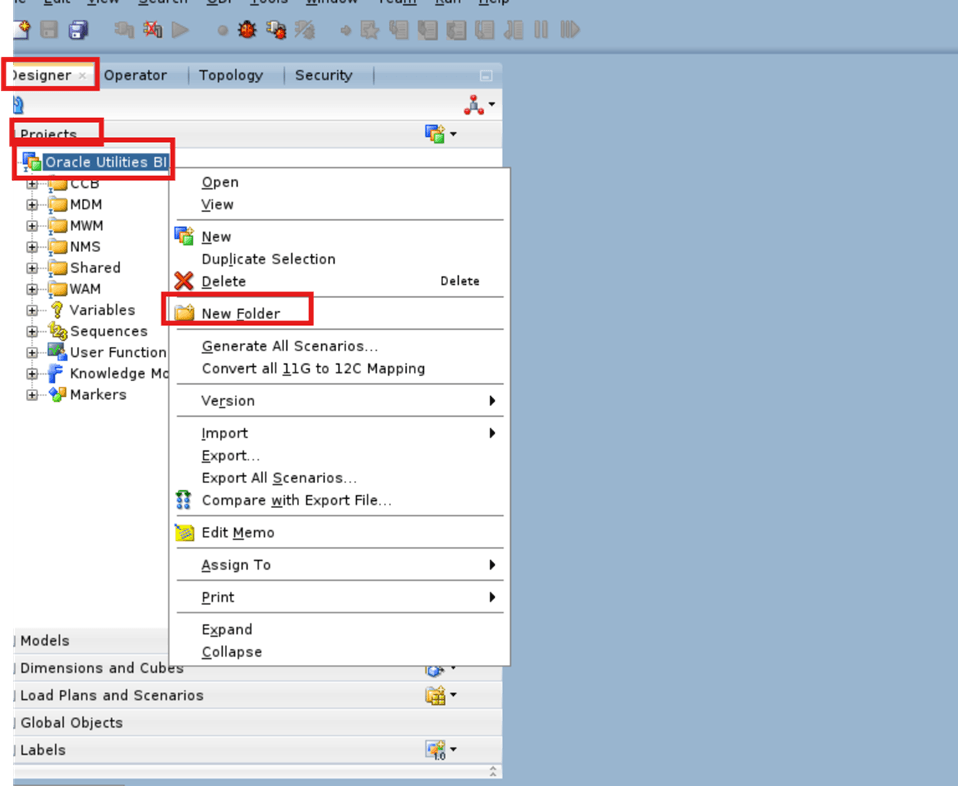

    Scratch Folder Navigation

  9. Enter the Folder details and click Save.

    Field Name and Description Value

    Name

    Scratch

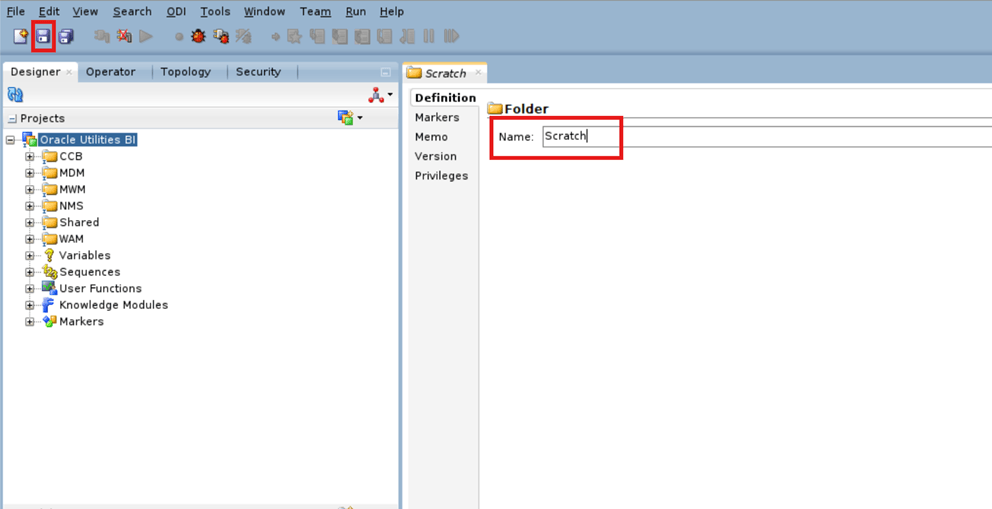

    Scratch Folder Definition Details

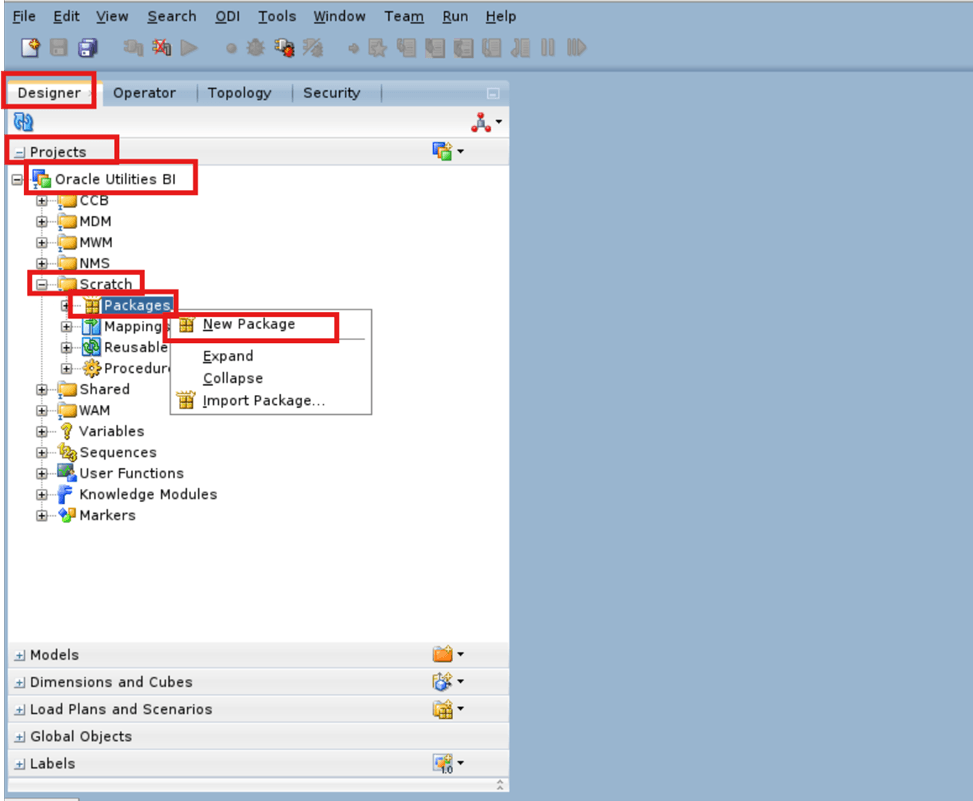

  10. Navigate to Designer > Projects > Oracle Utilities BI > Package and right click Packages then select New Package.


    New Package Navigation

  11. Enter the Package details and click OK.

    Field Name and Description Value

    Package Name

    B1_REV_< Source Product Model Name > for example, <B1_REV_CCB1AA>

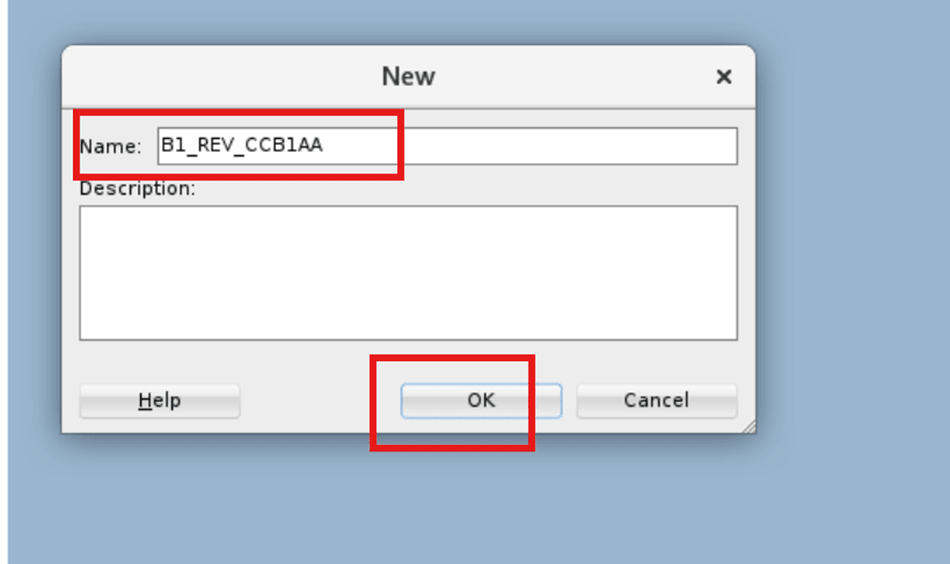

    New Package Definition Details

    The created package is automatically opened.

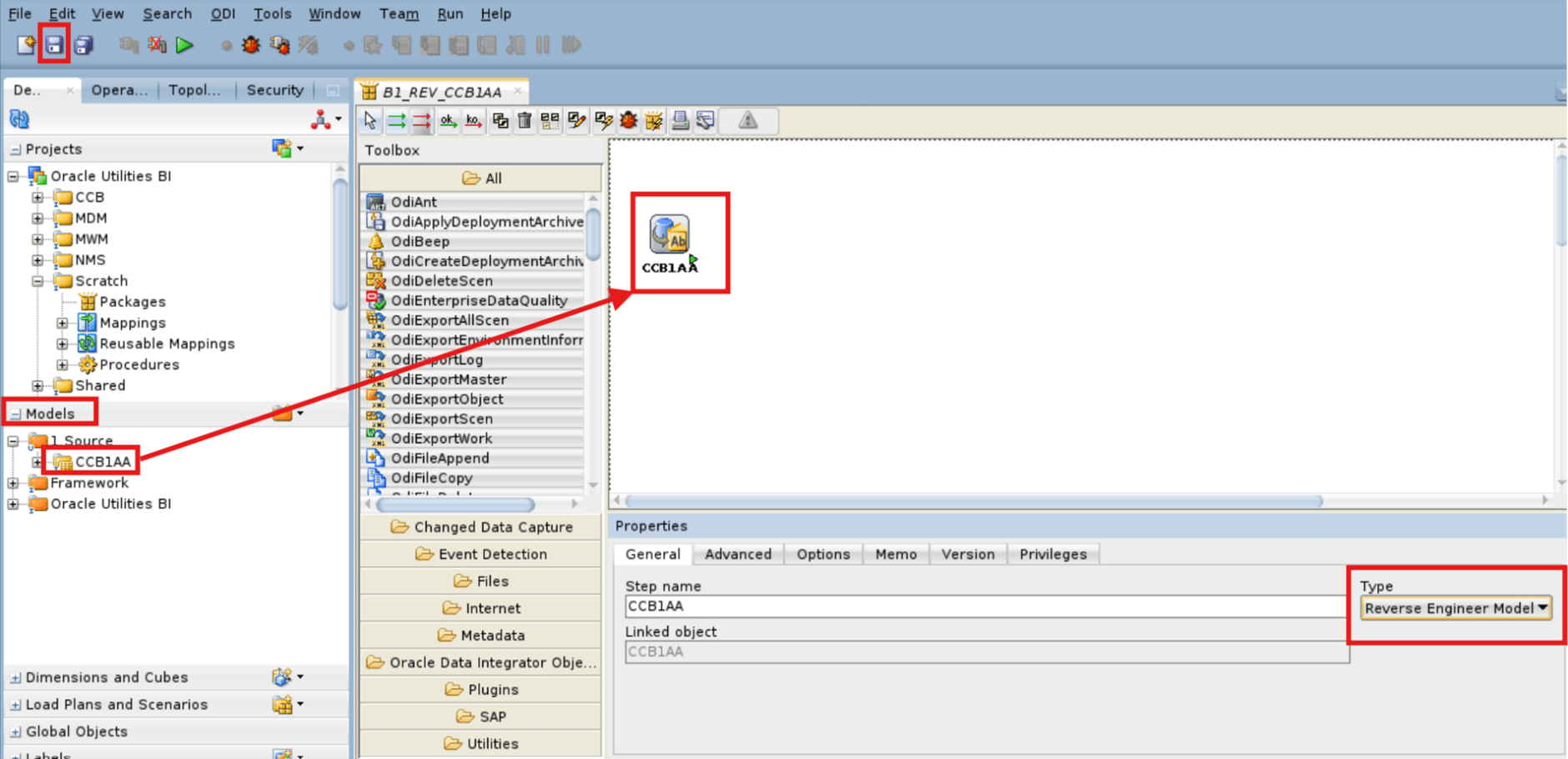

  12. Drag and drop the related Model > Type (Reverse Engineer Model) and click Save.


    Drag and drop the related model.

  13. Navigate to Designer > Projects > Oracle Utilities BI > Scratch > Packages and right click Package Name (example B1_REV_CCB1AA) then select Generate Scenario.

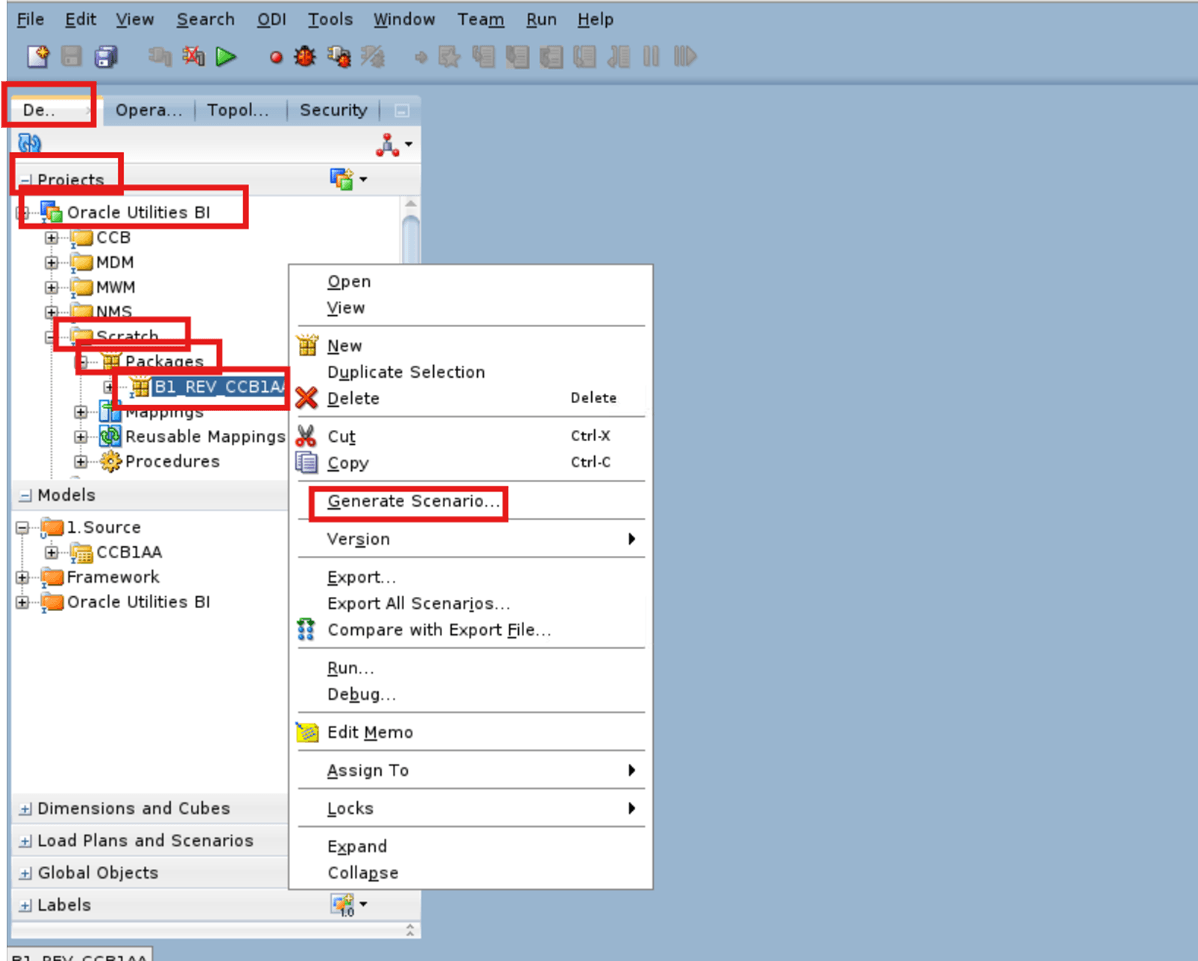

    New Package Scenario Navigation

  14. Enter the Scenario details and click OK.

    Field Name and Description Value

    Name

    B1_REV_< Source Product Model Name > for example, <B1_REV_CCB1AA>
    Version For example, 001

  15. Navigate to Designer > Projects > Scratch > Packages > Package Name > Scenarios and right click Scenario Name (example, B1_REV_CCB1AA Version 001) then select Run.

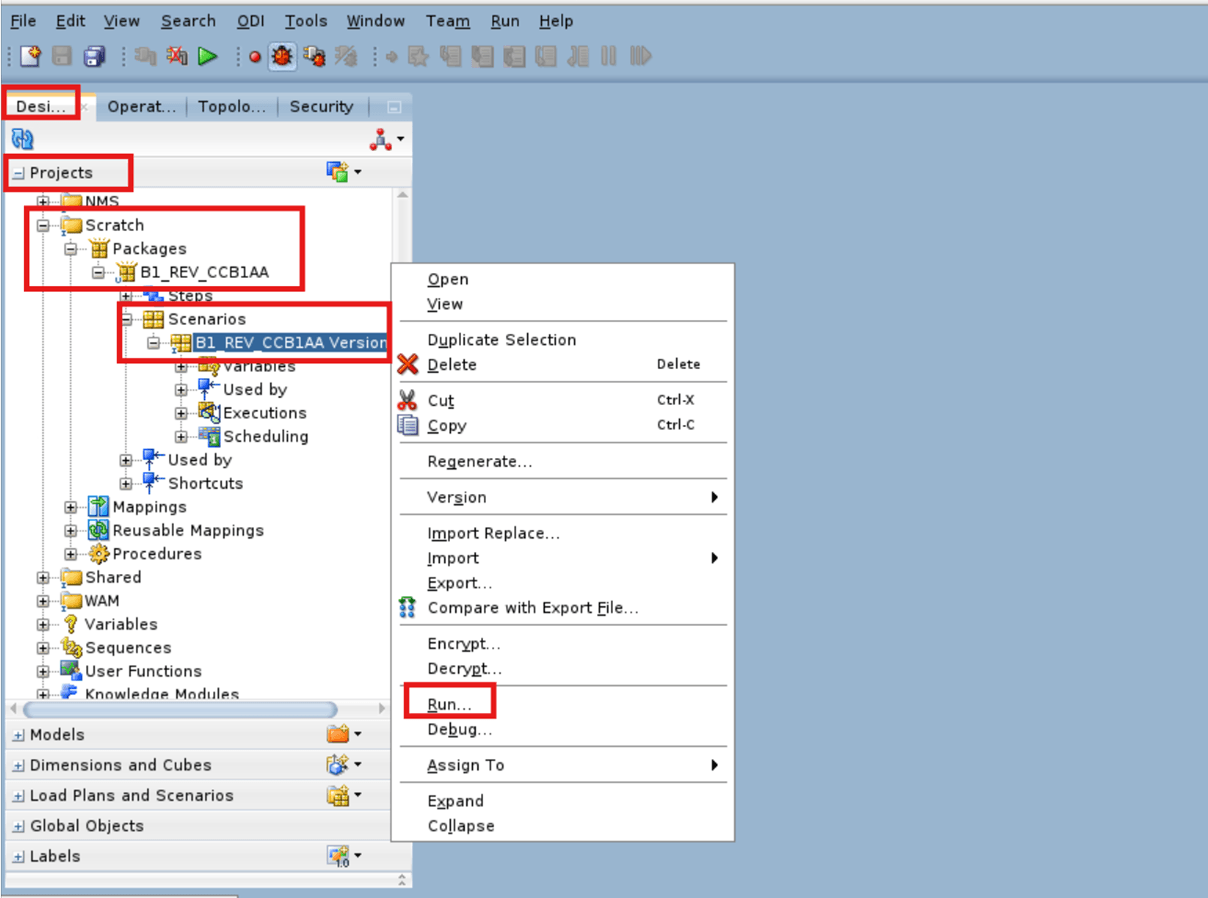

    Run the created scenario.

  16. Enter the Context details and click OK.

    Field Name and Description Value

    Context

    For example, <CCB1>
    Logical Agent

    WLS_Agent (ODI Agent)
    Log Level For example, 6

  17. In the Operator tab, check the status of the scenario job for its completion.

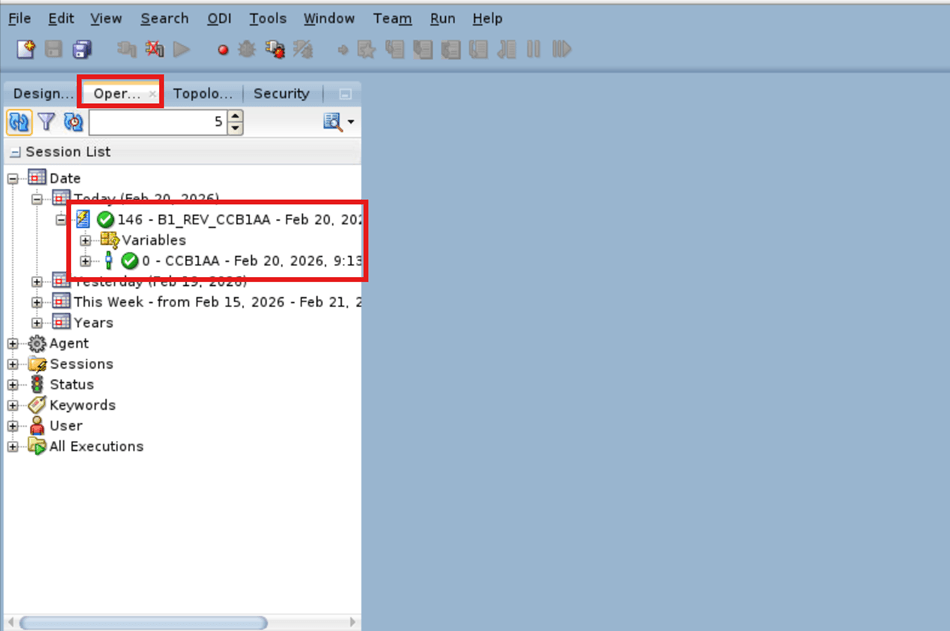

    Run New Package Scenario

  18. Repeat step 4 - 17 for other models as per your source product.
    • CCB
      • Total Models: 5
      • Model Name (example, Instance 2): CCB1AA, CCB1AB, CCB1AC, CCB1AD, CCB1AE
    • MDM
      • Total Models: 2
      • Model Name (example, Instance 3): MDM1AA, MDM1AB
    • WAM
      • Total Models: 10
      • Model Name (example, Instance 4): WAM1AA, WAM1AB, and so on
    • MWM
      • Total Models: 3
      • Model Name (example, Instance 5): MWM1AA, MWM1AB, MWM1AC
    • NMS
      • Total Models: 1
      • Model Name (example, Instance 6): NMA1AA

Journalize Knowledge Modules in ODI

  1. Log in to ODI Studio to Work Repository.

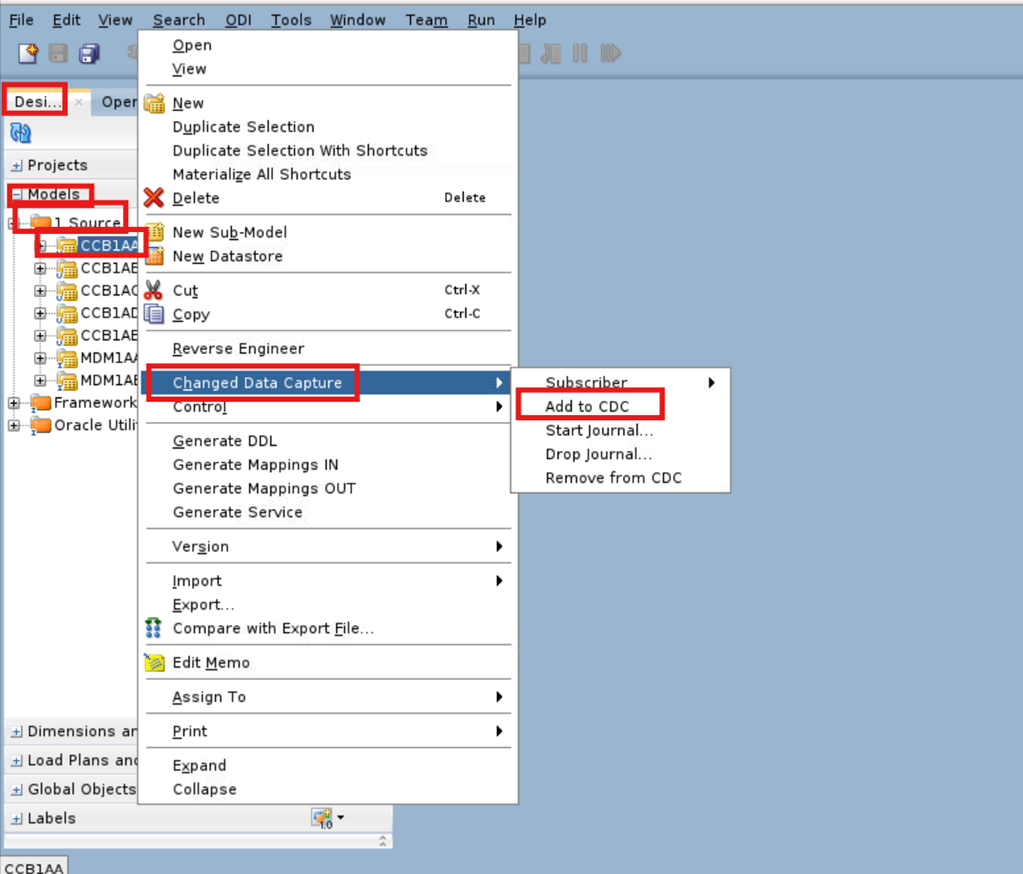

  2. Navigate to Designer > Models > 1.Source and right click Model Name (example, CCB1AA) then select Changed Data Capture > Add to CDC > YES.

    Note:

    Make sure to run this step for all models.


    Journalize the knowledge module in ODI.

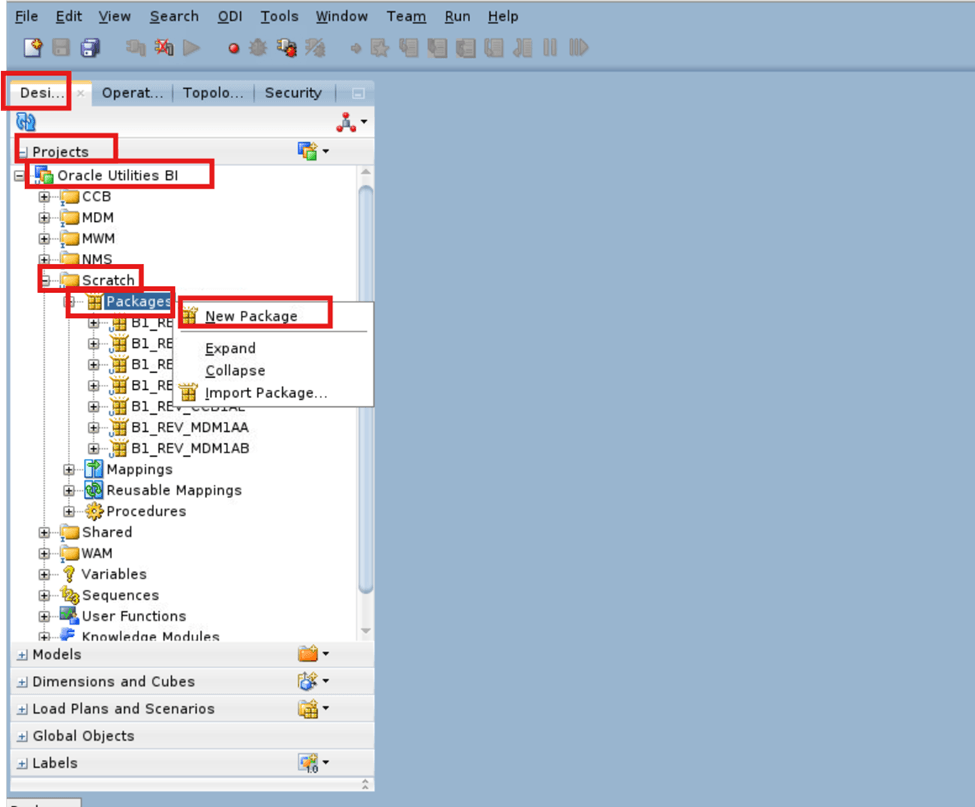

  3. Navigate to Designer > Projects > Oracle Utilities BI > Scratch and right click Packages then select New Package.


    New Package for OUBI Navigation

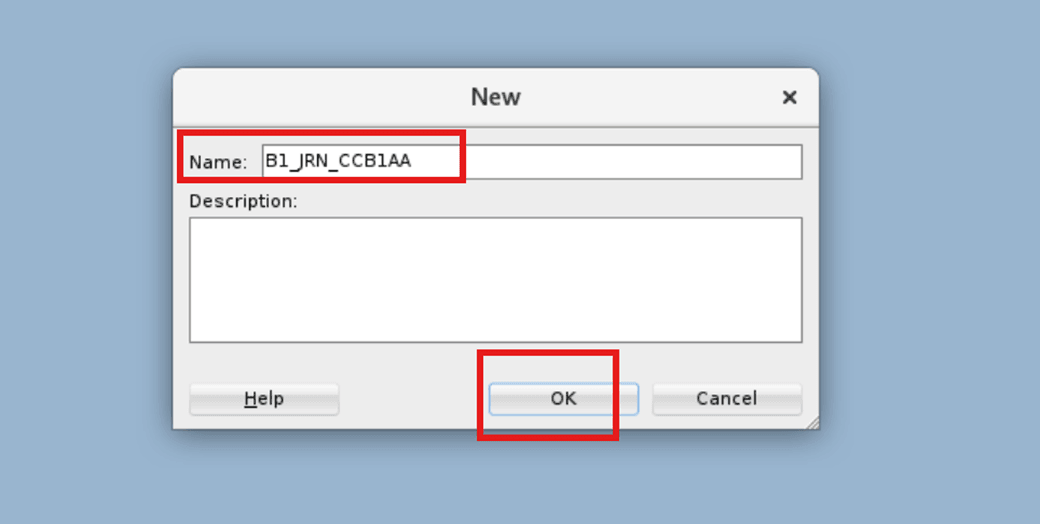

  4. Enter the Package details and click OK.

    Field Name and Description Value

    Name

    B1_JRN_<Source Product Context Model for example, B1_JRN_CCB1AA


    New Package for OUBI Definition Details

  5. Navigate to Global Objects and drag-and-drop these objects sequentially to the created JRN package.
    1. B1_LOCAL_TEMP_DIR
    2. B1_SRC_GGCS_ALIAS
    3. B1_SRC_GGCS_DOMAIN
    4. B1_TGT_GGCS_ALIAS
    5. B1_TGT_GGCS_DOMAIN
    6. B1_HIGH_DATE
    7. B1_SRC_PROXY
    8. B1_EXTRACT_START_DATE

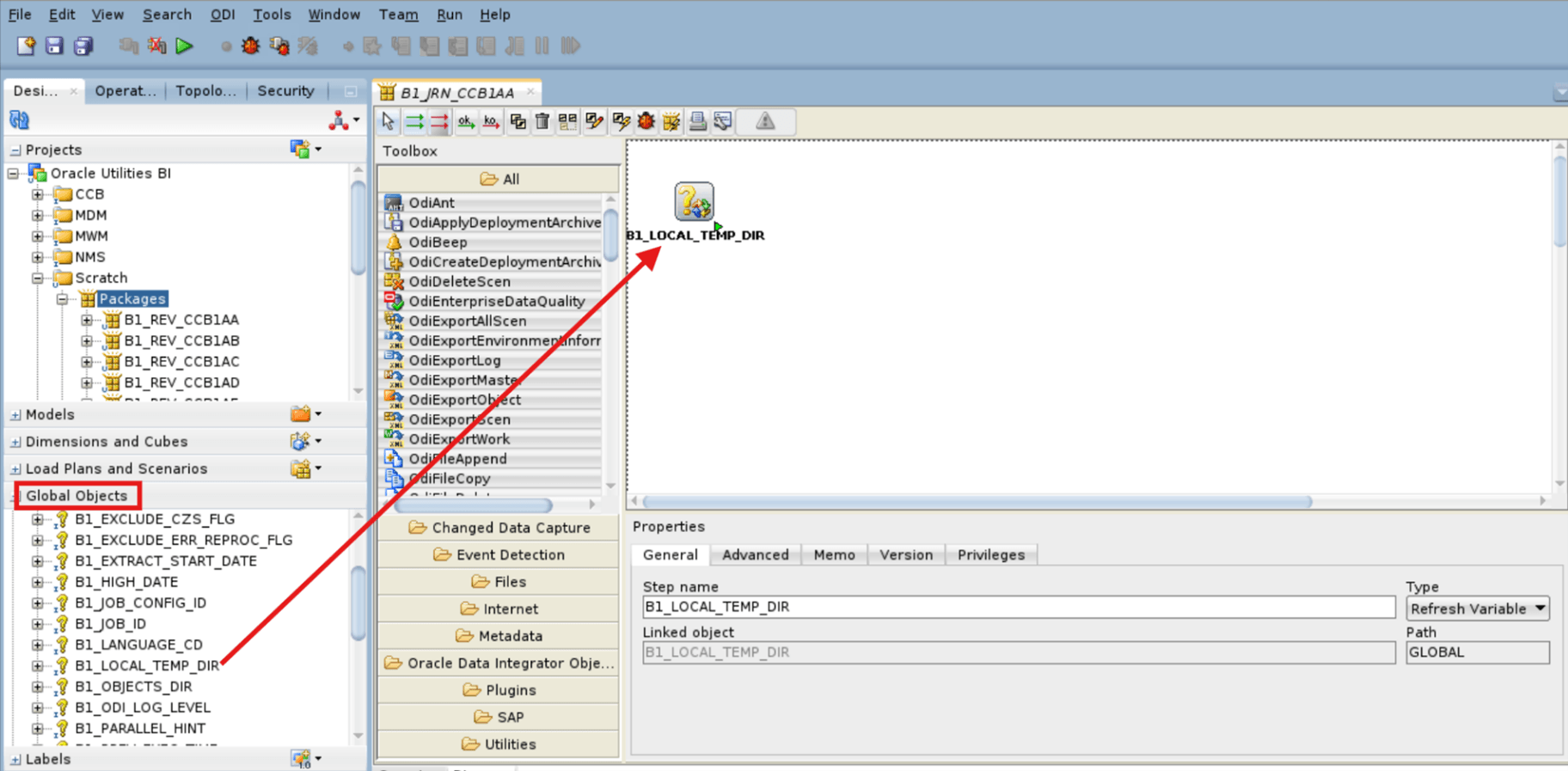

    Global Objects Navigation

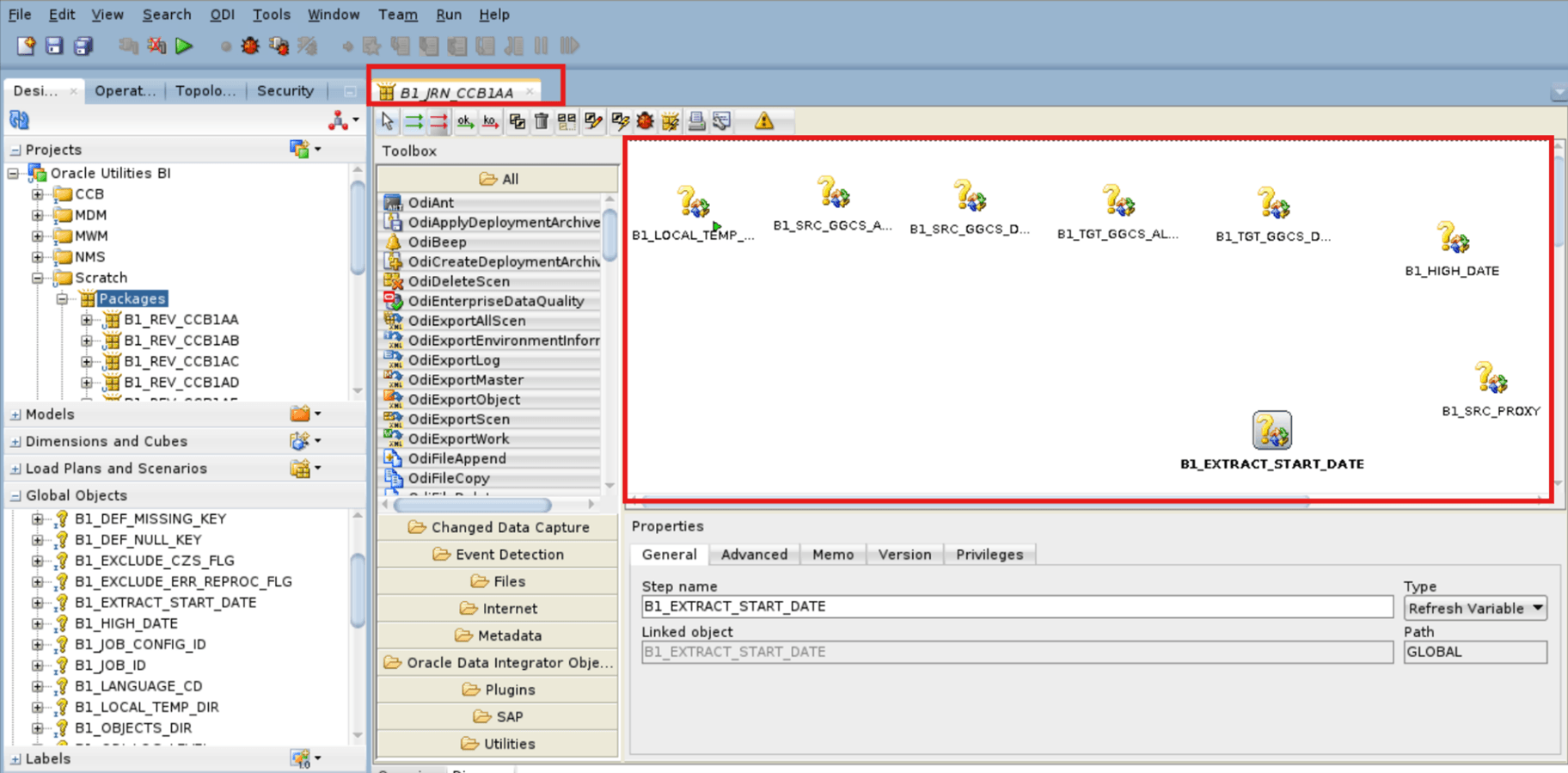

    Drag and drop global variables to the JRN package.

  6. Connect the eight Global variables with ––ok––> marks.

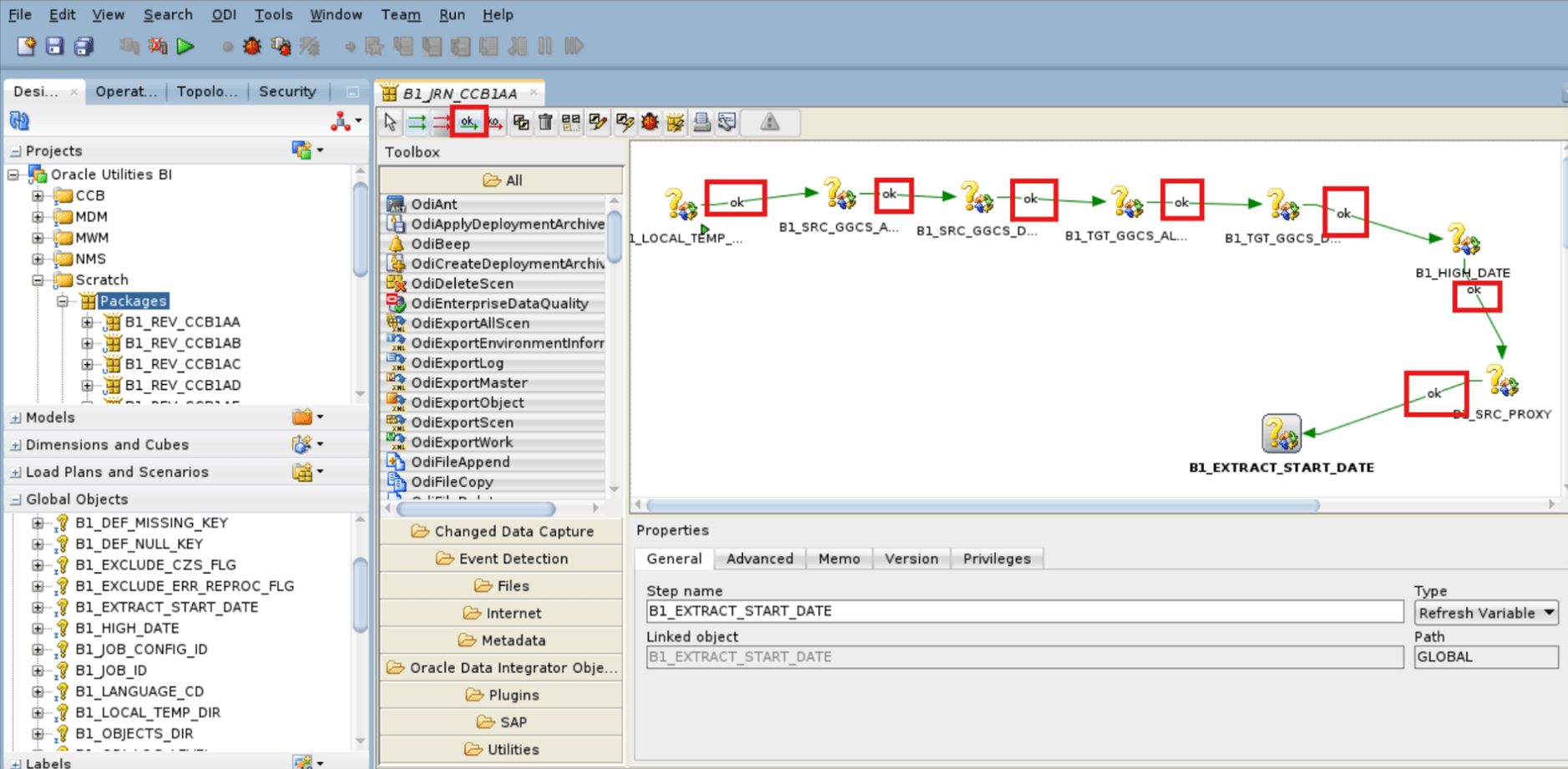

    Connect the global variables in the JRN package.

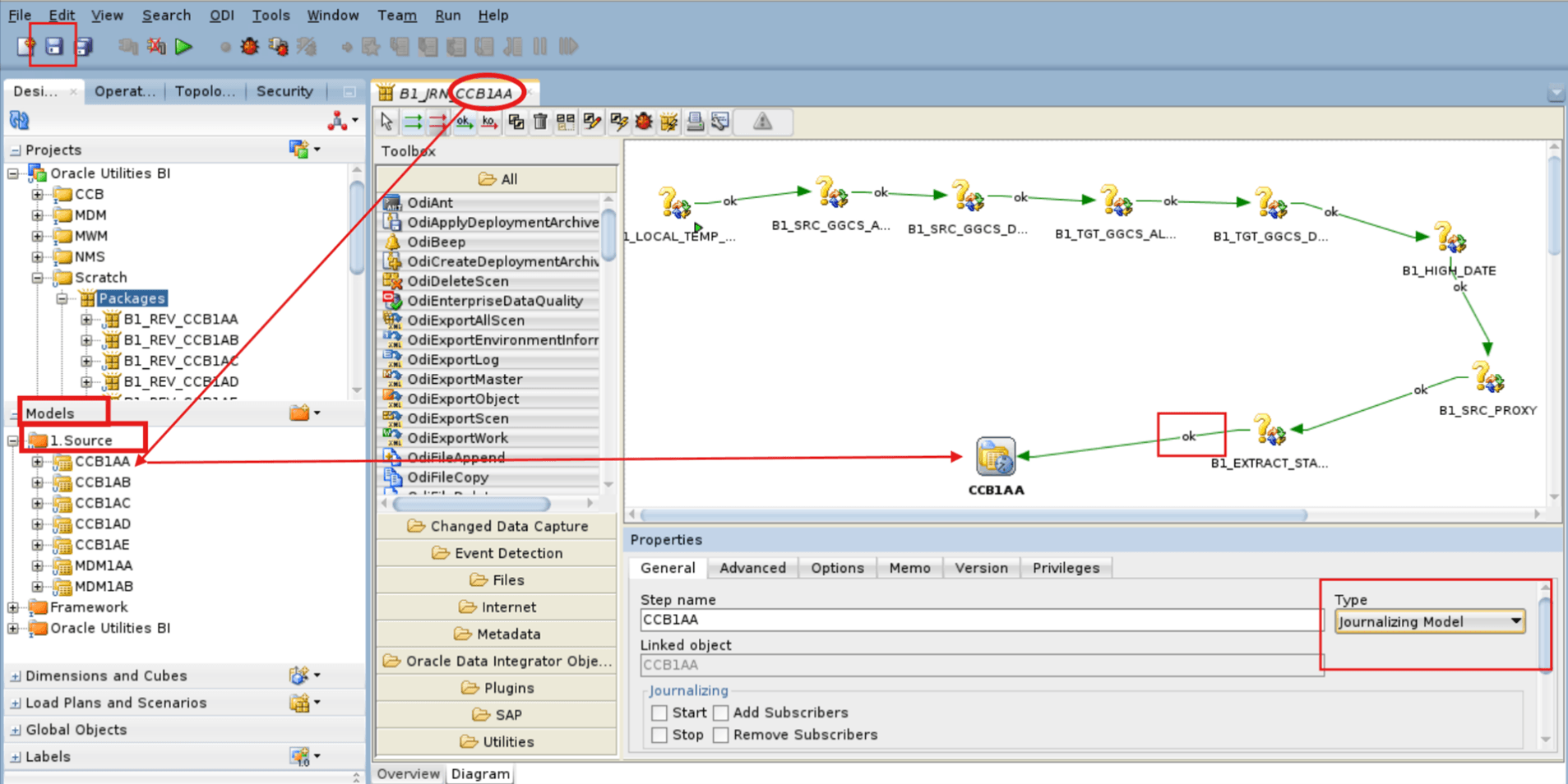

  7. Navigate to Models > 1.Source and drag-and-drop the model to the created JRN then select "Type" as the Journalizing Model.


    Select the journalizing model for the JRN package.

  8. Connect the model with the global variable with a ––ok––> mark and click Save.

  9. Click the model (example, CCB1AA) and navigate to Properties then select Type (Journalizing Model).

  10. In the General tab, select the Start checkbox and add "ORACLE" in the Subscribers field then click Save.

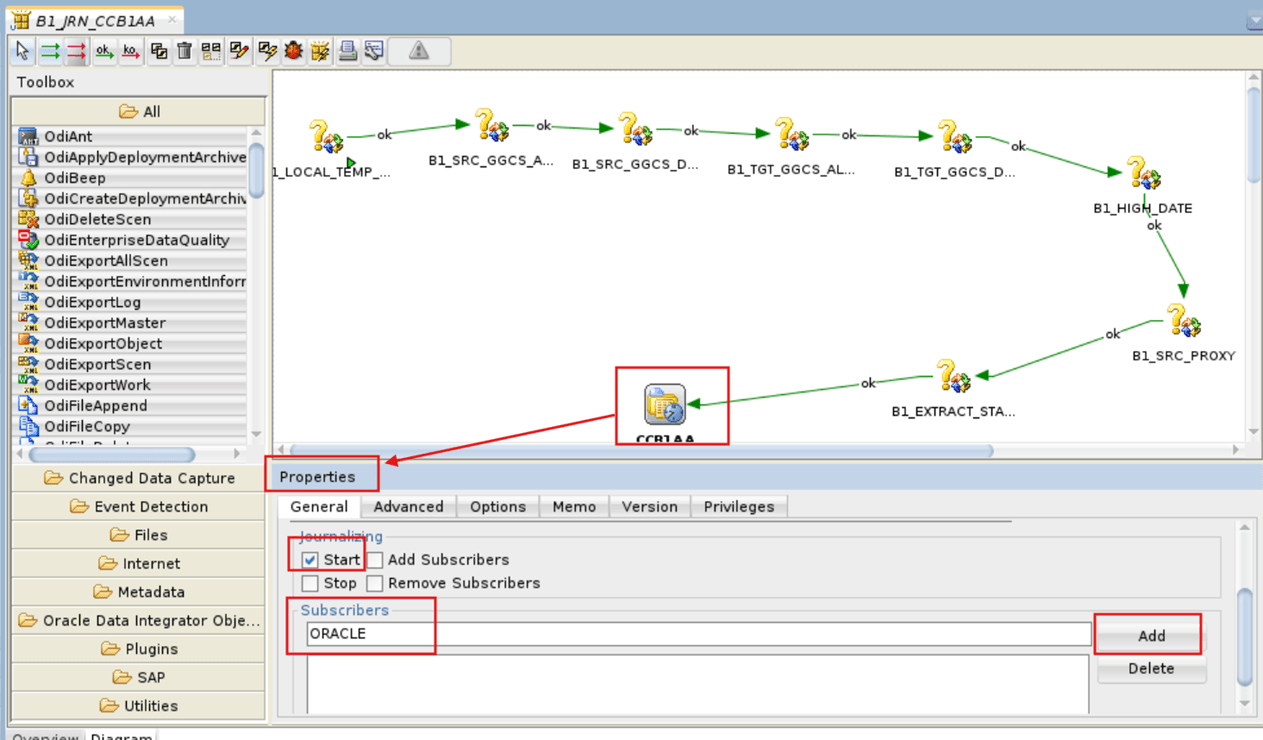

    Define the properties of the journalizing model.

    Make sure that the variable B1_LOCAL_TEMP is marked as 'First Step'. If not, perform these steps to mark it as the first step to execute:
    1. Right click the variable and select First Step.
    2. Notice that a green arrow icon appears on the step.

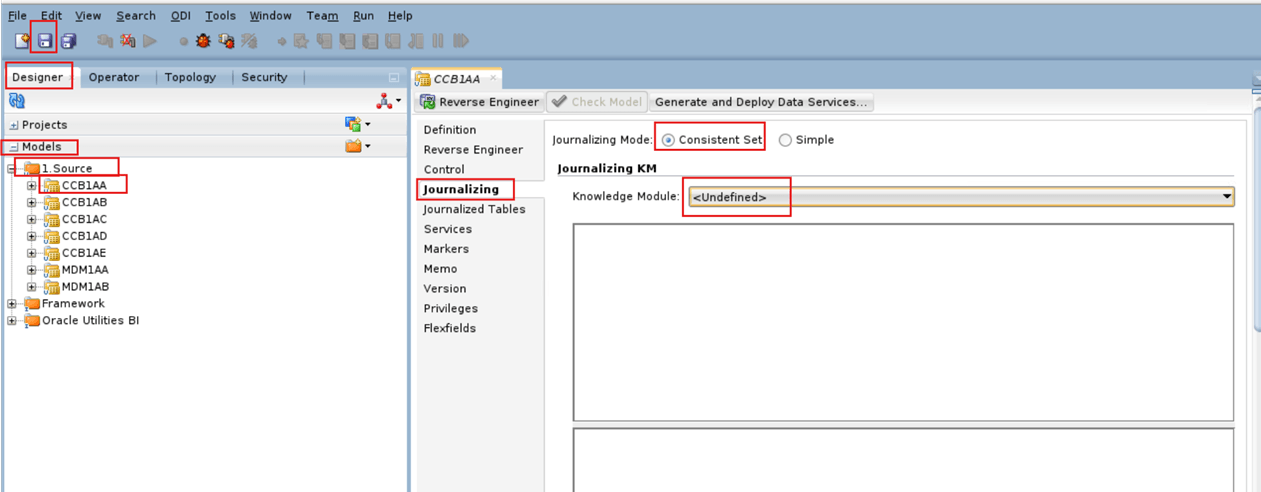

  11. Navigate to Models > 1.Source and double click the model (example, CCB1AA) then navigate to Journalizing.

  12. Enter the Journalizing details then click Save.

    Field Name and Description Value

    Journalizing Mode

    Consistent Set
    Knowledge Module _PaaS.GLOBAL

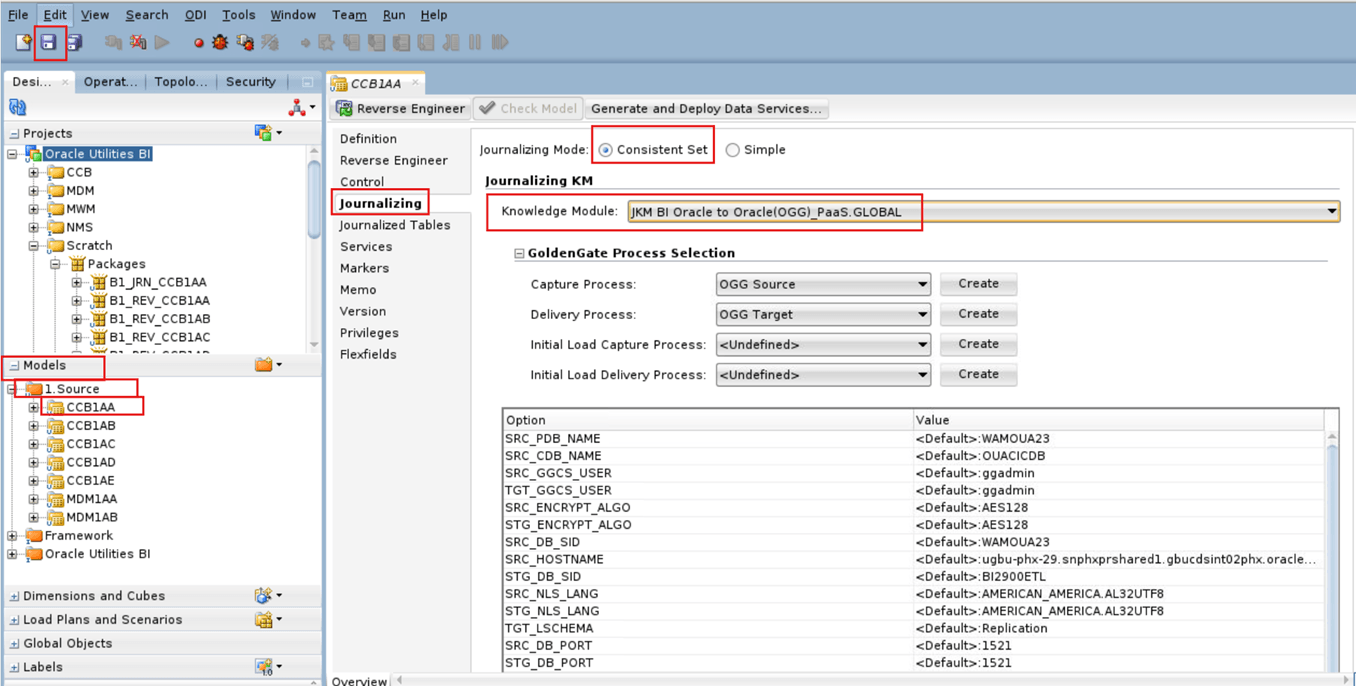

    Enter the journalizing details.

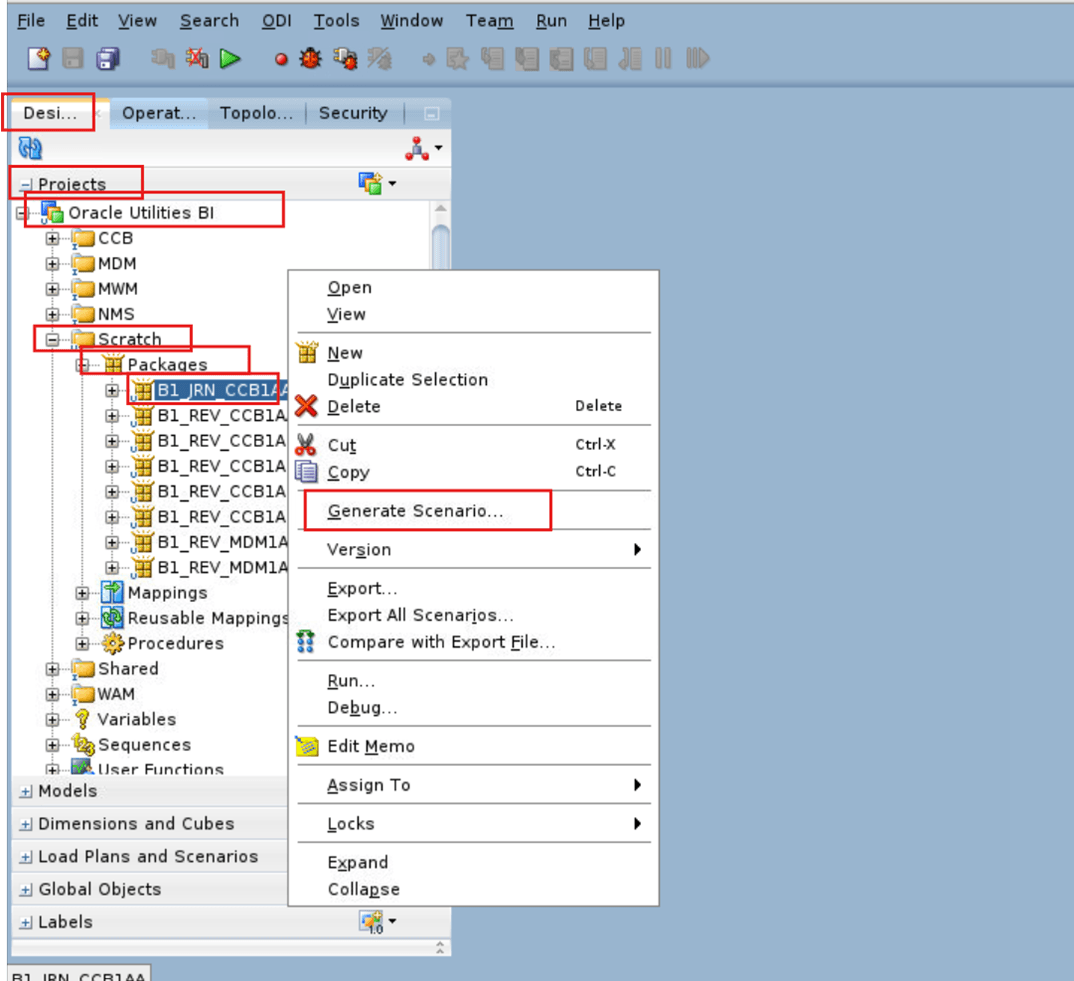

  13. Navigate to Designer > Projects > Oracle Utilities BI > Scratch > Packages and right click JRN Package Name (example, B1_JRN_CCB1AA) then select Generate Scenario.


    New JRN Package Scenario Navigation

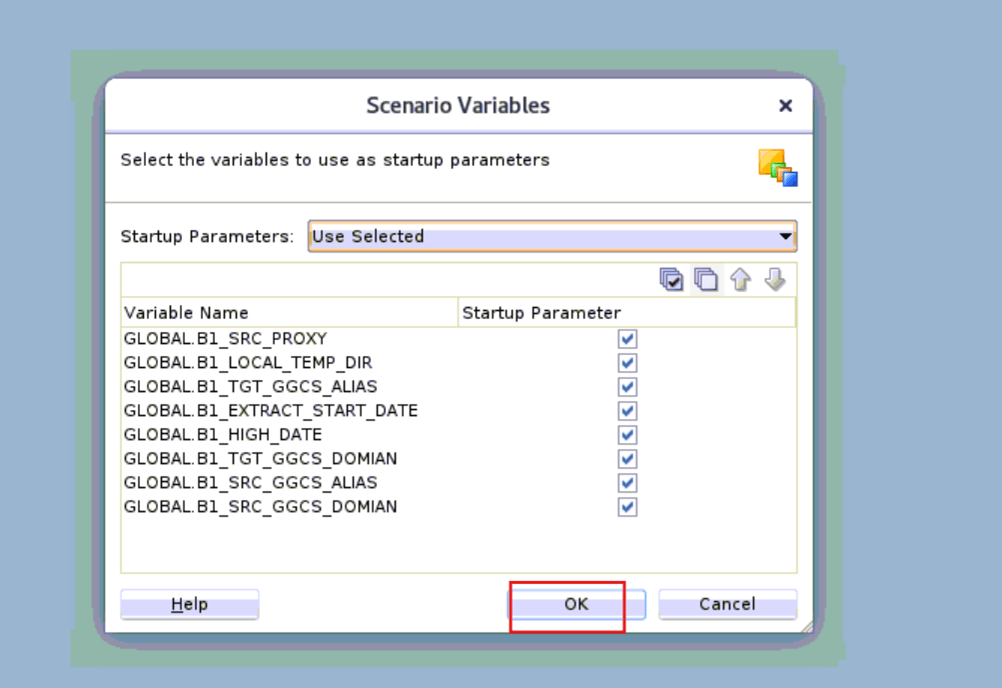

  14. Enter the Scenario details, click OK then select the startup parameters and click OK.

    Field Name and Description Value

    Name

    B1_JRN_<Model Name> for example, B1_JRN_CCB1AA
    Version For example, 001

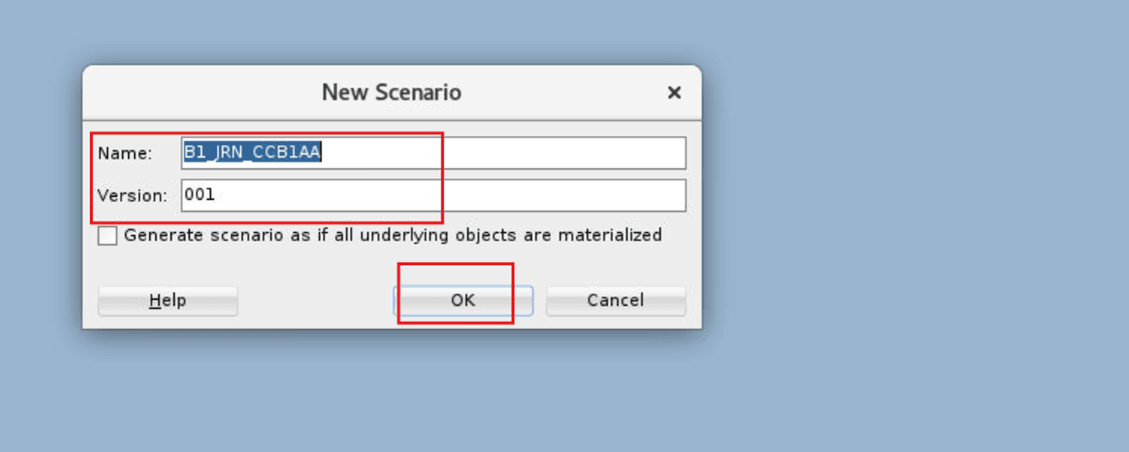

    New JRN Package Scenario Details


    Select the startup parameters of the scenario.

  15. Navigate to Designer > Projects > Scratch > Packages > Package Name > Scenarios and right click Scenario Name and Version then select Run.

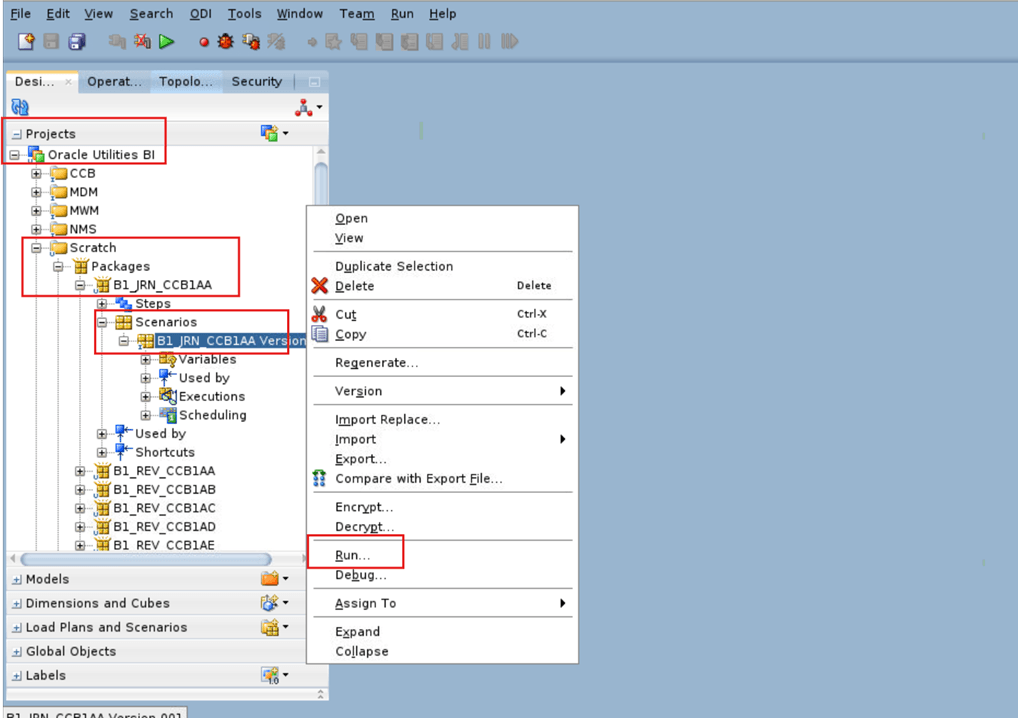

    JRN Package Scenario Run Navigation

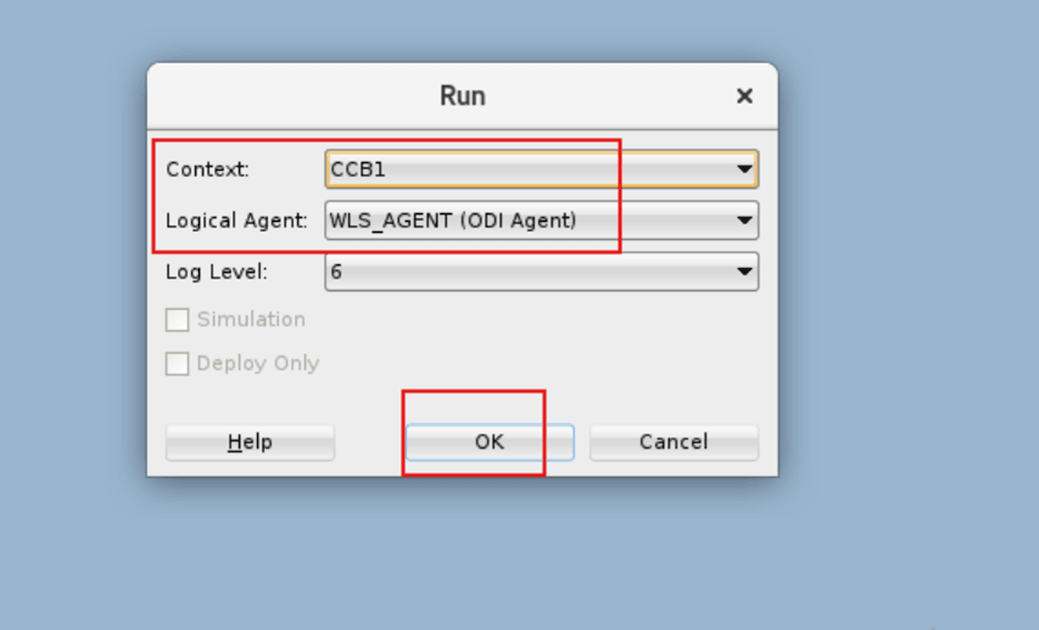

  16. Enter the Context details and click OK.

    Field Name and Description Value

    Context

    For example, <CCB1>
    Logical Agent WLS_Agent (ODI Agent)
    Log Level For example, 6


    JRN Package Scenario Run Configuration Details

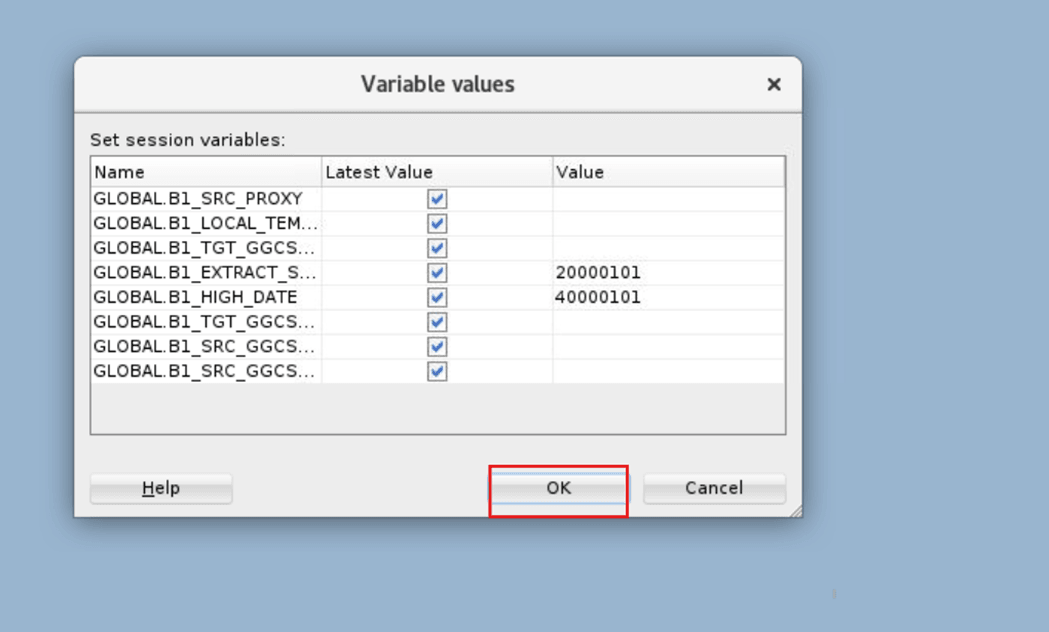

    JRN Package Scenario Variables Values

  17. In the Operator tab, check the status of job for its completion.

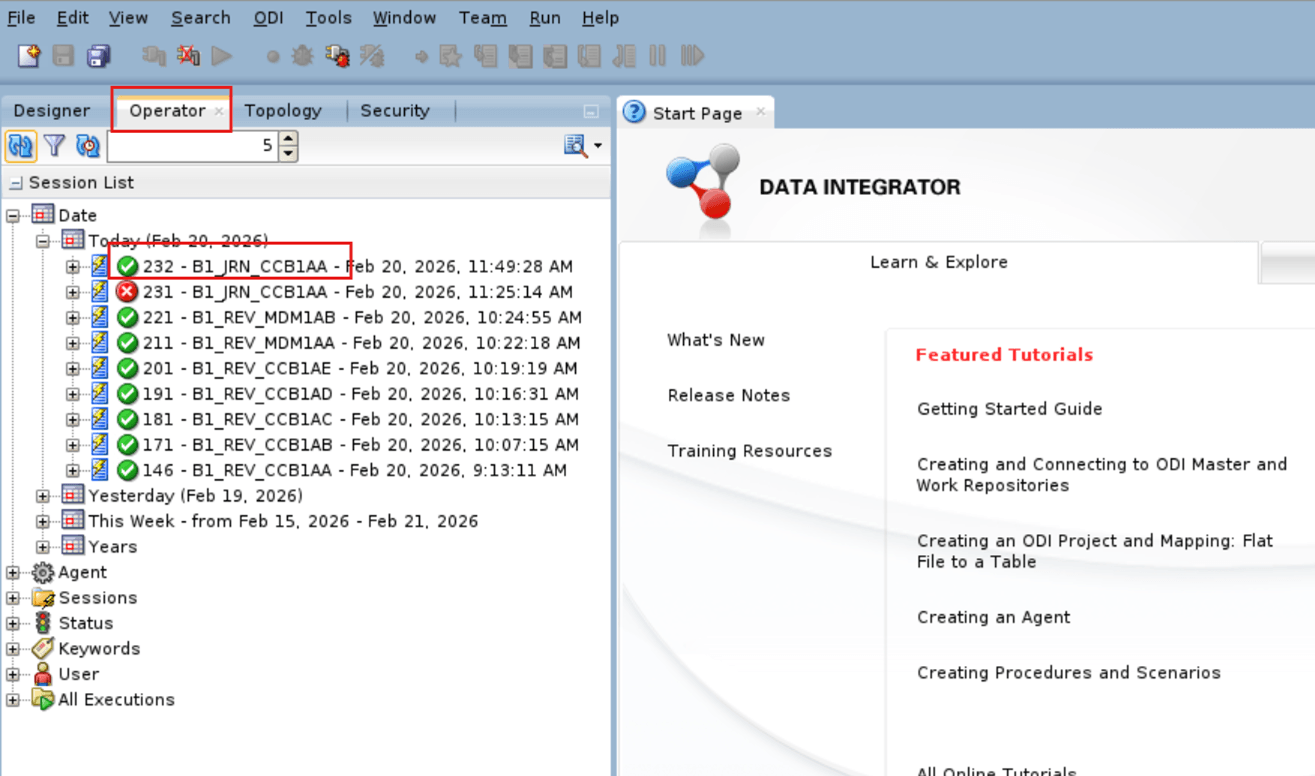

    JRN Package Scenario Job Completion

  18. Navigate to Models > 1.Source and double click the model (example, CCB1AA) then navigate to Journalizing.

  19. Enter the Journalizing details then click Save.

    Field Name and Description Value

    Journalizing Mode

    Consistent Set
    Knowledge Module <Undefined>


    Journalizing 1.Source Definition Details

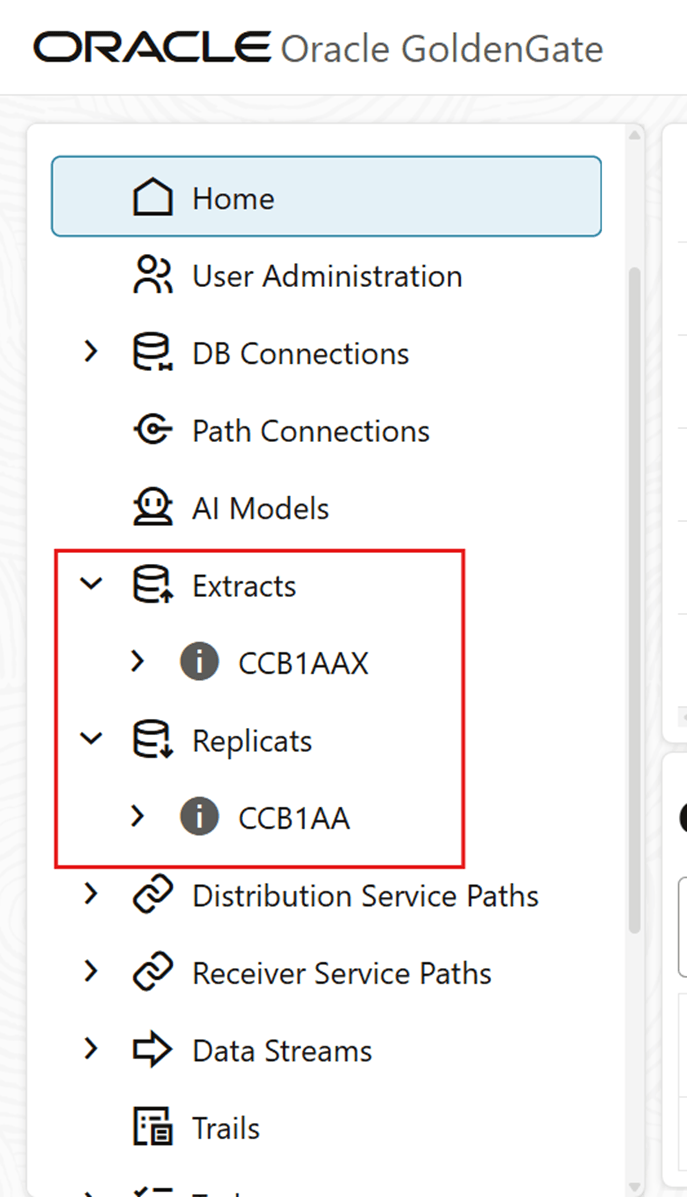

  20. Make sure the respective processes are created in OCI GoldenGate. Verify by logging to the OCI GG Admin Console.


    Verify the processes are created in OCI GoldenGate.

  21. Repeat all the steps for other models as per your source product.
    • CCB
      • Total Models: 5
      • Model Name (example, Instance 2): CCB1AA, CCB1AB, CCB1AC, CCB1AD, CCB1AE
    • MDM
      • Total Models: 2
      • Model Name (example, Instance 3): MDM1AA, MDM1AB
    • WAM
      • Total Models: 10
      • Model Name (example, Instance 4): WAM1AA, WAM1AB, and so on
    • MWM
      • Total Models: 3
      • Model Name (example, Instance 5): MWM1AA, MWM1AB, MWM1AC
    • NMS
      • Total Models: 1
      • Model Name (example, Instance 6): NMA1AA

Copy Param Files Content from ODI Instance VM to OCI GG Process Parameter Tab

  1. Extract and Replicat Param files are created under local Temporary directory which is created earlier in OCI ODI instance.

    Note:

    You can find the Directory Name in OUAW Admin Tool Console URL > PaaS Configuration > Local Temporary Directory Name.

    Example: </u01/oracle/local-temp>

  2. The Param file folder structure is shown below for example, Model Name : CCB1*.

    src contains Source (Extract) Param files and stg contains Target (Replicat) Param files

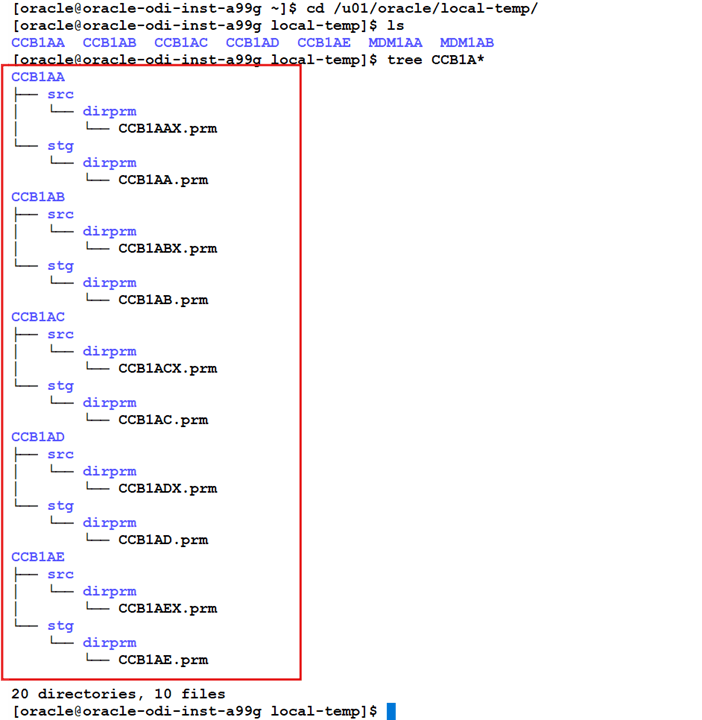

    Example of a param file folder structure.

  3. Log in to the OCI GG Admin console.

  4. Navigate to Extracts > Extract Process Name (for example, CCB1AAX) > Parameters and remove the existing content from the Parameter tab.

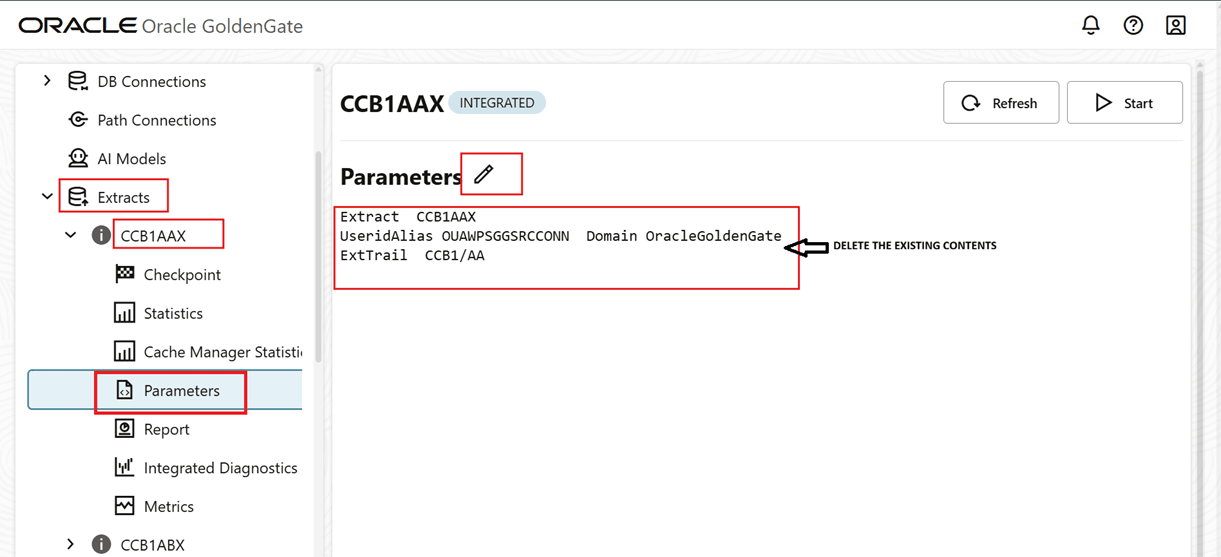

    Remove existing content from the Parameter tab.

  5. Copy the Extract Param (.prm) files to the Parameter tab and click Apply.

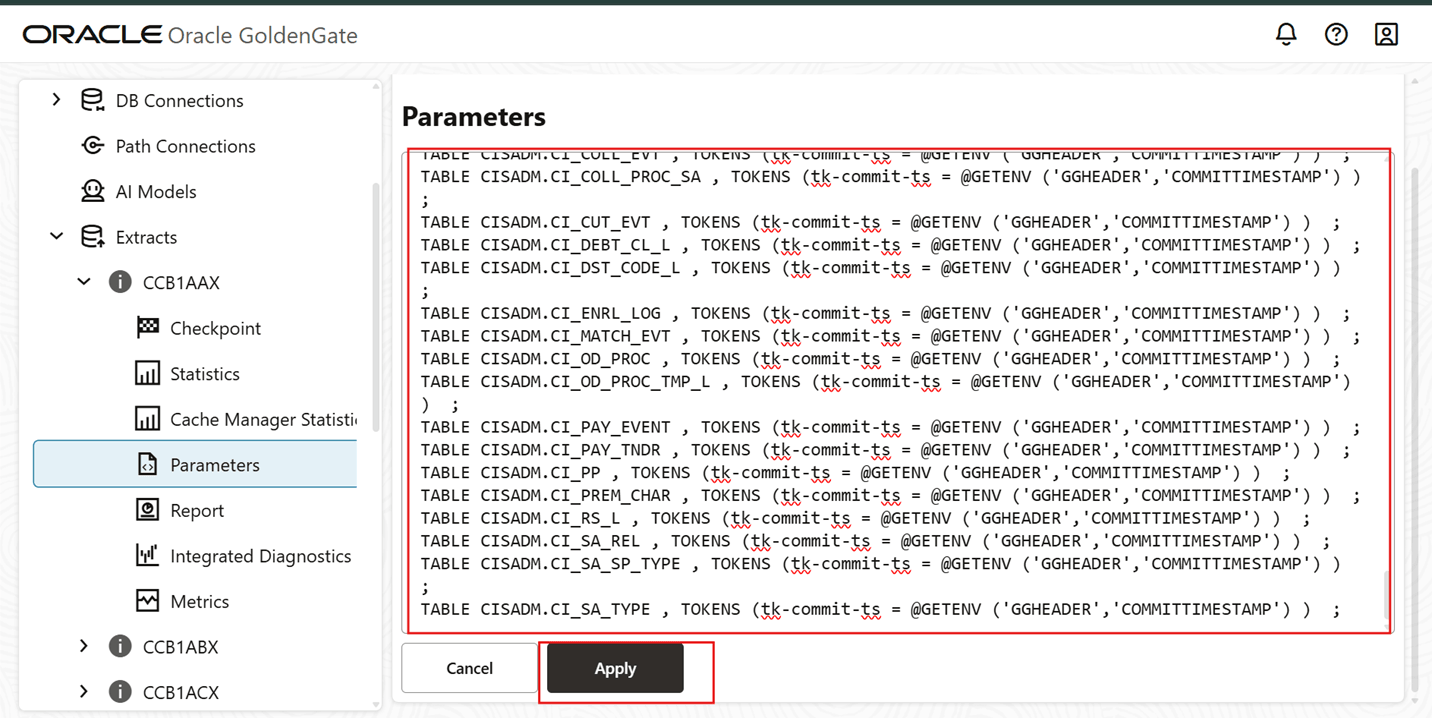

    Copy-paste the Extract Param files.

  6. Navigate to Replicats > Replicat Process Name (for example, CCB1AA) > Parameters and remove the existing content from the Parameter tab.

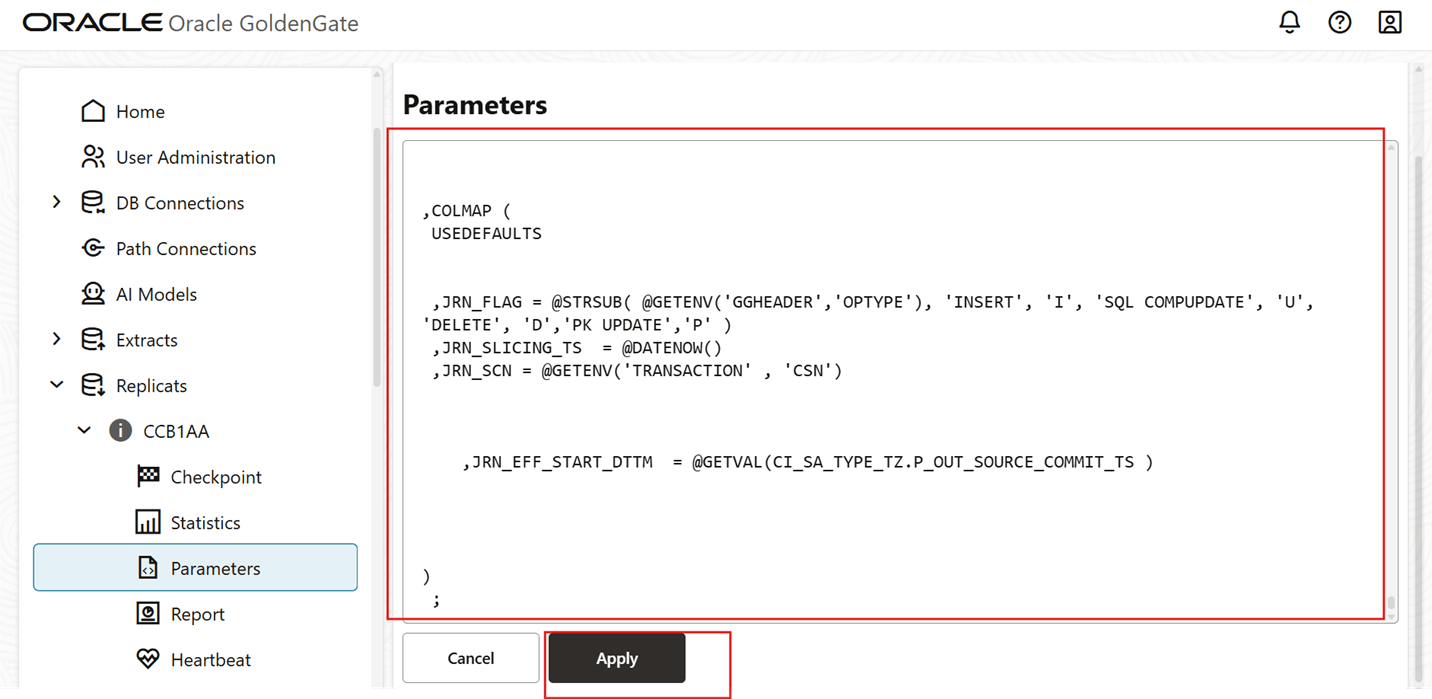

  7. Copy the Replicat Param (.prm) files to the Parameter tab and click Apply.


    Copy the Replicat Param files to the Parameter tab.

  8. Ignore the errors below.

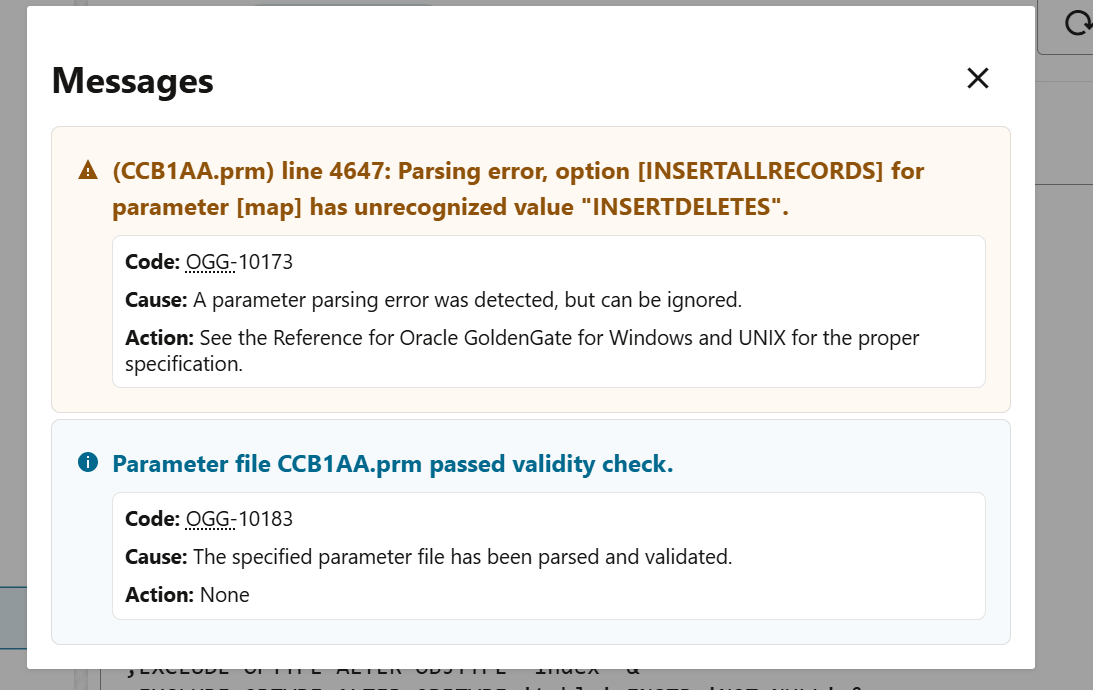

    Ignore errors similar to these.

  9. Repeat steps 4 -8 for each Extract and Replicat param file.

Start OCI GoldenGate Processes

  1. Log in to the OCI GG Admin console.

  2. Navigate to Extracts and click Group Action then select Start all extracts.

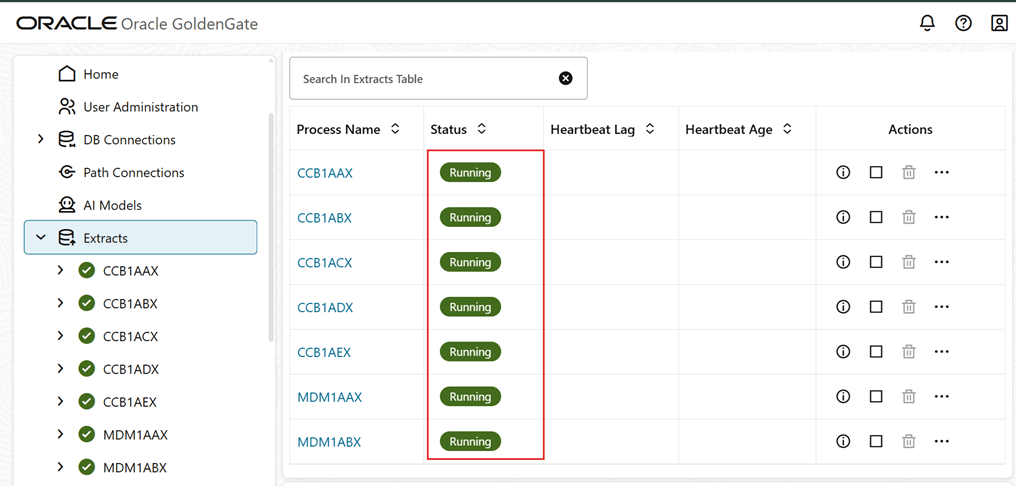

    Start OCI GoldenGate Extracts

  3. Navigate to Replicats and click Group Action then select Start all replicats.

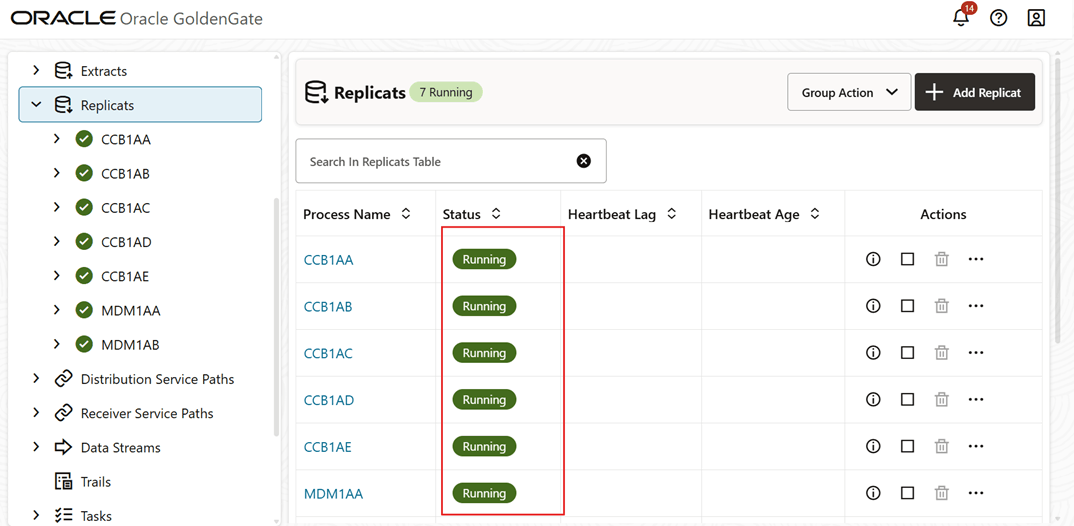

    Start OCI GoldenGate Replicats

Create the B1_GET_VALID_XML Function on Source Database

  1. Log in to the Source database with the GoldenGate Source Database user for example, C##GGOWNER.

    sqlplus <GoldenGate User>/<GoldenGate PASSWORD>@<SOURCE PDB NAME>

  2. Run this SQL.

    CREATE OR REPLACE FUNCTION B1_GET_VALID_XML(c IN CLOB)
   RETURN XMLTYPE
IS
BEGIN
   RETURN XMLTYPE (c);
EXCEPTION
WHEN OTHERS THEN
   RETURN CAST (NULL AS XMLTYPE);
END;
/

Generate Source Views

  1. Log in to ODI Studio to Work Repository.

  2. Navigate to Designer > Load Plans and Scenarios > Framework > Views and right click B1_SRC_VIEW_GEN Version 001 then select Run .

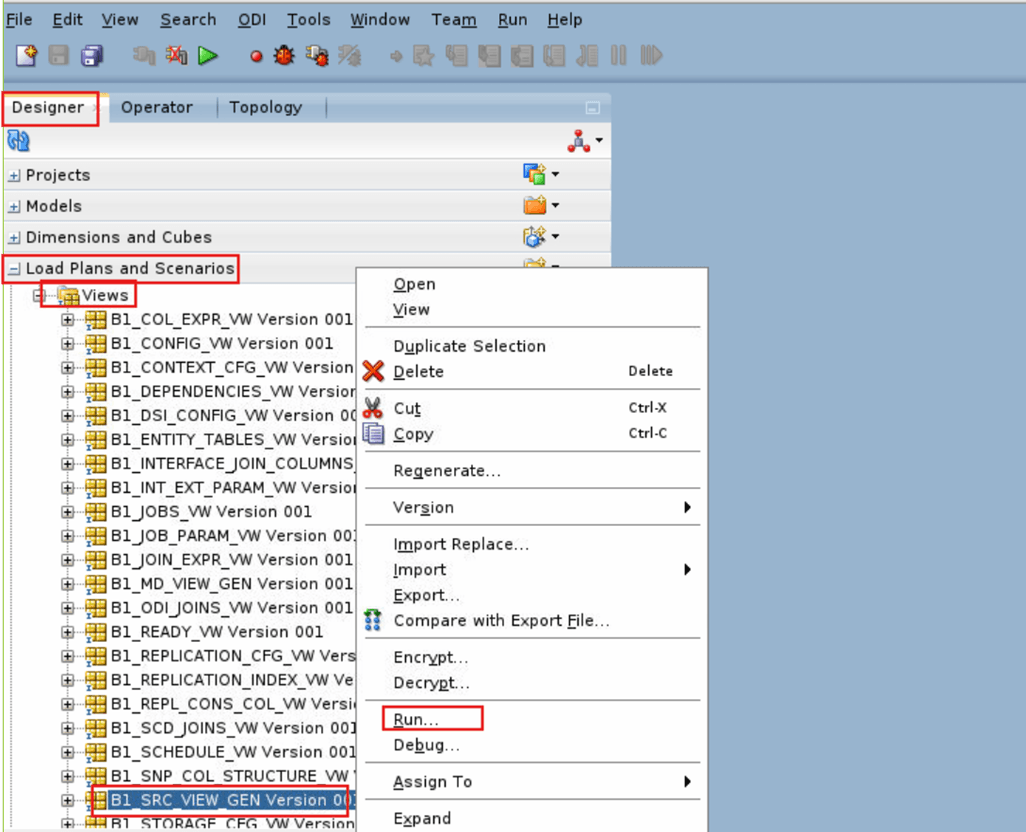

    B1_SRC_VIEW_GEN Version 001 Navigation

  3. Enter the Run details and click OK.

    Field Name and Description Value

    Context

    Source Product Context for example, <CCB1>
    Logical Agent WLS_AGENT (ODI Agent)
    Log Level For example, 6

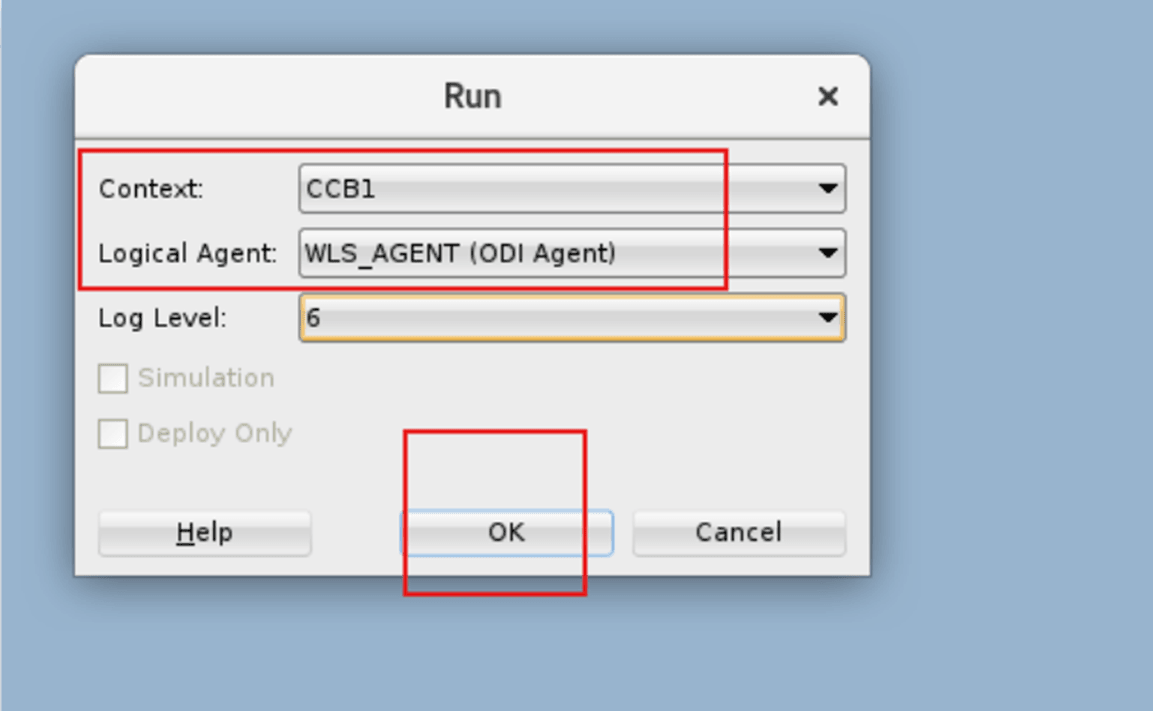

    B1_SRC_VIEW_GEN Version 001 Run Configuration Details

  4. In the Operator tab, check the status of the job for its completion.

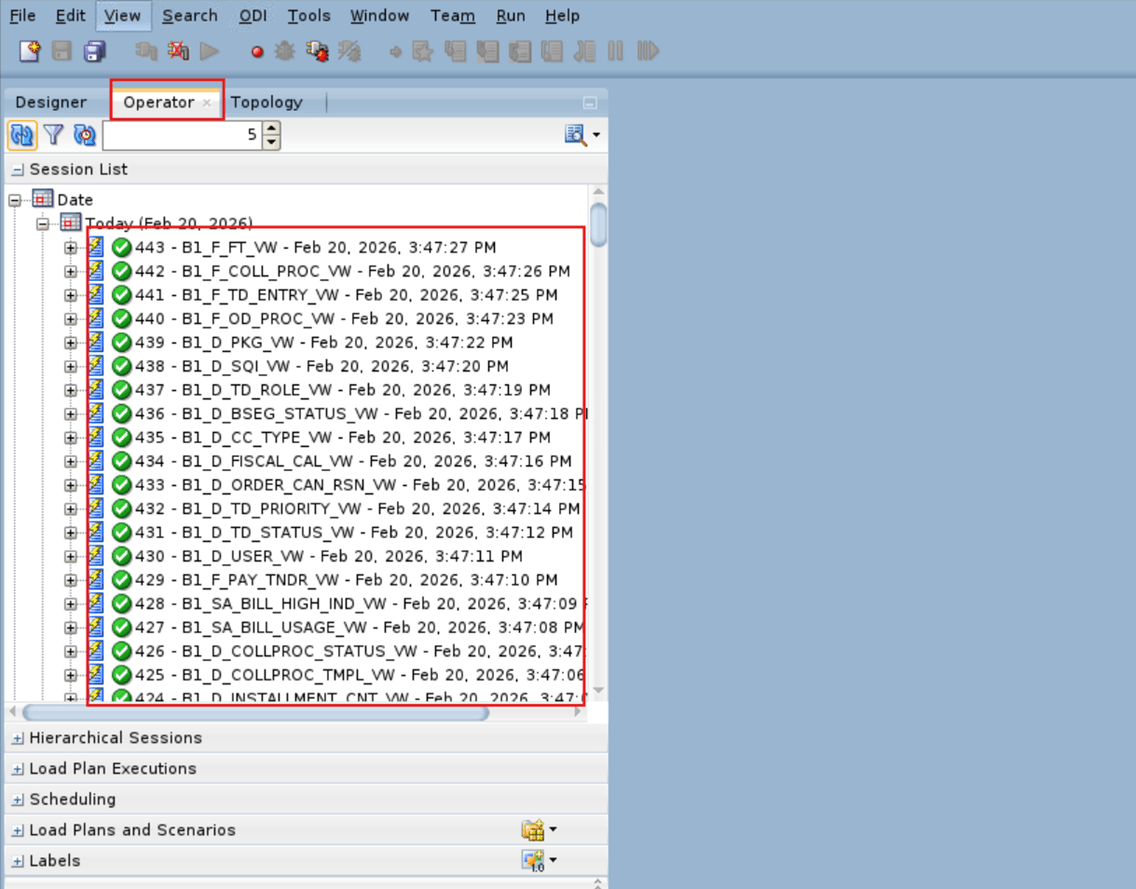

    B1_SRC_VIEW_GEN Version 001 Job Completion

Configure Instance

  1. Log in to ODI Studio to Work Repository.

  2. Navigate to Designer > Load Plans and Scenarios > Framework > Accelerators > OUAF and right click B1_OUAF_CFG_INSTANCE then select Run .

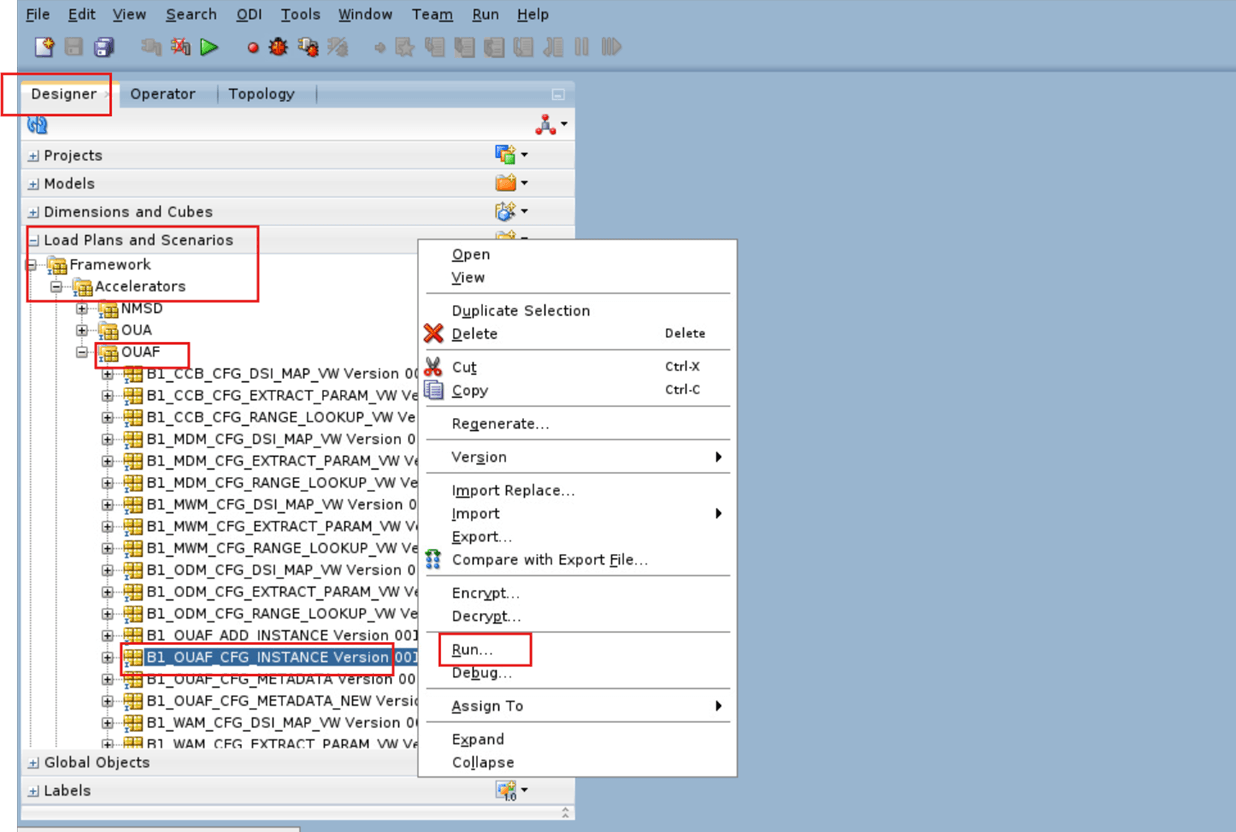

    Configure the OUAF instance.

  3. Enter the Run details and click OK.

    Field Name and Description Value

    Context

    Source Product Context for example, <CCB1>
    Logical Agent WLS_AGENT (ODI Agent)
    Log Level For example, 6


    B1_OUAF_CFG_INSTANCE Run Configuration Details

  4. In the Operator tab, check the status of the job for its completion.

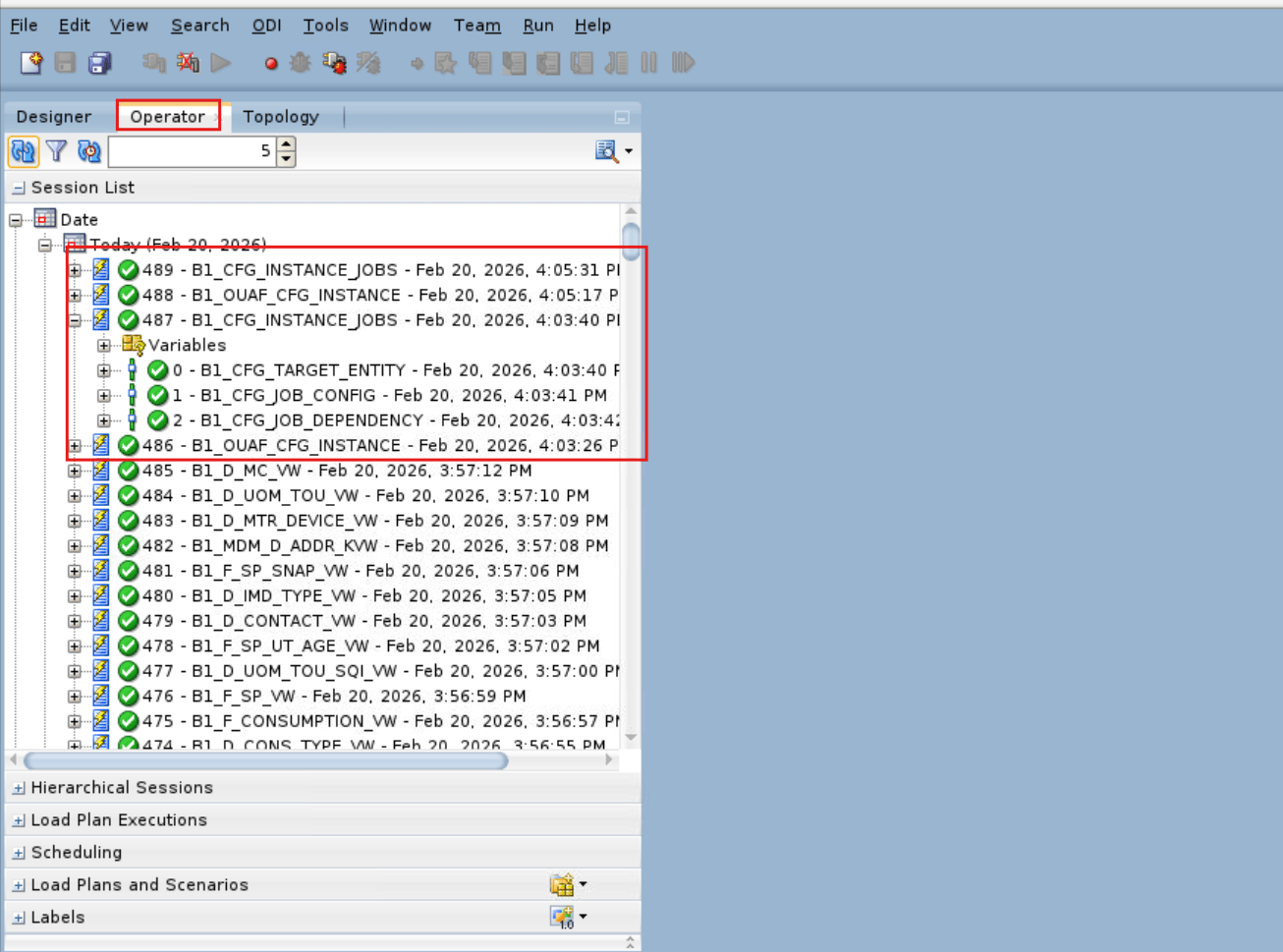

    B1_OUAF_CFG_INSTANCE Job Completion

Configure the Source Product in Oracle Data Integrator

Create a B1_DATA_DUMP_DIR Database Directory on the Source Database

This directory is used for logging the export and/or import task used during the initial ETL load. The following is a sample SQL that creates the database directory pointing to a shared file system path (example, OCI File System). The following steps are sample SQLs that create the database directory pointing to the file system path.
  1. Make sure to have a shared file system provisioned.

  2. Log in to the Source Database Server and Create dump directory where you will mount the File System.

    For example, </mnt/file_data>

  3. Create the B1_DATA_DUMP_DIR database directory in Source Database PDB.

    create directory B1_DATA_DUMP_DIR as '</mnt/file_data>';

  4. Grant the OCI GG Source Database User (example, C##GGOWNER) permissions to the B1_DATA_DUMP_DIR database directory.

    grant read,write on directory B1_DATA_DUMP_DIR to <OCI GG Source Database User>;

    For example, grant read,write on directory B1_DATA_DUMP_DIR to C##GGOWNER;

Run Sync Context

  1. Log in to the AdminTool from the following URL: https://<ADB URL>/ords/f?p=104

  2. Navigate to ETL Configuration > Global Configuration and click Edit.

  3. Update the value of the The Product Sync mode type parameter to "DPUMP_EXPORT" and click Save.

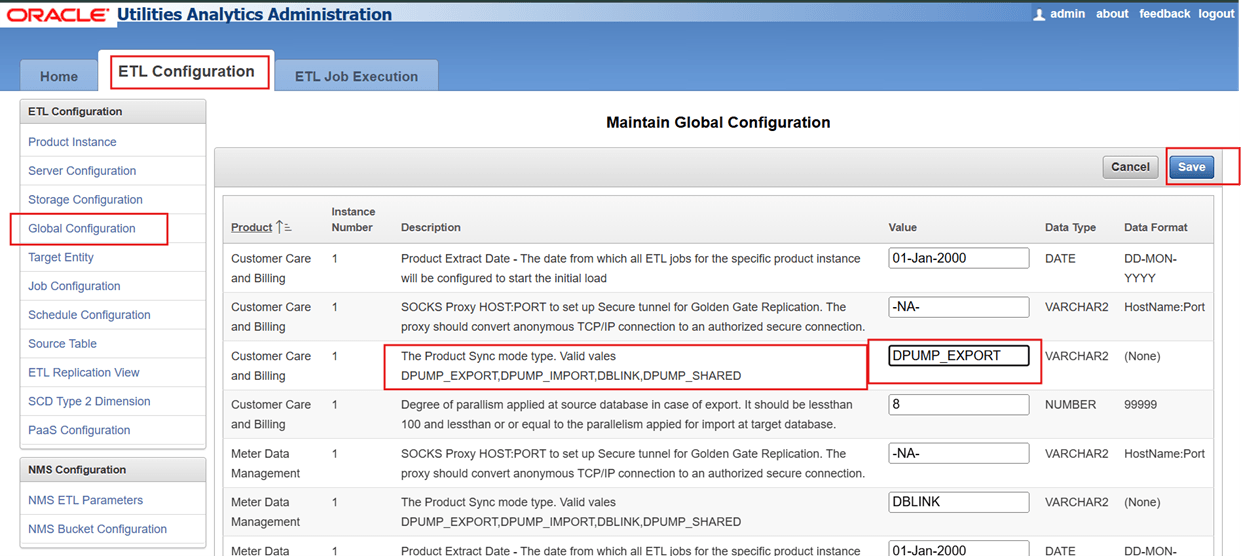

    Configure source product Sync Mode Type.

  5. Log in to the OCI GG Admin console.

  6. Navigate to Replicats and click Group Action then select Stop all replicats.


    Stop All Replicats

  7. Log in to ODI Studio to Work Repository.

  8. Navigate to Designer > Load Plans and Scenarios > Framework > Scheduler and right click B1_SYNC_CONTEXT_PAAS then select Run.

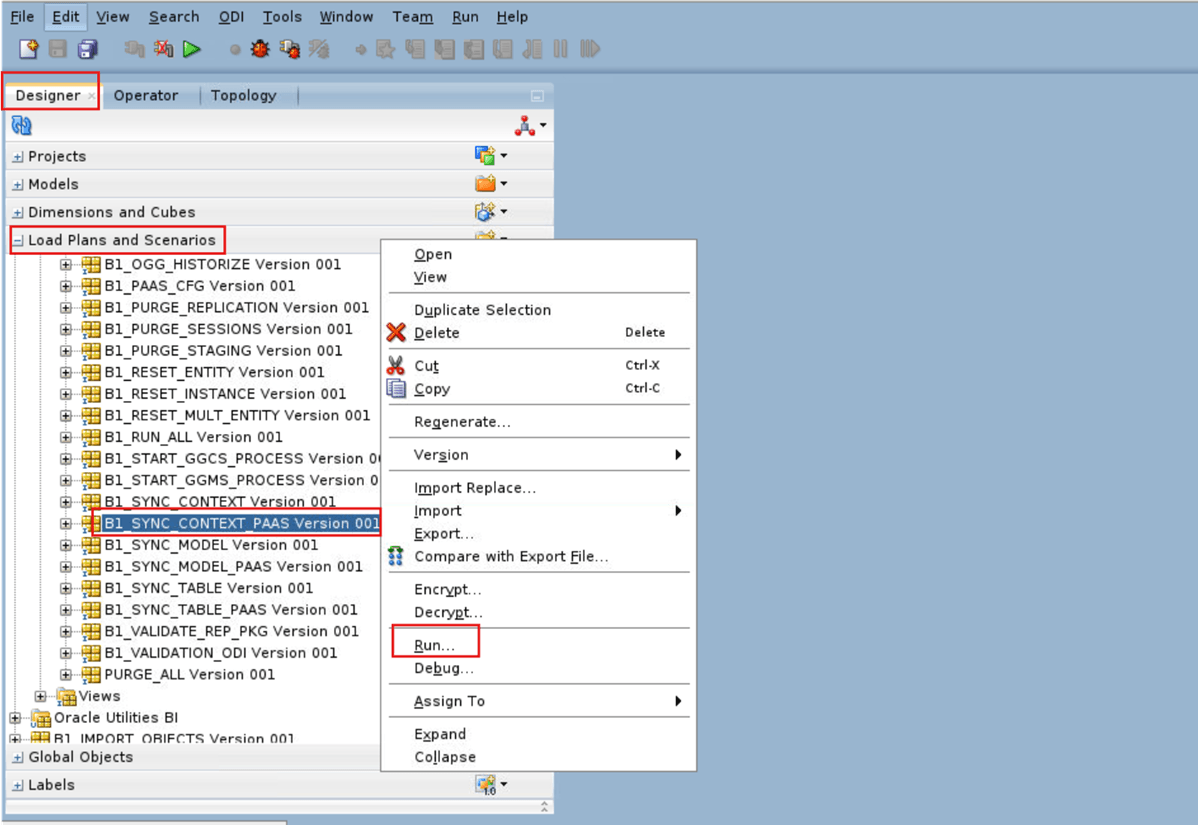

    B1_SYNC_CONTEXT_PAAS Run Navigation

  9. Enter the Run details and click OK.

    Field Name and Description Value

    Context

    Source Product Context for example, <CCB1>
    Logical Agent WLS_AGENT (ODI Agent)
    Log Level For example, 6


    B1_SYNC_CONTEXT_PAAS Run Configuration Details

  10. Navigate to Designer > Load Plans and Scenarios and right click B1_SYNC_CONTEXT_PAAS then select Variable Values.

  11. Enter the Variable Values details and click OK.

    Field Name and Description Value

    Name

    FW.B1_PARALLEL_FOR_P...
    Latest Value Select checkbox
    Value For example, 5

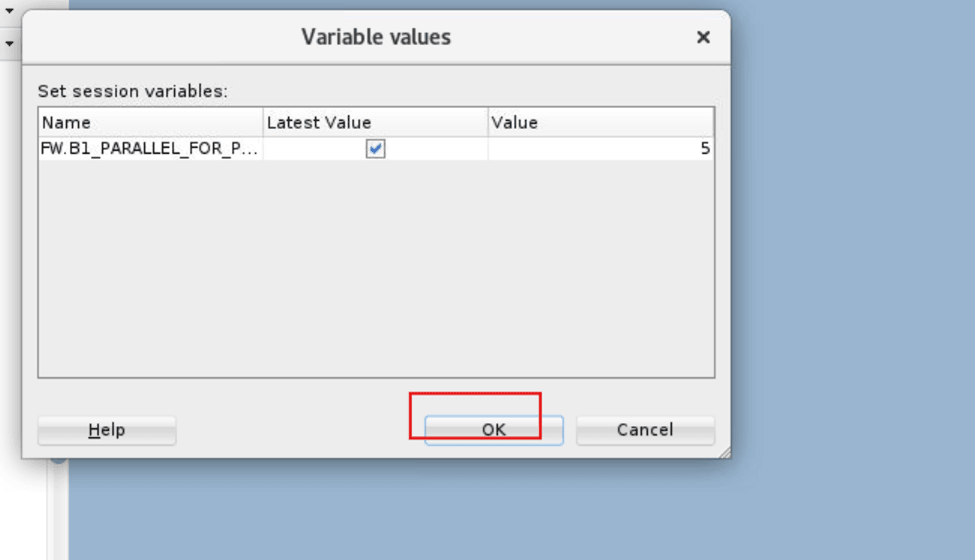

    B1_SYNC_CONTEXT_PAAS Variables Values

  12. In the Operator tab, check the status of the job for its completion.

  13. Once the B1_SYNC_CONTEXT_PAAS has successfully completed, the export dumps (.dmp) and logs (.exp.log) are reflected on the B1_DATA_DUMP_DIR database directory path (example, </mnt/file_data>) on the Source Database.

    The files names will be in the format <Model Name>*.dmp and <Model Name>.exp.log.

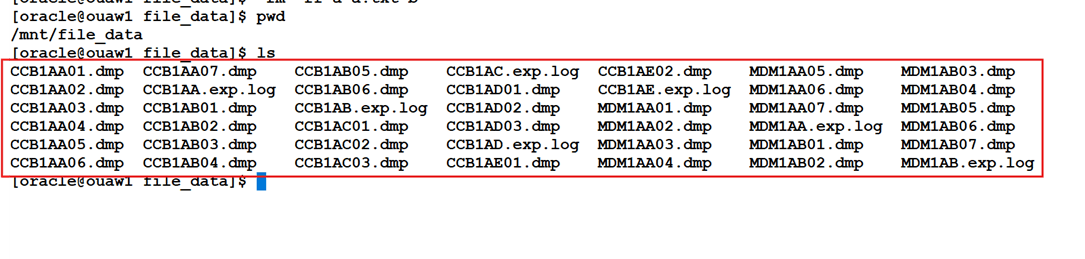

    Export dumps and logs are reflected on the B1_DATA_DUMP_DIR database directory.

  14. Upload all dump and log files to OCI Object store swift URI of storage bucket. See Update PaaS Configuration Parameters in OUAW AdminTool for more details of the OCI Object store swift URI of storage bucket parameter value.

  15. Log in to the OCI Object Storage via the OCI Console and verify that the dump and log files were uploaded.

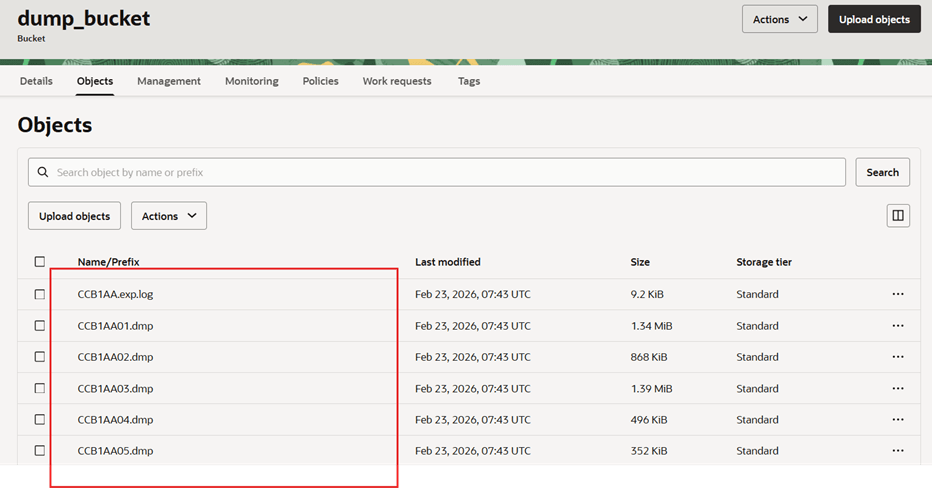

    Verify uploaded export dump and log files.

  16. Return to the AdminTool (https://<ADB URL>/ords/f?p=104).

  17. Navigate to ETL Configuration > Global Configuration and click Edit.

  18. For the configured Context, change the value of the The Product Sync mode type parameter to "DPUMP_IMPORT" and click Save.


    The Product Sync mode type is set to DPUMP_IMPORT.

  19. Return to the ODI Studio to Work Repository and navigate to Designer > Load Plans and Scenarios > Framework > Scheduler and right click B1_SYNC_CONTEXT_PAAS then select Run .

  20. Enter the Run details and click OK.

    Field Name and Description Value

    Context

    Source Product Context for example, <CCB1>
    Logical Agent WLS_AGENT (ODI Agent)
    Log Level For example, 5

  21. In the Operator tab, check the status of the job for its completion.

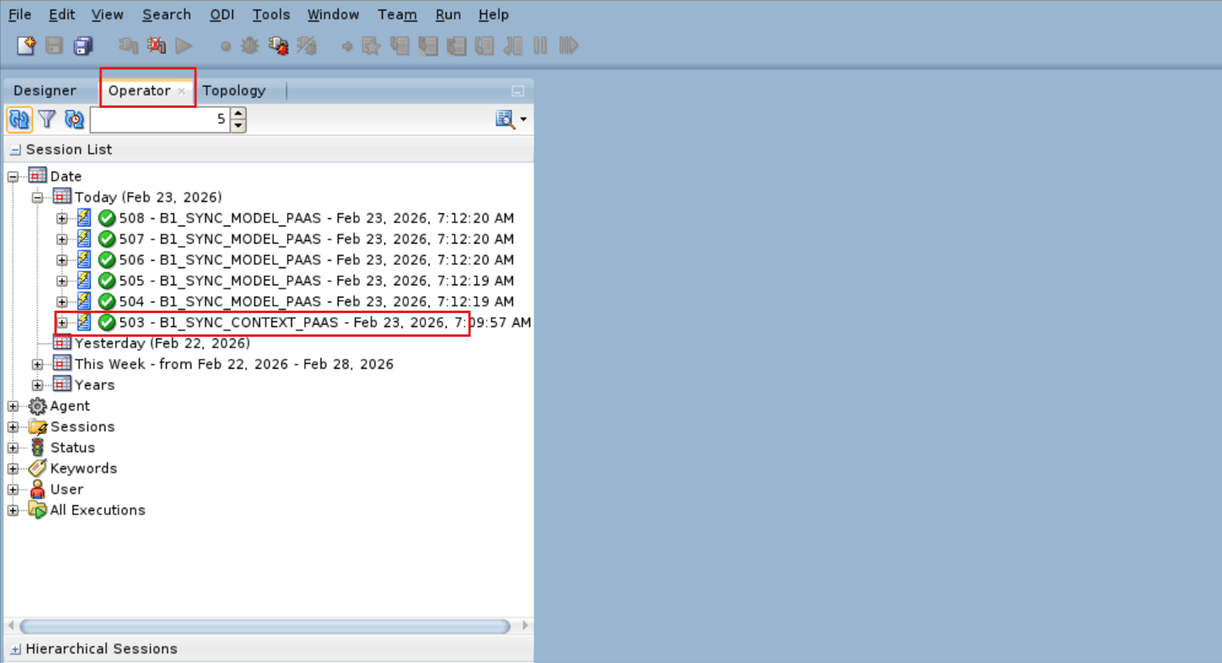

    B1_SYNC_CONTEXT_PAAS Job Completion

  22. Validate the synchronization of data in the replication tables and the metadata in MDADM.B1_TABLE_SYNC on ADB.

    Note:

    There should not be any NULL value in any ROW.

    select * from MDADM.B1_TABLE_SYNC;

  23. Return to the OCI GG Admin console and navigate to Replicats and click Group Action then select Start all replicats.

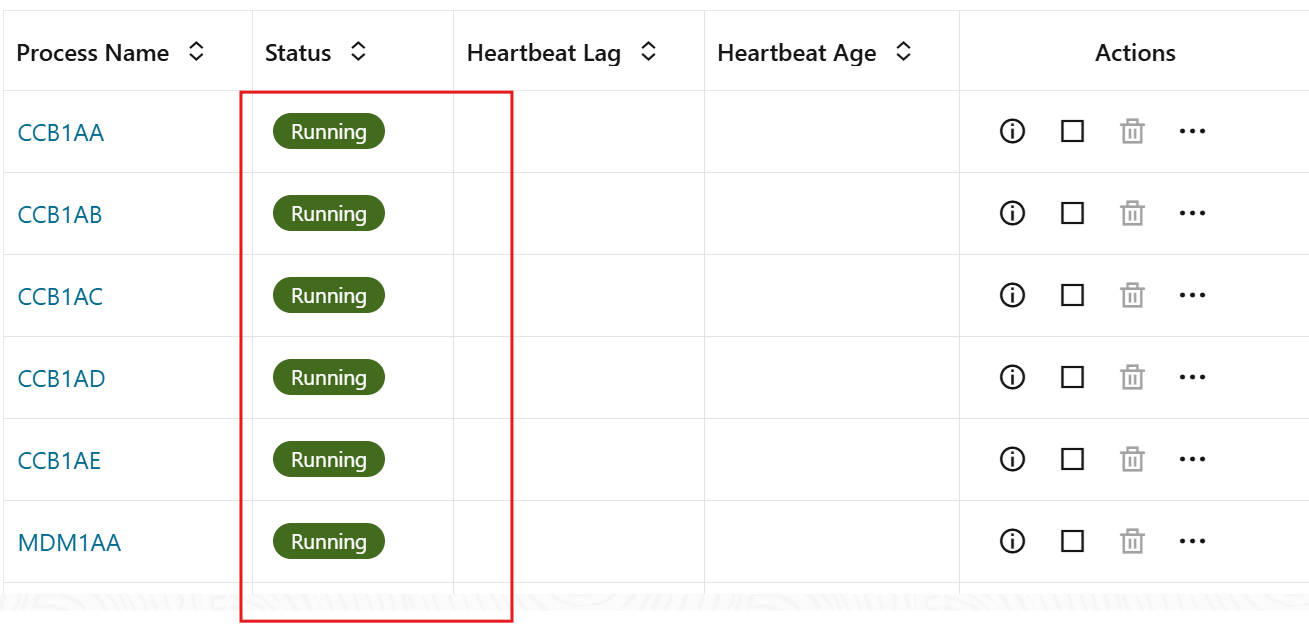

    B1_SYNC_CONTEXT_PAAS Start All Replicats
