Deployment History

Use Deployment History to view a summary of current configuration deployments for the profile element and organization node.

1. From the Oracle Retail Xstore Office menu, select Config Manager - Configurator, or click the Configurator link in the Configuration Manager panel.

2. Select the configuration scope for the deployment. The process varies with the scope selected on the Configuration Scope Options page (Figure 5-36):

   • Global Configurations - continue with step 3 below.

   • Configuration Overrides:

     • Select a Profile Group from the list.

     • Select an Element from the list.

     • Click Next.

     • Continue with step 3 below.

   • Store Specific Overrides:

     • Type the store number or begin typing a store number or name in the Store # field.

     • Select the store from the store list.

     • Click Next.

     • Continue with step 3 below.

3. At the Configuration Scope Actions page, select Deploy.

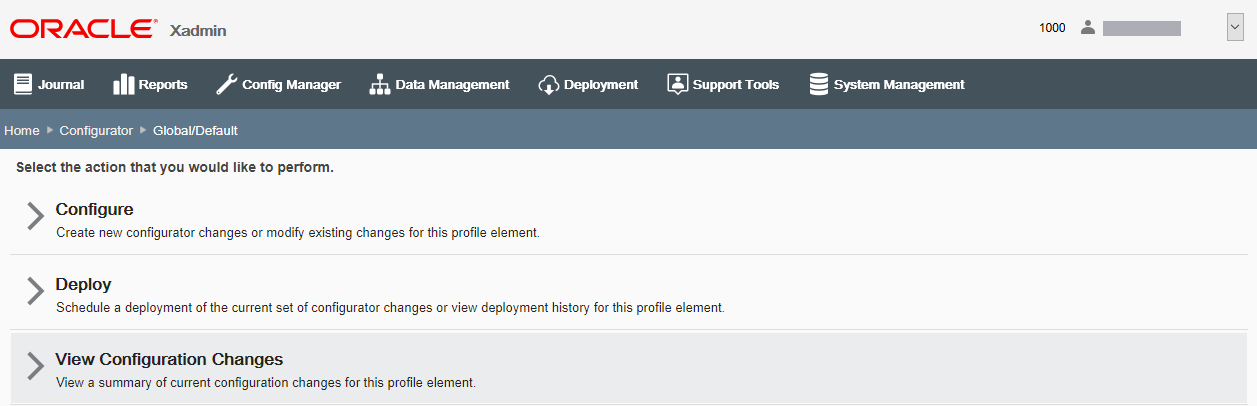

   Figure 5-70 Configuration Scope Actions Page - Global Example









4. At the Schedule Deployment Page, select Deployment History:

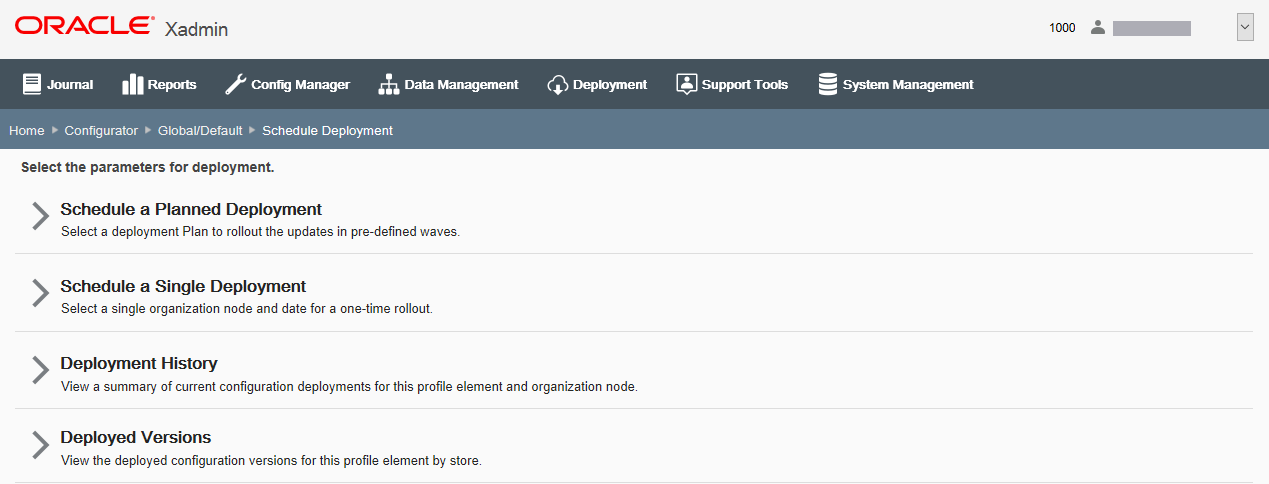

   Figure 5-71 Schedule Deployment Page - Global Scope Example









5. The Deployment History search results list shows the other configurator deployments of the same Org Node/Element, along with the status for each.

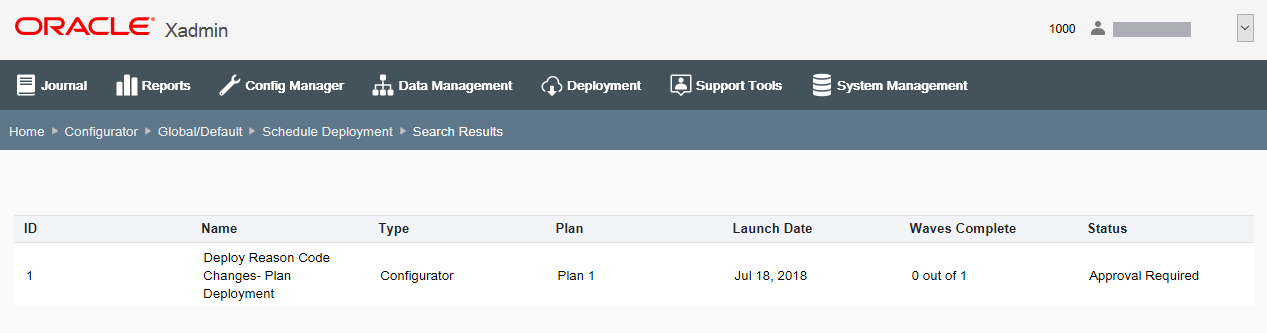

   Figure 5-72 Deployment History Search Results List









6. Select a deployment to view additional detail. If needed, a deployment can be edited. See Deployment Management, section Viewing Deployments for more information about Deployment History and editing deployments.
