Obtain the MAC address of the first
adapter port by checking the label of the adapter.
On the adapter, the MAC address on the label is for the first port. The second
port's MAC address is the MAC address from the label, plus 1.
Note -
Auto negotiation is not supported when booting with Linux over the
network.
-
Set up the PXE boot server with the MAC addresses.
-
Plug the Ethernet cable into the adapter's port.
-
Power on the server.
-
Press the F2 key or the Control-E keys to go to the BIOS menu.
-
Go to the Boot - Boot Device Priority screen and ensure that the boot order of
the network devices is higher than the hard drive.
-
Press F10 to save the boot configuration changes and exit BIOS.
The server should reboot after saving the boot configuration.
-
On Oracle platforms, press F12 to install the OS from the network.
If the cable is connected to the correct port, you should see the MAC address
that you assigned to your PXE server displayed by BIOS. If your platform does
not support the F12 key, you might need to boot from the BIOS.
-
Choose a boot option from the Setup Utility screen, for example:
-
Press F10 to save and exit.

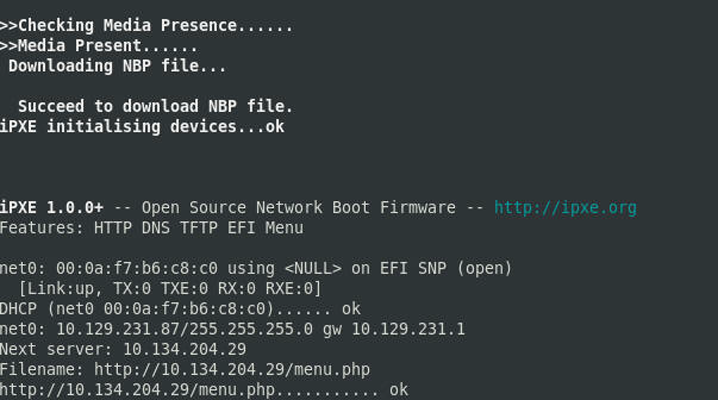

The host will perform a PXE boot from the Oracle Dual Port (25 Gb or 100 Gb)
Ethernet adapter port, DHCP, and the UEFI PXE boot server response. This screen
appears.
-
Choose the UEFI PXE boot server using TFTP protocol, for example:
-

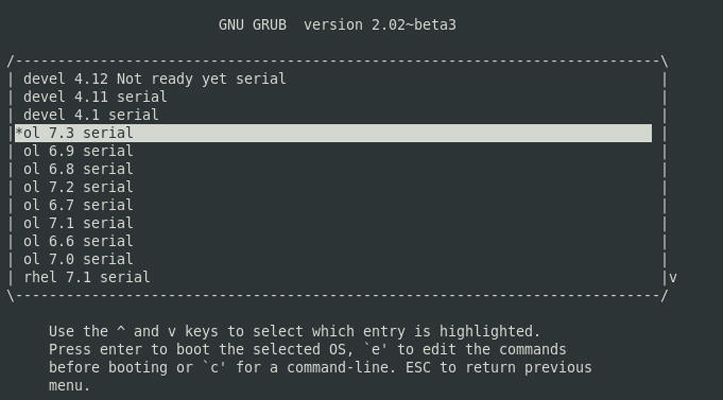

Select Oracle Linux OS from the UEFI PXE boot server for the OS installation,
for example:
-

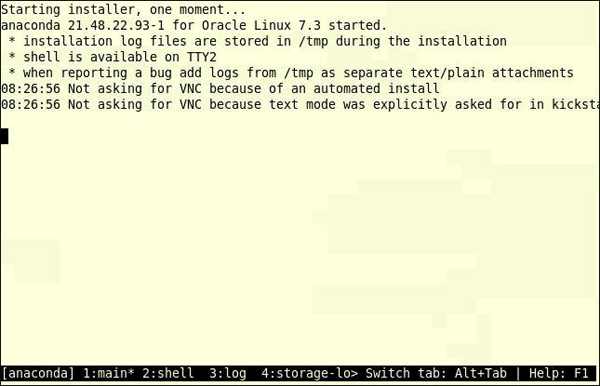

Ensure that the OS installation begins on the Oracle Dual Port (25 Gb or 100
Gb) Ethernet adapter, for example:
-

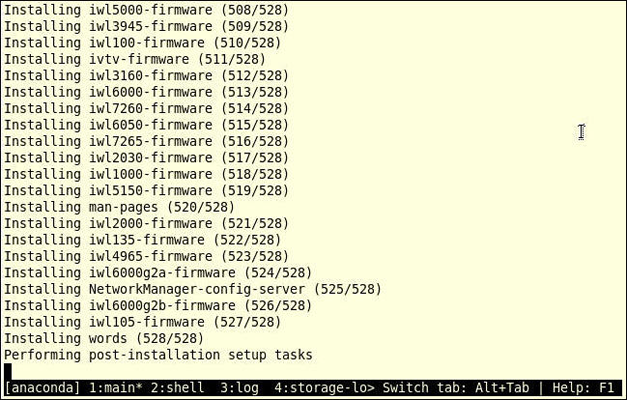

Ensure that the OS installer completes and begins the post-installation steps,
for example:
-
After the OS installation completes, change the boot device priority to boot
from hard disk to boot up the newly installed OS. For further details, see
Modifying Boot Behavior in the Oracle Solaris Administrative Guide or Modify the
Boot Order (BIOS) in the Oracle x9 Server Administration Guide.
Unless you change the boot device priority, the OS installation process
repeats.
