Connect a Terminal or Emulator to the SER MGT Port
Prior to powering on the server for the first time, make a serial connection to the SP. After making this serial connection, you will be able to view the system messages when you connect the power cords.
- Confirm that you have completed the following tasks.
- Completed the preparation for installation.
- Completed the installation of the server in a rack.
- Connected the necessary cables.
See Connecting Cables.
- Connect a terminal or a terminal emulator (PC or workstation) to the server SER MGT port.
- Configure a terminal or terminal
emulator with these settings:
9600 baud
8 bits
No parity
1 Stop bit
No handshake
A null modem configuration is needed, meaning the transmit and receive signals are reversed (crossed over) for DTE to DTE communications. You can use the supplied RJ-45 crossover adapters with a standard RJ-45 cable to achieve the null modem configuration.
Note - If you power on the server for the first time and do not have a terminal or terminal emulator (PC or workstation) connected to the SP SER MGT port, you will not see system messages. - (Optional) Connect an Ethernet
cable between the server's NET MGT port and the network to which
future connections to the SP and host will be made.
Configure the system for the first time through the SER MGT port. After the initial configuration, you can set up communication between the SP and host through this Ethernet interface.
- Connect an Ethernet cable between one of the server's NET ports and the network to which the server will communicate.

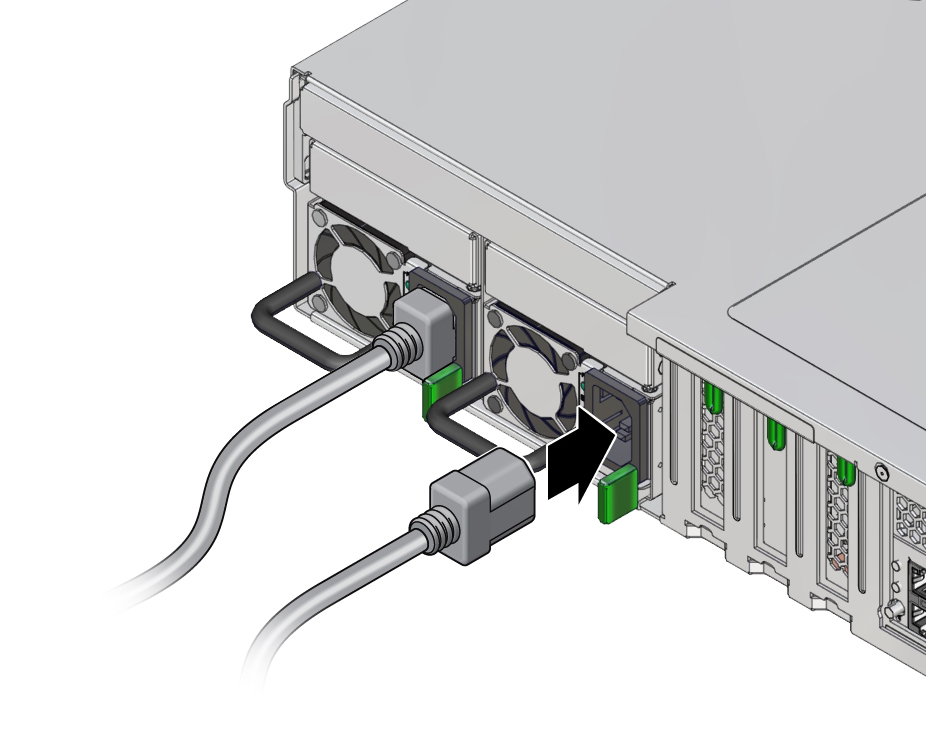

- Connect the power cords to the
power supplies and to separate power sources.
When the power cords are connected, the SP initializes and the power supply LEDs illuminate. After a few minutes, the SP login prompt is displayed on the terminal device. At this time, the host is not initialized or powered on.
- Continue with the installation by powering on the server for the first time.
