Sun InfiniBand Dual Port 4x QDR PCIe ExpressModule Host Channel Adapter M2 User's Guide |
| Skip Navigation Links | |
| Exit Print View | |
|
|
Sun InfiniBand Dual Port 4x QDR PCIe ExpressModule Host Channel Adapter M2 User's Guide |
Hardware and Software Requirements
Hot-Swap the ExpressModule (Oracle Solaris)
Hot-Swap the ExpressModule (Linux)
Installing InfiniBand Software on the Oracle Solaris OS
InfiniBand Software for the Oracle Solaris 10 OS
Download the Firmware Flash Update Tool for IB-HCAs (Oracle Solaris 10)
Verify the Installation (Oracle Solaris)
Update the Firmware (Oracle Solaris)
InfiniBand Devices on the Oracle Solaris 10 OS
Installing the InfiniBand Support Software on Linux
Acquire the BXOFED Software (Linux)
Install the BXOFED Software (Linux)
Internet Protocol Over InfiniBand (Linux)
The main features of the ExpressModule are as follows:
PCI Express expansion board with an x8 edge connector compatible with PCI Express 1.0a specifications
Two 40 Gbps 4x IB QSFP ports for connecting IB traffic (4x IB connectors)
4x IB port speed support: 10 Gbps, 20 Gbps, or 40 Gbps QDR
Media detect circuit supporting external InfiniBand active QSFP (copper) and fiber solutions
IBTA v1.2.1 compliant
Compliant to the PCI ExpressModule Electromechanical Specification, Revision 1.1
Compliant to the InfiniBand Architecture Specification, Release 1.2
EU RoHS compliant

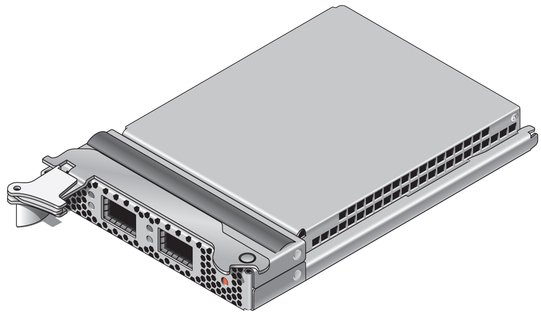

Figure 1 ExpressModule With Metal Case

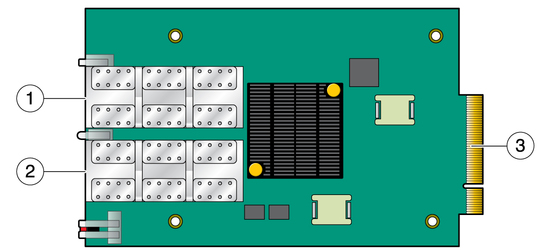

Figure 2 ExpressModule Without Metal Case
Figure Legend
1 InfiniBand Port 1
2 InfiniBand Port 2
3 PCI Express connector
|
