public java.util.Vector getAllItems() {

  java.util.Vector itemsVector = new java.util.Vector();

  try{

    if (this.itemHome == null) {

      try {

         // Use JNDI lookup to obtain reference to Entity

         // Bean LocalHome.

        InitialContext iC = new InitialContext();

        Object objref = iC.lookup("java:comp/env/ejb/ItemBean");

        itemHome = (LocalItemBeanHome) objref;

      }

      catch (Exception e){

        System.out.println("lookup problem" + e);

      }

    }

    // Use the local reference to call findAll();

    java.util.Collection itemsColl = itemHome.findAll();

    if (itemsColl == null) {

      itemsVector = null;

    }

    else {

      // Copy data to detail class instances.

      java.util.Iterator iter = itemsColl.iterator();

      while (iter.hasNext()) {

        iDetail detail;

        detail=((CatalogBeans.LocalItemBean)iter.next()).getIDetail();

        itemsVector.addElement(detail);

      }

    }

  }

  catch (Exception e) {

    System.out.println(e);

  }

  return itemsVector;

}

The string specified in the lookup statement is the name of the reference and not the name of the referenced enterprise bean. The enterprise bean's name is often used as the reference name, to make it easier to remember which enterprise bean is meant. The actual mapping of reference name to enterprise bean is done with the reference declaration, which is covered in the next step.

Reference Declarations for Local EJB References

After you write the JNDI lookup code, you need to set up a local EJB reference declaration. The local EJB reference declaration maps the reference name used in the lookup statement to an actual enterprise bean name. The referenced enterprise bean must be in the same module as the calling bean.

To set up a local EJB reference declaration:

1. Right click the calling bean's logical node and choose Properties References tab EJB Local References property the ellipsis (...) button the Add button.

The Add EJB Local Reference dialog box opens.

2. Define the reference in the dialog box.

a. In the Reference Name field, type the reference name used in the lookup statement.

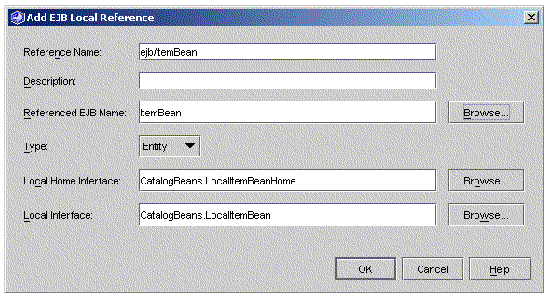

FIGURE 3-2 shows the reference name that was used in CODE EXAMPLE 3-3.

b. Map the reference name to an enterprise bean.

Click the Browse button next to the Reference EJB Name field. This opens a browser that lets you select the matching enterprise bean. FIGURE 3-2 shows the field with ItemBean selected.

 FIGURE 3-2 Add EJB Reference Dialog Box

Assembling the EJB Module

After you create the enterprise beans you create the CatalogData EJB module and add the enterprise beans. You also configure your EJB module by selecting property values that request specific runtime services from the application server.

Different application server products need different information for deployment, and the EJB module properties include some server-specific properties. This scenario uses some of the server-specific properties for the Sun ONE Application Server.

Creating the EJB Module

There are two ways to create an EJB module in the IDE. Both procedures create an EJB module node at the location you specify.

Your EJB module node represents the deployment descriptor for your module. Enterprise beans you add to the module appear as subnodes of the module node, but the IDE does not copy the source files for the enterprise beans to the directory that holds the module node. Keep this in mind when you decide where to put your EJB module.

• If you keep all of the source code for your module in a single filesystem, consider putting your EJB module node at the top level of that filesystem.
• If the source code for the module is in different filesystems, such as filesystems that are owned by different developers, consider creating a set of directories that contain only modules and J2EE applications. Keep these directories separate from the directories that contain the source code.

To create an EJB module beginning with an enterprise bean node:

1. Right-click the enterprise bean node and choose Create New EJB Module.

The New EJB Module dialog box opens.

2. Name the module and select a location in the filesystem for it.

a. In the Name field, type the new module's name. In this scenario, the EJB module is named CatalogData.

b. In the Select a package location for the new EJB module field, choose the filesystem, directory, or package where you want to create the new module.

c. Click OK.

A node representing your new module is created under the filesystem, directory, or node you selected. The enterprise bean you right-clicked in Step 1 is automatically included in the new module.

You can add more enterprise beans to the module. See Adding Enterprise Beans and Other Resources to the Module.

To create an EJB module from a filesystem, package, or directory node:

1. Right-click any Explorer window node and then choose New All Templates.

The New wizard's Choose Template page opens.

2. Choose the EJB Module template.

a. In the Select a Template field, expand the J2EE node and select the EJB Module node.

b. Click Next

The New Object Name page opens.

3. Define the new EJB module.

a. In the Name field, type the module name.

In this scenario the module is named CatalogData.

b. Click Finish.

The IDE creates the module and represents it in the Explorer with an EJB module under the filesystem, package, or directory you selected in step 1.

Both of these procedures create an EJB module node in the location you chose. Keep in mind that the IDE stores deployment descriptor information about the module in this directory, but the source code for the components in the module is not copied into this directory.

Adding Enterprise Beans and Other Resources to the Module

Once you have created a module, you can add enterprise beans to it.

To add an enterprise bean to an EJB module:

1. Right-click the module node and choose Add EJB.

This opens the Add EJB to EJB Module dialog box.

2. Select one or more enterprise beans.

a. In the Select the EJB(s) to add to this EJB Module field, select the enterprise beans you are adding to the module.

a. Click OK.

The IDE adds the selected enterprise beans to the module. In the Explorer, the IDE adds nodes representing the selected beans under the module node.

When you add an enterprise bean to a module, the IDE manages any dependencies of the enterprise bean on other kinds of resources (Java classes, image files, and so on). It automatically adds these resources to the module definition.

For the few exceptions to this, see Identifying Extra Files.

Specifying a Datasource for the Entity Enterprise Beans

In this scenario, the CatalogData EJB module accesses a database to get the catalog data. J2EE applications access databases through J2EE application servers, using connection pooling and other services provided by the application server. The database must be set up as an application server resource with a JNDI name. Defining a database as an application server resource maps the databases JNDI name to the actual database URL.

A J2EE application that accesses a database must be configured with a resource reference that contains the database JNDI name. The way you set up the resource reference depends on the type of entity bean you are working with:

• If you are working with a container-managed entity bean, the application server determines how you identify the database. With most application servers, including the Sun ONE Application server, you use one of the module's server-specific properties to identify the datasource by JNDI name.
• If you are working with a bean-managed entity bean, you must write JNDI lookup code and set up a matching resource reference declaration that maps the lookup name to the JNDI name.

Using the Server-specific Tabs for Container-managed Entity Beans

For container-managed entity beans, you use the EJB module's CMP resource property to specify the datasource by JNDI name. The IDE creates the resource reference for you automatically. The CMP Resource property contains the JNDI name for the default Pointbase database.

To configure container-managed entity beans to use a database:

1. Right-click the EJB Module node and choose Properties Sun ONE AS tab CMP Resource the ellipsis (...) button.

The CMP Resource property editor opens.

2. Type in the values that identify the database for the EJB module and its entity beans.

FIGURE 3-3 shows the CMP Resource property editor with values that give the CatalogData EJB module access to the Pointbase database named sample.

 FIGURE 3-3 EJB Module CMP Resource Property Editor

This procedure is for using the IDE with the Sun ONE Application Server and the installed PointBase database. If you are using another database product or another application server product, you must adapt the procedure.

• If you are using the IDE with the Sun ONE Application Server and a database product other than PointBase, you need to use the application server's administration tools to define your database to the application server as a JDBC datasource with a JNDI name. After you do this, you can use the procedure to configure your EJB module with the datasource JNDI name.
• If you are using an application server other than the Sun ONE Application Server, the database must be set up as a datasource resource of the application server and given a JNDI name. The procedures for this depend on the application server product. After the database is set up with a JNDI name, you can configure your EJB module with the JNDI name. In the EJB Module property sheet, use the server-specific tab for the application server product you are using. The property name may be different from CMP Resource.

If you are going to deploy your application in a managed test environment or a production environment, system administration will probably be responsible for setting up databases as application server resources and assigning JNDI names. In this case you simply need to obtain the datasource's JNDI name from system administration.

Creating Resource Factory References Explicitly for Bean-managed Entity Beans

If your EJB module contains entity beans that use bean-managed persistence instead of container-managed persistence, your entity beans already include JDBC and JTA code that prepares and executes database queries. This is covered in Building Enterprise JavaBeans Components. This code must include a JNDI lookup that obtains a resource factory reference to the datasource. The lookup uses the datasource's JNDI name to obtain the reference. Like other types of J2EE references, this type of reference has two parts:

• A JNDI lookup. Each entity bean includes code that uses the JNDI lookup statement to obtain a reference to a named resource.
• A declaration of the reference. The declaration maps the reference name used in the lookup statement to the datasource's JNDI name.

Any datasource you specify with an explicit lookup must be a named resource of the application server with an assigned JNDI name. The application server has the information to map the JNDI name to the actual database URL.

JNDI Lookup Code for Resource Factory References

CODE EXAMPLE 3-4 shows the code that you use in a BMP entity enterprise bean to look up a datasource:

CODE EXAMPLE 3-4 JNDI Lookup for a Database

try { // Obtain Initial Context--Opens Communication With JNDI Naming: Context ic = new InitialContext(); // Request Lookup of Resource--In This Example a JDBC Datasource: javax.sql.DataSource hrDB = (javax.sql.DataSource) ic.lookup("java:comp/env/jdbc/Local_HR_DB"); } catch(Exception e) { System.out.println(e.toString()); e.printStackTrace(); return; }

Reference Declarations for Resource References

In addition to writing the lookup statement, you must set up a reference declaration for the datasource resource.

To set up a reference declaration for a datasource reference:

1. Right-click the enterprise bean's logical node and choose Properties References tab Resource References ellipsis (...) button Add button.

The Add Resource Reference dialog box opens.

2. Supply the information that identifies the datasource.

a. In the Name field, type the reference name used in the lookup statement.

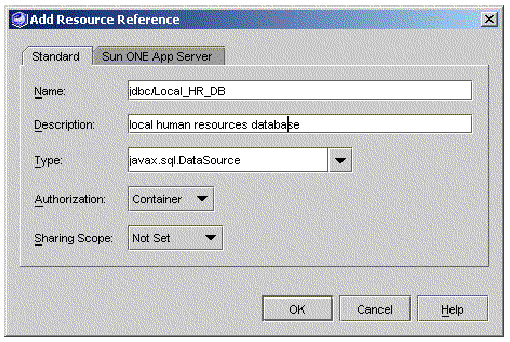

FIGURE 3-4 shows the reference name that was used in CODE EXAMPLE 3-4.

 FIGURE 3-4 Add Resource Reference Dialog Box

[ D ]

b. Click the Sun ONE App Server tab.

c. Map the reference name to a datasource.

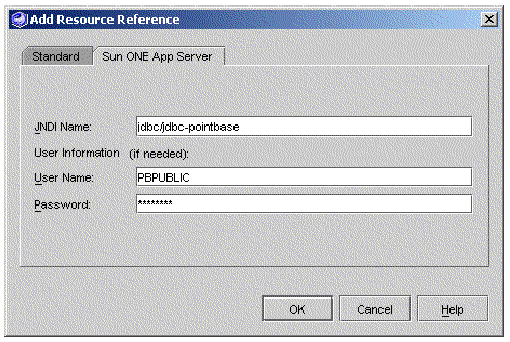

FIGURE 3-5 shows the JNDI Name field with the value jdbc/jdbc-pointbase. This is the default name JNDI name for the PointBase database that is included in most installations of the IDE.

 FIGURE 3-5 Add Resource Reference Dialog Box, Server-specific Tab

[ D ]

This procedure is for using the IDE with the Sun ONE Application Server and the installed PointBase database. If you are using another database product or another application server product, you must adapt the procedure. Adapt the procedure as follows:

• If you are using the IDE with the Sun ONE Application Server and a database product other than PointBase, you need to use the application server's administration tools to define your database to the application server as a JDBC datasource with a JNDI name. After you do this, you can use this procedure to configure your EJB module with the datasource JNDI name.
• If you are using an application server other than the Sun ONE Application Server, the database that you use must be set up with the application server as a datasource resource with a JNDI name. The procedures for this depend on the application server product. After the database is set up with a JNDI name, you can configure your EJB module with the JNDI name. In the Add Resource Reference dialog box, use the server-specific tab for the application server product you are using.

Other Module Assembly Tasks

The preceding sections cover the assembly tasks that are required to assemble the CatalogData EJB module. This section describes some EJB module assembly tasks that were not covered in the CatalogData scenario.

Your EJB modules may require you to perform some of these other assembly tasks. This section covers several web module assembly tasks that you are likely to perform.

For each module, you need to determine what assembly tasks are required. Questions that you might ask about a module include the following:

• Have all the references in the module been linked? Your module may contain some references to components in other modules. These references can only be linked after the module has been assembled into a J2EE application.
• Have generic security roles been set up for the module? Have any security role references in the module's enterprise beans been linked to these generic security roles? Have method permissions been mapped to these generic security roles? For more information on these issues see Chapter 7.
• Have container-managed transactions been defined? For more information on this issue see Chapter 6.

Some EJB module tasks that were not covered in the CatalogData EJB module scenario are described in the following sections.

Identifying Extra Files

In most cases, the IDE recognizes the dependencies of the enterprise beans that are in an EJB module and includes all of the needed files in the EJB JAR files that it generates at deployment time. There are some dependencies, however, that the IDE does not recognize. These unrecognized dependencies include:

• Enterprise beans in your module that use a help file without calling it directly
• Enterprise beans in your module that access a class dynamically and use the class name only as a string and not as a class declaration

In these and similar cases, the IDE does not recognize the enterprise bean's dependency and does not include the help file or class file in archive files that it creates. You need identify these files so that they are included in the archive and are available at run time.

To identify extra files:

1. Right-click the EJB module node and choose Properties Extra Files ellipsis (...) button.

The Extra Files property editor opens.

2. Select any extra file that should be deployed or archived as part of this module.

a. In the Source field, select the extra files that belong in the module.

b. Click the Add button to add the selected files to the list of extra files.

3. Click OK to close the editor and process you selections.

Excluding Duplicate JAR Files

In some cases you want to prevent the IDE from acting on some of the file dependencies it recognizes. For example, an enterprise bean in your module has a dependency on a commonly used JAR file that you know will be present in the runtime environment. You can prevent the IDE from adding an unnecessary copy of the commonly used JAR file by identifying that JAR file as a duplicate JAR file.

To exclude a duplicate JAR file:

1. Right-click the module node and choose Properties Library Jars to Exclude ellipsis (...) button.

This Library Jars to Exclude property editor opens. It displays a list of mounted JAR files.

2. Select the JAR files that should be excluded and click the Add button to move them to the list of library JARs to exclude.

3. Click OK to close the property editor and process your selections.
