Installing or Replacing SBus Cards

If you are replacing an SBus card in the Netra 150 server, first go to "Removing an SBus Card ", then return here.

Installing an SBus Card

1. Place the SBus card on an antistatic surface.

2. If required, set the jumpers or switches on the card.

   See your SBus product documentation.

3. Remove the SBus card extractor (if any).

   1. Bend one leg of the extractor slightly to the outside until the hook clears the hole in the SBus card (Figure 2-13).

   2. Remove the other side of the extractor.

      It should come out easily without being bent.

      Figure 2-13 Removing the SBus Card Extractor




4. Locate the SBus slot in which you want to install the card.

   The Netra 150 system board has three SBus slots. See Figure 2-14 for the location of each SBus slot.

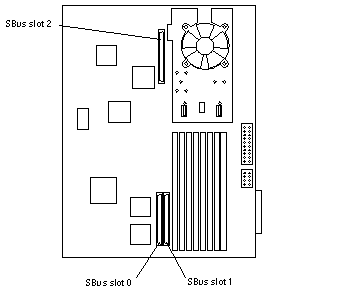

   Figure 2-14 SBus Slots Location

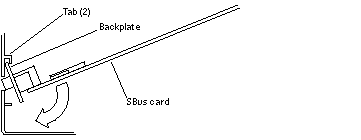

5. Slide the card at an angle into the system unit by hooking the card backplate under the two tabs on the back panel (Figure 2-15).

   Be sure the card backplate shows through the slot on the back panel.

   Figure 2-15 Replacing the SBus Card




6. Align the connector with the SBus socket. Gently press the corners of the card to push the connector into the socket.

   Do not force the card, or you may damage the pins on the card. If the SBus card is located in SBus slot 0 or 1, see Figure 2-16. If the SBus card is located in SBus slot 2, see Figure 2-17.

7. Lock the card retainers.

   • If the SBus card is located in SBus slot 0 or 1, push the rear card retainers forward over the edge of the SBus card. See Figure 2-16.

   • If the SBus card is located in SBus slot 2, push the card retainer down.

   See Figure 2-17. There is only one card retainer for the SBus slot 2.

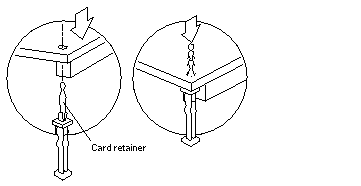

   Figure 2-16 Lock in the SBus Card Retainers, SBus Slots 0 or 1




   Figure 2-17 Lock in the SBus Card Retainer, SBus Slot 2




8. Locate the SBus card at the rear of the Netra 150 server.

9. Go to "Finishing Up".

Removing an SBus Card

1. Locate the SBus card that you want to remove on the back panel of the system board.

   The SBus card will be installed in one of the three SBus slots in the system board (Figure 2-18).

   ---

   Note -

   If the defective SBus card is located in slot 0, and there is another SBus card installed in slot 1, you must remove the card from slot 1 before removing the defective card from slot 0.

   ---

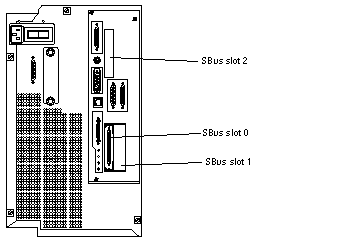

   Figure 2-18 Locating the SBus Slots




2. Locate the SBus card on the system board inside the Netra 150 server and unlock the card retainers.

   • If the SBus card is located in SBus slot 0 or 1, push the card retainers back from the edge of the SBus card. See Figure 2-19.

   • If the SBus card is located in SBus slot 2, pull the card retainer up. See Figure 2-20. There is only one card retainer for the SBus slot 2.

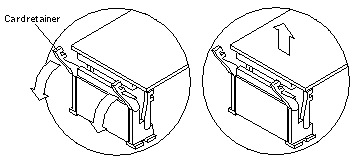

   Figure 2-19 Removing an SBus Card from Slot 0 or 1

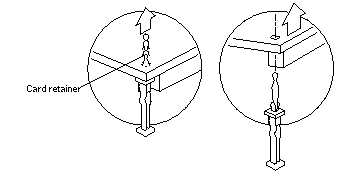

   Figure 2-20 Removing an SBus Card from Slot 2




3. Grasp the SBus card at both corners, and pull it up to disconnect it from the socket.

   ---

   Caution -

   Avoid applying force to one end or one side of the board. It damages the connector pins.

   ---

4. Slide the SBus card out of the back panel, and place it on an antistatic surface.
