Removing a DSIMM

1. Locate the DSIMM that you want to remove on the system board (Figure 2-22).

   Figure 2-22 Removing a DSIMM

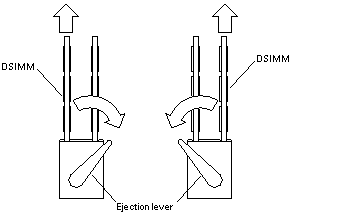

2. Push the lever away from the DSIMM (Figure 2-23).

   Figure 2-23 DSIMM Ejection Lever




3. Pull the DSIMM out of the socket.
