HBA LEDs

There are six LEDs on the front of the enclosure. For each port, there is one green Activity LED and one yellow Fault LED that indicate any activity or fault of a Phy in that port. There is also one green Power LED and one yellow Attention LED on the HBA. The Power and Attention LEDs are both controlled by the host system and show through the PCIe ExpressModule enclosure and functionality (see Attention and Power LEDs for the HBA ).

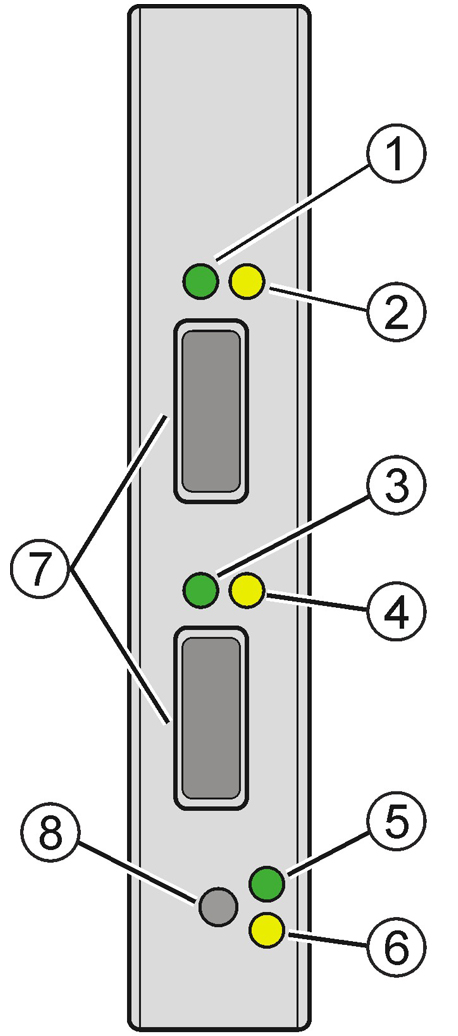

Figure 2-2 External Connectors and LEDs.

image:Figure showing the LEDs on the HBA

Figure Legend

1 Port 1 Activity Green LED

2Port 1 Fault Yellow LED

3Port 2 Activity Green LED

4Port 2 Fault Yellow LED

5Green Power LED

6Yellow Attention LED

7Mini SAS Connectors, or Ports (Port 1 on top and Port 2 below)

8Attention Button

The different states of the Attention and Power LEDs are listed in Attention and Power LEDs for the HBA

Table 2-1 Attention and Power LEDs for the HBA

State	Meaning
Attention LED
Off	Operations are normal.
On	There are operational problems at the slot.
Blinking	The slot is being identified at the request of the user.
Power LED
Off	Insertion or removal of the HBA is permitted.
On	Insertion or removal of the HBA is not permitted.
Blinking	Removal of the HBA is not permitted because a hot-plug operation is in progress.
