Siebel Composer Developer Preview Guide > Setting up Siebel Composer > Enabling the Composer Mode for the Selected and Opened Workspace to Edit Objects >

Hover Context

Moving the mouse across various elements on the Siebel application dynamically changes the hover context as represented by the changing orange border surrounding the current context. Various UI artifacts may activate on the screen depending on the operations of the particular context.

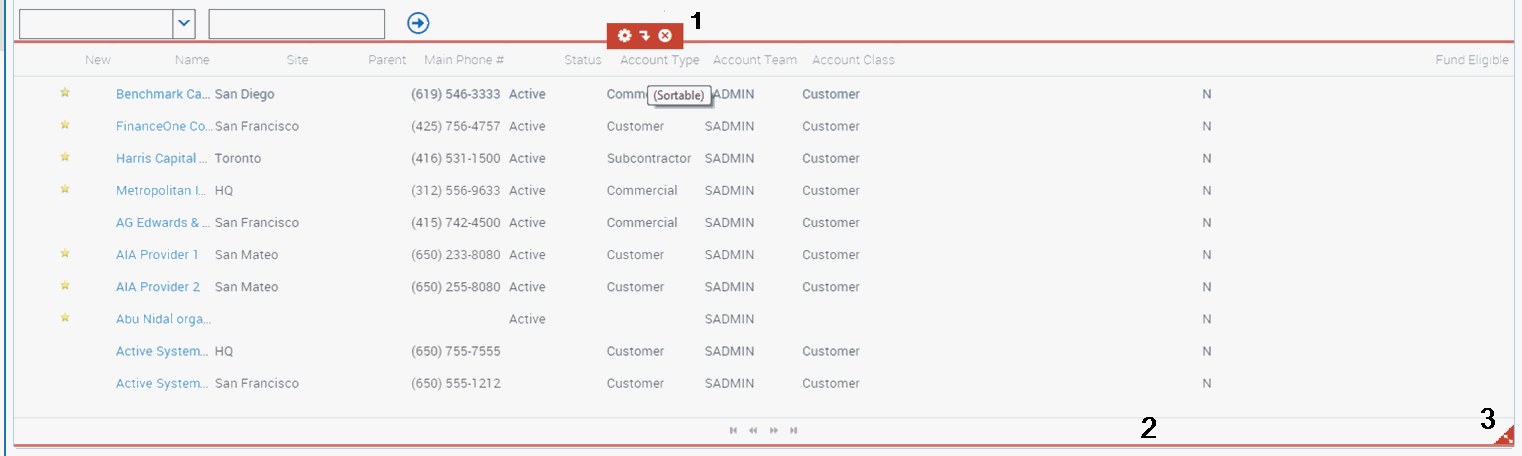

Figure 2 illustrates the Siebel application displaying the hover context, which includes context menu, container border, and resize indicators.

Figure 2. Example of the Siebel application displaying the hover context

Explanation of Callouts

Figure 2 includes the following information:

1. Context menu

   The context menu is a small popup that appears on the top left of the element that is currently being worked on, depending on whether it has a configurable repository representation.

   The following buttons are available in the context menu:

   • Properties button

     This button is not in use in the current Siebel Tools version.

   • Drilldown button

     Use this button to change the context in the Context Pane to the current element.

   • Delete button

     Use this button to delete the current element.

2. Container border

   The container border indicates the element in the Siebel application UI that is currently being operated on. This element informs the user that any changes that are being performed at this point will be applicable to all of the elements inside this border.

3. Resize indicator

   The resize indicator is a small icon that appears on the bottom right corner of the element that is being currently worked on, depending on whether it is a resizable element.

   For more information about how to resize the indicator, see Resizing Elements of Siebel Composer.
