Provisioning a Dominant Mated Application

This procedure is used to provision a dominant mated application in the database using the ent-map and chg-map commands. A dominant mated application is a mated application containing entries whose RC (relative cost) values are unique. The ent-map and chg-map commands use these parameters to provision a dominant mated application.

:pc/pca/pci/pcn/pcn24 – The point code of the primary signaling point that is to receive the message.

:mpc/mpca/mpci/mpcn/mpcn24 – The point code of the backup signaling point that is to receive the message.

Note:

The point codes can be either an ANSI point code (pc/pca, mpc/mpca), ITU-I or ITU-I spare point code (pci, mpci), a 14-bit ITU-N or 14-bit ITU-N spare point code (pcn, mpcn), or a 24-bit ITU-N (pcn24, mpcn24) point code.

Note:

Refer to Chapter 2, Configuring Destination Tables in Database Administration - SS7 User's Guide for a definition of the point code types that are used on the EAGLE and for a definition of the different formats that can be used for ITU national point codes.

:ssn – Subsystem number – the subsystem address of the primary point code that is to receive the message. The value for this parameter is 2 to 255.

:mssn – Mate subsystem number – the subsystem address of the backup point code that is to receive the message. The value for this parameter is 2 to 255.

:rc – The relative cost value of the primary point code and subsystem, defined by the pc/pca/pci/pcn/pcn24 and ssn parameters. The rc parameter has a range of values from 0 to 99, with the default value being 10.

:materc – The relative cost value of the backup point code and subsystem, defined by the mpc/mpca/mpci/mpcn/mpcn24 and mssn parameters. The materc parameter has a range of values from 0 to 99, with the default value being 50.

:grp – The name of the concerned signaling point code (CSPC) group that contains the point codes that should be notified of the subsystem status. This parameter applies to both RPCs/SSNs. The value for this parameter is shown in the rtrv-cspc output. If the desired value is not shown in the rtrv-cspc output, perform the Adding a Concerned Signaling Point Code procedure to add the desired group. If this parameter is not specified, then a CSPC group name is not specified for the mated application.

:mrc – Message routing under congestion – defines the handling of Class 0 messages during congestion conditions. The value for this parameter is yes or no. The default value for ANSI dominant mated applications is yes. The default value for ITU dominant mated applications is no.

:srm – Subsystem routing messages – defines whether subsystem routing messages (SBR, SNR) are transmitted between the mated applications.

:sso – Subsystem Status Option – defines whether the subsystem status option is on or off. This parameter allows the user the option to have the specified subsystem marked as prohibited even though an MTP-RESUME message has been received by the indicating that the specified point code is allowed. The sso parameter cannot be specified if the pc/pca/pci/pcn/pcn24 value is the EAGLE’s true point code, shown in the rtrv-sid output. The value for this parameter is on or off. The default value is off.

:mapset – The MAP set ID that the mated applications are assigned to. This parameter can be specified only if the Flexible GTT Load Sharing feature is enabled. This parameter must be specified if the Flexible GTT Load Sharing feature is enabled. If the Flexible GTT Load Sharing feature is enabled, the point code and subsystem specified for the global title translation must be assigned to the MAP set specified by this parameter. The status of the Flexible GTT Load Sharing feature is shown in the rtrv-ctrl-feat output. To enable the Flexible GTT Load Sharing feature, perform the Activating the Flexible GTT Load Sharing Feature procedure.

The mapset parameter has three values:

  • dflt – to assign the MAP to the default MAP set. This value can be specified with both the ent-map and chg-map commands.
  • new – to assign the mated application to a new MAP set. This value can be specified only with the ent-map command.
  • the specific number of an existing MAP set if you are assigning the mated application to an existing MAP set. This value can be specified only with the chg-map command.

Refer to the Provisioning a MAP Set section for information on provisioning MAP sets.

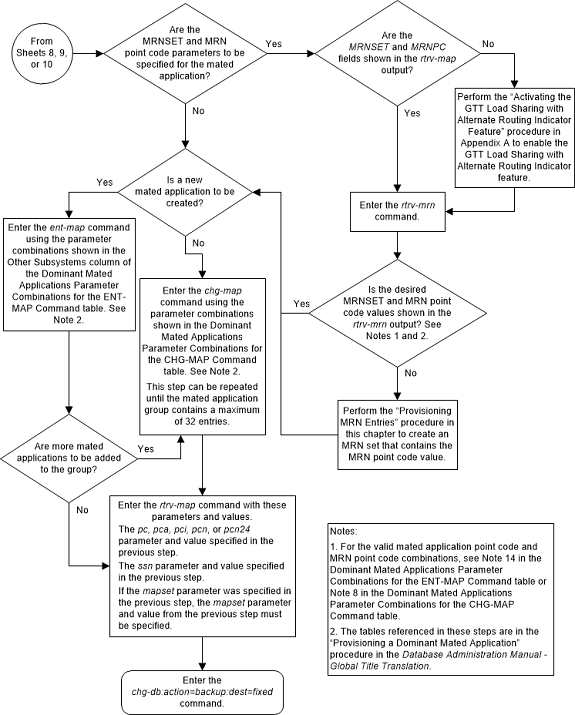

:mrnset – The MRN set ID that is being assigned to the mated application. This is the MRN set from which alternate routing indicator searches are performed.

:mrnpc/mrnpca/mrnpci/mrnpcn/mrnpcn24 – The point code assigned to the mrnset that is being assigned to the MAP set.

The current values of the mrnset and :mrnpc/mrnpca/mrnpci/mrnpcn/mrnpcn24 parameters are shown in the rtrv-map output only if the Flexible GTT Load Sharing and the GTT Load Sharing with Alternate Routing Indicator features are enabled.

The new values for the mrnset and mrnpc/mrnpca/mrnpci/mrnpcn/mrnpcn24 parameters must be shown in the rtrv-mrn output.

The network type of the pc/pca/pci/pcn/pcn24 and mrnpc/mrnpca/mrnpci/mrnpcn/mrnpcn24 parameter values must be compatible, as shown in Table 2-41.

Table 2-41 MAP and MRN Point Code Parameter Combinations

MAP Point Code Parameter MRN Point Code Parameter
pc/pca mrnpc/mrnpca
pci or pcn (See Notes 1 and 2) mrnpci or mrnpcn (See Notes 1 and 2)
pcn24 mrnpcn24

Notes:

1. If the network type of the MAP point code parameter is ITU-I (pci), the network type of the MRN point code parameter can be either ITU-I (mappci) or ITU-N (mappcn).

2. If the network type of the MAP point code parameter is ITU-N (pcn), the network type of the MRN point code parameter can be either ITU-I (mappci) or ITU-N (mappcn).

If the Weighted GTT Load Sharing feature is enabled, shown by the columns WT, %WT, and THR in the rtrv-map output, the parameters wt, mwt, and thr cannot be specified for a dominant mated application. If you wish to use these parameters to provision a mated application, perform one of these procedures:

A dominant mated application can contain up to 128 point codes and subsystems, a primary point code and subsystem, and up to 31 mated point codes and subsystems. When a new dominant mated application is added to the database, the first two entries, the primary point code and subsystem and a mate point code and subsystem are added using the ent-map command. All other mated point code and subsystem entries that are being assigned to the primary point code and subsystem are added to the dominant mated application using the chg-map command.

All the point codes and subsystems in a dominant mated application have different relative cost values, with the primary point code and subsystem having the lowest relative cost value. All traffic is routed to the primary point code and subsystem, if it is available. If the primary point code and subsystem becomes unavailable, the traffic is routed to highest priority backup point code and subsystem that is available. When the primary point code and subsystem becomes available again, the traffic is then routed back to the primary point code and subsystem.

If the Flexible GTT Load Sharing feature is not enabled, the primary point code and subsystem number or the mate point code and mate subsystem number combination can be in the database only once. If the Flexible GTT Load Sharing feature is enabled, the primary point code and subsystem number or mate point code and mate subsystem number combination can be in multiple MAP sets, but can be in the default MAP set only once. Refer to the Provisioning a MAP Set section for information on provisioning MAP sets.

The point codes specified in the ent-map or chg-map commands (pc/pca, pci, pcn, or pcn24, and mpc/mpca, mpci, mpcn, or mpcn24) must be either a full point code in the routing point code table or the EAGLE’s true point code. Cluster point codes or network routing point codes cannot be specified with this command. The rtrv-rte command can be used to verify the point codes in the routing table. The point codes in the routing table are shown in the DPCA, DPCI, DPCN, or DPCN24 fields of the rtrv-rte command output. The EAGLE’s true point code is shown in the PCA, PCI, PCN, or PCN24 fields of the rtrv-sid command output.

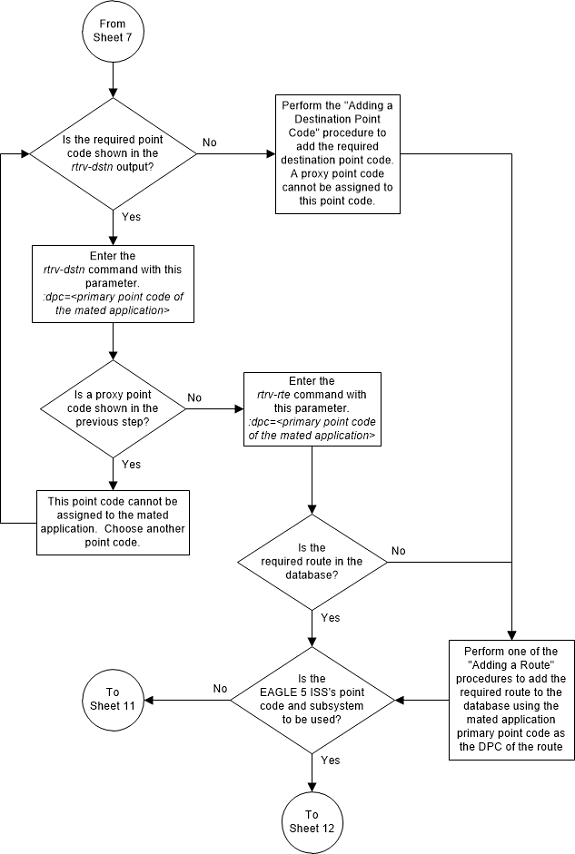

A dominant mated application can be provisioned with a point code that is assigned to other mated applications as long as the SSN is not assigned to other mated applications. A point code can be assigned to maximum of 12 different SSNs.

If the EAGLE’s true point code is specified in the mated application, it must be the primary point code. The relative cost value assigned to this point code must be the lowest value in the mated application. If the Flexible GTT Load Sharing feature is enabled, the mated application containing the EAGLE’s true point code can be assigned only to the default MAP set.

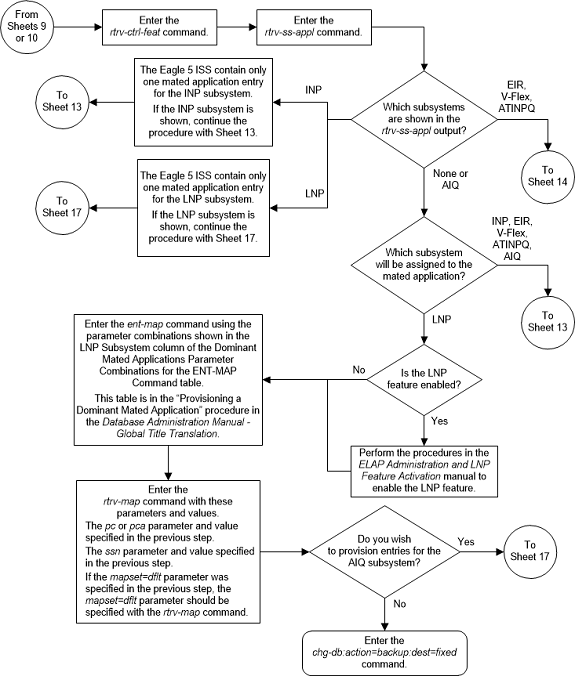

A mated application containing the LNP subsystem can contain only ANSI point codes. The primary point code (pc or pca) must be the EAGLE’s true ANSI point code. The LNP feature must be enabled for a quantity greater than zero.

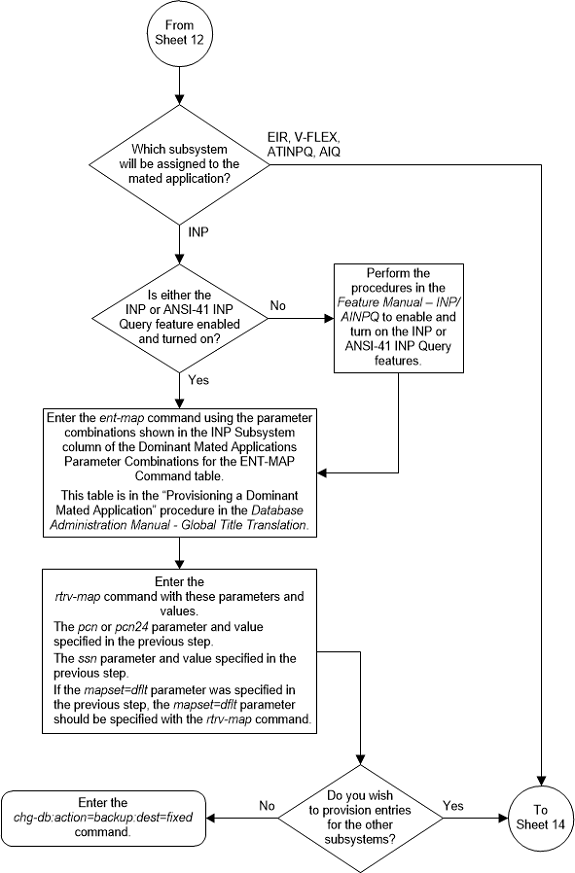

A mated application containing the INP subsystem can contain only 14-bit ITU-N point codes, 14-bit ITU-N spare point codes, or 24-bit ITU-N point codes. The primary point code (pcn or pcn24) must be the EAGLE’s true 14-bit ITU-N point code, 14-bit ITU-N spare point code, or 24-bit ITU-N point code.The INP or ANSI-41 INP Query feature must be enabled and turned on. The EAGLE can contain either 14-bit ITU-N point codes (spare or non-spare point codes) or 24-bit ITU-N point codes. Both types of point codes cannot be present on the EAGLE at the same time.

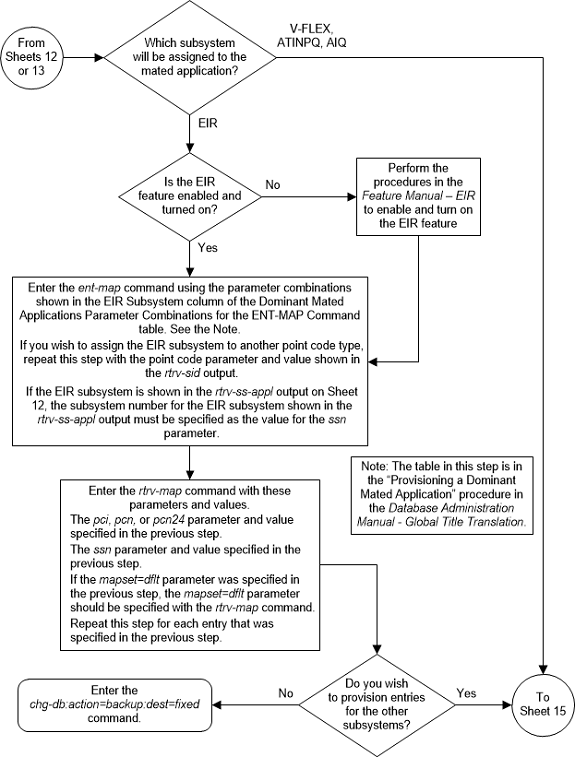

A mated application containing the EIR subsystem can contain only ITU-I point codes, ITU-I spare point codes, 14-bit ITU-N point codes, 14-bit ITU-N spare point codes, or 24-bit ITU-N point codes. The primary point code (pci, pcn, or pcn24) must be the EAGLE’s true ITU-I point code, ITU-I spare point code, 14-bit ITU-N point code, 14-bit ITU-N spare point code, or 24-bit ITU-N point code. The EIR feature must be enabled and turned on. The EAGLE can contain either 14-bit ITU-N point codes (spare or non-spare point codes) or 24-bit ITU-N point codes. Both types of point codes cannot be present on the EAGLE at the same time.

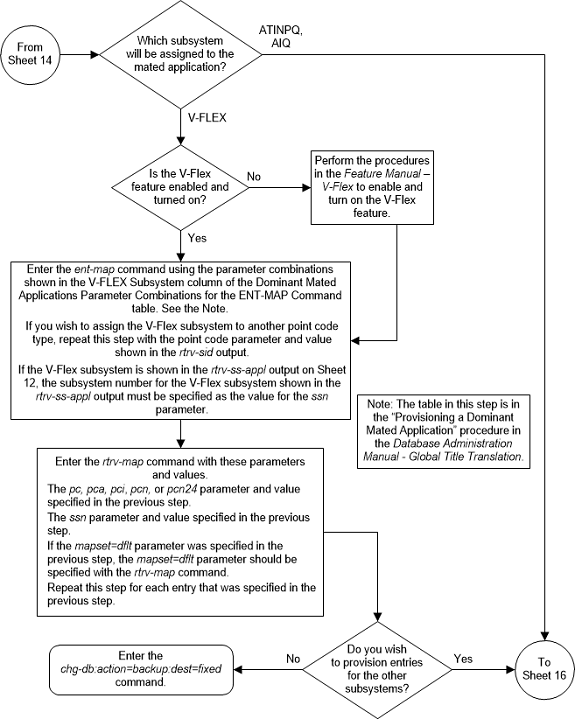

A mated application containing the VFLEX subsystem can contain any type of point code. The primary point code (pc, pca, pci, pcn, or pcn24) must be the EAGLE’s true point code. The V-Flex feature must be enabled and turned on.The EAGLE can contain either 14-bit ITU-N point codes (spare or non-spare point codes) or 24-bit ITU-N point codes. Both types of point codes cannot be present on the EAGLE at the same time.

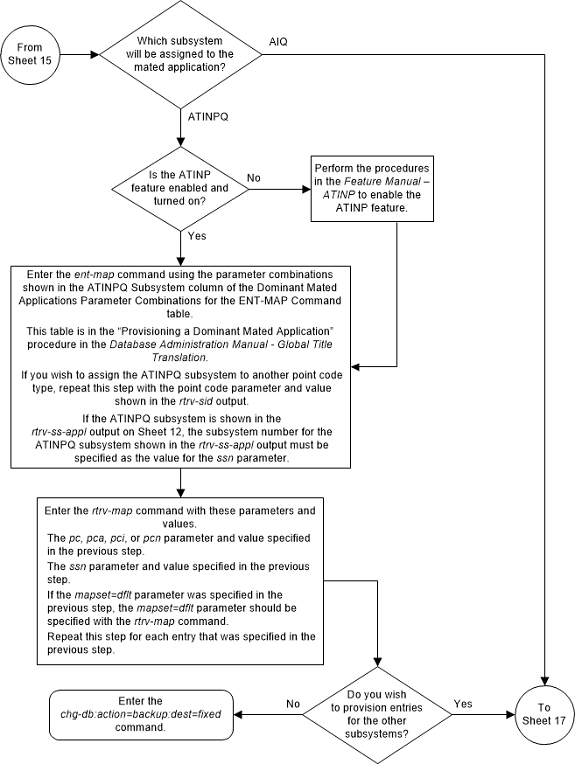

A mated application containing the ATINPQ subsystem can contain only ANSI point codes, ITU-I point codes, ITU-I spare point codes, 14-bit ITU-N point codes, or 14-bit ITU-N spare point codes. The primary point code (pc, pca, pci, or pcn) must be the EAGLE’s true ANSI point code, ITU-I point code, ITU-I spare point code, 14-bit ITU-N point code, or 14-bit ITU-N spare point code. The ATINP feature must be enabled.

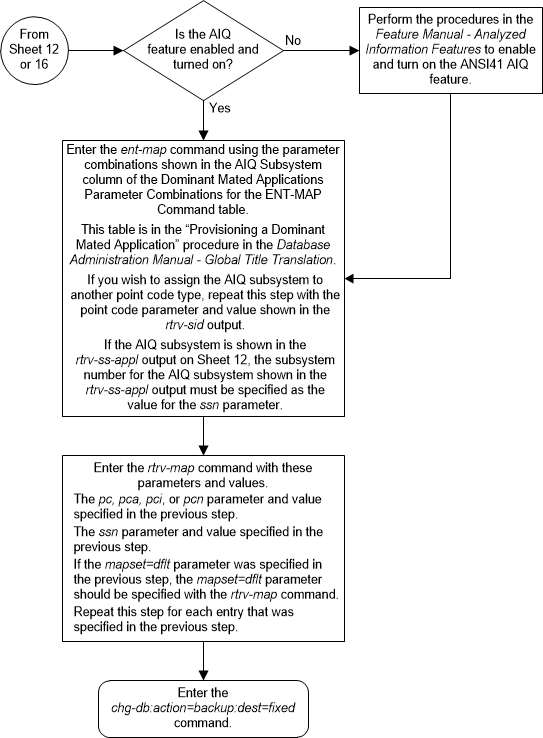

A mated application containing the AIQ subsystem can contain any of the EAGLE’s true point codes. The ANSI41 AIQ feature must be enabled. The EAGLE can contain either 14-bit ITU-N point codes (spare or non-spare point codes) or 24-bit ITU-N point codes. Both types of point codes cannot be present on the EAGLE at the same time.

The EAGLE can contain multiple entries that contain the EAGLE's true point code, shown in the rtrv-sid output. Table 2-42 shows the numbers of entries that can be provisioned based on the type of point code.

Table 2-42 Maximum Number of True Point Code Entries

True Point Code Type Maximum Number of Entries
ANSI

1 - for the LNP subsystem

2 - one entry for the LNP subsystem and one entry for the AIQ subsystem

3 - one entry for the ATINPQ subsystem, one entry for the V-FLEX subsystem, and one entry for the AIQ subsystem

The LNP subsystem cannot be used if the ATINPQ, EIR, INP, and V-FLEX subsystems are used.

ITU-I

4 - one entry for the ATINPQ subsystem, one entry for the EIR subsystem, one entry for the V-FLEX subsystem, and one entry for the AIQ subsystem

ITU-N

5 - one entry for the ATINPQ subsystem, one entry for the EIR subsystem, one entry for the INP subsystem, one entry for the V-FLEX subsystem, and one entry for the AIQ subsystem

For mated applications containing ANSI or 24-bit ITU-N point codes, or the EAGLE's true point code, the format of the point codes specified in the ent-map command must be the same. For example, if the primary point code is a 24-bit ITU-N point code (pcn24), the mate point code must be a 24-bit ITU-N point code (mpcn24). The mate point codes of mated applications containing either ITU-I, ITU-I spare, 14-bit ITU-N, or 14-bit ITU-N spare primary point codes do not have to be the same format as the primary point code. The mate point codes of these mated applications can be a mixture of ITU-I, ITU-I spare, 14-bit ITU-N, or 14-bit ITU-N spare point codes.

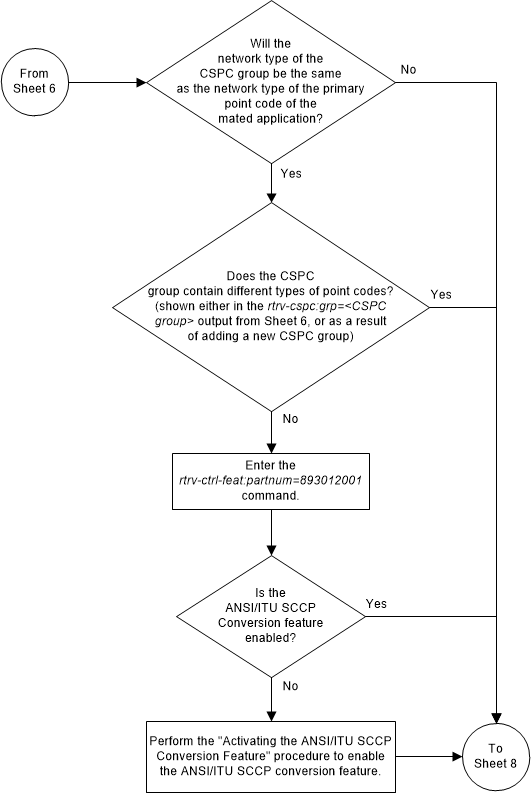

The format of the point codes in the CSPC group specified with the grp parameter must be the same as the primary point code specified with the ent-map command only if the ANSI/ITU SCCP Conversion feature is not enabled. If the ANSI/ITU SCCP Conversion feature is enabled, the CSPC group may contain a mixture of point code types (refer to the Adding a Concerned Signaling Point Code procedure ), and the network type of the CSPC group can be different from the network type of the primary point code of the mated application. The status of the ANSI/ITU SCCP Conversion feature can be verified with the rtrv-ctrl-feat command.

The values for the primary point code and subsystem combination (pc/ssn) cannot be the same as the mated point code and subsystem combination (mpc/mssn). However, the primary and mated point codes can be the same as long as the subsystem numbers are different.

If a mate point code (mpc/mpca/mpci/mpcn/mpcn24) is specified, the mssn parameter must be specified.

If the mssn parameter is specified, the mate point code (mpc/mpca/mpci/mpcn/mpcn24) must be specified.

If the grp, srm, mrc, and sso parameter values are specified, and the specified point code and SSN is assigned to multiple mated applications, the grp, srm, mrc, and sso values for all mated applications containing the specified point code and SSN will be changed to the values specified in this procedure.

The EAGLE can contain 1024, 2000, or 3000 mated applications. The EAGLE default is 1024 mated applications. This quantity can be increased to 2000 by enabling the feature access key for part number 893-0077-01, or to 3000 by enabling the feature access key for part number 893-0077-10. For more information on enabling these feature access keys, refer to the Enabling the XMAP Table Expansion Feature procedure.

Provisioning a MAP Set

The Flexible GTT Load Sharing feature provides the ability to define multiple load sharing sets in the MAP table where the same point code and subsystem can be assigned to different load sharing sets.

The MAP table contains specific load sharing sets, designated by numbers, and a default MAP set.

Flexible Final GTT Load Sharing provides flexible load sharing for global title translations defined in the GTT table and not for the MPS-based features. The MPS-based features do not support the MAP set ID parameter. The MPS-based features perform lookups for load sharing in the default MAP set and the GTT table. The entries in the GTT table can be linked to a MAP set ID, allowing lookups in a specific MAP set other than the default MAP set.

Any MAP entries that were provisioned in the database before the Flexible GTT Load Sharing feature is enabled are placed in the default MAP set when the Flexible GTT Load Sharing feature is enabled.

To provision entries in the default MAP set, the mapset=dflt parameter must be specified with the ent-map or chg-map commands.

To provision entries in an existing MAP set other than the default MAP set, the mapset=<MAP set ID> parameter must be specified with the chg-map command. Provisioning entries in an existing MAP set can be performed only with the chg-map command.

To provision entries in a new MAP set, the mapset=new parameter must be specified with the ent-map command. The mapset=new parameter can be specified only with the ent-map command. When the ent-map command is executed with the mapset=new parameter, the new MAP set ID is automatically generated and displayed in the output of the ent-map command as follows.

New MAPSET Created : MAPSETID = <new MAP set ID>

A MAP set, other than the default MAP set, is a MAP group provisioned with the MAP set ID and can contain a maximum of 32 point codes.

The default MAP set can contain multiple MAP groups. The point code and subsystem number combination can appear only once in the default MAP set. The point code can appear in multiple MAP groups in the default MAP set with different subsystem numbers.

The point code and subsystem number combination provisioned in a MAP set can be provisioned in multiple MAP sets. All the point code and subsystem number combinations in a MAP set must be different.

Canceling the RTRV-MAP Command

Because the rtrv-map command used in this procedure can output information for a long period of time, the rtrv-map command can be canceled and the output to the terminal stopped. There are three ways that the rtrv-map command can be canceled.

  • Press the F9 function key on the keyboard at the terminal where the rtrv-map command was entered.
  • Enter the canc-cmd without the trm parameter at the terminal where the rtrv-map command was entered.
  • Enter the canc-cmd:trm=<xx>, where <xx> is the terminal where the rtrv-map command was entered, from another terminal other that the terminal where the rtrv-map command was entered. To enter the canc-cmd:trm=<xx> command, the terminal must allow Security Administration commands to be entered from it and the user must be allowed to enter Security Administration commands. The terminal’s permissions can be verified with the rtrv-secu-trm command. The user’s permissions can be verified with the rtrv-user or rtrv-secu-user commands.

For more information about the canc-cmd command, refer to Commands User's Guide.

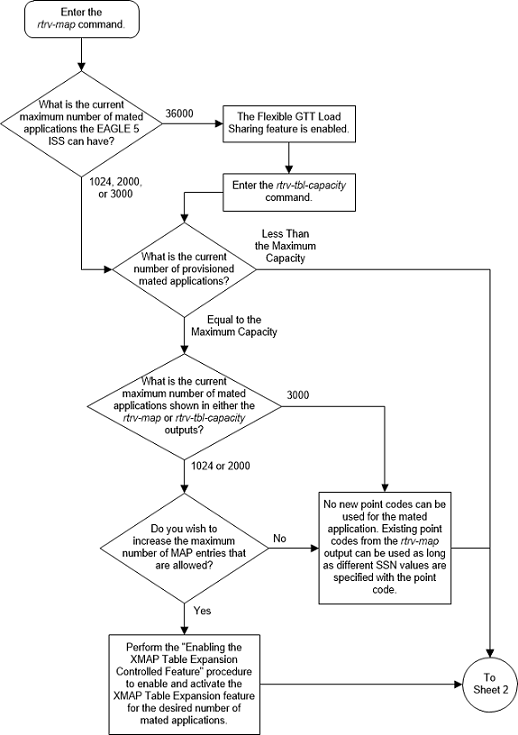

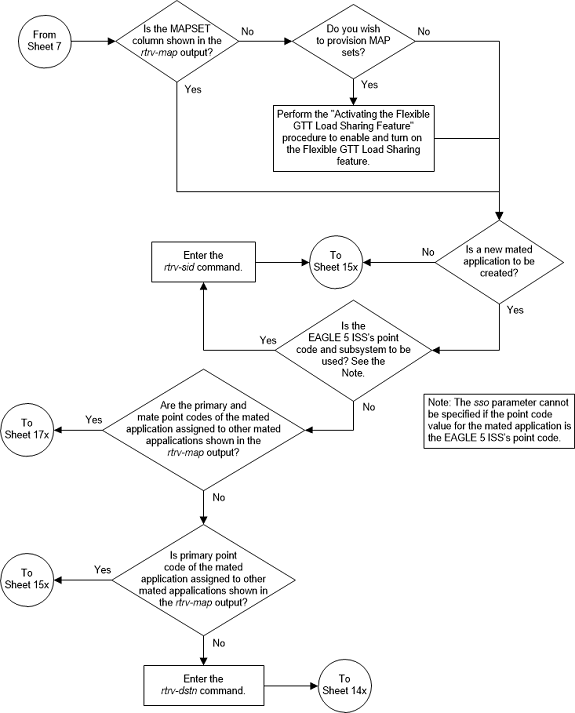

  1. Display the mated applications in the database using the rtrv-map command.

    This is an example of the possible output.

    rlghncxa03w 09-07-07 00:34:31 GMT EAGLE5 41.1.0

    MAPSET ID=DFLT
    PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
    255-001-000                 250 10  SOL *Y  *Y  grp01    ON

    MAPSET ID=1
    PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
    255-001-000                 251 10  SHR *Y  *Y  grp01    OFF
                   253-001-002  254 10  SHR *Y  *Y  grp01    OFF

    MAPSET ID=2
    PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
    255-001-000                 252 10  SOL *Y  *Y  grp01    ON

    MAPSET ID=DFLT
    PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
    255-001-000                 253 10  SHR *Y  *Y  grp01    OFF
                   253-001-004  254 10  SHR *Y  *Y  grp01    OFF

    MAPSET ID=3
    PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
    255-001-001                 255 10  DOM YES YES grp01    ON
                   253-001-005  254 20  DOM YES YES grp01    ON

    MAPSET ID=4
    PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
    255-001-001                 250 10  DOM YES YES grp01    OFF
                   253-001-001  254 20  DOM YES YES grp01    OFF

    MAPSET ID=DFLT
    PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
    255-001-002                 251 10  SHR *Y  *Y  grp01    OFF
                   255-001-002  254 10  SHR *Y  *Y  grp01    OFF

    MAPSET ID=5
    PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
    255-001-002                 252 10  DOM YES YES grp01    ON
                   255-001-003  254 20  DOM YES YES grp01    ON

    MAPSET ID=6
    PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
    255-001-002                 253 10  SHR *Y  *Y  grp01    ON
                   255-001-004  254 10  SHR *Y  *Y  grp01    ON

    MAPSET ID=7
    PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
    002-002-007                  50 10  COM YES *Y  grp01    OFF
                   002-002-008   30 10  COM YES *Y  grp01    OFF
                   002-002-009   30 10  COM YES *Y  grp01    OFF
                   002-002-010   30 20  COM YES *Y  grp01    OFF
                   002-002-011   30 20  COM YES *Y  grp01    OFF

    MAPSET ID=8
    PCI            Mate PCI     SSN RC MULT SRM MRC GRP NAME SSO
    2-001-2                     255 10  DOM NO  YES grp03    OFF
                   2-001-1      254 20  DOM NO  YES grp03    OFF

    MAPSET ID=9
    PCN            Mate PCN     SSN RC MULT SRM MRC GRP NAME SSO
    00347                       253 10  SHR *N  *N  grp05    OFF
                   01387        254 10  SHR *N  *N  grp05    OFF

    MAP TABLE IS  (25 of 36000)  1 % FULL
    If any of the following items are not shown in the rtrv-map output, then the feature corresponding to these items is not enabled, or turned on if required.
    • The MAPSET field - the Flexible GTT Load Sharing feature is not enabled.
    • The MRNSET and MRNPC fields - the GTT Load Sharing with Alternate Routing Indicator feature is not enabled.
    • The WT, %WT, THR columns - the Weighted GTT Load Sharing feature is not enabled and turned on.

    If the maximum number of mated applications shown in the rtrv-map output in 1 is 1024, 2000, or 3000, continue the procedure with 3.

  2. If the maximum number of mated applications shown in the rtrv-map output in 1 is 36000, the Flexible GTT Load Sharing feature is enabled.

    Although the rtrv-map output shows there can be 36000 entries, a maximum of 1024, 2000, or 3000 different point codes (depending on whether the XMAP Table Expansion feature is enabled for 2000 or 3000 mated applications) can be provisioned for mated applications. To verify the number of different point codes that can be provisioned for mated applications, enter the rtrv-tbl-capacity command. The following is an example of the possible output.

    rlghncxa03w 07-05-28 21:15:37 GMT EAGLE5 37.0.0

    MAP table is (3000 of 3000) 100% full


    Note:

    Thertrv-tbl-capacity command output contains other fields that are not used by this procedure. If you wish to see all the fields displayed by thertrv-tbl-capacity command, see the rtrv-tbl-capacity command description in Commands User's Guide.
  3. Continue the procedure by performing one of these steps.
    • If the rtrv-map output in 1 or the rtrv-tbl-capacity output in 2 shows that the maximum number of mated applications is 3000, and the current number of provisioned mated applications is 3000, no new point codes can be used to provision mated applications. Continue the procedure with 4.
    • If the rtrv-map output in 1 or the rtrv-tbl-capacity output in 2 shows that the maximum number of mated applications is either 1024 or 2000, and the mated application being added increases the number beyond 1024 or 2000, perform Enabling the XMAP Table Expansion Feature to enable a greater quantity of mated applications. After the quantity of mated applications has been increased, continue the procedure with 4. If the maximum number of mated applications is not increased, no new point codes can be used to provision mated applications.
    • If the rtrv-map output in 1 or the rtrv-tbl-capacity output in 2 shows that the maximum number of mated applications is either 1024, 2000, or 3000 and the mated application being added will not increase the number beyond the quantity shown in the rtrv-map output in 1 or the rtrv-tbl-capacity output in 2, continue the procedure with 4.

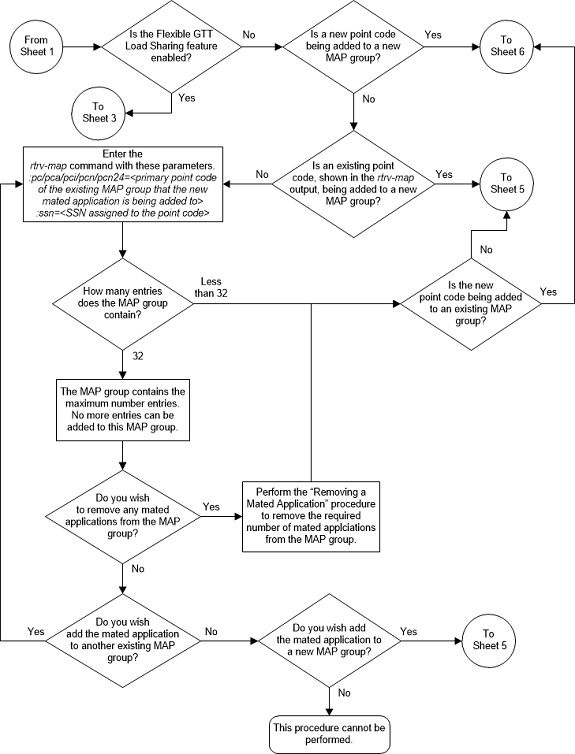

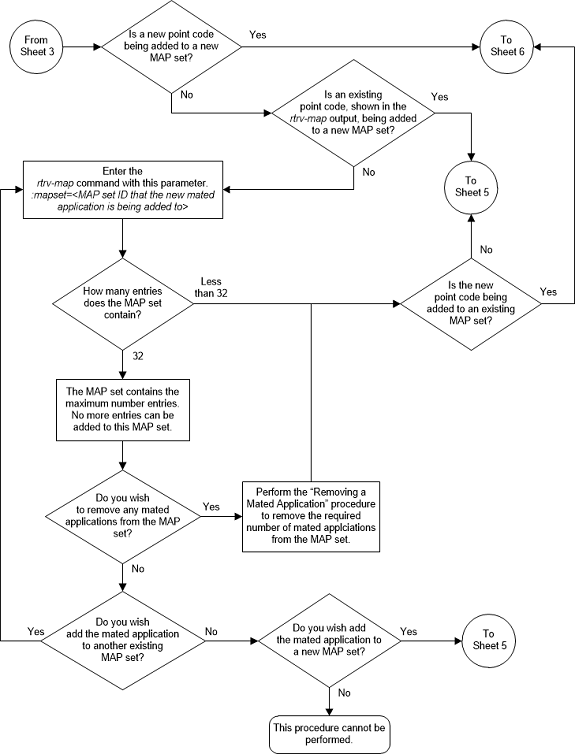

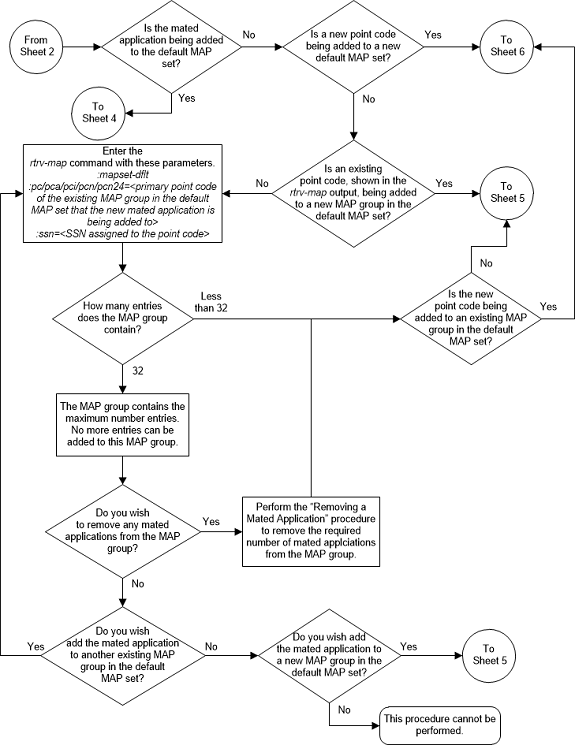

  4. A MAP group, without the Flexible GTT Load Sharing feature enabled, a MAP set, other than the default MAP set, and a MAP group contained in the default MAP set can contain a maximum of 32 entries.

    Verify the number of entries that the MAP group or MAP set contains by entering the rtrv-map command with the primary point code and SSN assigned to the MAP group or MAP set. If the Flexible GTT Load Sharing feature is enabled, the mapset parameter and MAP set ID of the MAP set that the new mated application will be added to.

    If the specified MAP set is not the default MAP set, only the mapset parameter needs to be specified with the rtrv-map command. The point code and SSN does not need to be specified. For this example, enter one of these commands.

    rtrv-map:pca=002-002-007:ssn=50

    The following is an example of the possible output.

    rlghncxa03w 09-07-07 00:34:31 GMT EAGLE5 41.1.0

    PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
    002-002-007                  50 10  COM YES *Y  grp01    OFF
                   002-002-008   30 10  COM YES *Y  grp01    OFF
                   002-002-009   30 10  COM YES *Y  grp01    OFF
                   002-002-010   30 20  COM YES *Y  grp01    OFF
                   002-002-011   30 20  COM YES *Y  grp01    OFF

    MAP TABLE IS  (25 of 1024)  2 % FULL

    rtrv-map:pca=002-002-007:ssn=50:mapset=dflt

    The following is an example of the possible output.

    rlghncxa03w 09-07-07 00:34:31 GMT EAGLE5 41.1.0

    MAPSET ID=DFLT
    PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
    002-002-007                  50 10  COM YES *Y  grp01    OFF
                   002-002-008   30 10  COM YES *Y  grp01    OFF
                   002-002-009   30 10  COM YES *Y  grp01    OFF
                   002-002-010   30 20  COM YES *Y  grp01    OFF
                   002-002-011   30 20  COM YES *Y  grp01    OFF

    MAP TABLE IS  (25 of 36000)  1 % FULL

    rtrv-map:mapset=7

    The following is an example of the possible output.

    rlghncxa03w 09-07-07 00:34:31 GMT EAGLE5 41.1.0

    MAPSET ID=7
    PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
    002-002-007                  50 10  COM YES *Y  grp01    OFF
                   002-002-008   30 10  COM YES *Y  grp01    OFF
                   002-002-009   30 10  COM YES *Y  grp01    OFF
                   002-002-010   30 20  COM YES *Y  grp01    OFF
                   002-002-011   30 20  COM YES *Y  grp01    OFF

    MAP TABLE IS  (25 of 36000)  1 % FULL
    If the MAP group or MAP set contains 32 entries, no more entries can be added to the specified MAP group or MAP set. One of these actions can be performed.
    • Entries can be added another MAP group or MAP set. Repeat this step for the other MAP group or MAP set.
    • Entries can be removed from the specified MAP group or MAP set. To remove entries from the specified MAP group or MAP set, perform Removing a Mated Application.
    • Entries can be added to a new MAP group or MAP set.

      Note:

      If none of these actions will be performed, then this procedure cannot be performed.

    If the MAP group or MAP set contains less than 32 entries, entries can be added to the MAP group or MAP set.

    After it has been determined which MAP group or MAP set that the new entries will be added to (a new MAP group or MAP set or an existing MAP group or MAP set), continue the procedure by performing one of these steps.

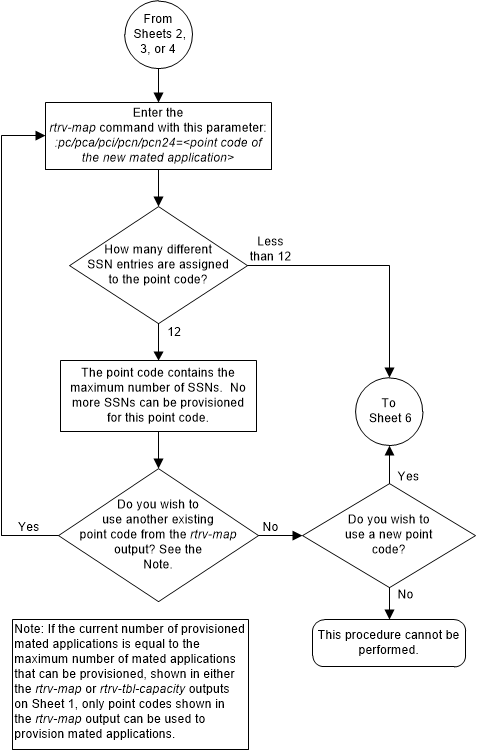

    • If an existing point code is being added to this MAP group or MAP set, continue the procedure with 5.
    • If a new point code is being added to this MAP group or MAP set, continue the procedure by performing one of these steps.

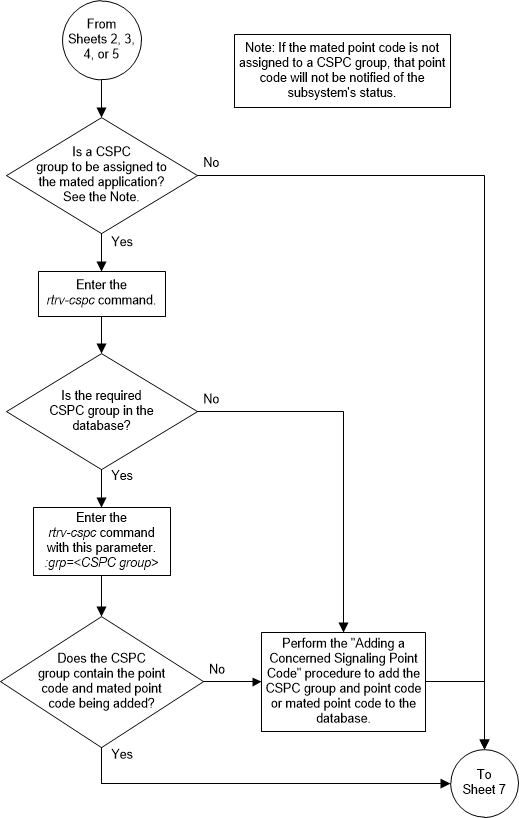

      • If a concerned signaling point code (CSPC) group is not being assigned to the mated application, continue the procedure with 8. If the mated point code is not assigned to a CSPC group, that point code will not be notified of the subsystem’s status.
      • If a concerned signaling point code (CSPC) group will be assigned to the mated application, continue the procedure with 6.
  5. A mated application can be provisioned with a point code that is assigned to other mated applications as long as the SSN is not assigned to other mated applications.

    A point code can be assigned to maximum of 12 different SSNs. Verify the number of SSNs assigned to the point code that will be specified for the mated application in this procedure by entering the rtrv-map command with the point code of the new mated application. For this example, enter this command.

    rtrv-map:pca=255-001-000

    This is an example of the possible output.

    rlghncxa03w 09-07-07 00:34:31 GMT EAGLE5 41.1.0

    PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
    255-001-000                 250 10  SOL *Y  *Y  grp01    ON

    255-001-000                 251 10  SHR *Y  *Y  grp01    OFF
                   253-001-002  254 10  SHR *Y  *Y  grp01    OFF

    255-001-000                 252 10  SOL *Y  *Y  grp01    ON

    255-001-000                 253 10  SHR *Y  *Y  grp01    OFF
                   253-001-004  254 10  SHR *Y  *Y  grp01    OFF

    MAP TABLE IS  (25 of 1024)  2 % FULL

    If the Flexible GTT Load Sharing feature is enabled, the MAPSET IDs for the mated applications are shown in the rtrv-map output.

    If the Weighted GTT Load Sharing feature is enabled and turned on, the WT, %WT, and THR columns are shown in the rtrv-map output.

    If the point code is assigned to 12 different SSNs, and neither an existing point code in the rtrv-map output nor a new point code will be used to provision the mated application, then this procedure cannot be performed.

    If the point code is assigned to less than 12 different SSNs, then the existing point code in the rtrv-map output can be used to provision the mated application.

    If the point code is assigned to 12 different SSNs, another existing point code in the rtrv-map output or a new point code must be used to provision the mated application. If an existing point code in the rtrv-map output will be used to provision the mated application, repeat this step for that point code.

    After it has been determined which point code will be used to provision the mated application (a new point code or an existing point code), continue the procedure by performing one of these steps.
    • If a concerned signaling point code (CSPC) group is not being assigned to the mated application, continue the procedure with 8. If the mated point code is not assigned to a CSPC group, that point code will not be notified of the subsystem’s status.
    • If a concerned signaling point code (CSPC) group will be assigned to the mated application, continue the procedure with 6.
  6. Display the point codes in the CSPC group that you wish to assign to the mated application by first entering the rtrv-cspc command with no parameters.

    This is an example of the possible output.

    rlghncxa03w 07-05-25 09:48:31  GMT  EAGLE5 37.0.0
    CSPC GRP   NETWORK                PERCENT FULL
    grp01      ANSI                     6%
    grp02      ITU-I                    9%
    grp03      ITU-N                   12%
    grp04      ANSI                    15%
    grp05      ANSI                    15%
    grp10      ANSI                    15%
    grp15      ANSI                    15%

    If the desired CSPC group is shown in the rtrv-cspc output, re-enter the rtrv-cspc command with the CSPC group name. For this example, enter these commands.

    rtrv-cspc:grp=grp05

    This is an example of the possible output.

    rlghncxa03w 07-05-25 09:48:31  GMT  EAGLE5 37.0.0
    CSPC GRP      PCA
    grp05         005-005-005
                  007-007-007
                  008-008-008
                  009-009-009

    rtrv-cspc:grp=grp10

    This is an example of the possible output.

    rlghncxa03w 07-05-25 09:59:31  GMT  EAGLE5 37.0.0
    CSPC GRP      PCA
    grp10         003-003-003
                  004-004-004
                  008-008-008
                  009-009-009

    rtrv-cspc:grp=grp15

    This is an example of the possible output.

    rlghncxa03w 07-05-25 09:48:31  GMT  EAGLE5 37.0.0
    CSPC GRP      PCA
    grp15         005-005-005
                  006-006-006
                  008-008-008
                  009-009-009

    Note:

    If the ANSI/ITU SCCP Conversion feature is enabled, then point codes of multiple network types can be displayed in thertrv-cspc output, if point codes of multiple network types are assigned to the CSPC group.

    If the CSPC group is not in the database, or if the required point code is not assigned to the CSPC group, perform the Adding a Concerned Signaling Point Code procedure to add the required CSPC group or point code to the database.

    Note:

    If the output of thertrv-cspc command performed in6shows CSPC groups containing a mixture of point code types, or if the new CSPC group that was added in6contains a mixture of point code types, continue the procedure with8.
  7. The format of the point codes in the CSPC group specified with the grp parameter must be the same as the primary point code specified with the ent-map command only if the ANSI/ITU SCCP Conversion feature is not enabled.

    If the ANSI/ITU SCCP Conversion feature is enabled, the CSPC group may contain a mixture of point code types (refer to the Adding a Concerned Signaling Point Code procedure), and the network type of the CSPC group can be different from the network type of the primary point code of the mated application.

    Verify the status of the ANSI/ITU SCCP Conversion feature by entering this command.

    rtrv-ctrl-feat:partnum=893012001

    The following is an example of the possible output.

    rlghncxa03w 07-05-28 21:15:37 GMT EAGLE5 37.0.0
    The following features have been permanently enabled:

    Feature Name              Partnum    Status  Quantity
    SCCP Conversion           893012001  on      ----

    The following features have been temporarily enabled:

    Feature Name              Partnum    Status  Quantity     Trial Period Left
    Zero entries found.

    The following features have expired temporary keys:

    Feature Name              Partnum
    Zero entries found.

    If the ANSI/ITU SCCP Conversion feature is not enabled, perform the Activating the ANSI/ITU SCCP Conversion Feature procedure to enable the ANSI/ITU SCCP Conversion feature.

  8. If the MAPSET column is shown in the rtrv-map output in 1, the Flexible GTT Load Sharing feature is enabled. Continue the procedure with 9.

    If the MAPSET column is not shown in 1 and you do not wish to provision MAP sets in this procedure, continue the procedure with 9.

    If the MAPSET column is not shown in 1 and you wish to provision MAP sets in this procedure, perform the Activating the Flexible GTT Load Sharing Feature procedure to enable the Flexible GTT Load Sharing feature. After the Flexible GTT Load Sharing feature is enabled, continue the procedure with 9.

    Note:

    If thesso parameter will be specified for the mated application, continue the procedure with10. The EAGLE’s point code and LNP, EIR, V-Flex, ATINPQ, or INP subsystem cannot be assigned to a mated application using thesso parameter.
  9. Display the EAGLE self-identification, using the rtrv-sid command.
    rlghncxa03w 07-05-10 11:43:04 GMT EAGLE5 37.0.0
       PCA             PCI          PCN                CLLI              PCTYPE
       010-020-030     1-023-1      12-0-14-1          rlghncxa03w       OTHER
                     s-1-023-1    s-12-0-14-1
       CPCA
       001-001-001       002-002-003       002-002-004      002-002-005
       002-002-006       002-002-007       002-002-008      002-002-009
       004-002-001       004-003-003       050-060-070

       CPCI
       1-001-1           1-001-2           1-001-3          1-001-4
       1-002-1           1-002-2           1-002-3          1-002-4
       2-001-1           7-222-7

       CPCN
       2-0-10-3          2-0-11-0          2-0-11-2          2-0-12-1
       2-2-3-3           2-2-4-0           10-14-10-1

    The EAGLE’s true point code is shown in either the PCA, PCI, PCN, or PCN24 fields. This is an example of the possible output.

    If the both point codes that will be specified for the mated application are point codes assigned to other mated applications, continue the procedure by performing one of these steps.
    • If the mrnset and mrnpc parameters will be specified for the mated application, continue the procedure with 15.
    • If the mrnset and mrnpc parameters will not be specified for the mated application, continue the procedure by performing one of these steps.
      • If a new mated application is being added, continue the procedure with 16.
      • If an entry is being added to an existing mated application, continue the procedure with 17.

    If the EAGLE’s point code will be specified for the mated application, and its mated point code is assigned to other mated applications, continue the procedure with 13.

    If only one of the point codes that will be specified for the mated application is assigned to other mated applications, perform 10 for the new point code that is not assigned to other mated applications.

  10. Display the destination point codes in the database by entering the rtrv-dstn command. This is an example of the possible output.
    rlghncxa03w 10-12-10 11:43:04 GMT EAGLE5 43.0.0
    Extended Processing Time may be Required

       DPCA          CLLI        BEI ELEI   ALIASI           ALIASN/N24    DMN
       001-207-000   ----------- no  --- --------------   --------------   SS7
       001-001-001   ----------- no  --- --------------   --------------   SS7
       001-001-002   ----------- no  --- --------------   --------------   SS7
       001-005-000   ----------- no  --- --------------   --------------   SS7
       001-007-000   ----------- no  --- --------------   --------------   SS7
       008-012-003   ----------- no  --- --------------   --------------   SS7
       003-002-004   ----------- no  --- --------------   --------------   SS7
       009-002-003   ----------- no  --- --------------   --------------   SS7
       010-020-005   ----------- no  --- --------------   --------------   SS7

       DPCI          CLLI        BEI ELEI   ALIASA           ALIASN/N24    DMN
       1-207-0       ----------- no  --- --------------   --------------   SS7
       0-015-0       ----------- no  --- --------------   --------------   SS7
       0-017-0       ----------- no  --- --------------   --------------   SS7
       1-011-1       ----------- no  --- --------------   --------------   SS7
       1-011-2       ----------- no  --- --------------   --------------   SS7


    Destination table is (14 of 2000) 1% full
    Alias table is (0 of 12000) 0% full
    PPC table is (1 of 20) 5% full

    If the required point code is not shown in the rtrv-dstn output, perform the "Adding a Destination Point Code" procedure in Database Administration - SS7 User's Guide to add the required point code. A proxy point code cannot be assigned to the point code.

    After the new point code has been added, skip 11 through 14 and perform one of the Adding a Route procedures in Database Administration - SS7 User's Guide and add the required route to the database. After the route has been added, continue the procedure by performing one of these steps.
    • If the mrnset and mrnpc parameters will be specified for the mated application, continue the procedure with 15.
    • If the mrnset and mrnpc parameters will not be specified for the mated application, continue the procedure by performing one of these steps.
      • If a new mated application is being added, continue the procedure with 16.
      • If an entry is being added to an existing mated application, continue the procedure with 17.
  11. Display the point code that will be assigned to the mated application by using the rtrv-dstn command and specifying the point code. For this example, enter this command.

    rtrv-dstn:dpca=010-020-005

    This is an example of the possible output.

    rlghncxa03w 10-12-10 11:43:04 GMT EAGLE5 43.0.0

       DPCA          CLLI        BEI ELEI   ALIASI           ALIASN/N24    DMN
       010-020-005   ----------- no  --- --------------   --------------   SS7

       PPCA         NCAI PRX     RCAUSE NPRST SPLITIAM HMSMSC HMSCP SCCPMSGCNV
       009-002-003  ---- no      50     on    20       no     no    none

    Destination table is (14 of 2000) 1% full
    Alias table is (0 of 12000) 0% full
    PPC table is (1 of 20) 5% full

    If the point code is not shown in the rtrv-dstn command output, the following output is displayed.

    rlghncxa03w 09-05-10 11:43:04 GMT EAGLE5 41.0.0

    No destinations meeting the requested criteria were found

    Destination table is (14 of 2000) 1% full
    Alias table is (0 of 12000) 0% full
    PPC table is (1 of 20) 5% full

    A proxy point code (a point code value is shown in the PPC column) cannot be assigned to the point code. If a proxy point code is shown in this step, choose another point code from the rtrv-dstn output in the previous step and repeat this step.

    If the point code is not shown in the rtrv-dstn output, perform the “Adding a Destination Point Code” procedure in Database Administration - SS7 User's Guide and add the point code to the destination point code table.

    After the new point code has been added, skip 12 through 14 and perform one of the Adding a Route procedures in Database Administration - SS7 User's Guide and add the required route to the database. After the route has been added, continue the procedure by performing one of these steps.
    • If the mrnset and mrnpc parameters will be specified for the mated application, continue the procedure with 15.
    • If the mrnset and mrnpc parameters will not be specified for the mated application, continue the procedure by performing one of these steps.
      • If a new mated application is being added, continue the procedure with 16.
      • If an entry is being added to an existing mated application, continue the procedure with 17.
  12. Enter the rtrv-rte command with the dpc parameter specifying the point codes to be used with the ent-map or chg-map commands to verify whether or not the point code is the DPC of a route.

    For this example, enter these commands.

    rtrv-rte:dpca=003-003-003

    This is an example of the possible output.

    rlghncxa03w 07-05-07 11:43:04 GMT  EAGLE5 37.0.0
       DPCA           ALIASI     ALIASN/N24    LSN        RC    APCA
       003-003-003 ---------- --------------   ls03       10    003-003-003
                                                   RTX:No  CLLI=ls07clli

    rtrv-rte:dpca=005-005-005

    This is an example of the possible output.

    rlghncxa03w 07-05-07 11:43:04 GMT  EAGLE5 37.0.0
       DPCA           ALIASI     ALIASN/N24    LSN        RC    APCA
       005-005-005 ---------- --------------   ls05       10    005-005-005
                                               ls15       30    089-047-123
                                               lsa8       50    077-056-000
                                                   RTX:No  CLLI=ls05clli

    rtrv-rte:dpca=008-008-008

    This is an example of the possible output.

    rlghncxa03w 07-05-07 11:43:04 GMT  EAGLE5 37.0.0
       DPCA           ALIASI     ALIASN/N24    LSN        RC    APCA
       008-008-008 ---------- --------------   ls20       10    008-008-008
                                                   RTX:No  CLLI=ls20clli

    rtrv-rte:dpca=031-049-100

    This is an example of the possible output.

    rlghncxa03w 07-05-07 11:43:04 GMT  EAGLE5 37.0.0
       DPCA           ALIASI     ALIASN/N24    LSN        RC    APCA
       031-049-100 ---------- --------------   ls10       10    031-049-100
                                                   RTX:No  CLLI=ls10clli

    rtrv-rte:dpca=040-040-040

    This is an example of the possible output.

    rlghncxa03w 07-05-07 11:43:04 GMT  EAGLE5 37.0.0
       DPCA           ALIASI     ALIASN/N24    LSN        RC    APCA
       040-040-040 ---------- --------------   ls11       10    040-040-040
                                                   RTX:No  CLLI=ls11clli

    rtrv-rte:dpca=056-113-200

    This is an example of the possible output.

    rlghncxa03w 07-05-07 11:43:04 GMT  EAGLE5 37.0.0
       DPCA           ALIASI     ALIASN/N24    LSN        RC    APCA
       056-113-200 ---------- --------------   ls12       10    056-113-200
                                                   RTX:No  CLLI=ls12clli

    rtrv-rte:dpca=060-060-060

    This is an example of the possible output.

    rlghncxa03w 07-05-07 11:43:04 GMT  EAGLE5 37.0.0
       DPCA           ALIASI     ALIASN/N24    LSN        RC    APCA
       060-060-060 ---------- --------------   ls13       10    060-060-060
                                                   RTX:No  CLLI=ls13clli

    rtrv-rte:dpca=070-070-070

    This is an example of the possible output.

    rlghncxa03w 07-05-07 11:43:04 GMT  EAGLE5 37.0.0
       DPCA           ALIASI     ALIASN/N24    LSN        RC    APCA
       070-070-070 ----------   --------------   ls15       10    070-070-070
                                                   RTX:No  CLLI=ls15clli

    rtrv-rte:dpca=179-183-050

    This is an example of the possible output.

    rlghncxa03w 07-05-07 11:43:04 GMT  EAGLE5 37.0.0
       DPCA           ALIASI     ALIASN/N24    LSN        RC    APCA
       179-183-050 ---------- --------------   ls18       10    179-183-050
                                                   RTX:No  CLLI=ls18clli

    If the point code is not shown in the rtrv-rte output, perform one of the Adding a Route procedures in Database Administration - SS7 User's Guide and add the required route to the database.

    If the EAGLE’s point code will not be specified for the mated application, continue the procedure by performing one of these steps.
    • If the mrnset and mrnpc parameters will be specified for the mated application, continue the procedure with 15.
    • If the mrnset and mrnpc parameters will not be specified for the mated application, continue the procedure by performing one of these steps.
      • If a new mated application is being added, continue the procedure with 16.
      • If an entry is being added to an existing mated application, continue the procedure with 17.

    If the EAGLE’s point code will be specified for the mated application, continue the procedure with 13.

  13. Verify whether or not either the LNP, ATINPQ, or ANSI41 AIQ feature is enabled, or the EIR, INP, V-Flex, or ANSI-41 INP Query feature is enabled and turned on by entering the rtrv-ctrl-feat command.
    This list shows the entries that are displayed in the rtrv-ctrl-feat output for the features that are enabled, and turned on if required.
    • LNP TNs with a quantity greater than zero - the LNP feature is enabled.
    • EIR with the status on - the EIR feature is enabled and turned on.
    • VFLEX with the status on - the V-Flex feature is enabled and turned on.
    • ATINP - the ATINP feature is enabled
    • INP with the status on - the INP feature is enabled and turned on
    • ANSI-41 INP Query with the status on - the ANSI-41 INP Query feature is enabled and turned on.
    • ANSI41 AIQ - the ANSI41 AIQ feature is enabled.
    Continue the procedure by performing one of these steps.
    • If the LNP, ATINPQ, or ANSI41 AIQ feature is enabled, or if the EIR, INP, V-Flex, or ANSI-41 INP Query feature is enabled and turned on, continue the procedure with 16.
    • If the LNP, ATINPQ, or ANSI41 AIQ feature is not enabled, or if the EIR, INP, V-Flex, or ANSI-41 INP Query feature is not enabled or turned on, continue the procedure with 14.
  14. Enable either the INP, ANSI-41 INP Query, EIR, V-Flex, ATINPQ, ANSI41 AIQ, or LNP features, depending on which subsystem you wish to use.

    To use the INP subsystem, enable and turn on either the INP or ANSI-41 INP Query feature by performing the procedures in INP/AINPQ User's Guide.

    To use the LNP subsystem, enable the LNP feature by performing the procedures in ELAP Administration and LNP Feature Activation User's Guide.

    To use the EIR subsystem, enable and turn on the EIR feature by performing the procedures in EIR User's Guide.

    To use the V-Flex subsystem, enable and turn on the V-Flex feature, perform the procedures in V-Flex User's Guide.

    To use the ATINPQ subsystem, enable the ATINP feature, perform the procedures in ATINP User's Guide.

    To use the AIQ subsystem, enable the ANSI AIQ feature, perform the procedures in Analyzed Information Features User's Guide.

    Note:

    If the LNP feature is enabled, the INP, ANSI-41 INP Query, V-Flex, ATINPQ, or EIR features cannot be enabled.
  15. The MRN point code value must be assigned to an MRN set. The MRN set must be shown in the rtrv-mrn output. Display the MRN sets by entering the rtrv-mrn command. This is an example of the possible output.
    rlghncxa03w 09-02-07 00:34:31 GMT EAGLE5 40.1.0

       MRNSET MAPSET  MAPPC          MAPSSN      PC             RC WT %WT THR
       DFLT   7       002-002-007        50      005-005-005    10 10  14   1
                                                 006-001-001    10 10  14   1
                                                 006-001-002    10 20  28   1
                                                 006-001-003    10 30  42   1
                                                 006-001-004    20 40  23   1
                                                 006-001-005    20 40  23   1
                                                 006-001-006    20 40  23   1
                                                 006-001-007    20 50  29   1

       MRNSET MAPSET  MAPPC          MAPSSN      PC             RC WT %WT THR
       1      -----   -----------       ---      007-007-007    10 10  14   1
                                                 008-001-001    10 10  14   1
                                                 008-001-002    10 20  28   1
                                                 008-001-003    10 30  42   1
                                                 008-001-004    20 40  23   1
                                                 008-001-005    20 40  23   1
                                                 008-001-006    20 40  23   1
                                                 008-001-007    20 50  29   1

    MRN table is (16 of 5990) 1% full
    If any of the following items are not shown in the rtrv-mrn output, then the feature corresponding to these items is not enabled, or turned on if required.
    • The MRNSET field - the Flexible GTT Load Sharing feature is not enabled.
    • The MAPSET, MAPPC and MAPSSN fields - the GTT Load Sharing with Alternate Routing Indicator feature is not enabled.
    • The WT, %WT, THR columns - the Weighted GTT Load Sharing feature is not enabled and turned on.

    Note:

    The network type of thepc/pca/pci/pcn/pcn24 andmrnpc/mrnpca/mrnpci/mrnpcn/mrnpcn24 parameter values must be compatible, as shown inTable 2-41

    If the MRN set that you wish to use, containing the desired point code, is not shown in the rtrv-mrn output, add the required MRN set by performing the Provisioning MRN Entries procedure.

    If the MRN set that you wish to use is shown in the rtrv-mrn output, or Provisioning MRN Entries was performed in this step, continue the procedure by performing one of these steps.
    • If a new mated application is being added, continue the procedure with 16.
    • If an entry is being added to an existing mated application, continue the procedure with 17.
  16. Add the mated application to the database using the ent-map command. Use Table 2-43 as a guide for the parameters and values that can be specified with the ent-map command.

    Table 2-43 Dominant Mated Application Parameter Combinations for the ENT-MAP Command

    Other Subsystems LNP Subsystem INP Subsystem EIR Subsystem
    Mandatory Parameters
    :pc/pca/pci/pcn/pcn24 (See Notes 1, 11, and 14) :pc/pca (See Note 2) :pcn/pcn24 (See Note 3) :pci/pcn/pcn24 (See Note 4)
    :ssn= <subsystem number, 2 - 255> :ssn=<LNP subsystem number, 2 - 255> :ssn=<INP subsystem number, 2 - 255> :ssn=<EIR subsystem number, 2 - 255>
    :rc=<0 - 99> (See Note 7) :rc=<0 - 99> (See Note 7) :rc=<0 - 99> (See Note 7) :rc=<0 - 99> (See Note 7)

    :mpc/mpca/mpci/

    mpcn/mpcn24 (See Notes 1, 9, 11, and 14)

    :mpc/mpca (See Note 2) :mpcn/mpcn24 (See Notes 3 and 11) :mpci/mpcn/mpcn24 (See Notes 4 and 11)
    :mssn= <subsystem number of the mate, 2 - 255> :mssn= <subsystem number of the mate, 2 - 255> :mssn= <subsystem number of the mate, 2 - 255> :mssn= <subsystem number of the mate, 2 - 255>
    :materc=<0 - 99> (See Note 7) :materc=<0 - 99> (See Note 7) :materc=<0 - 99> (See Note 7) :materc=<0 - 99> (See Note 7)
    Optional Parameters
    :grp=<CSPC group name> (See Note 8) :grp=<CSPC group name> (See Note 8) :grp=<CSPC group name> (See Note 8) :grp=<CSPC group name> (See Note 8)
    :mrc=<yes, no> (See Note 12) :mrc=<yes, no> (See Note 12) :mrc=<yes, no> (See Note 12) :mrc=<yes, no> (See Note 12)
    :mapset=<new, dflt> (See Note 10) :mapset=dflt (See Note 10) :mapset=dflt (See Note 10) :mapset=dflt (See Note 10)
    :srm=<yes, no> (See Note 12) :srm=<yes, no> (See Note 12)
    :sso=<on, off>
    :mrnset = <MRN set ID from thertrv-mrn output> (See Note 13)

    :mrnpc/mrnpca/

    mrnpci/mrnpcn/

    mrnpcn24=<the point code value in the MRN set> (See Notes 13 and 14)


    V-FLEX Subsystem ATINPQ Subsystem AIQ Subsystem
    Mandatory Parameters
    :pc/pca/pci/pcn/pcn24 (See Note 5) :pc/pca/pci/pcn (See Note 6) :pc/pca/pci/pcn/pcn24 (See Note 15)
    :ssn=<V-Flex subsystem number, 2 - 255> :ssn=<V-Flex subsystem number, 2 - 255> :ssn=<V-Flex subsystem number, 2 - 255>
    :rc=<0 - 99> (See Note 7) :rc=<0 - 99> (See Note 7) :rc=<0 - 99> (See Note 7)

    :mpc/mpca/mpci/

    mpcn/mpcn24 (See Notes 5 and 11)

    :mpc/mpca/mpci/mpcn (See Notes 6 and 11)

    :mpc/mpca/mpci/

    mpcn/mpcn24 (See Notes 11 and 15)

    :mssn= <subsystem number of the mate, 2 - 255> :mssn= <subsystem number of the mate, 2 - 255> :mssn= <subsystem number of the mate, 2 - 255>
    :materc=<0 - 99> (See Note 7) :materc=<0 - 99> (See Note 7) :materc=<0 - 99> (See Note 7)
    Optional Parameters
    :grp=<CSPC group name> (See Note 8) :grp=<CSPC group name> (See Note 8) :grp=<CSPC group name> (See Note 8)
    :mrc=<yes, no> (See Note 12) :mrc=<yes, no> (See Note 12) :mrc=<yes, no> (See Note 12)
    :mapset=dflt (See Note 10) :mapset=dflt (See Note 10) :mapset=dflt (See Note 10)
    :srm=<yes, no> (See Note 12) :srm=<yes, no> (See Note 12) :srm=<yes, no> (See Note 12)
    Notes
    1. The primary point code is an ANSI, ITU-I, ITU-I spare, ITU-N, ITU-N spare, or ITU-N24 from the rtrv-rte or rtrv-map outputs. The mate point code is an ANSI, ITU-I, ITU-I spare, ITU-N, ITU-N spare, or ITU-N24 point code from the rtrv-rte or rtrv-map outputs.
    2. The primary point code for the LNP subsystem is the ANSI point code from the rtrv-sid output. The mate point code is an ANSI point code from the rtrv-rte or rtrv-map outputs.
    3. The primary point code for the INP subsystem is the ITU-N, ITU-N spare, or ITU-N24 point code from the rtrv-sid output. The mate point code is an ITU-N, ITU-N spare, or ITU-N24 point code from the rtrv-rte or rtrv-map outputs.
    4. The primary point code for the EIR subsystem is the ITU-I, ITU-I spare, ITU-N, ITU-N spare, or ITU-N24 point code from the rtrv-sid output. The mate point code is an ITU-I, ITU-I spare, ITU-N, ITU-N spare, or ITU-N24 point code from the rtrv-rte or rtrv-map outputs.
    5. The primary point code for the V-Flex subsystem is the ANSI, ITU-I, ITU-I spare, ITU-N, ITU-N spare, or ITU-N24 point code from the rtrv-sid output. The mate point code is an ANSI, ITU-I, ITU-I spare, ITU-N, ITU-N spare, or ITU-N24 point code from the rtrv-rte or rtrv-map outputs.
    6. The primary point code for the ATINPQ subsystem is the ANSI, ITU-I, ITU-I spare, ITU-N, or ITU-N spare point code from the rtrv-sid output. The mate point code is an ANSI, ITU-I, ITU-I spare, ITU-N, or ITU-N spare point code from the rtrv-rte or rtrv-map outputs.
    7. The materc parameter value must be greater than the rc parameter value.
    8. The format of the point codes in the CSPC group specified with the grp parameter must be the same as the primary point code specified with the ent-map command only if the ANSI/ITU SCCP Conversion feature is not enabled. If the ANSI/ITU SCCP Conversion feature is enabled, the CSPC group may contain a mixture of point code types (refer to the Adding a Concerned Signaling Point Code procedure), and the network type of the CSPC group can be different from the network type of the primary point code of the mated application.
    9. For mated applications containing ANSI or 24-bit ITU-N point codes, or the EAGLE's true point code, the format of the point codes specified in the ent-map command must be the same. For example, if the primary point code is a 24-bit ITU-N point code (pcn24), the mate point code must be a 24-bit ITU-N point code (mpcn24). The mate point codes of mated applications containing either ITU-I, ITU-I spare, 14-bit ITU-N, or 14-bit ITU-N spare primary point codes do not have to be the same format as the primary point code. The mate point codes of these mated applications can be a mixture of ITU-I, ITU-I spare, 14-bit ITU-N, or 14-bit ITU-N spare point codes.
    10. If the Flexible GTT Load Sharing is enabled, the mapset parameter must be specified with the ent-map command.

      If the Flexible GTT Load Sharing is not enabled, themapset parameter cannot be specified with theent-map command.

      To provision entries in the default MAP set, themapset=dflt parameter must be specified with theent-map command.

      To provision entries in a new MAP set, themapset=new parameter must be specified with theent-map command. Themapset=new parameter can be specified only with theent-map command. When theent-map command is executed with the mapset=new parameter, the new MAP set ID is automatically generated and displayed in the output of theent-map command as follows.
      New MAPSET Created : MAPSETID = <new MAP set ID>

      A MAP set, other than the default MAP set, is a MAP group provisioned with the MAP set ID and can contain a maximum of 32 point code and subsystem entries.

      The default MAP set can contain multiple MAP groups. Each group in the default MAP set can contain a maximum of 32 point code and subsystem entries.

      The point code and subsystem entry can appear only once in the default MAP set, so the point code and subsystem entry can appear in only one MAP group in the default MAP set.

      The point code and subsystem entry provisioned in a MAP set can be provisioned in multiple MAP sets. If a point code and subsystem entry is provisioned in different MAP sets, the relative cost value of the entry in each MAP set can be different. All the point code and subsystem entries in a MAP set, including the default MAP set, must be different.

    11. If the point code selected from either the rtrv-rte or rtrv-map outputs is a 14-bit ITU-N point code, then the pcn/mpcn parameters must be specified. If the point code selected from either the rtrv-rte or rtrv-map outputs is a 24-bit ITU-N point code, then the pcn24/mpcn24 parameters must be specified.
    12. The srm=yes parameter can be specified only for mated applications containing ANSI point codes. These are the default values for the srm and mrc parameters.
      • ANSI mated applications - srm=yes, mrc=yes
      • ITU mated applications - srm=no, mrc=no
    13. The mrnset and mrnpc/mrnpca/mrnpci/mrnpcn/mrnpcn24 parameters can be specified only if the GTT Load Sharing with Alternate Routing Indicator feature is enabled. Refer to the Activating the GTT Load Sharing with Alternate Routing Indicator Feature procedure for information about enabling the GTT Load Sharing with Alternate Routing Indicator feature. The mrnset and mrnpc/mrnpca/mrnpci/mrnpcn/mrnpcn24 values must be shown in the rtrv-mrn output.
    14. The network type of the pc/pca/pci/pcn/pcn24 and mrnpc/mrnpca/mrnpci/mrnpcn/mrnpcn24 parameter values must be compatible, as shown in Table 2-41.
    15. The primary point code for the AIQ subsystem is the ANSI, ITU-I, ITU-I spare, ITU-N, ITU-N spare, or ITU-N24 point code from the rtrv-sid output. The mate point code is an ANSI, ITU-I, ITU-I spare, ITU-N, ITU-N spare, or ITU-N24 point code from the rtrv-rte or rtrv-map outputs.

    If the Flexible GTT Load Sharing feature is not enabled for this example, enter these commands.

    ent-map:pca=003-003-003:ssn=254:rc=10:mpc=040-040-040:mssn=254 :materc=20:grp=grp10:mrc=yes:srm=yes:sso=on

    ent-map:pca=005-005-005:ssn=250:rc=10:mpc=060-060-060:mssn=250 :materc=20:grp=grp15:mrc=yes:srm=yes:sso=off

    ent-map:pci=5-005-5:ssn=50:rc=10:mpcn=0257:mssn=50:materc=20 :grp=grp20:mrc=yes:sso=off

    When each of these commands have successfully completed, this message should appear.

    rlghncxa03w 07-05-07  11:44:13  GMT  EAGLE5 37.0.0
    ENT-MAP:  MASP A - COMPLTD

    If the Flexible GTT Load Sharing feature is enabled for this example, enter these commands.

    ent-map:pca=003-003-003:ssn=254:rc=10:mpc=040-040-040:mssn=254 :materc=20:grp=grp10:mrc=yes:srm=yes:sso=on:mapset=new

    ent-map:pca=005-005-005:ssn=250:rc=10:mpc=060-060-060:mssn=250 :materc=20:grp=grp15:mrc=yes:srm=yes:sso=off:mapset=dflt

    ent-map:pci=5-005-5:ssn=50:rc=10:mpcn=0257:mssn=50:materc=20 :grp=grp20:mrc=yes:sso=off:mapset=new

    If the GTT Load Sharing with Alternate Routing Indicator feature is enabled for this example, enter these commands.

    ent-map:pca=003-003-003:ssn=254:rc=10:mpc=040-040-040:mssn=254 :materc=20:grp=grp10:mrc=yes:srm=yes:sso=on:mapset=new:mrnset=dflt :mrnpc= 005-005-005

    ent-map:pca=005-005-005:ssn=250:rc=10:mpc=060-060-060:mssn=250 :materc=20:grp=grp15:mrc=yes:srm=yes:sso=off:mapset=dflt:mrnset=1 :mrnpc= 007-007-007

    If the Flexible GTT Load Sharing feature is enabled when each of these commands have successfully completed, and a new MAP set was created, a message similar to the following should appear.

    rlghncxa03w 07-05-07  11:44:13  GMT  EAGLE5 37.0.0
    New MAPSET Created : MAPSETID = 9
    ENT-MAP:  MASP A - COMPLTD

    If the Flexible GTT Load Sharing feature is enabled when each of these commands have successfully completed, and the mated application was added to the default MAP set, this message should appear.

    rlghncxa03w 07-05-07  11:44:13  GMT  EAGLE5 37.0.0
    ENT-MAP:  MASP A - COMPLTD

    If no other entries are being added to the mated application, or if the EAGLE's true point code was specified for the mated application, continue the procedure with 18.

    If other entries are being added to the mated application, continue the procedure with 17.

  17. Add the mated point code and subsystem to the mated application using the chg-map command. Use Table 2-44 as a guide for the parameters and values that can be specified with the chg-map command.

    Table 2-44 Dominant Mated Application Parameter Combinations for the CHG-MAP Command

    Mandatory Parameters
    :pc/pca/pci/pcn/pcn24=<ANSI, ITU-I, ITU-I spare, ITU-N, ITU-N spare, or ITU-N24 primary point code that the mate point code will be assigned to> (See Notes 4 and 8)
    :ssn=<subsystem number assigned to the primary point code>
    :mpc/mpca/mpci/mpcn/mpcn24=<ANSI, ITU-I, ITU-I spare, ITU-N, ITU-N spare, or ITU-N24 point code of the mate from the rtrv-rte or rtrv-map outputs> (See Notes 2, 4, and 8)
    :mssn=<subsystem number of the mate, 2 - 255>
    :materc=<0 - 99> Thematerc parameter value must be greater than therc parameter value.
    Optional Parameters
    :grp=<CSPC group name> (See Notes 1 and 6)
    :sso=<on, off> (See Note 6)
    :srm=<yes, no> (See Notes 5 and 6)
    :mrc=<yes, no> (See Note 6)
    :mapset=<dflt or the number of an existing MAP set> (See Note 3)
    :mrnset = <MRN set ID from thertrv-mrn output> (See Note 7)
    :mrnpc/mrnpca/mrnpci/mrnpcn/mrnpcn24=<the point code value in the MRN set> (See Notes 7 and 8)
    Notes
    1. The format of the point codes in the CSPC group specified with the grp parameter must be the same as the primary point code specified with the chg-map command only if the ANSI/ITU SCCP Conversion feature is not enabled. If the ANSI/ITU SCCP Conversion feature is enabled, the CSPC group may contain a mixture of point code types (refer to the Adding a Concerned Signaling Point Code procedure), and the network type of the CSPC group can be different from the network type of the primary point code of the mated application.
    2. For mated applications containing ANSI or 24-bit ITU-N point codes, or the EAGLE's true point code, the format of the point codes specified in the chg-map command must be the same. For example, if the primary point code is a 24-bit ITU-N point code (pcn24), the mate point code must be a 24-bit ITU-N point code (mpcn24). The mate point codes of mated applications containing either ITU-I, ITU-I spare, 14-bit ITU-N, or 14-bit ITU-N spare primary point codes do not have to be the same format as the primary point code. The mate point codes of these mated applications can be a mixture of ITU-I, ITU-I spare, 14-bit ITU-N, or 14-bit ITU-N spare point codes.
    3. If the Flexible GTT Load Sharing is enabled, the mapset parameter must be specified with the chg-map command.

      If the Flexible GTT Load Sharing is not enabled, themapset parameter cannot be specified with thechg-map command.

      To provision entries in the default MAP set, themapset=dflt parameter must be specified with thechg-map command.

      To provision entries in an existing MAP set, themapset parameter must be specified with the MAP set ID value of that MAP set.

      A MAP set, other than the default MAP set, is a MAP group provisioned with the MAP set ID and can contain a maximum of 32 point code and subsystem entries.

      The default MAP set can contain multiple MAP groups. Each group in the default MAP set can contain a maximum of 32 point code and subsystem entries.

      The point code and subsystem entry can appear only once in the default MAP set, so the point code and subsystem entry can appear in only one MAP group in the default MAP set.

      The point code and subsystem entry provisioned in a MAP set can be provisioned in multiple MAP sets. If a point code and subsystem entry is provisioned in different MAP sets, the relative cost value of the entry in each MAP set can be different. All the point code and subsystem entries in a MAP set, including the default MAP set, must be different.

    4. If the point code selected from either the rtrv-rte or rtrv-map outputs is a 14-bit ITU-N point code, then the pcn/mpcn parameters must be specified. If the point code selected from either the rtrv-rte or rtrv-map outputs is a 24-bit ITU-N point code, then the pcn24/mpcn24 parameters must be specified.
    5. The srm=yes parameter can be specified only for mated applications containing ANSI point codes.
    6. When the CSPC group name (grp), mrc, srm, or sso values for a specific point code and SSN in a mated application are changed, these parameter values for this specific point code and SSN in all applicable mated applications will be changed to the new values.
    7. The mrnset and mrnpc/mrnpca/mrnpci/mrnpcn/mrnpcn24 parameters can be specified only if the GTT Load Sharing with Alternate Routing Indicator feature is enabled. Refer to the Activating the GTT Load Sharing with Alternate Routing Indicator Feature procedure for information about enabling the GTT Load Sharing with Alternate Routing Indicator feature. The mrnset and mrnpc/mrnpca/mrnpci/mrnpcn/mrnpcn24 values must be shown in the rtrv-mrn output.
    8. The network type of the pc/pca/pci/pcn/pcn24 and mrnpc/mrnpca/mrnpci/mrnpcn/mrnpcn24 parameter values must be compatible, as shown in Table 2-41.

    If the Flexible GTT Load Sharing feature is not enabled for this example, enter these commands.

    chg-map:pca=005-005-005:ssn=250:rc=10:mpca=070-070-070 :mssn=251:materc=30:grp=grp05:mrc=yes:srm=yes:sso=on

    chg-map:pca=008-008-008:ssn=254:rc=10:mpca=031-049-100 :mssn=250:materc=40:grp=grp15:mrc=yes:srm=yes:sso=on

    chg-map:pca=008-008-008:ssn=254:rc=10:mpca=056-113-200 :mssn=251:materc=50:grp=grp05:mrc=yes:srm=yes:sso=off

    chg-map:pci=5-005-5:ssn=50:rc=10:mpci=s-5-005-6:mssn=50:materc=21 :grp=grp20:mrc=yes:sso=off

    chg-map:pci=5-005-5:ssn=50:rc=10:mpci=5-005-1:mssn=50:materc=22 :grp=grp20:mrc=yes:sso=off

    When each of these commands have successfully completed, this message should appear.

    rlghncxa03w 07-05-07  11:44:13  GMT  EAGLE5 37.0.0
    CHG-MAP:  MASP A - COMPLTD

    If the Flexible GTT Load Sharing feature is enabled for this example, enter these commands.

    chg-map:pca=005-005-005:ssn=250:rc=10:mpca=070-070-070 :mssn=251:materc=30:grp=grp05:mrc=yes:srm=yes:sso=on :mapset=dflt

    chg-map:pca=008-008-008:ssn=254:rc=10:mpc=179-183-050:mssn=250 :materc=11:grp=grp15:sso=off:mapset=12

    chg-map:pca=008-008-008:ssn=254:rc=10:mpca=031-049-100 :mssn=250:materc=40:grp=grp15:mrc=yes:srm=yes:sso=on:mapset=13

    chg-map:pca=008-008-008:ssn=254:rc=10:mpca=056-113-200 :mssn=251:materc=50:grp=grp05:mrc=yes:srm=yes:sso=off:mapset=13

    chg-map:pci=5-005-5:ssn=50:rc=10:mpci=s-5-005-6:mssn=50:materc=21 :grp=grp20:mrc=yes:sso=off:mapset=14

    chg-map:pci=5-005-5:ssn=50:rc=10:mpci=5-005-1:mssn=50:materc=22 :grp=grp20:mrc=yes:sso=off:mapset=14

    If the GTT Load Sharing with Alternate Routing Indicator feature is enabled for this example, and the mrnset and mrnpc parameters were not specified in 16, enter these commands.

    chg-map:pca=005-005-005:ssn=250:rc=10:mpca=070-070-070 :mssn=251:materc=30:grp=grp05:mrc=yes:srm=yes:sso=on :mapset=dflt:mrnset=1:mrnpc=007-007-007

    chg-map:pca=008-008-008:ssn=254:rc=10:mpc=179-183-050:mssn=250 :materc=11:grp=grp15:sso=off:mapset=12:mrnset=dflt:mrnpc=005-005-005

    When each of these commands have successfully completed, this message should appear.

    rlghncxa03w 07-05-07  11:44:13  GMT  EAGLE5 37.0.0
    CHG-MAP:  MASP A - COMPLTD

    Repeat this step for all new entries being added to the existing mated application.

    If the Flexible GTT Load Sharing feature is not enabled, the mated application can contain a maximum of 32 entries.

    If the Flexible GTT Load Sharing feature is enabled, and the MAP set is not the default MAP set, the MAP set can contain a maximum of 32 entries.

    If the Flexible GTT Load Sharing feature is enabled, and the MAP set is the default MAP set, the default MAP set can contain multiple MAP groups. Each group in the default MAP set can contain a maximum of 32 point code and subsystem entries.

  18. Verify the changes using the rtrv-map command with the primary point code and subsystem specified in 16 and 17.

    If a new MAP set was created in 16, the mapset parameter should be specified with the rtrv-map command. The value for the mapset parameter should be the MAP set ID generated in 16.

    If the mated application was added to an existing MAP in 17, the mapset parameter and value specified in 17 should be specified with the rtrv-map command.

    If the Flexible GTT Load Sharing feature is not enabled for this example, enter these commands.

    rtrv-map:pca=003-003-003:ssn=254

    This is an example of the possible output.

    rlghncxa03w 09-02-07 00:34:31 GMT EAGLE5 40.1.0

    PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
    003-003-003                 254 10  DOM YES YES grp10    ON
                   040-040-040  254 20  DOM YES YES grp10    ON

    MAP TABLE IS  (38 of 1024) 4 % FULL

    rtrv-map:pca=005-005-005:ssn=250

    This is an example of the possible output.

    rlghncxa03w 09-02-07 00:34:31 GMT EAGLE5 40.1.0

    PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
    005-005-005                 250 10  DOM YES YES grp15    OFF
                   060-060-060  250 20  DOM YES YES grp15    OFF
                   070-070-070  251 30  DOM YES YES grp05    ON

    MAP TABLE IS  (38 of 1024)  4 % FULL

    rtrv-map:pca=008-008-008:ssn=254

    This is an example of the possible output.

    rlghncxa03w 09-02-07 00:34:31 GMT EAGLE5 40.1.0

    PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
    008-008-008                 254 10  DOM YES YES grp10    ON
                   031-049-100  250 40  DOM YES YES grp15    ON
                   056-113-200  251 50  DOM YES YES grp05    OFF

    MAP TABLE IS  (38 of 1024)  4 % FULL

    rtrv-map:pci=5-005-5:ssn=50

    This is an example of the possible output.

    rlghncxa03w 09-02-07 00:34:31 GMT EAGLE5 40.1.0

    PCI       NET  Mate PC      SSN RC MULT SRM MRC GRP NAME SSO
    5-005-5                      50 10  DOM NO  YES grp20    OFF
              N    0257          50 20  DOM NO  YES grp20    OFF
              I  s-5-005-6       50 21  DOM NO  YES grp20    OFF
              I    5-005-1       50 22  DOM NO  YES grp20    OFF

    MAP TABLE IS  (38 of 1024)  4 % FULL

    Note:

    If the Weighted GTT Load Sharing feature is enabled, theWT,%WT, andTHR columns are shown in thertrv-map output.

    If the Flexible GTT Load Sharing feature is enabled for this example, enter these commands.

    rtrv-map:pca=003-003-003:ssn=254:mapset=11

    This is an example of the possible output.

    rlghncxa03w 09-02-07 00:34:31 GMT EAGLE5 40.1.0

    MAPSET ID=11    MRNSET=DFLT     MRNPC=005-005-005
    PCA            Mate PCA      SSN RC MULT SRM MRC GRP NAME SSO
    003-003-003                  254 10  DOM YES YES grp10    ON
                   040-040-040   254 20  DOM YES YES grp10    ON

    MAP TABLE IS  (38 of 36000)  1 % FULL

    rtrv-map:pca=005-005-005:ssn=250:mapset=dflt

    This is an example of the possible output.

    rlghncxa03w 09-02-07 00:34:31 GMT EAGLE5 40.1.0

    MAPSET ID=DFLT  MRNSET=1        MRNPC=007-007-007
    PCA            Mate PCA      SSN RC MULT SRM MRC GRP NAME SSO
    005-005-005                  250 10  DOM YES YES grp15    OFF
                   060-060-060   250 20  DOM YES YES grp15    OFF
                   070-070-070   251 30  DOM YES YES grp05    ON

    MAP TABLE IS  (38 of 36000)  1 % FULL

    rtrv-map:pca=008-008-008:ssn=254:mapset=13

    This is an example of the possible output.

    rlghncxa03w 09-02-07 00:34:31 GMT EAGLE5 40.1.0

    MAPSET ID=13    MRNSET=DFLT    MRNPC=005-005-005
    PCA            Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO
    008-008-008                 254 10  DOM YES YES grp10    ON
                   031-049-100  250 40  DOM YES YES grp15    ON
                   056-113-200  251 50  DOM YES YES grp05    OFF

    MAP TABLE IS  (38 of 36000)  1 % FULL

    rtrv-map:pci=5-005-5:ssn=50:mapset=14

    This is an example of the possible output.

    rlghncxa03w 09-02-07 00:34:31 GMT EAGLE5 40.1.0

    MAPSET ID=14    MRNSET ID=----  MRNPC=-----------
    PCI       NET  Mate PC       SSN RC MULT SRM MRC GRP NAME SSO
    5-005-5                       50 10  DOM NO  YES grp20    OFF
              N    0257           50 20  DOM NO  YES grp20    OFF
              I  s-5-005-6        50 21  DOM NO  YES grp20    OFF
              I    5-005-1        50 22  DOM NO  YES grp20    OFF

    MAP TABLE IS  (38 of 36000)  4 % FULL

    If the Weighted GTT Load Sharing feature is enabled, the WT, %WT, and THR columns are shown in the rtrv-map output.

    If the GTT Load Sharing with Alternate Routing Indicator feature is not enabled, the MRNSET and MRNPC fields are not shown in the rtrv-map output.

  19. Back up the new changes using the chg-db:action=backup:dest=fixed command.
    BACKUP (FIXED) : MASP A - Backup starts on active MASP.
    BACKUP (FIXED) : MASP A - Backup on active MASP to fixed disk complete.
    BACKUP (FIXED) : MASP A - Backup starts on standby MASP.
    BACKUP (FIXED) : MASP A - Backup on standby MASP to fixed disk complete.

Figure 2-62 Provision a Dominant Mated Application- Sheet 1 of 17

Figure 2-63 Provision a Dominant Mated Application - Sheet 2 of 17

Figure 2-64 Provision a Dominant Mated Application - Sheet 3 of 17

Figure 2-65 Provision a Dominant Mated Application - Sheet 4 of 17

Figure 2-66 Provision a Dominant Mated Application - Sheet 5 of 17

Figure 2-67 Provision a Dominant Mated Application - Sheet 6 of 17

Figure 2-68 Provision a Dominant Mated Application - Sheet 7 of 17

Figure 2-69 Provision a Dominant Mated Application - Sheet 8 of 17

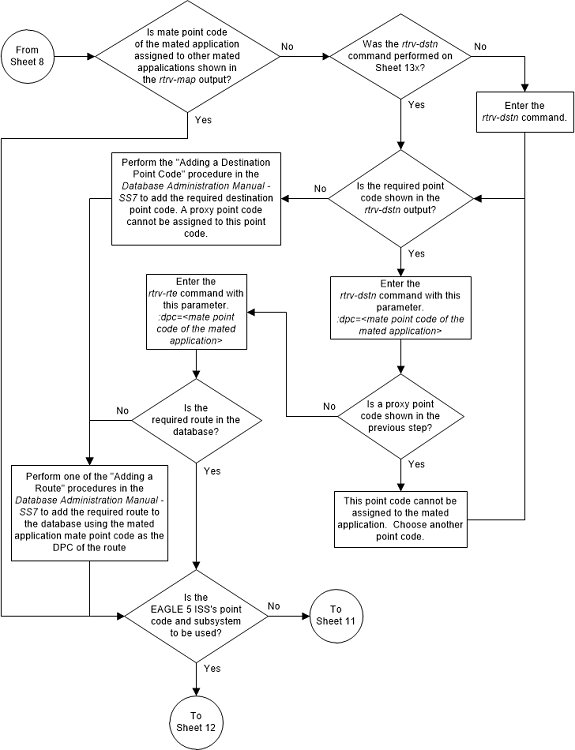

Figure 2-70 Provision a Dominant Mated Application - Sheet 9 of 17

Figure 2-71 Provision a Dominant Mated Application - Sheet 10 of 17

Figure 2-72 Provision a Dominant Mated Application - Sheet 11 of 17

Figure 2-73 Provision a Dominant Mated Application - Sheet 12 of 17

Figure 2-74 Provision a Dominant Mated Application - Sheet 13 of 17

Figure 2-75 Provision a Dominant Mated Application - Sheet 14 of 17

Figure 2-76 Provision a Dominant Mated Application - Sheet 15 of 17

Figure 2-77 Provision a Dominant Mated Application - Sheet 16 of 17

Figure 2-78 Provision a Dominant Mated Application - Sheet 17 of 17
