Changing the Weight and In-Service Threshold Values of a Mated Application

This procedure is used to change the weight and in-service threshold values, for the Weighted GTT Load Sharing feature, that are assigned to the entries in an existing mated application (MAP) group or MAP set using the chg-map command with the parameters shown in Table 2-53.

Table 2-53 Mated Application Weight and In-Service Threshold Parameters

wt

eswt

grpwt

thr

The eswt, grpwt, wt, and thr parameters can be used only if the MAP group or MAP set is either a load shared or combined dominant/load shared MAP group or MAP set, and the Weighted GTT Load Sharing feature is enabled and turned on.

A load shared mated application contains more than one entry and the RC values of these entries are equal. A combined dominant/load shared mated application contains more than one entry and must contain a minimum of two entries whose RC values are equal and one entry whose RC value is different.

The status of the Weighted GTT Load Sharing feature can be verified by entering the rtrv-ctrl-feat command. If the Weighted GTT Load Sharing feature is not enabled or not turned on, perform the Activating the Weighted GTT Load Sharing Feature procedure to enable and turn on the Weighted GTT Load Sharing feature.

The rc parameter can also be specified in this procedure. Changing the rc value of the mated application in this procedure is not performed to change the mated application type. If you wish to change the mated application type, perform the Changing the Mated Application Type procedure.

The chg-map command contains other parameters that are not used in this procedure. Perform these procedures as applicable to change the other parameter values.

• To change the MRNSET and MRN point code values assigned to the mated application, perform the Changing the MRNSET and MRN Point Code Values of MAP Entries procedure.
• To change other attributes of the mated application, perform the Changing the Attributes of a Mated Application procedure.

The chg-map command can also be used to add point code/SSN entries to an existing MAP group or MAP set. This action is not covered in this procedure. If you wish to add point code/SSN entries to an existing MAP group or MAP set, perform one of these procedures.

• Provisioning a Solitary Mated Application
• Provisioning a Dominant Mated Application
• Provisioning a Load Shared Mated Application
• Provisioning a Combined Dominant/Load Shared Mated Application

The chg-map command uses these parameters.

:pc/pca/pci/pcn/pcn24 – The point code of the primary signaling point that is to receive the message.

Note:

The point codes can be either an ANSI point code (pc/pca, mpc/mpca), ITU-I or ITU-I spare point code (pci, mpci), a 14-bit ITU-N or 14-bit ITU-N spare point code (pcn, mpcn), or a 24-bit ITU-N (pcn24, mpcn24) point code.

Note:

Refer to Chapter 2, Configuring Destination Tables, in Database Administration - SS7 User's Guide for a definition of the point code types that are used on the EAGLE and for a definition of the different formats that can be used for ITU national point codes.

:ssn – Subsystem number – the subsystem address of the primary point code that is to receive the message.

:rc – The relative cost value of the primary point code and subsystem, defined by the pc/pca/pci/pcn/pcn24 and ssn parameters. The rc parameter has a range of values from 0 to 99.

:mapset – The MAP set ID that the mated applications are assigned to, shown in the rtrv-map output. MAP set IDs are shown only if the Flexible GTT Load Sharing feature is enabled. The mapset parameter value cannot be changed in this procedure. If the rtrv-map output shows the MAPSET field, the mapset parameter must be specified with the chg-map command. If the rtrv-map output does not show the MAPSET field, the Flexible GTT Load Sharing feature is not enabled. The mapset parameter cannot be specified with the chg-map command. The mapset parameter has two values.

• dflt – to change the mated application in the default MAP set. The EAGLE’s true point code (shown in the rtrv-sid output) and subsystem can be assigned only to the default MAP set.
• the specific number of an existing MAP set if you are changing the mated application in an existing MAP set.

:eswt – The entity set weight value. When this parameter is specified, the same weight value is assigned to all entries in the MAP group or MAP set that contain the point code value specified in the chg-map command. A MAP group or MAP set can also be referred to as an entity set. The value of this parameter is from 1 - 99.

:grpwt – The group weight value. When this parameter is specified, the same weight value is assigned to all entries that have the same RC (relative cost) value in the MAP group or MAP set that contain the point code specified in the chg-map command. The value of this parameter is from 1 - 99.

Note:

Specifying the grpwt parameter for a load shared mated application has the same effect as specifying the eswt parameter for a load shared mated application as all the entries in a load shared mated application have the same RC value.

:wt – The weight value assigned to a specific point code and SSN entry in the mated application. The value of this parameter is from 1 - 99. This parameter allows for each entry in the mated application to have a different weight value.

:thr – The in-service threshold assigned to the MAP group or MAP set. The in-service threshold is the minimum percentage (from 1 - 100) of weight that must be available for an RC group (a group of entries in the MAP group or MAP set that have the same RC value assigned) to be considered available to carry traffic. If the percentage of the available weight is less than the in-service threshold, then the entire RC group is considered unavailable for traffic. If the percentage of the available weight is equal to or greater than the in-service threshold, then the RC group is considered available, and traffic can be sent to any available entity in the RC group. When the thr parameter is specified with the eswt parameter, the in-service threshold value is assigned to all the entries of the MAP group or MAP set. When the thr parameter is specified with the grpwt parameter, or without either the eswt or grpwt parameters, the in-service threshold value is assigned to all the entries of the MAP group or MAP set that have the same RC value as the point code specified with the chg-map command.

:force=yes – This parameter must be specified if the rc parameter is specified with the wt parameter.

Weighted GTT Load Sharing allows unequal traffic loads to be provisioned in MAP load sharing groups or MAP load sharing sets. This feature also allows provisioning control over load sharing groups or sets so that if insufficient capacity within the load sharing group or set is available, the load sharing group or set is not used.

The weight and in-service threshold values for a mated application are shown in the rtrv-map output. The weight values assigned to the entires in the MAP group or MAP set are shown in the WT column in the rtrv-map output.

The %WT column in the rtrv-map output shows the percentage of the traffic the particular entry in the entity set will handle.

The in-service threshold values assigned to the entires in the MAP group or MAP set are shown in the THR column in the rtrv-map output.

The WT, %WT, and THR columns are shown in the rtrv-map output only if the Weighted GTT Load Sharing feature is enabled and turned on.

For more information on the Weighted GTT Load Sharing feature, refer to the Weighted GTT Load Sharing section.

The mated application to be changed must be in the database.

Canceling the RTRV-MAP Command

Because the rtrv-map command used in this procedure can output information for a long period of time, the rtrv-map command can be canceled and the output to the terminal stopped. There are three ways that the rtrv-map command can be canceled.

• Press the F9 function key on the keyboard at the terminal where the rtrv-map command was entered.
• Enter the canc-cmd without the trm parameter at the terminal where the rtrv-map command was entered.
• Enter the canc-cmd:trm=<xx>, where <xx> is the terminal where the rtrv-map command was entered, from another terminal other that the terminal where the rtrv-map command was entered. To enter the canc-cmd:trm=<xx> command, the terminal must allow Security Administration commands to be entered from it and the user must be allowed to enter Security Administration commands. The terminal’s permissions can be verified with the rtrv-secu-trm command. The user’s permissions can be verified with the rtrv-user or rtrv-secu-user commands.

For more information about the canc-cmd command, refer to Commands User's Guide.

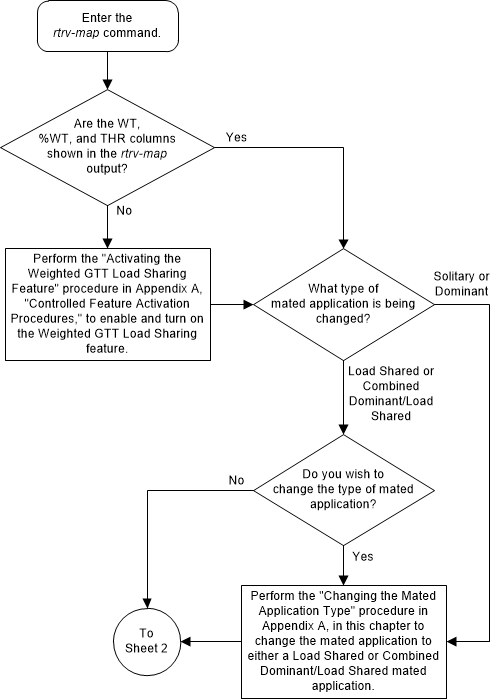

1. Display the mated applications in the database using the rtrv-map command.

   This is an example of the possible output.

   rlghncxa03w 09-07-07 00:34:31 GMT EAGLE5 41.1.0

      MAPSET ID=DFLT
      PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
      002-002-002               250 10  SHR *Y  *Y  grp15    ON  10  33  20
                   100-130-079  250 10  SHR *Y  *Y  grp15    ON  10  33  20
                   068-135-094  251 10  SHR *Y  *Y  grp05    OFF 10  33  20

      MAPSET ID=10
      PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
      003-003-003               254 10  DOM YES YES grp10    ON  -- ---  --
                   040-040-040  254 20  DOM YES YES grp10    ON  -- ---  --

      MAPSET ID=11
      PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
      004-004-004               254 10  SHR *Y  *Y  grp10    OFF -- ---  --
                   100-100-100  254 10  SHR *Y  *Y  grp10    OFF -- ---  --

      MAPSET ID=DFLT
      PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
      005-005-005               250 10  SHR *Y  *Y  grp15    OFF -- ---  --
                   060-060-060  250 10  SHR *Y  *Y  grp15    OFF -- ---  --
                   070-070-070  251 10  SHR *Y  *Y  grp05    ON  -- ---  --

      MAPSET ID=9
      PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
      006-006-006               250 10  SOL *Y  *Y  grp15    OFF -- ---  --

      MAPSET ID=DFLT
      PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
      007-007-007               251 10  SOL *Y  *Y  grp05    ON  -- ---  --

      MAPSET ID=12
      PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
      008-008-008               254 10  COM YES *Y  grp10    ON  10  33  20
                   200-147-100  254 10  COM YES *Y  grp10    ON  10  33  20
                   179-183-050  250 10  COM YES *Y  grp15    OFF 10  33  20
                   031-049-100  250 20  COM YES *Y  grp15    ON  10  50  20
                   056-113-200  251 20  COM YES *Y  grp05    OFF 10  50  20

      MAPSET ID=DFLT
      PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
      255-001-000               250 10  SOL *Y  *Y  grp01    ON  -- ---  --

      MAPSET ID=1
      PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
      255-001-000               251 10  SHR *Y  *Y  grp01    OFF -- ---  --
                   253-001-002  254 10  SHR *Y  *Y  grp01    OFF -- ---  --

      MAPSET ID=2
      PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
      255-001-000               252 10  SOL *Y  *Y  grp01    ON  -- ---  --

      MAPSET ID=DFLT
      PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
      255-001-000               253 10  SHR *Y  *Y  grp01    OFF -- ---  --
                   253-001-004  254 10  SHR *Y  *Y  grp01    OFF -- ---  --
      MAPSET ID=3
      PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
      255-001-001               255 10  DOM YES YES grp01    ON  -- ---  --
                   253-001-005  254 20  DOM YES YES grp01    ON  -- ---  --

      MAPSET ID=4
      PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
      255-001-001               250 10  DOM NO  NO  grp01    OFF -- ---  --
                   253-001-001  254 20  DOM NO  NO  grp01    OFF -- ---  --

      MAPSET ID=DFLT
      PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
      255-001-002               251 10  SHR *Y  *Y  grp01    OFF -- ---  --
                   255-001-002  254 10  SHR *Y  *Y  grp01    OFF -- ---  --

      MAPSET ID=5
      PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
      255-001-002               252 10  DOM YES YES grp01    ON  -- ---  --
                   255-001-003  254 20  DOM YES YES grp01    ON  -- ---  --

      MAPSET ID=6
      PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
      255-001-002               253 10  SHR *Y  *Y  grp01    ON  -- ---  --
                   255-001-004  254 10  SHR *Y  *Y  grp01    ON  -- ---  --

      MAPSET ID=7
      PCI          Mate PCI     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
      2-001-2                   255 10  DOM YES YES grp03    OFF -- ---  --
                   2-001-1      254 20  DOM YES YES grp03    OFF -- ---  --

      MAPSET ID=8
      PCN          Mate PCN     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
      00347                     253 10  SHR *N  *N  grp05    OFF -- ---  --
                   01387        254 10  SHR *N  *N  grp05    OFF -- ---  --

   MAP TABLE IS  (37 of 36000)  1 % FULL

   If any of the following items are not shown in the rtrv-map output, then the feature corresponding to these items is not enabled, or turned on if required.

   • The MAPSET field - the Flexible GTT Load Sharing feature is not enabled.
   • The MRNSET and MRNPC fields - the GTT Load Sharing with Alternate Routing Indicator feature is not enabled.
   • The WT, %WT, THR columns - the Weighted GTT Load Sharing feature is not enabled and turned on.

   If the WT, %WT, THR columns are not shown in the rtrv-map output, perform the Activating the Weighted GTT Load Sharing Feature procedure to enable and turn on the Weighted GTT Load Sharing feature.

   After the Weighted GTT Load Sharing feature has been enabled and turned on, or if the rtrv-map output shows that the Weighted GTT Load Sharing feature is enabled and turned on, continue the procedure by performing one of these actions.

   • If the mated application that will be changed is a solitary or dominant mated application, perform the Changing the Mated Application Type procedure to change the mated application to either a load shared mated application or a combined dominant/load shared mated application. After the mated application has been changed, continue the procedure with 2.
   • If the mated application that will be changed is a load shared or combined dominant/load shared mated application, continue the procedure with 2.

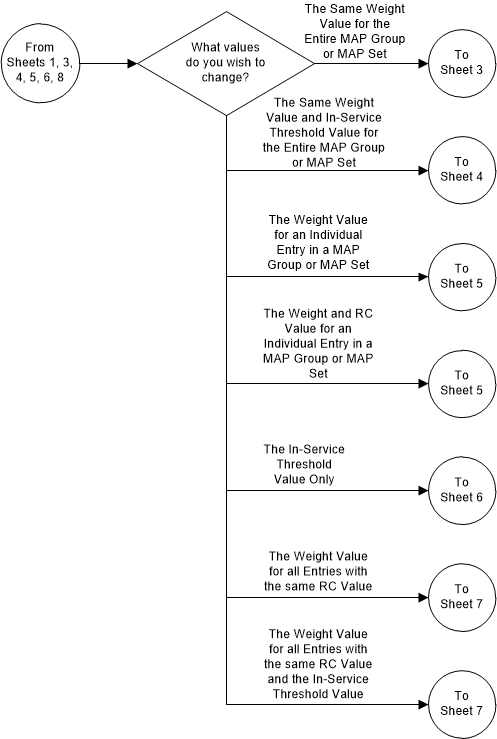

2. There are several ways to change the weight and in-service threshold values in a MAP group or MAP set.

   Perform one or more of these substeps to change the weight and in-service threshold values in a MAP group or MAP set.

   Note:

   If the MAPSET field is shown in the rtrv-map output in 1, the mapset parameter and the MAP set ID of the mated application that is being changed must be specified with the chg-map command. If the MAPSET field is not shown in the rtrv-map output in 1, the mapset parameter cannot be specified with the chg-map command.

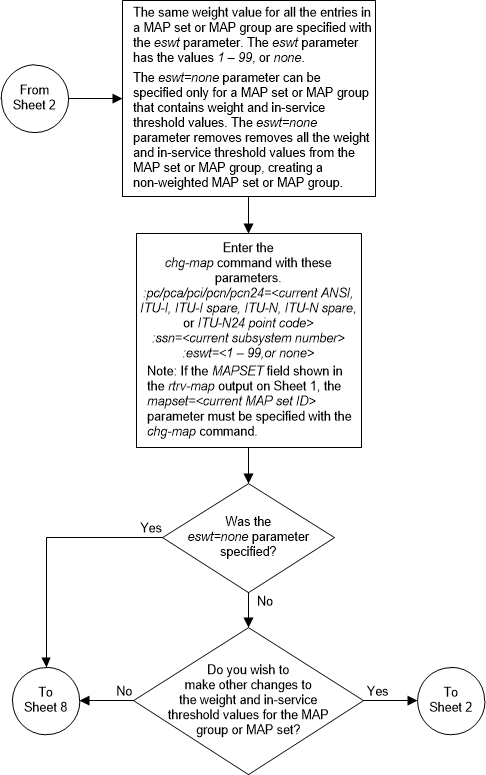

   1. To assign the same weight value to each entry in the MAP group or MAP set, or to remove the weight and in-service threshold values for a MAP group or MAP set, specify these parameters with the chg-map command.
      • :pc/pca/pci/pcn/pcn24
      • ssn
      • eswt

      To assign the same weight value to each entry in the MAP group or MAP set, for this example enter this command.

      chg-map:pca=005-005-005:ssn=250:eswt=30:mapset=dflt

      If the MAP group or MAP set did not have weight and in-service threshold values assigned before this substep was performed, the in-service threshold value 1 (1%) is assigned to the entries.

      To remove the weight and in-service threshold values for each entry in the MAP group or MAP set, for this example enter this command.

      chg-map:pca=008-008-008:ssn=254:eswt=none:mapset=dflt

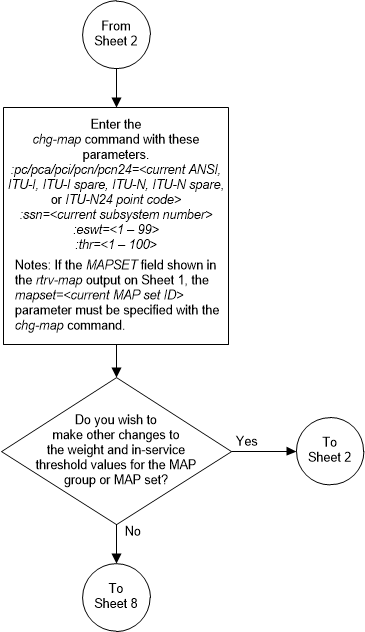

   2. To assign the same weight value and the in-service threshold value to all the entries in the MAP group or MAP set, specify these parameters with the chg-map command.
      • :pc/pca/pci/pcn/pcn24
      • ssn
      • eswt
      • thr

      For this example, enter this command.

      chg-map:pca=005-005-005:ssn=250:eswt=20:thr=30:mapset=dflt

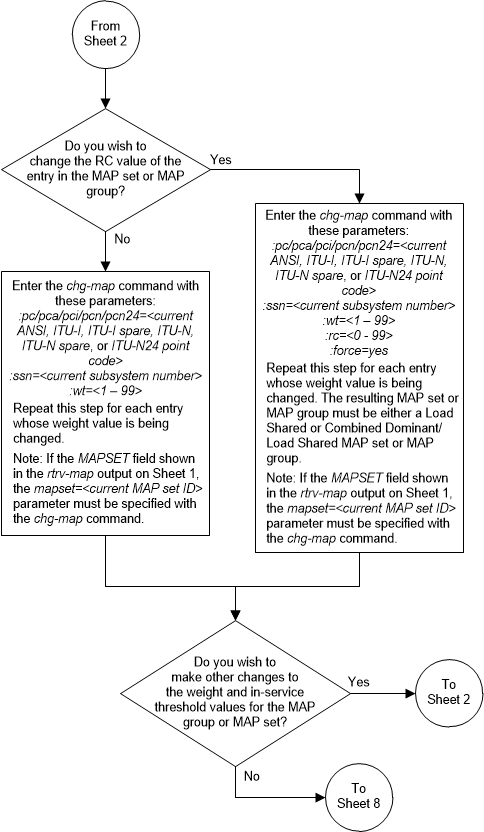

   3. To change only the weight value for an individual entry in the MAP group or MAP set, specify these parameters with the chg-map command
      • :pc/pca/pci/pcn/pcn24
      • ssn
      • wt

      For this example, enter this command.

      chg-map:pca=008-008-008:ssn=254:wt=30:mapset=12

      This substep can be repeated for other entries in the MAP group or MAP set.

   4. To change the weight value for an individual entry in the MAP group or MAP set, and to change the RC value for that entry, specify these parameters with the chg-map command
      • :pc/pca/pci/pcn/pcn24
      • ssn
      • wt
      • rc
      • force=yes

      For this example, enter this command.

      chg-map:pca=008-008-008:ssn=254:wt=30:rc=20:mapset=12:force=yes

      The force=yes parameter must be specified with the chg-map command if the wt and rc parameters are specified with the chg-map command

      Changing the RC value of the mated application in this substep is not performed to change the mated application type. If you wish to change the mated application type, perform the Changing the Mated Application Type procedure.

      This substep can be repeated for other entries in the MAP group or MAP set.

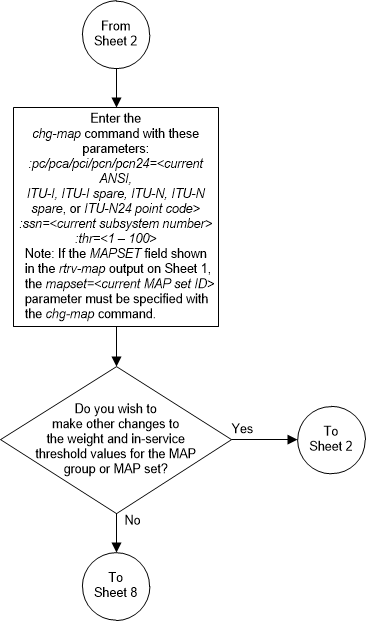

   5. To change only the in-service threshold of the MAP group or MAP set, specify these parameters with the chg-map command.
      • :pc/pca/pci/pcn/pcn24
      • ssn
      • thr

      For this example, enter this command.

      chg-map:pca=008-008-008:ssn=254:thr=30:mapset=12

      Changing only the in-service threshold for a MAP group or MAP set can be performed only if the MAP group or MAP set contains weight and in-service threshold values.

      If the mated application is a combined dominant/load shared mated application, the in-service threshold value was changed only for all the entries that are in the RC group that contains the entry specified in this command. This substep can be repeated for other RC groups in the MAP group or MAP set.

      If the mated application is a load shared mated application, the in-service threshold value was changed for all entries in the MAP group or MAP set.

   6. To change the weight values for all entries in an RC group in the MAP group or MAP set, specify these parameters with the chg-map command.
      • :pc/pca/pci/pcn/pcn24
      • ssn
      • grpwt

      For this example, enter this command.

      chg-map:pca=008-008-008:ssn=254:grpwt=30:mapset=12

      Changing the weight values for all entries in an RC group in the MAP group or MAP set can be performed only if the MAP group or MAP set contains weight and in-service threshold values.

      Specifying the grpwt parameter for a load shared mated application has the same effect as specifying the eswt parameter for a load shared mated application as all the entries in a load shared mated application have the same RC value.

      If the MAP group or MAP set did not have weight and in-service threshold values assigned before this substep was performed, the in-service threshold value 1 (1%) is assigned to the entries.

      This substep can be repeated for other RC groups in the MAP group or MAP set.

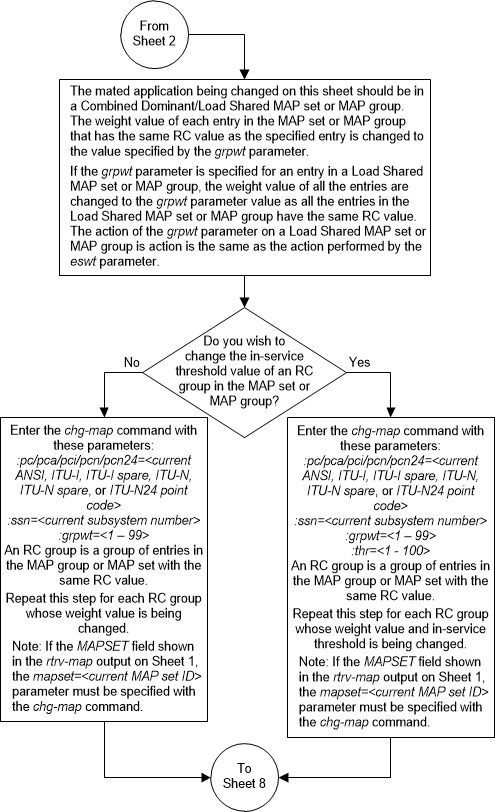

   7. To change the weight and the in-service threshold values for all entries in an RC group in the MAP group or MAP set, specify these parameters with the chg-map command.
      • :pc/pca/pci/pcn/pcn24
      • ssn
      • grpwt
      • thr

      For this example, enter this command.

      chg-map:pca=008-008-008:ssn=254:grpwt=20:thr=30:mapset=12

      Changing the weight and in-service threshold values for all entries in an RC group in the MAP group or MAP set can be performed only if the MAP group or MAP set contains weight and in-service threshold values.

      Specifying the grpwt parameter for a load shared mated application has the same effect as specifying the eswt parameter for a load shared mated application as all the entries in a load shared mated application have the same RC value.

      This substep can be repeated for other RC groups in the MAP group or MAP set.

   When the chg-map command has successfully completed, this message should appear.

   rlghncxa03w 09-07-07  11:44:13  GMT  EAGLE5 41.1.0
   CHG-MAP:  MASP A - COMPLTD

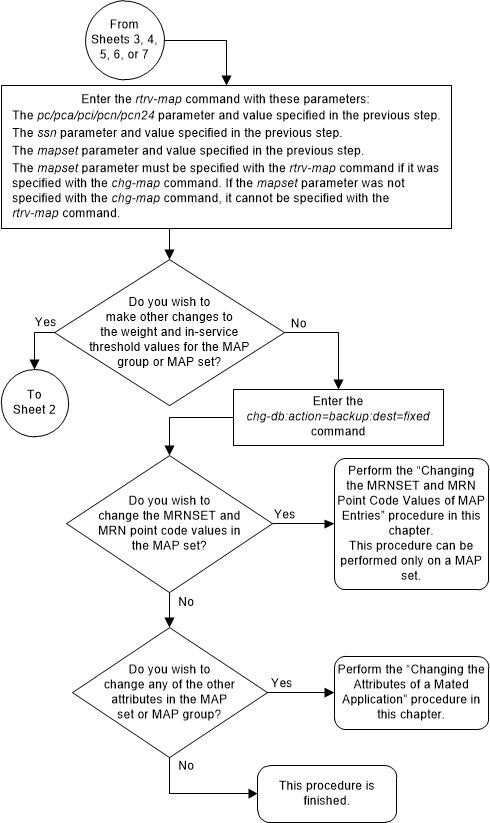

3. Verify the changes using the rtrv-map command with the primary point code and subsystem specified in 2.

   If the mapset parameter was specified in 2, the mapset parameter and value specified in 2 must be specified with the rtrv-map command in this step.

   If the mapset parameter was not specified in 2, the mapset parameter cannot be specified with the rtrv-map command in this step.

   1. If the same weight value was assigned to each entry in the MAP group or MAP set in substep 2a, for this example enter this command.

      rtrv-map:pca=005-005-005:ssn=250:mapset=dflt

      This is an example of the possible output.

      rlghncxa03w 09-07-07 00:34:31 GMT EAGLE5 41.1.0

         MAPSET ID=DFLT
         PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
         005-005-005               250 10  SHR *Y  *Y  grp15    OFF 30  33   1
                      060-060-060  250 10  SHR *Y  *Y  grp15    OFF 30  33   1
                      070-070-070  251 10  SHR *Y  *Y  grp05    ON  30  33   1

      MAP TABLE IS  (37 of 36000)  1 % FULL

   2. If the weight and in-service threshold values were removed from the MAP group or MAP set in substep 2a, for this example enter this command.

      rtrv-map:pca=008-008-008:ssn=254:mapset=dflt

      This is an example of the possible output.

      rlghncxa03w 09-07-07 00:34:31 GMT EAGLE5 41.1.0

         MAPSET ID=12
         PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
         008-008-008               254 10  COM YES *Y  grp10    ON  -- --- --
                      200-147-100  254 10  COM YES *Y  grp10    ON  -- --- --
                      179-183-050  250 10  COM YES *Y  grp15    OFF -- --- --
                      031-049-100  250 20  COM YES *Y  grp15    ON  -- --- --
                      056-113-200  251 20  COM YES *Y  grp05    OFF -- --- --

      MAP TABLE IS  (37 of 36000)  1 % FULL

   3. If the same weight value and the in-service threshold value was assigned to each entry in the MAP group or MAP set in substep 2b, for this example enter this command.

      rtrv-map:pca=005-005-005:ssn=250:mapset=dflt

      This is an example of the possible output.

      rlghncxa03w 09-07-07 00:34:31 GMT EAGLE5 41.1.0

         MAPSET ID=DFLT
         PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
         005-005-005               250 10  SHR *Y  *Y  grp15    OFF 20  33  30
                      060-060-060  250 10  SHR *Y  *Y  grp15    OFF 20  33  30
                      070-070-070  251 10  SHR *Y  *Y  grp05    ON  20  33  30

      MAP TABLE IS  (37 of 36000)  1 % FULL

   4. If the weight value for an individual entry in the MAP group or MAP set was changed in substep 2c, for this example enter this command.

      rtrv-map:pca=008-008-008:ssn=254:mapset=dflt

      This is an example of the possible output.

      rlghncxa03w 09-07-07 00:34:31 GMT EAGLE5 41.1.0

         MAPSET ID=12
         PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
         008-008-008               254 10  COM YES *Y   grp10    ON  30  60  20
                      200-147-100  254 10  COM YES *Y   grp10    ON  10  20  20
                      179-183-050  250 10  COM YES *Y   grp15    OFF 10  20  20
                      031-049-100  250 20  COM YES *Y   grp15    ON  10  50  20
                      056-113-200  251 20  COM YES *Y   grp05    OFF 10  50  20

      MAP TABLE IS  (37 of 36000)  1 % FULL

   5. If the weight value for an individual entry in the MAP group or MAP set and its RC value was changed in substep 2d, for this example enter this command.

      rtrv-map:pca=008-008-008:ssn=254:mapset=dflt

      This is an example of the possible output.

      rlghncxa03w 09-07-07 00:34:31 GMT EAGLE5 41.1.0

         MAPSET ID=12
         PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR

         200-147-100               254 10  COM YES *Y   grp10    ON  10  50  20
                      179-183-050  250 10  COM YES *Y   grp15    OFF 10  50  20
                      031-049-100  250 20  COM YES *Y   grp15    ON  10  20  20
                      056-113-200  251 20  COM YES *Y   grp05    OFF 10  20  20
                      008-008-008  254 20  COM YES *Y   grp10    ON  30  60  20

      MAP TABLE IS  (37 of 36000)  1 % FULL

   6. If only the in-service threshold value of the MAP group or MAP set in substep 2e, for this example enter this command.

      rtrv-map:pca=008-008-008:ssn=254:mapset=dflt

      This is an example of the possible output.

      rlghncxa03w 09-07-07 00:34:31 GMT EAGLE5 41.1.0

         MAPSET ID=12
         PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
         008-008-008               254 10  COM YES *Y  grp10    ON  10  33  30
                      200-147-100  254 10  COM YES *Y  grp10    ON  10  33  30
                      179-183-050  250 10  COM YES *Y  grp15    OFF 10  33  30
                      031-049-100  250 20  COM YES *Y  grp15    ON  10  50  20
                      056-113-200  251 20  COM YES *Y  grp05    OFF 10  50  20

      MAP TABLE IS  (37 of 36000)  1 % FULL

   7. If the weight values for all entries in an RC group in the MAP group or MAP set in substep 2f, for this example enter this command.

      rtrv-map:pca=008-008-008:ssn=254:mapset=dflt

      This is an example of the possible output.

      rlghncxa03w 09-07-07 00:34:31 GMT EAGLE5 41.1.0

         MAPSET ID=12
         PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
         008-008-008               254 10  COM YES *Y  grp10    ON  30  33  20
                      200-147-100  254 10  COM YES *Y  grp10    ON  30  33  20
                      179-183-050  250 10  COM YES *Y  grp15    OFF 30  33  20
                      031-049-100  250 20  COM YES *Y  grp15    ON  10  50  20
                      056-113-200  251 20  COM YES *Y  grp05    OFF 10  50  20

      MAP TABLE IS  (37 of 36000)  4 % FULL

   8. If the weight and in-service threshold values for all entries in an RC group in the MAP group or MAP set in substep 2g, for this example enter this command.

      rtrv-map:pca=008-008-008:ssn=254:mapset=dflt

      This is an example of the possible output.

      rlghncxa03w 09-07-07 00:34:31 GMT EAGLE5 41.1.0

         MAPSET ID=12
         PCA          Mate PCA     SSN RC MULT SRM MRC GRP NAME SSO WT %WT THR
         008-008-008               254 10  COM YES *Y  grp10    ON  20  33  30
                      200-147-100  254 10  COM YES *Y  grp10    ON  20  33  30
                      179-183-050  250 10  COM YES *Y  grp15    OFF 20  33  30
                      031-049-100  250 20  COM YES *Y  grp15    ON  10  50  20
                      056-113-200  251 20  COM YES *Y  grp05    OFF 10  50  20

      MAP TABLE IS  (37 of 36000)  1 % FULL

4. Backup the new changes using the chg-db:action=backup:dest=fixed command. These messages should appear, the active Maintenance and Administration Subsystem Processor (MASP) appears first.

   BACKUP (FIXED) : MASP A - Backup starts on active MASP.
   BACKUP (FIXED) : MASP A - Backup on active MASP to fixed disk complete.
   BACKUP (FIXED) : MASP A - Backup starts on standby MASP.
   BACKUP (FIXED) : MASP A - Backup on standby MASP to fixed disk complete.

   If you do not wish to change the MRNSET and MRN point code of the mated application or other attributes of the mated application, this procedure is finished.

   If you wish to change the MRNSET and MRN point code of the mated application or other attributes of the mated application, perform these procedures as applicable.

   • To change the MRNSET and MRN point code of the mated application, perform the Changing the MRNSET and MRN Point Code Values of MAP Entries procedure.
   • To change other attributes of the mated application, perform the Changing the Attributes of a Mated Application procedure.

Figure 2-118 Change the Weight and In-Service Threshold Values of a Mated Application - Sheet 1 of 8

Figure 2-119 Change the Weight and In-Service Threshold Values of a Mated Application - Sheet 2 of 8

Figure 2-120 Change the Weight and In-Service Threshold Values of a Mated Application - Sheet 3 of 8

Figure 2-121 Change the Weight and In-Service Threshold Values of a Mated Application - Sheet 4 of 8

Figure 2-122 Change the Weight and In-Service Threshold Values of a Mated Application - Sheet 5 of 8

Figure 2-123 Change the Weight and In-Service Threshold Values of a Mated Application - Sheet 6 of 8

Figure 2-124 Change the Weight and In-Service Threshold Values of a Mated Application - Sheet 7 of 8

Figure 2-125 Change the Weight and In-Service Threshold Values of a Mated Application - Sheet 8 of 8
