SCM Mobile Page Elements (Buttons, Fields, Tables)

Mobile pages contain one or more of the following page elements for navigation, data entry, search, and data submission:

Field element types – Text Box, Dynamic Message, Drop Down, Text Area, UOM

To enter data in field elements, see Data Entry on Mobile Apps.

UOM elements include a field for the quantity and a field for the unit. These fields appear side by side on a mobile page.
Button element types – Action Button, Icon, Back Button

The Capture Image Icon and Upload File Icon elements display an icon and a list that shows the captured image files or uploaded files, respectively. For more information, see Capturing and Attaching Files Through the App.
Table element types – Data Table, Search Grid, Transfer Table

The following tables show how you can use page elements and other components to perform your mobile tasks.

Element	Example
Icons To select a menu item represented by an icon, tap the menu item icon. For example, tap the Main Menu icon to access it. Groups of related icons usually appear on menu pages. They provide access to mobile process available in the app.
Hyperlinks Tap a hyperlink in a list, field, or table to select it. For example, to select from a list of open purchase orders, tap a hyperlinked order number.
Buttons Tap a button on a mobile page to perform its task. For example, tap the Find PO By Vendor button if you want to search for a purchase order associated with a specific vendor. Be sure to tap a button only one time so that the app does not skip a task or a step in the process. To move to a previous page in a process, tap the Back button. Do not use your browser’s back button to move to a previous page.
Messages Dynamic messages may contain additional information related to the mobile process. It may also contain messages that inform you about the status of a task or action. Messages and additional information may appear on mobile pages, information screens, and popup windows.

Element

Example

Icons

To select a menu item represented by an icon, tap the menu item icon.

For example, tap the Main Menu icon to access it.

Groups of related icons usually appear on menu pages. They provide access to mobile process available in the app.

Hyperlinks

Tap a hyperlink in a list, field, or table to select it.

For example, to select from a list of open purchase orders, tap a hyperlinked order number.

Buttons

Tap a button on a mobile page to perform its task.

For example, tap the Find PO By Vendor button if you want to search for a purchase order associated with a specific vendor.

Be sure to tap a button only one time so that the app does not skip a task or a step in the process.

To move to a previous page in a process, tap the Back button. Do not use your browser’s back button to move to a previous page.

Messages

Dynamic messages may contain additional information related to the mobile process. It may also contain messages that inform you about the status of a task or action. Messages and additional information may appear on mobile pages, information screens, and popup windows.

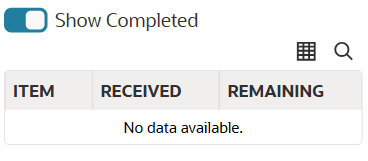

Tables

Data may appear on tables on mobile pages. You can search for data within a table and change the columns that display on it.

Table Element Controls	Example
1. Access the Table Configuration popup window, on which you can set and do the following: Sort By – Select the column you want to use to sort the table data. Your sorting preference persists until you change it or clear the cache. It does not reset even if you log out and in again using the same credentials and role. Use full-width columns – Check this box to display visible columns in full width Visible Columns – Check the box for a column that you want to display on the table.
2. Access the search field to find data in tables. As you enter text in the search field, the mobile app filters the results in the table based on the entries that match the text you type. Results start to filter after you enter one character.
3. Remove the entire text from the search field.
4. Open the column dropdown field to filter your search results. For example, you want to find all purchase orders that still need to be received from a specific vendor. Select the search icon and enter the vendor name in search field, then select Vendor in the dropdown field. To add search tags to filter column data, see Filtering Table Data Through Search Tags.
5. Load the next set of rows to display on the table.

Table Element Controls

Example

1. Table Column icon

Access the Table Configuration popup window, on which you can set and do the following:

Sort By – Select the column you want to use to sort the table data.

Your sorting preference persists until you change it or clear the cache. It does not reset even if you log out and in again using the same credentials and role.
Use full-width columns – Check this box to display visible columns in full width
Visible Columns – Check the box for a column that you want to display on the table.

2. Search icon

Access the search field to find data in tables.

As you enter text in the search field, the mobile app filters the results in the table based on the entries that match the text you type. Results start to filter after you enter one character.

3. Delete text icon

Remove the entire text from the search field.

4. Filter icon

Open the column dropdown field to filter your search results.

For example, you want to find all purchase orders that still need to be received from a specific vendor. Select the search icon and enter the vendor name in search field, then select Vendor in the dropdown field.

To add search tags to filter column data, see Filtering Table Data Through Search Tags.

5. Load Next button

Load the next set of rows to display on the table.

Tables
