Alert Scoring Editor

Select a Scenario Class or a Scenario in the Alert Scoring Editor to display all alert scoring rules that relate to that Scenario Class or Scenario.

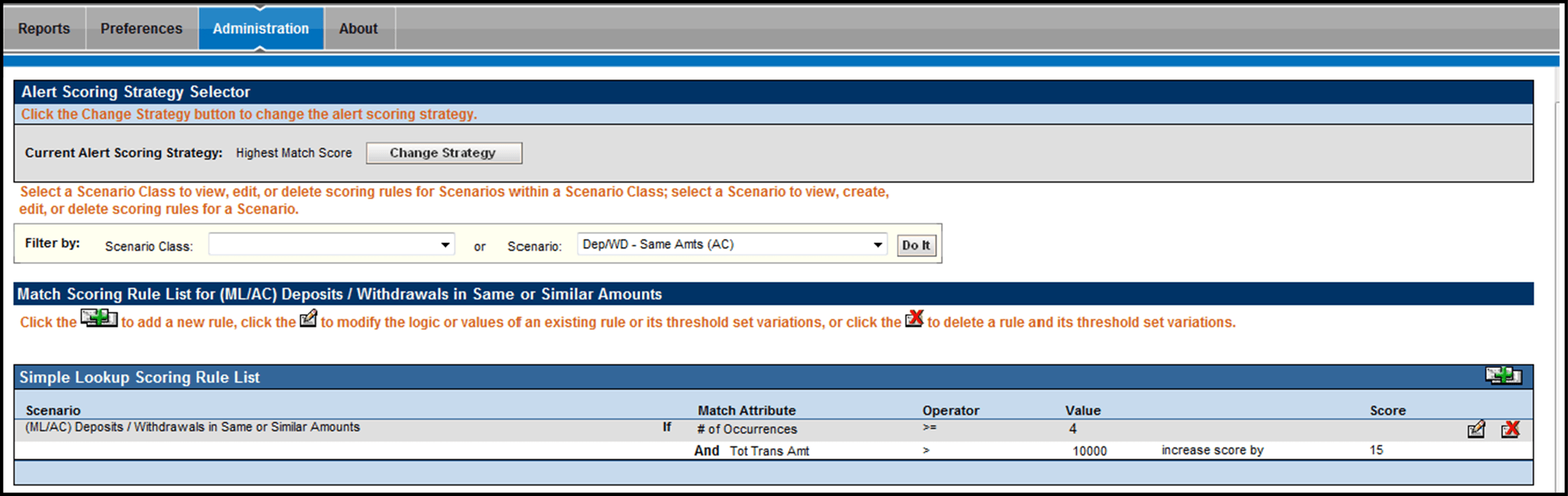

Figure 5-1 Alert Scoring Editor

Description of "Figure 5-1 Alert Scoring Editor"

The Alert Scoring Editor includes the following components:

• Alert Scoring Strategy Selector
• Search Bar
• Alert Scoring Strategy Selector with Match Scoring Rule Lists

The following sections describe these components.

Alert Scoring Strategy Selector

The Alert Scoring Strategy Selector allows you to view and change the strategy for alert scoring.

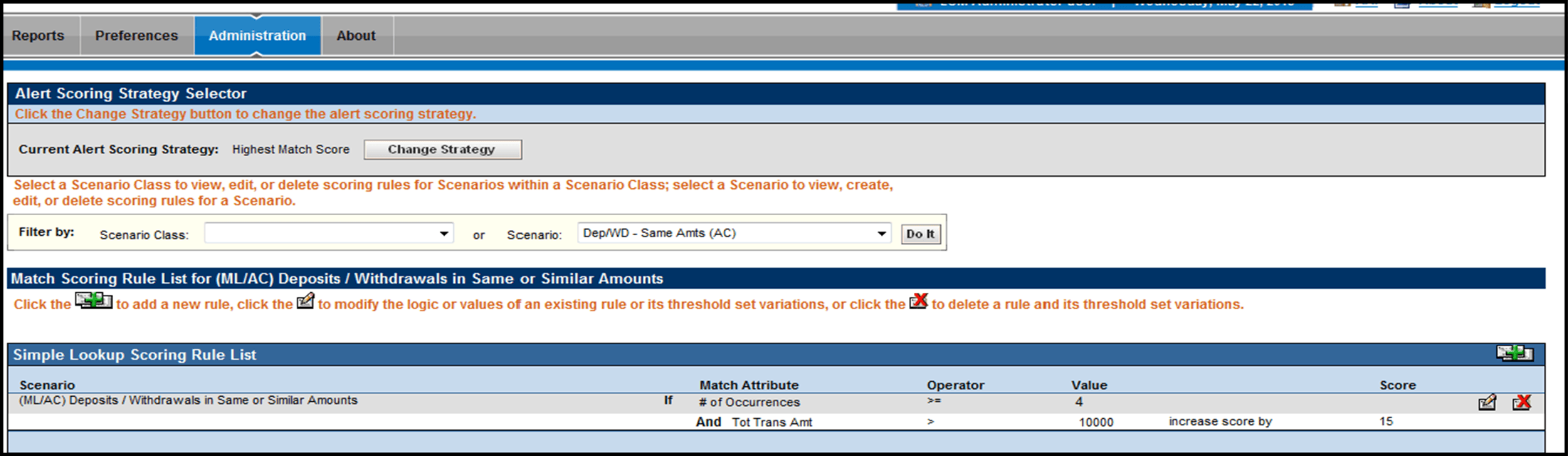

Figure 5-2 Alert Scoring Strategy Selector

Description of "Figure 5-2 Alert Scoring Strategy Selector"

Click Change Strategy to display the following screen elements in the Alert Scoring Strategy Selector:

• Current Alert Scoring Strategy: Displays the name of the currently set alert scoring strategy.
• New Alert Scoring Strategy option buttons: Enables you to select an alert scoring strategy of Highest Match Score or Average Match Score.
  • Highest Match Score: Bases the score of an alert on the most critical match associated with the alert. The system assigns the alert a score equal to the highest score of any of the associated matches.

    For example:

    Match 1 Score = 40

    Match 2 Score = 80

    Match 3 Score = 60

    Alert Score = 80

  • Average Match Score: Assigns an alert a score equal to the average of the scores of the associated matches. The system sums each of the score’s associated matches and divides the total by the quantity of related matches.

    For example:

    Match 1 Score = 40

    Match 2 Score = 80

    Match 3 Score = 60 Alert Score = 60 ((40+80+60)/3)

• Save button: Saves the new alert scoring strategy.

  Note:

  If you change the scoring strategy, a confirmation dialog box displays prompting you to confirm the change. Click OK to continue and save the new strategy.
• Cancel button: Redisplays the Alert Scoring Editor without a change to the alert scoring strategy.

Search Bar

The search bar allows you to filter the list of match scoring rules by Scenario Class or Scenario.

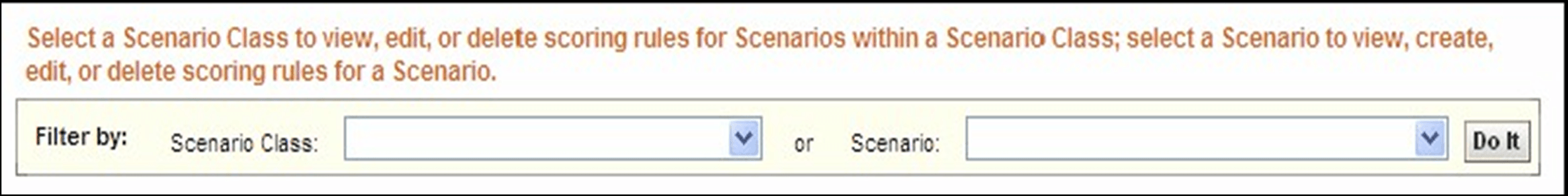

Figure 5-3 Alert Scoring Editor Search Bar

Description of "Figure 5-3 Alert Scoring Editor Search Bar"

Components of the search bar include the following:

• Filter by: Scenario Class drop-down list: Provides all installed Scenario Classes. The values in the Scenario Class drop-down list display in alphabetically ascending order. If you select a Scenario Class, you cannot select a Scenario from the Scenario drop-down list.
• Filter by: Scenario drop-down list: Provides valid long names of all installed Scenarios. Values in the Scenario drop-down list display in alphabetically ascending order by scenario long name.

  If you select a Scenario, you cannot select a Scenario Class from the Scenario Class drop-down list.

• Do It button: Displays all match scoring rules that relate to the selected Scenario Class or Scenario.

Alert Scoring Strategy Selector with Match Scoring Rule Lists

The Match Scoring Rule List displays below the Alert Scoring Search Bar after you select a Scenario Class or Scenario and click Do It. Within the Match Scoring Rule List, each match scoring strategy displays for the selected Scenario Class or Scenario.

Figure 5-4 Alert Scoring Strategy Selector - Match Scoring Rule List

Description of "Figure 5-4 Alert Scoring Strategy Selector - Match Scoring Rule List"

The Match Scoring Rule List includes the following components:

• Areas that contain the list of rules for each of the various match scoring strategies:
  • Simple Lookup Scoring Rule List: Displays the Scenario, Match Binding, Operator, Value, and Score columns for each base scoring rule.
  • Graduated Value Scoring Rule List: Displays the Scenario, Match Binding, Min Value, Min Score, Max Value, and Max Score columns for each base scoring rule.
  • Prior Matches Scoring Rule List: Displays the Scenario, Min Number Matches, Min Score, Max Number Matches, Max Score, Look Back, and Within columns for each base scoring rule.
  • Simple Scenario Scoring Rule List: Displays the Scenario (within rule text) and Score columns for each base scoring rule.
  • Scoring Rule Set: Displays the scoring rule set for a particular scenario.
• Add button: Navigates you to the associated Match Scoring Rule Editor.

  Note:

  The Add button is available only if you select an option in the Scenario drop-down list.
• Update button: Navigates you to the associated Alert Scoring Editor.
• Delete button:Deletes the match scoring rule
