SPARC S7-2 Server Service Manual

Install the Internal HBA Card in PCIe Slot 4

This is a cold-service procedure that must be performed by qualified service personnel. Power down the server completely before performing this procedure.

1. Unpack the replacement HBA card and the SAS cables, and retrieve the PCIe riser for slot 3.

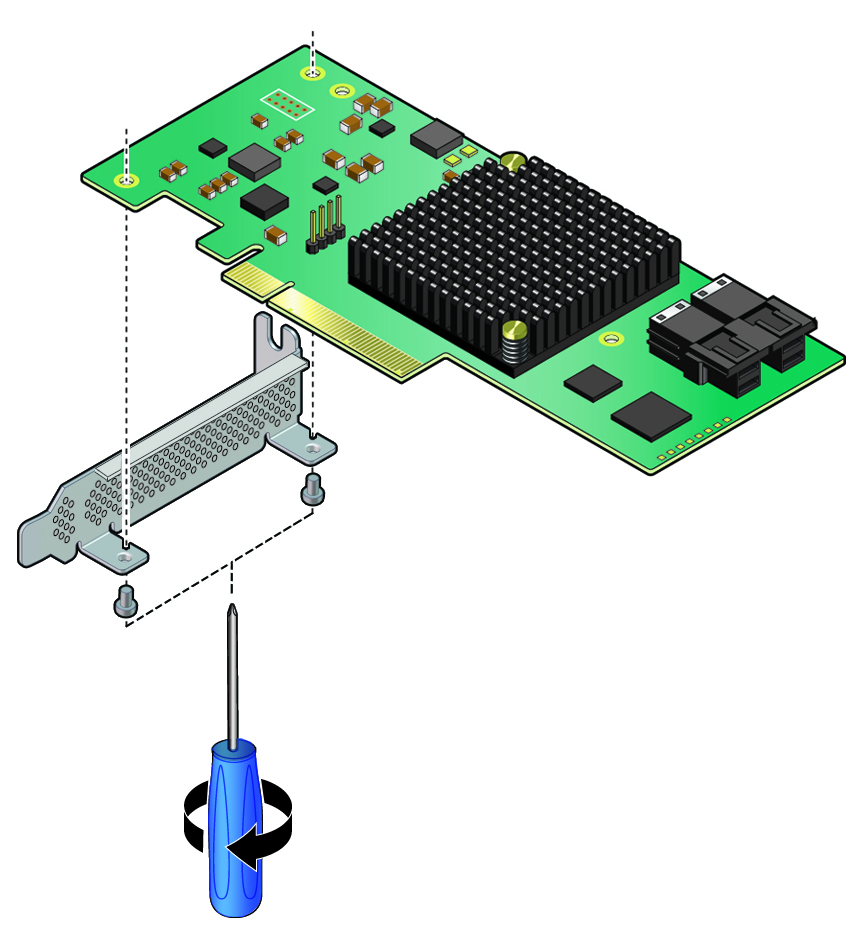

2. Using a T10 Torx screwdriver, remove the standard HBA bracket that shipped with the replacement HBA card.

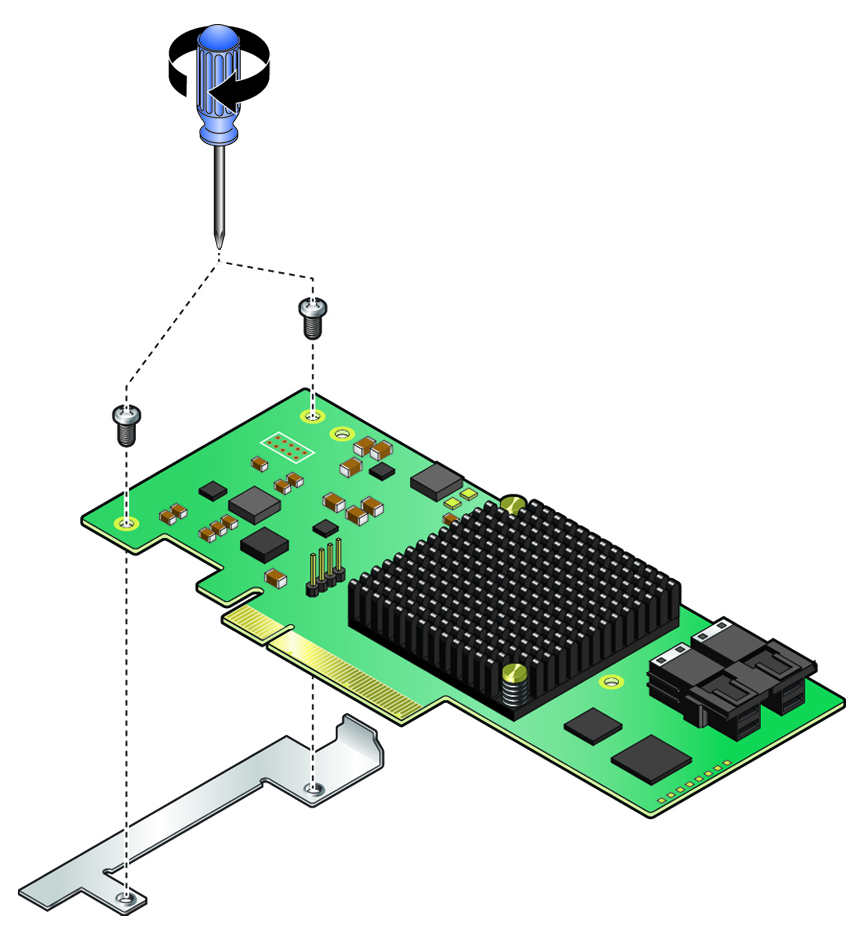

3. Install the special fitted bracket that was removed in Remove the Internal HBA Card From PCIe Slot 4.

4. If you are installing new SAS cables, see Install the HBA SAS Cable Assembly.

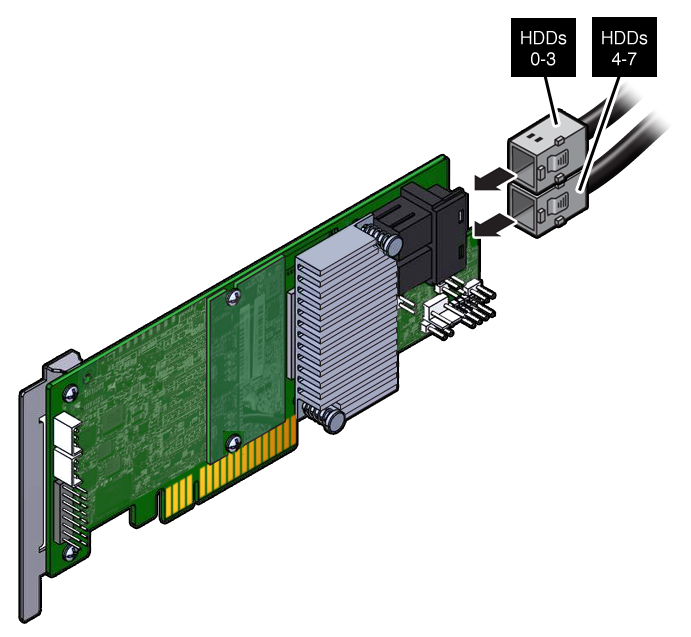

5. Connect the SAS cables to the internal HBA card.

6. Insert the rear bracket on the internal HBA card into the rear connector on the PCIe riser.

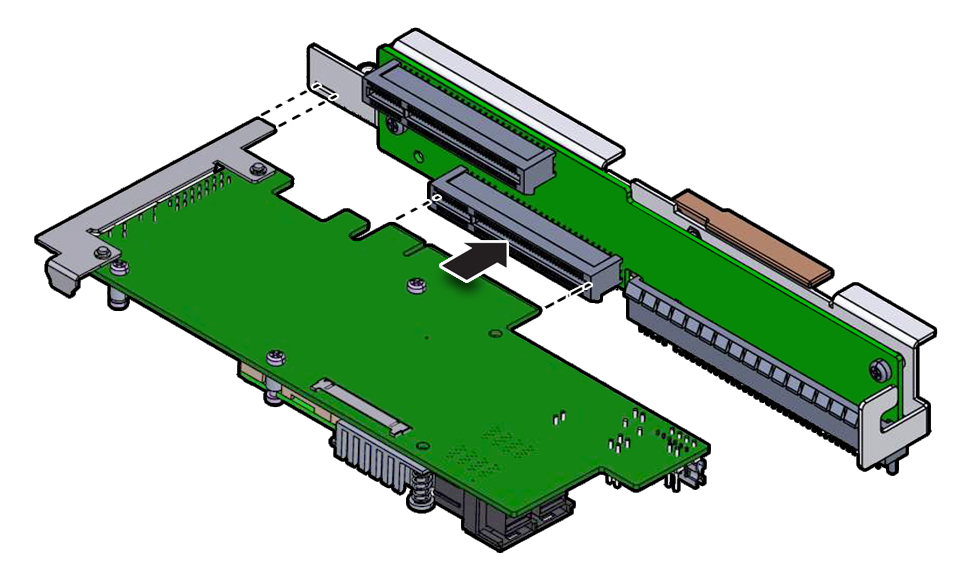

7. Insert the internal HBA card connector into the bottom connector on the riser for PCIe slot 3 and 4.
8. Install the PCIe riser.

   See Install the PCIe Riser Into PCIe Slots 3 and 4.

9. Install fan module FM 0.

   See Install a Fan Module.

10. Return the server to operation.

    See Returning the Server to Operation.
