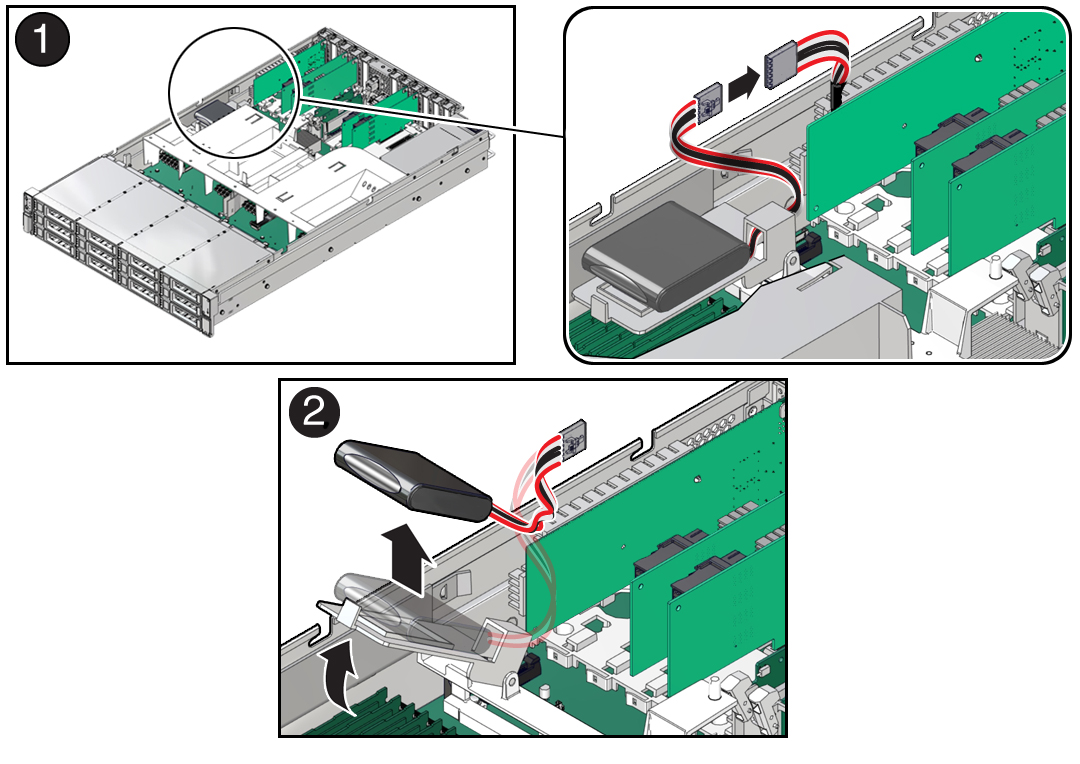

Remove the HBA super capacitor from the chassis.
Note -
If you are removing and replacing only the internal HBA card, you do not
need to remove the HBA super capacitor. You can disconnect the HBA super
capacitor cable from the internal HBA card and then remove the internal HBA
card from the system.
-
Grasp both ends of the cable connector, press in on the release latch,
and then unplug the connector [1].
The HBA super capacitor is secured to the HBA super capacitor tray by
a recloseable fastener, which allows it to be easily removed and
replaced.
-
To separate the HBA super capacitor from the tray, place your fingers
under the super capacitor and lift up [2].
When removing the super capacitor, by careful not to snag the cable on
the tray wire guide. Place the super capacitor on an antistatic
mat.
