Remove the Fan Tray
This procedure should be performed only when servicing the following
field-replaceable units (FRUs):
-
Disk backplane
-
SAS cables
-
NVMe cables
-
Temperature sensor
-
Motherboard assembly
-

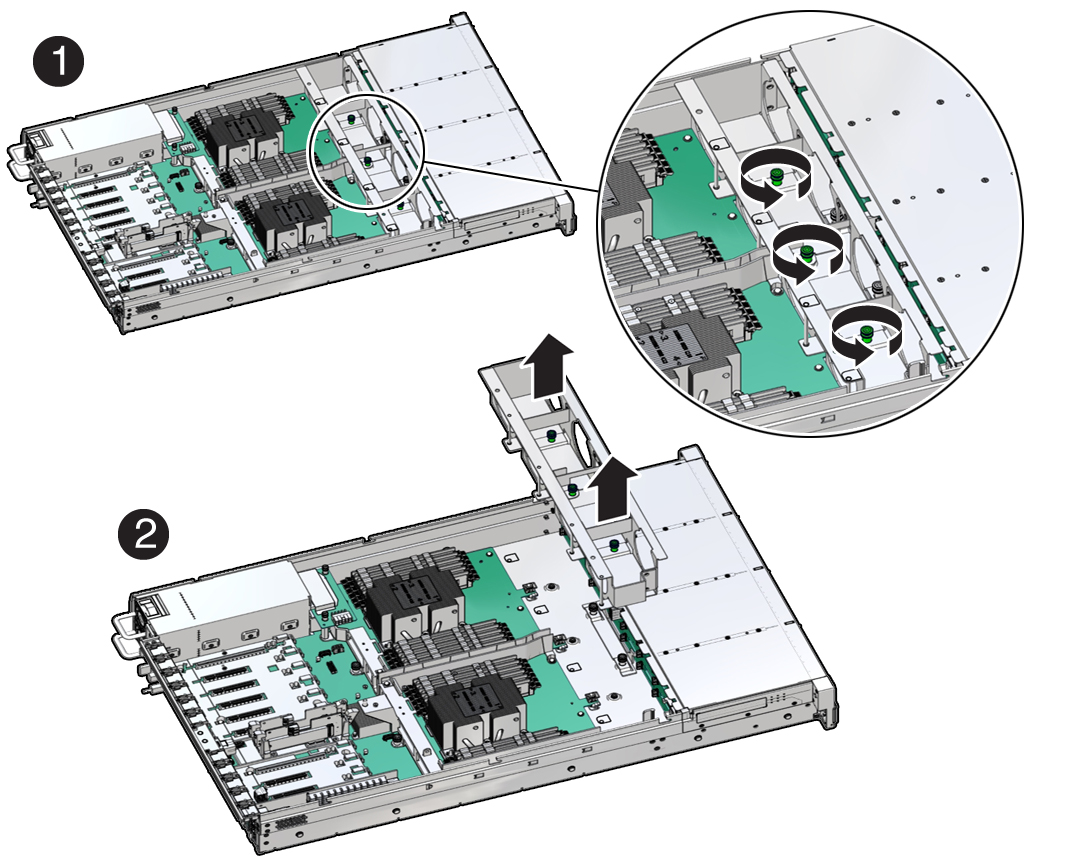

Using a Torx T25 screwdriver, loosen the three spring-mounted screws that
secure the fan tray to the server chassis [1].
-
Lift the fan tray from the server [2].
-
Continue with the next step in the service procedure.
