Install the Fan Tray
This procedure should be performed only when servicing the following
field-replaceable units (FRUs):
-
Disk backplane
-
SAS cables
-
NVMe cables
-
Motherboard assembly
-

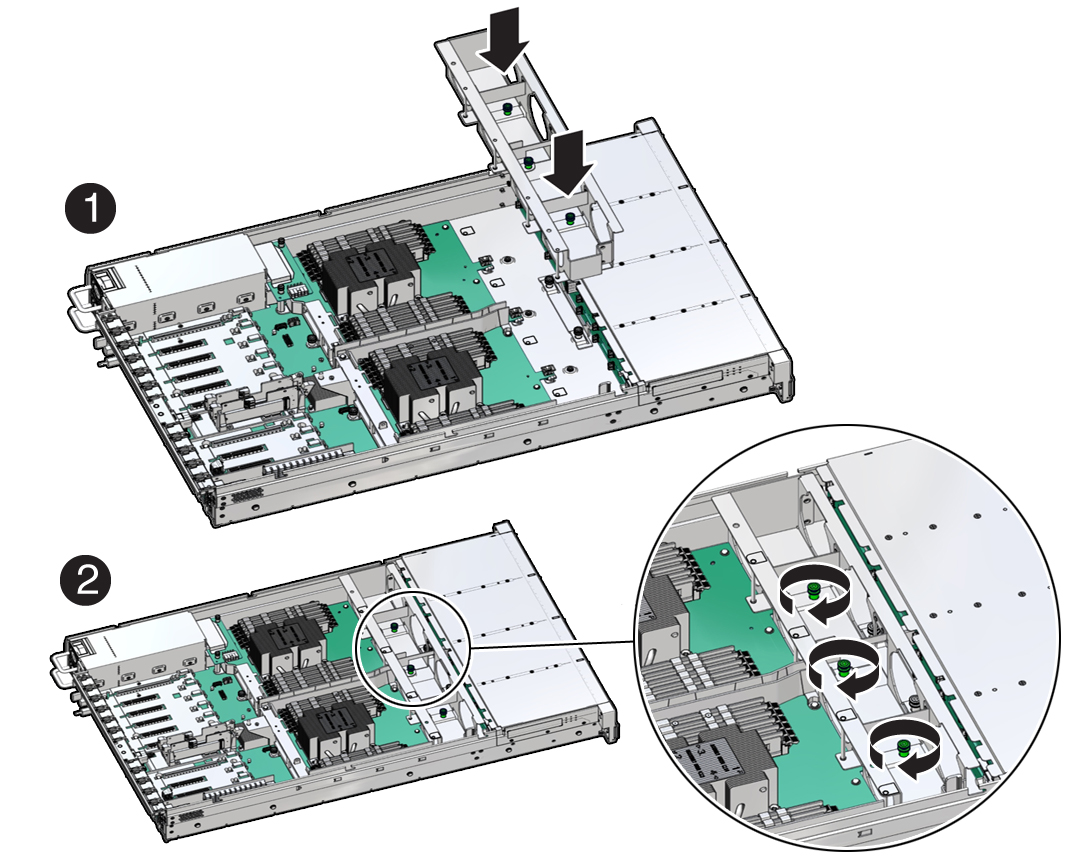

Lower the fan tray into the server [1].
-
Using a Torx T25 screwdriver, tighten the three spring-mounted screws that
secure the fan tray to the server chassis [2].
-
Continue with the next step in the service procedure.
