Storage Drive Locations and Numbering

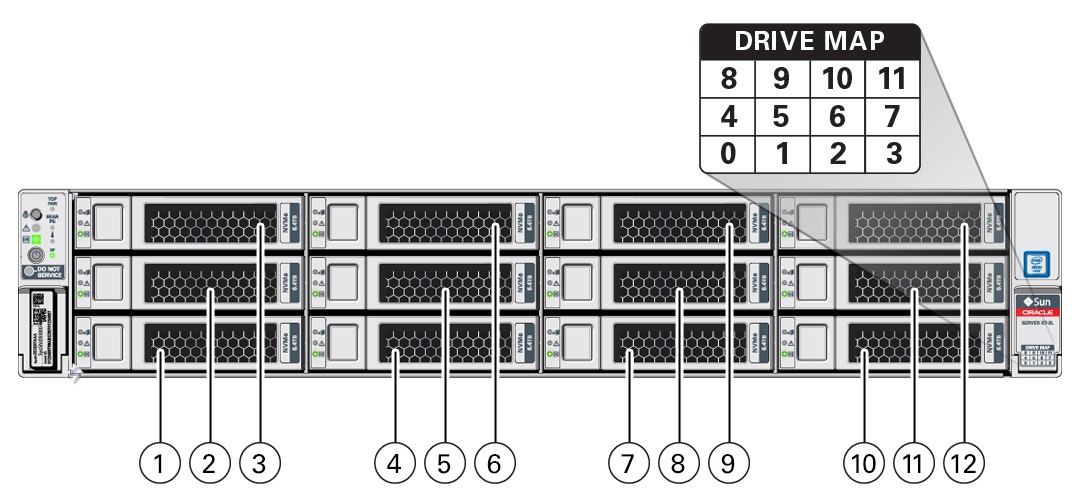

The following illustration shows the location of the drives and the internal system
software designations for the drives. For information on storage drive status indicators
(LEDs), see Storage Drive Status Indicators.
|
|
1
|
Storage drive 0 HDD/SSD/NVMe
|
2
|
Storage drive 4 HDD/SSD/NVMe
|
3
|
Storage drive 8 HDD/SSD/NVMe
|
4
|
Storage drive 1 HDD/SSD/NVMe
|
5
|
Storage drive 5 HDD/SSD/NVMe
|
6
|
Storage drive 9 HDD/SSD/NVMe
|
7
|
Storage drive 2 HDD/SSD/NVMe
|
8
|
Storage drive 6 HDD/SSD/NVMe
|
9
|
Storage drive 10 HDD/SSD/NVMe
|
10
|
Storage drive 3 HDD/SSD/NVMe
|
11
|
Storage drive 7 HDD/SSD/NVMe
|
12
|
Storage drive 11 HDD/SSD/NVMe
|
|
Note -
The NVMe storage drives are labeled NVMe0 through NVMe11; however, operating
systems installed on the server assign different names to the NVMe storage drives.
For the corresponding names assigned to the NVMe storage drives by server operating
systems, see
Server Operating System Names for the NVMe Storage Drives.
