Simple Performance Optimization Tool (SPOT) 2.0 User's Guide

Chapter 3 Understanding SPOT Reports

This chapter discusses the information that is reported by the SPOT software. This chapter contains the following sections:

The Architecture of the SPOT Software

The major tools that spot uses to generate the results are shown in Figure 3–1.

Figure 3–1 SPOT Software Architecture

SPOT Architecture

The tools have the following purposes:

As mentioned previously, each of the tools invoked by SPOT can be invoked stand-alone. With the exception of er_html amd spot_diff, the tools will not produce data in HTML format when invoked stand-alone.

Runtime System and Build Information

The first thing that the spot command does is to record details of the system that was used to run the code and also of how the code was compiled. This can help to reproduce the same results at a later date.

Figure 3–2 SPOT System and Build Information Report

SPOT Information Report

The results in Figure 3–2 came from a Sun Fire™ V880 server with eight 900-MHz UltraSPARC® III+ processors running the Solaris 9 Operating System.

The build information reports that the code was compiled with the flags -g -O and -xbinopt=prepare.

Processor Events

The ripc tool gathers information about what processor events were encountered during the run of the application. The processor has event counters which are incremented either each time an event occurs or each cycle during the duration of an event. Using these counters it is possible to determine values for the cache miss rate, or the number of cycles lost due to cache misses.

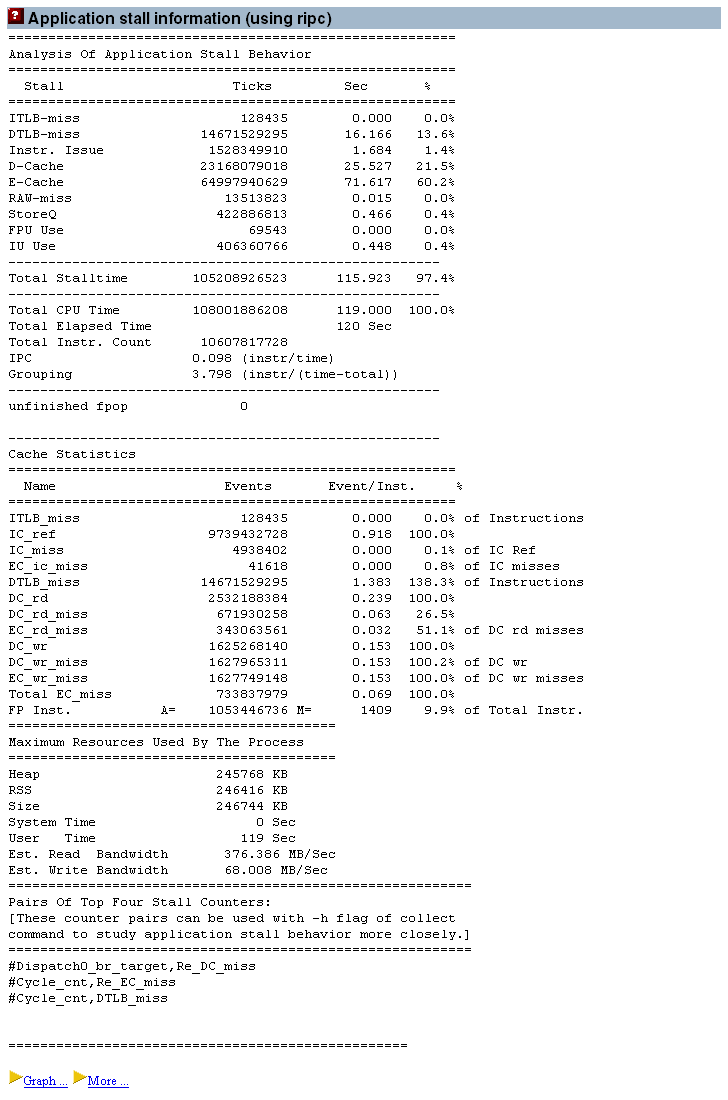

Figure 3–3 Application Stall Information Generated by the ripc Tool

ripc tool output

The output from ripc is a text table. However, it will also generate a graph file if it locates the gnuplot software in the system’s path.

The output from the ripc tool contains several sections. The first section shows the percentage of the total number of cycles lost to each type of processor event. The names of the processor events are those that are used in the User’s Manual for the processor that spot software is running on (these are available from http://www.sun.com/processors/documentation.html). The events are different on different processors. For example an UltraSPARC-III will share some processor events with an UltraSPARC IV+, but other processor events will be different. An obvious example of this is where the UltraSPARC IV+ has a third level of cache which is not present on previous generations.

In this report for the example code shown in Figure 3–3, the time is lost due to Data Cache misses, External Cache misses and Data TLB misses. Together these three types of events account for nearly 98% of the execution count of the benchmark. The Data Cache miss time represents time spent by load instructions which found their data in the External Cache. The External Cache miss time is accumulated by load instructions where the data was not resident in either the Data Cache or the External Cache, and had to be fetched from memory. The Data TLB miss time is caused by memory accesses where the TLB mapping is not resident in the on-chip TLB, and has to be fetched using a trap to the operating system.

Immediately following the reports of percent time spent in the various stall events is a section which summarizes the efficiency of the entire run. The IPC is the number of instructions executed per cycle. The Grouping IPC is an estimate of what the IPC would be if the processor did not encounter any stall events.

After this section, there is a single line reporting the number of unfinished floating point traps. These traps can occur in some exceptional circumstances on most UltraSPARC processors. They can take a significant time to complete, and are also hard to observe in the profiles. Most of the time this count should be zero, but if there are a large number of such events, it is definitely worth investigating what is causing them.

Next, there is a section which reports the number of events that occurred as a proportion of the total number of opportunities for the events to occur. For example, the number of cache misses as a proportion of cache references.

The final numeric section is a report on the memory utilization for the application, and the user and system time.

A final part of the report is a note which the SPOT software uses to select the performance counters that should be profiled if more detail is required.

As mentioned earlier, the ripc tool will also produce a report of how the events occurred over the entire runtime. In Figure 3–4, the number of TLB misses is shown over the run of the application.

The tool ripc can also be invoked stand-alone, outside of spot. Type ripc -h to get a list of the options, and consult the ripc man page for more details.

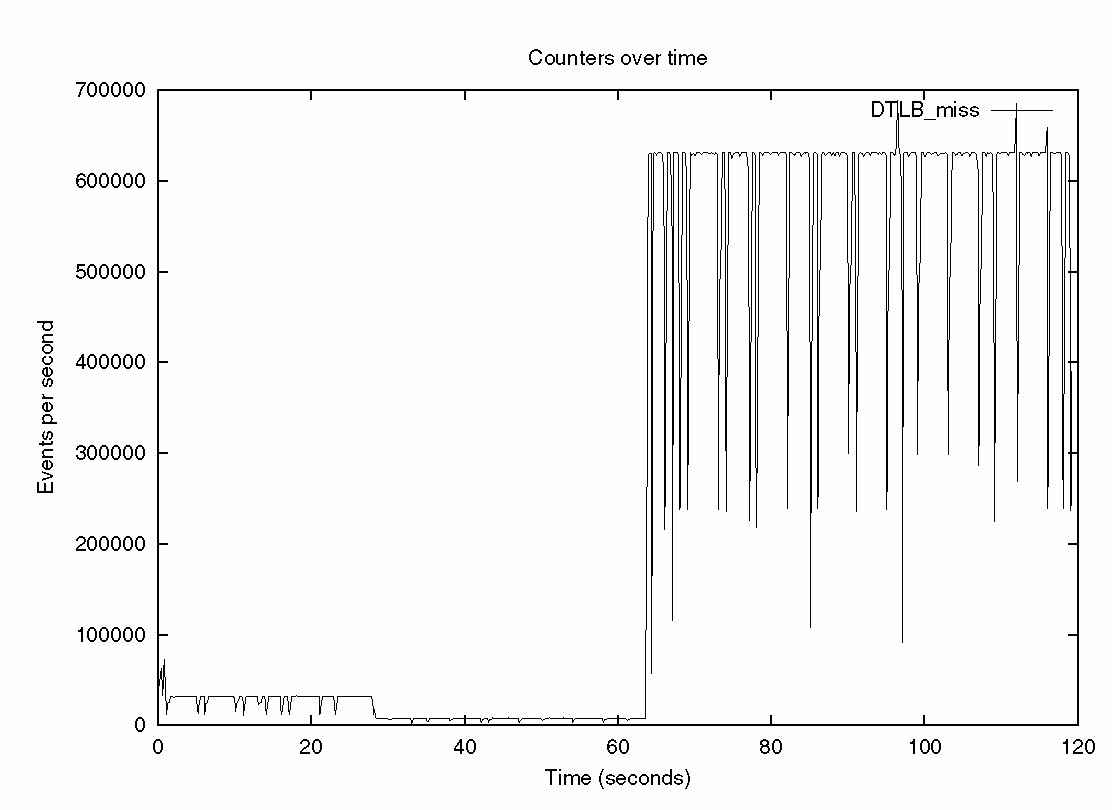

Figure 3–4 Report Showing the Number of TLB Misses Over the Run of the Application

Graph of TLB Misses

The three phases of the test application are clearly shown. There are few TLB misses in either of the first two phases, but large numbers are shown during the execution of the final tlb_misses routine.

Instruction Frequency Data

The Binary Improvement Tool (BIT) generates a report on the frequency with which different assembly language instructions are used during the run of the application. This provides a more detailed kind of instruction count.

The BIT software does not give information about the performance of the application, but it does give information about what the application is doing. For example, the BIT software will show how many floating point instructions are executed. There are a couple of terms used in the BIT software’s output which are worth elaborating on.

The report from the BIT software includes information on the number of instructions executed, and of these instructions how many were located in delay slot and how many instructions were annulled (not executed).

Figure 3–5 Report from BIT Showing the Frequency of use of Assembly Language Instructions

Instruction Fequency Report

Note –

The BIT software works by running a modified version of the application. The modified version contains instrumentation code which gathers counts data over the course of the run of the application. For this to work, it is necessary for the application be compiled with the compiler flag -xbinopt=prepare, and an optimisation level of -xO1 or higher.

Note –

In this release the BIT software will not gather data on shared library calls made by the application. More information on this topic can be found in the BIT User’s Guide and man page.

The tool BIT can also be invoked stand-alone, outside of spot. Type bit -h to get a list of the options, and consult the BIT man page and the BIT User’s Guide for more details.

System-Wide Bandwidth

It is not possible to measure the bandwidth consumption of a single process, since one process can read memory that is attached to processors running other processes. Hence the bandwidth reported here is system wide. A consequence of this is that it is not possible to attribute the memory activity to a single process if there are multiple processes running on the system. Bandwidth data will be collected by SPOT if the -X flag is specified, and if SPOT has root privileges.

The tool bw can be also be invoked stand-alone, outside of spot. Type bw -h to get a list of the options, and consult the bw man page for more details.

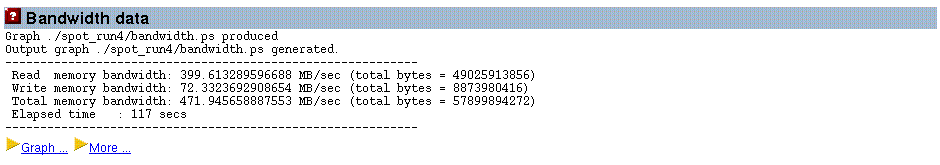

The average bandwidth consumption over the entire run of the test program is reported as shown in the figure below:

Figure 3–6 Average System-Wide Bandwidth Consumption

System Wide Bandwidth Report

If the gnuplot software is installed, then this data will also plotted as a graph, as shown in Figure 3–7.

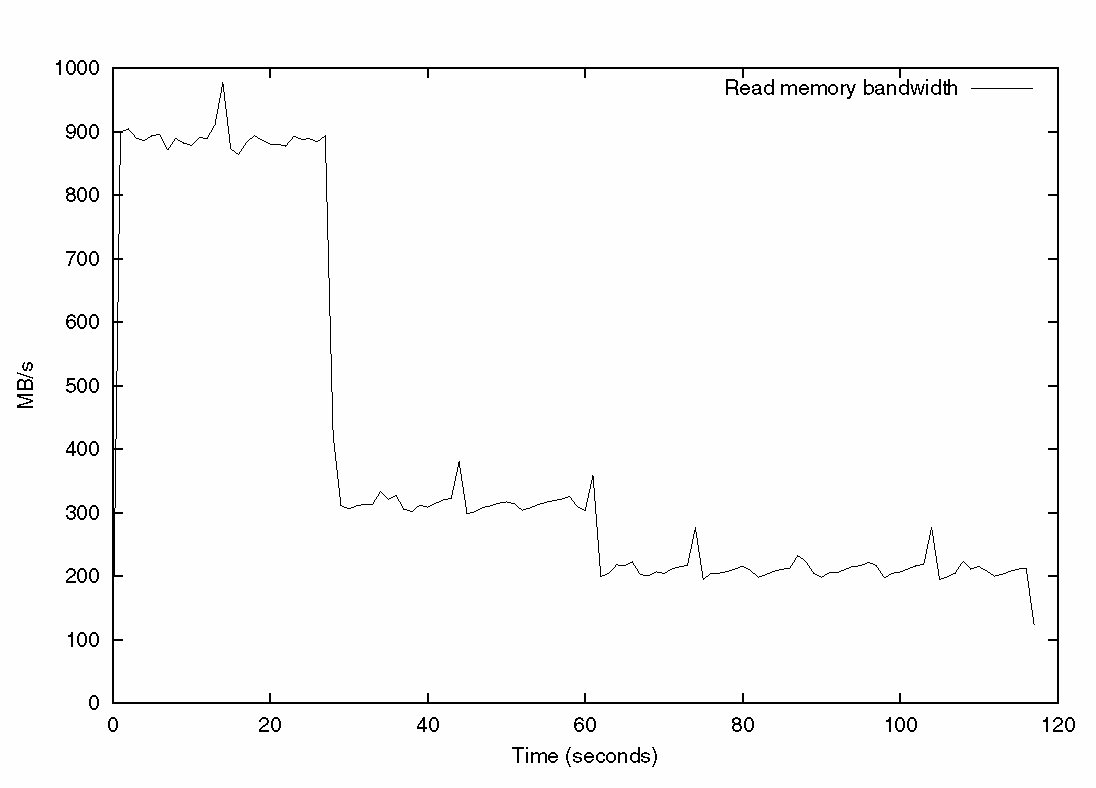

Figure 3–7 Graphic Showing the Read Memory Bandwidth Consumed Over an Application Run

Read Memory Bandwidth Graph

Figure 3–7 shows the read memory bandwidth consumed over the entire run of the application. The routine fp_routine consumes the most bandwidth because it is three streams of data being used by the processor. The other two routines use less bandwidth because they are pointer chasing, and, therefore, more tests of memory latency.

System-Wide Trap Information

Trap data is provided by running the trapstat software for the duration of the run of the application. However, trapstat is invoked to count system wide traps, not just the traps that are due to this process, so it is not possible to distinguish traps generated by the target process from those generated by other processes running on the machine.

SPOT will gather trap data when passed the -X flag. Trap data is only available if the user has root privileges.

The tool traps is also available stand-alone, outside of spot. Type traps -h to get a list of the options, and consult the traps man page for more details.

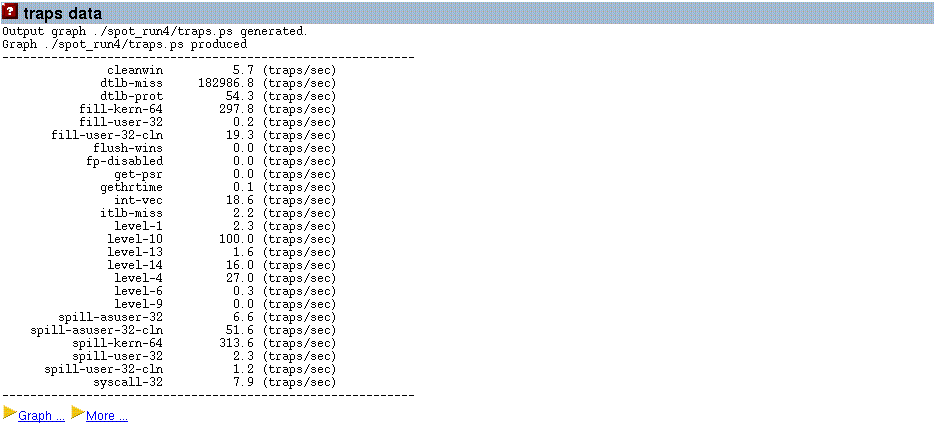

Figure 3–8 shows that the trap data is reported as a text summary.

Figure 3–8 System-Wide Trap Data Information

System Wide Trap Information

The table reports the average number of traps encountered per second. If the gnuplot software is installed, the results will also be reported as a graph of traps over time.

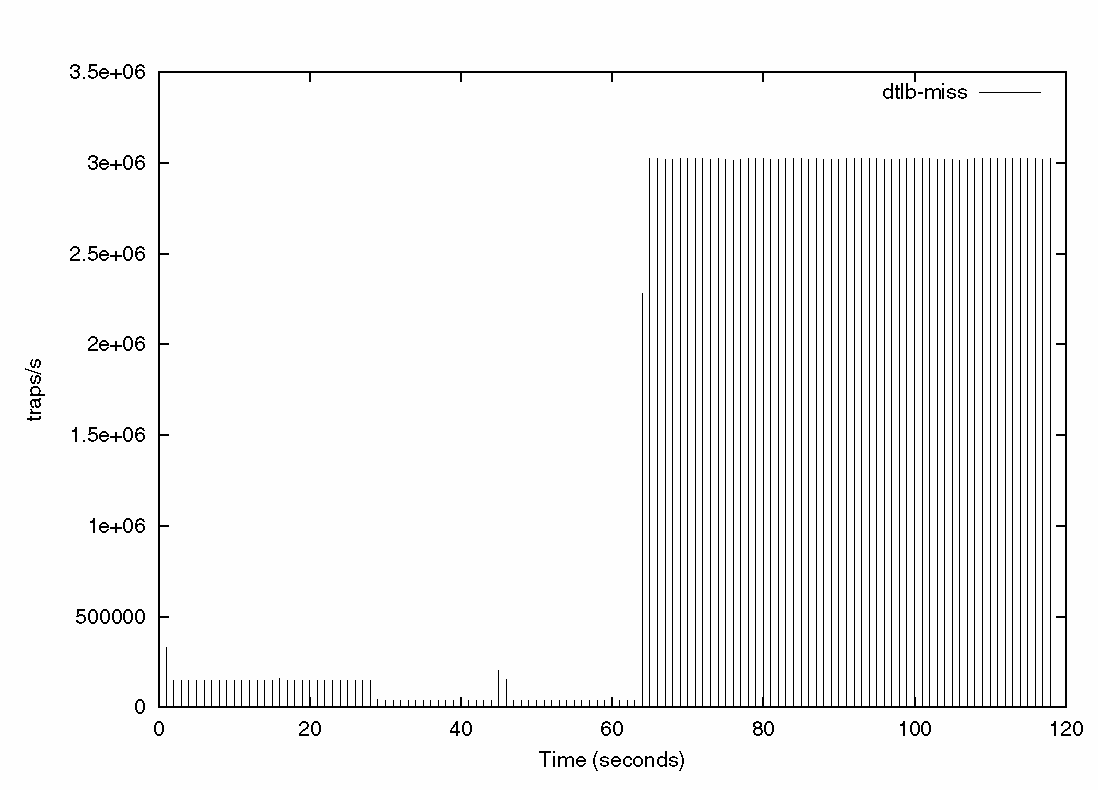

Figure 3–9 Graph Showing the System-Wide Traps Recorded Over Time

Traps Graph

In the graph shown in Figure 3–9, the number of TLB traps is reported over the entire run of the test application. As expected, the traps reported by trapstat correspond to the traps reported by the performance counter on the processor.

Profiling Where the Processor Events Occur

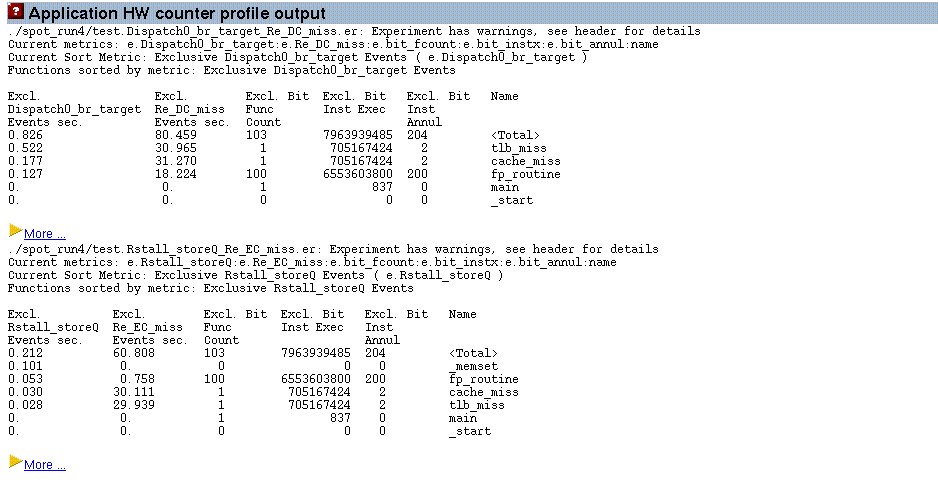

If extended information is requested by specifying the -X flag, then the SPOT software will profile the application using the performance counters that contribute most stall time to the run of the application. This generates several profiles of the application which indicate exactly where in the code the events are occurring. Figure 3–10 shows the summary that is presented on the SPOT report.

Figure 3–10 Application Hardware Counter Profile

Hardware Counter Profile

Following the More hyperlinks on this page will take you to a more detailed display of source code (if the application was compiled with -g and the source code is accessible) and disassembly code.

From the results shown in Figure 3–10 it is apparent that the External Cache (EC) misses are mainly attributed to the cache_miss and tlb_miss routines.

Time Based Profile of the Application

The index page of the SPOT report shows a summary of which routines consumed the most runtime. Following the More hyperlink below the summary leads to a page which allows exploration of the application in more depth. Figure 3–11 shows this page for the test application.

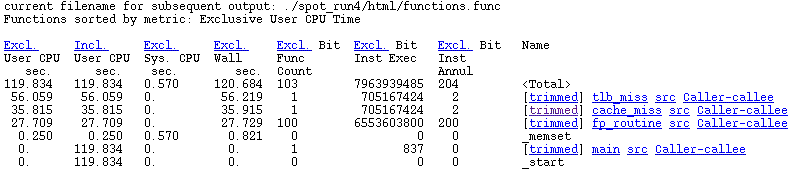

Figure 3–11 Profile Providing Data and Links to Specific Routines

Profile of Specific Routines

The hyperlinks at the top of the page allow the data to be reordered according the the various columns. The columns are as follows:

On the right of the page are links to the routines:

Figure 3–12 shows how time is attributed at the source code level. The line starting with ## and highlighted in yellow indicates the line of source which has a high count for one of the events. In this case it has a high count for user time and also dynamic instruction count. The source code also includes compiler commentary about the two loops shown in the code.

Figure 3–12 How Time is Attributed at the Source Code Level

Source view

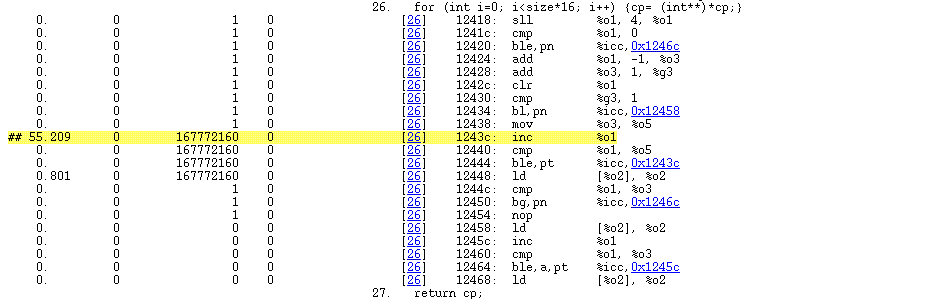

The disassembly view normally holds much more specific information, as shown in Figure 3–13.

Figure 3–13 Disassembly View

Disassembly View

Again a hot line of disassembly is shown highlighted in yellow. The execution counts for the individual assembly language instructions are also shown, so it is visible that the loop is entered once, and iterated nearly 170 million times. The hyperlinks enable rapid navigation to either the line of source that generated the disassembly instruction or the target of a branch instruction.

The final page generated is a page of the callers and callees of the various functions. Callers are the functions that call a given routine, the callees are the functions that the routine calls. An example of this is shown in Figure 3–14.

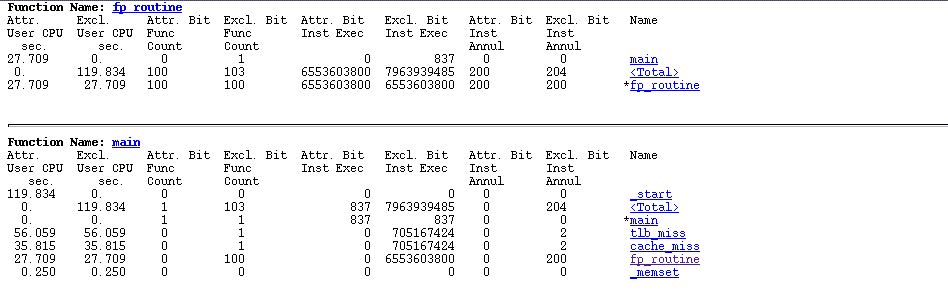

Figure 3–14 Page Showing the Callers and Callees of Functions

Caller-Callee Report

The caller-callee information is quite complex to read. The routine of focus is indicated by an asterisk. For example take the second section which is for the routine main. The routine main has an asterisk on the left of it, meaning that it is the selected routine. There are two routines above it _start and <Total>. <Total> is a synthetic metric representing the runtime of the entire code. This information is interpreted as “the routine main gets called by the routine _start”. Below the routine main there are four other routines; these routines are routines that get called by main.

The first column is the attributed user time, which is the amount of time that can be attributed to the selected routine. This is best explained by examining the main routine again. For the routine _start there is about 120 seconds of user time attributed to the routine; this time is the time that _start spends calling the routine of interest, in this case main. The attributed time for the routine main is zero– which indicates that no time is actually spent in that routine. The attributed time for the four routines below main will sum up to the 120 seconds.

The routine fp_routine shows a second example. In this case 27 seconds are spent by the routine main calling fp_routine. However, all those 27 seconds are directly spent in the routine fp_routine.

The hyperlinks in the caller-callee page allow navigation up and down the call graph, and also to the disassembly code for the actual routines.

The profile data discussed in this section was collected with collect. The tool collect can also be invoked stand-alone, outside of spot. The experiment data collected by collect can also be examined by using analyzer or er_print. Experiment data collected by collect can also be converted to HTML format by using er_html as a stand-alone tool, outside of spot. See the man pages for collect, analyzer, and er_print for more details on these tools. Also, type er_html -h and consult the er_html man page for more information on using er_html.

The spot_diff Report

The script spot_diff is automatically run by SPOT after each new set of SPOT data is gathered. This tool compares each new run with the preceding ones. The output from the spot_diff script is the spot_diff.html file that is found in the directory where the experiments are being recorded. The spot_diff.html file contains several tables that compare SPOT experiment data in a tabular HTML format. Large differences are highlighted to alert the user to possible performance problems.

It is also possible to call spot_diff from the command line for situations where greater control over the particular experiments is required. An example of such a commandline is:

spot_diff -e <experiment1> -e <experiment2> -o <output_file>

The spot_diff man page, included in the CMT Developer Tools distribution, contains complete usage information.

To explain spot_diff output, in this section we will examine a spot_diff.html file which was automatically generated after running two Spot experiments based on the code in Example 2-3. The first run was compiled with the Sun Studio 12 compiler with -xO2 optimization and the second run used -fast. The output from the run with -xO2 optimisation was recorded in the directory -O2_1, the output from the run with -fast optimisation was recorded in the directory fast_1.

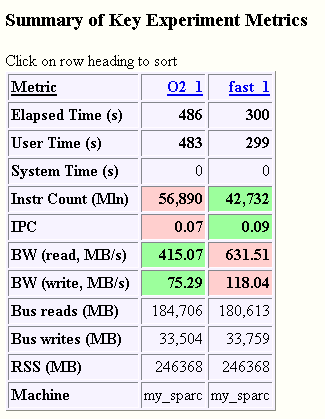

Figure 3–15 Summary of Key Experiment Metrics

Key Metrics

The Summary of Key Metrics section compares several top-level metrics for the two experiments. We see that by enabling higher compiler optimization both the runtime and number of executed instructions decrease. It is also apparent that the total number of bytes read and written to the bus are similar, but because the "-fast" experiment ran more quickly its bus bandwidth is correspondingly higher.

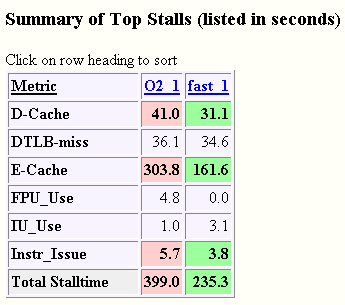

Figure 3–16 Summary of Top Stalls

Top Stalls

The top causes for stalls are printed in two tables, one by percent execution time and the other in absolute seconds. Depending on the application under observation or user preference, one or the other may be more useful in identifying a performance problem. In the example used here it may be more useful to look at the top stalls printed in seconds because the two runs are doing the same work.

The table shows that the optimizations enabled by -fast significantly reduce the cache related stalls but have little effect on the Data TLB stall time. We also see that Floating Point Use stalls were nearly eliminated in the -fast run. By clicking on the column heading hyperlinks to go to the individual SPOT experiments’ profiles it can be learned that:

  1. Prefetch instructions are responsible for reducing the cache stalls

  2. Better code scheduling eliminated back-to-back floating point operations which reduced the Floating Point Use stalls

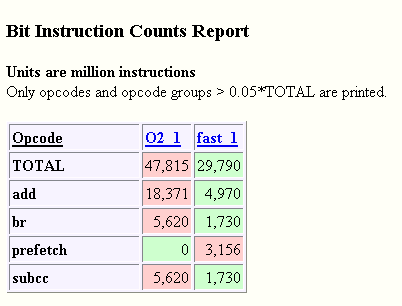

Figure 3–17 Bit Instruction Counts Report

Bit Instruction Counts

The binary was compiled with -xbinopt=prepare, so SPOT was able to gather instruction count data. The difference in instruction count between the binary compiled at -xO2 and at -fast is mostly due to unrolling (and to a much lesser extent, inlining) done by the compiler at -fast which greatly reduces the amount of branches and loop-related calculations. The prefetch instructions that appear only with -fast optimization also appear in this table, and are largely responsible for the better cache performance in the -fast experiment. Only instructions that show both high variance between experiments and a high total count are printed in this table. For example, both experiments have a large number of floating point loads which are not listed in this table because the counts were largely the same in the two experiments. Detailed Bit data can be seen by clicking down into the individual Spot experiments.

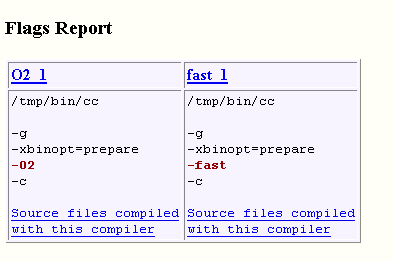

Figure 3–18 Flags Report

Flags Report

Here we see that the only difference in the compiler flags between the two experiments is the optimization level, as expected.

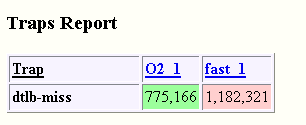

Figure 3–19 Trap Rate Report

Trap Rate Report

While the total number of Data TLB traps in the two experiments are roughly the same, the trap rate, as reported, is higher in the -fast experiment because it runs in less time. All other trap rates (which can be seen in the hyperlinked Spot reports) were too low to report in this example.

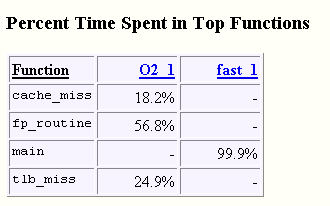

Figure 3–20 Time Spent in Top Functions

Top Functions

As in the section showing top Stall Data, these tables are presented in both percent time and in seconds of execution time. In either table it is apparent that the functions cache_miss(), fp_routine() and tlb_miss() are inlined when compiling at -fast but not at -xO2.

Notes on the SPOT report

There are some final points to be aware of when using SPOT reports.
