To Install the Converged Network Adapter

Language:

If the system in which you are installing the adapter is running the Oracle Solaris OS, install the two driver patches for your platform, as listed in Operating System and Technology Requirements.

Refer to your system installation or service manual to determine an appropriate PCI Express slot in which to install the Converged Network Adapter.

Refer to your system documentation to shut down, power off, and unplug the system, if necessary.

If you do not want to replace the PCI bracket, skip to step 6. Otherwise, if you want to replace the PCI bracket, perform these steps:
Note - The Converged Network Adapter comes with a low-profile PCI bracket installed. This bracket is approximately 3.11 in. (7.9 cm) long. A standard mounting bracket, which is approximately 4.75 in. (12.6 cm), is provided with each order.
1. Remove the SFP(s), if installed.
  Caution - Do not replace any of the SFP+s. Doing so will void the warranty or serviceability of the Converged Network Adapter.

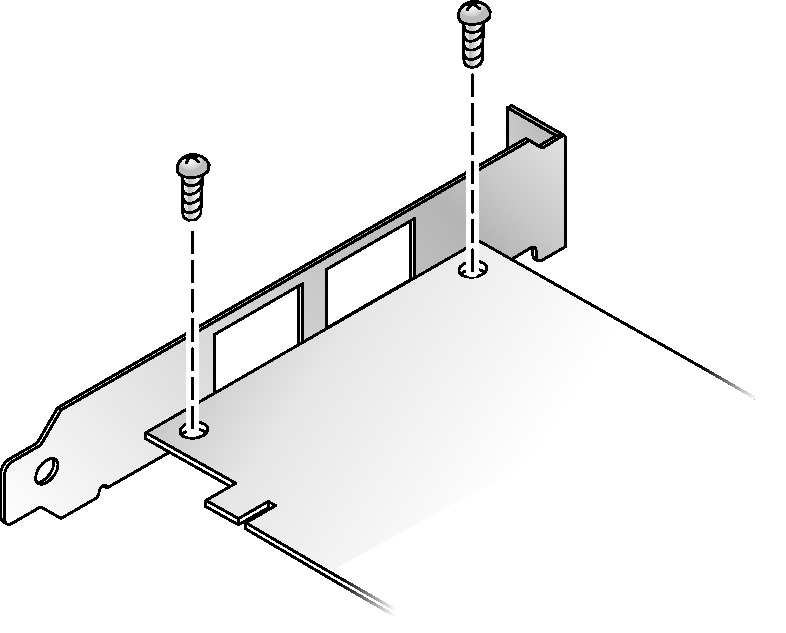

2. Remove the mounting bracket screws from the adapter (See the following figure.).
3. Remove the bracket and store it for future use.
4. Align the new mounting bracket tabs with the holes in the adapter.
  Note - Be careful not to push the bracket past the grounding tabs of the transceiver housing. Ensure that the LEDs are properly aligned with the holes in the bracket.
5. Replace the screws that attach the adapter to the bracket.
6. Reinstall the SFP(s), if removed in step a.

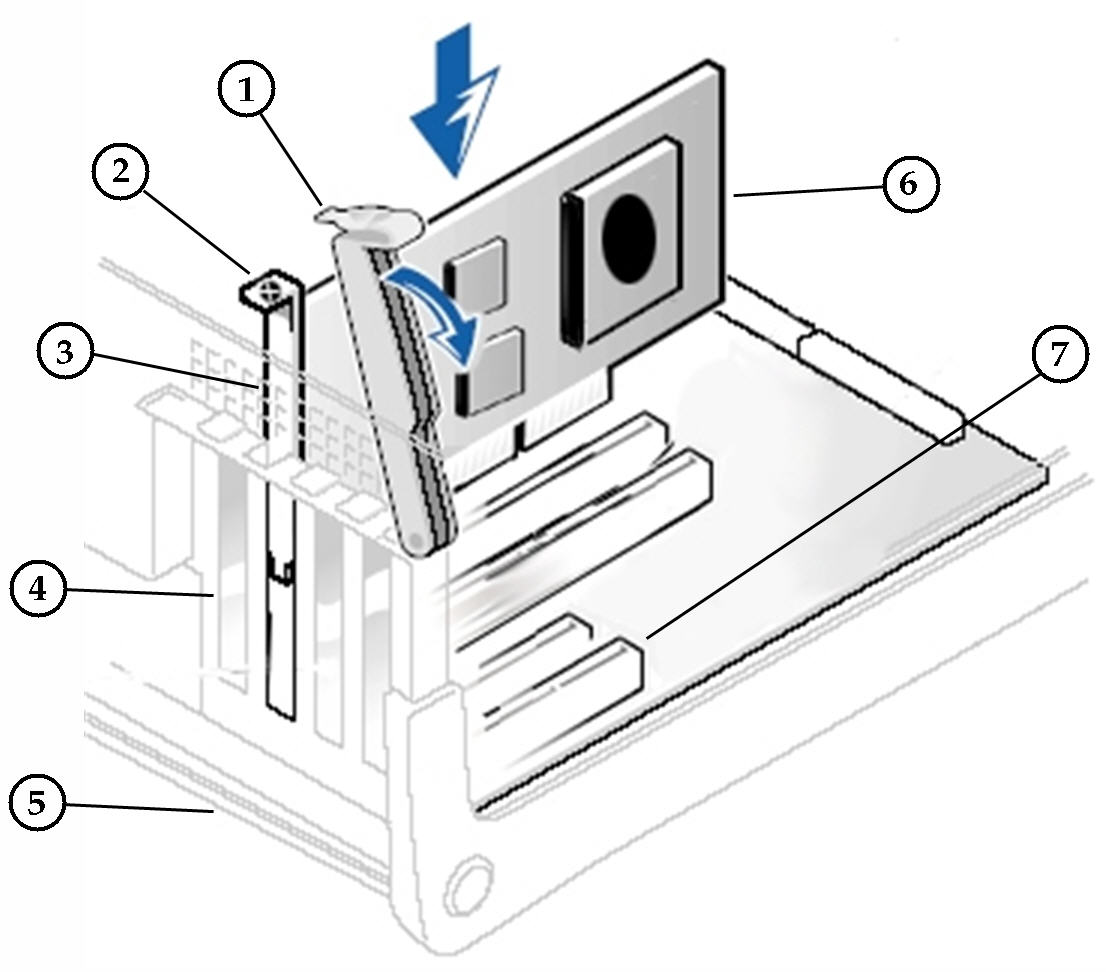

Insert the adapter into the empty PCI Express x8 or larger slot.
image:Inserting the Converged Network Adapter

Secure the mounting bracket of the adapter to the case with the panel screw or clip.

Replace the system case and tighten the case screws.
The adapter is now installed and you can connect the optical or copper cables.
